AnyTone AT 778 User manual

A1.160105

We only do best radio!
Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect
& Valuable. AT-778 mobile radio especially designs for drivers and it pursues
company philosophy of innovation and practicality.
NOTE
When programming the transceiver, read the factory initial data rstly, then rewrite the frequency and signaling etc.,
otherwise errors may occur because of different frequency band etc..
Models Apply To This Manual:AT-778V/AT-778U Mobile radio
AT-778 Mobile Radio Applicable Software: AT-778

Thank you for choosing this vehicle transceiver,
always provides high quality products, And this transceiver is no
exception. As you learn how to use this transceiver, you will find that
is pursuing "user friendliness". For example, each time you
change the menu no. in Menu mode, you will see a text message on the
display that lets you know what you are conguring.
Though friendly design for user, this transceiver is technically
complicated and some features may be new to you. Consider this
manual to be a personal tutorial from the designers, allow the manual to
guide you through the learning process now, then act as a reference in
the coming years.
Do not attempt to configure your transceiver while driving, it is
dangerous.
This transceiver is designed for a 13.8V DC power supply. Don't use
a 24V battery to power on the transceiver.
Do not place the transceiver in excessively
dusty, humid or wet areas, nor unstable
surfaces.
Please keep it away from interferential
devices (such as TV, generator etc.).
Do not expose the transceiver to long
periods of direct sunlight nor place it close
to heating appliances.
If an abnormal odor or smoke is detected
coming from the transceiver, turn OFF the power immediately.
Contact an Anytone service station or your dealer.
Do not transmit with high output power for extended periods; the
transceiver may overheat.
Please observe the following precautions to prevent re, personal injury,
or transceiver damage:
Precautions
OFFNO

CONTENTS
New and Innovative Features....................................................1
Supplied Accessories/Optional Accessories .......................2
Supplied Accessories.......................................................................2
Optional Accessories .......................................................................2
Initial Installation ..........................................................................3
Mobile installation ............................................................................3
DC Power Cable Connection ...........................................................3
Antenna Connection ........................................................................5
Accessories Connections.................................................................5
Getting Acquainted ......................................................................7
microphone ......................................................................................7
Front panel.......................................................................................8
Rear panel .......................................................................................8
DISPLAY ..........................................................................................9
WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL
TRANSCEIVER).................................................................................10
Basic Operations ..........................................................................11
Switching The Power On/Off............................................................11
Adjusting The Volume ......................................................................11
Switch between VFO and Channel mode ........................................11
Adjusting Frequency/Channel.......................................................... 11
Receiving .........................................................................................11
Transmitting .....................................................................................11
Transmitting Tone-Pulse ..................................................................12
Roger beep ......................................................................................12
ransmitting audio signal ...................................................................12
Channel Edit ....................................................................................12
Channel Delete ................................................................................12
Shortcut Operations ....................................................................13
squelch off/squelch off momeNTARY...............................................13
Squelch level Setup .........................................................................13
Frequency/Channel Scan ................................................................13
Scan Skip.........................................................................................13
CTCSS/DCS Encode and Decode setup......................................... 13
Channel Scan ..................................................................................14
DCS SCAN ......................................................................................14
FM radio...........................................................................................14
Power level control...........................................................................14
Offset Direction and offset frequency setup.....................................15
KEYPAD LOCKOUT ........................................................................15
Function Menu...............................................................................16
Signaling Combination setup ...........................................................16
HIGH/MID/LOW Power Selection ....................................................16
Band-width Selection .......................................................................16
Busy Channel Lockout .....................................................................16
Roger Beep......................................................................................17
Audio signaling call setup ................................................................17
Editing Channel NAME ....................................................................17
TX OFF ............................................................................................17
Reverse TX/RX ................................................................................17

CONTENTS
Talk Around ......................................................................................18
Frequency Step Sie Setup ...............................................................18
Squelch Level Setup ........................................................................18
Display mode setup .........................................................................18
Apo Setup ........................................................................................18
Pilot Frequency ................................................................................ 19
TOT(Time Out Timer).......................................................................19
Scan Dwell Time Setup....................................................................19
MIC Gain Setup ...............................................................................19
LCD contrast ratio setup ..................................................................19
Backlight color..................................................................................19
backlight brightness .........................................................................20
voice prompt setup...........................................................................20
Automatic Power on......................................................................... 20
Reset Factory Default ......................................................................20
Programming Software Installing and Starting (in windows
XP system)......................................................................................21
Install USB Cable Driver Programme ..............................................21
Maintenance ...................................................................................22
Default Setting after Resetting .........................................................22
Trouble Shooting..............................................................................22
Specications ................................................................................23
Attached Chart...............................................................................24
50 groups CTCSS Tone Frequency(Hz) ..........................................24
1024 groups DCS Code................................................................... 24

1
1
New and Innovative Features
AT-778 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio
especiallydesigns for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:
Display on a large LCD with adjustable brightness, convenient for nighttime use.

Amateur mode and professional mode for different operation requirement.

Distribute buttons reasonably, convenient for operation.

Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation.

512 programmable memory channels, identiied by editing name.

Sperate CTCSS, DCS setting for each single channel, rejecting extra calling from other radios.

Various scan functions including CTCSS/DCS Scan function.

Seperate band width setting for each single channel.

Programmable RB/CALL function.

ALL control and display by Microphone

3 backlight color LCD

SQ/VOL/Voltage level display

FM radio receiver

Optional earphone(Item number: HS03)

Optional remote control PTT cable (Item number: EK01)


2
2Supplied Accessories/Optional Accessories
Supplied Accessories
Optional Accessories
After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.
Transceiver
Hardware Kit for BracketMicrophone Hanger
Tapping screws S-Washer for radio Adjust knob S-Washer for hanger Tapping screws Microphone
PC cable (PC55)
Car Antenna
(QCA-01)
Programming Software
(AT-778V/U)
Regulated Power
Supply (QRP-01)
External Speaker
(SP-01)
User ManualMicrophone Mobile Bracket Spare Fuses
10A 250V [QF-02]
Fixing padDC Power Cable with
Fuse Holder(QPL-01)
OFFNO

3
To install the transceiver, select a safe, convenient location inside your
vehicle that minimizes danger to your passengers and yourself while the
vehicle is in motion. Consider installing the unit at an appropriate position
so that knees or legs will not strike it during sudden braking of your
vehicle. Try to pick a well ventilated location that is shielded from direct
sunlight.
Double check that all screws are tightened to prevent vehicle

vibration from loosening the bracket or transceiver.
3
Car body
Washer (M5)
Tapping screw
(M5x20mm)
Mounting bracket
Initial Installation
Mobile installation
2. Position the transceiver, then insert and tighten the supplied
hexagon SEMS screws.
DC Power Cable Connection
Mobile Operation
The vehicle battery must have a nominal rating of 12V. Never
connect the transceiver to a 24V battery. Be sure to use a 12V
vehicle battery that has sufficient current capacity. If the current
to the transceiver is insufficient, the display may darken during
transmission, or transmitting output power may drop excessively.
1. Route the DC power cable supplied with the transceiver directly
to the vehicle's battery terminals using the shortest path from the
transceiver.
We recommend you do not use the cigarette lighter socket as

some cigarette lighter sockets introduce an unacceptable voltage
drop.
The entire length of the cable must be dressed so it is isolated

from heat, moisture, and the engine secondary (high voltage)
ignition system/ cables.
2. After installing cable, in order to avoid the risk of damp, please
use heat-resistant tap to tie together with fuse box. Don't forget to
reinforce whole cable.
3. In order to avoid the risk of short circuit, please cut down
connection with negative (-) of battery, then connect with radio.
4. Confirm the correct polarity of the connections, then attach the
power cable to the battery terminals; red connects to the positive (+)
terminal and black connects to the negative (-) terminal.
Use the full length of the cable without cutting off excess even if

the cable is longer than required. In particular, never remove the
fuse holders from the cable.
1. Install the mounting bracket in the vehicle using the supplied self-
tapping screws (4pcs) and at washers (4pcs).
Locate the power input connector as close to the transceiver as
possible.
OFFNO

4
5. Reconnect any wiring removed from the negative terminal.
6. Connect the DC power cable to the transceiver's power supply
connector.
Press
the connectors rmly together until the locking tab clicks
3
Red
Red
Black
Black
Regulated power supply (QRP-01)
DC power cable with fuse holder (QPL-01)
Regulated
power supply (QRP-01)
Initial Installation
Before connecting the DC power to the transceiver, be sure to switch

the transceiver and the DC power supply OFF.
Do not plug the DC power supply into an AC outlet until you make all

connections.
In order to use this transceiver for fixed station operation, you will
need a separate 13.8V DC power supply (not included), power
supply( QRP-01) as optional accessories. Please contact local dealer
to require.
The recommended current capacity of your power supply is 12A.
1. Connect the DC power cable to the regulated DC power supply
and ensure that the polarities are correct. (Red: positive, Black:
negative).
2. Connect the transceiver's DC power connector to the connector on
the DC power cable.
Press the connectors rmly together until the locking tab clicks
.
Fixed Station Operation
REPLACING FUSES
If the fuse blows, determine the cause, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses
continue to blow, disconnect the power cable and contact your autho-
rized dealer or an authorized servi-
cecenter for assistance.
Fuse Location Fuse Current Rating
Transceiver 10A
Supplied Accessory DC
power cable 10A
EXT SP
Do not directly connect the transceiver to an AC outlet.

Use the supplied DC power cable to connect the transceiver

to a regulated power supply.
Do not substitute a cable with smaller gauge wires.


5
3
Initial Installation
Only use fuses of the specified type and rating, otherwise the
transceiver could be damaged.
If you use the transceiver for a long period when the vehicle
battery is not fully charged, or when the engine is OFF, the battery
may become discharged, and will not have sufcient reserves to
start the vehicle. Avoid using the transceiver in these conditions.
Before operating, install an efcient, well-tuned antenna. The success of
your installation will depend largely on the type of antenna and its correct
installation. The transceiver can give excellent results if the antenna
system and its installation are given careful attention.
Use a 50Ω impedance antenna and low-loss coaxial feed-line that
has a characteristic impedance of 50Ω, to match the transceiver input
impedance. Coupling the antenna to the transceiver via feed-lines having
an impedance other than 50Ω reduces the efficiency of the antenna
system and can cause interference to nearby broadcast television
receivers, radio receivers, and other electronic equipment.
Antenna Connection
Transmitting without rst connecting an antenna or other matched
load may damage the transceiver. Always connect the antenna to
the transceiver before transmitting.
All xed stations should be equipped with a lightning arrester to
reduce the risk of re, electric shock, and transceiver damage.
The possible locations of antenna on a car are shown as following:
External Speaker
If you plan to use an external speaker, choose a speaker with an
impedance of 8Ω. The external speaker jack accepts a 3.5mm (1/8")
mono (2-conductor) plug.
External speaker adopt double port BTL, please care about the
connecting way. The speaker can not connect with the ground,
otherwise the speaker will be fault. The wrong connecting way as
the following picture.
Accessories Connections
EXTSP
SP-01 Ground
Error
EXTSP
SP-01

6
3
Microphone
connector
Microphone Antenna
[QCA-01]
External speaker [SP-01]
http://www.qxdz.cn
Initial Installation
Microphone PC Connecting
Choose an suitable location to install the microphone hanger.
1. Use the microphone hanger to locate the position for the
screws.
2. Use the screws and pads to x the microhone hanger.
To utilize the optional AT-778 software, you must first connect the
transceiver to your PC then using an optional programming cable
PC55 (via Data socket ).
Please use AT-778V/U software for programming.
Ask your dealer about purchasing a Programming Cable PC55.
For voice communications, connect a microphone equipped with an
8-pin modular plug into the modular socket on the front of the main
unit. Press irmly on the plug until the locking tab clicks.
OFFNO

7
4
Getting Acquainted
microphone
FUN
FM/H·L
SC/SKP
VOL- VOL+ DCT
V/M
MHz
SET
PTT
19
20
12
13
3
15
1
6
8
11
16
18
7
17
9
4
10
5
2
14
NO. KEY FUNCTION
1 POW Power on/Off/Mute
2 UP Increase frequency/channel/scan direction
3 DN Reduce frequency/channel/scan direction
4 FUN/SET Function Menu key
5 FM/H.L FM radio/RF power switch key
6 MHz MHz step size Key
7 SC/SKP Ssan delete/add key
8 V/M VFO/Memory mode switch key
9 VOL- Volume reduce key
10 VOL+ Volume increase key
11 DCT CTCSS/DCS setting key
12 PTT Transmit key
13 SQL Squelch key
14 RX indicator Light on when squelch valid
15 TX indicator Light on during transmitting
16 MIC Speak into it during transmitting
17 LCD display Display channel/frequency/function setting
18 Speaker Listen to calls
19 Earphone Jack Use for connect an optional earphone
piece
20 Ex- PTT jack Use for connect an optional PTT cable

8
4Getting Acquainted
Rear panel
Front panel
Press
·
FUN
SET
key until icon appears then press the following
key.
Hold
·
FUN
SET
key then press the following keys:
Hold the following keys:
·
NO. KEY FUNCTION
1 FM/H.L RF Power level switch(HI/MI/LO)
2 MHz Off set frequency and direction setting.
3 SC/SKP Channel scan delete or add.
4 V/M Channel store
5 VOL- Fast reduce volume level by 10 steps/push
6 VOL+ Fast increase volume level by 10 steps/push
7 DCT Keypad lock
NO. LTEM FUNCTION
1 Antenna connector Connect a 50 ohm antenna
2 Ex - Speaker Jack Connect optional SP-01 external speaker
3 Power cable Connect optional SP-01 external speaker
Connect a standard DC power cable
NO. KEY FUNCTION
1 MHz Wide/Narrow band switch
2 V/M Delete memory channel
NO. KEY FUNCTION
1 FUN/SET Enter setting mode after hold it for 2 seconds
2 SQL Turn on Monitor
+13V
GND
RXD
TXD
MIC GND
MIC
SP GND
SP
Microphone connector pins(Front view)
ANT
EXT SP
21
3
OFF NO
2 3 4
NO. LTEM FUNCTION
1Microphone jack Microphone jack
2 Power Off indicator Light on when power off
3 Power On indicator Light on when power on
4 Power On/Off knob Power On/ Off the transceiver

9
4
Getting Acquainted
DISPLAY
3
8
9
10
6
14
13
12
11
16
15
7
2
1
4
5
NO. LCON FUNCTION
1Displays when press FUN/SET key
2 Displays in memory mode
3 Displays when Scan function on
4
Display memory channel number in memory
mode
5 Displays when setting VOL/SQ level
6 Displays during receiving or when Monitor is
ON
7 Displays signal strength
8 Displays when setting band width
9 Displays when sending RB/TB/CL
10 Displays H/M/L power level setting
11 Displays when Automatic power off function
on
12 Displays when setting CTCSS/DCS
13 Display when setting offset direction
14 Displays when key lock function on
15 Displays current voltage level
16 Displays frequency or memory channel name

10

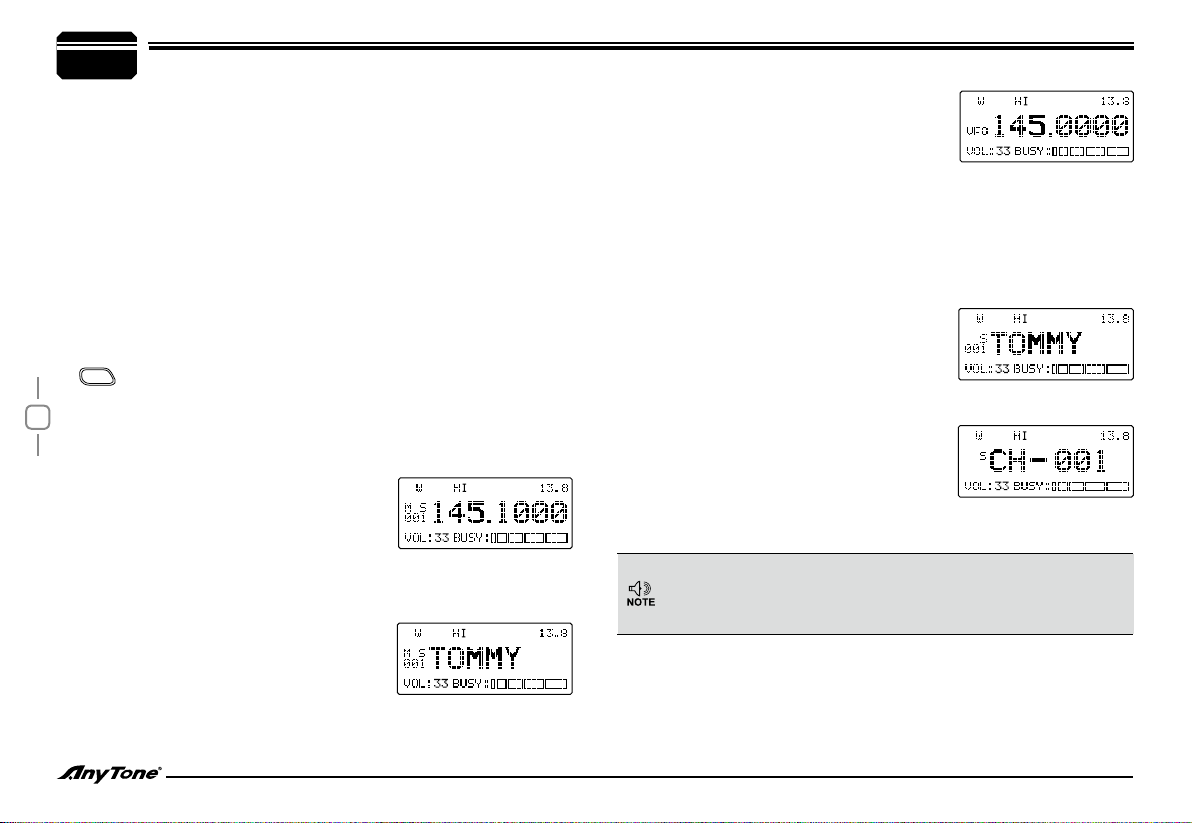

5WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)
According to practical application,you can set the radio works as
Amateur Transceiver mode or Professional Transceiver mode. There are
also 2 levels operation menu to set functions as you need. It is easy and
convenient (From No.1 to No. 10 are channel function setup,From No.11
to No.24 are general setting setup).
If transceiver programmed as professional transceiver mode and
locked, you can't return to amateur transceiver mode by manual
operation from general setting.
(Pic 1)
(Pic 2)
(Pic 3)
(Pic 4)
(Pic 5)
Working Mode:
1.
By programming software:A. In PC software's "General
Setting"menu ,choose "Display Mode" to select Amateur
Transceiver mode or Professional Transceiver mode.
BA By manual setup:B. Please refer to "Display Mode" in Page 11.
Frequency + Channel mode:A. When set display as"FR",it enters
into Frequency+Channel mode, new setting of channel operation
and shortcut operation can be temporarily used by user. Once the
radio is turned off or switched to anothe
channel, the temporary setting will be
erased and back to initial settings.(As
pic 1)
Amateur Transceiver Mode:
2. Except setting as "CH" mode, others
considered as Amateur transceiver mode. Under this mode,press
V/M
key to switch between Channel mode and VFO mode.
Channel+Name Tag Mode:B. When set
display as "NM",it enters into Channel
+Name Tag mode. At this mode, it will
display corresponding channel name
when the current channel is edited
with name. Otherwise, it will display
frequency + channel. Its operations are
the same as frequency + channel mode.
(As pic 2)
VFO Mode(Frequency mode): C.
This mode shows only frequency
on the display. Shortcut operation
and Channel setting will be
changed & stored as the latest
value permanently. Once the radio
is turned off or changed to new
VFO frequency, the latest setting is
remained until next change.(As pic 3)
Professional Transceiver Mode:
3. When
set display mode as "CH",it enters
into Professional Transceiver mode.
At this mode,except scan,other shortcut
operation can't operate.And from No.1-
10 menu in function setting will be auto-
hidden,They should be set by PC software.
If there is corresponding name for current
channel,the LCD will display current
channel name Otherwise,it shows current
channel number. ((As Pic 4 and Pic 5)
Under every mode, from No. 11-24 menu in general setting can be
4.
changed and saved.

11
6
During communication, volume level can be adjusted more
accurate.
Basic Operations
Switching The Power On/Off
Adjusting The Volume
Adjusting Frequency/Channel
Switch between VFO and Channel mode
Receiving
Transmitting
In standby, press
V/M
until LCD appears M.
this indicates the radio is in channel mode.
Repeater above operation to switch between
frequency mode(VFO) and channel mode.
When the channel you are operating being called, the screen shows
BUSY, and eld strength. in this way you can hear the calling.
Hold to monitor for a while, to confirm the current channel is not
busy, then release . Hold PTT key and speaker into microphone.
Hold the microphone approximately 2.5-5.0cm from your lips and
speak into the microphone in your normal speaking voice to get best
timbre.
When the radio screen shows BUSY, field strength and green LED
indicator ashes, but can not hear the calling, it means current channel
receive a matching carrier but unmatching signaling. (Refer to CTCSS/
DCS CODE or Optional Signaling setup in Page 13)
Short press
1.
VO L+
or
VOL—
to increase or
decrease volume by one step. Hold
VO L+
or
VOL—
to fast increase or decrease volume.
Short press
FUN
SET
and or to increase
VO L+
or
VOL—
decrease volume by 10 steps.
During receiving, press
2. to temporary mute the speaker, the LCD
displays VOL:MT , press any key to exit mute mode.
In frequency mode, Short press
1. or
to increase or decrease frequency
by one step size. Hold or to
DN POWUP
DN
POWUP
fast increase or decrease frequency. Short press
MHz
, the MHz will
ash, hold or will change the frequency move by 1 MHz
step size. press any key to exit this mode.
2.5K,5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K and 50K total nine step
size available for this radio.
If the transceiver has set at higher squelch level, it may fail to hear
the calling.
In channel mode, short press
2. or to increase or reduce
channel by one step. Hold or to fast increase or reduce
channel. Short press
MHz
, the channel number ashes, then press
or to increase or reduce channel by 10 steps. Hold
or to fast increase or decrease channel at 10 steps
speed, press any key to exit.
When the transceiver in power off, turn
1.
clockwise the power on/off knob, the indicator
lights green then the transceiver is power on.
When the transceiver in power on, turn
2.
anticlockwise the power on/off knob, the
indicator lights red then the transceiver is power off.
When the transceiver in power on, can press
3. for over 2 seconds
to power off, and then short press to power on.
DN POWUP

12
6Basic Operations
Channel Edit
Channel Delete
Transmitting Tone-Pulse
Roger beep
ransmitting audio signal
Hold PTT key, the LED lights red and power strength show in the screen,
indicates it is transmitting, release PTT to receive.
Hold PTT key, then press microphone
key to transmit selected tone-pulse signal, the
LCD displays TB.
After release the PTT key, the radio will
automatic transmit pro-stored RB, the LCD
displays RB.
Hold PTT key, then press microphone
key to transmit pre-stored audio signal, the the
LCD displays CL.
In VFO mode, press
1. / or
MHz
to choose wanted frequency.
Press
2.
DCT
key to enter CTCSS/DCS
setup.Press / to select the
signaling.
Enter channel menu No 1-10 and choose
3.
related setup.
Press
4.
FUN
SET
key, the LCD displays F, if the Micon not flash means
current channel number is valid. If M icon flashes means current
channel number is empty.
Press
5. / key choose wanted
channel number.
Press
6.
V/M
key store the channel, the F icon disappear, the M
icon and channel number no ash and emit a prompt, it means the
channel stored success.
In channel mode, press
1. / to choose a unwanted
channel.
Hold
2.
FUN
SET
and
V/M
key for over 1 second, the current channel will be
deleted. the radio emit a prompt and jump to next working channel.

13
Shortcut Operations
squelch off/squelch off momeNTARY
Squelch level Setup
Frequency/Channel Scan
key programmed as Squelch Off or Squelch Off Momentary to
monitor the weak signal.
In channel mode, this function is used to monitor signal in all
channels.
This function use for setting RX signal strength, the calling will be heard
only when reach setted level, otherwise the radio will keep mute.
In frequency (VFO) mode, this function is designed to monitor signal
of all frequency points under each step size.
CTCSS/DCS Encode and Decode setup
Scan Skip
In channel mode, press
FUN
SET
and then press
SC/SKP
key to add or delete
a scan channel.
Repeaterly press
DCT
key, to set CTCSS/DCS encode/decode for
current channel.
1. In channel mode, Press
SC/SKP
key start
channel scan.
2. Press or to change scan
direction.
3. Press any key except
VO L+
/
VOL—
or
SC/SKP
key to exit scan.
When the left side of the LCD displays
1. "S", the current channel
added to scan list. this channel will be scanned when scan function
start.
When the
2. "S" disappears, the current channel is deleted from scan
list. this channel will not be scanned when start scan function.
When the LCD displays TSQ, means
1.
current channel set with CTCSS code,
press or to choose wanted
code.
When the LCD displays DCS, means
2.
current channel set with DCS code, press
or to choose wanted code.
CTCSS code: 62.5-254.1 total 51 groups
3.
7
Squelch Off: Press
1. key to disable squelch, press key again to
resume squelch.
Squelch Off Momentary: Press and hold
2. key to disable squelch,
release key to resume squelch.
In standby,
1. hold key, then press or key, the LCD
displays current squelch level.
Press
2. or key to choose
wanted squelch level.
Press any key to conrm and exit.
3.
1. In VFO mode, press
SC/SKP
to start frequency scan.
2. Press or to change scan
direction.
3. Press any key except
VO L+
/
VOL—
or
SC/SKP
key to exit scan.
The above functions should be set in programme software.
Frequency Scan
Channel Scan
