Anzzi SD-FRLS05701 Series User manual

INSTALLATION & OPERATION MANUAL
V2.2 – This version supersedes all previous versions as of 3/31/2022
Item: SD-FRLS05701**
SD-FRLS05702**
V2.2
ANZZI GLASS SHOWER DOOR
DON’T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an official purchase and is eligible for warranty
coverage.
Mail in the completed registry card (Pg. 2) or register online
at www.swcorp.com/register
.

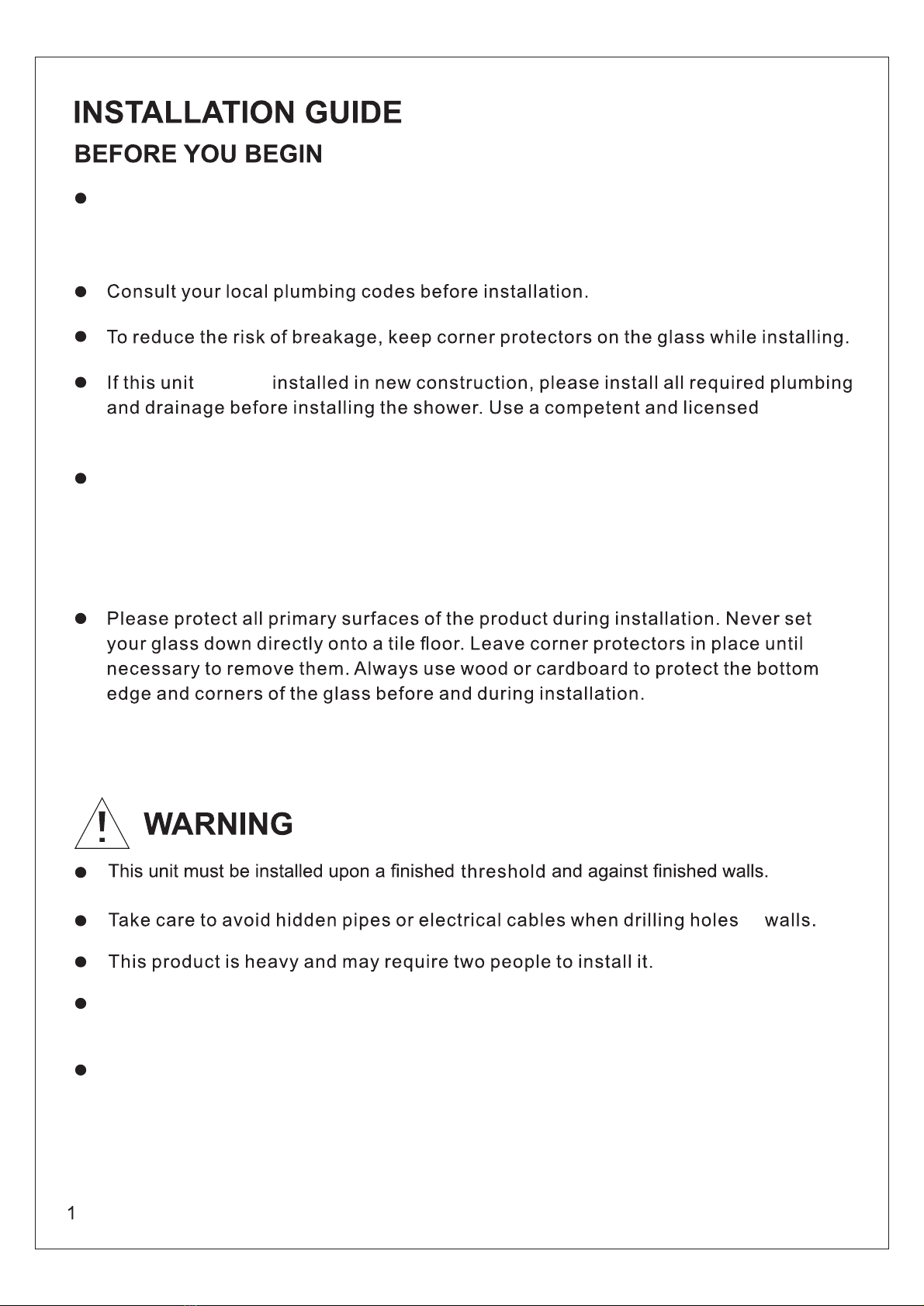

Please check the product for damage and missing parts immediately upon delivery.
Damage reported later will not be covered by our warranty. Please handle the
product with care. Avoid any impact to the sides and edges of the glass.
is being
(if required by local code) plumber for all plumbing installations.
Before beginning installation, make sure all surfaces are level, solid and will
support the total weight of the unit. Also, make sure the walls are at right angles.
Irregular installation surface level, radius corners, or improper angle of side walls
will result in serious problems for your installation. Please note that some
adjustments and drilling might be necessary during the installation process.
in

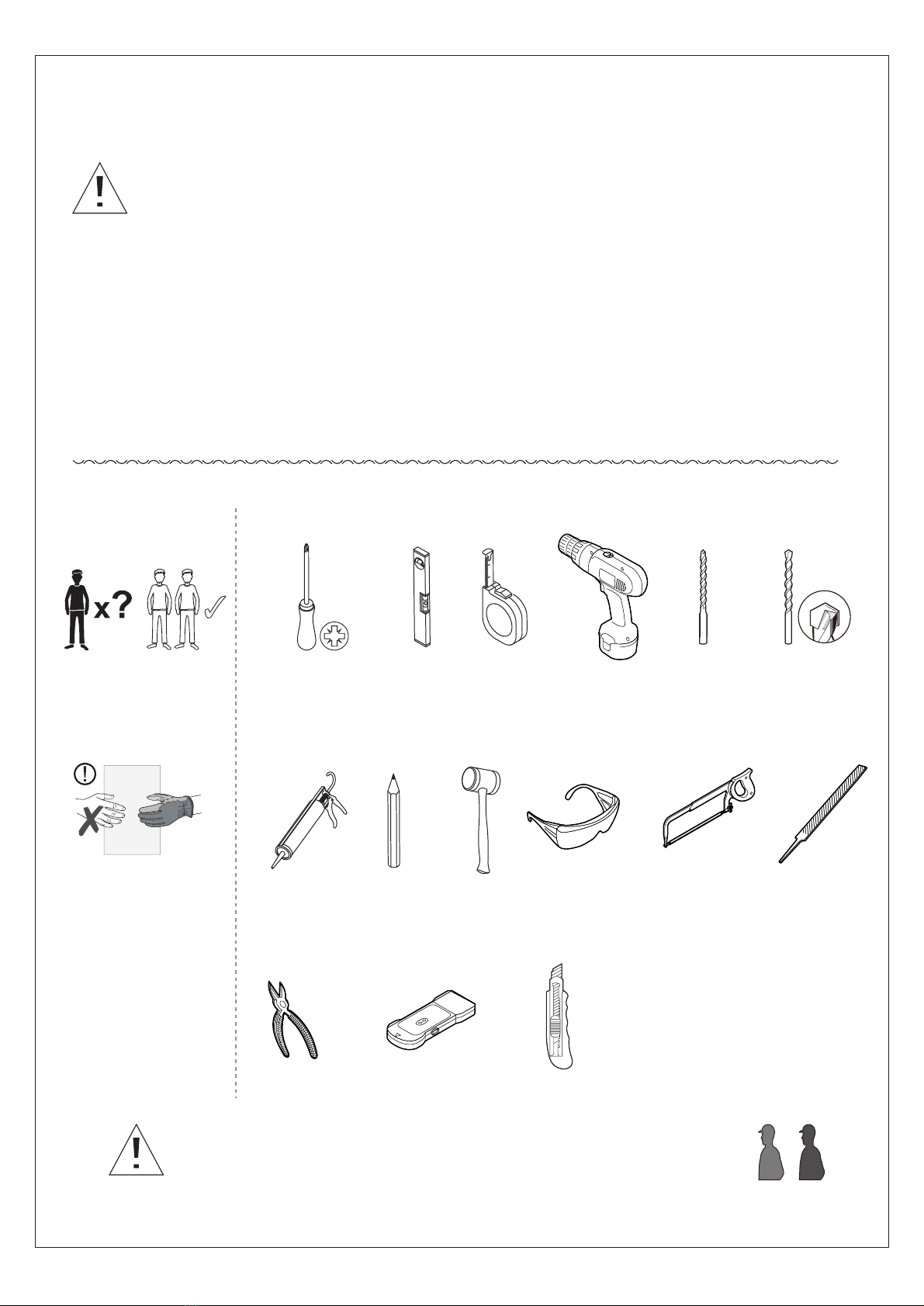

When cutting or drilling metal components or handling glass, wear protective
eye wear, gloves, and closed-toe shoes to reduce the risk of personal injury.
Failure to follow instructions when installing this product may result in personal
injury, property damage, or product failure and may void the warranty.

Hack
Saw
Metal File
Phillips
Screwdriver
Level Tape
Measure
Drill 1/8''
(3mm)
Drill Bit
1/4''
(6mm)
Drill Bit
100%
Silicone
Sealant
Pencil Rubber
Mallet
Safety
Glasses
Stud Finder
This product is heavy
and may require two
people to install.
.
Use cut-resistant,
non-slip gloves to
reduce the risk of
personal injury and
to hold the glass firmly.
.
This product is heavy and may require two people to install.
ATTENTION
.
Threshold must be level for proper installation.
The installation of this unit requires that you drill down into the threshold. Contact
the manufacturer of the base or threshold material with any questions regarding the
drilling of holes into their product.
This model requires a minimum 2-3/16" (55mm) of flat level threshold space for
installation.
.
.
2
INSTALLATION GUIDE
BEFORE YOU BEGIN
Tools Required
Tin Snips Knife

[01] x1
PARTS
[02] x1 [03] x1 [04] x1 [06] x1 [07] x1 [08A] x1
[09] x1 [10] x1
[11] x1 [13] x2 [14] x2 [15A] x1 [15B] x1
[16A] x1 [17] x1 [18] x1
[22] x6 [23] x1(2mm)
[12] x2
[19] x2(ST5x35mm [20] x4(ST4x35mm
3
[1-3/8"]) [1-3/8"])
[05] x1
[08B] x1
[24] x1(3mm)
[16B] x1
[21] x1

Part Description Qty.
[01] Magnetic Wall Column 1
[02] Wall Jamb 1
[03] Support Bar 1
[04] Bottom Rail 1
[05] Threshold Gasket 1
[06] Magnetic Gasket 1
[07] Gasket 1
[08] Side Gasket 2
[09] Door Panel 1
[10] Fixed Panel 1
[11] Handle Set 1
[12] Trolley Wheel 2
Part Description Qty.
[13] Fasteners 2
[14] Wheel Guard 2
[15] Bottom Guide (L&R) 1
[16] Seal (L&R) 1
[17] Bottom Guide Cap 1
[18] Wall Bracket 1
[19] Screw ST5x35mm[1-3/8"] 2
[20] Screw ST4x35mm[1-3/8"] 4
[21] Wrench 1
[22] Anchor 6
[23] Allen Key 2mm 1
[24] Allen Key 3mm 1

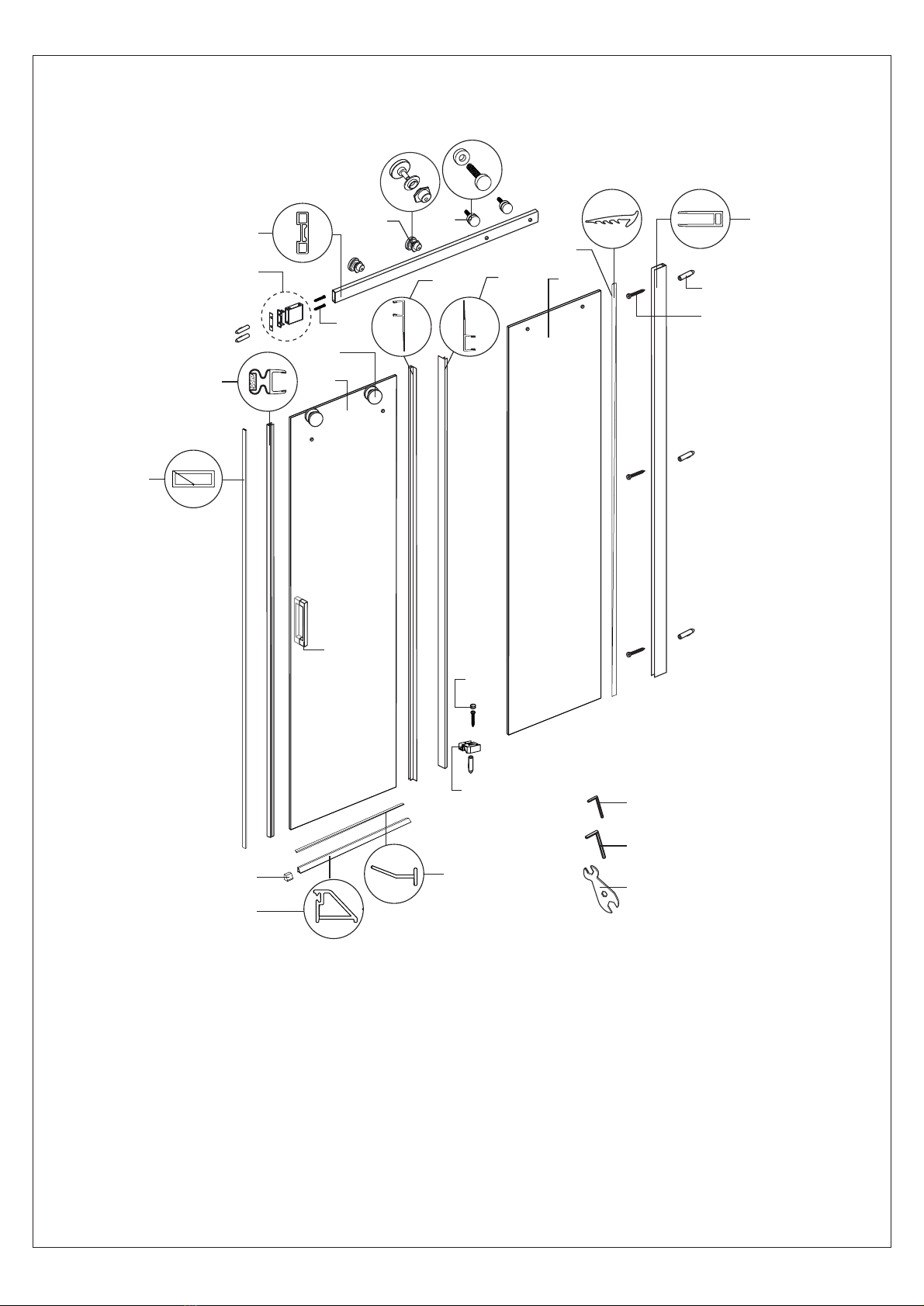

ASSEMBLY
4
[01]
[02]
[03]
[04]
[06]
[05]
[07]
[08B] [08A] [10]
[09]
[11]
[12]
[13]
[14]
[15B]
[17]
[16B]
[18]
[19]
[22]
[20]
[23]
[24]
[21]

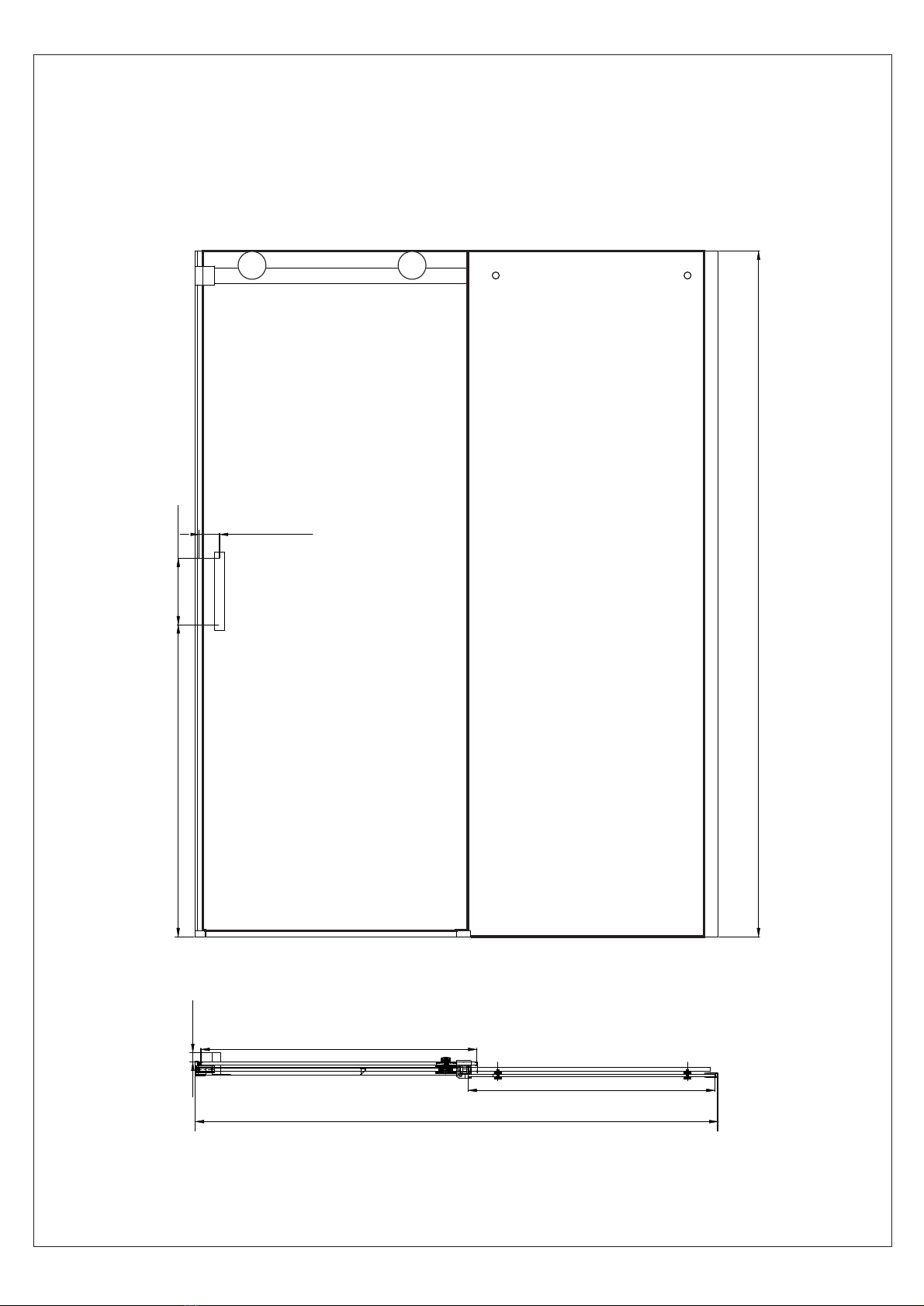

SD-FRLS05701**48"*76"
25.5"[648mm]
22.2"[563mm]
47.6"-48.2"[1209-1224mm]
1.1"[29mm]
76"[1930mm]
5
34"[863.6
mm
]7.5"[190.5mm]
1.8" [46mm]

34"[863.6
mm
]7.5"[190.5mm]
1.8" [46mm]
SD-FRLS05702**60"*76"
31.5"[800mm]
28.1"[715mm]
59.6"-60.2"[1514-1529mm]
1.1"[29mm]
76"[1930mm]
6

wall
wall jamb
3/16"
3/16"
threshold
OUTSIDE
DFig 1 wall
[02]
[02]
Wall Bracket [18]
must be mounted
to the stud.
7
panel Wall Jamb [02] so that it can be mounted to the stud.
[02] or measure in 3/16" + (A") if you want to install the shower door behind the outside of the
wall (Fig 1, Fig 2). A" is the distance between outermost surface of shower door and the
outside of the wall.
ATTENTION
.
To avoid personal injury or property damage, identify components and read all instructions
before installing.
This model requires a minimum 2-3/16" (55mm) of flat level threshold space for installation.
(Dimension "D" of Fig 2.)
The instructions below are for installing the fixed panel on the right. To install the fixed panel
on the left, transpose all instructions.
Step 1
This shower door must be mounted to a stud. Minimum threshold space is required.
IMPORTANT: Using a stud finder, ensure the wall intended to hold the door has a stud at the
installation point. A stud in this location must be identified to support the support bar and the
wall jamb in order to proceed with the installation. If there is no stud in the shown area,
we recommend employing a qualified contractor to install one. (Fig 2)
1. Measure in 3/16" (5mm) minimum from the outside of the wall to the profile of the Wall Jamb
2. Use a pencil and stud finder to mark the location of all three screw holes for fixed
.
INSTALLATION INSTRUCTIONS
.
.
Fig 2

Step 2

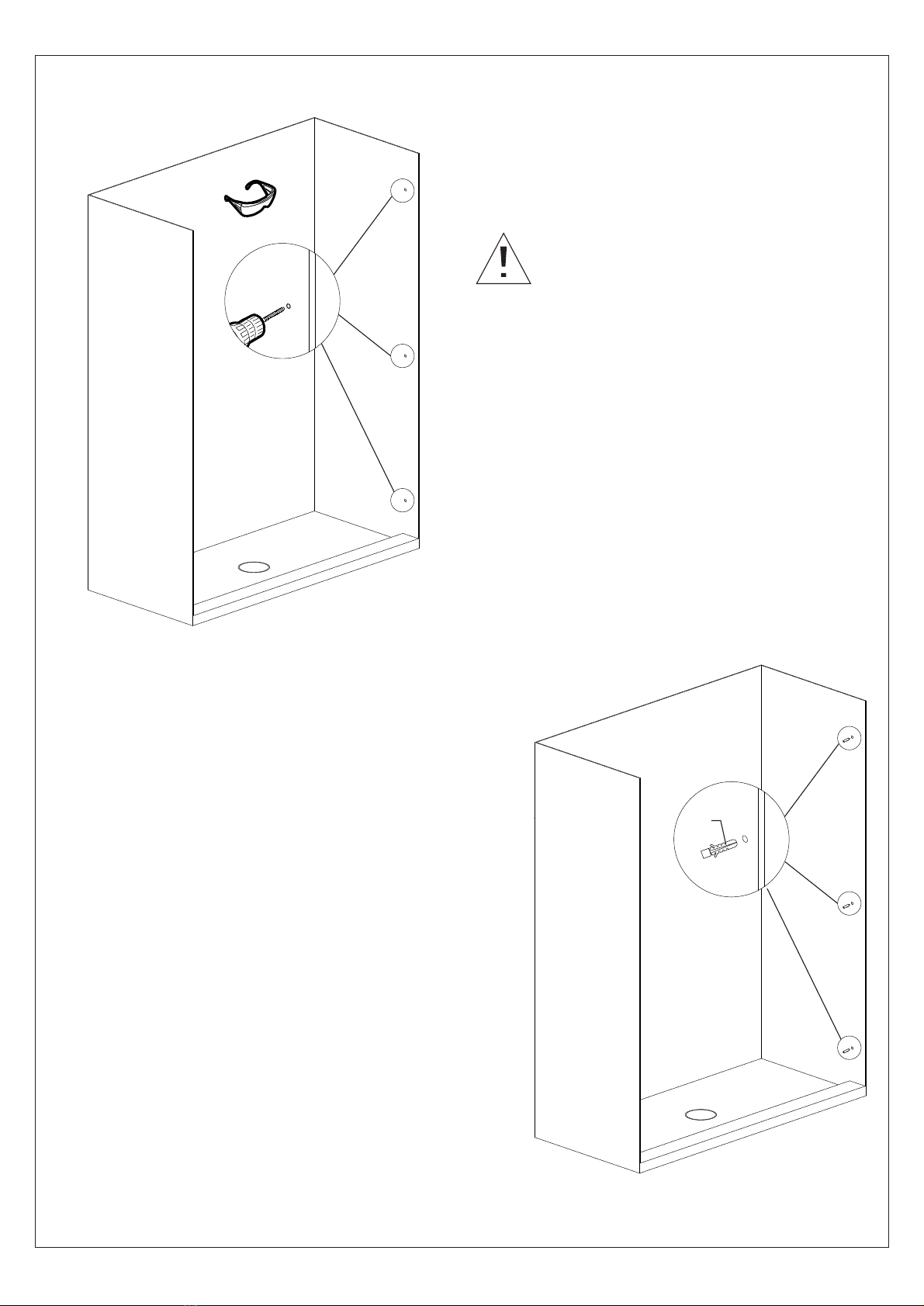

Remove Wall Jamb [02] and drill a 1/4"
hole at each location marked for Wall
Jamb [02] (Fig 3).
Wear safety glasses and cut-resistant,
non-slip gloves when drilling or cutting
to avoid risk of injury.
ATTENTION
8
Fig 3
Step 3
1.Insert Anchor [22] in each hole location.
2.The Anchor [22] should fit securely into the
holes. If needed a rubber mallet can be used to
insert Wall Plugs.
3.To reduce risk of property damage, the use of
metal hammers is not recommended. If needed,
use drill to slightly enlarge the opening of the hole
(Fig. 4).
IMPORTANT: Anchor [22] MUST be used.
[22]
Fig 4

Step 4
Place the Wall Jamb [02] onto the wall.
Use drill to start the ST4x35 screw [20]
into the Anchor [22]. Use a screwdriver
to hand tighten until secure. (Fig. 5)
9
Fig 5
[20]
1
Step 5
1.Carefully lay your glass panels flat on a
soft, padded surface to inspect the glass.
2.Apply a good quality Silicone Sealant on
the bottom of the Fixed Panel [10] (Fig 6.1).
3.Place a thick bead of silicone along the
full length of the inside of the back inner corner
of Fixed Panel [10] Wall Jamb [02] (Fig 6.2).
4.Remove inside corner protector from top
of Fixed Panel [10]. Carefully, and with
assistance from another capable person,
position the Fixed Panel [10] into the Wall
Jamb [02] (Fig 6.3).
Fig 6
2[02]
[10]
3

Fig 7
Step 6
1.Using a level, check that Fixed Panel
[10] is level vertically (Fig 7).
2. Install the Gasket [07]. (Fig 7.1)
1
[07]
Step 7
1.Check that the measurement from front of wall to Fixed Panel [10] is the same at both ends
of the panel (Fig 8.1).
2.Use silicone caulk to seal the inner edge of the Fixed Panel [10] (Fig 8.2).
Clean off any excess silicone.
Fig 8
10

Step 8
1.Measure the finished opening width at the model height ("W1").
IMPORTANT: If the Support Bar [03] matches the width, there's no need to cut it. If it
doesn't, please see Step 2 for cutting instructions (Fig 9.1).
2.Using a pencil or another marking tool (such as masking tape), mark distance
"W1, minus 11/16" (17.5mm) " on the Support Bar [03] (to leave some space for the
Wall Bracket [18]).
IMPORTANT: Double check the measurements before cutting. Cut the Support
Bar [03] with a fi ne toothed (32 TPI) hack saw. If needed, use a metal file to smooth
rough edges. Clean up metal shavings.
Fig 9
W1
W1
1
11
DO NOT stand on or use a vice to hold the Support Bar [03] while cutting.

1.Unscrew screw "a" and tighten screw" b". Unscrew screws "c" and "d" until the
screws do not protrude from the inside surface. Keep the screws in the Wall Bracket
[18] (Fig 10.1).

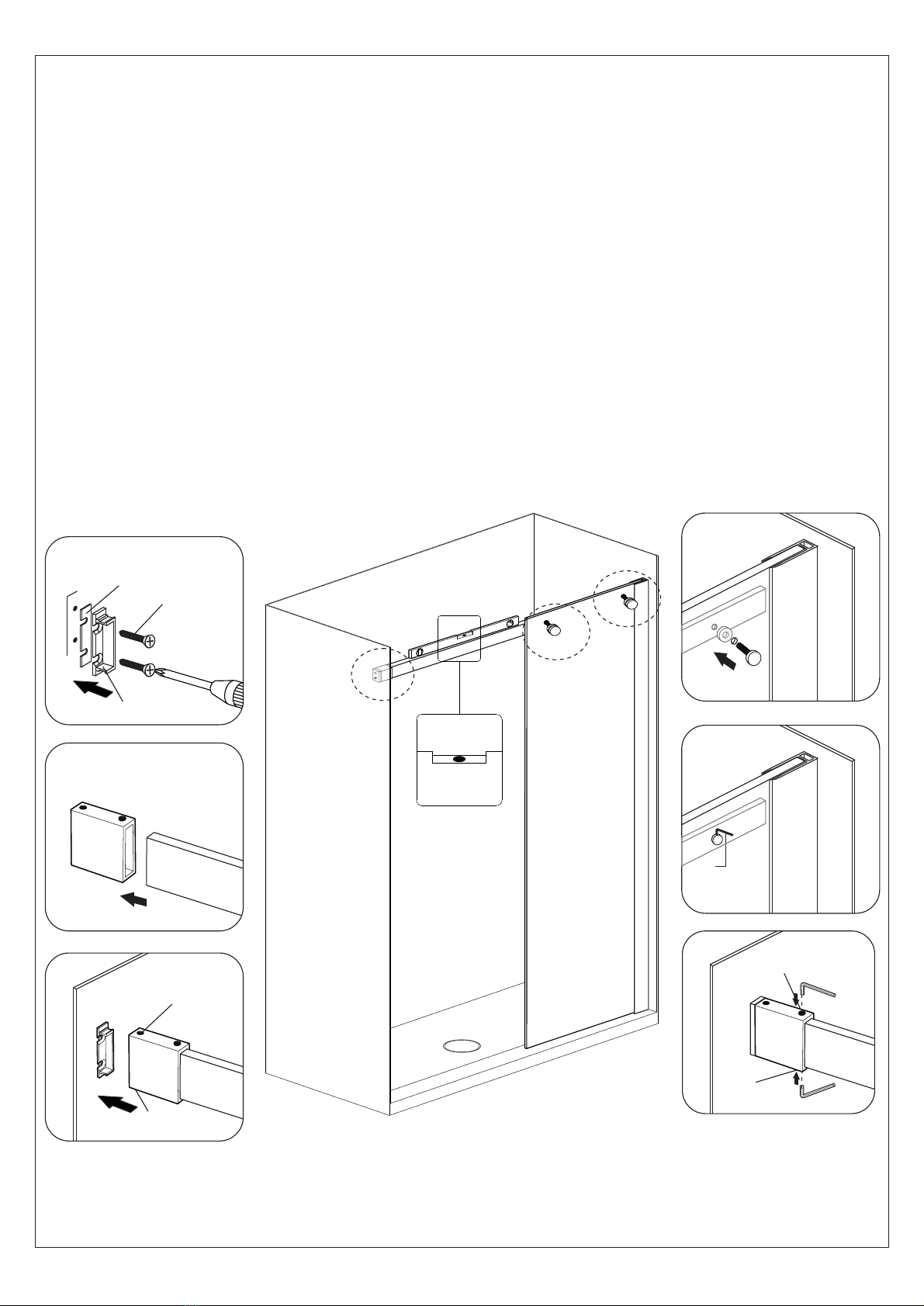

2.Install the Wall Bracket [18] to the Support Bar [03]. Slightly tighten the screw "d"
(Fig 10.2).
3.Attach the Support Bar [03] to the inside of the Fixed Panel [10] with the Fasteners
[13] as shown in Fig 10.3. Ensure the Support Bar [03] is level. Use provided Allen
wrench to hand tighten.
IMPORTANT: Ensure all washers and bushings are installed as shown.
Repeat for remaining Fasteners [13].
Step 9
Fig 10
3
2
[18]
[13]
[03]
12
1
[18]
a
d
c
b

Step 10
1.Using a pencil or other marking tool (such as masking tape), mark the position of the Wall
Bracket [18] (Fig 11.1).
2.Remove the Support Bar [03] and remove the Wall Bracket [18] from the Support Bar [03].
3.Mark the screw hole locations (Fig 11.2).
4.Drill a 1/4" hole to accept the Anchor [22] (Fig 11.3).
IMPORTANT: To avoid risk of injury or product damage, make sure that you drill into studs.
5.Insert Anchor [22] in hole location. If needed, a rubber mallet can be used to insert anchor.
To reduce risk of property damage, metal hammers should not be used. If needed, use drill
to slightly enlarge the opening of the hole (Fig 11.4).
IMPORTANT: Anchor [22] MUST be used.
Fig 11
13
2
31/4"
4
1
[22]

Step 11
1.Disassemble the gasket and anchor from the Wall Bracket [18]. Attach the gasket and
anchor to wall using Screw ST5x35 [19]. Use drill to start screws into anchor. Next, use a
screwdriver to hand tighten until secure (Fig 12.1).
2.Slide bracket sleeve onto end of Support Bar [03] (Fig 12.2).
3.Slide bracket sleeve onto the anchor. Tighten two screws of the Wall Bracket [18] by following
sequence "b", "a" (Fig 12.3).
4.Attach the Support Bar [03] to the inside of the Fixed Panel [10] with the Fasteners [13] as
shown in Fig 12.2. Ensure the Support Bar [03] is level. Use provided Allen wrench to hand
tighten (Fig 12.3, Fig 12.5).
5.Tighten two screws of the Wall Bracket [18] by following sequence "d", "c" (Fig 12.6).
Fig 12
[4]
5
4
1
FH Screw
ST5X35
anchor
gasket
14
6
2
3a
bc
d

1
2
3
4
56
[15B]
Screw
ST4X35
Step 12
Depending on which side of the Fixed Panel [10] is installed, either Bottom Guide
(L&R) [15] will be used. For this left side opening, Bottom Guide [15B] will be shown
being installed.

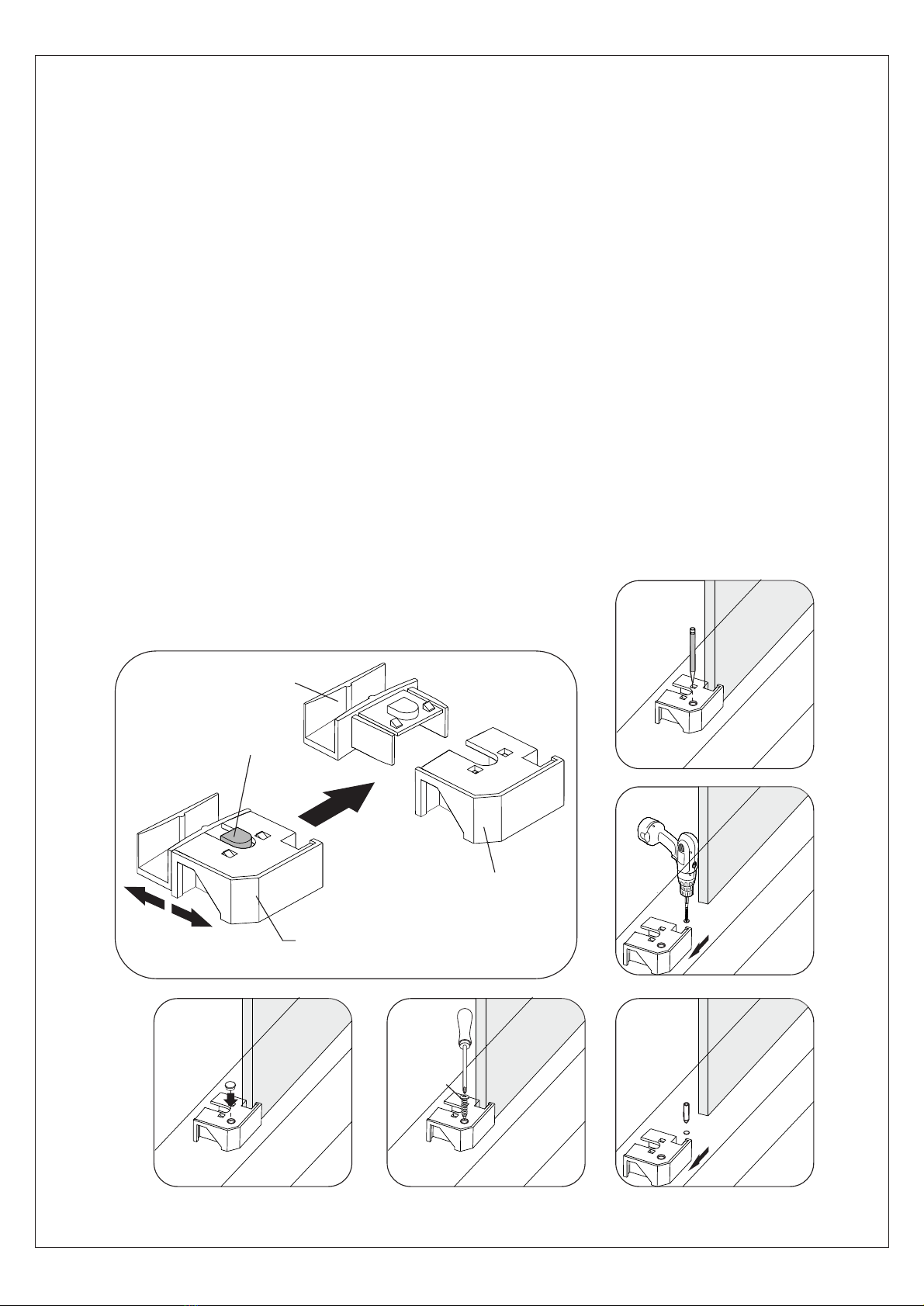

Mark center guide hole location.
1.Push the button of the Bottom Guide [15] to disassemble it into part a and b (Fig 13.1).
2.Place part a into correct position against the Fixed Panel [10] and mark the hole
location (as shown in Fig 13.2).
3.Remove part a and drill a 1/4" hole for cement threshold, 1/8" hole for acrylic or wood
threshold (Fig 13.3).
4.Install a Wall Plug [22] for cement threshold (Fig 13.4).
5.Place part a into position against the Fixed Panel [10] and attach it using Screw
ST4x35 [20] (Fig 13.5).
6.Install the Bottom Guide Cap [17] (Fig 13.6).
Fig 13
button
a
15
b
.

Step 13
1.Using provided adjustment Wrench [21], disassemble Trolley Wheel [12] as shown in
(Fig 14.1). Repeat for the remaining Trolley Wheel [12] .
2.Install Trolley Wheel [12] to the Door Panel [09]. The washer should be on the metal part
side (Fig 14.2). Adjust the Adjusting Nut like the picture below (Fig 14.2a).
3.Use wrenches in the package to fix the Trolley Wheel [12] (Fig 14.3).
16
Fig2a
3
2
1
holes
Fig 14
pointing
downward
Lid
Nut
washer
gasket
Adjusting Nut

Step 14

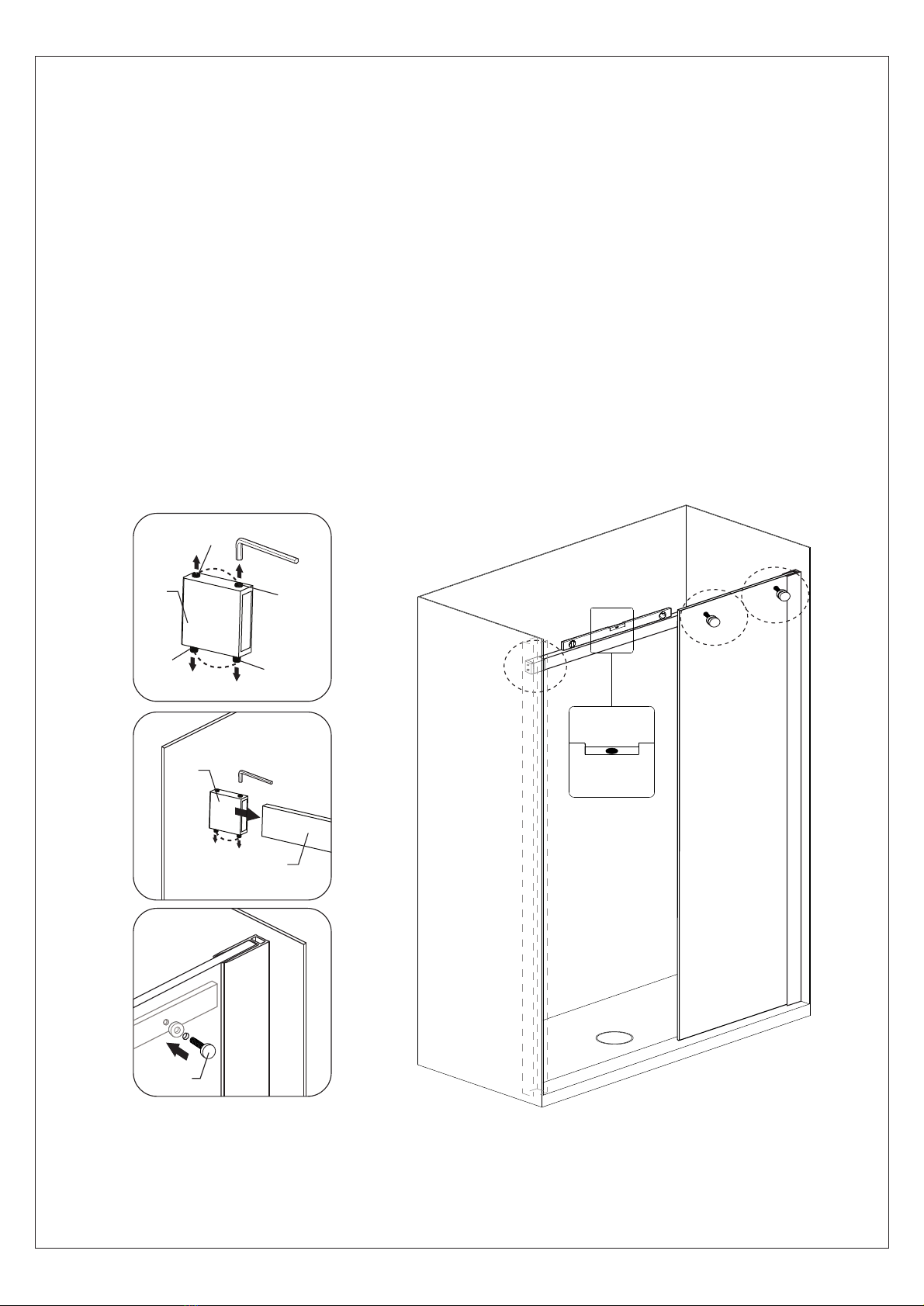

1.From inside of enclosure, carefully, and with assistance from another capable person,
hang sliding Door Panel [09] and Trolley Wheel [12] assemblies onto Support Bar [03]
(Fig 15.1).
2.Disassemble Wheel Guard [14] as shown in Fig 15.2.
3.From inside enclosure, install Wheel Guard [14] to inside of sliding Door Panel [09] as
shown in Fig 15.3. Use Wrench [21] and Allen Key 2mm [23] to hand tighten until secure.
(Fig 15.3). Turn the nut of Wheel Guard [14] with the Wrench [21] to fit the rail of Support
Bar [03]
4.Install part b against the Door Panel [09] as shown in Fig 15.4 and insert back to Part a.
Fig 15
1 2
screw
3
In the
middle
3a
Washer
4 5
17
bba

Step 15
1.Measure the distance between the Bottom
Guide [15] and the door side wall ("W1").The
length of Threshold Gasket [05] would be
"W1, minus 1-3/16 (30mm )" (Fig 16.1).
IMPORTANT: if the Bottom Rail [04] and the
Threshold Gasket [05] match the width.
There's no need to cut them. If they don’t,
please see Step 2 for cutting instructions.
2.Using a pencil or another marking tool (such as
masking tape), mark distance "W1" on the
Bottom Rail [04], "W1 minus 1-3/16" (30mm)"
on the Threshold Gasket [05].
IMPORTANT: Double check the measurements
before cutting. Cut the Bottom Rail [04] with a
fine toothed (32 TPI) hack saw. If needed, use a
metal file to smooth rough edges. Clean up metal
shavings. Cut the Threshold Gasket [05]
with a tin snip. DO NOT stand on or use a
vice to hold the Bottom Rail [04] while cutting.
Fig 16
18
[04] x1[05] x1
W1
W1
W1, subtra ct 1- 3/ 16"
1-3/16"
1
2
W1
