Aplex ViTAM-924A User manual

VITAM-9XXA Series
15”, 15.6”, 17”, 19”, 21.5”, and 23.8”6th Generation IP66/IP69K
Stainless Steel Panel PC
User Manual
Release Date Revision
May 2020 V1.8
®2020 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: [phone] Fax: [phone] URL: http://www.aplextec.com/zh/home.php

VITAM-9XXA Series User Manual
1
Revision History
Reversion
Date
Description
1.0
2017/10/11
Official Version
1.1
2017/11/07
Add UPS battery
1.2
2018/01/29
Modify OS status/High brightness description
1.3
2018/11/01
Modify Operating temperature
1.4
2018/11/23
Revise Backlight Lifetime information
1.5
2019/06/27
Revise1.1 Specification data
1.6
2019/08/06
Add Logistic Statement
1.7
2020/01/02
Revise SBC-7114 Information
1.8
2020/05/26
Revise 1.1 specification data

VITAM-9XXA Series User Manual
2
Warning!________________________
Caution
Risk of explosion if the battery is replaced with an incorrect type.
Batteries should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
Disclaimer
This information in this document is subject to change without notice. In no event
shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or
consequential, arising from either the use or misuse of information in this
document or in any related materials.
Electric Shock Hazard –Do not operate the machine with its back cover removed.
There are dangerous high voltages inside.
This equipment generates, uses and can radiate radio frequency energy and
if not installed and used in accordance with the instructions manual, it may cause
interference to radio communications. It has been tested and found to comply
with the limits for a Class A computing device pursuant to FCC Rules, which are
designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures may be required to correct
the interference.

VITAM-9XXA Series User Manual
3
Packing List
Accessories (as ticked) included in this package are:
□Adaptor
□Driver & manual CD disc
□Other.___________________(please specify)

VITAM-9XXA Series User Manual
4
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when
the card is power-on. Always disconnect power when the system is not
in use.
◆Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

VITAM-9XXA Series User Manual
5
Dear Valued Partners
Thank you for supporting APLEX Technology. Kindly note for ViTAM
series, the pressure testing screw is loosen for half turn before shipment.
The purpose is to avoid potential quality concerns caused by radical air
pressure change during transportation. This especially applies to air
shipment with unpressurized cabin.

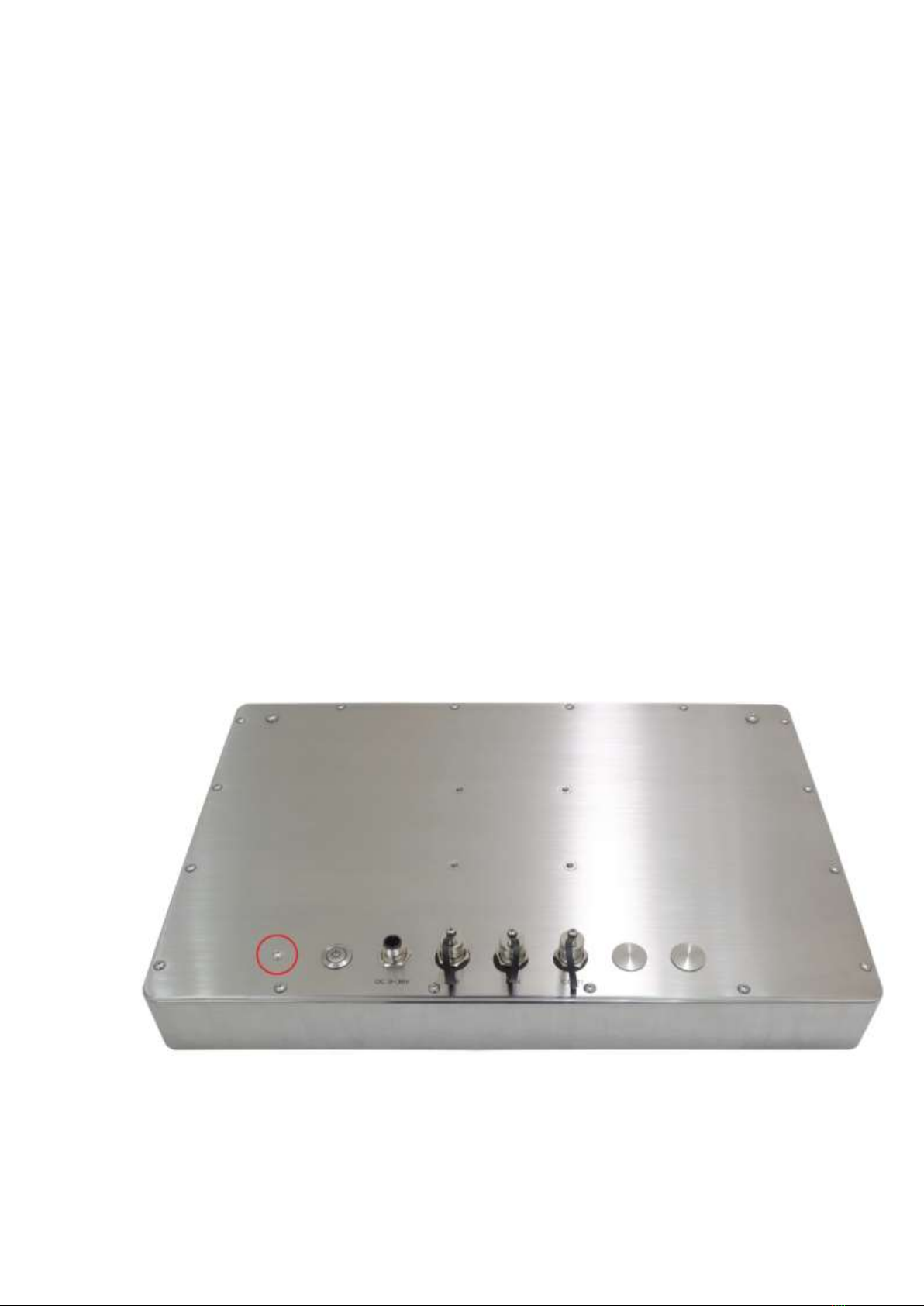

Upon receiving the system, please tighten the pressure testing screw
before deployment to ensure 100% functionality.
Here is our suggestion:
1. Prepare a 3mm hex screwdriver
2. Tighten the screw (indicated in circle) clockwise until it is well in place
3. Recommend torque is 8~10 kgf-cm
Apologies for any inconveniences caused and thank you for your
cooperation.
Yours Sincerely

VITAM-9XXA Series User Manual
6
Table of Contents
Revision History…………………………………………………………………………………………………….1
Warning!/Caution/Disclaimer.................................................…………………………….…2
Packing List…………………………………….……………………………………………………………………..3
Safety Precautions…………………………………………………………………….…..……………………..4
Logistic Statement…………………………………………………………………….…..……………………..5
Chapter 1 Getting Started
1.1 Features………………………..………………………...…………………………..7
1.2 Specifications…………………...………………………………………………….7
1.3 Dimensions………………………....…………………………………………….11
1.4 Brief Description of VITAM-9XXA Series………...…….……….……14
1.5 Yoke Mounting and VESA Mounting……………………………………15
Chapter 2 Hardware
2.1 Motherboard Introduction……………………...……………..………....16
2.2 Specifications…………………………..…………………………………………16
2.3 Jumpers and Connectors Location……………………………………...20
2.4 Jumpers Setting and Connectors…………………………………..……21
Chapter 3 BIOS Setup
3.1 Operations after POST Screen…...…….……...…………………………58
3.2 BIOS Setup Utility……………………………………………………………….58
3.3 Main Settings……………………………………..………………………………59
3.4 Advanced Settings……………………………………………………………...60
3.5 Chipset Settings……………………………………….………………………...69
3.6 Security Settings…………………………………………….…………………..92
3.7 Boot Settings……………………………………………….……………………..94
3.8 Save & Exit Settings……………………………………..…………………....95
Chapter 4 Installation of Drivers
4.1 Intel H170 Chipset………..……………………....………….………………98
4.2 Intel® HD Graphics 530 Chipset………………………….……......101
4.3 Realtek ALC662 HD Audio Driver Installation…….……..……….105
4.4 Intel® Management Engine Interface…………….………………..107
4.5 DPTF Driver………………………….…………………………………………..110

VITAM-9XXA Series User Manual
7
Chapter 5 Touch Screen Installation
5.1 Windows 8.1/10 Universal Driver Installation…….……......115
5.2 Software Function……………………………………………….……......119
Figures

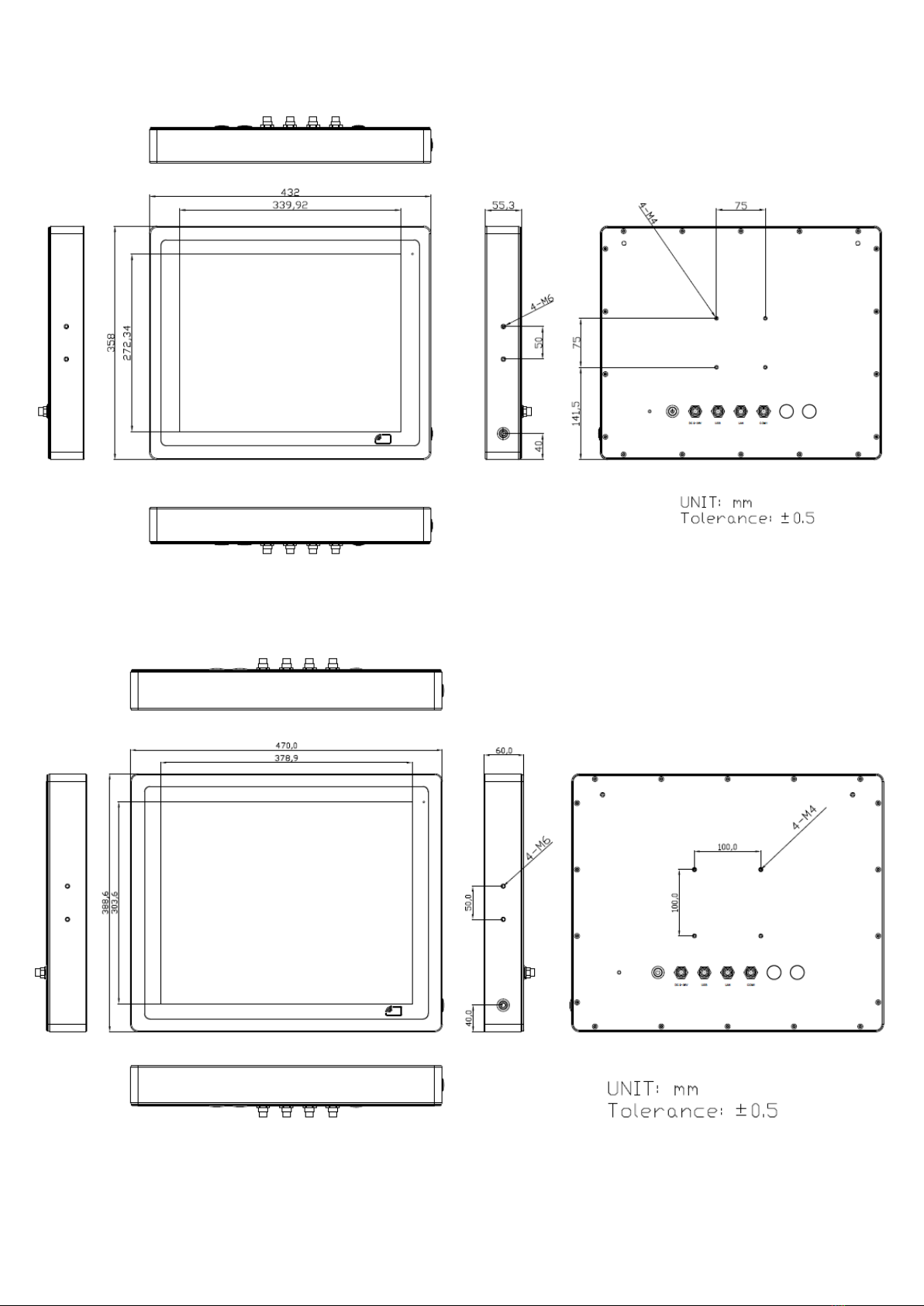

Figure 1.1: Dimensions of VITAM-915AP/R/G(H)…………..……………………11
Figure 1.2: Dimensions of VITAM-916AP/R/G(H)…….……….…………………11
Figure 1.3: Dimensions of VITAM-917AP/R/G(H)……..….…..…………………12
Figure 1.4: Dimensions of VITAM-919AP/R/G(H)…….……….…………………12
Figure 1.5: Dimensions of VITAM-921AP/R/G(H)……...……………………….13
Figure 1.6: Dimensions of VITAM-924AP/G(H)……..…….……………………..13
Figure 1.7: Front View and Touch on/off Button of VITAM-9XXA Serie.14
Figure 1.8: Rear View of VITAM-9XXA Series…..……….……..…………….….14
Figure 1.9: Yoke Mounting of VITAM-9XXA Series………………….…………..15
Figure 1.10: VESA Mounting of VITAM-9XXA Series..............................15
Figure 2.1: Motherboard Dimensions………………………………………….…….19
Figure 2.2: Jumpers and Connectors Location-Board Top……………….….20
Figure 2.3: Jumpers and Connectors Location-Board Bottom…………..…20

VITAM-9XXA Series User Manual
8
Chapter 1 Getting Started
1.1 Features
15”/15.6”/17”/19”/21.5”/23.8”New Gen. stainless steel panel PC
6th Gen. Intel Core i3/i5 BGA type processor
True flat front bezel design and Grade 304 Stainless Steel enclosure (Grade 316
for option)
IP66/IP69K rated with M12 connectors
Support Resistive Touch, Projected Capacitive Touch, and Glass

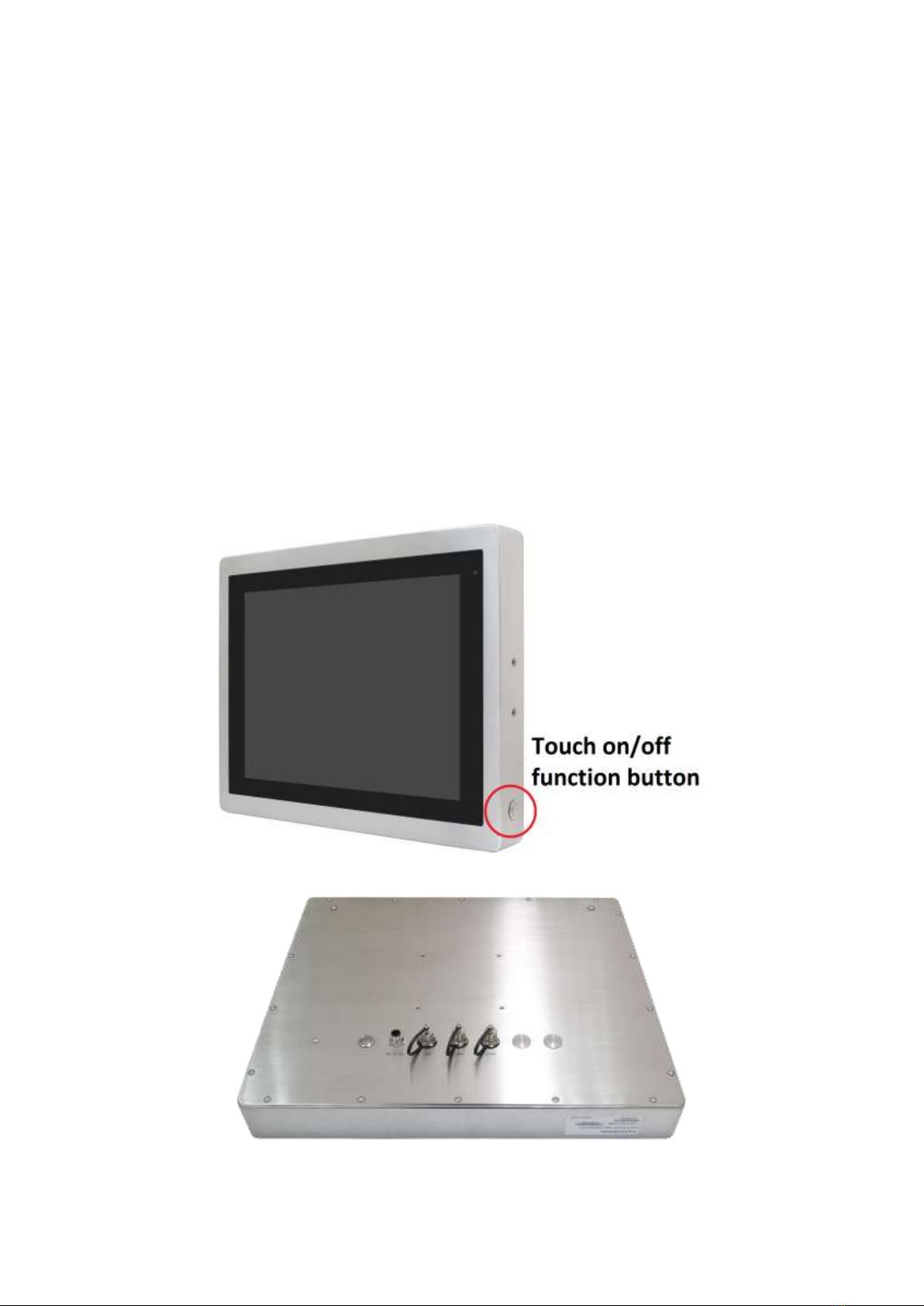

Touch on/off button on the side edge for Hygienic Cleaning
Support ergonomic versatile mounting: Yoke mounting, VESA mounting, and
Swing arm mounting.
1.2 Specifications
VITAM-915
AP/R/G/(H)
VITAM-916
AP/R/G/(H)
VITAM-917
AP/R/G/(H)
VITAM-919
AP/R/G/(H)
VITAM-921
AP/R/G/(H)
VITAM-924
AP/G/(H)
System
CPU
Intel Core i5-6300U Processor(3M Cache, up to 3.00 GHz)
Intel Core i3-6100U Processor(3M Cache, up to 2.30 GHz)
Chipset
SoC
Memory
1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

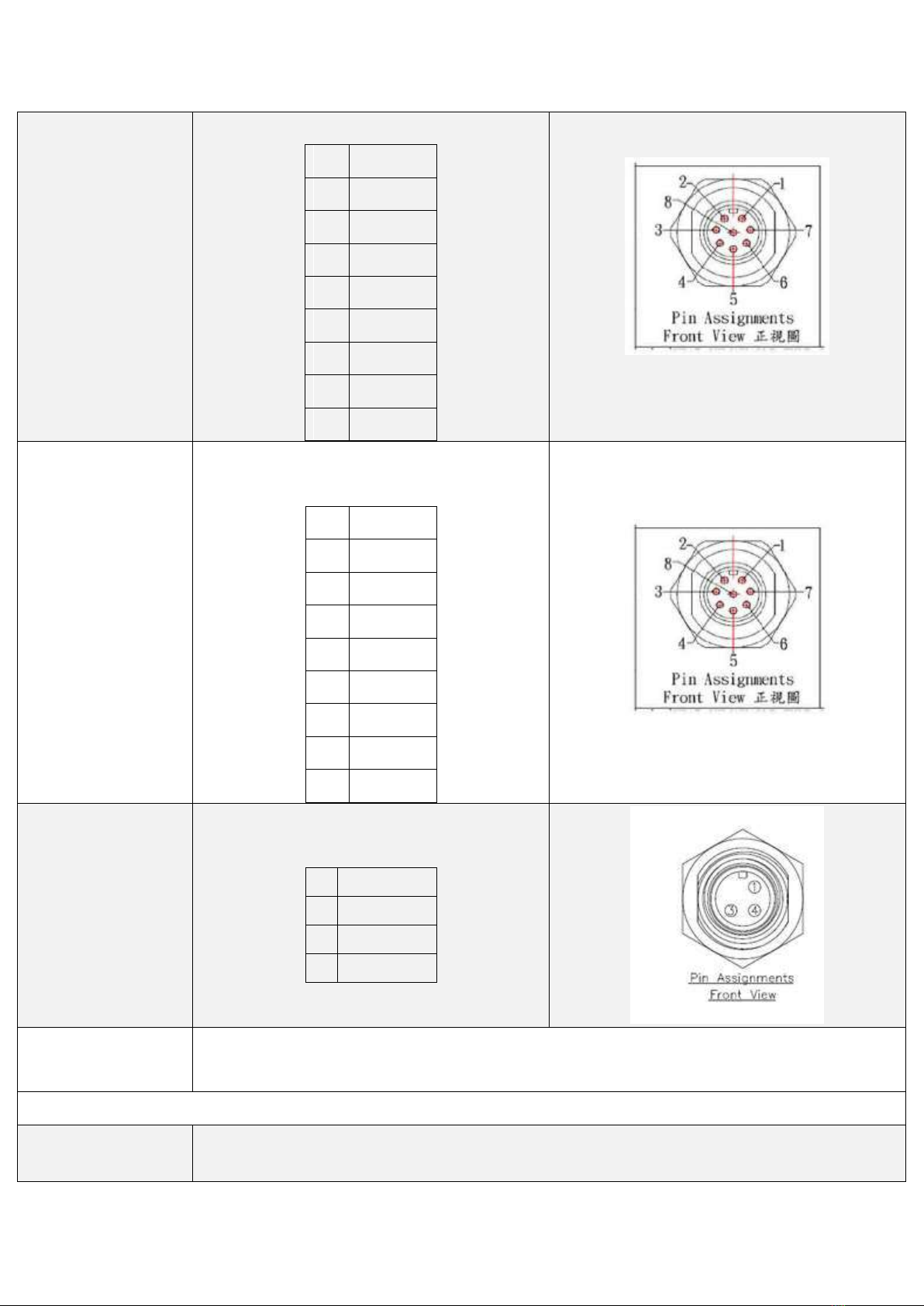

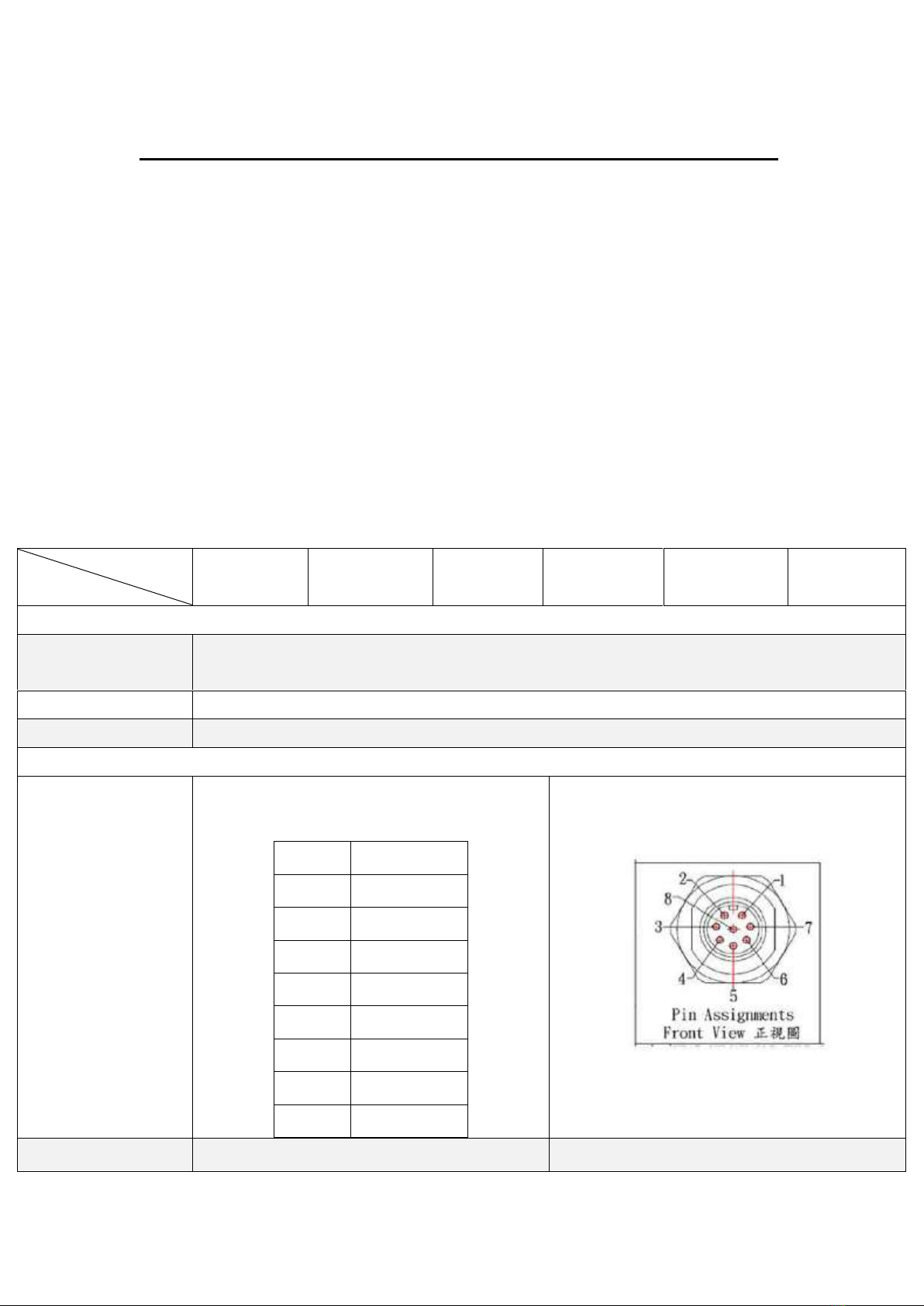

Outside IO Port –Standard M12 I/O Connector on the Rear Side
USB
1 x M12 8-pin for USB2.0 with waterproof cover and chain
USB1/2:
CN1
Pin Define
1
USB1 5V
3
D1-
4
D1+
7
GND
2
USB2 5V
5
D2-
6
D2+
8
GND
Serial/Parallel
1 x M12 8-pin COM1, RS-232/422/485, Default RS-232,

VITAM-9XXA Series User Manual
9
with waterproof cover and chain
Pin Define
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
LAN
1 x M12 8-pin for LAN with waterproof cover and chain
LAN:
Pin Define
1
LAN1_0+
2
LAN1_0-
3
LAN1_1+
4
LAN1_1-
5
LAN1_2+
6
LAN1_2-
7
LAN1_3+
8
LAN1_3-
Power
1 x M12 3-pin for DC power with waterproof cover
and chain
Pin Define
1
NC
3
VCC
4
GND
Others
1 x Power Switch on the rear
1 x Touch on/off button at the side
Option I/O Port (Either two)
2 x optional blank M12 connectors with waterproof cap for selecting two from the following
options:

VITAM-9XXA Series User Manual
10
Option
2 x USB 2.0
1 x USB 3.0
1 x LAN (POE for option)
1 x COM
1 x CAN
Storage Space
Storage
1 x 2.5”SATA3 HDD
Expansion
Expansion Slot
1 x Mini PCIe slot for WIFI/BT and Antenna at rear side (option)
RFID module
RFID module design on the front side (option)
Display –Standard LCD
Display Type
15”TFT LCD
15.6”TFT LCD
17”TFT LCD
19”TFT LCD
21.5”TFT LCD
23.8”TFT
LCD
Max. Resolution
1024 x 768
1366 x 768
1280 x 1024
1280 x 1024
1920 x 1080
1920 x 1080
Max. Color
262K/16.2M
16.7M
16.7M
16.7M
16.7M
16.7M
Luminance (cd/m2)
300
300
350
350
250
250
Contrast Ratio
2000:1
500:1
800:1
1000:1
3000:1
3000 : 1
Viewing Angle
176(H)/
176(V)
160(H)/
160(V)
160(H)/
140(V)
170(H)/
160(V)
178(H)/
178(V)
178(H)/
178(V)
Backlight Lifetime
70,000hrs
50,000hrs
50,000hrs
50,000hrs
30,000hrs
30,000 hrs
Option
Optical bonding
Display –High Brightness LCD (option)
Display Type
15”TFT LCD
15.6”TFT LCD
17”TFT LCD
19”TFT LCD
21.5”TFT LCD
23.8”TFT LCD
Max. Resolution
1024 x 768
1366x768
1280 x1024
1280 x1024
1920x1080
1920x1080
Max. Color
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
Luminance (cd/m2)
1000
1000
1000
1000
1000
1000
Contrast Ratio
800:1
500:1
1000:1
1000:1
3000:1
3000:1
Viewing Angle
160(H)/
150(V)
160(H)/
160(V)
170(H)/
160(V)
170(H)/
160(V)
178(H)/
178(V)
178(H)/
178(V)
Backlight Lifetime
50,000hrs
50,000hrs
50,000hrs
50,000hrs
50,000hrs
30,000hrs
Option
Optical bonding
Touch Screen
Type
Resistive touch window (for R model) (not available for 23.8”)
Projected capacitive touch screen (for P model)
Glass (for G model)

VITAM-9XXA Series User Manual
11
Interface
USB
Light Transmission
Resistive touch window: over 80%
Projected capacitive touch screen: over 90%
Glass Type
Type
AR
Light Transmission
Over 90%
Power
Power Input
DC 9~36V
Power Consumption
MAX:TBD
(915AR)
MAX:35W
(915AP)
MAX:TBD
(916AR)
MAX:49W
(916AP)
MAX:TBD
(917AR)
MAX:49W
(917AP)
MAX:TBD
(919AR)
MAX:49W
(919AP)
MAX:TBD
(921AR)
MAX:43W
(921AP)
MAX:53W
(924AP)
Mechanical
Color
304 Stainless steel enclosure (default)
316 Stainless steel enclosure (option)
Construction
Stainless steel enclosure
Mounting
VESA mount 75 x 75,
Yoke mount
VESA mount 100 x 100, Yoke
mount
VESA mount
200 x 100,
Yoke mount
IP Rating
IP66/IP69K
Dimension (mm)
399 x 324 x
53
440 x 290 x
55
432 x 358 x
55
470 x 388.6 x
60
571 x 362 x
55
656 x 423 x
53
Net Weight
7.1 Kg
7 Kg
8.2 Kg
9.5 Kg
10 Kg
12.6 Kg
Environmental
Operating
temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~40°C(For
High Bright
model)
0~50°C
Storage temperature
-30~70°C
Storage humidity
10 to 95% @ 40°C, non- condensing (10~95%for 23.8”model)
Certification
Meet CE / FCC Class A
Operating System
Support
Windows Embedded 7,
Windows Embedded 8.1,
Windows 10 IoT ENT LTSB

VITAM-9XXA Series User Manual
12
1.3 Dimensions
Figure 1.1: Dimensions of VITAM-915AP/R/G(H)
Figure 1.2: Dimensions of VITAM-916AP/R/G(H)

VITAM-9XXA Series User Manual
13
Figure 1.3: Dimensions of VITAM-917AP/R/G(H)
Figure 1.4: Dimensions of VITAM-919AP/R/G(H)

VITAM-9XXA Series User Manual
14
Figure 1.5: Dimensions of VITAM-921AP/R/G(H)
Figure 1.6: Dimensions of VITAM-924AP/G(H)

VITAM-9XXA Series User Manual
15
1.4 Brief Description of VITAM-9XXA Series
There are 15”, 15.6”, 17”, 19”, 21.5”, and 24”new generation adopt the
SUS304 grade stainless steel housing (SUS316 grade for option) panel PC in
VITAM-9XXA series, which comes with 100% dust and waterproof guarantee, and the
all-in-one fanless design. It is powered by 6th Gen. Intel Core i3-6100U/i5-6300U
processor onboard, 1 x 260-pin SO-DIMM up to 16GB DDR4L 2133MHz memory, and
1 x 2.5”HDD/SSD space for storage. VITAM-9XXA series is wide range DC 9~36V
power input and IP66/IP69K rated with M12 connectors. Furthermore, the models
support resistive touch, projected capacitive touch, and glass for option, and can be
high brightness LCD and optical bonding designed for option. It supports touch on/off
button on the side edge for hygienic cleaning and ergonomic versatile mounting:
Yoke mounting and space-saving VESA mounting.
Figure 1.7: Front View and Touch on/off Button of VITAM-9XXA Series
Figure 1.8: Rear View of VITAM-9XXA Series

VITAM-9XXA Series User Manual
16
1.5 Yoke Mounting and VESA Mounting
The VITAM-9XXA Series model can be Yoke mounted and VESA mounted as shown in
Picture below.
Figure 1.9: Yoke mounting of VITAM-9XXA Series
Figure 1.10: VESA mounting of VITAM-9XXA Series

VITAM-9XXA Series User Manual
17
Chapter 2 Hardware
2.1 Motherboard Introduction
SBC-7114 is a 4" industrial motherboard developed on the basis of Intel Skylake-U
Processor, which provides abundant peripheral interfaces to meet the needs of
different customers. Also, it features dual GbE ports, 6-COM ports and one mSATA
configuration, one HDMI port, and one LVDS interface. To satisfy the special needs of
high-end customers, CN1 and CN2 and CN3 richer extension functions. The product
is widely used in various sectors of industrial control.
2.2 Specifications & Dimensions
Specifications
Board Size
170mm x 113mm
CPU Support
Intel® Core™ i3-6100U/ 2.30GHz (onboard)
Intel® Core™ i5-6300U/ 2.40 up to 3.00GHz (option)
Intel® Core™ i7-6600U/ 2.60 up to 3.40GHz (option)
Intel® Celeron 3955U/ 2.00GHz (option)
Intel® Celeron 3965U/ 2.20GHz (option)
Intel® Core™i3-7100U/ 2.40GHz (option)
Intel® Core™i5-7300U/ 2.60 up to 3.50GHz (option)
Intel® Core™i7-7600U/ 2.80 up to 3.90GHz (option)
Chipset
SOC
Memory Support
1x SO-DIMM (260pins), up to 16GB DDR4 2133MHz FSB
Graphics
Intel® HD Graphics 520 (i3-6100U/i5-6300U/i7-6600U)
Intel® HD Graphics 510 (3955U)
Intel® HD Graphics 610 (3965U)
Intel® HD Graphics 620 (i3-7100U/i5-7300U/i7-7600U)
Display Mode
1 x HDMI 1.4 Port
1 x LVDS (18/24-bit dual LVDS)
1 x DP Signal Port (DF13-40P)
Support
Resolution
Up to 4096 x 2304 for HDMI
Up to 1920 x 1200 for LVDS (PS8625)
Up to 4096 x 2304 for DP1
Dual Display
HDMI + LVDS

VITAM-9XXA Series User Manual
18
HDMI + DP1 (option)
LVDS + DP1 (option)
HDMI + LVDS + DP1 (option)
Super I/O
Nuvoton NCT6106D
BIOS
AMI/UEFI
Storage
1 x SATAIII Connector (7P)
1 x SATAIII Connector (7P+15P)
1 x MSATA Connector (option)
Ethernet
2 x PCIe GbE LAN by Intel I210-AT
USB
2 x USB 3.0 (type A)stack ports (USB3)
(USB3.0:USB3-1/USB3-2,USB2.0:USB1/USB2)
4 x USB 2.0 Pin header for CN3 (USB3/USB4/USB8/USB9)
2 x USB 3.0/USB2.0 Pin header for CN3 (PCIe 1x or USB3.0, option)
1 x USB 2.0 Pin header for CN2 (USB5)
1 x USB 2.0 Pin header for CN1 (USB7 or Touch, option)
1 x USB 2.0 Pin header for EDP1 (USB7 or Touch, option)
1 x USB 2.0 for MPCIE1 (USB6)
Serial
1 x RS232/RS422/RS485 port, DB9 connector for external (COM1)
Pin 9 w/5V/12V/Ring select
1 x RS232 port, DB9 connector for external (COM2)
Pin 9 w/5V/12V/Ring select
2 x UART for CN3 (COM3,COM4)
1 x RS422/485 header for CN2 (NCT6106D /COM5)
1 x RS422/485 header for CN2 (NCT6106D /COM6)
Digital I/O
8-bit digital I/O by Pin header (CN2)
4-bit digital Input
4-bit digital Output
4-bit digital I/O by Pin header (CN3)
2-bit digital Input
2-bit digital Output
Battery
Support CR2477 Li battery by 2-pin header (BAT3/CMOS)
Smart battery
1 x Smart battery
Support 3 Serial Li battery by 10-pin header (BAT2)
Audio
Support Audio via Realtek ALC269Q HD audio codec
Support Line-out by JACK (LINE_OUT1)

VITAM-9XXA Series User Manual
19
Support Line-in, Line-out, MIC by 2x6-pin header(AUDIO2)
Support a stereo Class-D Speaker Amplifier with 2 watt per
channel output power, by 1x4-pin header (SPK1)
Expansion Bus
1 x mini-PCI-express slot (MPCIE or MSATA. Default: MSATA)
1 x PCI-express for CN3
2 x PCI-express for CN3 (PCIe 1x or USB3.0, Default：PCIe 1x)
TPM
Infineon’s Trusted Platform Module (TPM2.0)
*Note: Only support Windows 10 IOT*
Touch Ctrl
1 x Touch ctrl header for TCH1 (USB10)
Power
Management
Wide Range DC9V~36V input
1 x 3-pin power input connector
Switches and
LED Indicators
1 x Power on/off switch (BT1/BT2/CN2/CN3)
1 x Reset (CN2)
1 x HDD LED status (CN2)
1 x Power LED status (CN1)
1 x Buzzer
External I/O port
2 x COM Ports (COM1/COM2)
2 x USB 3.0 Ports (stack)
2 x RJ45 GbE LAN Ports
1 x HDMI Port
1 x Audio Jack (Line out)
Temperature
Operating: -20℃to 70℃
Storage: -40℃to 85℃
Humidity
10% - 90%, non-condensing, operating
Power
Consumption
12V/3A (Intel i3-7100U 2.40 GHz Processor with 16GB DDR4/HDD)
EMI/EMS
Meet CE/FCC class A
