Apollo Discovery Open Area Voice Sounder User manual

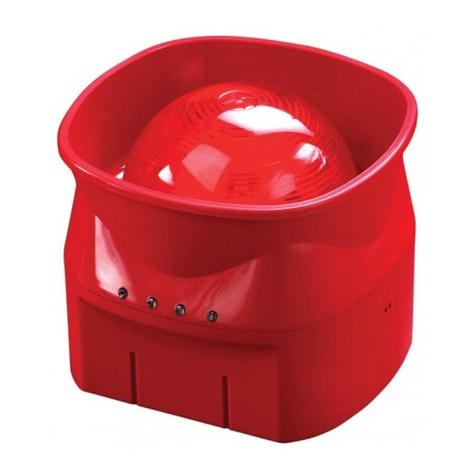

Discovery® Open Area Voice Sounder
Installation Guide
General
This guide describes the installation of the following products:
Part Number Product Name Type Colour
58000-010 Discovery Open Area Voice Sounder with Isolator Indoor (Type A) Red
58000-020 Discovery Open Area Voice Sounder with Isolator Indoor (Type A) White
58000-030 Discovery Open Area Voice Sounder Visual Indicator
with Isolator Indoor (Type A) Red
58000-040 Discovery Open Area Voice Sounder Visual Indicator
with Isolator Indoor (Type A) White
Warning
The Discovery Open Area Voice Sounder requires compatible control panel software to
operate. Please check with the panel manufacturer for compatibility before installation.
Function*
The Open Area Voice Sounder Visual Indicator has 3 tone/message pairs, 7 volume set-
tings, independent control of sounder and visual indicator and fast turn-on functions. The
configuration of the sounder is set by the control panel. Please refer to the panel literature
for details.
Mounting the backbox
The backbox is removed by using an unlocking key to press in one of the retaining lugs.
The Open Area Voice Sounder has 6 slotted drillable holes in the backbox and can be
installed directly to the mounting surface.
Wiring Details
Note: This product is polarity sensitive (supply reversal protected) and will not function if
wired incorrectly.
Drill holes for cable entry as appropriate for the installation. Drill guides are marked on the
backbox. Connect the loop cables to the terminal block, observing polarity and func-
tional earth/screen if applicable. The wiring terminals accept solid or stranded cables up
to 2.5mm².
Commissioning
It is important that the device be fully tested after installation. Many fault conditions are
the result of simple wiring errors. Check all connections to the unit.
Setup and Test Mode
These modes allow volume adjustment and functional testing locally. In test mode no
volume adjustment is possible.
The required mode is entered via the control panel and is confirmed by a red setup LED
which flashes once a second. Sounder state is controlled by placing a magnet adjacent
to the flashing setup LED. When the confirmation LED flashes, withdraw the magnet. A suit-
able extendable magnetic wand is available, part no. 29650-001.
*The Visual Indicator function does not comply with the requirements of EN54-23
1
39214-601/2013/Issue 4
© Apollo Fire Detectors Limited 2012
Apollo Fire Detectors Limited, 36 Brookside Road, Havant, Hants, PO9 1JR, UK
Tel [phone] Fax [phone]
Email: techsales@apollo-fire.co.uk Website: www.apollo-fire.co.uk
4
Tone Table
Byte
Value Attention Drawing Signal (Tone) Message
Tone/
Message
Number Attention Drawing Signal (Tone) Message
Tone/
Message
Number
1Apollo Evacuation Tone (550Hz for
0.5s, 825Hz for 0.5s)
Attention please. Fire has been reported in the building. Please leave
immediately, by the nearest exit. Fire
has been reported in the building.
Please leave immediately, by the
nearest exit.
M1 Apollo Alert Tone (1s off, 825Hz for
1s)
This is a fire Alert. This is a fire Alert. Await further instructions. This is a fire
Alert. This is a fire Alert. Await further
instructions.
M0
2Apollo Evacuation Tone (550Hz for
0.5s, 825Hz for 0.5s)
In the interests of safety please evacuate the building now. In the
interests of safety please evacuate
the building now. In the interests of
safety please evacuate the building
now.
M3 Apollo Alert Tone (1s off, 825Hz for
1s)
All Clear. The emergency has been
resolved. It is safe to resume normal
activities. All Clear. The emergency
has been resolved. It is safe to
resume normal activities.
M2
3Apollo Evacuation Tone (550Hz for
0.5s, 825Hz for 0.5s)
This is a test of the fire alarm system. Please do not take any action. This is
a test of the fire alarm system. Please
do not take any action.
M5 Apollo Alert Tone (1s off, 825Hz for
1s)
The fire alarm test is now complete. The fire alarm test is now complete. The fire alarm test is now complete.
M4
4Fast Sweep (2500Hz -2850Hz at
9Hz) M7 Continuous 2850Hz M6
5Dutch Slow Whoop (Sweep 500Hz -
1200Hz for 3.5s, 0.5s off M9 Continuous 825Hz M8
6DIN Tone (sweep 1200Hz - 500Hz
for 1s) M11 Continuous 825Hz M10
7Swedish Fire Tone (660Hz, 150ms
on, 150ms off) M13 Swedish all clear signal (
Continuous 660Hz) M12
8Aus (fast rise sweep 3x (500Hz -
1200Hz for 0.5s), 0.5s off) M15 Aus Alert Tone (420Hz, 0.625s,
0.625s off) M14
9NZ (slow rise sweep 500Hz -
1200Hz for 3.75s, 0.25s off) M17 NZ Alert Tone (420Hz, 0.625s,
0.625s off) M16
10 US Temporal LF (ISO 8201 3x
(970Hz, 0.5s on, 0.5s off), 1s off) M19 Continuous 970Hz M18
11 US Temporal HF (ISO 8201 3x
(2850Hz, 0.5s on, 0.5s off), 1s off) M21 Continuous 2850Hz M20
12 Simulated Bell - Continuous M23 Simulated Bell – Intermittent (1s
off, 1s on) M22
13 M25 M24 14 Continuous 970Hz M27 Intermittent 970Hz (1s off, 1s on) M26 15 Apollo Evacuation Tone (550Hz for
0.5s, 825Hz for 0.5s) M29 Apollo Alert Tone (1s off, 825Hz for
1s) M28
Spare Spare Spare Spare Spare Spare Spare Spare Spare Spare Spare Spare
Spare
Spare
Spare
Spare
Spare
Spare
Spare
Spare Spare
Spare
Spare
Spare
Apollo Evacuation Tone (550Hz for 0.5s, 825Hz for 0.5s)
Apollo Alert Tone (1s off, 825Hz for 1s)
*
*
*
*
* These tones are EN54 compliant
Please note: Recording and loading of messages on this device cannot be made. Synchronisation can be made by group or global mode from the panel when switching on or by address ‘0’ synchronisation.

2
In setup mode the volume can be adjusted by holding the magnet adjacent to the flashing setup
LED and removing it at the desired volume level. If min or max volume is reached, the confirmation
LED stops flashing. To alter the direction of adjustment, remove the magnet for one second and re-
apply. Saving the volume setting is performed at the control panel.
Please check with panel manufacturer for compatibility of the above setup/test modes.
Technical Data
Operating voltage 17–28V DC
Switch-on surge 1.5 mA < 10s
Quiescent current (non-polling) 1.4 mA Nominal
Alarm current (non-polling) max
Sounder 9.5 mA
Visual Indicator 8.8 mA
Sounder with Visual Indicator 13.4 mA
Alarm power
Sounder 266 mW
Visual Indicator 246 mW
Sounder with Visual Indicator 375 mW
IP Rating 21C
For sound pressure levels measured to EN54–3 see document PP2203
and for isolator operation information see document PP2090,
both available on request.
3
Individual Address Setting
The address of the Open Area Voice Sounder is set using segments 1-7 of the DIL switch.
Each switch is set to “0” (ON) or “1”, using a small screwdriver or similar tool. A complete list
of address settings is shown below.
DIL switch DIL switch DIL switch DIL switch DIL switch
setting setting setting setting setting
addr 1234567 addr 1234567 addr 1234567 addr 1234567 addr 1234567
1 1000000 11 1101000 21 1010100 31 1111100 41 1001010
2 0100000 12 0011000 22 0110100 32 0000010 42 0101010
3 1100000 13 1011000 23 1110100 33 1000010 43 1101010
4 0010000 14 0111000 24 0001100 34 0100010 44 0011010
5 1010000 15 1111000 25 1001100 35 1100010 45 1011010
6 0110000 16 0000100 26 0101100 36 0010010 46 0111010
7 1110000 17 1000100 27 1101100 37 1010010 47 1111010
8 0001000 18 0100100 28 0011100 38 0110010 48 0000110
9 1001000 19 1100100 29 1011100 39 1110010 49 1000110
10 0101000 20 0010100 30 0111100 40 0001010 50 0100110
51 1100110 61 1011110 71 1110001 81 1000101 91 1101101
52 0010110 62 0111110 72 0001001 82 0100101 92 0011101
53 1010110 63 1111110 73 1001001 83 1100101 93 1011101
54 0110110 64 0000001 74 0101001 84 0010101 94 0111101
55 1110110 65 1000001 75 1101001 85 1010101 95 1111101
56 0001110 66 0100001 76 0011001 86 0110101 96 0000011
57 1001110 67 1100001 77 1011001 87 1110101 97 1000011
58 0101110 68 0010001 78 0111001 88 0001101 98 0100011
59 1101110 69 1010001 79 1111001 89 1001101 99 1100011
60 0011110 70 0110001 80 0000101 90 0101101 100 0010011
101 1010011 106 0101011 111 1111011 116 0010111 121 1001111
102 0110011 107 1101011 112 0000111 117 1010111 122 0101111
103 1110011 108 0011011 113 1000111 118 0110111 123 1101111
104 0001011 109 1011011 114 0100111 119 1110111 124 0011111
105 1001011 110 0111011 115 1100111 120 0001111 125 1011111
126 0111111
Fault Finding
Problem Possible Cause
No response or missing Incorrect address setting
Incorrect loop wiring (polarity reversed)
Analogue value 1 Sounder failed
Analogue value 2 Visual Indicator failed (Sounder with Visual Indicator
version only)
Analogue value 3 Sounder with Visual Indicator failed (where visual
indicator exists)
Device fails to operate Control panel has incorrect cause
and effect programming
Fig 3. Discovery Open Area Voice Sounder
USB I/F
L1 L2
L1(-)
L1(-)
L2(+)
L2(+)
SCREEN SCREEN
ON CIT
1234567
©Apollo Fire Detectors Limited 2010/EKC
Fig 2. Example of Address 78
© Apollo Fire Detectors Limited 2006-10/DJO/TP/TB
1234567
O
N
0101 110
ON = 0
Fig 1. PCB outline
setup LED (red)
polling LED (green) isolator LED (yellow)
conrmation LED (red)
¤Apollo Fire Detectors Limited 2010/EKC
Analogue Values
Analogue Value Status Analogue Value Status
0 Flash Memory Fail 17 Sounder Volume 1*
1 Sounder Fail 18 Sounder Volume 2
2 Visual Indicator Fail 19 Sounder Volume 3
3 Sounder and Visual Indicator Fail 20 Sounder Volume 4
4 General Fault 21 Sounder Volume 5
22 Sounder Volume 6
23 Sounder Volume 7
*Volume 1 does not comply with the requirements of EN54-3
