APS Auto Parts Specialist IB03DAC1 User manual

(6”,5”,4”)RUNNING BOARD
FOR 2000-2018 Chevy Tahoe (Excl. 04-07 "Z71" and any model with lower body cladding)/
2000-2018 GMC Yukon 1500 (Excl. Z71 model)/2001-2017 Cadillac Escalade SUV (Excl. ESV/EXT)
Rev:20181101
Installation Instructions for IB03DAC1
by APS Auto Parts Specialist Inc.
Application: FOR 2000-2018 Chevy Tahoe (Excl. 04-07 "Z71" and any model with lower body
cladding)/
2000-2018 GMC Yukon 1500 (Excl. Z71 model)/
2001-2017 Cadillac Escalade SUV (Excl. ESV/EXT)
Estimated Time: 1 to 2 hours
Disclaimer: Instructions intended for persons
aged 18+ please do not attempt without adult
supervision. Instructions are not intended to
replace professional installation. Damage
from improper installation, misuse or
modification to the product voids the
manufacturer’s warranty.

(6”,5”,4”)RUNNING BOARD
FOR 2000-2018 Chevy Tahoe (Excl. 04-07 "Z71" and any model with lower body cladding)/
2000-2018 GMC Yukon 1500 (Excl. Z71 model)/2001-2017 Cadillac Escalade SUV (Excl. ESV/EXT)
Rev:20181101
Page 1of 2
PARTS LIST:
Item
QTY
Description
Item
QTY
Description
#01
2
Driver/Passenger Sidebar
#07
6
M12X120mm Hex Head Bolts
#02
1
Driver Front Mounting Bracket (DFM)
#08
6
M12 Flat Washer
#03
1
Passenger Front Mounting Bracket（PFM）
#09
6
M12 Lock Washer
#04
1
Passenger Rear Mounting Bracket（PRM）
#10
12
M6 X20mm Square Head Bolts
#05
1
Driver Rear Mounting Bracket（DRM）
#11
12
M6 Flat Washers
#06
2
Driver / Passenger Center Mounting Bracket（DCM/PCM）
#12
12
M6 Nylon Lock Nut
INSTALLATION INSTRUTION:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION.
1. Start the installation under the Driver side of the vehicle. Remove the front and rear body mount hex
bolts. Do not remove the rubber bushings. See Fig 1.
2. Hang the driver side front center and rear Mounting Brackets from the body mounts using the factory
hex bolts.NOTE: On some model years, the factory bolt and flat washer cannot be reinstalled due to
Bracket interference. Replace the factory hex bolts and washers with the included 12mm x 120mm Hex
Bolts, 12mm Lock Washers and 12mm Flat Washers. Do not tighten hardware at this time（Figure 2）.
3. Select the step bar. Slip (6) 6mm Square Head Bolts into each bottom channel (Figure 3).
4. Carefully position the Running Board onto the (3) Mounting Brackets. IMPORTANT: Do not slide the
Running Board on the Brackets or damage to the finish may result. Attach the Running Board to the
Mounting Brackets with (6) M6 Square Head Bolts,(6)M6 flat washers and (6)M6 nylon lock nuts,
(Figure 4). Do not tighten hardware.
5. Level and adjust the Sidebar and tighten all hardware. NOTE: Torque all M6 nylon lock nuts to 7
Ib-ft.
6. Repeat steps for passenger side.
7. Do periodic inspections to the installation to make sure all hardware is secure and tighten.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer
over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish.
For Polished Finishes: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may
be used also to clean the Running Board.
For black finishes: Mild soap may be used to clean the Running Board.

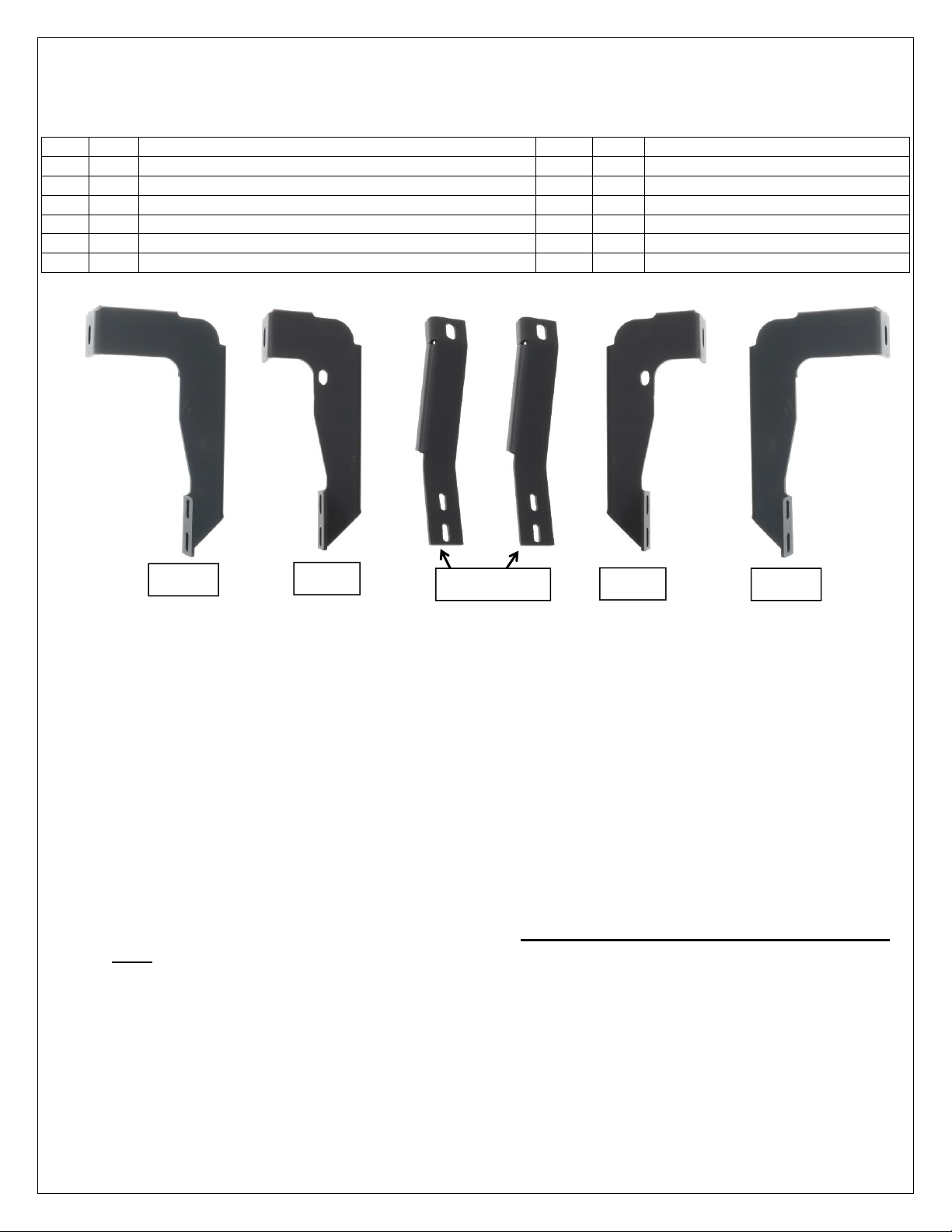

DFM
PFM
DRM
PRM
DCM/PCM

(6”,5”,4”)RUNNING BOARD
FOR 2000-2018 Chevy Tahoe (Excl. 04-07 "Z71" and any model with lower body cladding)/
2000-2018 GMC Yukon 1500 (Excl. Z71 model)/2001-2017 Cadillac Escalade SUV (Excl. ESV/EXT)
Rev:20181101
Page 2of 2
Fig 2
Example of GM factory
body mount bolt
Fig 1
Fig 3 Slip M6 Square Head Bolts into channel
(Fig 4) Bracket installation
(2)M6 Square Head Bolts
(2)M6 Flat Washers
(2)M6 Nylon Lock Nuts
Vehicle Frame
Assembled Driver Front
Mounting Bracket
Assembled Driver Rear
Mounting Bracket
Assembled Driver Center
Mounting Bracket
(3)M12X120mm Hex Bolts
(3)M12 Flat Washers
(3)M12 Lock Washers
