Aqua One Oakstyle 300 User manual

Assembly Instructions
Please keep for future reference
Important - Please read these instructions fully before starting assembly
Oakstyle 300
Version 1 : 06/08/2018
ALR3483

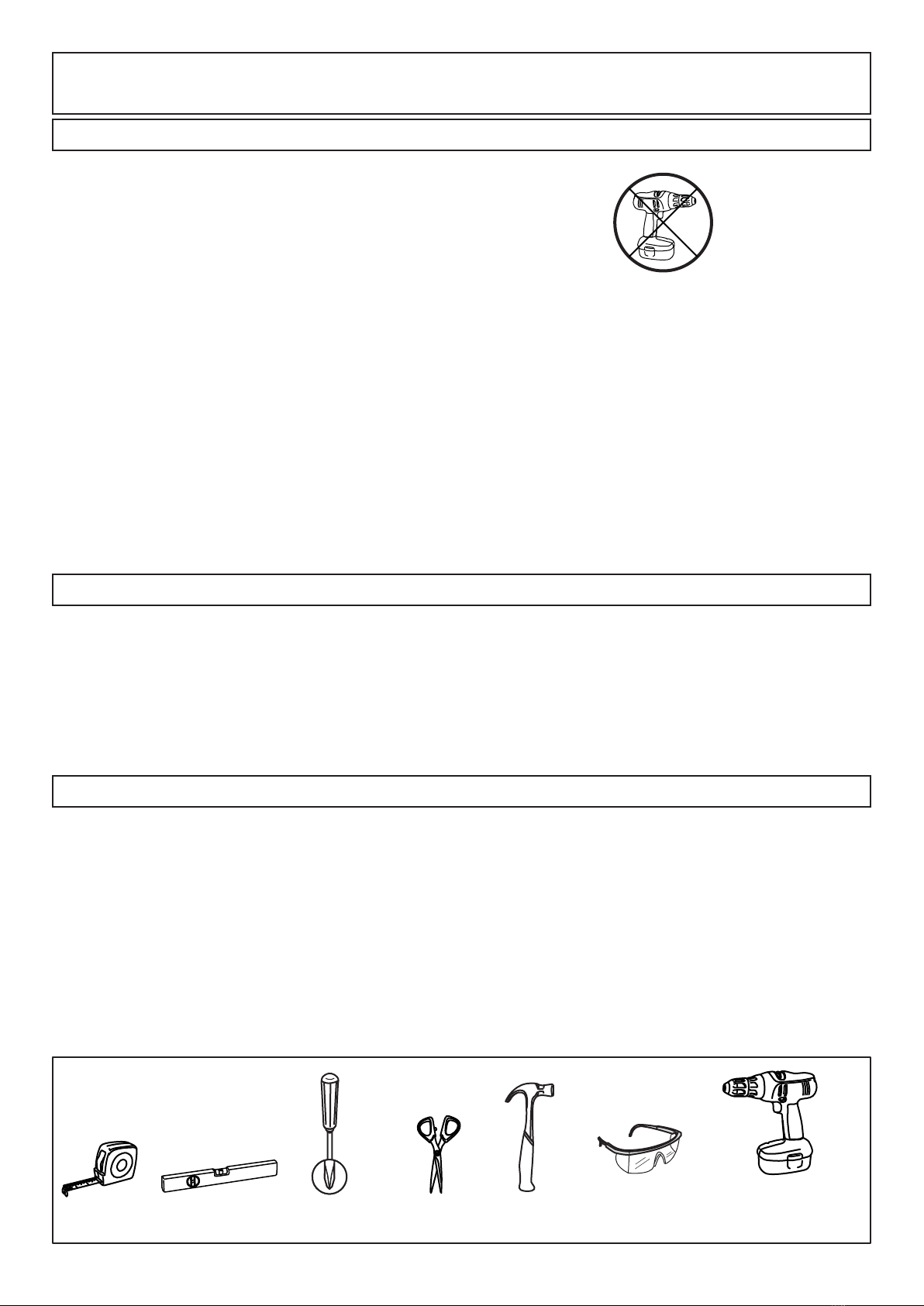

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Make sure you have enough
space to layout the parts before
starting.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
Care and maintenance
Contact Us
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Aqua Pacific UK Ltd.
Unit 10, Oriana Way
Nursling Industrial Estate
Southampton
SO16 0YU
Tel [phone]
Fax [phone]
[email protected]
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Warning: This unit is heavy.
Please lift with care.
• Check you have all the
components and tools listed.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
Tools
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Spirit
level
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: This unit must
be secured to a wall using the
overbalance protector kits
supplied.
• Dispose of all packaging
carefully and responsibly.

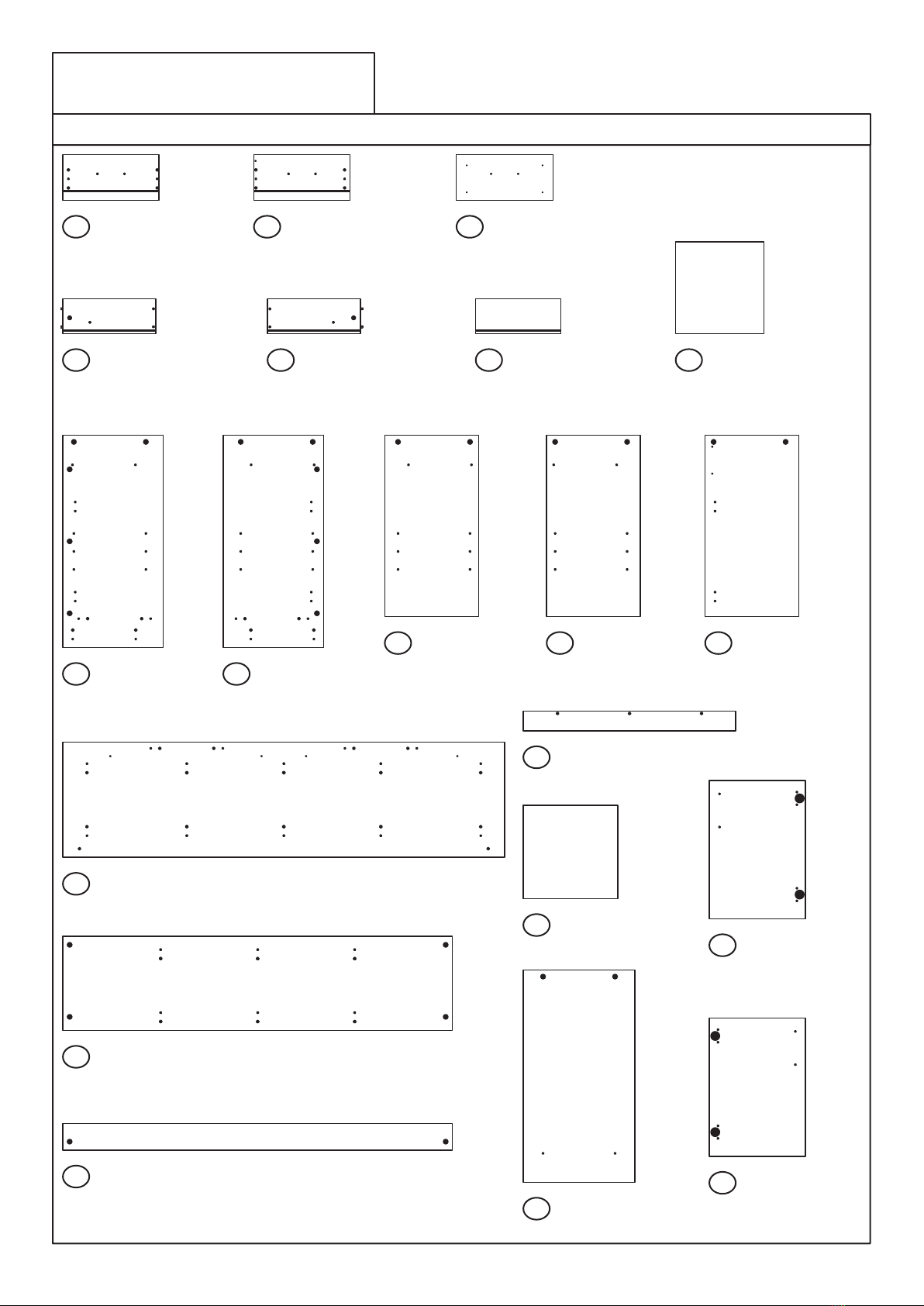

Panels
Please check you have all the panels listed below
8 9Left Side
(DF-00011541)
(75.5 x 35.7cm)
Right Side
(DF-00011542)
(75.5 x 35.7cm)
13 Top (DF-00014064)
(157.1 x 41cm)
10 Left Divider
(DF-00015030)
(64.5 x 33.4cm)
1Left Drawer
Front (DF-00011548)
(34.2 x 16.2cm)
2Right Drawer
Front (DF-00011549)
(34.2 x 16.2cm)
4Left Drawer
Side (W330-124LH)
(33 x 12.4cm) x 2
5Right Drawer
Side (W330-124RH)
(33 x 12.4cm) x 2
6Drawer Back
(W303-124)
(30.3 x 12.4cm) x 2
7Drawer Base
(T314-327)
(31.4 x 32.7cm) x 2
11 Right Divider
(DF-00015031)
(64.5 x 33.4cm)
3Centre Drawer
Front (DF-00014069)
(34.2 x 16.2cm) x 2
16 Fascia (F755-70)
(75.5 x 7cm) x 2
18 Back (DF-00011550)
(75.5 x 39.6mm) x 2
12 Centre Divider
(DF-00014070)
(64.5 x 33.4cm)
14 Base (DF-00014065)
(138.5 x 33.4cm)
15 Plinth (DF-00014066)
(138.5 x 9.5cm) x 2
17 Shelf (DF-00011545)
(33.6 x 33.2cm) x 2 19 Left Door
(F492-342LH)
(492 x 342mm) x 2
20 Right Door
(F492-342RH)
(492 x 342mm) x 2

Fittings
Please check you have all the fittings listed below
A B
Large Metal Dowel (F901) x 26
C
D E
Knock-in Peg (F171GY) x 8
12mm Locking Cam Nut (F900) x 22
Small Locking Cam Nut (F900) x 4
H IG
Wooden Dowel (F22) x 30
45mm Screw (F65) x 4
F
R
L
19mm Screw (F461) x 16
N
Shelf stud (F110) x 14
J
9mm Screw (F74) x 4
K
9mm Screw (F73) x 8
Handle (F287) x 8
S
V W
U
X
Pre-mounted
hinge (F419) x 4
T
Overbalance protector
kit (F474) x 4
M
40mm Screw (F910) x 6
U
Quickfit dowel (F545) x 6
6 of these are required for Hood fixing.
See seperate instructions for fitting details.
*
Bracket (F945) x 8
Hinge Plate (F553) x 4 Hinge Arm (F735) x 4
Plastic Nail (F91) x 16
Q
13mm Screw (F79) x 16
Door Buffer (F137) x 20
P
10mm Locking cam nut (F607) x 6
10mm
12mm
Wedgefix (F639) x 4
O
Y
Drawer runner (F1004) x 4
13mm Screw (F52) x 8

Step 1
Step 2
Step 3
Prepare the 2 sets of
Drawer Sides
Insert a Small Locking
Cam Nut into the 2 Left
Drawer Sides and the 2
Right Drawer Sides.
Note: The arrow on the
Small Locking Cam Nut
must point towards the
hole in the edge of the
panel.
Attach the Drawer
Sides to the Drawer
Fronts
Push the Left Drawer
Sides and Right Drawer
Sides onto the back of
the Drawer Fronts.
Turn the Small Locking
Cam nuts on the Left
Drawer Sides and right
Drawer Sides.
Note: Turn the Small
Locking Cam nuts
clockwise to secure the
panels - more than 1/2 a
turn.
A
B
B
BB
Prepare the Left and
Right Drawer Fronts
Screw 2 Metal Dowels
into the Left and Right
Drawer Fronts.
Note: Tighten the Metal
Dowels up fully against
the panels.
Stick 2 Door Buffers into
the corners of each
Drawer Front, as shown.
45
4
5
1
4
5
2
1
A
P
P

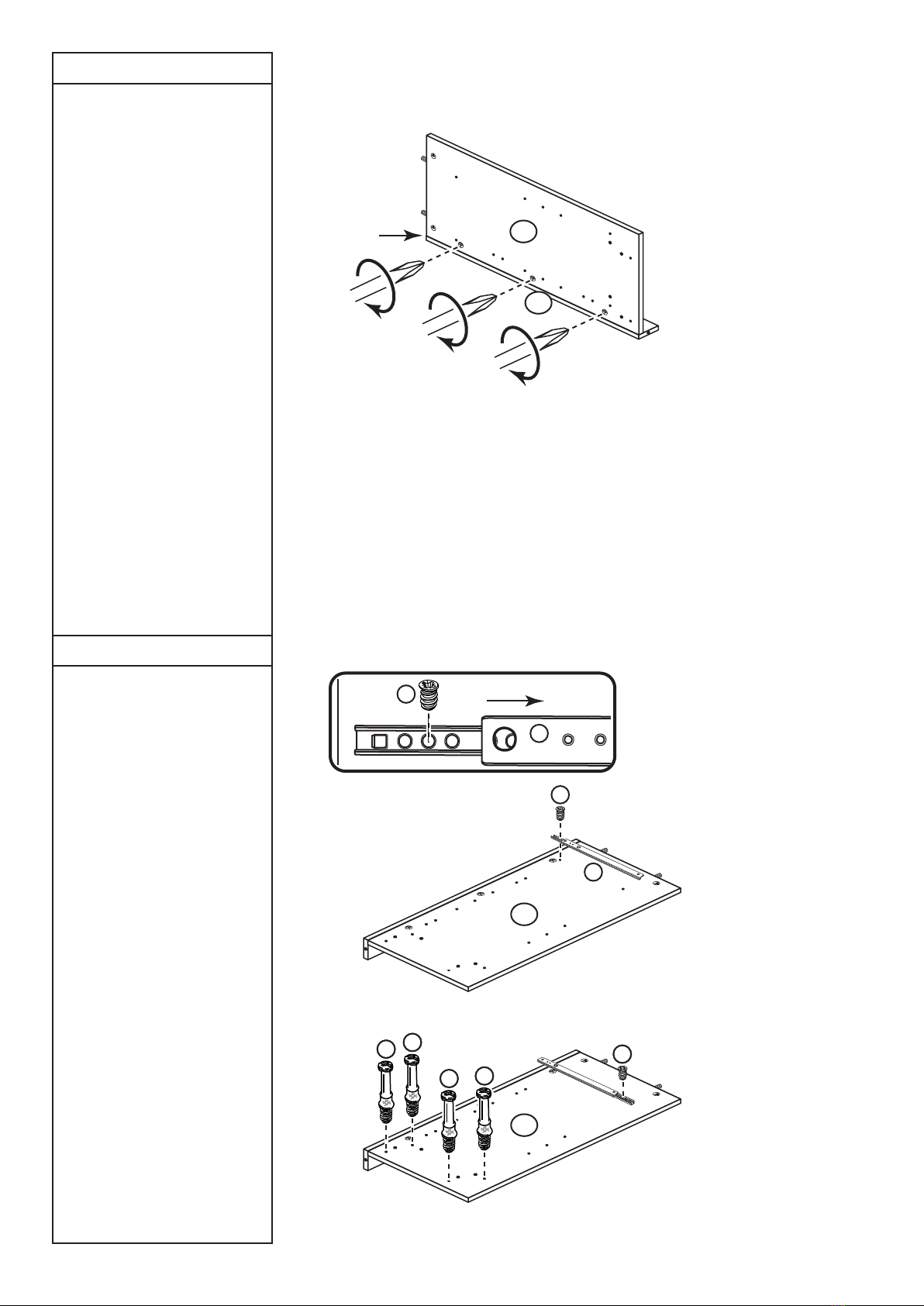

A
A
A
P
P
Shallow I.D. hole
2
BB
45

Step 4
Step 5
Step 8

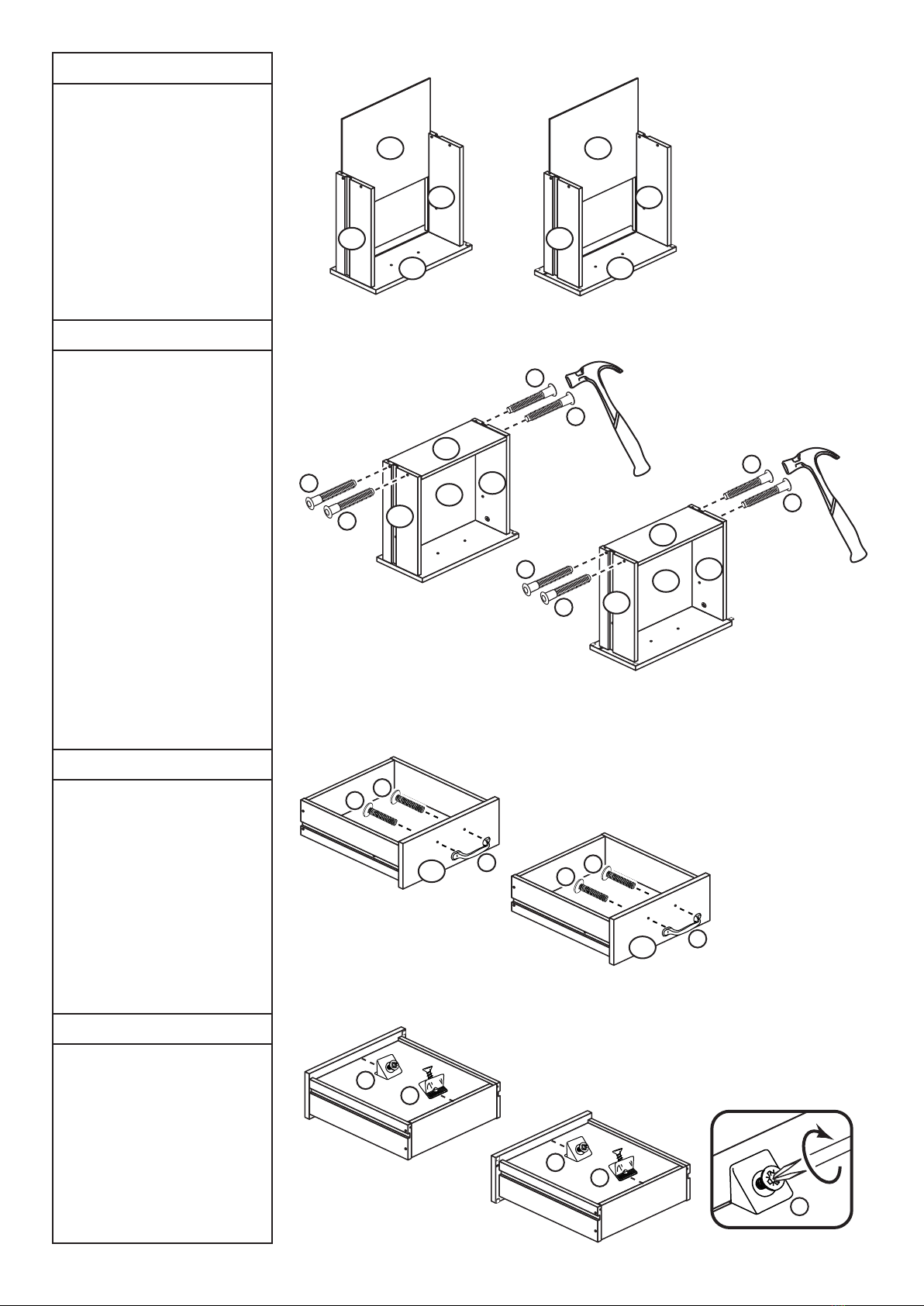

Fit the Drawer Bases
Slide the Drawer Bases
down the grooves in the
Drawer Sides and down
into the groove in the Left
and Right Drawer Fronts.
Fit the Drawer Backs
Fit the Drawer Backs
between the Drawer
Sides.
Make sure that the
Drawer Base fits into the
groove in the Drawer
Back.
Hold the Drawer Back
in position and tap the
Knock-in Pegs through
the holes in the Drawer
Sides.
Step 6
Attach the Handles
Attach a Handle to the
Left and Right Drawer
Fronts using two 19mm
Screws.
Step 8
Step 7
Fit the Wedgefixes
Turn the drawer
assemblies over and
slide 2 Wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
C
C
C
C
O
O
O
4
5
4
6
75
1
I
I
R
The Drawer assembly
must be square before
fitting the wedgefixes
7
1
C
C
C
C
O
O
4
5
4
6
75
I
I
R
7
2
2

Step 8
U
U
U
F
F
Left Fascia - holes
nearest this side
Step 9
Prepare the 2 Fascias
Check that the holes are
in the same place as the
diagrams, as one will be
the Left Fascia and one
will be the Right Fascia.
Tap a Wooden Dowel
into each of the 2
Fascias.
Note: Wooden Dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
F
F
10mm
F
16
16
E
D
E
D
D
8
Right Fascia - holes
nearest this side

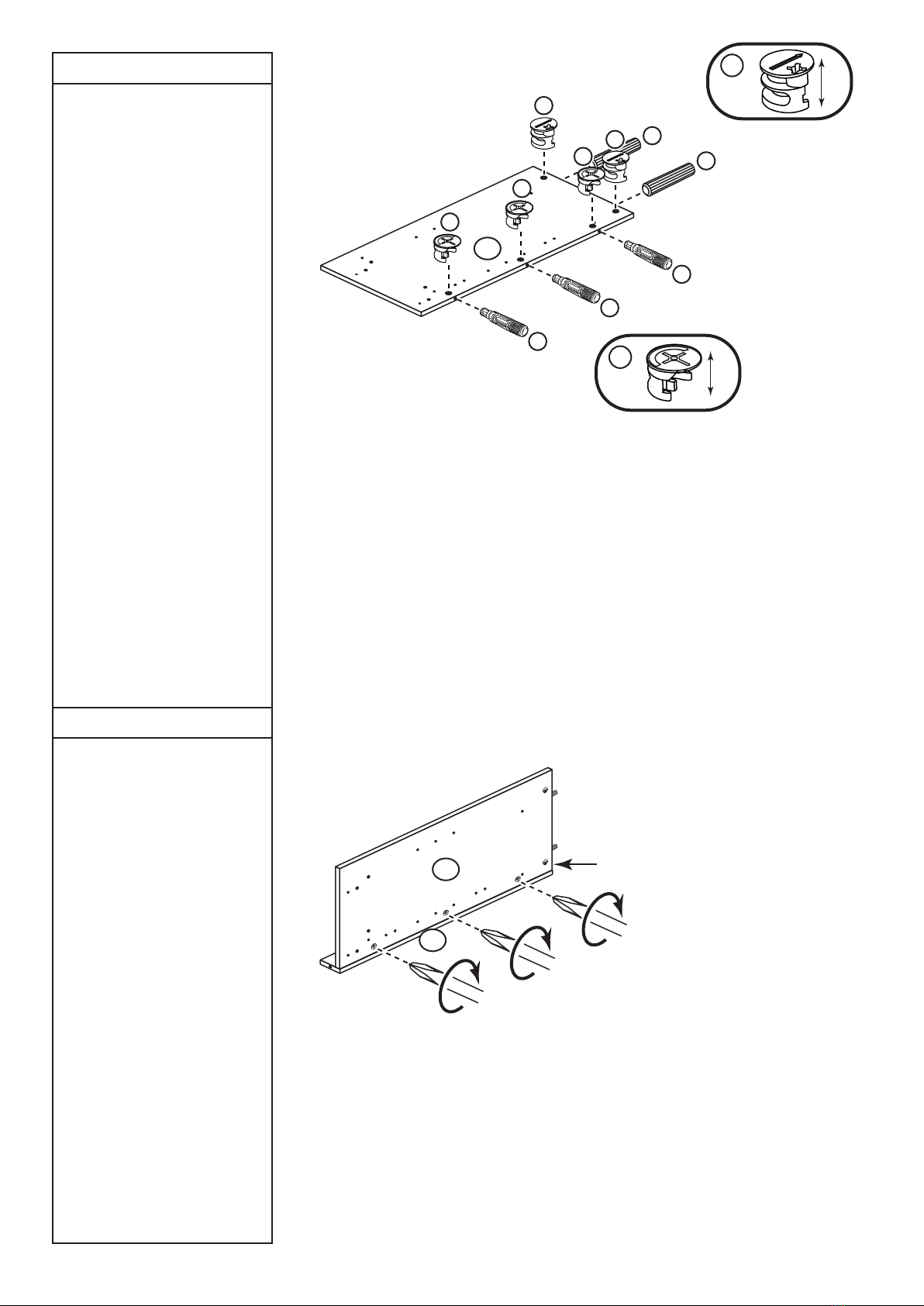

Prepare the Left Side
Tap 2 Wooden Dowels
into the Left Side.
Insert 3 10mm Locking
Cam Nuts into the
side of the Left Side.
Insert 2 12mm Locking
Cam Nuts into the
end of the Left Side.
Note: The arrow on the
Locking Cam Nuts must
point towards the hole in
the edge of the panel.
Push 3 of the Quickfit
Dowels as far as they will
go into the Left Side.
Note: Only the plastic
thread of the Quickfit
Dowel sticks out from the
panel.
U
D
E
10mm
F
D
E
10mm
12mm

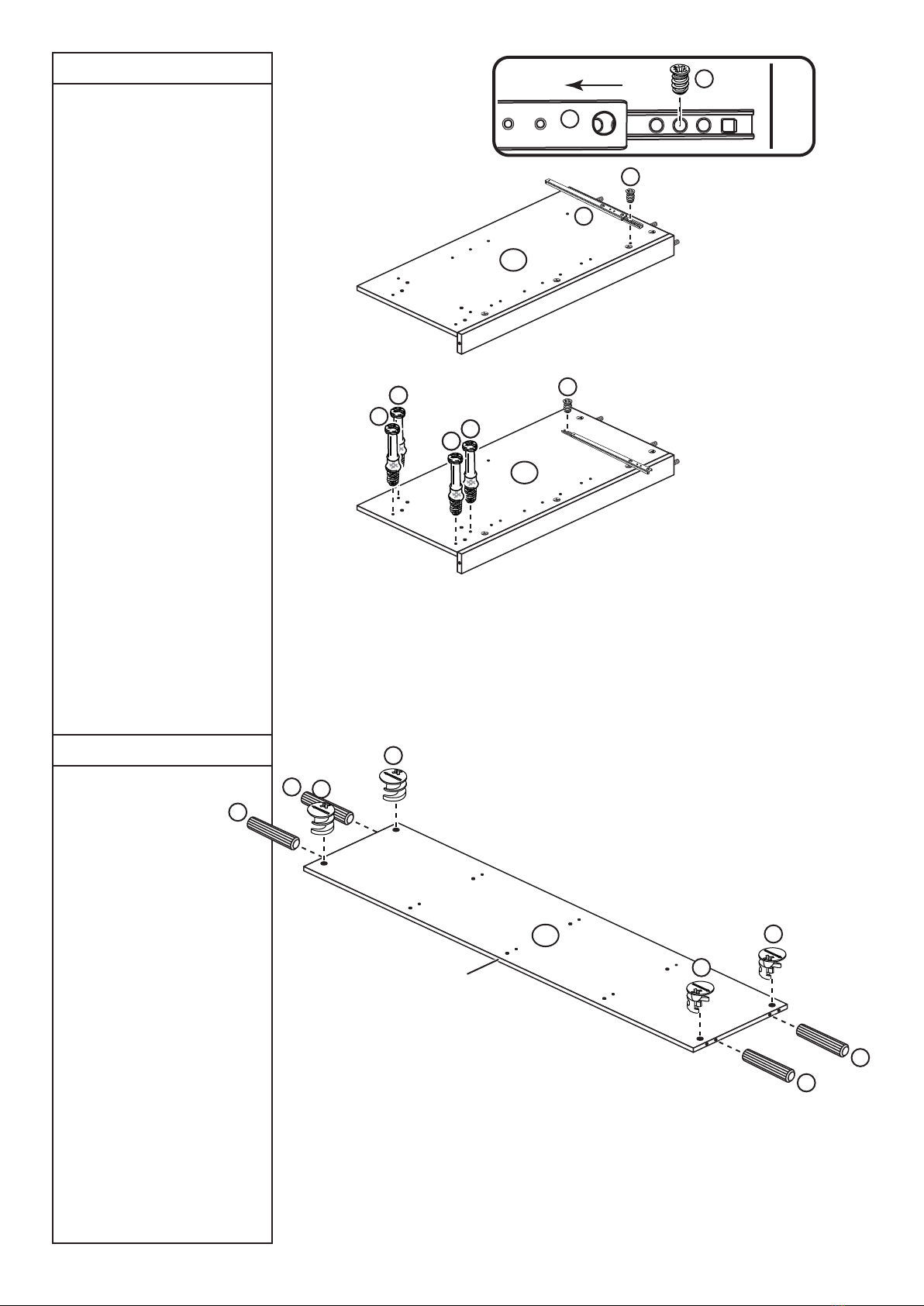

Step 10
Finish preparing the
Left Side
a: Place a runner on the
Left Side as shown. Slide
back the top of Runner
and use the 2nd hole
from the front to fit the
first 9mm Screw.
b: Slide the Runner
back the other way and
fit the second 9mm
Screw into the
corresponding hole in the
Left Side.
Screw 4 metal dowels
into the Left Side.
8
8
A
A
K
K
Y
K
a:
b:
Step 11
Y
K
16
8
Dowel
this end
Fit the Left Fascia to
the Left Side
Push the Left Side down
onto the Left Fascia.
Use a screwdriver to
tighten the 3 MM
Locking Cam Nuts
fitted to the Left Side.
Note: Turn the Locking
Cam Nuts as far as they
will go - more than 1/2 a
turn.
Important: Make sure
there is no gap between
the fitted panels.
A
A

Step 12
Step 13
F
F
E
D
D
D
9
Fit the Right Fascia to
the Right Side
Push the Right Side
down onto Right Fascia.
Use a screwdriver to
tighten the 3 MM
Locking Cam Nuts
fitted to the Right Side.
Note: Turn the Locking
Cam Nuts as far as they
will go - more than 1/2 a
turn.
Important: Make sure
there is no gap between
the fitted panels.
$OWELÖ
THISÖEND
9
16
Prepare the Right Side
Tap 2 Wooden Dowels
into the Right Side.
Insert 3 10mm Locking
Cam Nuts into the
side of the Right Side.
Insert 2 12mm Locking
Cam Nuts into the
end of the Right Side.
Push 3 of the Quickfit
Dowels as far as they will
go into the Right Side.
U
U
U
D
E
10mm
12mm
E

F
F
Step 14

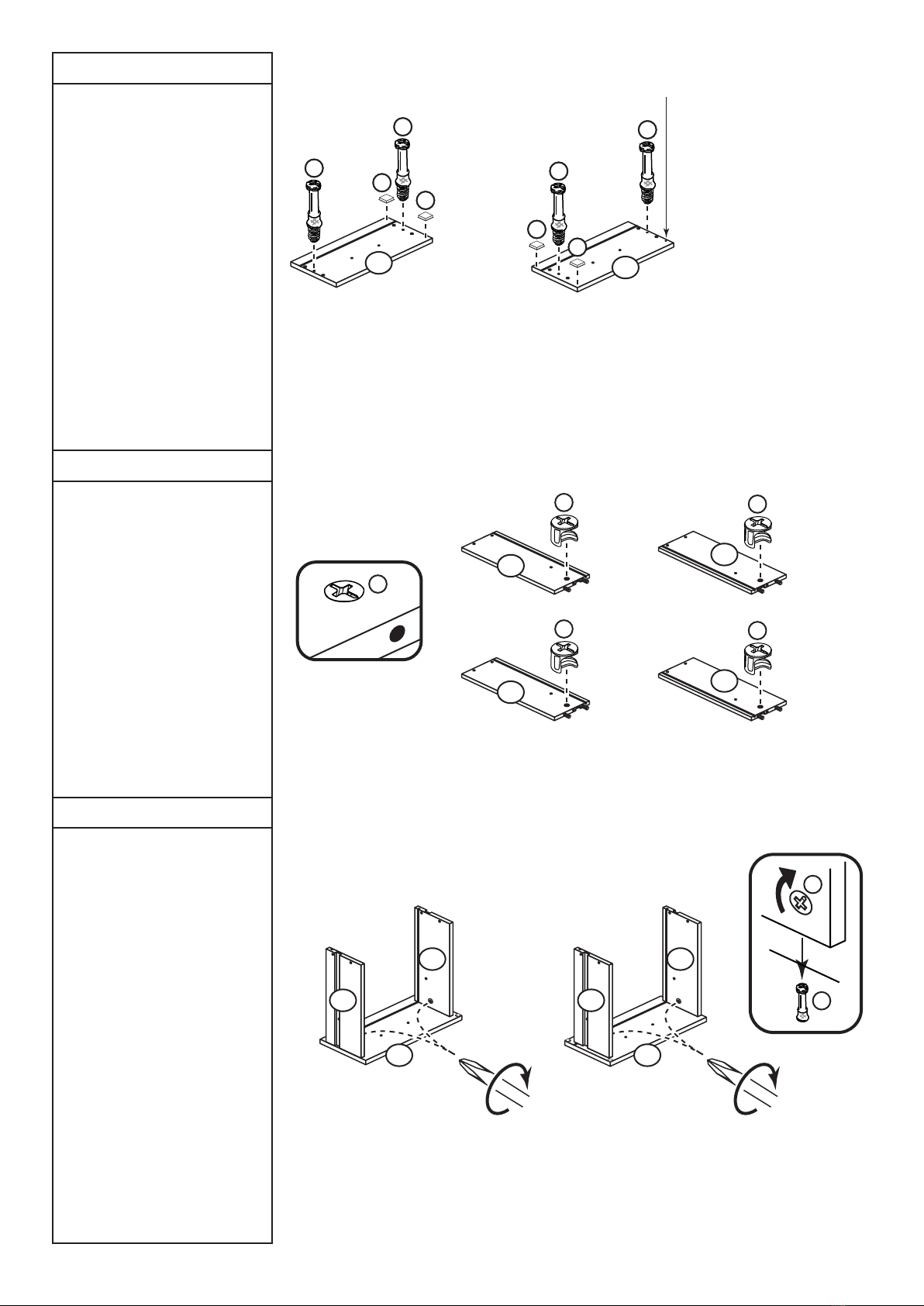

Prepare the Base
4APÖÖ7OODENÖ$OWELSÖ
INTOÖTHEÖ"ASE
Insert 4 MM Locking
Cam Nuts into the Base.
Step 15
E
E
F
F
E
E
Finished
Front Edge
14
A
A
A
a:
b:
A
Finished
front edge
K
Y
K
Y
9
9
Finish preparing the
Right Side
a: Place a runner on the
Right Side as shown.
Slide back the top of
Runner and use the 2nd
hole from the front to fit
the first 9mm Screw.
b: Slide the Runner
back the other way and
fit the second 9mm
Screw into the
corresponding hole in the
Right Side.
Screw 4 metal dowels
into the Right Side.
K

Finished
front edge
9
Step 16
Fit the Base to the
Right Side
Push the Base onto the
Right Side.
Use a screwdriver to
tighten the 2 Large
Locking Cam Nuts
fitted to the Base. 14
Step 18
Fit the Plinths
Push the 2 Plinths onto
the Right Side.
Use a screwdriver to
tighten the Large Locking
Cam Nut fitted to each
Plinth.
F
F
E
E
Prepare the 2 Plinths
4APÖÖ7OODENÖ$OWELSÖ
INTOÖEACHÖOFÖTHEÖ0LINTHS
Insert 2 MM Locking
Cam Nuts INTOÖEACHÖOFÖ
THEÖ0LINTHS
15
F
F
E
E
15

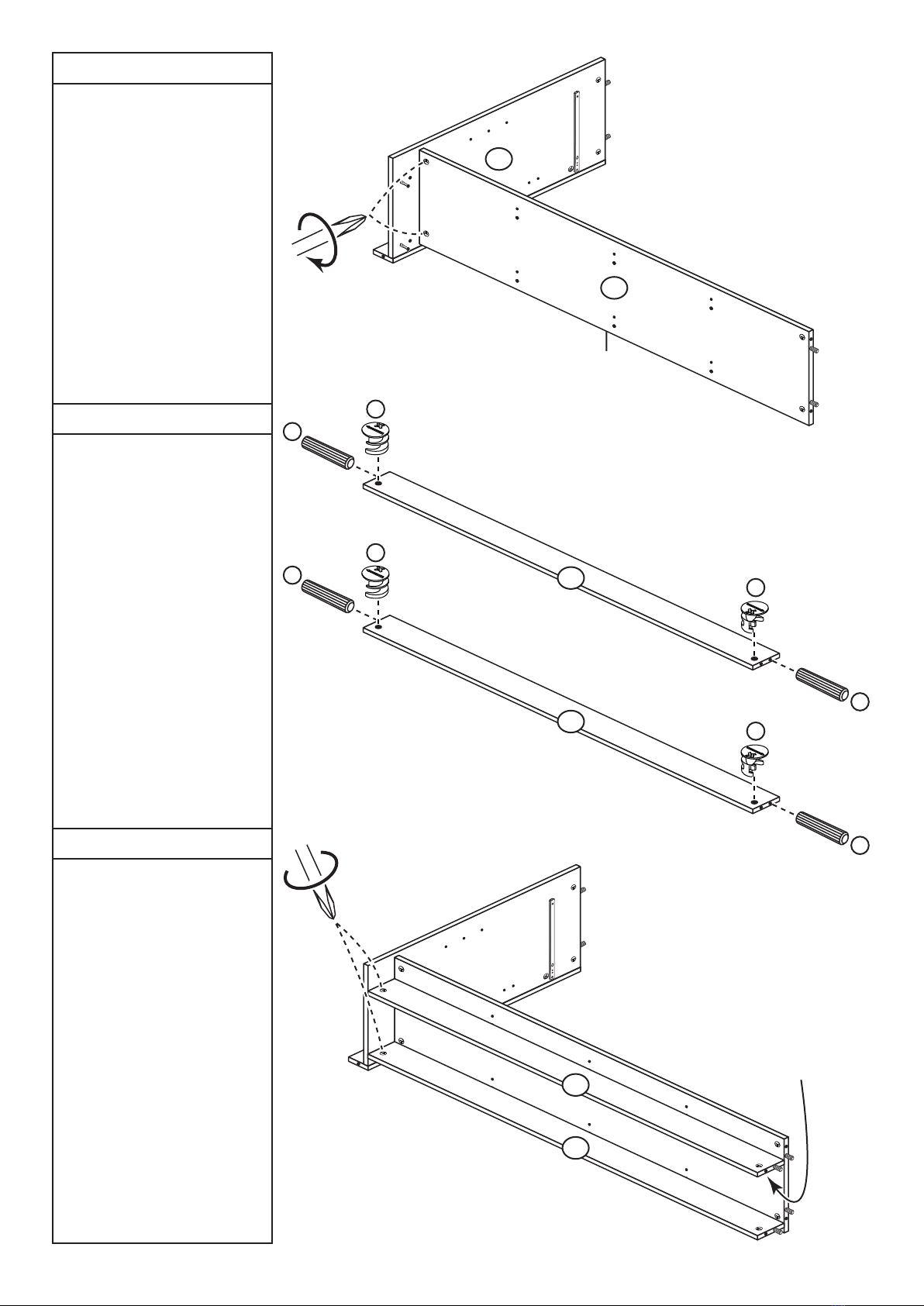

Step 17
Support this Plinth
until the Left Side
has been fitted
15
15

Raise the Sides
using packaging,
wood, books etc.

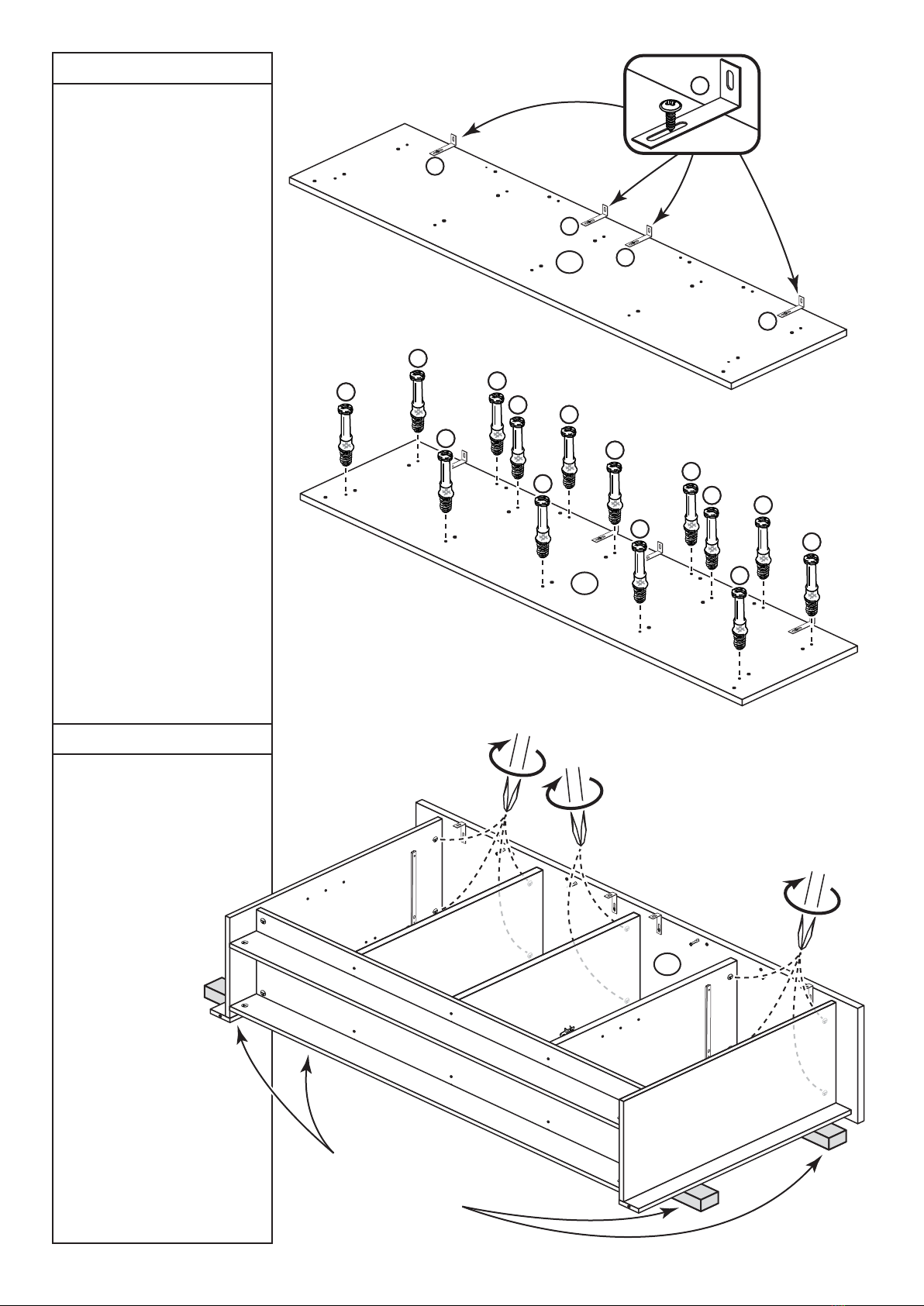

Step 19
Fit the Left Side
Push the Left Side
onto the Base and
the Plinths.
Use a screwdriver
to tighten the 4
Large Locking Cam
Nuts fitted to the Base
and Plinths. 8

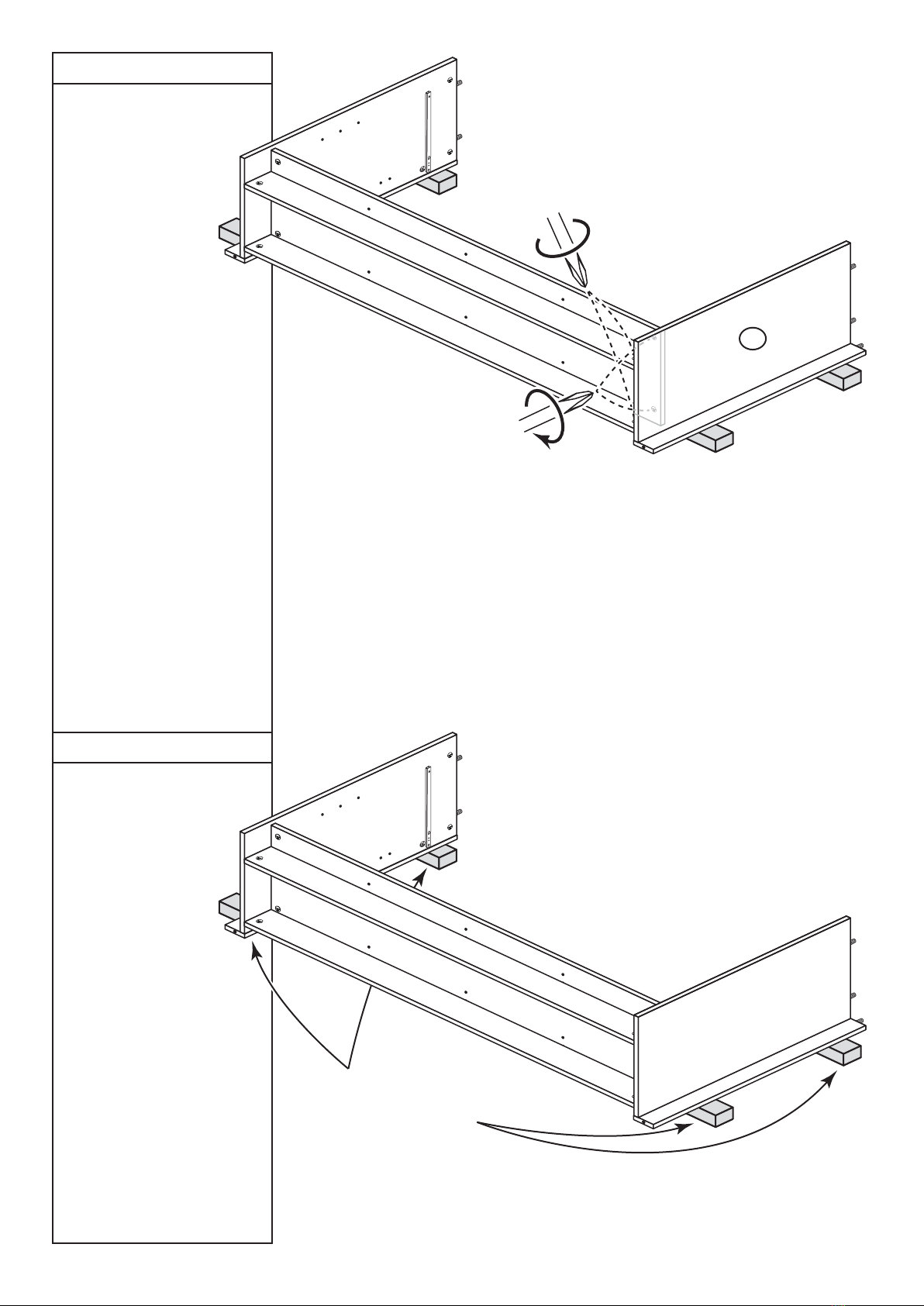

Step 20
Raise the assembly
To make assembly
easier, place
packaging pieces
underneath the
Side Panels
to raise the
assembly.

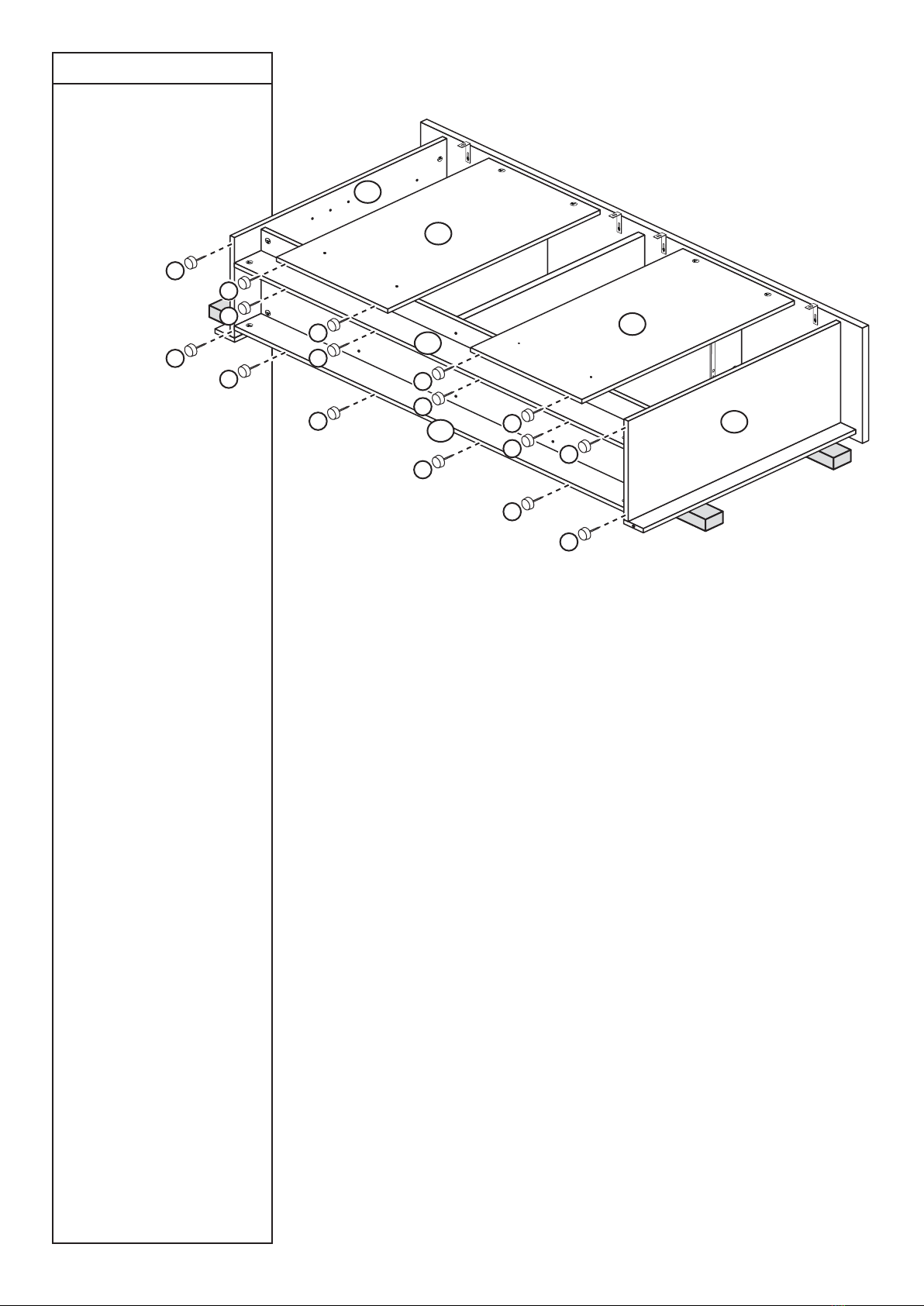

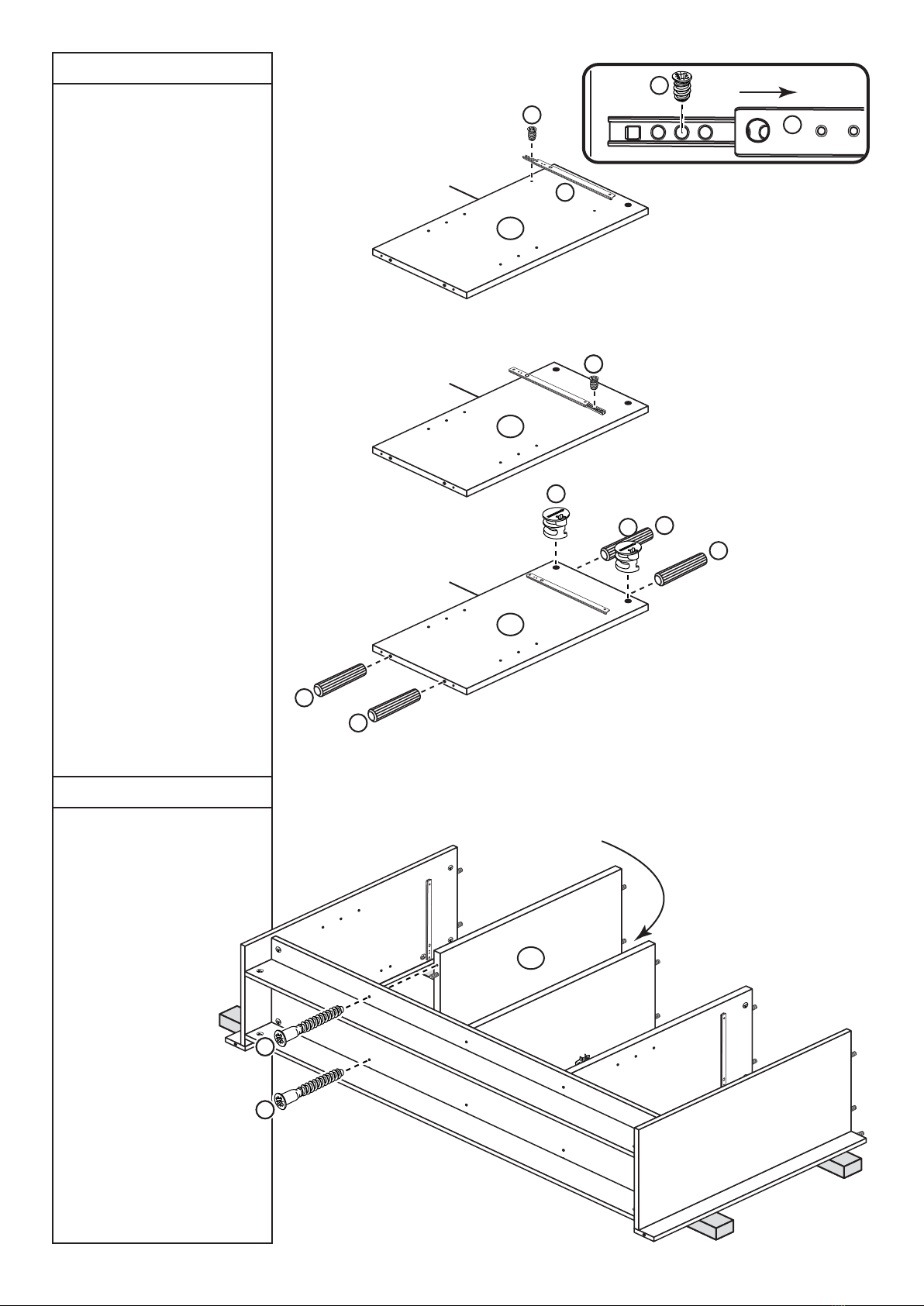

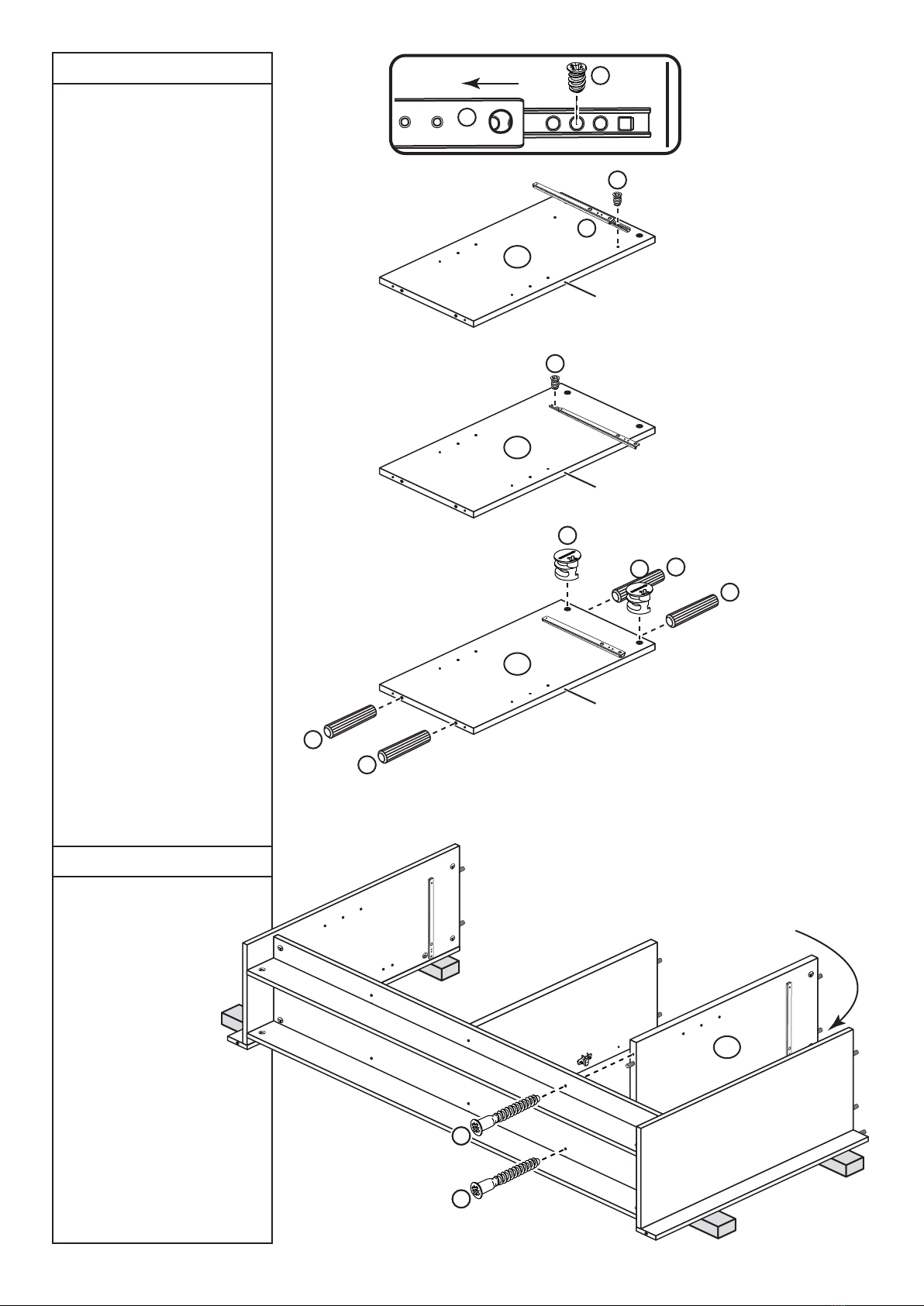

Step 21
Step 22
Finished
front edge
12

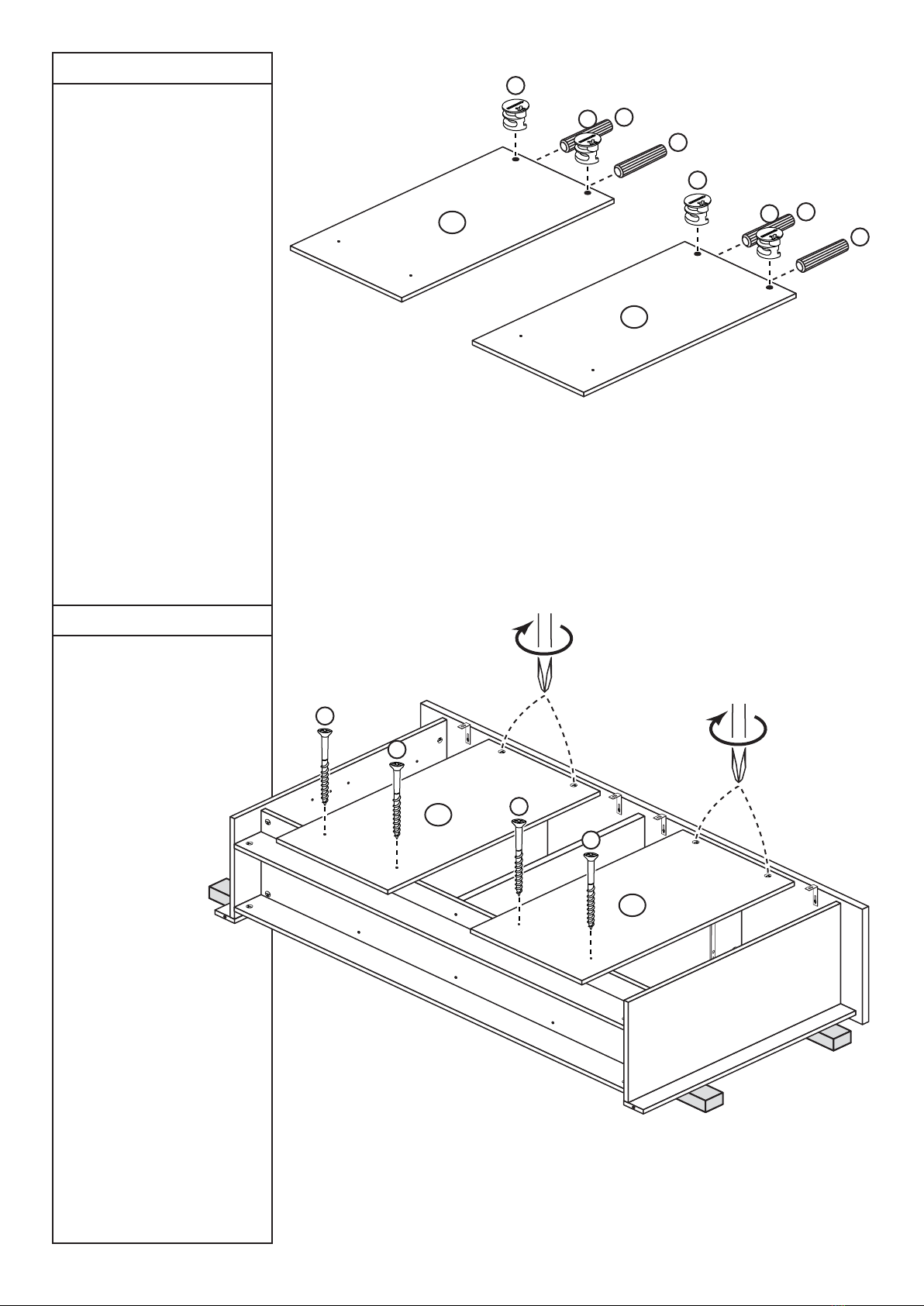

Fit the Centre Divider
to the Base
Push the Centre
Divider onto the Base
and secure it with two
40mm Screws.
G
G
Support this end of
the Divider using
packaging, wood,
books etc.
Finished
Front Edge

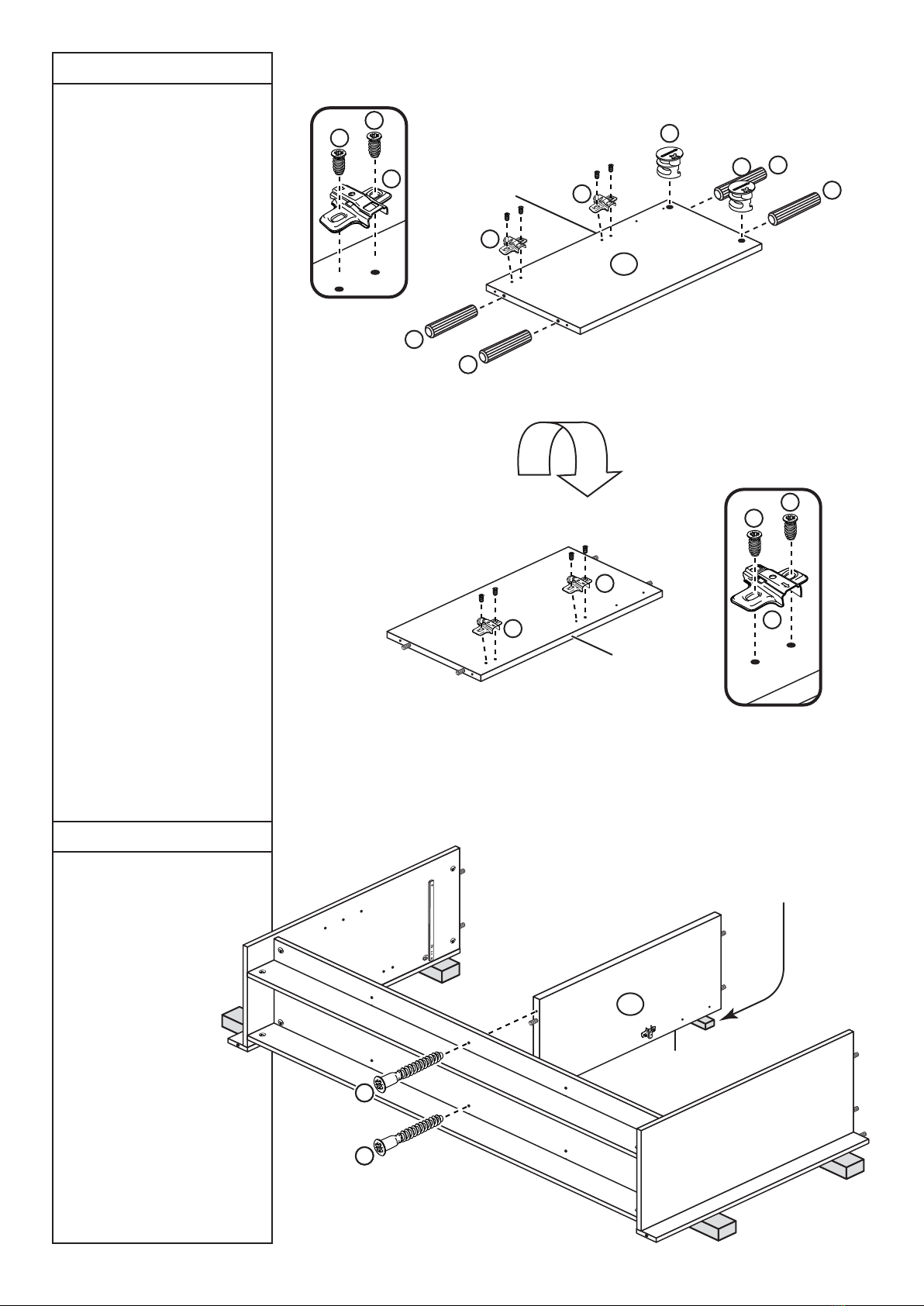

Prepare the Centre
Divider
&ITÖÖ(INGEÖ0LATESÖTOÖTHEÖ
#ENTREÖ$IVIDERÖUSINGÖ
MMÖ3CREWS
4APÖÖ7OODENÖ$OWELSÖ
INTOÖTHEÖ#ENTREÖ$IVIDERÖ
)NSERTÖÖMMÖ,OCKINGÖ
#AMÖ.UTSÖINTOÖTHEÖ
#ENTREÖ$IVIDER
4URNÖTHEÖPANELÖOVERÖANDÖ
FITÖÖMOREÖ(INGEÖ0LATESÖTOÖ
THEÖ#ENTREÖ$IVIDERÖUSINGÖ
MMÖ3CREWS
F
F
E
E
12
F
F
L
L
V
V
V
L
L
Finished
Front Edge
Turn the
panel over
V
V
V

Step 23
10
F
F
Prepare the Left
Divider
a: 0LACEÖAÖ2UNNERÖONÖ
THEÖ,EFTÖ$IVIDERÖASÖ
SHOWNÖ3LIDEÖBACKÖTHEÖ
TOPÖOFÖ2UNNERÖANDÖUSEÖ
THEÖNDÖHOLEÖFROMÖTHEÖ
FRONTÖTOÖFITÖTHEÖFIRSTÖMMÖ
3CREW
b: 3LIDEÖTHEÖ2UNNERÖÖ
BACKÖTHEÖOTHERÖWAYÖANDÖ
FITÖTHEÖSECONDÖMMÖ
3CREWÖINTOÖTHE
CORRESPONDINGÖHOLEÖINÖ
THEÖ,EFTÖ$IVIDER
c: 4APÖÖ7OODENÖ
$OWELSÖINTOÖTHEÖ,EFTÖ
$IVIDERÖ
)NSERTÖÖMMÖ,OCKINGÖ
#AMÖ.UTSÖINTOÖTHEÖ,EFTÖ
$IVIDER
Left Divider
K
Y
K
Y
K
E
E
F
F
10
10
10
a:
b:
c:
Fit the Left Divider
Push the Left Divider
onto the Base and
secure it with two
40mm Screws.
Step 24
Finished
Front Edge
Finished
Front Edge
Finished
Front Edge
G
G
Support this end of
the Divider using
packaging, wood,
books etc.

Step 25
Finished
Front Edge
Finished
Front Edge
Finished
Front Edge
F
F
Prepare the Right
Divider
a: Place a Runner on
the Right Divider as
shown. Slide back the
top of Runner and use
the 2nd hole from the
front to fit the first 9mm
Screw.
b: Slide the Runner
back the other way and
fit the second 9mm
Screw into the
corresponding hole in the
Right Divider.
c: 4APÖÖ7OODENÖ
$OWELSÖINTOÖTHEÖRight
Divider
Insert 2 12mm Locking
Cam Nuts INTOÖTHEÖRight
Divider
K
a:
Y
K
b:
c:
K
Y
K
E
E
F
F
11
11
11
Fit the Right Divider
Push the Right
Divider onto the
Base and secure it
with two 40mm
Screws.
Step 26
11
G
G
Support this end of
the Divider using
packaging, wood,
books etc.

Step 27
Prepare the Top
a: Fit the 4 Brackets
from the Overbalance
Protector Kits to the
shallow mark-holes
drilled into the Top
using 1 of their Screws.
Note: Only fit 1 of the
Screws, the other 1 will
be fitted later.
b: Screw 14 Metal
Dowels into the Top.
A
A
A
A
A
A
A
A
A
A
A
A
A
A
T
T
T
T
T
13
13
a:
b:
Fit the Top
Push the Top onto
the assembly.
Use a screwdriver
to tighten the 10
Locking Cam Nuts
fitted to the Sides
and the Dividers.
Raise the Sides
using packaging,
wood, books etc.
13

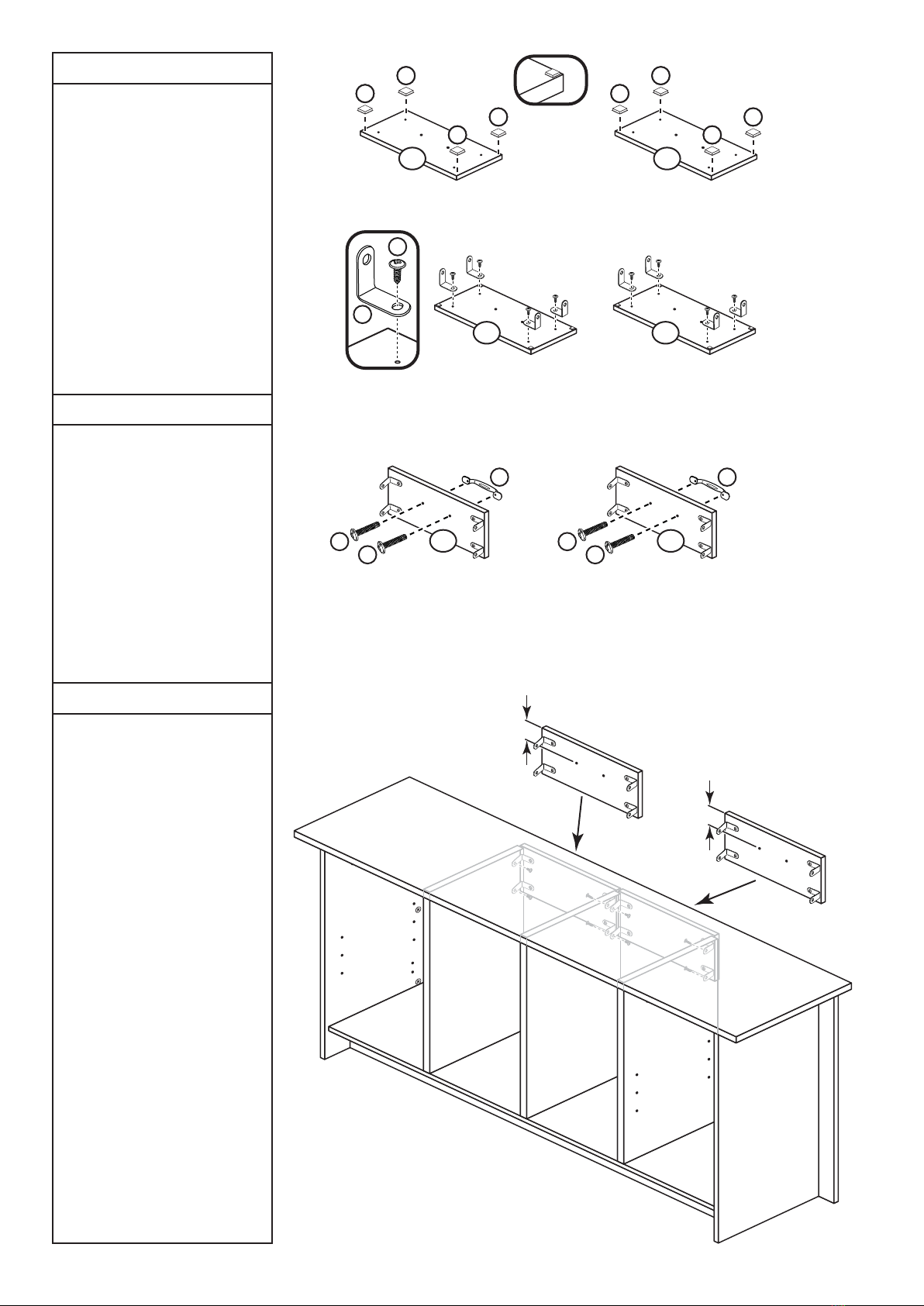

Step 28

Step 29
Step 30
Prepare the 2 Centre
Drawer Fronts
a: Stick a Door Buffer
into the 4 corners of each
Centre Drawer Front, as
shown.
b: Fit 4 Brackets to each
Centre Drawer Front
using the 13mm Screws.
3
M
3
S
Attach the Handles
Attach a Handle to each
of the 2 Centre Drawer
Fronts Drawer Fronts
using two 19mm Screws.
I
I
R
I
I
R
P
P
P
P
3
P
P
P
P
3
a:
b:
MM
MM
)-0/24!.4Ö-AKEÖSUREÖ
THEÖHANDLEÖHOLESÖAREÖ
MMÖDOWMÖFROMÖTHEÖTOP
Step 31
Fit the Centre Drawer
Fronts
Using 2 people stand the
unit up.
Fit one of the Centre
Drawer Fronts between
the Right Divider and the
Centre Divider and fix it
to the mark-holes using
13mm Screws.
Now fit the other Centre
Drawer Front between
the Left Divider and the
Centre Divider.
3 3

Step 32
Step 33
F
F
Prepare the 2 Backs
4APÖÖ7OODENÖ$OWELSÖÖ
INTOÖEACHÖ"ACK
Insert 2 Large Locking
Cam Nuts into each
Back.
E
E
18 F
F
E
E
18
Fit the 2 BackS
Using 2 people
lay the unit back
down onto its
front edges.
Push the 2 Backs
onto the Top.
Use a screwdriver
to tighten the 2
Large Locking
Cam Nuts fitted to
each Back.
Fix each Back to the
back edge of the Base
with two 45mm Screws.
H
H
18 H
H
18

Step 34
Fit 16 Plastic Nails
Tap 2 Plastic Nails into
the bottom edge of each
of the 2 Sides.
Tap 2 Plastic Nails into
the bottom edge of each
of the 2 Backs.
Tap 4 Plastic Nails into
the bottom edge of each
of the 2 Plinths.
Q
Q
Q
Q
Q
Q
Q
Q
18
18
9
8
Q
Q
Q
Q
Q
Q
Q
Q
15
15

Step 35
a:
b: TT
Top

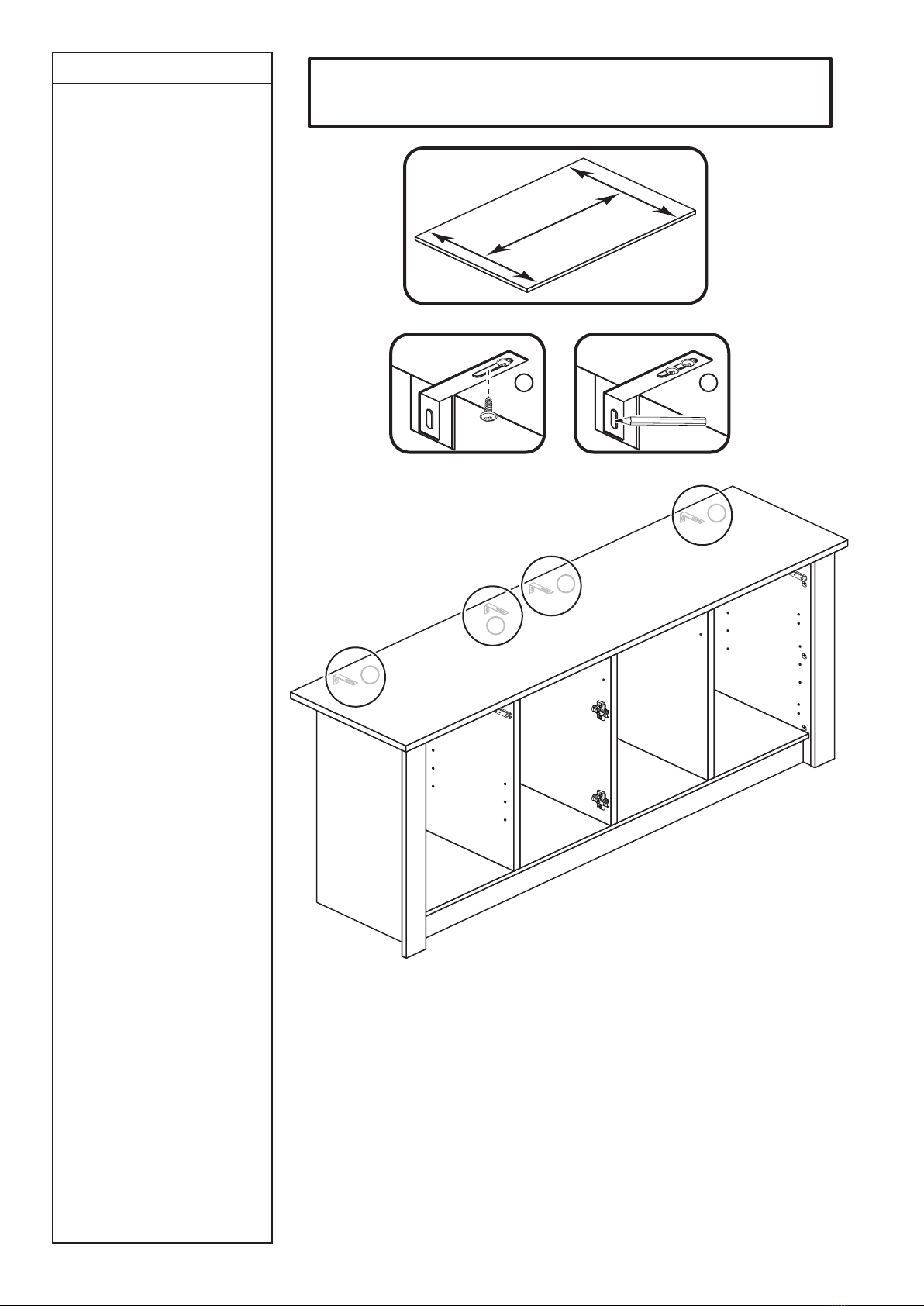

This unit must be fixed to a wall using the
4 Overbalance Protector Kits provided
Secure the unit to a
wall
a: Before fitting the unit
to a wall, use a spirit
level to check the top of
the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level.
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by fitting the
4 Overbalance Protector
Kits to a wall.
b: Push the unit up
against the wall and slide
the Brackets against the
wall. Fit the 2nd Screw
from the kits into the
underside of the Top
panel.
Mark the slot at the back
of the Brackets for drilling
into the wall.
Wall fixings are not
supplied as they will need
to suit the wall type.
Take care when drilling
the wall that you do not
drill into any pipes, wires
etc. If in doubt, consult an
expert.
T
T
T
T
