Aqua One OakStyle Urban 230 User manual

Assembly Instructions
Please keep for future reference
Important - Please read these instructions fully before starting assembly
OakStyle Urban 230
Version 1 : 01/11/2019
ALR3626

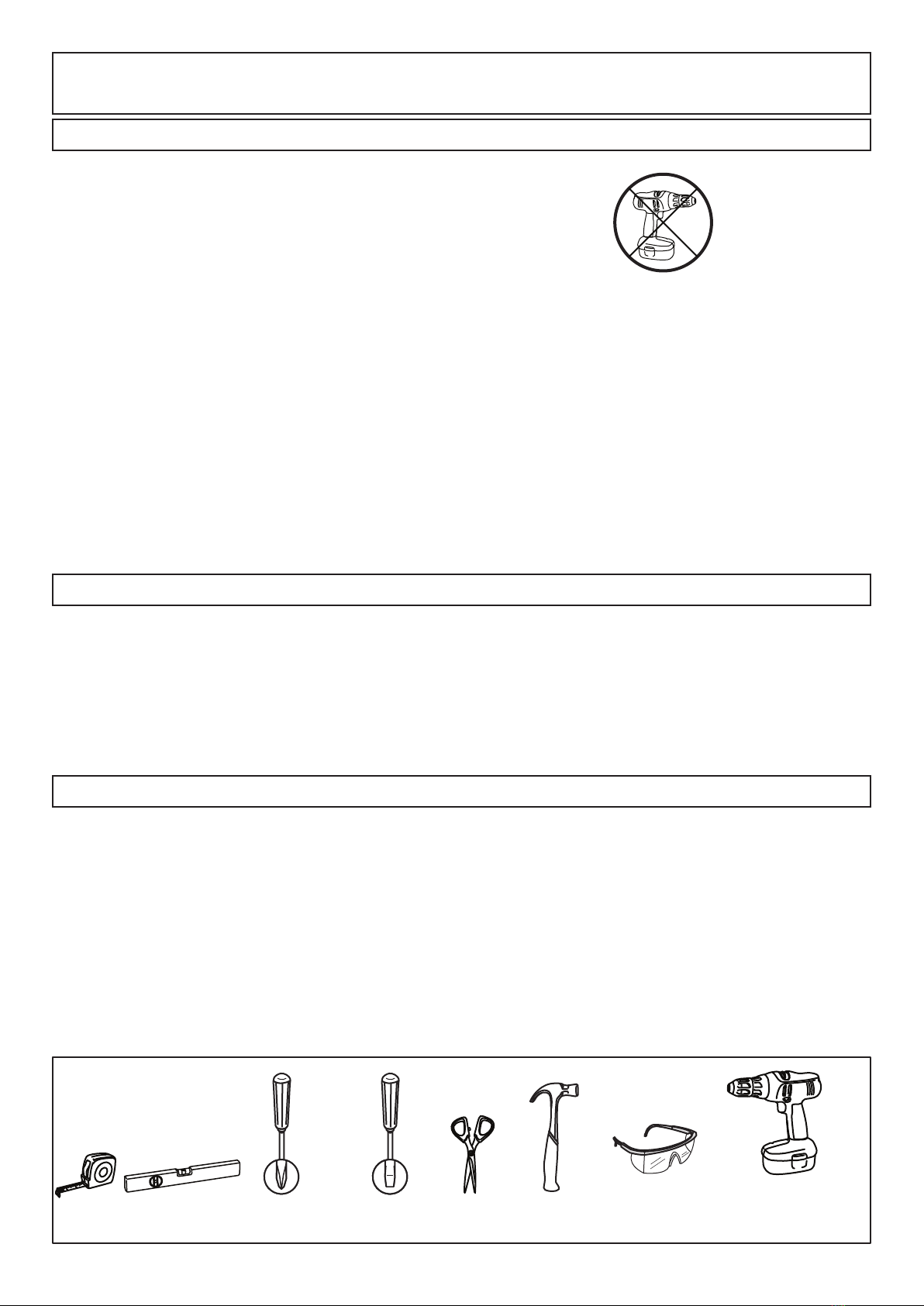

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Make sure you have enough
space to layout the parts before
starting.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
Care and maintenance
Contact Us
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Aqua Pacific UK Ltd.
Unit 10, Oriana Way
Nursling Industrial Estate
Southampton
SO16 0YU
Tel [phone]
Fax [phone]
[email protected]
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Warning: This unit is heavy.
Please lift with care.
• Check you have all the
components and tools listed.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: This unit must
be secured to a wall using the
overbalance protector kits
supplied.
• Dispose of all packaging
carefully and responsibly.
Tools
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Flat-head
screwdriver
Electric drill
(do not use for
fitting screws)
Spirit
level

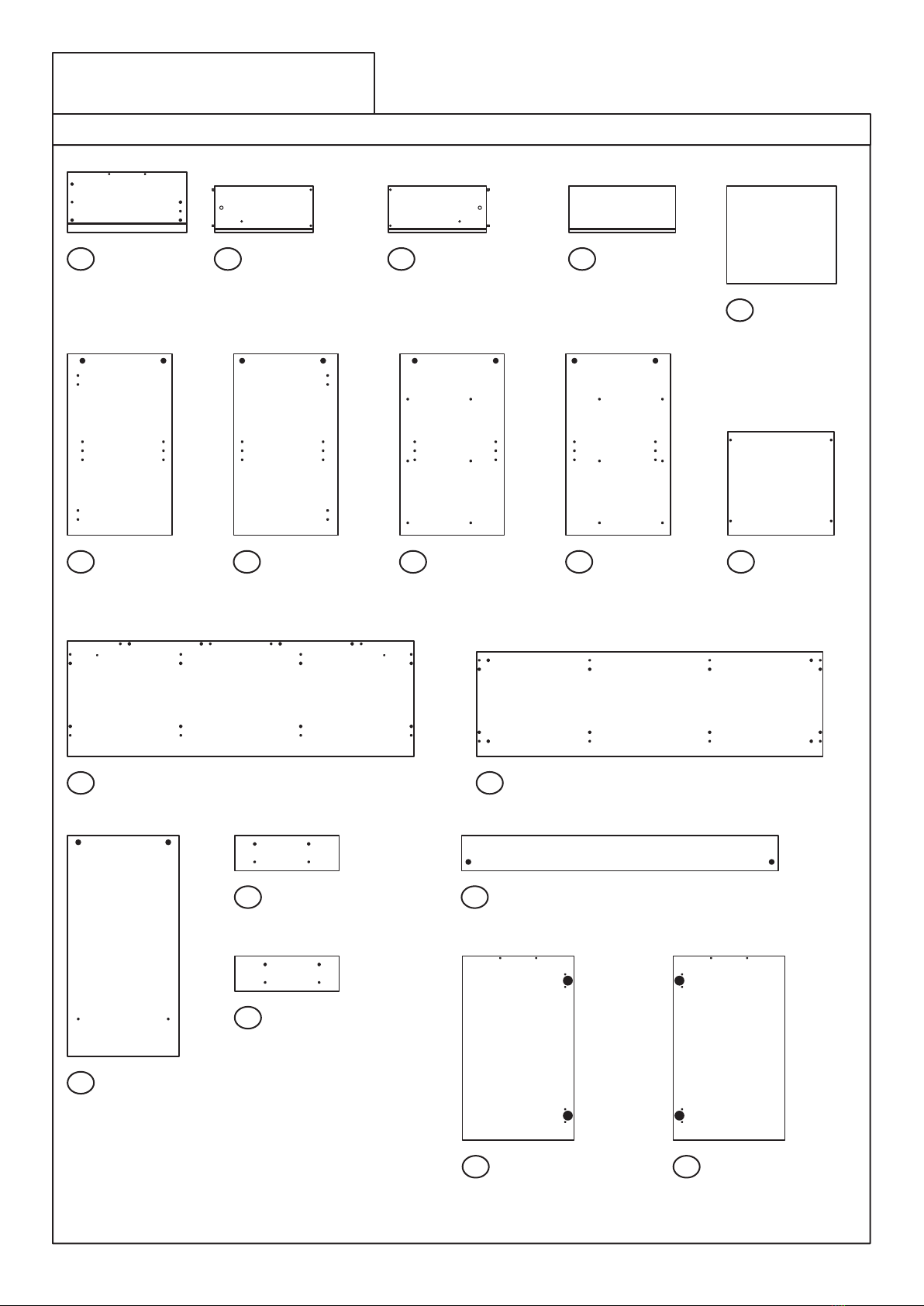

Panels
Please check you have all the panels listed below
1Drawer Front
(DF-00020382)
(42.35 x 21.5cm)
4Drawer Back
(WRP-00000376)
37.9 x 16.5cm
2Left Drawer Side
(WRP-00000081)
35 x 16.5cm
3
6Left Side
(DF-00020376)
(64.5 x 37.1cm)
7Right Side
(DF-00020377)
(64.5 x 37.1cm)
11 Top (DF-00020378)
(123.15 x 41cm)
Right Drawer Side
(WRP-00000082)
35 x 16.5cm 5Drawer Base
(TDF-00020388)
39 x 34.7cm
12 Base (DF-00020379)
(123.15 x 37.2cm)
8Left Divider
(DF-00020384)
(64.5 x 37.1cm)
9Right Divider
(DF-00020385)
(64.5 x 37.1cm)
10 Shelf
(DF-00020383)
(37.8 x 36.9cm)
13 Back Panel (DF-00020353)
(78.5 x 39.6cm) x 2
x 3 x 3 x 3
x 2
x 3
x 3
14 H-Frame LH Upright
(DF-00021046)
(37.1 x 12.5cm)
15 H-Frame RH Upright
(DF-00021249)
(37.1 x 12.5cm)
16 H-Frame Cross Rail (DF-00021047)
(112.65 x 12.5cm)
17 LH Door
(DF-00020380)
(65.5 x 39.6cm)
18 RH Door
(DF-00020747)
(65.5 x 39.6cm)

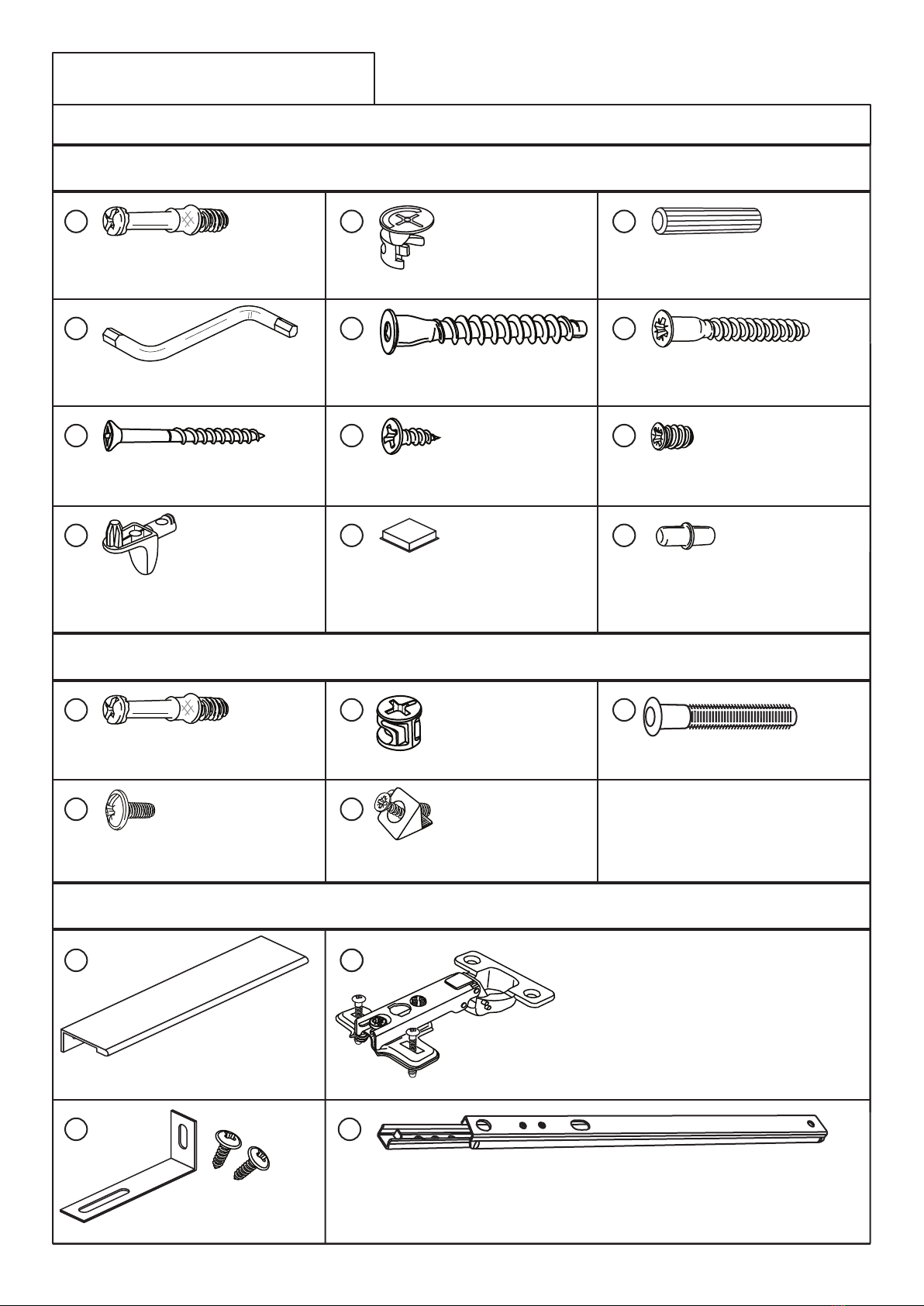

Fittings
Please check you have all the fittings listed below
Bag 1
A B
Large Metal Dowel (F901) x 16
C
D
Large Locking Cam
Nut (F900) x 16
H
Allen Key (F36) x 1
G
45mm Screw (F65) x 4
I
Wooden Dowel (F22) x 24
9mm Screw (F73) x 12
Shelf stud (F110) x 6
These are for fixing the Hood.
See separate instructions for fitting details.
*
L
F
40mm Screw (F910) x 8
E
50mm Screw (F49) x 4
13mm Screw (F63) x 18
KJ
Shelf Support (F180) x 4 Door Buffers (F137) x 6
Bag 2
Individual Bags
QP
S
Overbalance protector
kit (F474) x 2
A
Large Metal Dowel (F901) x 6
M
Small Locking Cam
Nut (F900) x 6
N
Knock-in Peg (F171GY) x 12
Back Holder (F639) x 12
P
9mm Screw (F74) x 6
O
T
Drawer runner (F1004) x 6
R
Pre-mounted hinge (F328) x 4
Handle (HDL-00000092) x 5

Step 1
Step 2
Step 3
Prepare the 3 pair of
Drawer Sides
Insert a Small Locking
Cam Nut into each Left
Drawer Side and each
Right Drawer Side.
Note: The arrow on the
Small Locking Cam Nut
must point towards the
hole in the edge of the
panel.
Attach the Drawer
Sides to the Drawer
Fronts
Push the Drawer Sides
onto the back of the
Drawer Fronts.
Turn the Small Locking
Cam nuts on the Drawer
Sides.
Note: Turn the Small
Locking Cam nuts
clockwise to secure the
panels - more than 1/2 a
turn.
A
M
M
Prepare the 3 Drawer
Fronts
Screw 2 Metal Dowels
into each Drawer Front.
Note: Tighten the Metal
Dowels up fully against
the panel.
Stick a door buffer
into the top corners of
each Drawer Front.
Use Bag 2 for steps 1 - 7
A
K
K
A
1
M
3
x 3
x 3 x 3
x 3
M
2
1
2
3

N
N

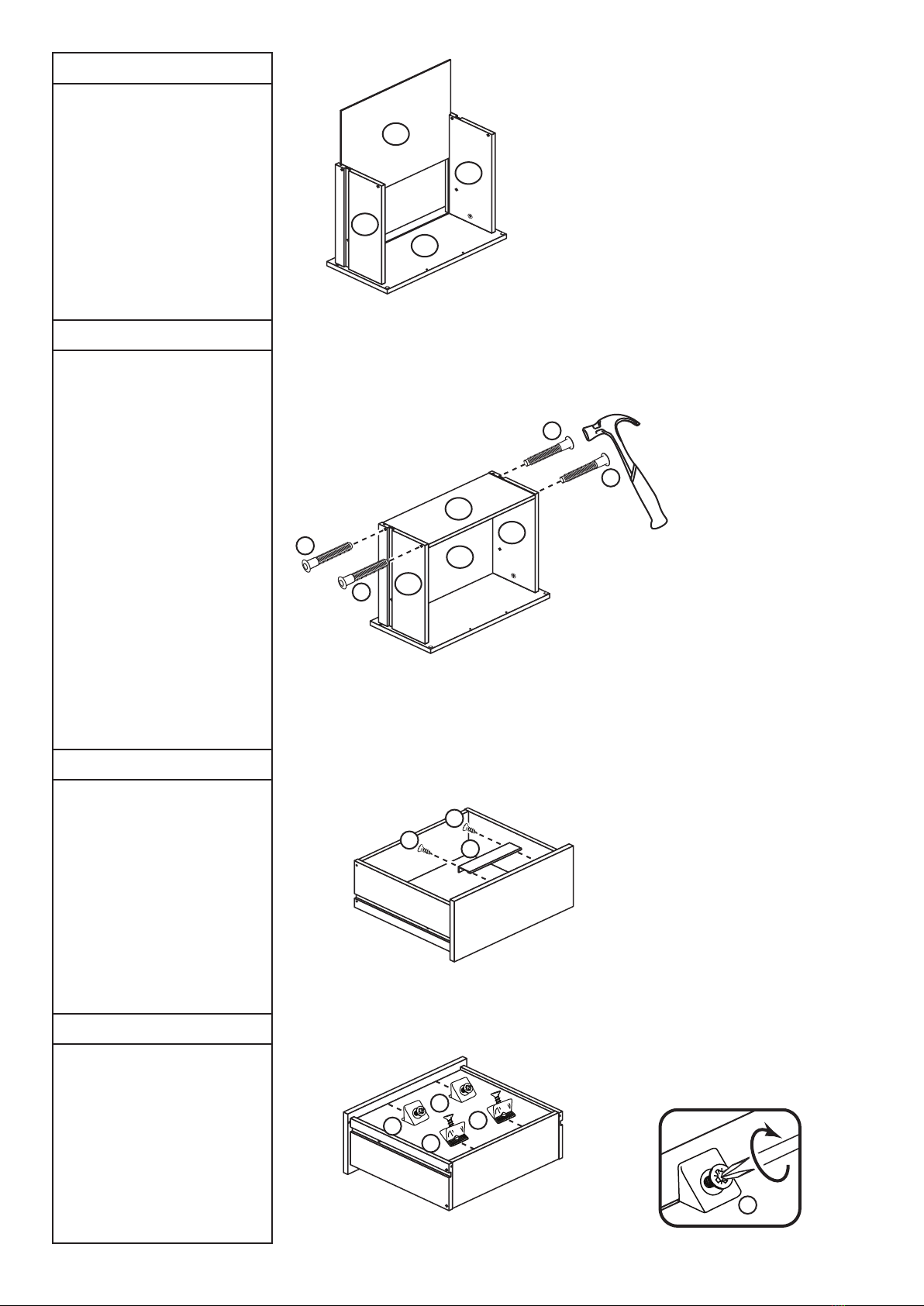

Step 4
Step 5
Step 8
Fit the Drawer Bases
Slide the Drawer Base
down the grooves in the
Drawer Sides and down
into the groove in the
Drawer Front.
Fit the Drawer Backs
Fit the Drawer Back
between the Drawer
Sides.
Make sure that the
Drawer Base fits into the
groove in the Drawer
Back.
Hold the Drawer Back
in position and tap the
Knock-in Pegs through
the holes in the Drawer
Sides.
Step 6
Attach the Handles
Attach a Handle to each
Drawer Front using two
19mm Screws from Bag 1.
Step 8
Step 7
Fit the Wedgefixes
Turn the 3 drawer
assembies over and slide
2 Wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws. P
The Drawer assembly
must be square before
fitting the wedgefixes
x 3
1
3
2
5
x 3
x 3
x 3
3
5
2
4
N
N
Q
H
H
P
PP
P

Finished
front edge
Finished
front edge
C
B
C
Step 8Use Bag 1 for steps 8 - end
8
8
B

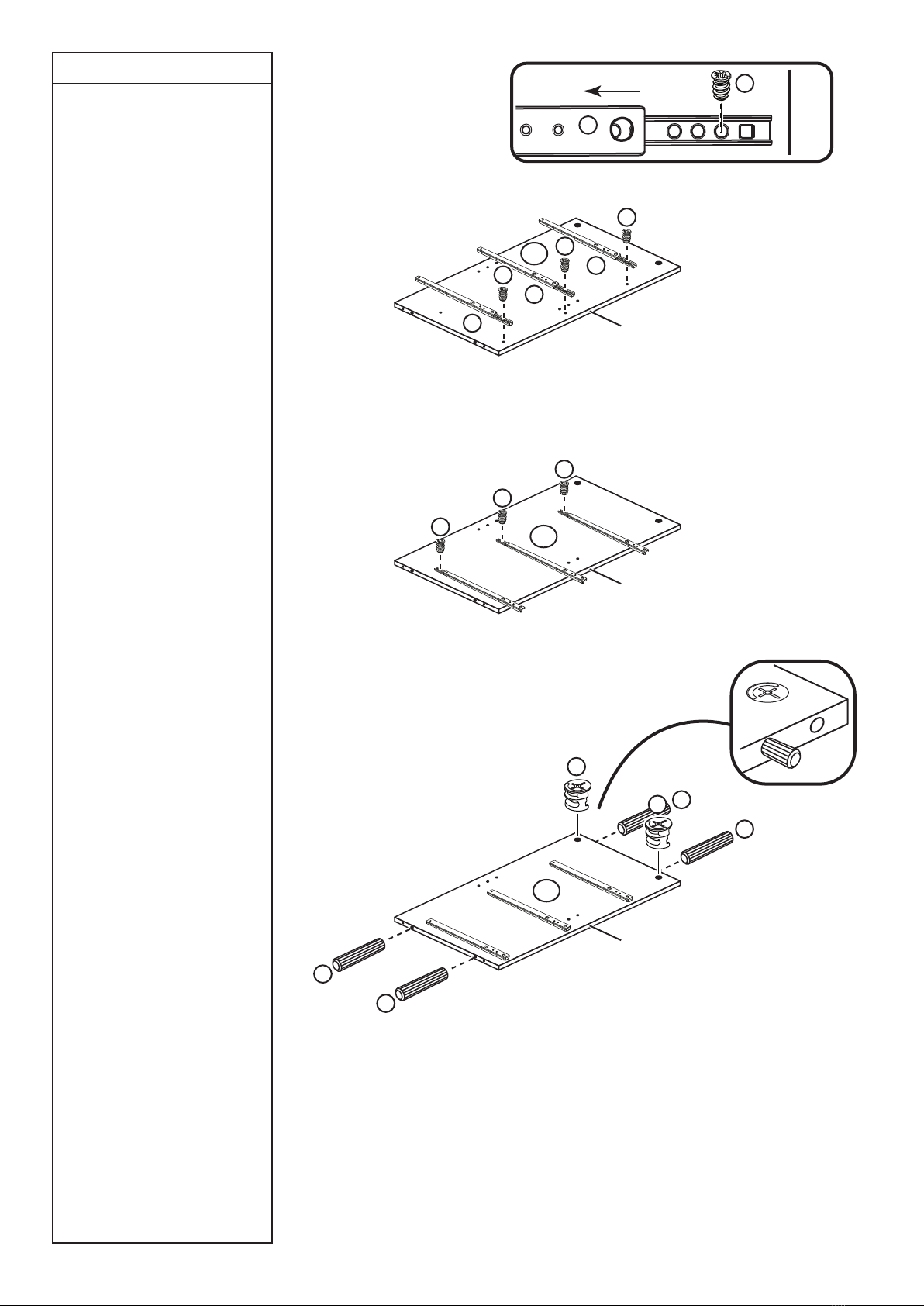

Prepare the Left Divider
a: Place a runner on the
Left Divider, as shown.
Slide back the top of
Runner and use the 2nd
hole from the front to fit
the first 9mm Screw.
b: Slide the Runner
back the other way and
fit the second 9mm
Screw into the
corresponding hole in the
Left Divider.
c: Tap 2 Wooden
Dowels into the Left
Divider.
Insert 2 Large Locking
Cam Nuts into the
Left Divider.
Note: The arrow on the
Large Locking Cam Nuts
must point towards the
hole in the edge of the
panel.
a:
b:
c:
K
T
I
I
T
8
I
I
I
C
C
Finished
front edge
I
T
I
T
Finished
front edge

C
B
C
Step 9
Finished
front edge
I
T
a:
b:
c:
I
T
7
7
7
K
B
C
C

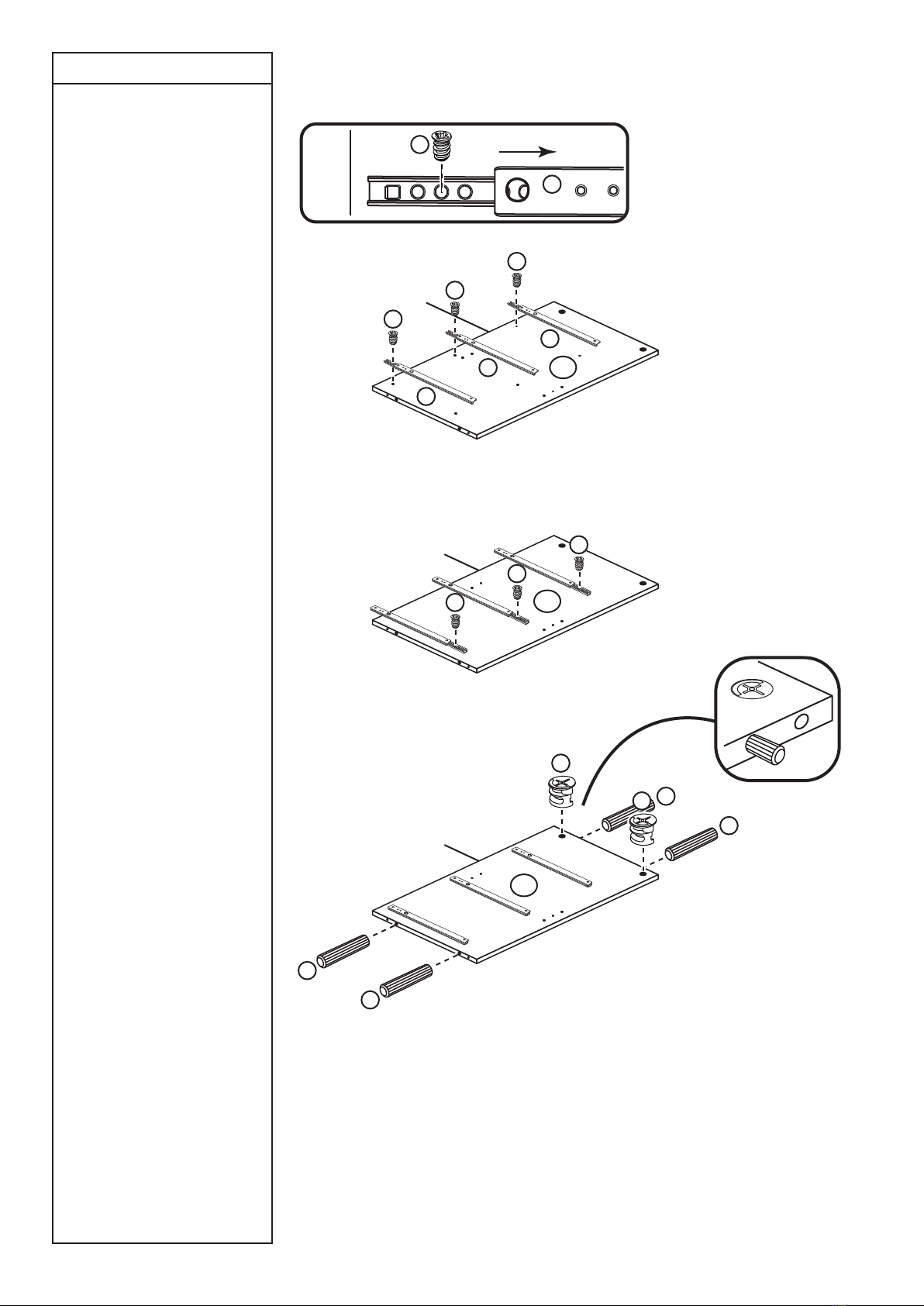

Prepare the Right
Divider
a: Place a runner on the
Right Divider, as shown.
Slide back the top of
Runner and use the 2nd
hole from the front to fit
the first 9mm Screw.
b: Slide the Runner
back the other way and
fit the second 9mm
Screw into the
corresponding hole in the
Right Divider.
c: Tap 2 Wooden
Dowels into the Right
Divider.
Insert 2 Large Locking
Cam Nuts into the
Right Divider.
I
T
I
T
K
K
Finished
front edge
Finished
front edge
Finished
front edge

Finished
front edge
Finished
front edge
Finished
front edge
Step 10
F
F

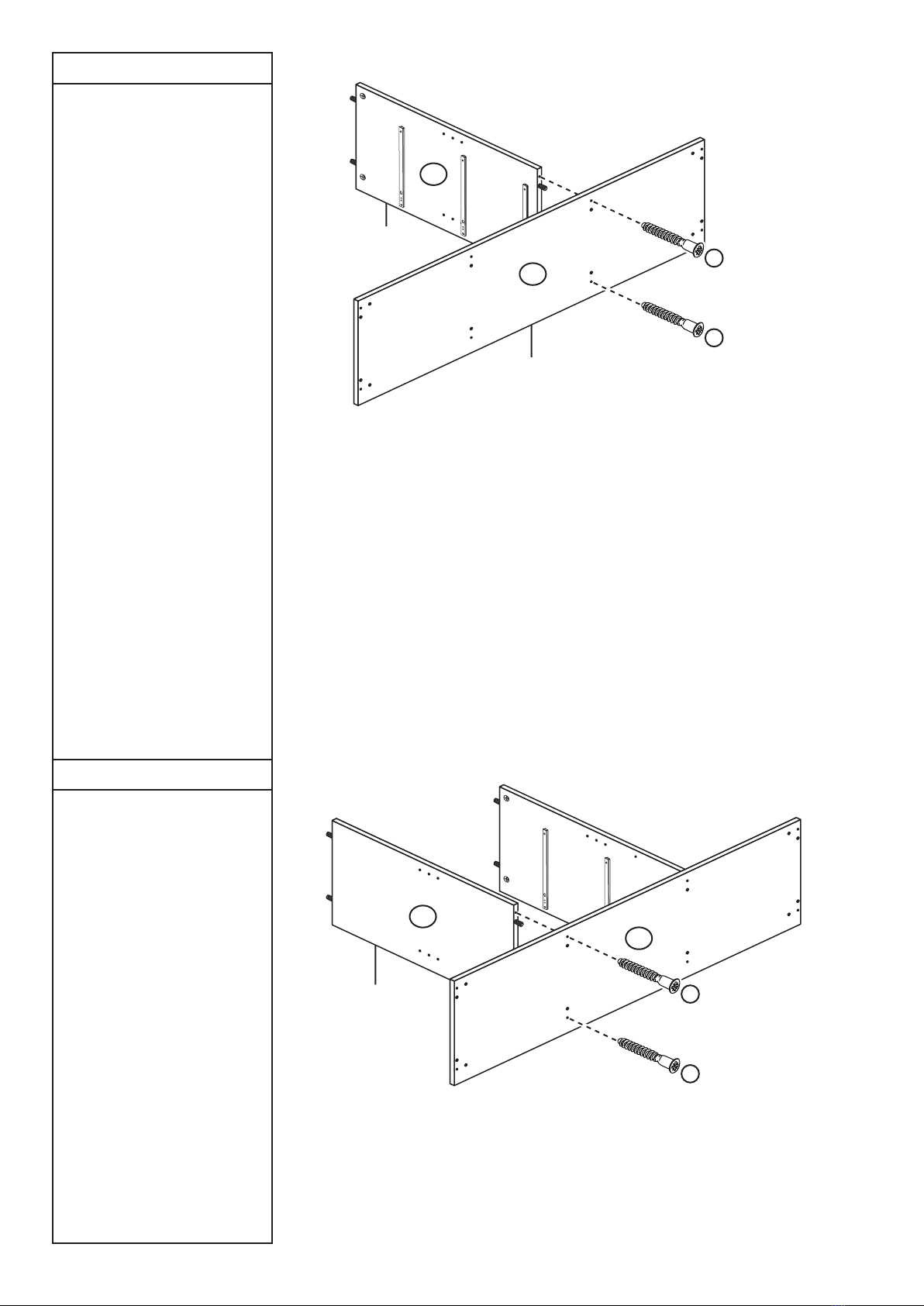

Fit the Left Divider to
the Base
Attach the Left Divider to
the Base using two
40mm Screws.
8
12
12
F
F
9
Fit the Right Divider
Attach the Right Divider
to the Base using two
40mm Screws.
Step 11

Step 12

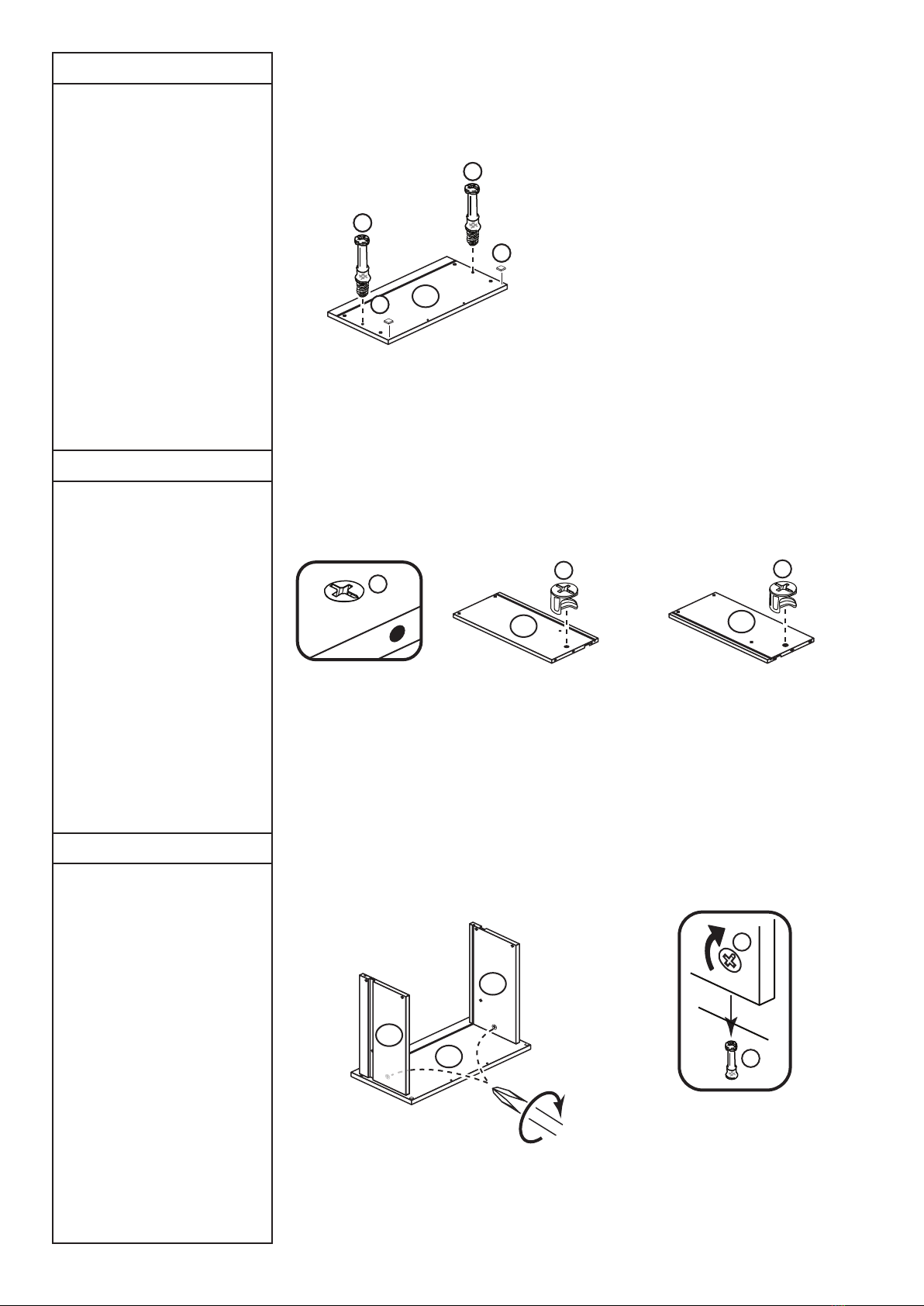

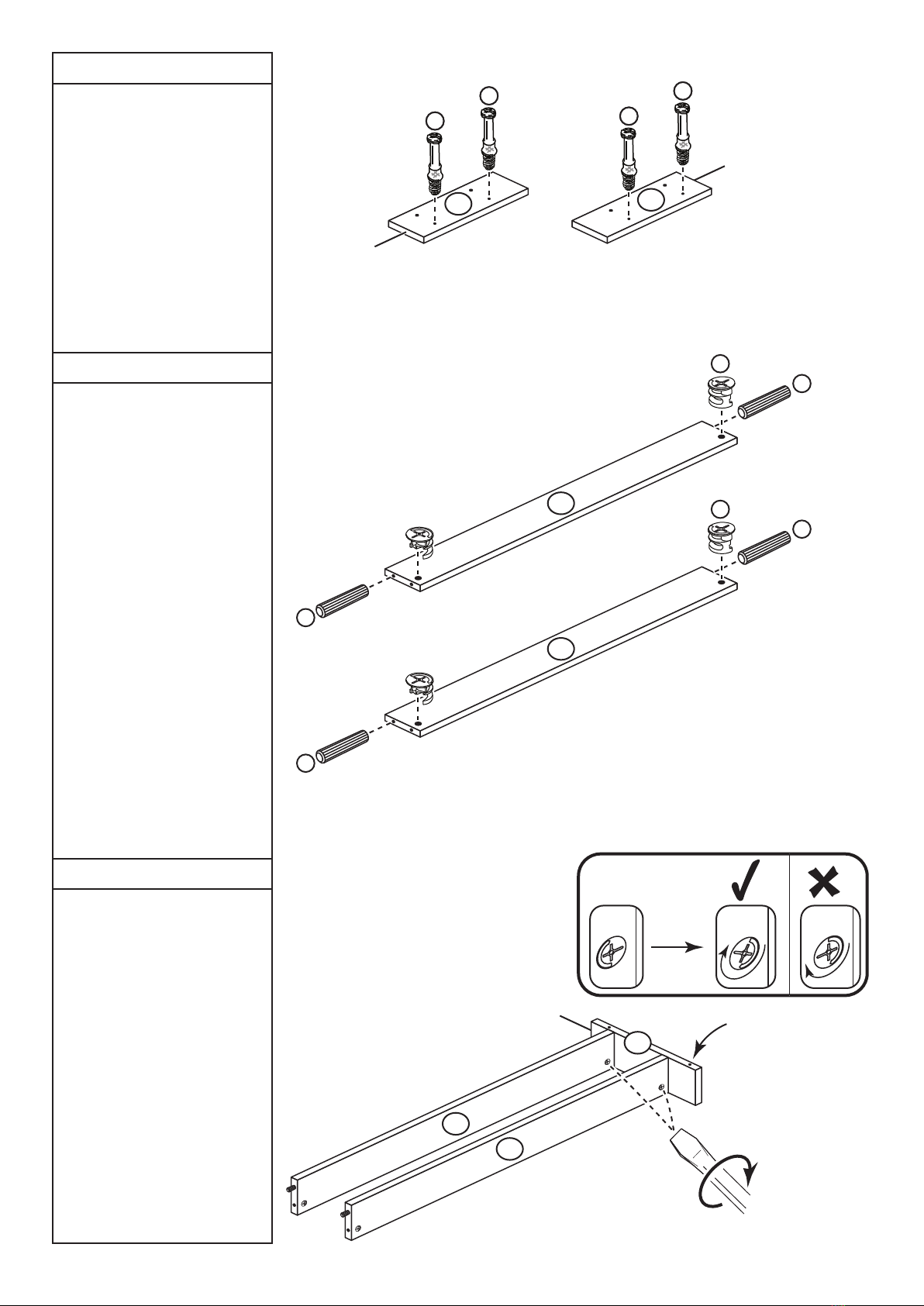

Prepare the 2 H-Frame
Cross Rails
Tap 2 Wooden Dowels
into the H-Frame Cross
Rail.
Insert 2 Large Locking
Cam Nuts into the
H-Frame Cross Rail.
Note: The arrow on the
Large Locking Cam Nuts
must point towards the
hole in the edge of the
panel.
Step 8
Step 13
Step 8
Step 14
Finished
front edge
Finished
front edge
Note: Holes on
the top edge
A
Prepare the 2 H-Frame
Uprights
Screw 2 Metal Dowels
into the H-Frame LH
Upright and the H-Frame
RH Upright.
A
A
A
14 15
C
B
C
16
C
B
C
16
Join the 2 H-Frame
Cross Rails to the
H-Frame LH Upright
Push the 2 H-Frame
Cross Rails onto the
H-Frame LH Upright.
Use a flat-head
screwdriver to tighten the
2 Large Locking Cam
Nuts fitted to the 2
H-Frame Cross Rails.
Finished
front edge
x 2
14
16
16

Packaging
piece
Finished
front edge
Finished
front edge
Finished
front edge
Step 15
Finished
front edge

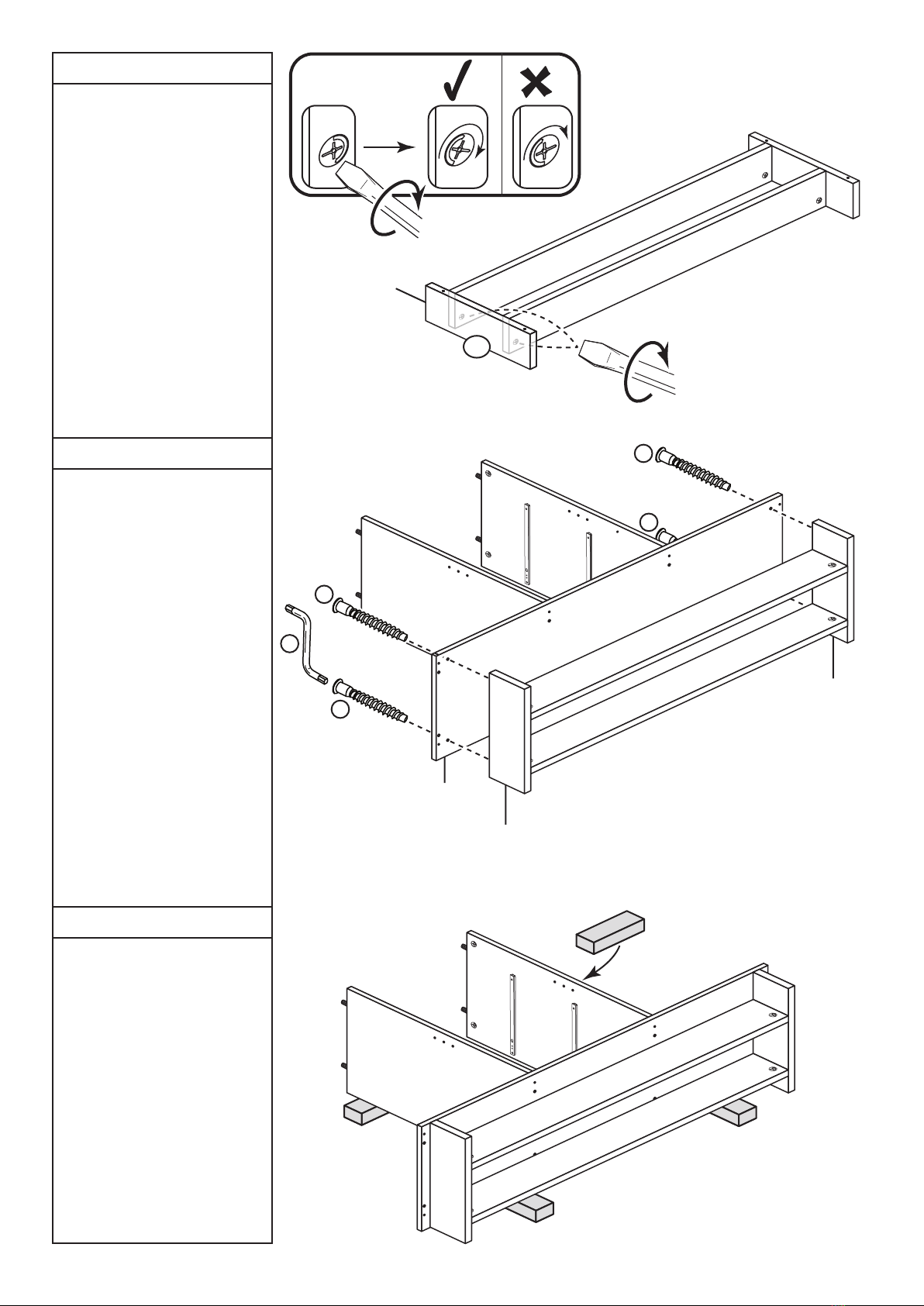

Fit the H-Frame RH
Upright
Push the H-Frame RH
Upright onto the 2
H-Frame Cross Rails.
Use a flat-head
screwdriver to tighten the
2 Large Locking Cam
Nuts fitted to the 2
H-Frame Cross Rails.
x 2
15
Step 8Step 16
Fit the H-Frame to the
Base
Push the H-Frame onto
the Base and secure it
using four 50mm Screws
and the Allen Key, as
shown.
Packaging
piece
Packaging
piece
Packaging
piece
Raise the assembly
To make it easier to fit
the Top Panel, place
packaging pieces
underneath the Side
Panels to raise the
assembly.
Step 8
Step 17
E
E
D
E
E

Finished
front edge
F
F
C
B
C

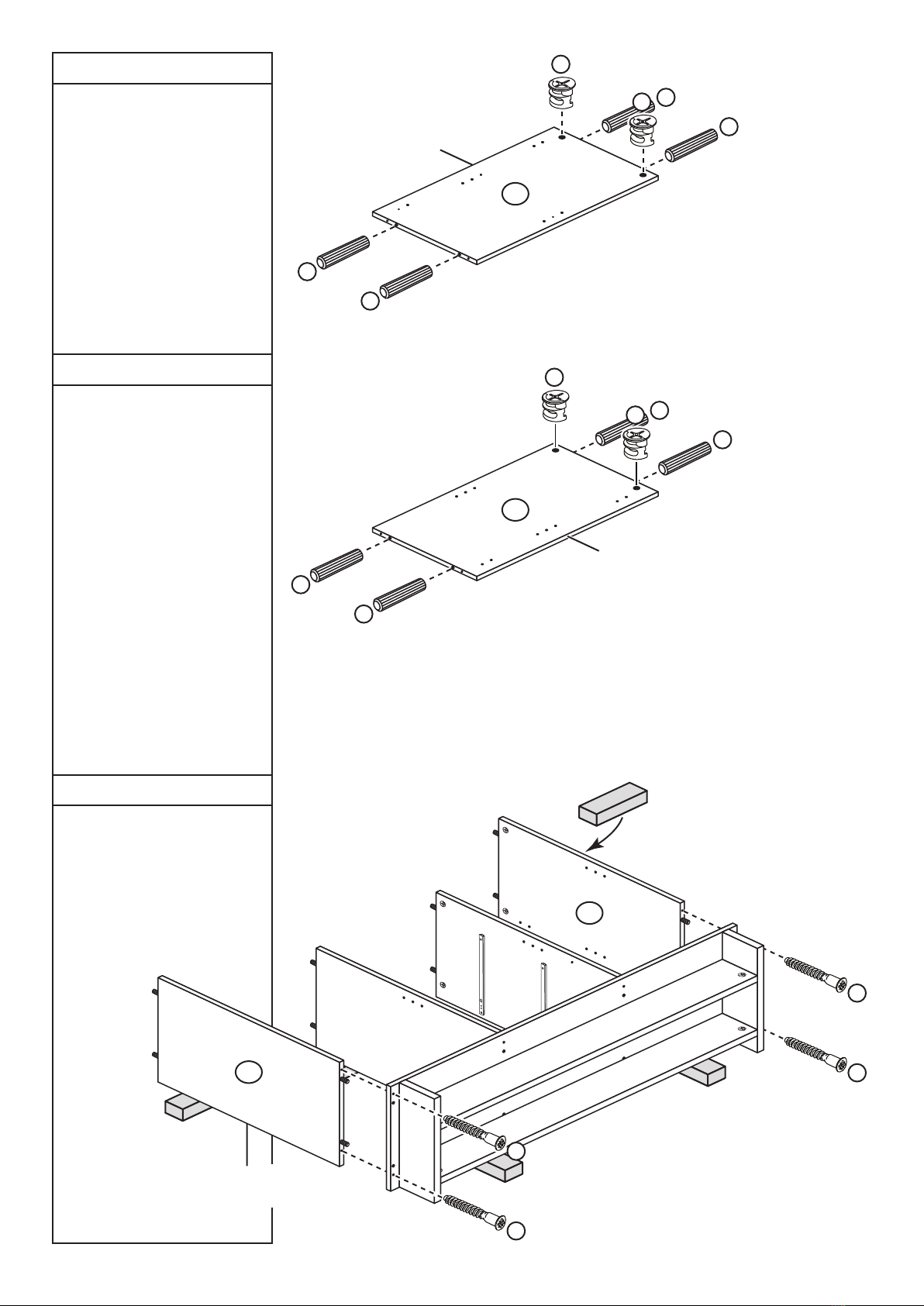

Step 18
6
B
Prepare the Left Side
Tap 2 Wooden Dowels
into the Left Side.
Insert 2 Large Locking
Cam Nuts into the
Left Side. C
C
C
B
C
B
C
C
Step 19
Prepare the Right Side
Tap 2 Wooden Dowels
into the Right Side.
Insert 2 Large Locking
Cam Nuts into the
Left Side.
Step 20
Fit the Left Side and
Right Side to the Base
Attach the Left Side and
Right Side to the Base
using four 40mm Screws.
7
F
F
6
7
Finished
front edge
Finished
front edge
Packaging
piece
Packaging
piece

Step 21
Step 22
Fit the Top
Push the Top Panel onto
the 2 Side Panels.
SA
A
A
A
A
Finished
front edge

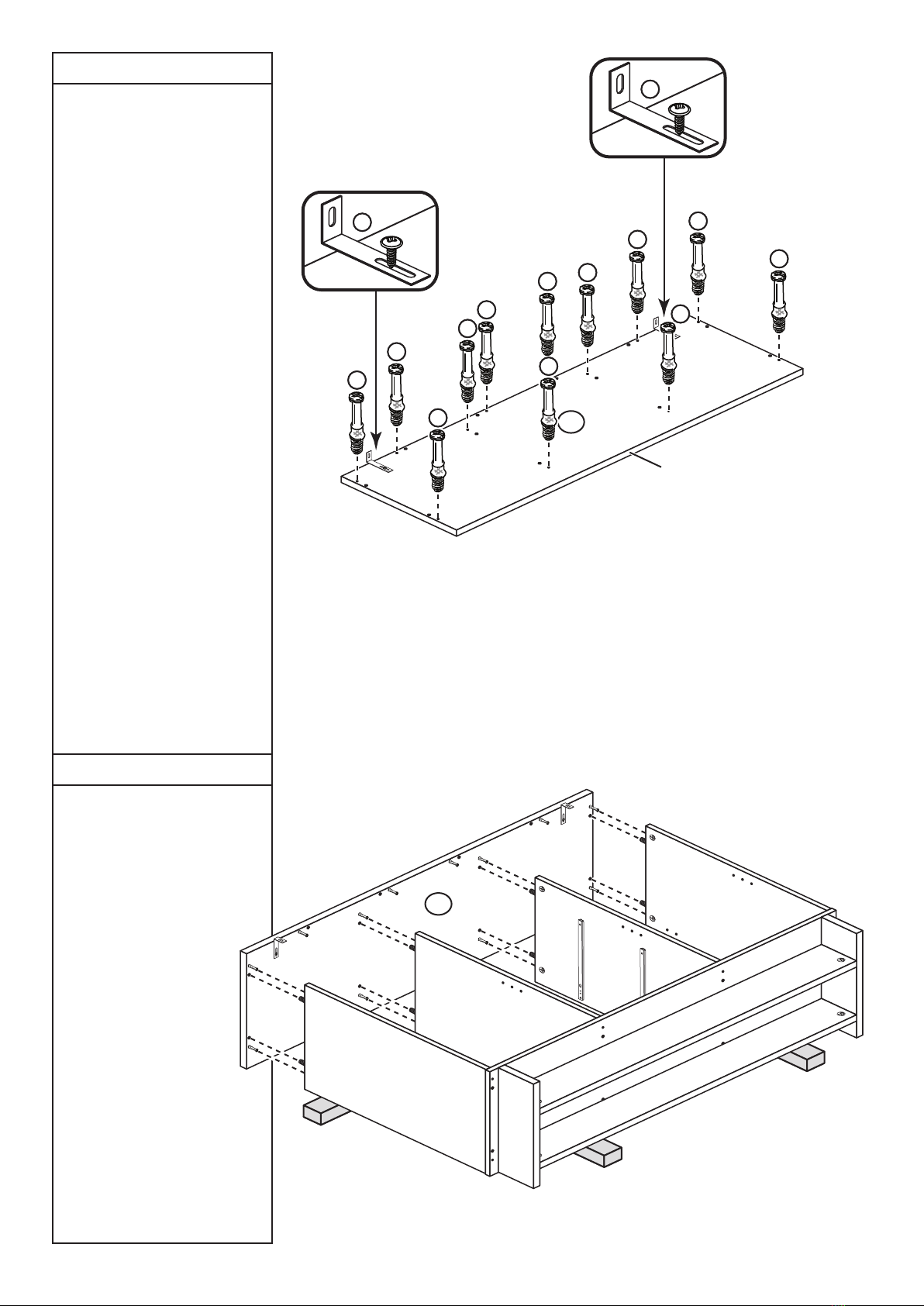

Prepare the Top
Screw 8 Metal Dowels
into the Top.
Fit the 2 Brackets from
the Overbalance
Protector Kit to the
shallow mark-holes
drilled into the Top using
1 of their Screws.
Note: Only fit 1 of the
Screws, the other 1 will
be fitted later.
11
A
A
A
S
11
A
A
A
A

Step 23

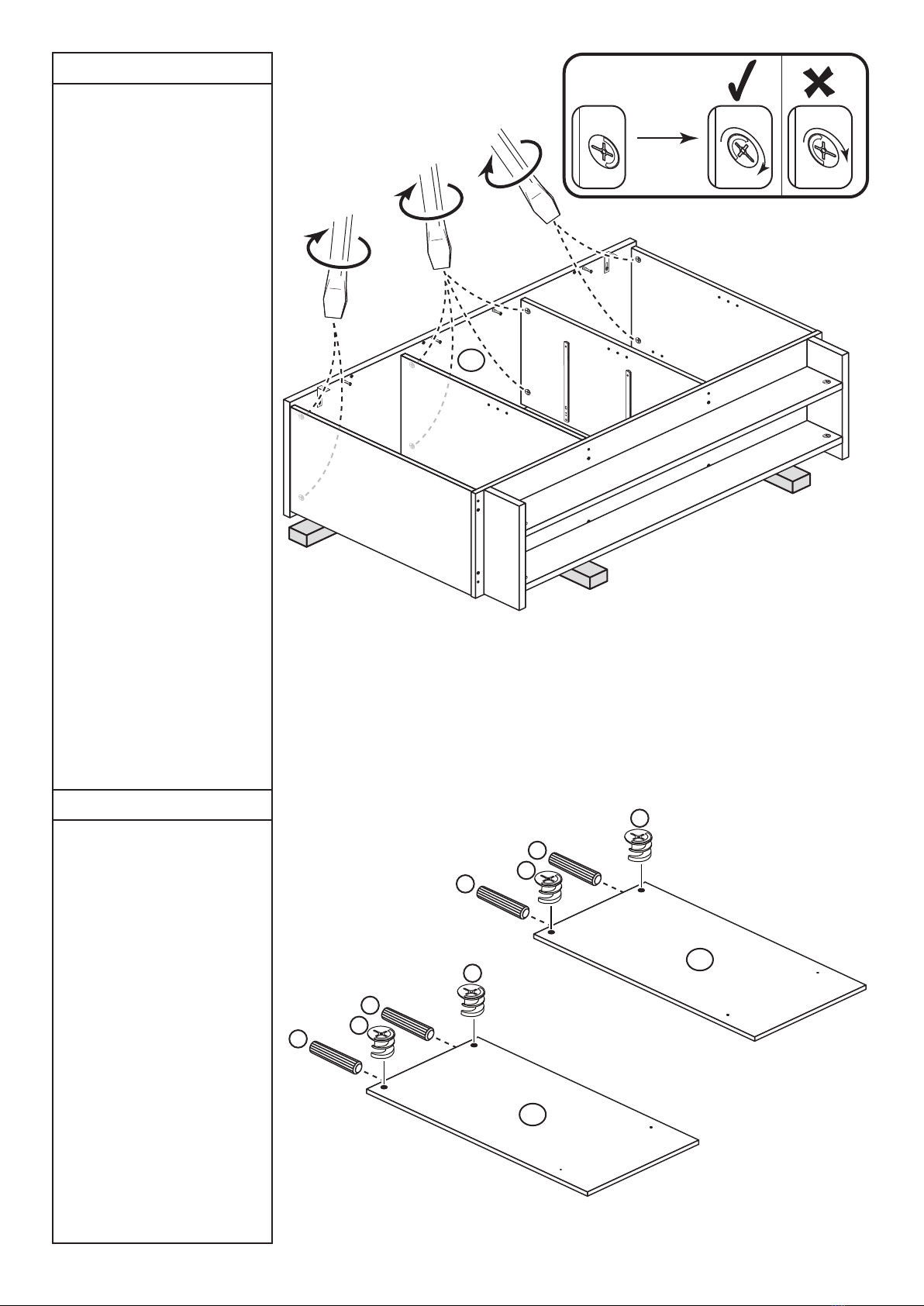

Secure the Top
Use a flat-head
screwdriver to tighten the
8 Large Locking Cam
Nuts fitted to the Sides.
x 8
11
C
C
Prepare the 2 Backs
Tap 2 Wooden Dowels
into each Back.
Insert 2 Large Locking
Cam Nuts into each
Back.
B
B
13
C
C
B
B
13
Step 24

Step 25

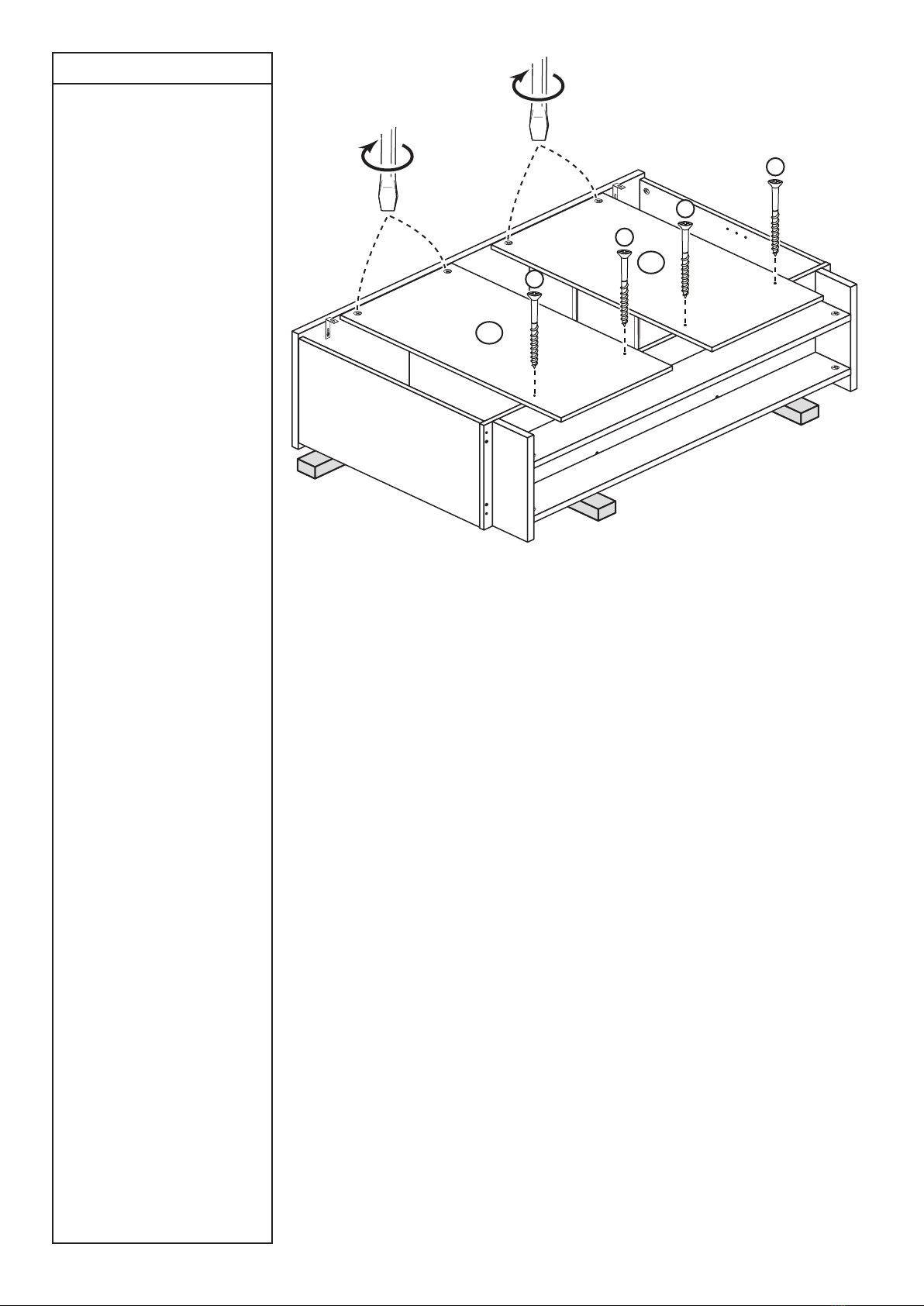

Fit the 2 Backs
Push the 2 Backs onto
the Top.
Use a screwdriver to
tighten the 2 Large
Locking Cam Nuts fitted
to each Back.
Fix each Back to the
back edge of the Base
with two 45mm Screws.
G
G
10
G
G
10

Step 26
a:
b: S S
TopTop

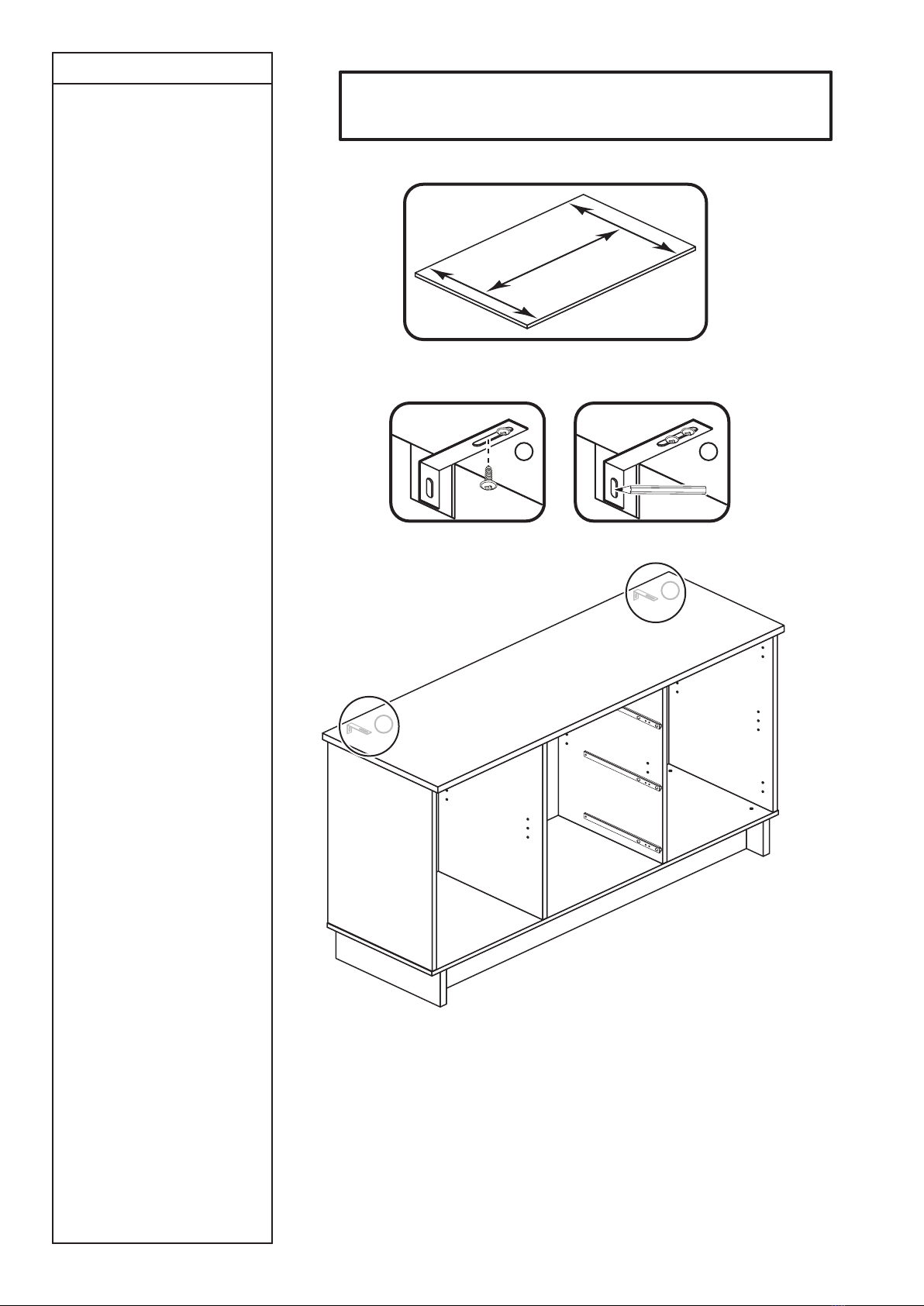

This unit must be fixed to a wall using
the Overbalance Protector Kit provided
Secure the unit to a
wall
a: Before fitting the unit
to a wall, use a spirit
level to check the top of
the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level.
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by fitting the
Overbalance Protector
Kit to a wall.
b: Push the unit up
against the wall and slide
the Brackets against the
wall. Fit the 2nd Screws
from the kit into the
underside of the Top
panel.
Mark the slot at the back
of the Brackets for drilling
into the wall.
Wall fixings are not
supplied as they will need
to suit the wall type.
Take care when drilling
the wall that you do not
drill into any pipes, wires
etc. If in doubt, consult an
expert.
S
S

Step 27
Step 8
Step 28
Fit the shelf
Choose which side you
would like your Shelf
then, push in 4 Shelf
Studs at the required
height.
Important: The prong of
the Shelf Stud must be
pointing upwards.
Position the holes in the
Shelf over the Shelf
Studs and push them
down onto the prongs.
Prepare the 2 Doors
Push fit 2 Hinges into
each Door.
Secure each hinge with
two 13mm Screws.
J
J
J
J
You can also choose
to fit the Shelf in the
right-hand side
10
H
H
R
H
H
R
H
H
R
H
H
R
17
18

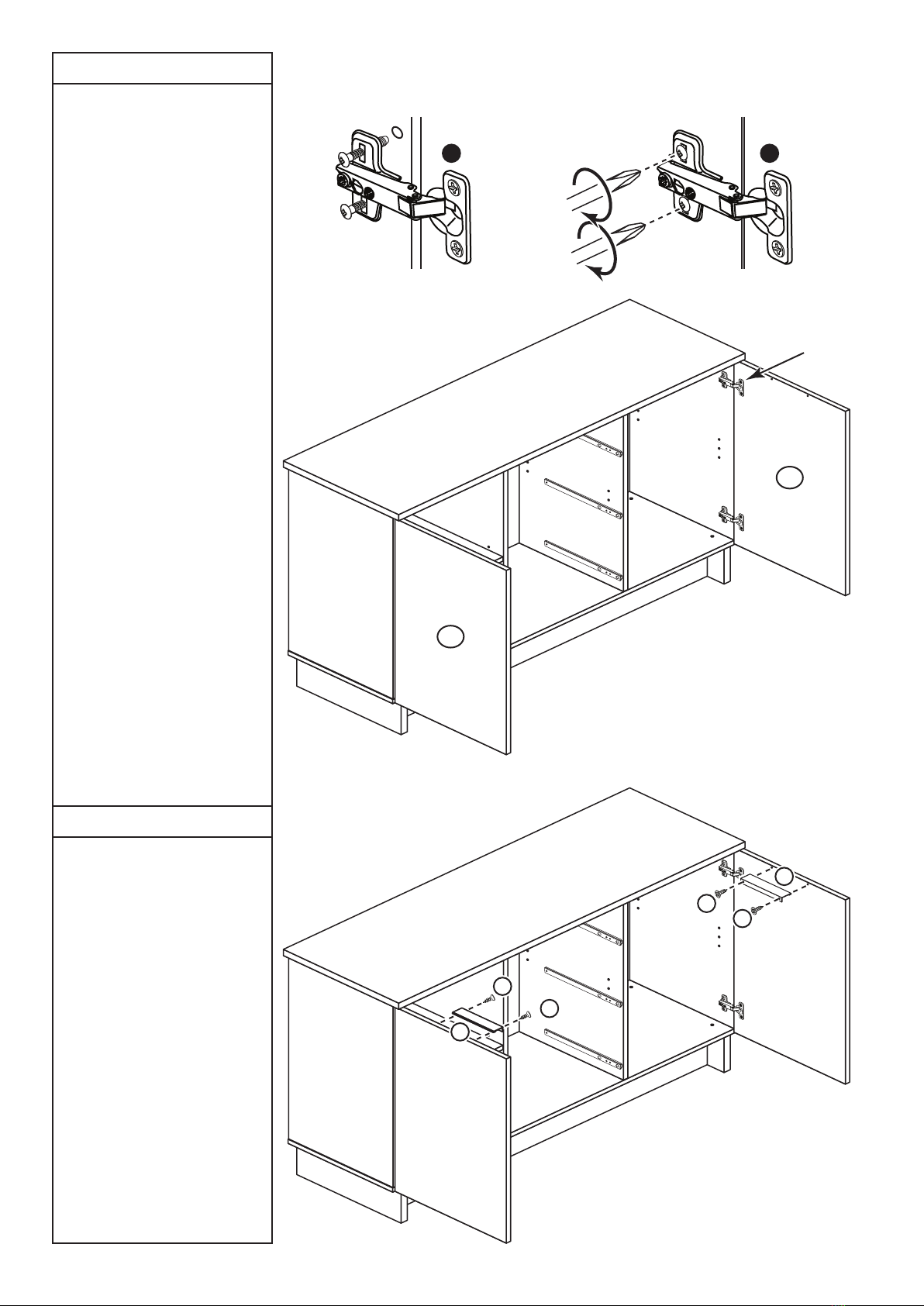

Step 29 Press the screws into
the holes in the panels
When the hinges have
been pushed in,
tighten up their screws
J J
Fit the Doors
Line up the 2 screws in
the top Hinge with the 2
holes at the top of the
Side and push them in.
Now push in the other
Hinge.
When the Hinges have
been pushed into place,
tighten their 2 screws.
Attach the Handles
Attach a Handle to each
of the Doors using two
13mm Screws.
Step 30
Fit the top
hinge 1st
17
18
E
E
Q
E
E
Q

Step 31
Step 32

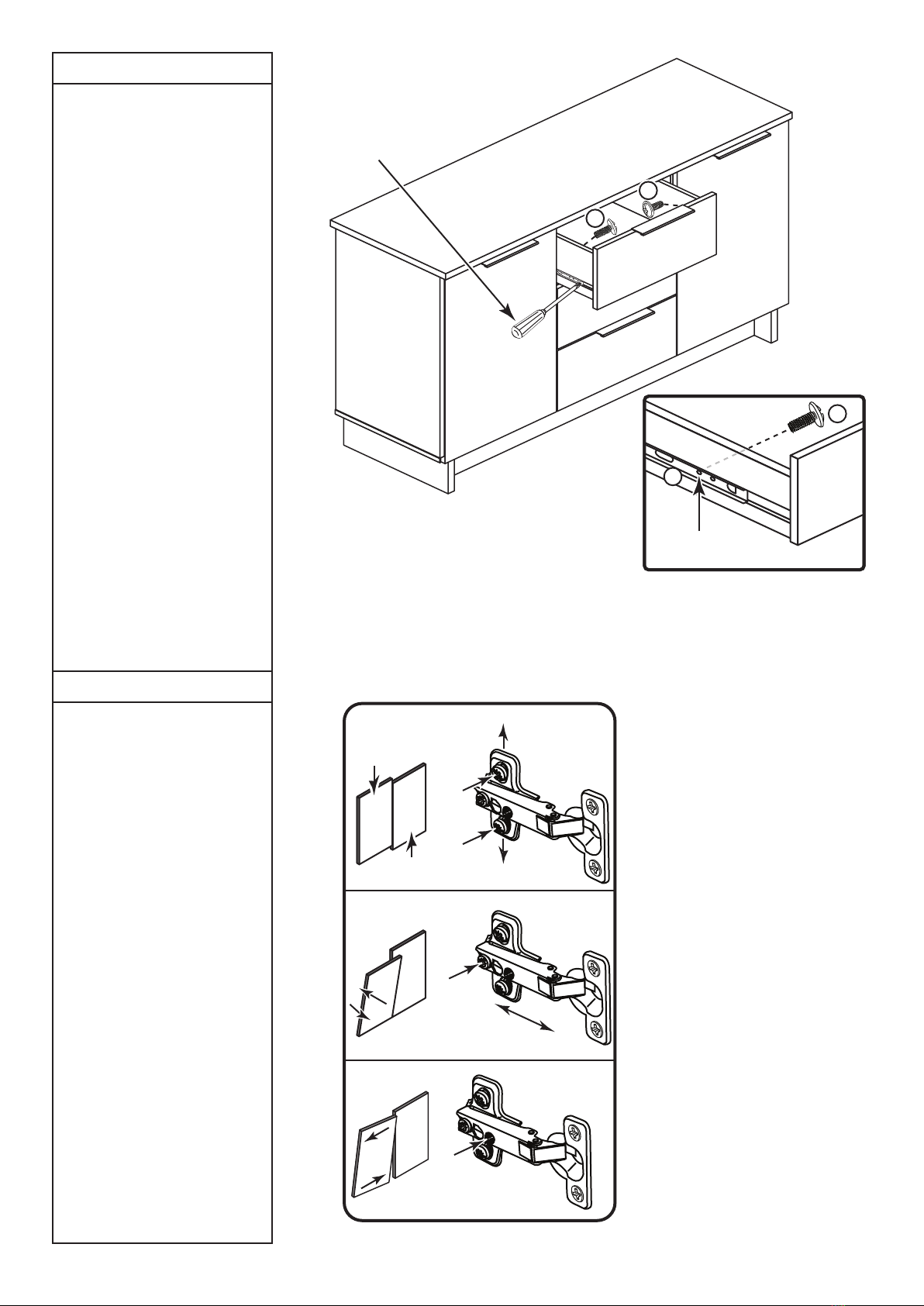

Fit the Drawers
Starting with the bottom
Drawer, slide both the
Runners forward and
locate the Drawer Sides
between them, lining up
their holes with the 2nd
'threaded' holes in the
Runners.
Working from the inside
of the Drawer, insert 2
9mm Screws through the
Drawer Sides and out
into the 2nd threaded
hole in the Runner.
Note: Do not overtighten
the Screws. If they catch
on the Runner you may
need to loosen them
slightly.
2nd threaded
hole
Q
M
The Runners could
have sharp edges and
we recommend that
you position them
using a Screwdriver
O
O
Adjust the Doors if
needed
a: Height adjustment.
Loosen Screws A on
Hinge Plates and move
Door up or down as
required.
Retighten Screw A.
b: Forward and Back
adjustment.
Loosen Screw B on
Hinge Plate and move
Door in or out as
required.
Retighten Screw B.
c: Sideways
adjustment.
To move Door ‘out’
loosen Screw C.
To move Door ‘in’ tighten
Screw C.
a:
b:
c:
A
A
B
C

Step 33
Assembly is complete
