Aqualisa dream User manual

DREAM™CONCEALED
THERMOSTATIC MIXER
INSTALLATION AND USER GUIDE

2
CONTENTS
Warranty 3
Before You Start 4
Water Supply Requirements 4
Product and Component Matrix 5
Components - Valves 6
Components - Single and Dual Trim Packs 7
Components - Triple Trim Packs 8
Components - Wall Fixed Heads 9
Components - Adjustable Rail Kits 10
Components - Bath Fill 12
Components - Hand Shower Kits 12
Installation - Valve 13
Installation - Trim Pack 19
Installation - Wall Outlets 21
Installation - Wall Fixed Arms 23
Installation - Fixed Heads 25
Installation - Adjustable Rail Kits - Round 25
Installation - Adjustable Rail Kits - Square 27
Installation - Bath Fill 29
Installation - Waste Pipe Extension (where required) 31
Cartridge Temperature Adjustment 32
General Maintenance 33
User Guide 35
Trouble Shooting 38

3
PTFE
GENERAL CLEANING
Whilst modern plating techniques are used in the manufacture of these
fittings, the plating will wear if not cleaned properly. The safest way
to clean your product is to wipe with a soft damp cloth. Stains can be
removed using washing up liquid.
DO NOT USE ABRASIVE CLEANERS.
We have taken great care to ensure that this product reaches you in
perfect condition. However should any parts be damaged or missing
please contact your point of purchase. This does not aect your statutory
rights. In addition if you require replacement parts please contact the
Aqualisa customer helpline on 01959 560010 for assistance.
TOOLS REQUIRED (Tools not supplied)
WARRANTY
Aqualisa products are supplied complete with a 1 year guarantee that can
be upgraded by registering this product with Aqualisa.
See www.aqualisa.co.uk/warranty for details.

4
BEFORE YOU START
This shower should be installed by a competent person in compliance with
current Water Supply Regulations. For further details contact your Local
Water Authority.
a. Identify all components and check pack contents.
b. Turn o the water supplies.
WATER SUPPLY REQUIREMENTS
Hot Water Maximum: 65˚C
Recommended 60-65˚C
Cold Water Minimum: 5˚C
Recommended 10-15˚C
Operating Pressure Range: Min. 0.2 bar, Max. 5.0 bar
Dream™ valves are suitable for gravity stored, gravity boosted, balanced
high pressure and combination boiler systems.
N.B. The combination boiler MUST have a minimum rating of 24kW
(80,000 Btu) and be of the type fitted with a fully modulating gas valve.
Boiler performance may aect outlet temperature.
Operating pressures on hot and cold supplies should be kept as even as
possible in order to ensure the maximum eciency of the mixer.
When water pressure is higher than 5 bar, a pressure reducing valve (not
supplied) must be fitted before the mixer. A setting of 3 bar is recommended.
Before making any pipe connections all supplies MUST be
thoroughly flushed to remove any debris.

5
PRODUCT MATRIX
VALVE OUTLETS Page 6 WALL FIXED HEAD Page 9 ADJUSTABLE RAIL KIT Page 10 BATH FILL Page 12 HAND SHOWER KIT Page 12
DRMDCV1.AD.RND Single •
DRMDCV1.AD.SQR Single •
DRMDCV1.FW.RND Single •
DRMDCV1.FW.SQR Single •
DRMDCV2.ADFW.RND Dual • •
DRMDCV2.ADFW.SQR Dual • •
DRMDCV2.ADBTX.RND Dual • •
DRMDCV2.ADBTX.SQR Dual • •
DRMDCV3.ADFWBTX.RND Triple •••
DRMDCV3.ADFWBTX.SQR Triple •••
DRMDCV2.HSFW.RND Dual • •
DRMDCV2.HSFW.SQR Dual • •
PRODUCT COMPONENT LISTS

6

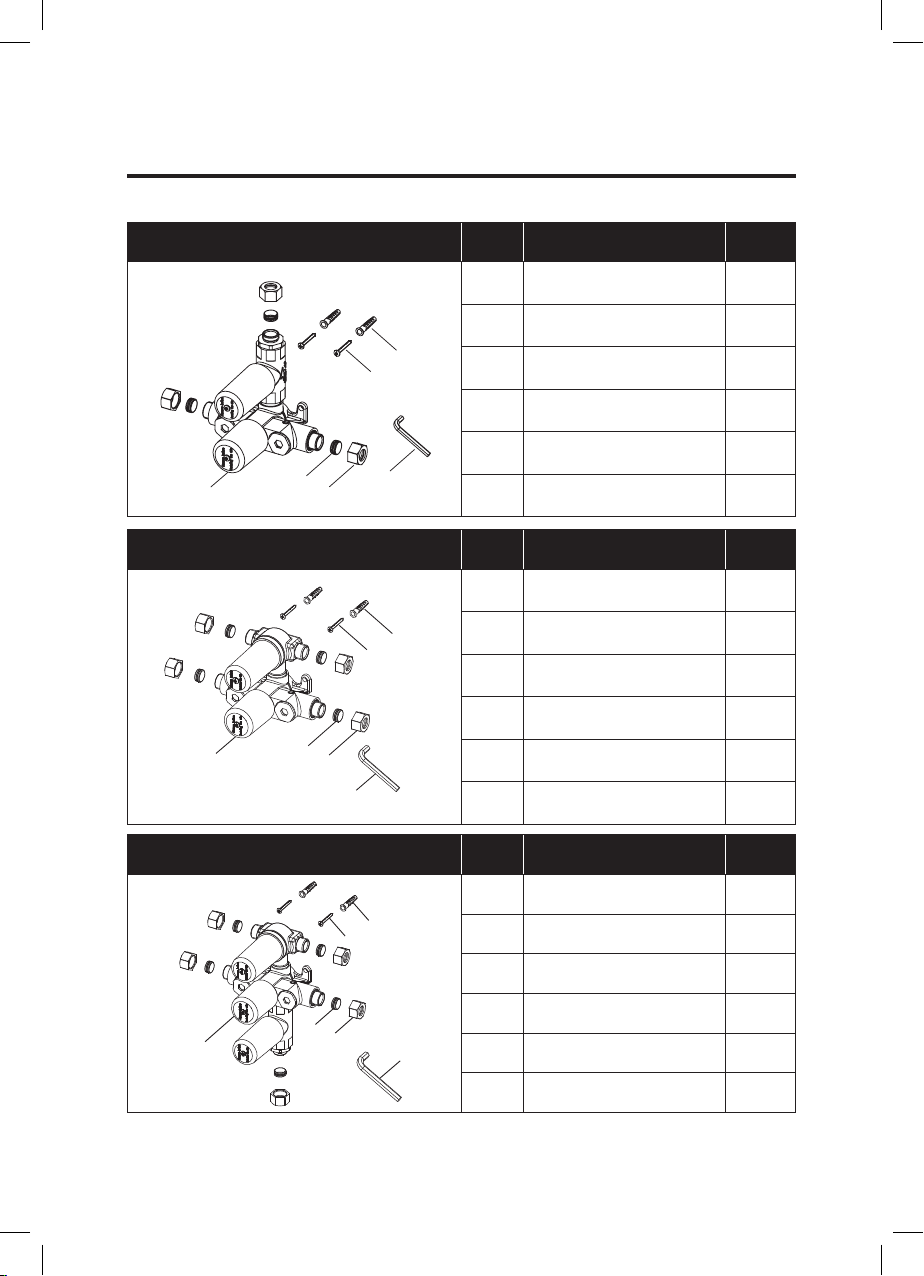

COMPONENTS  OUTLET VALVES
VALVE BODY - SINGLE OUTLET NO. DESCRIPTION QTY
1 Wall Plugs 2
2 Wall Screws 2
3 Valve Body 1
4 Copper Olives 3
5 Compression Nuts 3
6 10mm Filter Allen Key 1
1
4
5
3
6
2
VALVE BODY  DUAL OUTLET NO. DESCRIPTION QTY
1 Wall Plugs 2
2 Wall Screws 2
3 Valve Body 1
4 Copper Olives 4
5 Compression Nuts 4
6 10mm Filter Allen Key 1
1
45
3
6
2
VALVE BODY  TRIPLE OUTLET NO. DESCRIPTION QTY
1 Wall Plugs 2
2 Wall Screws 2
3 Valve Body 1
4 Copper Olives 5
5 Compression Nuts 5
6 10mm Filter Allen Key 1
1
45
36
2

7
1
2
3
4
8
9
5
2
6
7a
7b
TRIM PACK  ROUND NO. DESCRIPTION QTY
1Lever 1
2 Grub Screw 2
3 2.5mm Allen Key 1
4 Control Knob 1
5 Cap 1
6 Temperature Knob 1
7a Single - Control
Shroud Ring 1
7b Dual - Control
Shroud Ring 1
8Temperature Shroud
Ring 1
9 Wall Plate 1
N.B. Pack will contain either 7a or 7b

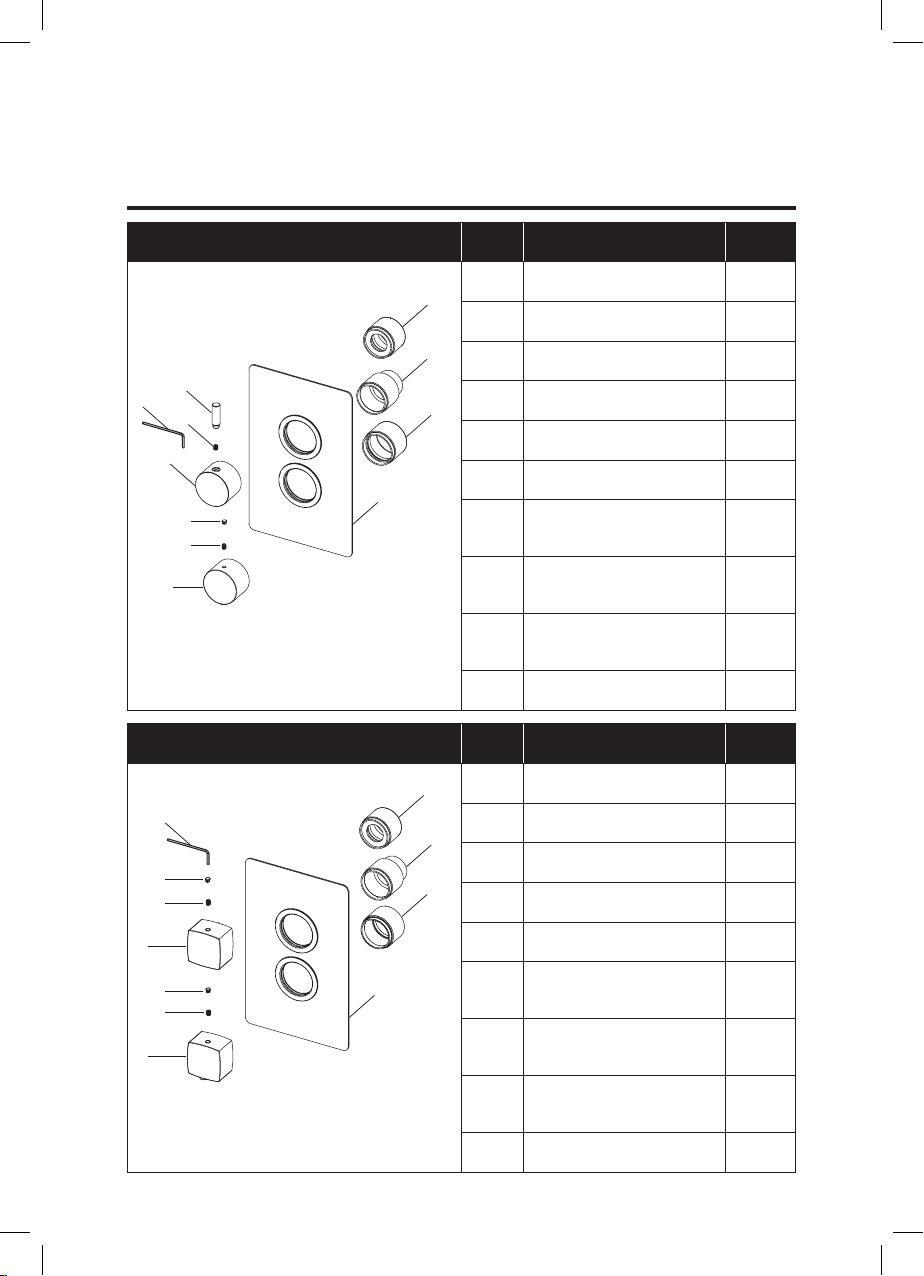

COMPONENTS  SINGLE AND DUAL
TRIM PACKS
TRIM PACK  SQUARE NO. DESCRIPTION QTY
1 2.5mm Allen Key 1
2 Cap 2
3 Grub Screw 2
4 Control Knob 1
5 Temperature Knob 1
6a Single - Control
Shroud Ring 1
6b Dual - Control Shroud
Ring 1
7Temperature Shroud
Ring 1
8 Wall Plate 1
N.B. Pack will contain either 6a or 6b
6b
7
8
6a
1
2
3
4
2
3
5

8

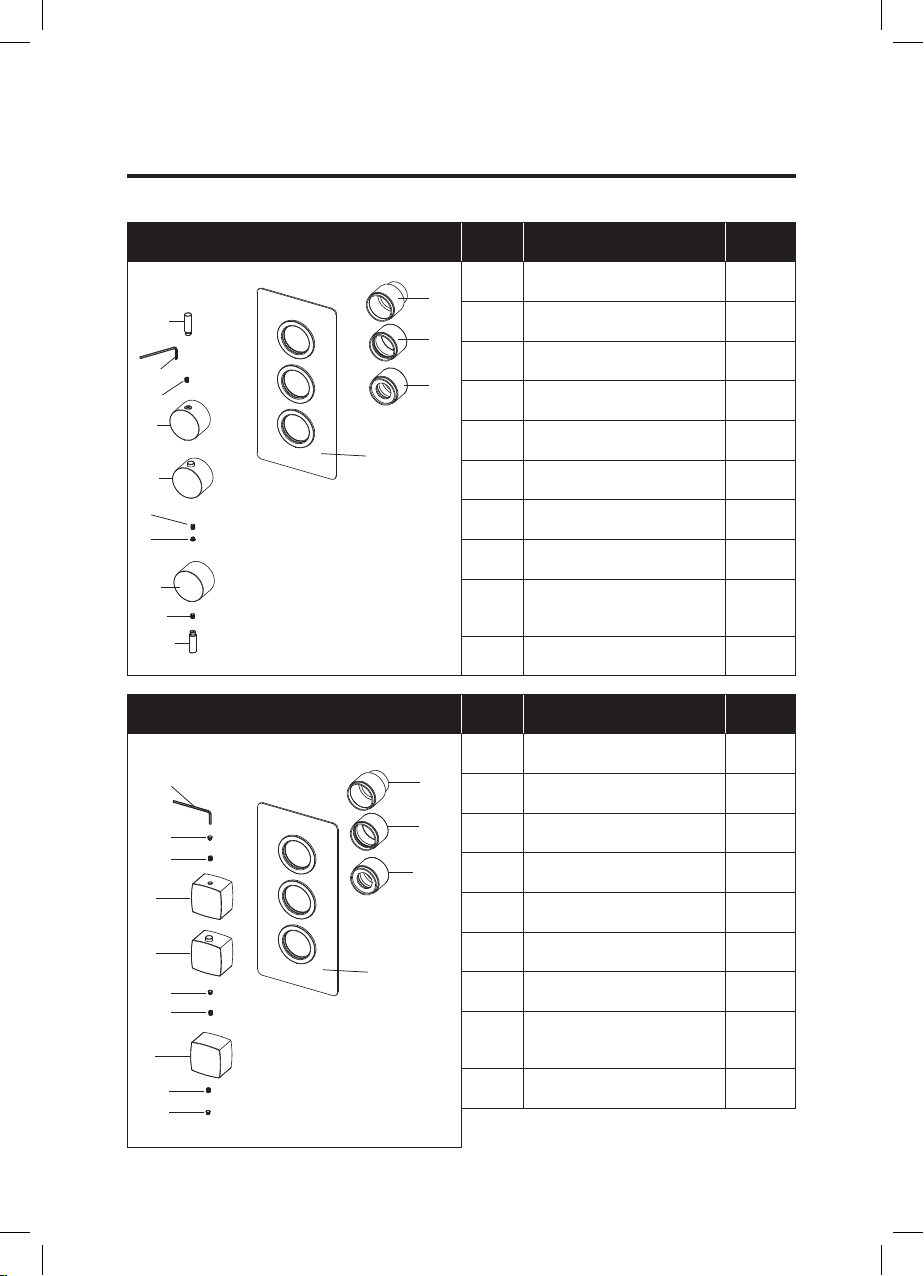

COMPONENTS  TRIPLE TRIM PACKS
TRIM PACK  ROUND NO. DESCRIPTION QTY
3
6
5
8
9
10
7
4
4
2
3
3
1
1
1Lever 2
2 2.5mm Allen Key 1
3 Grub Screw 3
4 Control Knob 2
5 Temperature Knob 1
6 Cap 1
7 Wall Plate 1
8 Bottom Shroud Ring 1
9Temperature Shroud
Ring 1
10 Top Shroud Ring 1
TRIM PACK  SQUARE NO. DESCRIPTION QTY
7
8
9
6
2
3
4
2
3
4
1
5
2
3
1 2.5mm Allen Key 1
2 Grub Screw 3
3Cap 3
4 Control Knob 2
5 Temperature Knob 1
6 Wall Plate 3
7 Bottom Shroud Ring 1
8Temperature Shroud
Ring 1
9 Top Shroud Ring 1

9
FIXED HEAD AND ARM  SQUARE NO. DESCRIPTION QTY
1 Backnut 1
2 Backnut Washer 1
3 Cover Plate 1
4 Shower Arm 1
5 Filter Washer 1
6Ball Joint 1
7 Shower Head 1
12
45
67
3
FIXED HEAD AND ARM  ROUND NO. DESCRIPTION QTY
1 Backnut 1
2 Backnut Washer 1
3 Fixing Nut 1
4Cover Plate 1
5 Shower Arm 1
6 Filter Washer 1
7Ball Joint 1
8 Shower Head 1
678
1234
5
COMPONENTS  WALL FIXED HEADS

10

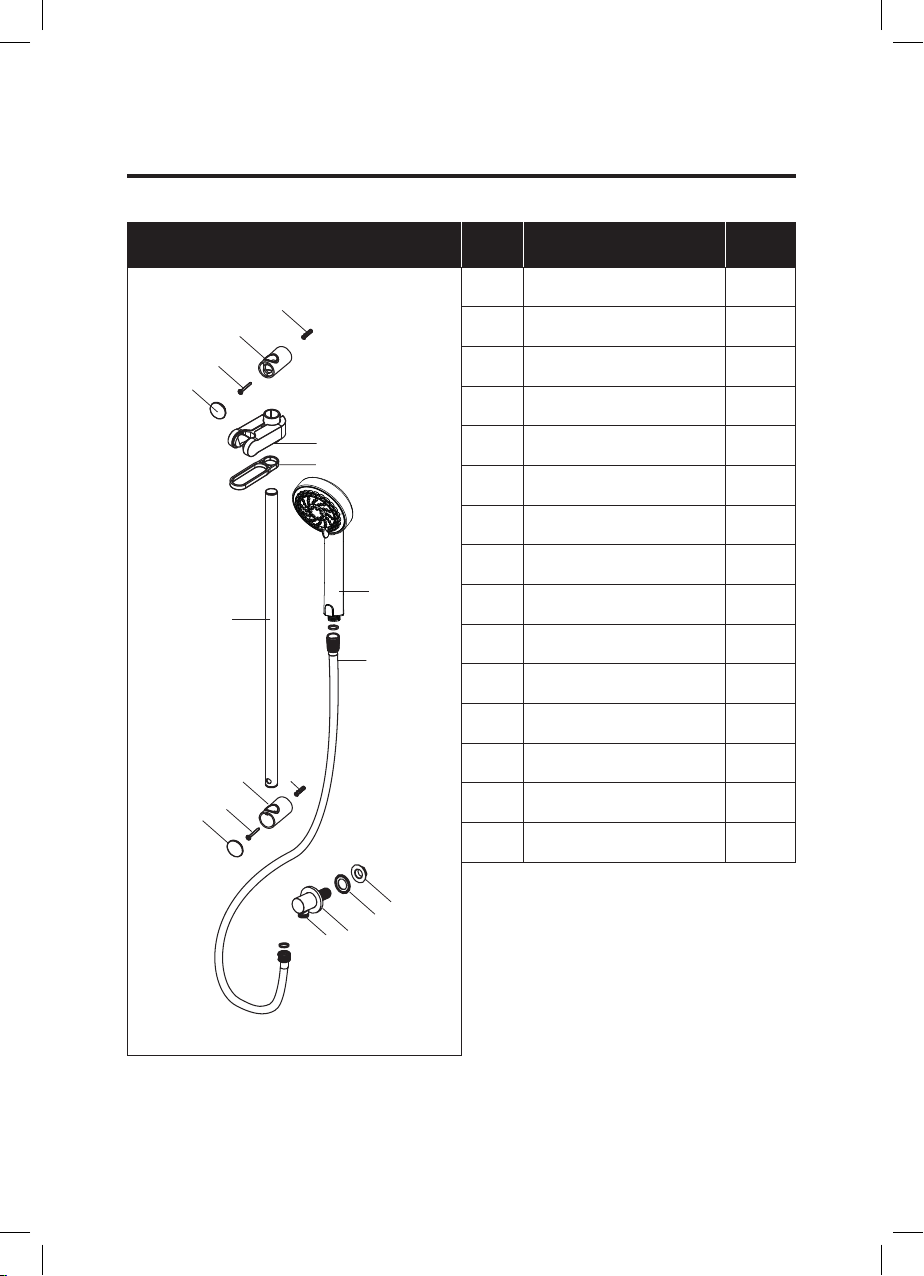

COMPONENTS  ADJUSTABLE RAIL KITS
ADJUSTABLE RAIL KIT  ROUND NO. DESCRIPTION QTY
3
4
2
1
6
5
9
7
8
10
11
4
1
12
14 13
15
1 Wall Plug 2
2 Upper Rail Bracket 1
3 Wall Screw - Short 1
4 Rail End Cap 2
5 Pinch grip Holder 1
6 Gel Hook 1
7 Harmony Handset 1
8 Riser Rail 1
9 Shower Hose - 1.5m 1
10 Lower Rail Bracket 1
11 Wall Screw - Long 1
12 Backnut 1
13 Backnut Washer 1
14 Wall Cover Plate 1
15 Wall Outlet 1

11
ADJUSTABLE RAIL KIT  SQUARE NO. DESCRIPTION QTY
7
9
8
5
2
143
13
11 12
10
1
26
3
5
4
1 Rail End Cover 2
2 Rail Bracket 2
3 Wall Plug 2
4 Wall Screw 2
5 Cover Plate 2
6 Handset Holder 1
7 Riser Rail 1
8 Handset 1
9 Shower Hose - 1.5m 1
10 Wall Outlet 1
11 Wall Cover Plate 1
12 Backnut Washer 1
13 Backnut 1

12

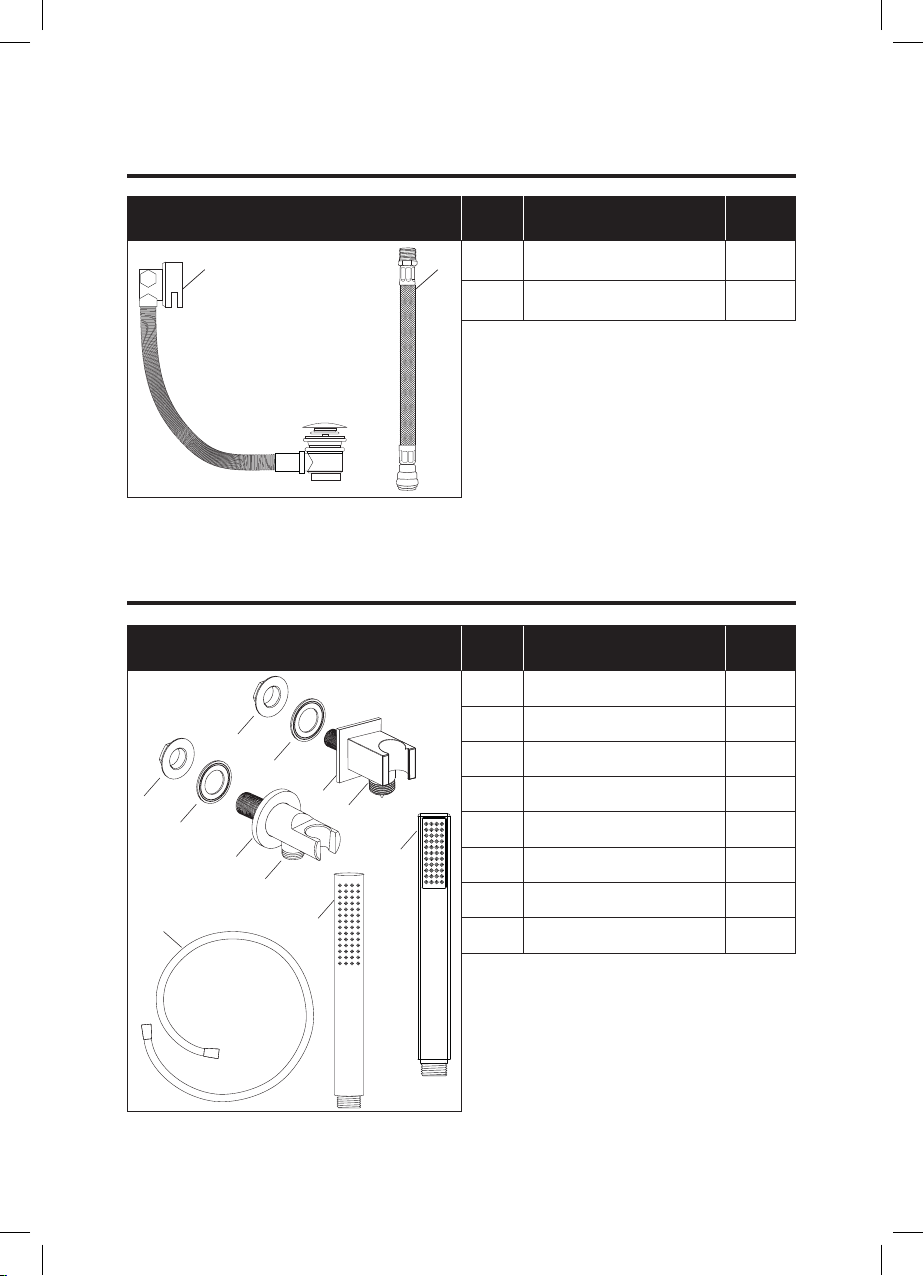

COMPONENTS  BATH FILL
BATH FILL NO. DESCRIPTION QTY
1 Bath Overflow and Filler 1
2 Flexible Hose 300mm 1
1 2
COMPONENTS  HAND SHOWER KITS
HAND SHOWER KITS NO. DESCRIPTION QTY
1
2
3
3
5a
6
5b
4a
1
2
4b
1 Backnut 1
2 Backnut Washer 1
3 Wall Cover Plate 1
4a Wall Outlet - Round 1
4b Wall Outlet - Square 1
5a Hand Shower - Round 1
5b Hand Shower - Square 1
6 1.5m Smooth Hose 1
N.B. Pack will contain either 4a and 5a or 4b and 5b.

13

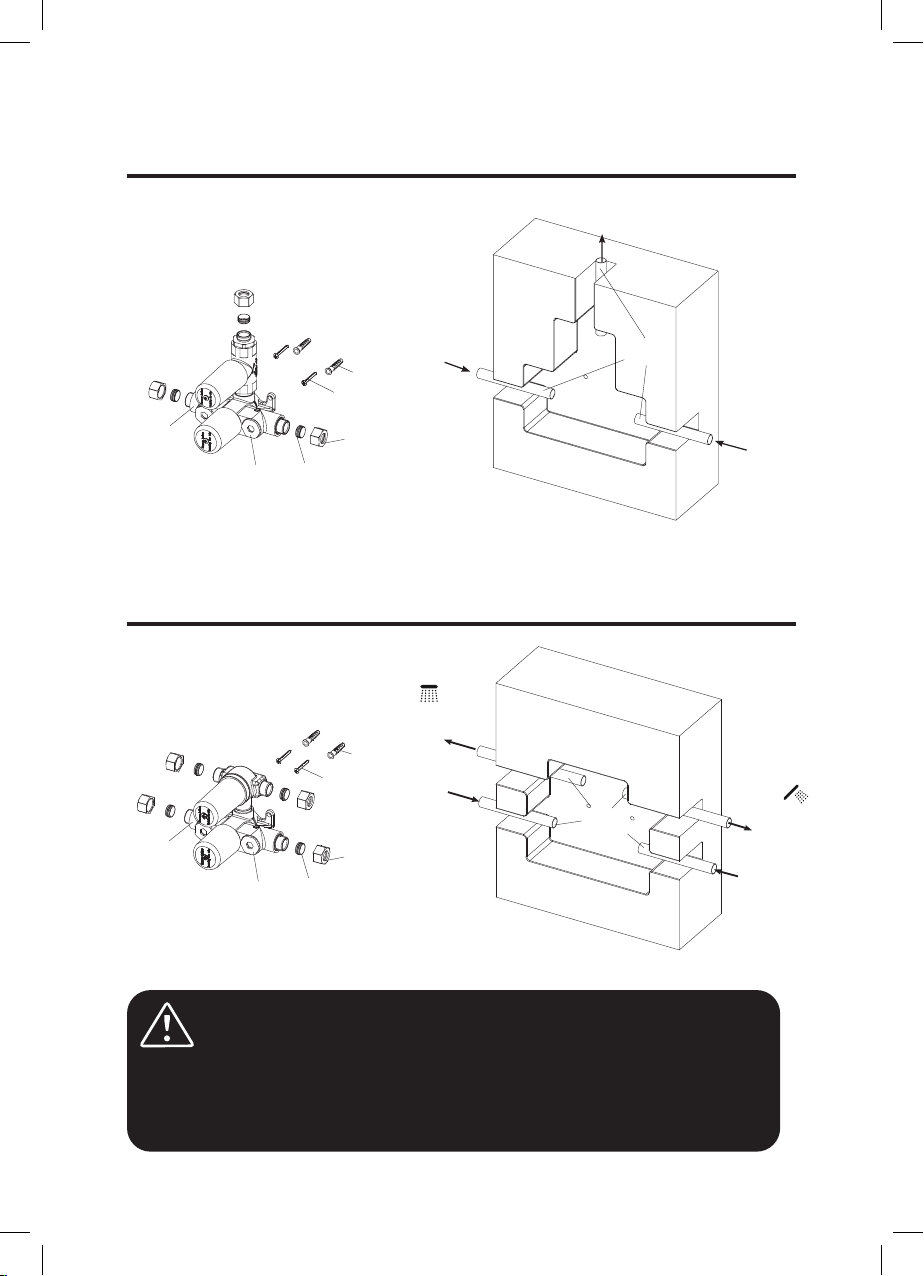

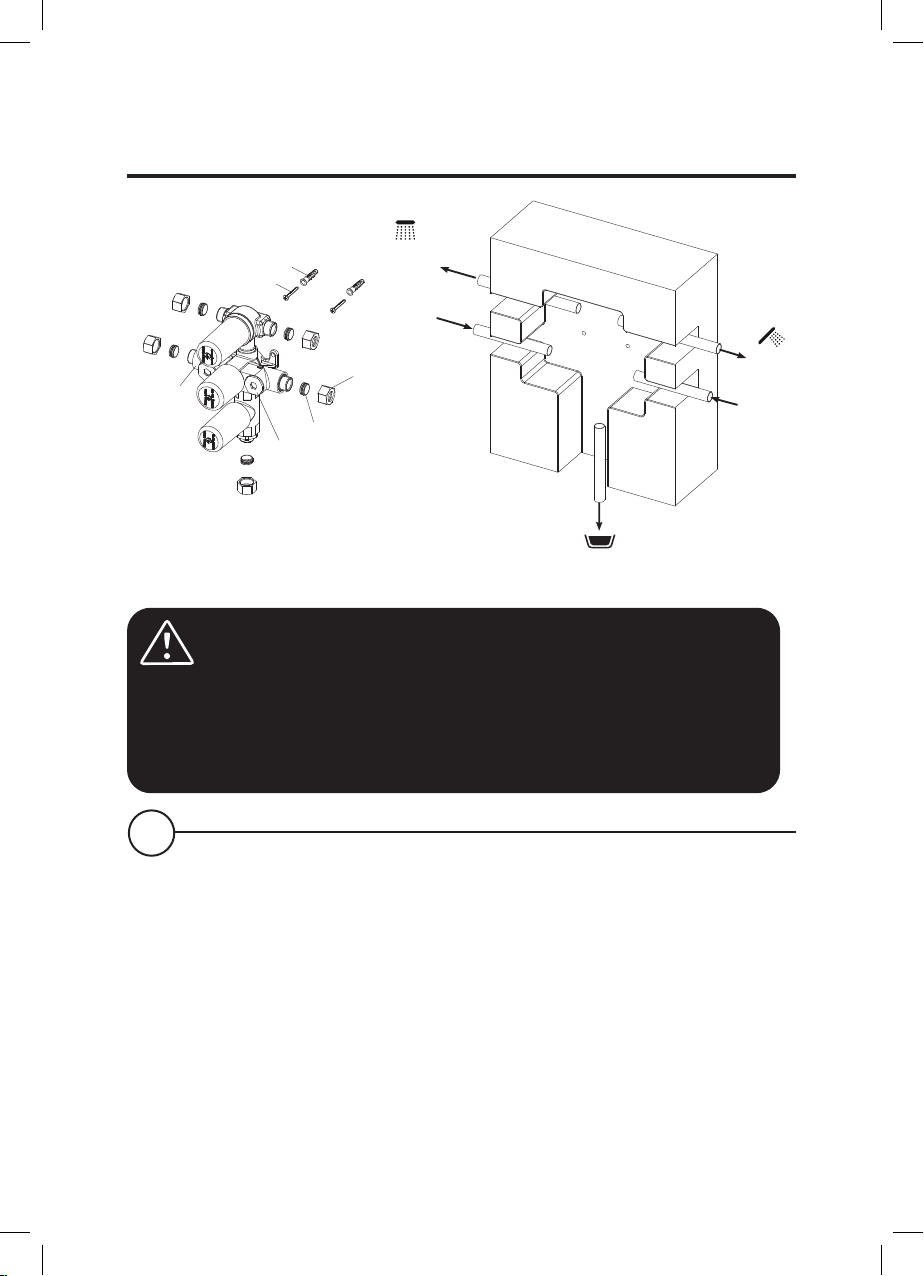

INSTALLATION VALVE  SINGLE OUTLET
Hot water inlet
Cold
water
inlet
Outlet
15mm
pipework
Copper olives
Compression nuts
Wall plugs
Valve body
Filter nuts
Wall screws
Valve body
Filter nuts
INSTALLATION VALVE  DUAL OUTLET
Hot water inlet
Cold
water inlet
15mm
pipework
Outlet 1
(Fixed head or bath fill)
Outlet 2
(Adjustable head
or hand shower)
Valve body
Copper olives
Compression nuts
Wall plugs
Filter nuts
Wall screws
IMPORTANT:
Ensure outlet feeds are configured as per the diagram shown.
Fixed head or bath fill - Left outlet
Adjustable head or hand shower - Right outlet

14
INSTALLATION VALVE  TRIPLE OUTLET
Outlet 3
(Bath fill)
Hot water inlet
Cold
water inlet
Valve body
Copper olives
Compression nuts
Filter nuts
Wall screws
Wall plugs
Outlet 2
(Adjustable head
or hand shower)
Outlet 1
(Fixed head)
IMPORTANT:
Ensure outlet feeds are configured as per the diagram shown.
Fixed head - Left outlet
Adjustable head or hand shower - Right outlet
Bath fill - Bottom outlet
1
Turn o the water supply prior to installation. Prepare the recess in
the wall for the valve body and pipework.

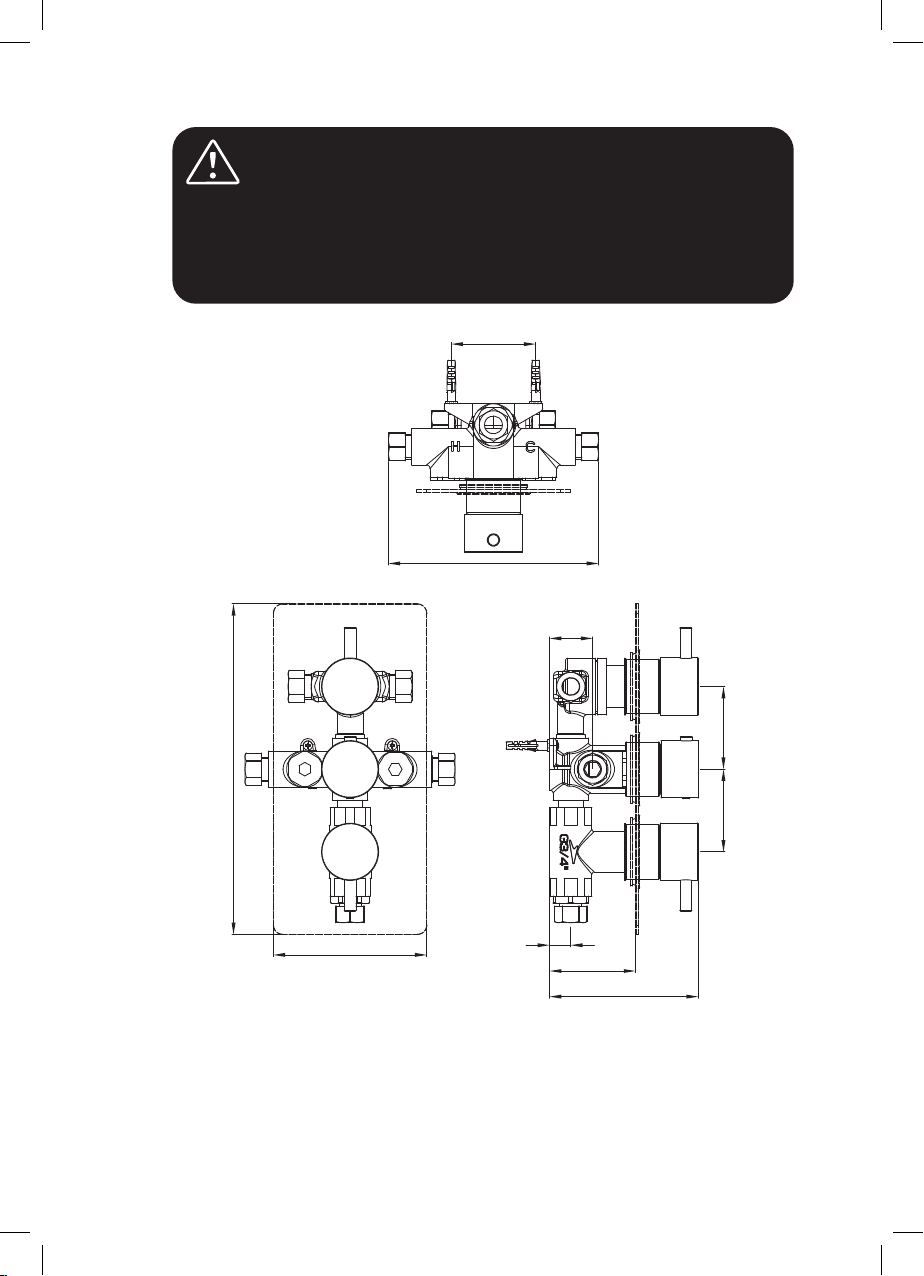

15
IMPORTANT:
Minimum wall cavity depth: 69mm
Min-Max Concealing Plate adjustment: 69-90mm
See below dimension drawing.
71.5
130
126
18
70
200
178
69~90
36.5
All sizes shown are
in millimetres.
Valve concealing depth
is from the back of the
valve to the wall plate:
min 69mm
max 90mm
71.5
130
126
18
70
200
178
69~90
36.5
71.5
130
126
18
70
200
178
69~90
36.5
N.B. Dual outlet valve shown for illustrative purposes. Refer to
page 16 for triple outlet valve.

16
IMPORTANT:
Minimum wall cavity depth: 69mm
Min-Max Concealing Plate adjustment: 69-90mm
See below dimension drawing.
71.5
130
126
18
70 70
280
178
69~90
36.5
All sizes shown
are in millimetres.
Valve concealing depth
is from the back of the
valve to the wall plate:
min 69mm
max 90mm

17
2
Arrange the pipework so that the hot water is connected from the
left to the inlet marked ‘H’ and the cold from the right to the inlet
marked ‘C’, on the valve body.
For single outlet: The outlet pipe connects to the top of the valve
body.
For dual outlet: The fixed head or bath fill outlet pipe connects to the
left outlet (Outlet 1) on the valve body.
The adjustable head or hand shower outlet pipe connects to the right
outlet (Outlet 2) on the valve body.
For triple outlet: The fixed head outlet pipe connects to the left
outlet (Outlet 1) on the valve body. The adjustable head outlet pipe
connects to the right outlet (Outlet 2) on the valve body. The bath
fill outlet pipe connects to the bottom outlet (Outlet 3) on the valve
body.
For all models: Ensure sucient pipe length; the pipe ends insert
into the valve inlets and outlet(s) a minimum of 10mm.
3
Connect the valve loosely to the pipework, do not tighten.
4
Hold the valve in position inside the cavity and mark the screw holes.
If required, disconnect the valve, drill the holes and insert the wall
plugs.
5
Connect the valve body to the pipework using the copper olives and
compression nuts provided, but do not tighten.
6
Secure the valve body with the wall screws.
7
Tighten the compression nuts to create a watertight seal.

18
8
Reinstate the water supply and check for leaks.
9
Ensuring the filter nuts are left accessible, plasterboard and tile the
cavity wall ensuring there is an adequate gap between the tiles and
the valve body. To allow for any future maintenance an access hole is
required.
Single and Dual models -120mm high x 110mm wide.
Triple outlet models - 190mm high x 110mm wide.

19

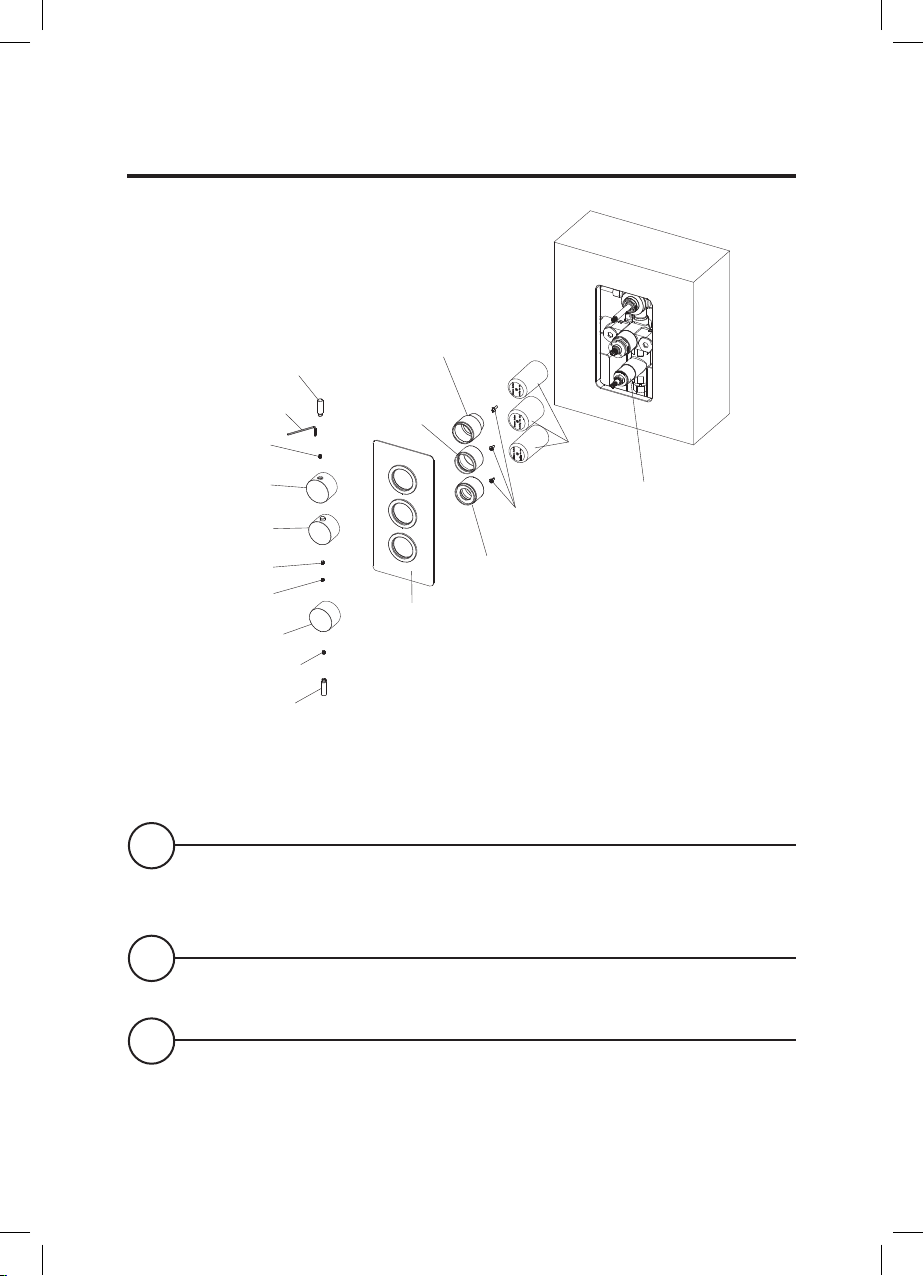

INSTALLATION  TRIM PACK
Wall plate
Bottom
shroud
ring
Valve body
Top
shroud
ring
Cover
screws
Black
covers
Grub screw
Control knob
Control knob
Temperature
knob
Cap
Allen key
Grub screw
Lever
Grub screw
Lever
Temperature
shroud ring
N.B. Round triple outlet valve shown for illustrative purposes. Refer to page 7 for
single and dual model trim packs.
1
Isolate the water supplies to the shower. Remove the cover screws
and black covers from the valve.
2
Screw the shroud rings into place (do not overtighten).
3
Apply a bead of silicone sealant to the rear of the wall plate and
carefully push the wall plate into position flush with the finished wall
surface.

20
4
Prior to fitting the temperature knob, remove the black temperature
stop and ensure the black marked line on the brass spindle aligns with
the black mark behind the spindle.
5

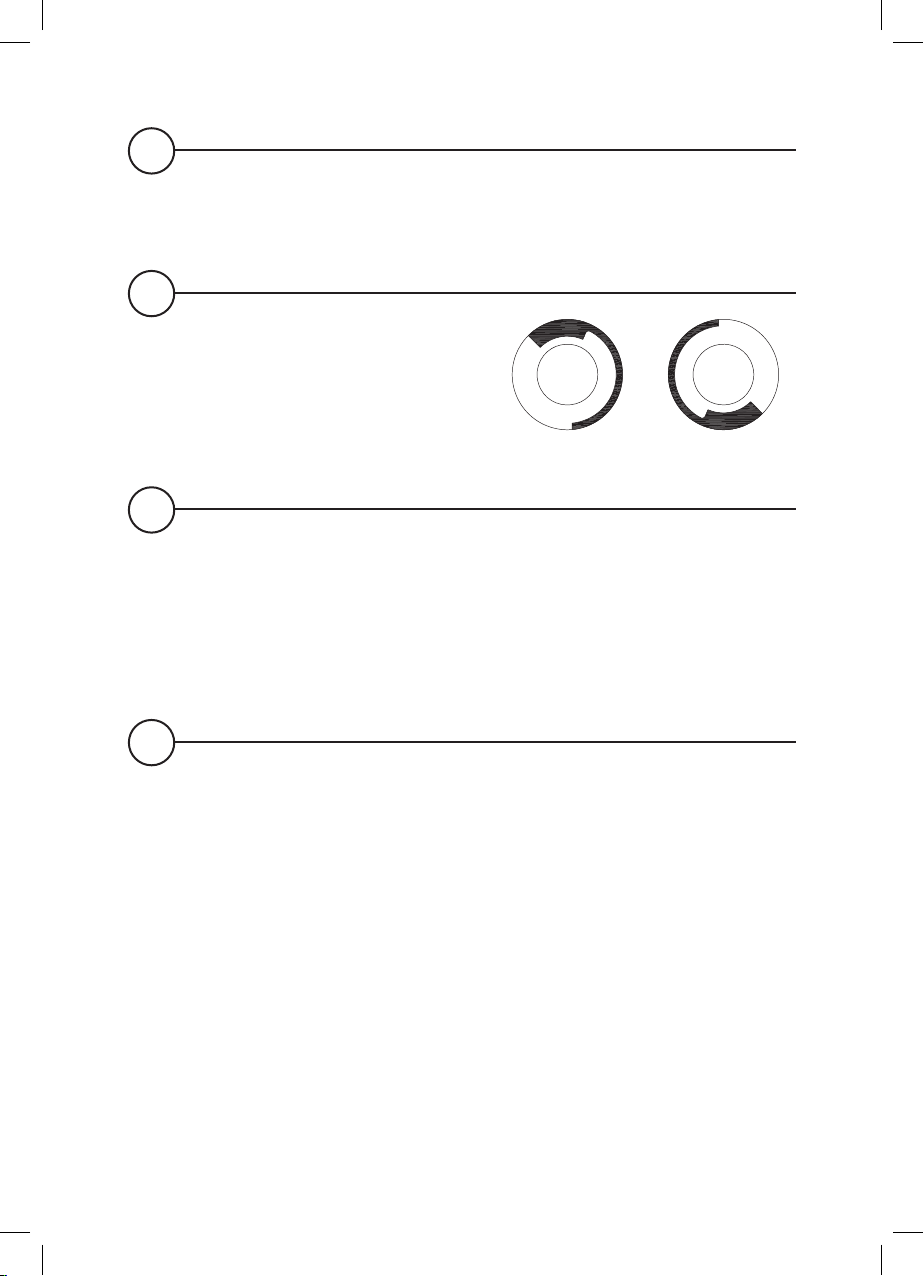

To enable the temperature
override safety button to
engage at 38°C, refit the black
temperature override stop in the
correct orientation, as shown. Single and Dual Triple
6
Prior to fitting the temperature knob, loosen the grub screw located
in the temperature knob, then depress the temperature override
safety button and fit the knob into place with
Single and dual outlet: Button at the 6 o’clock position.
Triple outlet: Button at the 12 o’clock position.
Tighten the grub screw and fit the cap.
7
For single outlet: To fit the top control knob, ensure the brass on/o
spindle is in the o position (turned fully clockwise). Unscrew and
remove the lever or cover cap from the control knob and loosen the
grub screw located in the control knob. Fit the control knob to the
on/o spindle with the grub screw and lever hole positioned to ‘OFF’
(12 o’clock). Tighten the grub screw and refit the lever or cover cap.
For dual and triple outlets: To fit the top control knob, unscrew and
remove the lever or cover cap from the control knob and loosen the
grub screw located in the control knob. Loosely fit the control knob
onto the spindle and turn fully clockwise until a stop is reached, there
will be an audible ‘click’. Remove the knob, and refit ensuring the
grub screw and lever hole is positioned at 3 o’clock. Tighten the grub
