AQUAPHOR RO-101S User manual

AQUAPHOR RO-101S, RO-102S,
RO-101S EU, RO-102S EU, RO-101S IL, RO-102S IL
(in further RO)
REVERSE OSMOSIS SYSTEM
OWNER’S MANUAL

2
Contents
1. Operational parameters .................................................................................. 3
2. Safety instructions........................................................................................... 4
3. Product assembly ............................................................................................ 5
4. RO design and operation principles ........................................................... 6
5. RO installation .................................................................................................. 7
6. Clean water faucet installation .................................................................... 8
7. Drain saddle installation ................................................................................. 9
8. Slotted plug installation ............................................................................... 10
9. Starting RO...................................................................................................... 10
10. Replacing cartridges..................................................................................... 11
11. Recommended filter replacement .............................................................12
12. Recommended filter maintenance ............................................................12
13. Warranty .........................................................................................................13
14. Troubleshooting ............................................................................................14

3
WARNING
Please read this manual carefully before you proceed with the installation. Your failure to follow any
of the attached instructions or operating parameters may lead to the product’s failure and possible
property damage.
Save the manual for future reference.
Thank you for your purchase of this Aquaphor RO. With proper installation and maintenance, this
system will provide you with premium quality drinking water. The technology used in the Aquaphor
RO enriches the filtered water with minerals in controlled quantities.
This water is highly beneficial for the body as it helps to normalize the physiological processes.
If you have any questions or concerns, please contact our customer service department at
email [e-mail]. We are always happy to answer any questions you may have regar-
ding our product.
Introduction
Aquaphor RO operates by removing contaminants from water at the molecular level. By using your
household water pressure to squeeze the water against a special membrane, the water molecules
are separated from any impurities that exist.
Rejected dissolved solids are automatically rinsed away through the drain leaving you with only
high-quality, delicious water for your use.
1. Operational parameters
Operating temperatures: Maximum 38 ºC (100.4 ºF) Minimum 5 ºC (41 ºF)
Operating pressure: Maximum 0.63 MPa
(6.3 bar / 91.4 psi)
Minimum 0.19 MPa
(1.9 bar / 27.6 psi)
The operating pressure in your home should be tested over a
24 hour period to attain the maximum pressure. If it is above 0.63
MPa (6.3 bar / 91.4 psi), then a pressure regulator is necessary,
and will be required.
Dimensions (length х height х width): 371 х 420 х 190 mm
Maximum flow rate membrane cartridge
(water temperature +25 °С (77 °F)
with a constant pressure of 0.4 MPa
(4 bar / 58.02psi)
For Aquaphor RO-101S, Aquaphor RO-101S EU,
Aquaphor RO-101S IL – 50 GPD
For Aquaphor RO-102S, Aquaphor RO-102S EU, Aquaphor RO-
102S IL – 100 GPD
Cleaned water to drained water ratio (wa-
ter temp. no less than +20 °С / 68 °F)
1:4-1:6
Mass no more than 6.2 kg / 13.66 lbs
pH parameters: Maximum 10 Minimum 4
Iron: Maximum 0.3 ppm
TDS (Total Dissolved Solids): Maximum 2000 ppm
Turbidity: Maximum 1 NTU
Hardness: Recommended water hardness should not exceed 350 ppm as
CaCO3(20.5 grains per gallon). The system will operate with hard-
ness over 350 ppm (20.5 gpg), but the membrane cartridge life
may be shortened. The addition of a water softener may lengthen
the membrane cartridge life.

4
Table 1. The dependence of mini-
mum necessary operating pressure
of the water purifier from
mineralization.
Mineralization Minimum pressure
mg/L, ppm gpg MPa bar psi
100.1 5.8 0.2 229.01
200.2 11.7 0.25 2.5 36.26
300.3 17.5 0.3 343.51
400.4 23.4 0.4 458.02
500.5 29.2 0.6 687.02
ATTENTION!
The efficiency of RO depends on the incoming
tap water mineralization and tap water pressure
(please see Table 1). The recommended operation
of RO requires tap water pressure of at least 0.2
MPa (2 bar / 29.01 psi).
When tap water pressure is less than illustrated
in the Table 1, it is highly recommended to install
a booster pump in order to obtain drainage ratio.
2. Safety instructions
WARNING: RO must be applied to potable
water only.
It is highly recommended that a water treatment
specialist be hired to install and maintain this
appliance.
When installing the appliance into a local water
supply, it is recommended that you conduct a
full water analysis. If the water analysis does
not correspond with the requirements, the life
of the filtration and membrane cartridges may
be significantly reduced. In this case, it is rec-
ommended to use auxiliary water treatment
systems (e.g. mechanical filter, de-ironing filter
with, or alongside a water softener). Only use
microbiological safe water with your Reverse
Osmosis system appliance.
CAUTION: Do not use water that is microbi-
ologically unsafe or water of unknown quality
without adequate disinfection before or after
using the appliance.
CAUTION: Reverse Osmosis water should not
be run through copper tubing as the purity of
the water will leach copper and cause an objec-
tionable taste in the water. Additionally, it will
form pinholes in the tubing. Be sure to follow
any state or local regulations.
CAUTION: The Reverse Osmosis system is de-
signed to be connected to cold water only. Never
run warm or hot water through your appliance.

5
3. Product assembly:
№Component Quantity
1RO Housing assembly (1) 1pc
2Cartridges:
2.1 Preliminary water treatment block:
Replacement filter cartridge K5 (for Aquaphor RO-101S, Aquaphor RO-102S,
Aquaphor RO-101S IL, Aquaphor RO-102S IL) (3)
1pc
Replacement filter cartridge K1 (for Aquaphor RO-101S EU, Aquaphor RO-102S EU) (3) 1pc
Replacement filter cartridge K2 (2) 1pc
2.2 Reverse Osmosis membrane block:
Replacement membrane cartridge Aquaphor RO-50S (for Aquaphor RO-101S,
Aquaphor RO-101S EU, Aquaphor RO-101S IL) (4)
1pc
Replacement membrane cartridge Aquaphor RO-100S (for Aquaphor RO-102S,
Aquaphor RO-102S EU, Aquaphor RO-102S IL) (4)
1pc
2.3. Water conditioning block:
Replacement filter cartridge K7М (for Aquaphor RO-101S, Aquaphor RO-102S,
Aquaphor RO-101S IL) (5)
1pc
Replacement filter cartridge K7BМ (for Aquaphor RO-101S EU, Aquaphor RO-102S EU,
Aquaphor RO-102S IL) (5)
3JG connecting tubes (6):
JG tube 3/8” (d 9,5 mm) 1pc
JG tube 1/4” (d 6,35 mm) (drain) 1pc
JG tube 1/4” (d 6,35 mm) with pressed metal bushing 1pc
4Drain saddle (7) 1 set
5Connection node (8) 1 set
6Clean water faucet (9) 1 set
7Service cap (pre-installed in housing) for:
Replacement filter cartridges K5 (for Aquaphor RO-101S, Aquaphor RO-102, Aquaphor
RO-101S IL, Aquaphor RO-102S IL), К1 (for Aquaphor 101S EU, Aquaphor 102S EU), K2, K7М
(for Aquaphor RO-101S, Aquaphor RO-102S, Aquaphor RO-101S IL), K7BМ
(for Aquaphor RO-101S EU, Aquaphor RO-102S EU, Aquaphor RO-102S IL) (10a)
3pc
Membrane cartridge (pre-installed in housing) (10b) 1pc
8Slotted plug (under top lid) (11) 3pc
9Plastic key for JG tube (under top lid) (12) 1pc
10 Operation Manual 1pc

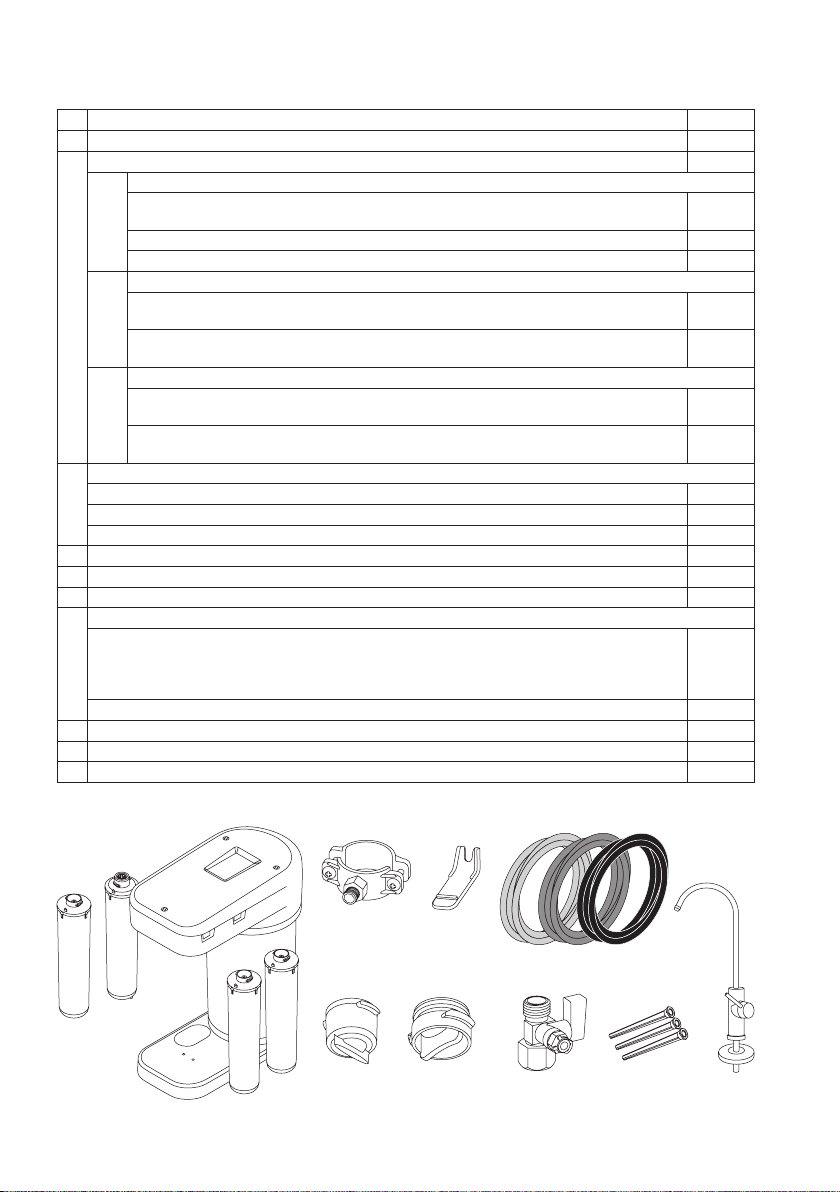

Figure 1. Product assembly
1
2
4
3
5
6
7
8
10 a 10 b 911
12

6
During transportation, the component parts are
located under the top lid. To open the lid, please
turn the three plastic latch screws on the cover
90 degrees counterclockwise (figure 2).
4. RO design
and operation principles
• RO housing (1) consists of an upper plate,
with four collectors fixed onto it, to place the
replacement cartridges and the RO-hydro
automatic unit RO. The upper lid comes with
a decorative cover, fixed in place with three
plastic latches. An integral part of the RO
housing is the treated water storage tank (6).
Treated water goes into the storage tank upon
exiting the membrane cartridge. This storage
tank ensures availability of the required amount
of filtered water always.
• Preliminary water treatment block (2, 3) includes
replacement filter cartridge includes replace-
ment filter cartridge K5 (for RO-101S, RO-102S,
Aquaphor RO-101S IL, Aquaphor RO-102S IL) (3)
or cartridge K1 (for RO-101S EU, RO-102S EU)
(3) and K2 (2). The preliminary water treatment
block removes any impurities that can damage
membrane cartridge, such as ferric hydroxide
and active chlorine.
• Reverse Osmosis membrane block (4) includes
the replacement membrane cartridge Aquaphor
RO-50S (for RO-101S, RO-101SEU, Aquaphor
RO-101S IL) or Aquaphor RO-100S (for RO-102S,
RO-102SEU, Aquaphor RO-102S IL) and puri-
fies water by removing organic compounds,
non-organic compounds, and salts while sof-
tening water.
• Water conditioning block (5) includes the min-
eralizing cartridge K7M (for RO-101S, RO-102S,
Aquaphor RO-101S IL) or K7BM (for RO-101S
EU, RO-102S EU, Aquaphor RO-102S IL). The
water conditioning block eliminates unwanted
odors and flavors from water while mineralizing
the water.
How RO works
The water coming from the cold water mains
enters RO and passes through the preliminary
water treatment block. From there, water enters
the Reverse Osmosis membrane block via the
automatic check valve. The unit housing the
membrane cartridge has two outlets: the treated
water outlet and the drain water outlet. On its
way to the drain, the water will also pass through
a flow restrictor. The flow restrictor flushes the
drain water that goes down the drain.
The treated water enters the storage tank that
has a built-in membrane. This separates the tank
into two chambers: storage and technical. The
storage chamber contains the fully purified drink-
ing water, while the technical chamber contains
water from the mains. As clear water collects,
water from the mains is forced from the techni-
cal chamber into the drain, also preventing the
accumulation of clear water. When the storage
tank is full, the automatic check valve cuts off
the water intake into RO.
Figure 3. RO main components
1 – RO housing assembly;
2, 3 – Preliminary water treatment block;
4 – Reverse Osmosis membrane block;
5 – Water conditioning block;
6 – Storage tank
1
6
5
3
2
41
3
4
2
Reverse
Osmosis
membrane
Incoming
tap water
Pressure
Treated water
Figure 2. How to open the top lid

7
When the clean water faucet is opened, water
from the mains enters the technical chamber
via the shutoff valve and forces treated water
from the storage chamber through the faucet
via the conditioning block. The automatic check
valve then triggers and opens water supply to
the RO-storage tank.
5. RO installation
ATTENTION! Only install your RO by a qualified
plumber who is certified to perform the instal-
lation in accordance with state law.
Locate the appropriate installation place for the
faucet and RO. Take care to ensure that the de-
livery tubes are pulled freely, without over bend-
ing. RO must be installed on a flat, even solid
surface as installation on an uneven surface may
cause vibration or noise. Additionally, RO must
be located away from heat sources, such as
kitchen ovens, hot water supply pipes, dishwash-
ers or washing machines, or at least isolated
from such heat sources.
Water flow direction
Kitchen
faucet
Clean water
faucet
RO housing
Drain saddle
Cold water
supply
Drain water
JG tube 1/4”
Connection node,
shuto valve
in open position
Incoming tap
water JG
tube 3/8”
Tr
eated water
JG tube 1/4
”
Picture 4. RO installation scheme
How RO works
The water coming from the cold water mains
enters RO and passes through the preliminary
water treatment block. From there, water enters
the Reverse Osmosis membrane block via the
automatic check valve. The unit housing the
membrane cartridge has two outlets: the treated
water outlet and the drain water outlet. On its
way to the drain, the water will also pass through
a flow restrictor. The flow restrictor flushes the
drain water that goes down the drain.
The treated water enters the storage tank that
has a built-in membrane. This separates the tank
into two chambers: storage and technical. The
storage chamber contains the fully purified drink-
ing water, while the technical chamber contains
water from the mains. As clear water collects,
water from the mains is forced from the techni-
cal chamber into the drain, also preventing the
accumulation of clear water. When the storage
tank is full, the automatic check valve cuts off
the water intake into RO.
Reverse
Osmosis
membrane
Incoming
tap water
Pressure
Treated water

8
Connection node assembly
• Turn the water off at the cold water main.
• Open the kitchen faucet to discharge pressure
into the water line.
• Unscrew the nut from the flexible line cap,
leading to the faucet on the cold water main.
ATTENTION! Residual water will be left inside
of the flexible JG tube after discharge of water.
When disconnecting the flexible line, please use
a 200 ml or similar size container to drain the
water left behind in the tube.
• Screw the cap nut off the connection node and
on the cold water main thread.
• Screw the cap nut off the flexible line, and then
on the connection node thread.
• Set the shutoff valve on the connection node
to the closed position and then make sure that
the connection is completely leak-proof by sup-
plying water to the cold water main.
• Connect JG tube (follow the instructions below
to correctly connect the JG tubes).
ATTENTION! Make sure that the sealing O-Ring
is located correctly in its place and not damaged
during installation.
Connection of JG tubes
Pull the locking clip (2) off the plastic plug (1).
Then install the previously wetted end of the
tube (3) into the fitting piece approx.15 mm up
to the stop. Next, put the locking clip (2) back.
Make sure that the tube (3) is tightened correctly:
the tube should not be pulled out by force greater
than 8-10 kgf.
Disconnection of JG tubes
Pull the locking clip (2) off the plastic plug (1),
then pull the tube (3) out by applying pressure
on the face of the connecting piece. To apply
pressure, use the tube disconnection key (4)
included in the water filter set.
6. Clean water faucet
installation
• Drill the hole in the sink (table top) 12 mm
diameter;
• Put on the thread tail of the faucet (11) rubber
gasket (2), decorative stand (3), rubber gasket
(4) and insert the faucet into the hole in the sink;
Figure 5. Connection node installation scheme
Connection
node
Sealing
O-Ring
Cold water main
Locking clip
Shuto valve set
in closed position
Figure 6. Connection of JG tubes
3
2
1
Figure 7. Disconnection of JG tubes
3
4
2
1

9
• Underneath the sink, put plastic (5) and metal
(6) lock washers on the thread bushing and
screw on the fastening nut (7);
• Put on the captive-nut (9) on the plastic pipe
(10) with pressed metal bushing (8) (fig. 8) and
screw on the nut onto the tail end of the faucet.
ATTENTION!
• When you replace the original tap with a dif-
ferent one, there may be noise when you open
it, and clean water flow reduction from the tap
may occur.
• When you replace the original pipes with the
longer ones, there may be noise and clean
water flow reduction from the tap.
• If the water filter has not been used for a long
time, the valves may turn on, making short-term
noise. It is not a sign of the system malfunction.
• Open the clean water tap fully when you use
the water filter, otherwise noise may occur. It
is not a sign of the water filter malfunction.
7. Drain saddle installation
It is best install the drain saddle on the sink drain
before the siphon trap or bend (the drain saddle
on most drain pipes is of ~40 mm diameter).
1. Apply the part of the collar with the fitting to
the pipe to determine the optimal position of
the collar and the pipe hole.
2. Drill a 7 mm hole in the planned tube location
on the tube pipe.
3. Remove the cut circle from the sealing
gasket (1).
4. Remove the protective tape (2) from the seal-
ing gasket (1). Place the sealing gasket (1) on
the collar inner side, so that the hole in the
gasket meets the hole in the collar fitting.
5. Install the collar onto the pipe, carefully align-
ing the hole in the fitting with the drilled hole;
tighten the bolts(3). The bolts must be tight-
ened evenly in such a way that the two parts
of the collar are located in parallel.
6. Put the plastic nut onto the JG drain tube (1/4”,
black) so that the tube is protruding from the
other side of the nut by a length of 20 mm
(see figure 9b).
To eliminate any noise from the water in the drain
saddle, push the JG tube deeper into the pipe.
Figure 8. Tube connecting to the clean water faucet
procedure
11
2
3
4
5
6
7
8
9
10
35 мм max
Ø12 мм

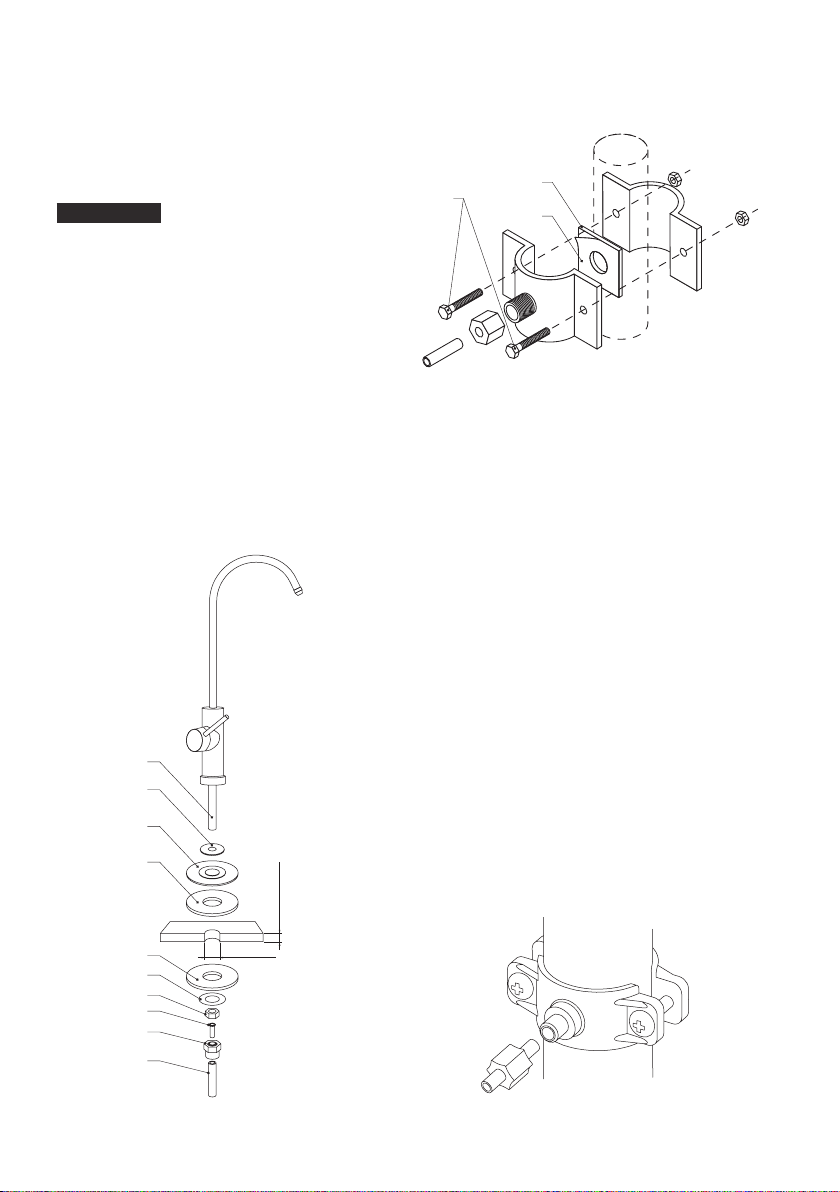

Figure 9a. Drain saddle components
1
2
3
Figure 9b. Drain saddle installation

10
8. Slotted plug installation
1. Install the slotted plug into the JG tube
3/8” (9.5 mm) tube to a stop, as shown
on figure 10.
2. Remove the clip from the JG tube 3/8” socket
of the water filter, and then connect this tube
end to it (seethe connection of the JG tubes
on figures 6 and 7).
ATTENTION! The set includes three slotted
plugs: one for installation and two are for
spares.
9. Starting RO
To start RO, you must connect the supply tube
and carry out the flushing procedure of filter
and membrane cartridges.
Step 1
Connect the incoming tubes according to the
diagram below (figure11). The tube connection
scheme is illustrated on figure 6
Step 2
Preparing RO for operation
• Rotate the three latches 90 degrees in a coun-
terclockwise direction and remove the water
filter cap (figure2).
Table 2. Positions of RO cartridges
in preparation for operation
Stop button colors Cartridge type
BLACK K2
BLUE К5 / К1
RED Service Cap
WHITE К7М / К7ВМ
• Make sure the service cap is installed in the
housing.
• Remove the shrink film from the cartridges.
• Rinse the sealing O-Rings of the cartridges
and service cap.
• Remove service caps and install cartridgies
according to table 2. For convenience, the
stop buttons of the collectors have the dif-
ferent color.
• Set the shutoff valve on the connection node
into the open position, as shown on figure 4.
• Leave the clean water faucet open for
10minutes.
The noise during the flushing of the cartridges
is not a defect.
• Close the clean water faucet.
Step 3
Flushing the membrane cartridge unit
• Set the shutoff valve on the connection node
into the closed position, as shown on figure 5.
• Remove the service plug and install membrane
cartridge.
• Interchange the К5 / К1 and K2 cartridges.
• Turn the shutoff valve on the connection node
into the open position.
• Open the clean water faucet, then wait for the
water to start flowing.

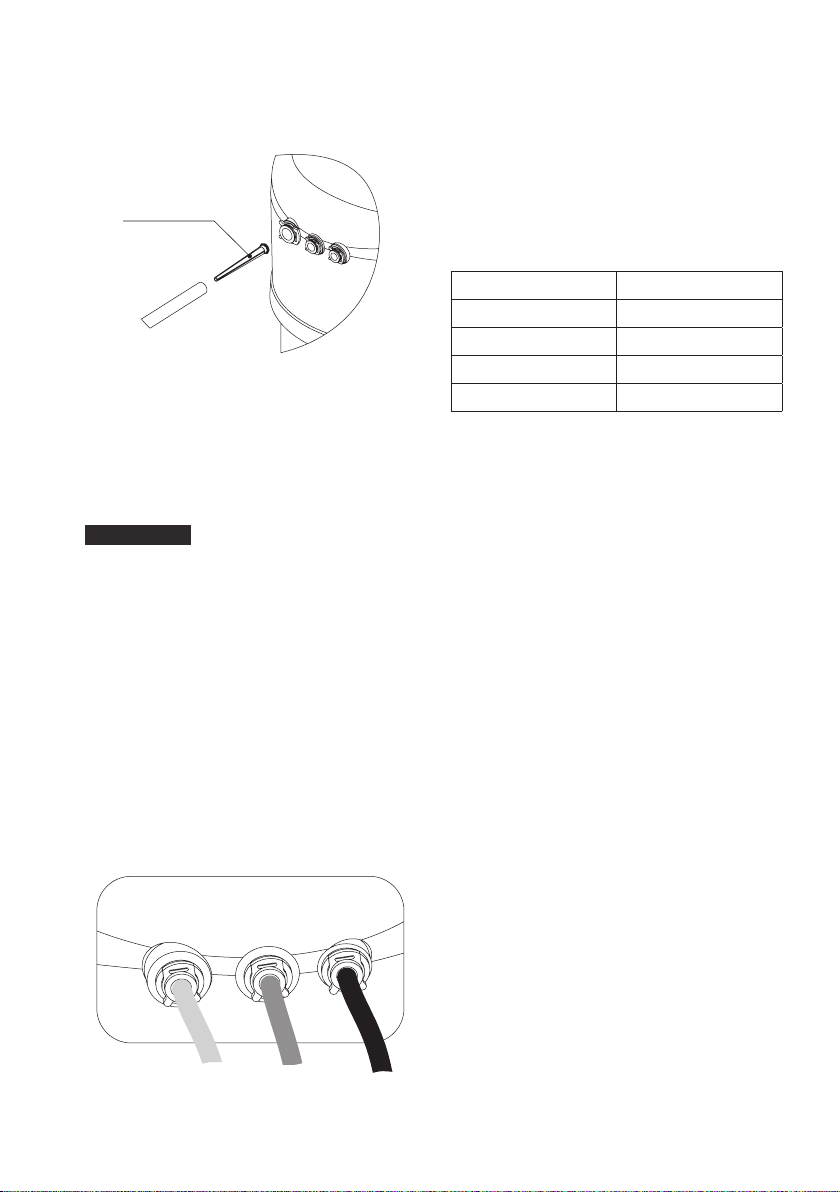

Figure 10. Slotted plug installation
Slotted plug
Figure 11. Incoming tubes connection
IN OUT DRAIN

11
• Let the water flush through RO for 1 hour.*
• Close the clean water faucet.
Step 4
Flushing the conditioning cartridge К7М / К7ВМ
• Close the clean water faucet and fill in the
storage tank. This will take 30–50 minutes,
depending on water pressure.
• Open the clean water faucet and then wait until
all of the water flows out from the storage tank.
• Repeat these steps two more times.
• Close the clean water faucet.
• When the tank is full, RO is ready for operation.
NOTE: In total, the general flushing of filter and
membrane cartridges and startup time will take
you about 3 hours.
10. Replacing cartridges
The membrane cartridge service life directly
depends on operation of the preliminary wa-
ter treatment unit (cartridges К5 / К1andK2).
Therefore, it is always very important to replace
the filtering cartridges in a timely manner.
Replacing cartridges К5 / К1
and K2 (figure 12):
1. Set the shutoff valve on the connection node
into the closed position, and then open the
clean water faucet to discharge any pressure.
2. Press the button above the cartridge, and
then rotate the used filter cartridges К5 / К1
and (or) K2 in a clockwise direction to remove
the used cartridge.
3. Install the new cartridges К5 / К1 and (or) K2
according to Table 2.
4. Press the button above the cartridge, and then
rotate the membrane cartridge in a clockwise
direction toremove it.
5. Make sure the service cap is installed in the
housing (figure 1, position 10b), figure 13.
6. Set the shutoff valve on the connection node
into the open position.
* Depending on the storage, transportation and operation
conditions, the complete flushing of membrane cartridge may
take up to 24 hours.
7. Open the clean water faucet and flush the
preliminary water treatment cartridges for
around 20–30minutes.
8. Set the shutoff valve on the connection node
into the closed position.
9. Install the membrane cartridge instead of the
service cap.
10. Interchange the positions of К5 / К1 and K2
cartridges.
11. Set the shutoff valve on the connection node
into the open position and close the clean
water faucet.
12. Make sure that RO connections are sealed.
Stop button
Figure 12. Cartridge installation
Figure 13. Installation of the membrane
cartridge service plug

12
Replacing the conditioning
cartridge K7M / К7ВМ
1. Set the shutoff valve on the connection node
into the closed position; then open the clean
water faucet to discharge pressure.
2. Press the button above the cartridge, and then
rotate the used conditioning cartridge K7M /
К7ВМ in a clockwise direction to remove it.
3. Install a new conditioning cartridge.
4. Set the shutoff valve on the connection node
into the open position; then wait for all of
the water to flow out from the storage tank
through the clean water faucet.
5. Then close the clean water faucet.
6. When the tank is filled, your RO is ready for
operation.
7. Make sure that RO is properly sealed.
Replacing the membrane
cartridge
1. Set the shutoff valve on the connection node
into the closed position, and then open the
clean water faucet to discharge pressure.
2. Press the button above the cartridge, and
then rotate the used membrane cartridge
in a clockwise direction to remove it.
3. Install a new membranecartridge in place of
the removed one.
4. Turn the shutoff valve on the connection node
to the open position.
5. Flush the water through RO for duration of
approximately 1 hour.*
6. Close the clean water faucet.
7. When the tank is filled, RO is ready for
operation.
8. Make sure that RO is properly sealed.
ATTENTION! To avoid any incorrect installation
of the membrane cartridge and the resulting loss
of sealing of the RO connections, it is not recom-
mended to dissemble it without a fully qualified
maintenance specialist. If the RO connections
are leaking, immediately close the tap on the
* Depending upon storage, transportation and operation con-
ditions, complete flushing of the membrane cartridge may take
up to 24 hours.
connection unit and check the cartridges for
correct installation.
11. Recommended filter
replacement
The frequency at which the filter and membrane
cartridges should be replaced depends on the
quality of the water that enters the appliance.
Contact your water treatment specialist for re-
placement filters and parts.
NOTE: The installation of the RO appliance on
a pre-treated water supply will greatly increase
the life of its filters.
Table 3. Recommended filter
replacement
Filter Cartridges Recommended
Replacement
(months)
Replacement filter cartridge
К5 / К1 (1)
6
Replacement filter cartridge
K2 (2)
6
Replacement membrane car-
tridge RO-50S / RO-100S (3)
12
Replacement filter cartridge
K7M (4)
12
Replacement filter cartridge
K7BM (4)
6
Once purchased, the cartridges can be stored
for three years from the manufacturing date.
12. Recommended filter
maintenance
The frequency at which the filter and membrane
cartridges should be replaced depends on your
tap water quality.
Note: Any filter that demonstrates reduced water
production or a slower rate of flow is likely to be
overdue for a change.
WARNING: Shut off the water to the appliance
before beginning any maintenance work.

13
Replacement of filter cartridge
К5 / К1 (1)
Reduces dirt and other sediment particle matter
of 5 micron or larger in the incoming water.
Replace the К5 / К1 filter cartridge every three
months.
Replacement
of filter cartridge K2 (2)
This reduces free chlorine from the incoming
water and protects the membrane from any chlo-
rine degradation. Changing frequency of the
replacement filter cartridge K2 should be based
on the free chlorine levels in the incoming water.
If the free chlorine is 1 ppm or less, then the re-
placement filter cartridge K2 should be replaced
once a year. If the free chlorine level is greater
than 1 ppm, then the replacement filter cartridge
K2 should be replaced once in every six months.
Replacement membrane
cartridge RO-50S /
RO-100S (3)
The semi-permeable membrane cartridge (3) sep-
arates the majority of the remaining suspended
solids and most of the dissolved solids from the
water molecules. These separated impurities are
then washed down the drain.
The membrane cartridge (3) is critical for the
effective reduction of total dissolved solids (TDS).
The treated water should be tested periodically
to verify that the appliance is performing satis-
factorily. A noticeable change in water quality
and taste may occur. If this happens, it is an
indicator that a filter change is needed. Replace
the membrane cartridge at least once a year.
Replacement filter cartridge
K7M / К7ВМ (4)
The replacement filter cartridge K7M or К7ВМ (4)
is the final stage of filtration. It filters the water
and enriches it with useful minerals that improve
not only the taste, but also maintains the correct
drinking water salt balance. You should replace
the post filter every 6 months.
13. Warranty
Installation, operational, storage and transpor-
tation rules described in this manual should be
maintained. The manufacturer is not responsible
for operation of the Aquaphor RO and possible
consequences, in case if:
• RO or components have visible mechanical,
thermal or chemical damages;
• requirements for installation and operation of
the RO described in present manual were not
carried out.
The lifetime of the parts of the RO is:
RO case – 5 years*starting from the manu-
facturing date;
Connecting pipes – 3 years* starting from the
manufacturing date;
Purified water faucet – 3 years* starting from
the manufacturing date;
The lifetime (capacity) of the replacement filter
cartridges is:
Name of the replace-
ment filter cartridge
Lifetime (capacity) of
the replacement filter
cartridge
K5 / K1 6 months(1)
K2 6 months(1)
Membrane cartridge
RO-50S / RO-100S
1,5 years(2)
K7M 1 year
К7ВМ 6 months(1)
(1) Lifetime (capacity) of the replacement filter car-
tridges may depend on incoming water quality. If in
the source water contains large amounts of insolu-
ble impurities then cartridges K5 / K1 and K2 should
be replaced after 1–3 month of operation.
(2) Lifetime of the membrane cartridge is depended
upon the efficiency of the prefiltration and water
conditioning units.
Data listed above based on the average consump-
tion of the purified water 10–12 liters per day.
Please replace cartridges in a proper time.
Warranty period of the RO operation (except for
replacement filter cartridges and membrane car-
tridge) is 2year starting from the purchase date.
The storage period of the RO before operation
is maximum 3 years 1.5 year in the temperature
* Regardless of the operation starting date.

14
range from +5 to +38 °C (40 to 100 °F) with intact
packing.
If you have any claims regarding the opera-
tion of your RO, please contact the seller or
manufacturer.
Manufacturer is not responsible for operational
faults occurred due to inappropriate installation
or maintenance.
Manufacturer is not responsible for the oper-
ational faults occurred due to inappropriate
replacement cartridges.
Warranty only valid for use in accordance with
instruction and using only unexpired filter car-
tridges. Failure to timely replace filter cartridges
or follow installation or maintenance voids the
warranty.
14. Troubleshooting
If the appliance has difficulties working, use the Appliance shutoff valve to shut off the incoming
water to the appliance.
Problem Possible Cause Solution
Faucet flow rate is very
slow.
Slow flow rate or no
water from faucet
The storage tank fills
very slowly or does not
fill at all.
Shutoff valve is not com-
pletely opened.
Open the shutoff valve and faucet completely
One of the replacement
cartridges needs to be
replaced
Checkwhich cartridgeneedstobe replacedaccord-
ing to the resource life, and replace the cartridge.
In order to determine which cartridge needs to
be replaced, please see the instructions below
How to check if the cartridges lifespan is over.
– Close the shutoff valve and open the faucet in order to release the
pressure.
– Replace the cartridges K5, К1, K2, K7M, К7ВМ with service caps (located
under the lid).
– Open the shutoff valve.
– Open the faucet, flush the water from the unit until the flow rate de-
creases and the tank is empty.
If water continues to run faster than 50 ml/min, install the cartridges one at
a time K5, К1, K2, K7М, К7ВМ and according the flow rate decreases deter-
minate which of the cartridge (or several cartridges) needs to be replaced.
If water runs slower than 50 ml/min, then the membrane needs to be
replaced.
Turn off the shutoff valve and open it every time you replace each cartridge
If any other faults are identified, please contact our customer service department at or email
[email protected]om

15
Warranty coupon AQUAPHOR RO
Date of Sell
Seller’s stamp
Seller’s signature
Please visit our website and register your RO at aquaphor.com/register for manufacturer’s warranty.
Installation information
Installation is carried out:
Name of the company which
carried out installation:
Name of the service
engineer:
Service engineer’s signature:
Client’s signature:
For installation, operational
and technical maintenance,
please, contact:
RO-101S-102S_v2e

AQUAPHOR RO-101S IL
5
AQUAPHOR RO-102S
2
Manufacturer:
Aquaphor International OÜ, L. Tolstoi 2A, Sillamäe, Estonia, 40231.
www.aquaphor.com
The model number, date of manufacture and quality control are shown
on the product’s serial number label.
The manufacturer reserves the right to make improvements to the design of the water purifier
withoutreflecting them in the passport.
Product serial number:
AQUAPHOR RO-101S
1AQUAPHOR RO-102S EU 4
AQUAPHOR RO-101S EU
3AQUAPHOR RO-102S IL 6
AQUAPHOR RO models:
