Ares Ultra-micro trainer 100 User manual

1



Wingspan:18.0in(457mm)

Length:13.9in(353mm)

WeightwithBattery: 1.2oz(34g)

Battery:150mAh1S3.7VLiPo(included)

Charger:1S3.7VLiPo(intransmitter,included)

Transmitter:4‐channel2.4GHzw/LiPocharger(included)

On‐BoardElectronics: 3‐in‐1receiver/2servos/ESC(installed)

ecifications

Instruction Manual

2



Specifications.............................................................................................................................1

Introduction...............................................................................................................................3

SafetyPrecautionsandWarnings..............................................................................................3

FCCInformation.........................................................................................................................4

Ultra‐MicroTrainer100RTFContents.......................................................................................5

BeforetheFirstFlightChecklist.................................................................................................6

FlightChecklist...........................................................................................................................6

InstallingtheLandingGear........................................................................................................7

InstallingtheTransmitterBatteries...........................................................................................7

TransmitterDetails....................................................................................................................8

LiPoBatteryWarningsandUsageGuidelines..........................................................................10

ChargingtheLiPoFlightBattery...............................................................................................12

InstallingtheLiPoFlightBattery..............................................................................................13

ControlUnitInitializationandArming.....................................................................................14

FlightControlsandTrimming...................................................................................................17

SelectingaFlyingArea.............................................................................................................20

Flying........................................................................................................................................20

TransmitterandReceiverBinding/Linking...............................................................................23

Removing/InstallingtheWing..................................................................................................24

Repairs.....................................................................................................................................25

ReplacementPartsList.............................................................................................................25

Warranty,SupportandService................................................................................................26

Notes........................................................................................................................................27



Table of Contents

3



TheAres™[air‐eez]Ultra‐MicroTrainer100isperfectforfirst‐timepilotslookingforan

airplanewiththesizeandstabilitythathelpsthemlearntoflyinlessspaceandinlesstime

thaneverbefore.Whileyoulearnthebasicsofflying,theclassichigh‐wingtrainerdesignwill

deliverconfidence‐inspiringstabilityandeasycontrol.Theultra‐microsizealsoallowsyouto

flyinsmalleroutdoorspaceslikeayardorpark,orevenindoorsinalargegym.Plus,the

durableandlightweightconstructionmeansyoudon’talwayshavetoworryaboutdamage

afterlessthanperfectlandings.



AnothergreatfeatureoftheUltra‐MicroTrainer100includesafull‐airfoilwingdesignthat

allowsforsmoothandstableflyingoutdoorsinlightwindsthatwouldoftengroundother

similarclassmodels.Thewingisalsoremovableusinganexclusivemagneticattachment

designformorecompacttransportandisextremelyeasytoreplacewithouttimeconsuming

workortheuseofglueandtape.Bestofall,theairframeis100%factory‐assembledand

ready‐to‐flyrightoutofthebox–notoolsrequired!



TheUltra‐MicroTrainer100alsoincludesAAbatteriesforthe4‐channeltransmitterequipped

withinterference‐free2.4GHztechnology,digitaltrimsandabuilt‐inLiPobatterycharger.

Andtheincluded150mAh1S3.7VLiPobatterydeliverslongflighttimesofupto20+minutes

percharge.Thatmeansthere’snothingextratobuyandyoucanbereadytoflywithin

minutesofopeningthebox.



AndalthoughtheUltra‐MicroTrainer100isready‐to‐flyrightoutthebox,pleasetakethe

timetoreadthroughthismanualformoreinformationaboutbatterysafetyandcharging,

controlchecksandmorebeforemakingyourfirstflight.Pleasealsovisitourwebsiteat

www.Ares‐RC.comforadditionalinformationincludingproductupdates,bulletins,videosand

more.



Failuretousethisproductintheintendedmannerasdescribedinthefollowinginstructions

canresultindamageand/orpersonalinjury.AnRCairplaneisnotatoy!Ifmisuseditcan

causeseriousbodilyharmanddamagetoproperty.



Keepitemsthatcouldbecomeentangledinthepropellerbladesawayfromthepropeller,

includinglooseclothing,tools,etc.Beespeciallysuretokeepyourhands,faceandother

partsofyourbodyawayfromthepropellerblades.



Introduction

Safet

Precautions and Warnin

4

Astheuserofthisproductyouaresolelyandwhollyresponsibleforoperatingitinamanner

thatdoesnotendangeryourselfandothersorresultindamagetotheproductorthe

propertyofothers.



Thismodeliscontrolledbyaradiosignalthatissubjecttopossibleinterferencefromavariety

ofsourcesoutsideyourcontrol.Thisinterferencecancausemomentarylossofcontrolsoitis

advisabletoalwayskeepasafedistancefromobjectsandpeopleinalldirectionsaroundyour

modelasthiswillhelptoavoidcollisionsand/orinjury.



•Neveroperateyourmodelifthevoltageofthebatteriesinthetransmitteristoolow.

•Alwaysoperateyourmodelinanopenareaawayfromobstacles,people,vehicles,

buildings,etc.

•Carefullyfollowthedirectionsandwarningsforthisandanyoptionalsupport

equipment(chargers,rechargeablebatteries,etc.).

•Keepallchemicals,smallpartsandallelectroniccomponentsoutofthereachof

children.

•Moisturecausesdamagetoelectroniccomponents.Avoidwaterexposuretoall

electroniccomponents,parts,etc.notspecificallydesignedandprotectedforusein

water.

•Neverlickorplaceanyportionofyourmodelinyourmouthasitcouldcauseserious

injuryorevendeath.



Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust

acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.



Caution:Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.



Thisproductcontainsaradiotransmitterwithwirelesstechnologywhichhasbeentestedand

foundtobecompliantwiththeapplicableregulationsgoverningaradiotransmitterinthe

2.400GHzto2.4835GHzfrequencyrange.



Theassociatedregulatoryagenciesofthefollowingcountriesrecognizethenoted

certificationsforthisproductasauthorizedforsaleanduse:USA



FCC Information

5



ItemDescription



NotAvailableSeparately.Ultra‐MicroTrainer100RTFAirframe

AZS1108AMD2.................M4LPA‐200CMicro4‐ChannelLPAirplaneTransmitter

w/200mACharger,Mode2

NotAvailableSeparately.4AABatteries

AZSB1501S15UM.............150mAh1‐Cell/1S3.7V15CLiPoBattery,Ultra‐Micro



Ultra-Micro Trainer 100 RTF Contents

6



PLEASENOTE:ThischecklistisNOTintendedtoreplacethecontentincludedinthis

instructionmanual.Althoughitcanbeusedasaquickstartguide,westronglysuggest

readingthroughthismanualcompletelybeforeproceeding.



Removeandinspectallcontents

InstallthefourAAbatteriesinthetransmitter

Beginchargingtheflightbattery(connectittothechargerinthetransmitter)

Installtheflightbatteryintheairplane(afterit’sbeenfullycharged)

Testthecontrolstoconfirmproperoperation

Familiarizeyourselfwiththecontrols

Findasuitableareaforflying



PLEASENOTE:ThischecklistisNOTintendedtoreplacethecontentincludedinthis

instructionmanual.Althoughitcanbeusedasaquickstartguide,westronglysuggest

readingthroughthismanualcompletelybeforeproceeding.



Alwaysturnthetransmitteronfirst

Plugtheflightbatteryintothemodel

Allowthecontrolunittoinitializeandarmproperly

Flythemodel(hand‐launchortakeofffromaflat/levelsurface)

Landthemodel(landonaflat/levelsurface)

Unplugtheflightbatteryfromthemodel

Alwaysturnthetransmitterofflast

Before the First Fli

ht Checklist

Fli

ht Checklist

7



Themainlandinggearisinstalledintheslot/openinglocatedonthebottomofthefuselage

andjustbehindthebatterycompartment.Usemoderatepressureto‘squeeze’thelanding

gearlegstogetherthenslidethelandinggearintotheslotasshown(youcanalsoremovethe

landinggearbydoingthesame).Also,besurethelandinggearisinstalledsoitangles

forwardslightlywhenviewingtheairplanedirectlyfromtheside.



InstallthefourincludedAAbatteriesinthebackofthetransmitterbyfirstremovingthe

batterycompartmentcover/door.Ensureproperpolarityofthebatteriesbeforeinstalling

themasnotedbythemarkingsmoldedintothebatterycompartment,thenre‐installthe

compartmentcover/door.



Checkforproperoperationofthetransmitterbyswitchingthepowerswitchon(slideitto

theright).Youshouldhearthreebeeps/tonesfromthetransmitterwhiletheLEDindicator

directlyabovethepowerswitchbeginstoglowsolidred.Thisindicatesthetransmitteris

poweredonandtheAAbatteriesareinstalledcorrectly.

Installin

the Transmitter Batteries

Installin

the Landin

Gear

8





TheUltra‐MicroTrainer100includesanM4LPA‐200CMicro4‐ChannelLPAirplane

Transmitterequippedwithbuilt‐in200mALiPobatterycharger,interference‐free

2.4GHztechnologyanddigitaltrims.



LowBatteryPowerIndications

WhentheAAbatterypowerdropstoalevelthat’stoolowforcontinuedoperation,the

transmitteroffersthefollowingindications:



WhenchargingaLiPobatterywiththetransmitterpoweredoff,theyellowCHG

(charge)LEDindicatorlightwilldimnoticeablyuntiltheAAbatteriesare

replaced.



Whenthetransmitterispoweredon,andwhetherornotaLiPobatteryisbeing

charged,therewillbeaconstantbeep/toneuntiltheAAbatteriesarereplaced.



Transmitter Details

9

AntennaPosition/Orientation

TheRFoutputsignalstransmitbest/strongestfromtheshaftoftheantennaratherthan

fromthetip.Asaresultyoushouldneverpointthetipoftheantennadirectlyatthe

model.Also,thetransmitterantennacanberotatedandfoldedupto90°sobesureto

holdthetransmitterandpositiontheantennaasneededtoensurethebestpossible

signaltransmission.



Control/ServoReversing

TheM4LPA‐200Ctransmitterfeaturescontrol/servoreversingfunctionalityforthe

rudder,elevatorandaileronchannels.Thecontrol/servodirectionsweresetcorrectlyat

thefactoryfortheUltra‐MicroTrainer100,however,incaseyouusetheelectronicsin

othermodelslateronpleasefollowthesestepstochangethecontrol/servodirections

asneeded(completeallstepswiththetransmitterpoweredon):



RudderChannelControl/ServoReversing

Pressandholdtherightruddertrimbutton,thenpresstheleftruddertrim

button.Releasebothbuttonsandthecontrol/servodirectionwillbereversed.



ElevatorChannelControl/ServoReversing

Pressandholdtherightruddertrimbutton,thenpressthedownelevatortrim

button.Releasebothbuttonsandthecontrol/servodirectionwillbereversed.



AileronChannelControl/ServoReversing

Pressandholdtherightruddertrimbutton,thenpresstherightailerontrim

button.Releasebothbuttonsandthecontrol/servodirectionwillbereversed.



NOTE:TheaileronchannelisusedtocontroltherudderontheUltra‐Micro

Trainer100inordertoensureeasiertransitioninto4‐channelmodelslateron.



10



IMPORTANTNOTE:LithiumPolymerbatteriesaresignificantlymorevolatilethanthe

alkaline,NiCdorNiMHbatteriesalsousedinRCapplications.Allinstructionsandwarnings

mustbefollowedexactlytopreventpropertydamageand/orpersonalinjuryas

mishandlingofLiPobatteriescanresultinfire.



Byhandling,chargingorusingtheincludedLiPobatteryyouassumeallrisksassociated

withLiPobatteries.Ifyoudonotagreewiththeseconditions,pleasereturnyourcomplete

productinnew,unusedconditiontotheplaceofpurchaseimmediately.



Andalthoughthe150mAh1‐Cell/1S3.7V15CLiPoBattery(AZSB1501S15UM)includedwith

yourAres™Ultra‐MicroTrainer100isintendedtobechargedsafelyusingtheLiPobattery

chargerbuiltintotheincludedM4LPA‐200CMicro4‐ChannelLPAirplaneTransmitter

w/200mACharger(AZS1108AMD2),youmustreadthefollowingsafetyinstructionsand

warningsbeforehandling,chargingorusingtheLiPobattery.



•YoumustchargetheLiPobatteryinasafeareaawayfromflammablematerials.

•NeverchargetheLiPobatteryunattendedatanytime.Whenchargingthebatteryyou

shouldalwaysremaininconstantobservationtomonitorthechargingprocessand

reactimmediatelytoanypotentialproblemsthatmayoccur.

•Afterflying/dischargingthebatteryyoumustallowittocooltoambient/room

temperaturebeforerecharging.

•TochargethebatteryyoumustuseonlytheLiPobatterychargerbuiltintothe

includedM4LPA‐200CMicro4‐ChannelLPAirplaneTransmitterw/200mACharger

(AZS1108AMD2)orasuitablycompatibleLiPobatterycharger.Failuretodosomay

resultinafirecausingpropertydamageand/orpersonalinjury.DONOTuseaNiCd

orNiMHcharger.

•Ifatanytimeduringthechargeordischargeprocessthebatterybeginstoballoonor

swell,discontinuechargingordischargingimmediately.Quicklyandsafely

disconnectthebattery,thenplaceitinasafe,openareaawayfromflammable

materialstoobserveitforatleast15minutes.Continuingtochargeordischargea

batterythathasbeguntoballoonorswellcanresultinafire.Abatterythathas

balloonedorswollenevenasmallamountmustberemovedfromservice

completely.

•Storethebatteryatroomtemperature,approximately68–77°Fahrenheit(F),andina

dryareaforbestresults.



LiPo Batter

Warnin

s and Usa

e Guidelines

11

•Whentransportingortemporarilystoringthebattery,thetemperaturerangeshould

befromapproximately40–100°F.Donotstorethebatteryormodelinahotgarage,

carordirectsunlightwheneverpossible.Ifstoredinahotgarageorcarthebattery

canbedamagedorevencatchfire.

•Donotover‐dischargetheLiPoflightbattery.DischargingtheLiPoflightbatterytoo

lowcancausedamagetothebatteryresultinginreducedpower,flightdurationor

failureofthebatteryentirely.



LiPocellsshouldnotbedischargedtobelow3.0Veachunderload.Inthecaseofthe

1‐Cell/1S3.7VLiPobatteryusedtopowertheUltra‐MicroTrainer100youwillnot

wanttoallowthebatterytofallbelow3.0Vduringflight.



The3‐in‐1controlunitfeaturesasoftlowvoltagecutoff(LVC)thatsmoothlyreduces

powertothemotor/powersystem(regardlessofthepowerlevelyouhavesetwith

theleft‐hand/throttlestick)toletyouknowthevoltageofthebatteryisclosetothe

3.0Vminimum.However,evenbeforethisreductioninpower,ifyoufindthatmore

thanthetypicalamountofthrottle/powerisrequiredtocruiseorclimbyoushould

landthemodelanddisconnectthebatteryimmediatelytopreventover‐discharge.



AndwhileitispossibletopowerthemodelupandflyagainafterthesoftLVC

occurs,thisisNOTrecommended.Continueddischargingcanresultinreachingthe

hardLVCwhichmaycausepermanentdamagetotheLiPobatteryresultinginlost

powerandflightdurationduringsubsequentfights(orfailureofthebattery

entirely).



Also,itisnotrecommendedthatyouflytothesoftLVCeverytimeyoufly.Instead

youshouldbeawareofthepowerlevelofthebattery/airplanethroughoutthe

flight,andifatanytimetheairplanebeginstorequiremorethrottle/powerthan

typicaltomaintaincruiseorclimb,youshouldlandtheairplaneanddisconnectthe

LiPobatteryimmediately.ConstantlydischargingthebatterytothesoftLVCcanstill

causepermanentdamagetothebatterysoit’sbesttouseatimerorstop‐watchto

timethedurationofyourflightsandtostopflyingatareasonabletimebeforethe

softLVCisreached.



12



Youmustchargetheincluded150mAh1‐Cell/1S3.7V15CLiPoBattery(AZSB1501S15UM)

usingtheLiPobatterychargerbuiltintotheincludedM4LPA‐200CMicro4‐ChannelLP

AirplaneTransmitterw/200mACharger(AZS1108AMD2)orasuitablycompatibleLiPo

batterycharger.ChargingtheLiPobatteryusinganon‐LiPobatterycompatiblecharger

(suchasaNiCdorNiMHbatterycharger),orevenadifferentLiPobatterychargerwiththe

incorrectsettings,mayresultindamagetothebatteryorevenfireresultinginproperty

damageand/orpersonalinjury.



PleasefollowthesestepstochargetheLiPobatterywiththetransmitter’sbuilt‐incharger:



Carefullyopenthesmallhatchlocatednearthebottomleftcornerofthetransmitter

andextendthechargeleadoutsideofthetransmittercase.Youcanleavethehatch

openorcloseitbyroutingthechargeleadthroughthesmallcutout/openinginthe

hatchdoor.



Connectthebatterytotheconnectorattheendofthechargeleadextendingfrom

thetransmitter.YOUMUSTBECAREFULTOENSUREPROPERPOLARITYBEFORE

MAKINGTHECONNECTIONbyaligningthesmallredcirclemarkingonthehousing

ofthebatterywiththesmallredcirclemarkingonthechargeleadconnector.While

thewhiteconnectorsare‘keyed’tominimizetheriskofareversepolarityconnection,

ifyouforcethemitispossibletomakeconnectionwiththeincorrectpolarity

potentiallycausingdamagetothebatteryand/orcharger(transmitter).Whenthe

circlemarkingsareproperlyalignedforcorrectpolarity,connectingthewhite

connectorsshouldrequireonlyaminimalamountofpressuretoachievethelight

‘click’thatindicatesasecureconnection.

Char

the LiPo Fli

ht Batter

13

Whenthebatteryisconnectedtothechargeleadsecurelyandwiththeproper

polaritytheCHG(charge)LEDindicatoronthechargerwillglowsolidyellow.The

batterywillbecharginganytimetheLEDindicatorisglowingsolidyellowandwhether

ornotthetransmitterispoweredon.



Itwilltakeapproximately40‐60minutestochargeafullydischarged(notover‐

discharged)battery.AndwhenthebatteryisfullychargedtheLEDindicatorwillstop

glowingyellowentirely.WhentheLEDindicatorisnolongerglowingyoucanremove

thebatteryfromthechargerasitisnowfullychargedandreadyforuse.



NOTE:TheLiPobatteryincludedwithyourmodelwillarrivepartiallycharged.Forthis

reasontheinitialchargemayonlytakeapproximately20‐30minutes.



NOTE:It’ssaferandbetterforthelongevityofthebatterytostoreitonlypartially

chargedforanylengthoftime.Storingthebatteryatapproximately50%charged

(whichisapproximately3.85Vpercell)istypicallybest,however,itwilltakesome

carefulmanagementofthechargetimeandtheuseofavoltmetertoachievethis

voltage.



Ifyouhavetheequipmentandskillstoachievethe50%chargelevelforstorageitis

recommended.Ifnot,simplybesuretonotstorethebatteryfullychargedwhenever

possible.Infact,aslongasthebatterywillbestoredatapproximatelyroom

temperatureandfornomorethanafewweeksbeforethenextuse,itmaybebestto

storethebatteryinthedischargedstateafterthelastflight(aslongasthebatterywas

notover‐dischargedonthelastflight).



NOTE:YoumustALWAYSturnthetransmitteronfirst,BEFOREinstalling/connectingtheLiPo

flightbattery.Andbeforeproceedingwiththefollowingsteps,pleasebesurethetransmitter

ispoweredon.



AftertheLiPobatteryhasbeenfullychargedit’sreadytobeinstalledintheairplane.

However,thefirststepbeforeinstallingthebatteryistoconnectittothe3‐in‐1controlunit.

ALSO,YOUMUSTBECAREFULTOENSUREPROPERPOLARITYBEFORECONNECTINGTHE

BATTERYTOTHE3‐IN‐1CONTROLUNITCONNECTOR.Byorienting/aligningthesmallred

circlemarkingonthehousingofthebatterywiththesmallredcirclemarkingonthe

connectorforthe3‐in‐1controlunityou’llbeabletomaketheconnectionwiththecorrect

polarity.

Installin

the LiPo Fli

ht Batter

14

Also,althoughthewhiteconnectorsare‘keyed’tominimizetheriskofareversepolarity

connection,ifyouforcethemitispossibletomakeconnectionwiththeincorrectpolarity

potentiallycausingdamagetothe3‐in‐1controlunitand/orbattery.Whentheredcircle

markingsareproperlyalignedforcorrectpolarity,connectingthewhiteconnectorsshould

requireonlyaminimalamountofpressuretoachievethelight‘click’thatindicatessecure

connection.



AftertheLiPobatteryisconnectedtothe3‐in‐1controlunittheuniquemagneticattachment

designmakesitquickandeasytoinstallthebattery.Simplyplacethesideofthebatterywith

themagneticattachmentsagainstthemagnetslocatedinthebatterycompartmentandthe

batterywillbemountedsecurelyintheairplane.



ToremovetheLiPoflightbattery,liftitawayfromthemagnetsthendisconnectitfrom

the3‐in‐1controlunit.DONOTpoweroffthetransmitteruntiltheLiPoflightbatteryis

removedfromtheairplaneandthe3‐in‐1controlunitispoweredoff.REMEMBER:The

transmitterisalwaysonfirstandalwaysofflast!



YourUltra‐MicroTrainer100isequippedwithacompactandadvanced3‐in‐1controlunit.

Thecontrolunitisalightweightcombinationof2.4GHzreceiver,twoservosandanelectronic

speedcontrol(ESC).



Thischecklistincludesthestepsyoumustfollowtoensureproperinitialization,armingand

operationofthecontrolunit:



Control Unit Initialization and Armin

15

Beforeeachflightyoushouldalwaysturnthetransmitteronbeforeconnecting

theflightbatterytothecontrolunit.Neverconnecttheflightbatterytothe

controlunitbeforepoweringthetransmitteronfirst(exceptwhen

binding/linking,asnotedinthatsectionofthismanual).Aftereachflightyou

shouldalwaysdisconnecttheflightbatteryfromthecontrolunitbefore

poweringoffthetransmitter.



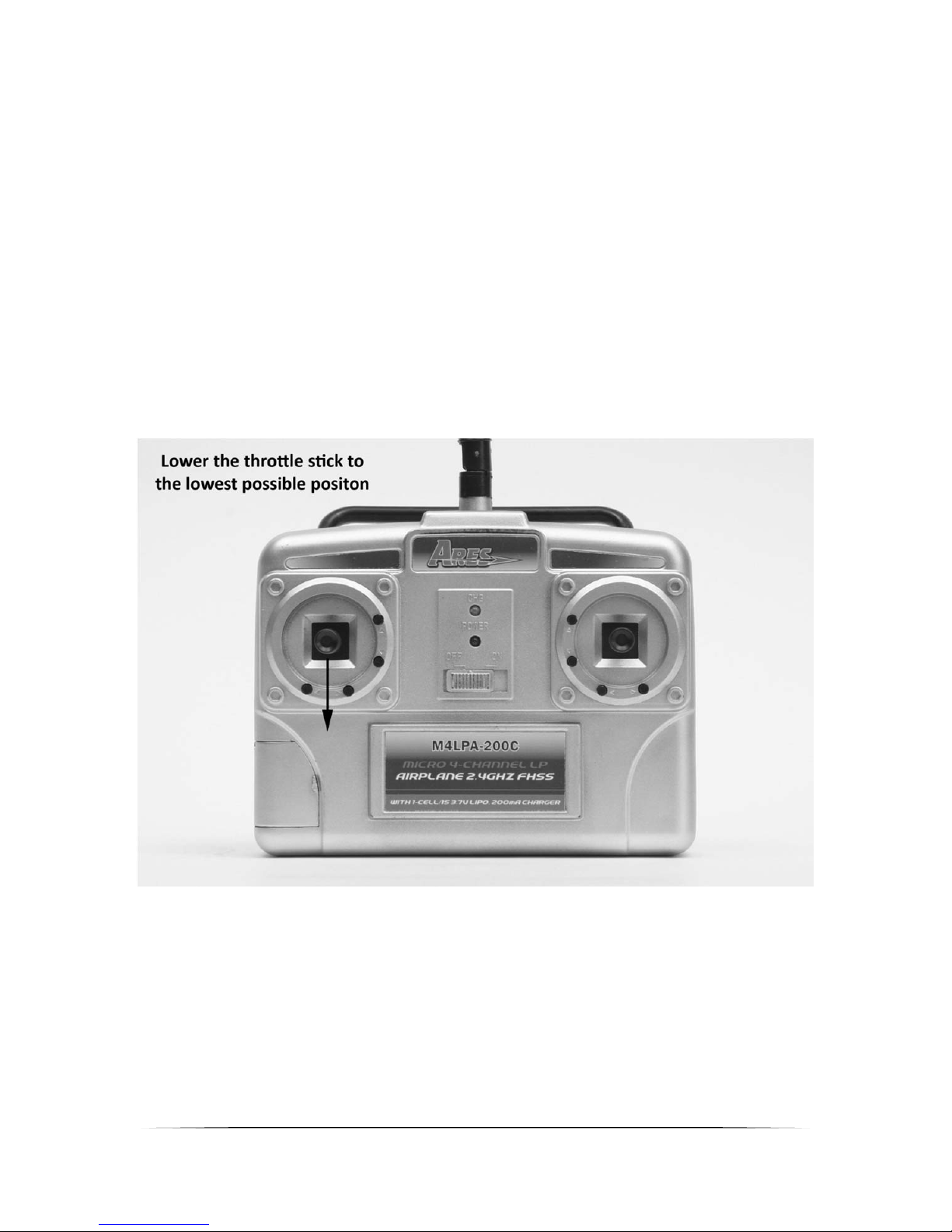

Theleft‐hand/throttlestickmustbesetinthelowestpossiblepositioninorder

fortheESCofthecontrolunittoarm.

NOTE:Ifthisisthefirstflight,orafirstflightfollowingrepairs,youshouldcenter

theaileronandelevatorchanneltrims.Usethedigitaltrimbuttonsandreference

thecentertrimpositionsusingtheaudiblebeeps/tones.



PoweronthetransmitterandconfirmthattheLEDindicatorisglowingsolidred.

ThenconnectandinstalltheLiPoflightbatteryintheairplane.



Withtheflightbatteryconnectedtothecontrolunit,thecontrols/control

surfacesshouldmovebackandforthbrieflytoindicatethatthecontrolunithas

initializedproperly.

16

Aslongasyouhadtheleft‐hand/throttlesticksettothelowestpossibleposition

duringtheinitializationprocesstheESC/motorwillnowbearmed.Usecautionas

thepropellerwillnowspinwithleft‐hand/throttlestickinput!



Incasethecontrols/controlsurfacesdonotmovebackandforthbriefly:

•Ifthecontrols/controlsurfacesdonotmovebackandforthbrieflyyoudonot

haveapositiveradiofrequency(RF)linkbetweenthetransmitterandreceiverof

thecontrolunit.First,checktobesurethetransmitterispoweredonandthe

LEDindicatoronthetransmitterisglowingsolidred.Ifthetransmitteris

poweredonandfunctioningproperly,disconnecttheflightbatteryfromthe

controlunit.Thenreconnecttheflightbatteryandnowthecontrolunitshould

initializeandarmproperly.



Incasethecontrols/controlsurfacesmoveautomaticallybutyouhavenocontrolof

themotor:

•Ifthecontrols/controlsurfacesmovebackandforthbrieflybutyoudonothave

controlofthemotor,youhaveapositiveRFlinkbetweenthetransmitterand

receiverbuttheESC/motordidnotarmbecausetheleft‐hand/throttlestickmay

notbesettothecorrectposition.Checktobesuretheleft‐hand/throttlestickis

inthelowestpossibleposition,andonceinthecorrectpositiontheESC/motor

willbearmed.



AfterconfirmingthecontrolunitisinitializedandtheESC/motorhasarmedproperly

yourUltra‐MicroTrainer100isreadytofly.However,pleasereviewthefollowing

sectionsofthemanualBEFOREproceedingwiththefirstflight.





17



IntheeventyouarenotfamiliarwiththecontrolsofyourUltra‐MicroTrainer100,please

takethetimetofamiliarizeyourselfwiththemasfollowsandbeforeattemptingyourfirst

flight.



Theleft‐handstickonthetransmittercontrolsthethrottle.Whentheleft‐handstick(also

knownasthe‘throttle’stick)isinthelowestpossiblepositionthepropellerwillnotspin.



Movingthestickupwardwillincreasethe

speed/RPMofthepropeller.Increasingthe

speedofthepropellerincreasesthespeedof

themodelandalsoprovidesthethrustneeded

toclimb/increasealtitude.



Decreasingthespeed/RPMofthepropellerby

loweringtheleft‐handstickwilldecreasethe

speedofthemodelandreducethrustmaking

itpossibletodescend/decreasealtitude.



Duringflightyoucanalsoadjustthethrottletoaposition,typicallybetween1/3and2/3

power,tocruiseatagivenaltitudeandincreaseflightduration.



Fli

ht Controls and Trimmin

18

Theright‐handstickcontrolsboththeelevatorandtherudder.Pushingthestick

forward/upwardwilllowertheelevatorandpitchthenoseoftheairplanedownwardto

descend.



Pullingthestickbackward/downwardwillraisetheelevatorandpitchthenoseofthe

airplaneupwardtoclimb.



Theelevatortrimcanbeusedtohelpkeeptheairplanefromclimbingordescendingwhenin

cruiseflightandwithnoright‐handstick/elevatorinput.Forexample,iftheairplaneclimbs

whenattemptingtocruiseandmaintainagivenaltitude,adddownelevatortrimuntilthe

airplanefliesaslevelaspossibleandmaintainsthedesiredaltitudeatcruisespeed.





19

Movingthesticktotheleftwillmovetheruddertotheleft.Thiswillroll/turntheairplaneto

theleft.



Movingthesticktotherightwillmovetheruddertotheright.Thiswillroll/turntheairplane

totheright.



Thetrimcanbeusedtohelpkeeptheairplanefromdrifting/turningleftorrightduringflight

withnoright‐handstick/rudderinput.Forexample,iftheairplanedriftstotherightinflight,

addlefttrimuntiltheairplanefliesasstraightaspossiblewithoutdrifting.



Andonceyou’refamiliarwiththeprimarycontrolsoftheairplaneyou’realmostreadytofly!



20



Whenyou’rereadytomakeyourfirstflightsyou’llwanttoselectanopenoutdoorareafree

ofpeopleandobstructions.Wesuggestanareaapproximatelythesizeofasoccerfieldwhen

makingyourfirstfewflights.Wealsosuggestflyingovergrassasit’samuchmoreforgiving

surfacethatcauseslessdamageintheunfortunateeventofacrash.However,pleasenote

thatwhenattemptingtolandongrassitcancatchthelandinggear,potentiallycausingthe

modeltoflipandbecomedamaged.Withthisinmind,anidealflyingareaallowsforflying

overgrassandlandingonasmoothersurfacesuchasasphaltorthedirtonabaseballfield.



Also,whiletheUltra‐MicroTrainer100’sfull‐airfoilwingdesignhelpsmakeitpossibletoflyin

lightwinds,westronglysuggestflyingonlyincalmconditionsuntilyou’refamiliarwiththe

controlsandhandlingofthemodel.Evenlightwindscanmakeitmuchmoredifficulttolearn

tofly,andinsomecasescanevencarrythemodelbeyondyourlineofsightandtherangeof

thetransmittersignal.



Afteryou’veproperlytrimmedtheairplaneincalmconditionsandbecomefamiliarwithits

handlingandcapabilities,you’llbeabletoflyinlightwindsandsmalleroutdoorareas.You’ll

alsobeabletoflyinlargerindoorareassuchasabasketballgymasyourskillscontinueto

improve.



Nowthatyou’veselectedasuitableflyingareaandthecontrolunitisinitializedandarmed,

yourUltra‐MicroTrainer100isreadytofly.Andwhenmakingyourfirstflightswesuggest

followingthesesteps:



TherearetwowaystogettheUltra‐MicroTrainer100intotheair.Thefirst,andour

suggestedmethodforfirst‐timepilots,istohand‐launchthemodel.Thisiseasyto

accomplishbyholdingthemodelinyourhandwiththewingslevelANDTHENOSE

POINTEDINTOANYWIND.Then,advancethethrottleto3/4orfullpowerandgently

‘push’themodelforwardwiththenoseleveltoorslightlyabovethehorizon.The

airplanewillbeflyingalmostimmediatelyafteritleavesyourhandallowingyouto

focusonkeepingthewingslevelwhilecontinuingtoclimbtoasafealtitude.



Selectin

a Fl

Area

Table of contents

Popular Toy manuals by other brands

Faller

Faller WATER MILL WITH PUMP manual

Fisher-Price

Fisher-Price N8521 instruction sheet

Eduard

Eduard 53 167 manual

Great Little Trading

Great Little Trading Sixpence Play Shop L4701 manual

The Learning Journey

The Learning Journey Techno Gears Marble Mania Twister instruction manual

Italeri

Italeri F-14A Tomcat 50th First Flight Anniversary Assembly instructions

Eduard

Eduard He 111H-16 radio compartment quick start guide

KID Trax

KID Trax KT1094TR owner's manual

Klima

Klima 4251 Assembly instructions

Mega Construx

Mega Construx POKEMON WONDER BUILDERS GHP85 manual

Carrera RC

Carrera RC Sky Hunter Assembly and operating instructions

Troy Built Models

Troy Built Models F-4u Corsair instruction manual

Trix

Trix 22605 manual

Eduard

Eduard DGzRS H. Marwede 1/72 manual

Playskool

Playskool Silly Sounds Checkup 09039 instruction manual

Faller

Faller 180378 quick start guide

LEGO

LEGO Dimensions Emmet Fun Pack manual

roundhouse

roundhouse Katie Owner's handbook

Ares ultra-micro trainer 100 User manual

Popular Toy manuals by other brands
