Argos 402/8583 User manual

MADE IN
BRITAIN
Dimensions
Width - 75cm
Depth - 49.5cm
Height - 181cm
Malibu - 3+1+1 Mirror Effect Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 11/05/15
Important - Please read these instructions fully before starting assembly
ALR3207
391/1691
402/8583
404/3094
381/6624
402/2895

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 54kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1
5
2 3
80%
x 3 4
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Drawer Front (DF3574)
(353 x 156mm) x 3
Drawer Base (T335-367)
(335 x 367mm) x 3
Drawer Back (W324-124)
(324 x 124mm) x 3
Left Drawer Side (W370-124LH)
(370 x 124mm) x 3
Right Drawer Side (W370-124RH)
(370 x 124mm) x 3

Components - Panels
Please check you have all the panels listed below
2
67
13
80%
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
14
15
Left Side (DF4206)
(1808 x 496mm)
Right Side (DF3569)
(1808 x 496mm)
Back Rail (DF3576)
(716 x 92mm)
12 Plinth (DF3575)
(716 x 92mm)
Upright (DF3578)
(474.5 x 475mm)
Fixed Shelf (DF3579)
(716 x 476mm)
Internal Shelf (DF3577)
(374 x 476mm)
Large Door (DF3573)
(1677 x 353mm)
Small Door (DF3572)
(1677 x 353mm)
Back (X1711-742)
(1711 x 742mm)
Hanging Rail (FHR708)
(708mm long)
10
11
16 17 18
Top (DF3570)
(716 x 494mm)
Base (DF4207)
(716 x 494mm)
8
9

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A B
Metal dowel (F901) x 8
C
D E
G H
Small locking
nut (F3) x 6
40mm Screw (F910) x 20
J K
I
Nail (F51) x 33
25mm Screw (F50) x 5
F
13mm Screw (F63) x 14
M N
L
Q
Hinge (F522) x 6
Hinge plate (F523) x 6 Handle (F631) x 5
O
R S
Knock-in Peg (F171GY) x 12
9mm Screw (F74) x 6
Wedgefix (F639) x 6
Drawer runner (F1004) x 6
Rule
Square
Scissors
Spirit level
Hammer
Bradawl
Electric drill
Step ladder
Cross-head screwdriver
Eye protection (when
using a hammer or drill)
P
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Large locking
nut (F900) x 2
Wooden dowel (F22) x 13
9mm Screw (F73) x 12
Plastic Nail (F91) x 4
Rail holder
(F1014) x 2
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

1
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 3
x 3
x 3
x 3
B
A
B
B
B
B
23

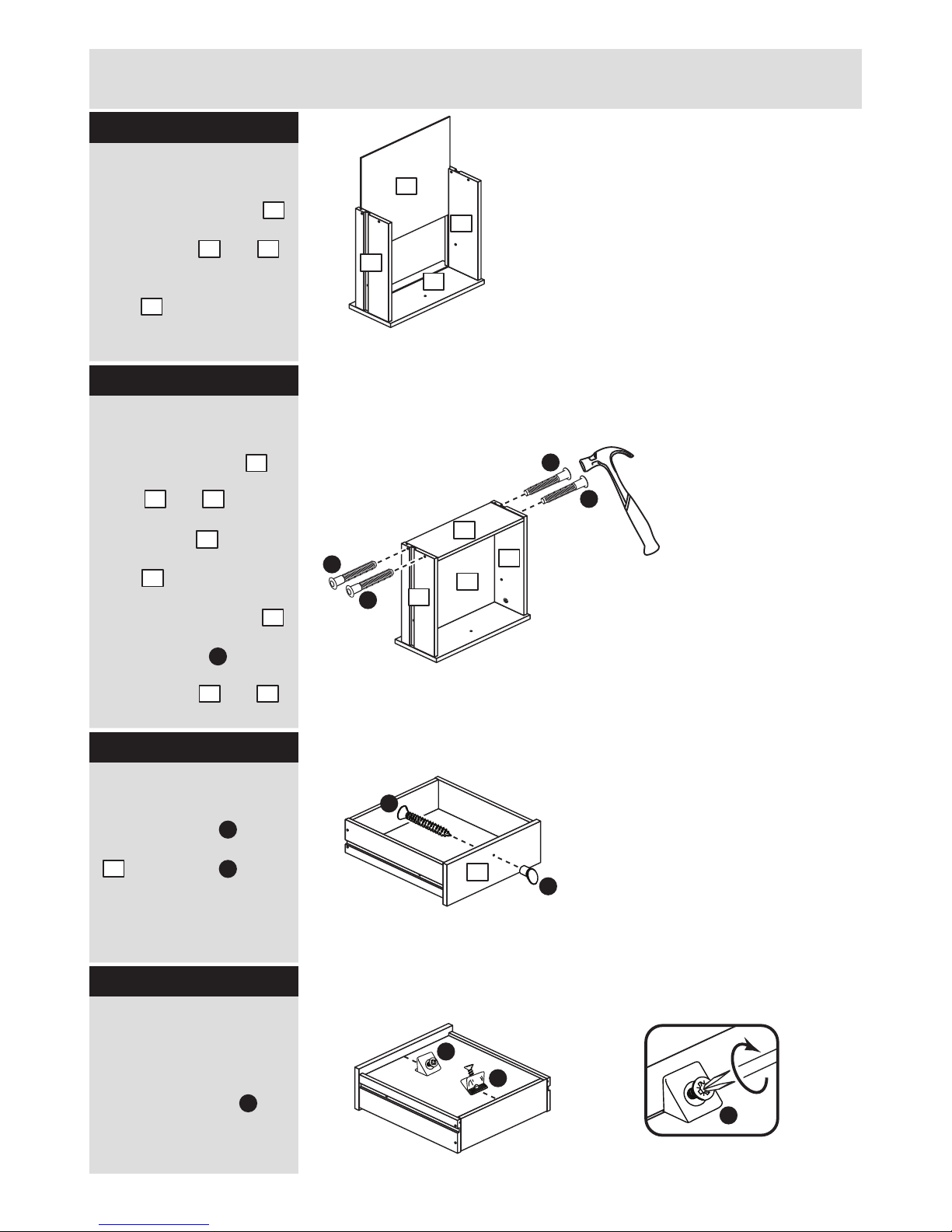

Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
A
1
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
B
2
3
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
2
3
1
B
B
2
3
2
3
A
A
1
80%
x 2

1
Assembly Instructions
5
Step 4
J
J
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
5
2 3
1
4
2 3
5
4
4
J
Attach the handles
Attach a handle to
each of the drawer fronts
. using screw .
Note: Do not
overtighten the screw.
Q
F
1
2 3
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
R
x 3
x 3
x 3
J
x 3
R
R
R
5
2
3
J
5
4
2
3
Q
F
1

Finished
front edge
Assembly Instructions
6

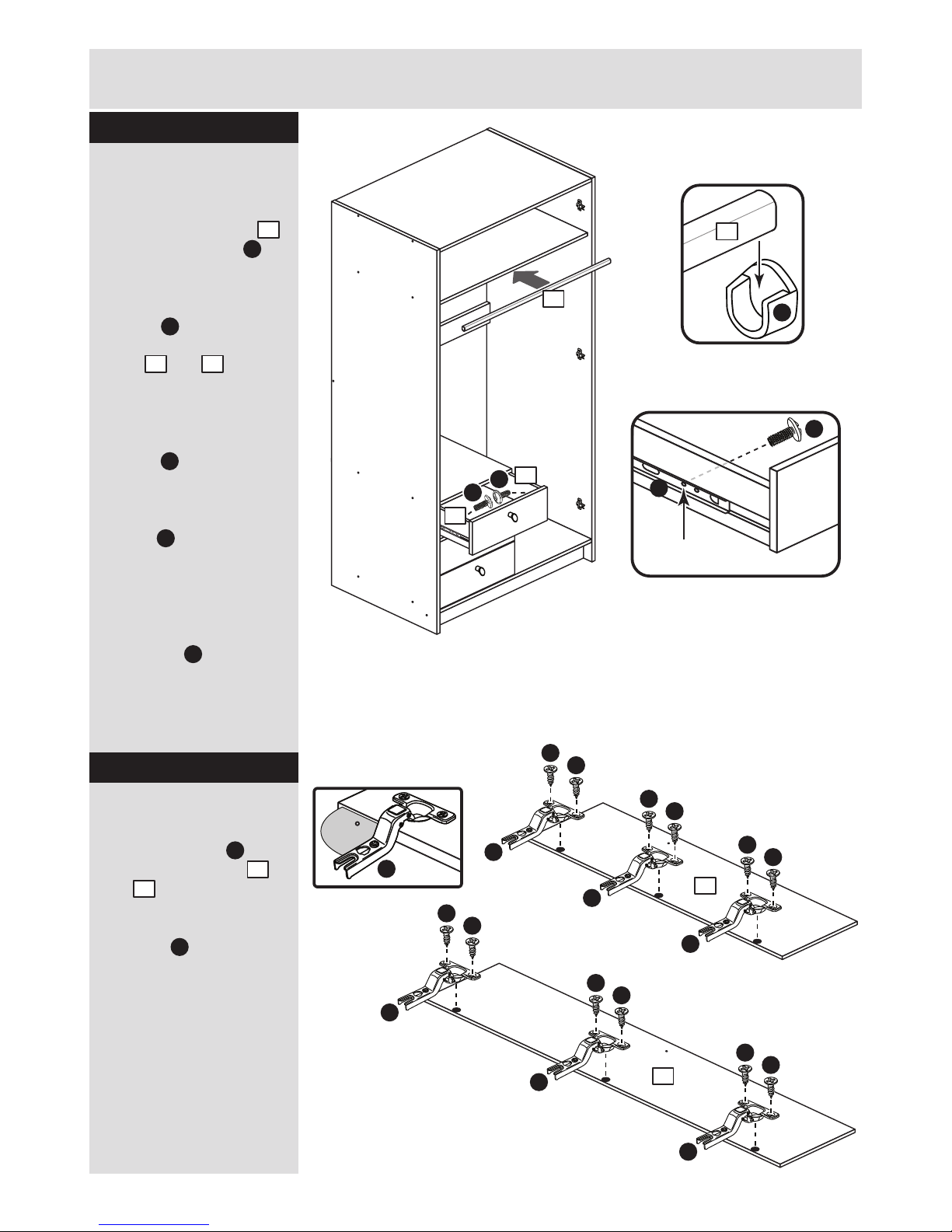

Step 8
Finished
front edge
80%
x 3
Finished
front edge
I
N
Prepare the left side
a: Place 3 runners on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Fit 3 hinge plates
onto the left side
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
6
I
I
6
N
N
a:
b:
c:
I
N
I
N
I
N
I
I
I
Finished
front edge
O
O
O
M
G
O
6
M
G
6
6
6
6
O

Finished
front edge
Finished
front edge
E
E
D
Assembly Instructions
7

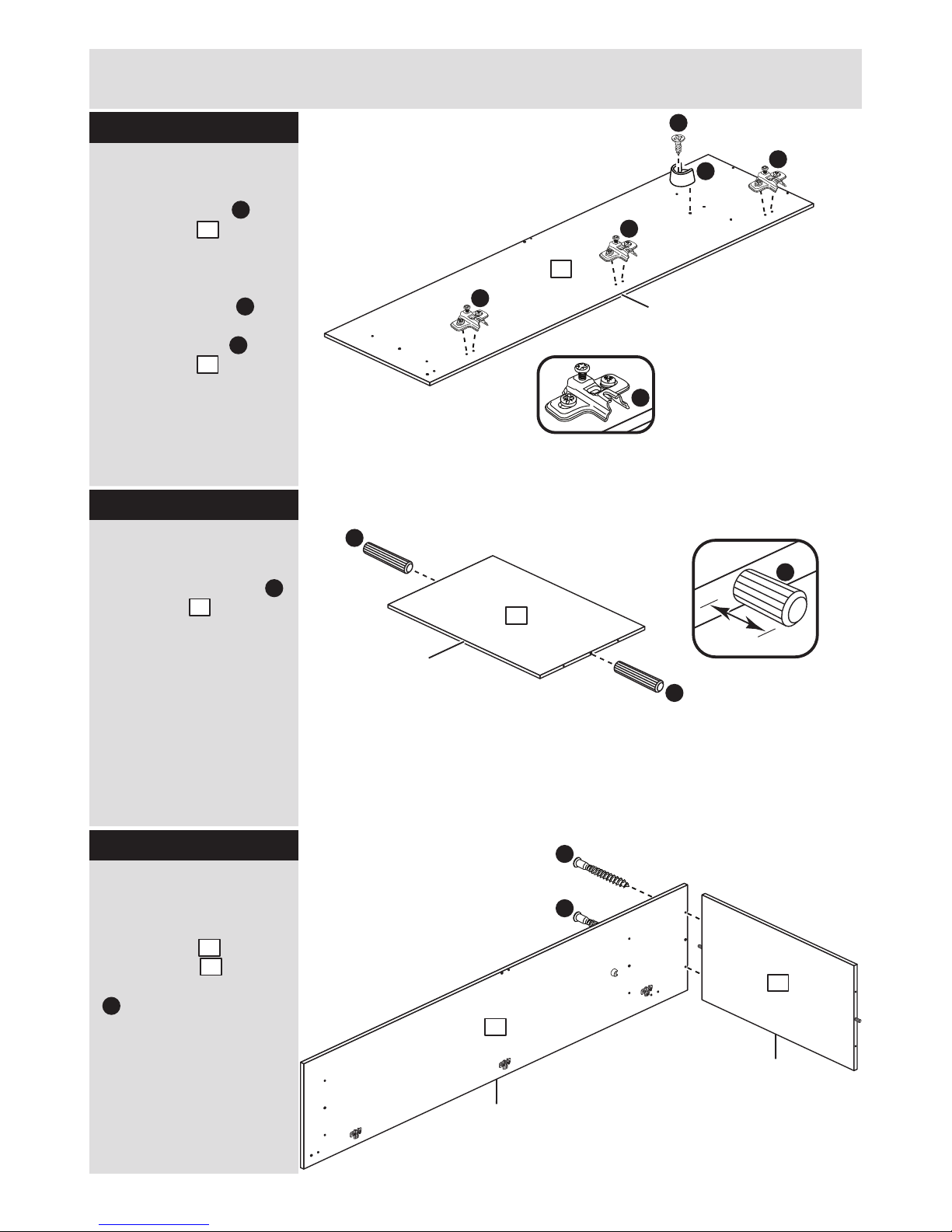

Step 9
M
G
Prepare the right end
Push a rail holder into
the right end . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the right end , making
sure that the slot is
facing towards the
finished front edge.
M
7
O
7
G
O
O
OFinished
front edge
O
7
D
10mm
D
Prepare the top
Tap 2 wooden dowels
into the top .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
D
Step 10
Fit the top to the right
side
Push the top onto
the right side and
secure it with 2 screws
. .
Step 11
88
Finished
front edge
E
8
7
8
7

E
E
D
Assembly Instructions
8

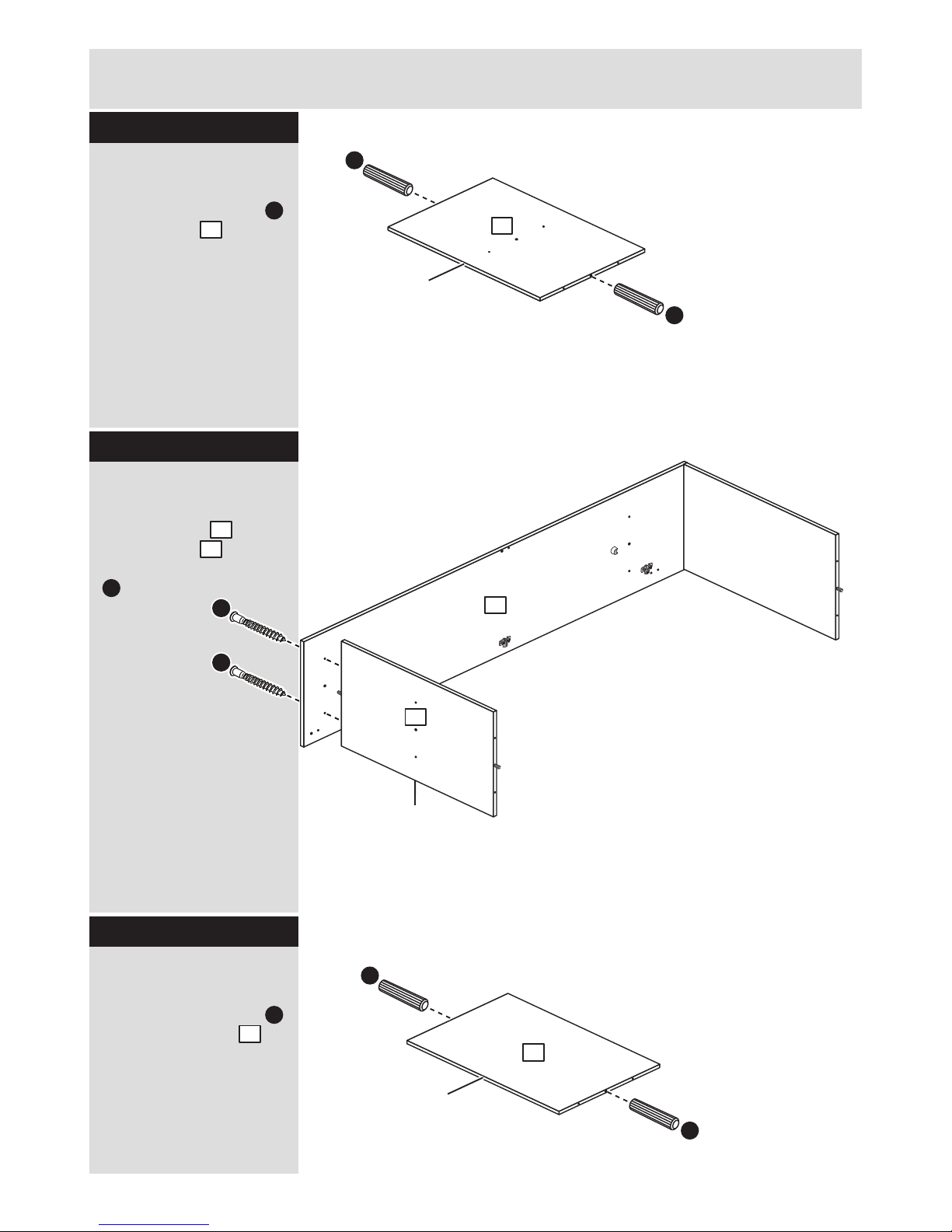

Step 12
D
Prepare the base
Tap 2 wooden dowels
into the base .
D
99
Finished
front edge
Fit the base
Push the base onto
the right side and
secure it with 2 screws
. .
Step 13
Step 14
E
9
7
7
Finished
front edge
9
D
D
Finished
front edge
Prepare the fixed shelf
Tap 2 wooden dowels
into the fixed shelf .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
D
11
11

Finished
front edge
E
E
Assembly Instructions
9
Step 15
Step 16
Fit the fixed shelf
Push the fixed shelf
onto the right side
and secure it with 2
screws .
E
11
7
Fit the plinth and back
rail
Push the plinth onto
the right side and
secure it with screw .
Push the back rail
onto the right side
and secure it with screw
. .
E
12
7
7
11
Prepare the plinth and
back rail
Tap 2 wooden dowels
into the plinth .
Tap 2 wooden dowels
into the back rail .
Note: The back rail has
a finished top edge.
Step 17
D
12
D
13
Finished
top edge
D
D
D
13
Finished
top edge
E
E
13
E
13
7
Note: Support the
back rail until the left
side has been fitted
in the next step.
7
D
12
12

D
Assembly Instructions
10
Step 18
Fit the left end
Push the left side
onto the top , the
base , the fixed shelf
. , the plinth and
the back rail and
secure with 8 screws .
6
8
9
12
13
11
EE
E
E
E
E
E
E
E
6
8
9
12
13
11
Step 19
Finished
front edge
I
N
Prepare the upright
a: Place 3 runners on
the upright . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the upright .
Tap 2 wooden dowels
into the upright .
Insert 2 large locking
nuts into the upright
. .
14
I
I
C
14
14
N
N
D
14
I
N
I
N
I
N
I
I
a:
b:
C
I
D
C
Finished
front edge
Finished
front edge

Assembly Instructions
11
Step 20
Step 22
E
E
Fit the upright and
internal shelf
Push the upright and
internal shelf onto the
assembly and secure
them with 4 screws .
E
14
15
14
Finished
front edge
Finished
front edge
D
A
A
Prepare the internal
shelf
Screw 2 metal dowels
into the internal shelf .
Tap a wooden dowel
into the internal shelf .
Step 21
A
15
15
D
15
Fit the top
Push the internal shelf
onto the upright .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the upright .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
14
15
C
C
14
A
C
14
15
E
E
15
Finished
front edge

Assembly Instructions
12
Step 23
Step 24
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.

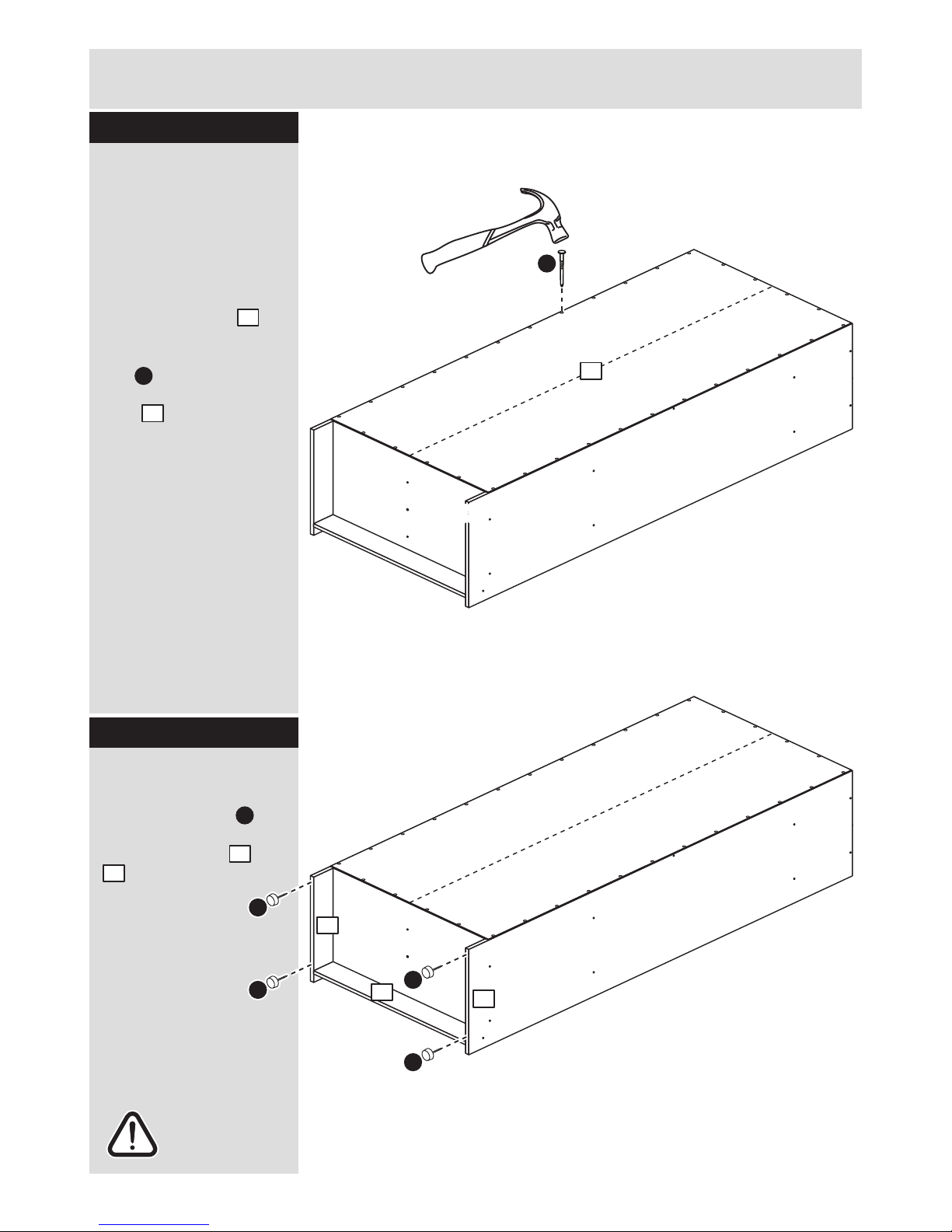

b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
18
L
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
18 yy
yy
xx
xx
L
18
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Carefully stand the
unit up for the next
step.
K
6
7
K
KK
K
6
7
12
Warning: The
unit is heavy.
Lift with care.
Step 24
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Tap the remaining plastic
nail into the centre of
the bottom edge of the
plinth .
Carefully stand the
unit up for the next
step.
K
K
6
7
K
KK
K
K
12
6
7
12
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
13
Step 25
Step 26
10
M
10
Fit the hanging rails
and drawers
Push the hanging rail
into the rail holders .
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
H
N
H
2nd threaded
hole
N
H
H
H
2 3
10
M
N
2
3
Prepare the 2 doors
Push fit 3 hinges into
each of the 2 doors
and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
G
P
16
17
P
G
G
90
P
P
G
G
P
G
G
P
G
G
P
G
G
P
G
G
16
17

Assembly Instructions
14
Step 27
Fit doors and handles
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door and
using screws .
P
P
P
O
O
O
P
O
Q
F
16
17
a: b:
c: d:
O
P
O
O
B
O
P
P
P
A
P
O
B
e:
Q
F
16 17
16 17
Q

Assembly Instructions
15
Step 28
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
16
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 12
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
S
S
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
S
Strap
Washer
Screw
TOP OF UNIT
S

ALR3207
