Argos Denver 339/9622 User manual

MADE IN
BRITAIN
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 3 - 31/03/15
Important - Please read these instructions fully before starting assembly
ALR3097
339/9622
346/7712
362/3927
Denver - 2 Drawer 3 Door Mirror Robe
Dimensions
Width - 113.5cm
Depth - 50cm
Height - 181cm
Issue 2 - 20/01/15 - Short Hanging Rail changed to 364mm.
Back Holders now shown fitted vertically.
Updated helpline number.
Notes added about pairing up hinge plates and hinges from the same bag.
Issue 3 - 31/03/15 - To make the assembly easier, the brackets are now fitted to the Large Vertical Rail in Step 12.

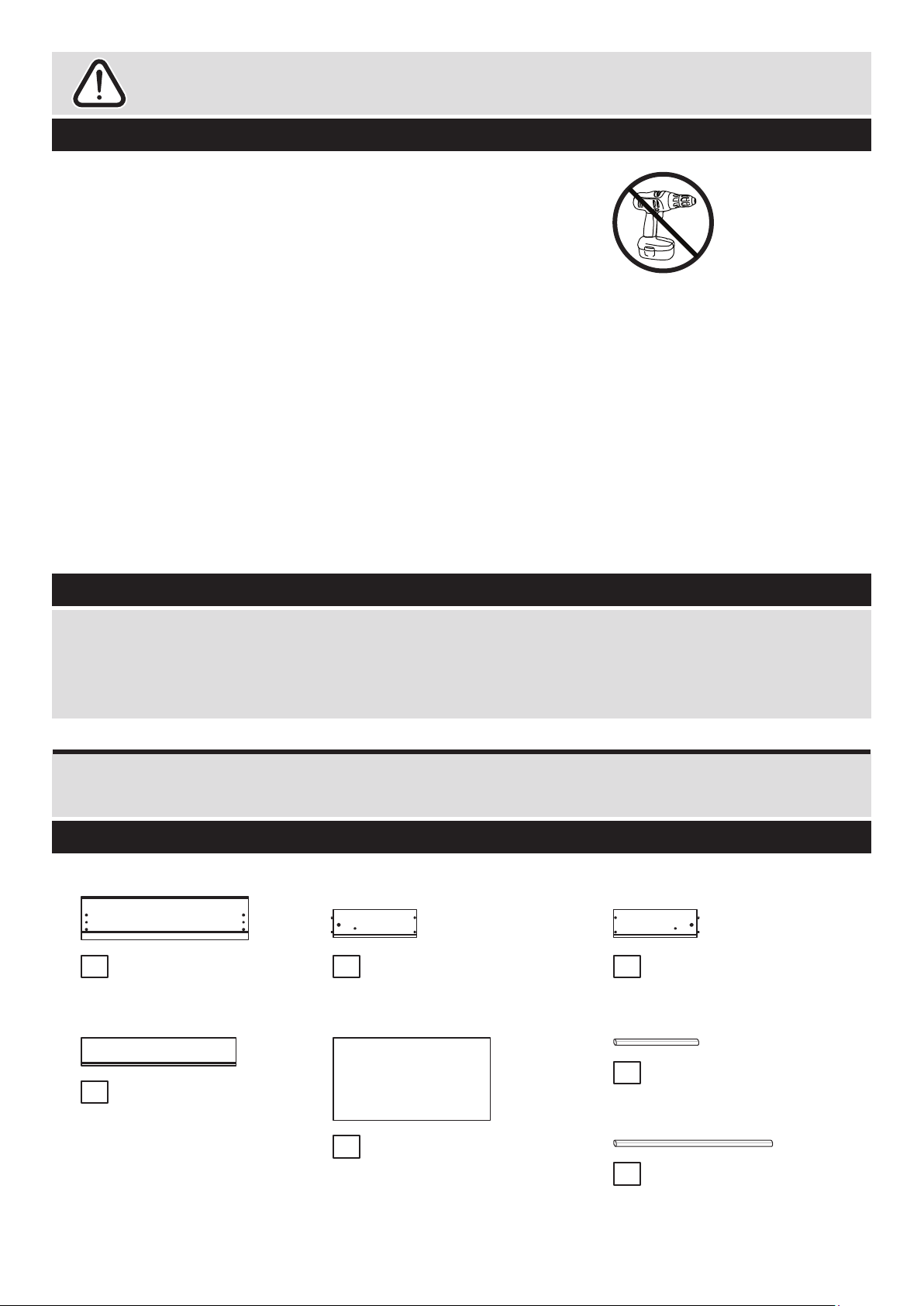

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately ??kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
5
4
132
Drawer Back (W686-124)
(686 x 124mm) x 2
Drawer Base (T697-367)
(697 x 367mm) x 2
Left Drawer Side (W370-124LH)
(370 x 124mm) x 2
Drawer Front (DF2092A)
(742 x 192mm) x 2
Right Drawer Side (W370-124RH)
(370 x 124mm) x 2

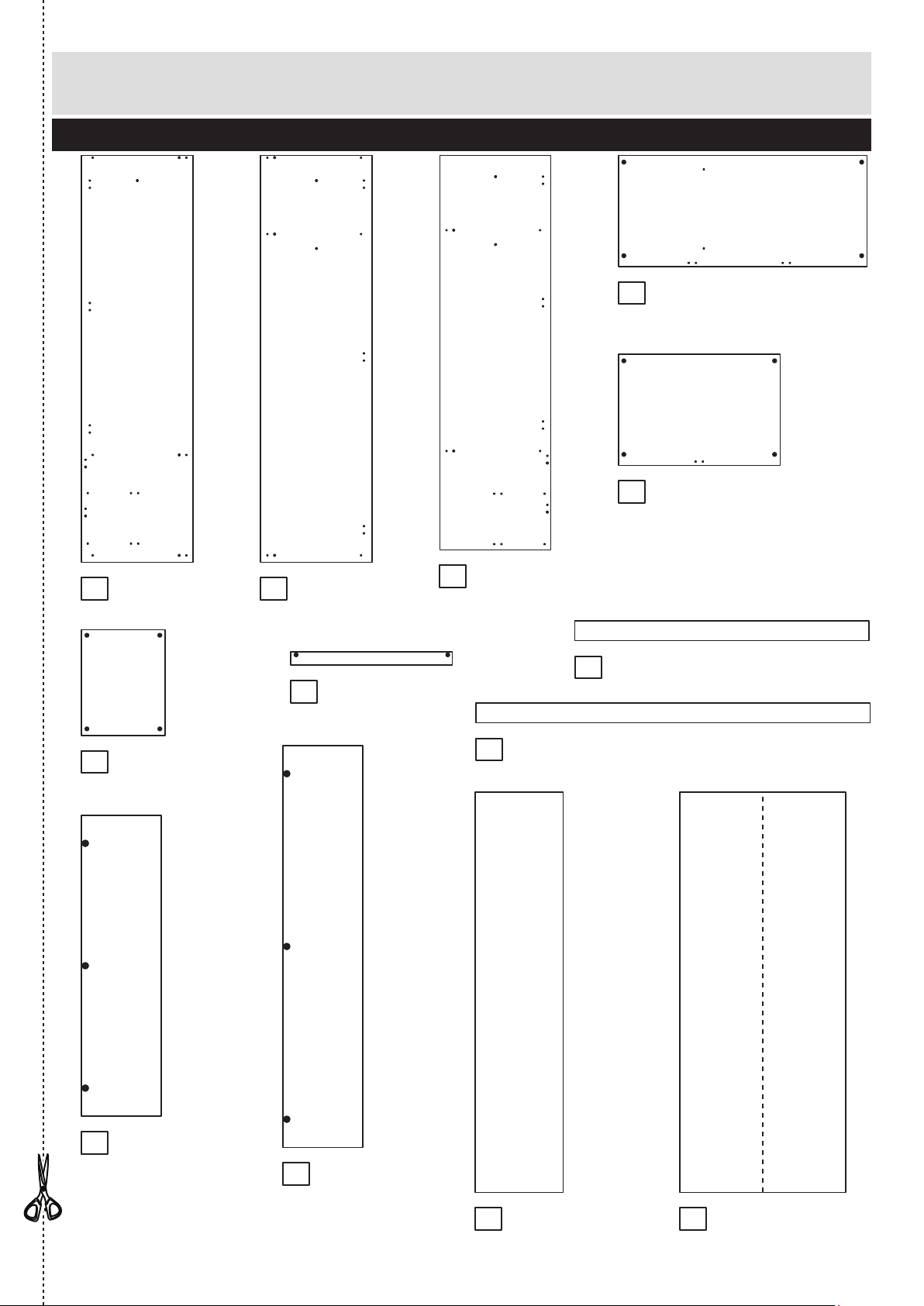

Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Large Hanging Rail (FHR708)
(710mm long)
7
Small Hanging Rail (FHR364)
(364mm long)
6
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
80%
x 3
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
910
Large Door (D1578MA)
(1786 x 355mm)
(Mirror - SG29
1776 x 300mm
Safety Back SAR)
Small Back (X1779-391)
(1779 x 391mm)
Large Back (X1779-737)
(1779 x 737mm)
11
12
18
19 20
Top/Base (DF1877A)
(1105 x 495mm) x 2
8Left Side (DF2091A)
(1808 x 496mm)
14 Rail (D1570A)
(718 x 60mm) x 2
Right Side (D1576A)
(1808 x 496mm)
Divider (DF1878A)
(1753 x 494mm)
Small Shelf (DF1879A)
(372 x 470mm)
Wide Shelf (D1574A)
(718 x 494mm)
13
17 Small Door (DF2094A)
(1338 x 355mm) x 2
Small Vertical Rail (DF2095A)
(1306.5 x 88mm)
15
Large Vertical Rail (D1577A)
(1752 x 88mm) x 1
16

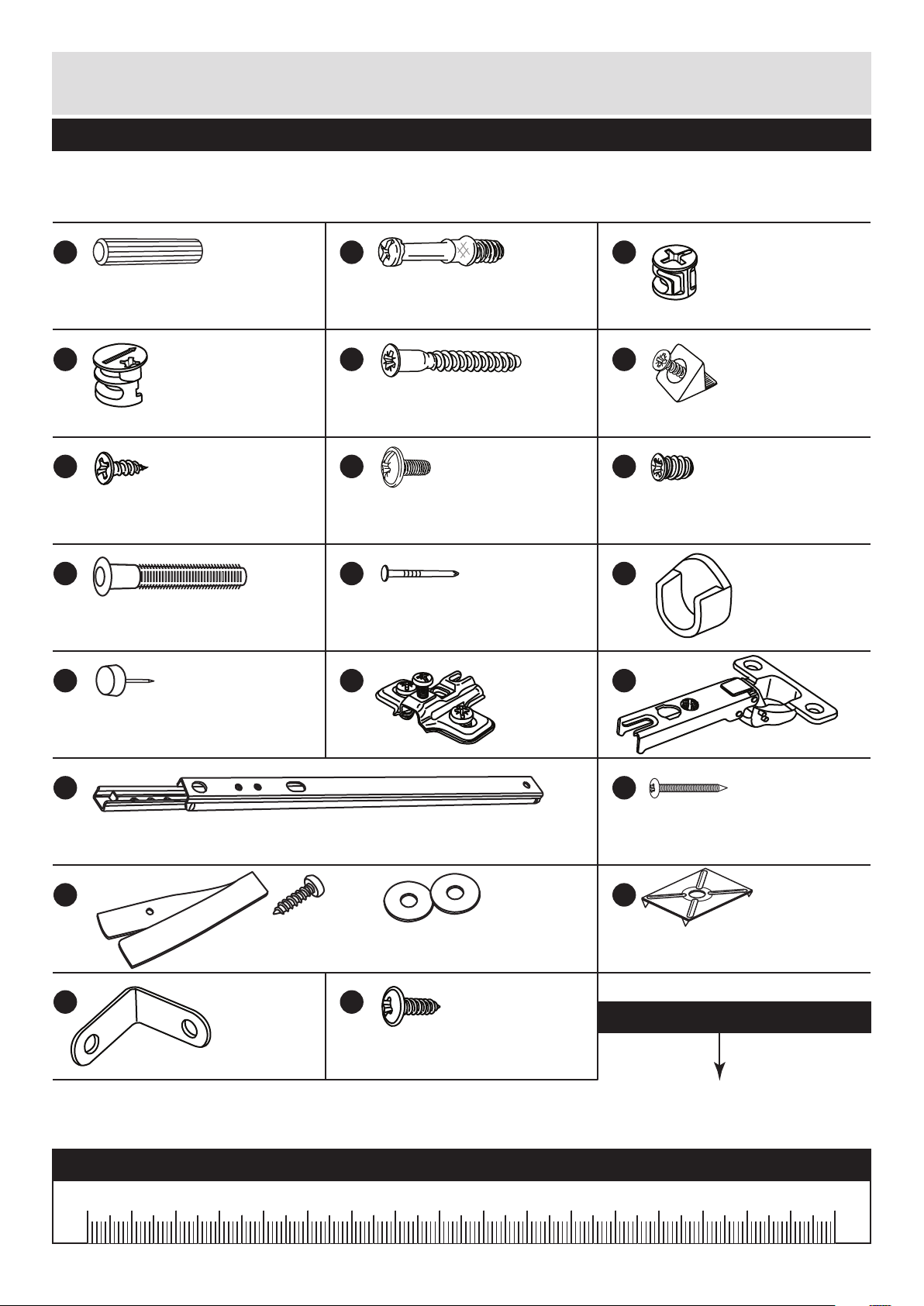

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 12
B
Metal dowel (F901) x 24
C
D E F
G
P
H
Small locking
nut (F3) x 4
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Drawer runner (F1004) x 4
Large locking
nut (F900) x 20
M
I
KJ
9mm Screw (F74) x 4 9mm Screw (F73) x 8
Nail (F51) x 26
L
N
Rail holder
(F1014) x 4
40mm Screw (F910) x 12
13mm Screw (F63) x 22
Hinge (F518) x 9
Hinge plate
(F523) x 9
O
Knock-in Peg (F171GY) x 8
Wedgefix (F639) x 8
Plastic Nail (F91) x 4
RStrap Screw Washer x 2
Overbalance protector kit (F269) x 1
Rule Scissors Spirit
level
Bradawl Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use when
drilling into walls)
Square Hammer
Q
S
Nail screw (F277) x 6
Tools required
Bracket (F945) x 2
TU
13mm Screw (F79) x 4
Back holder (F276) x 6
*These can also be round

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below

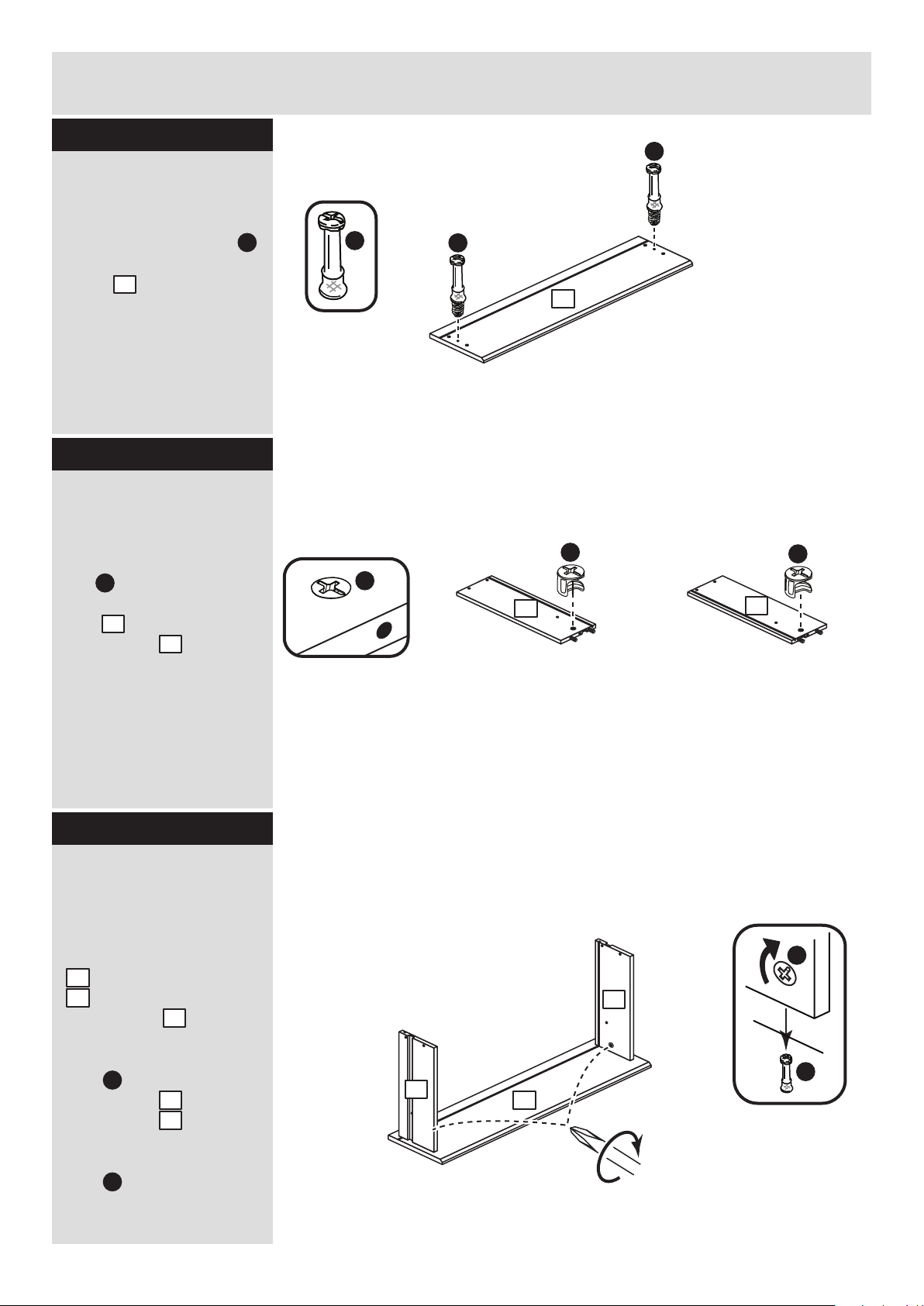

Step 1
80% x 2
x 2
x 2
x 2
x 2
1
B
B
B
C
C
CC
23
Step 2
Prepare the 2 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
1
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
2
3
Attach the drawer
sides to the drawer
front
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
2
3
1
C
C
2
3
2
3
B
B
1

J
Assembly Instructions
5

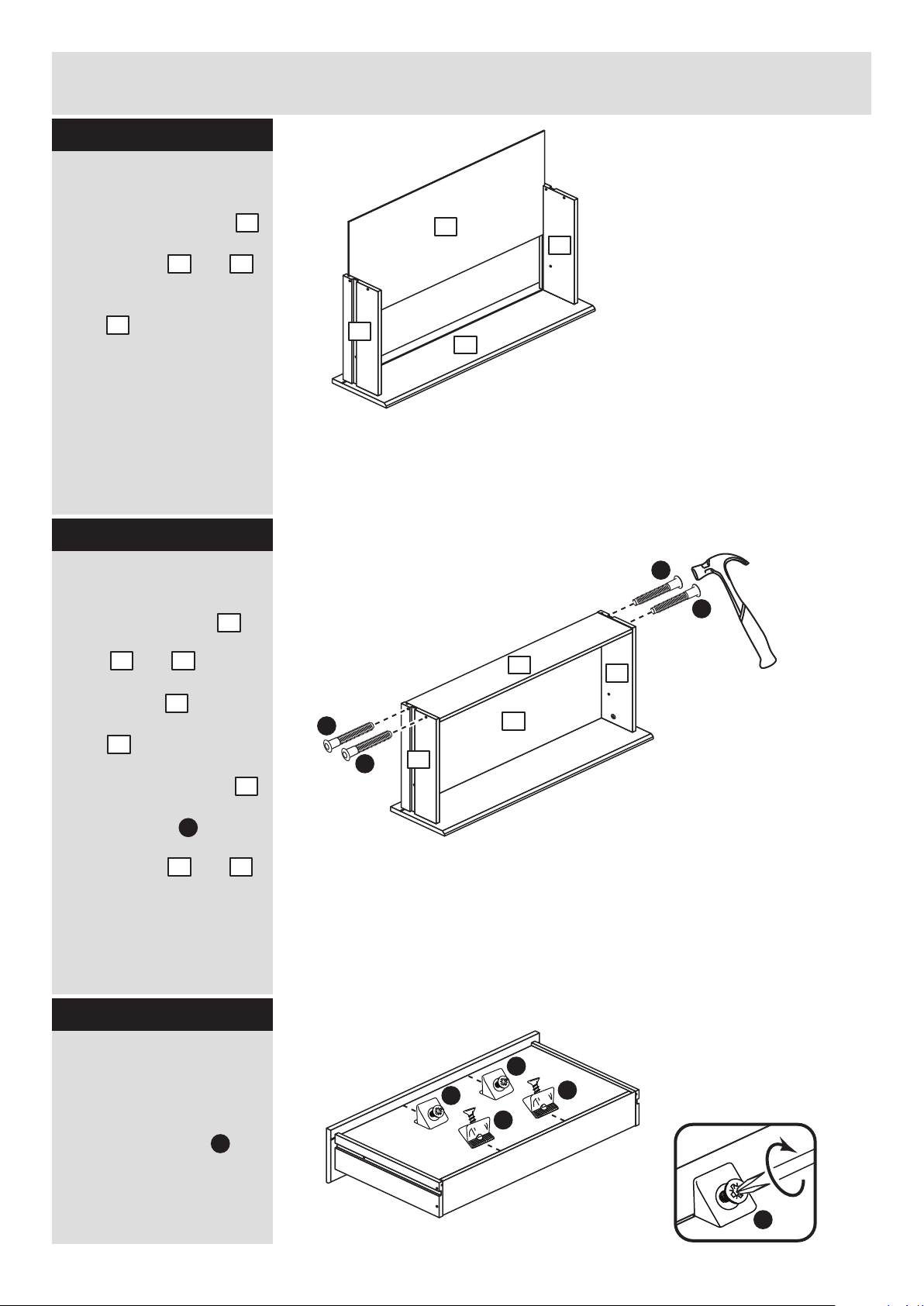

Step 4
J
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
5
2 3
1
4
2 3
5
4
4
J
2 3
Step 6
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
F
J
J
F
F
F
F
F
5
2
4
2
3
5
3
1
x 2
x 2
x 2

Assembly Instructions
Step 7
80% x 3
Step 8
Prepare the right side
Screw 6 metal dowels
into the right side .
Push a rail holder into
the right side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
B
9
L
G
9
N
9Finished
front edge
B
B
B
B
B
L
G
N
N
N
B9
N
D
10mm
A
6
Prepare the top and
base panels
Tap 2 wooden dowels
into each of the top and
base panels .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into each of the
top and base panels .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
11
D
A
11
A
D
D
D
D
A
Finished
front edge
x 2
11
Important: Use the hinge plates
in the bag marked as ...1043
Important: Keep the Hinges and Hinge
Plates in their bags until they are used.
They must not get mixed up.

Assembly Instructions
7
Step 9
E
E
Finished
front edge
Finished
front edge

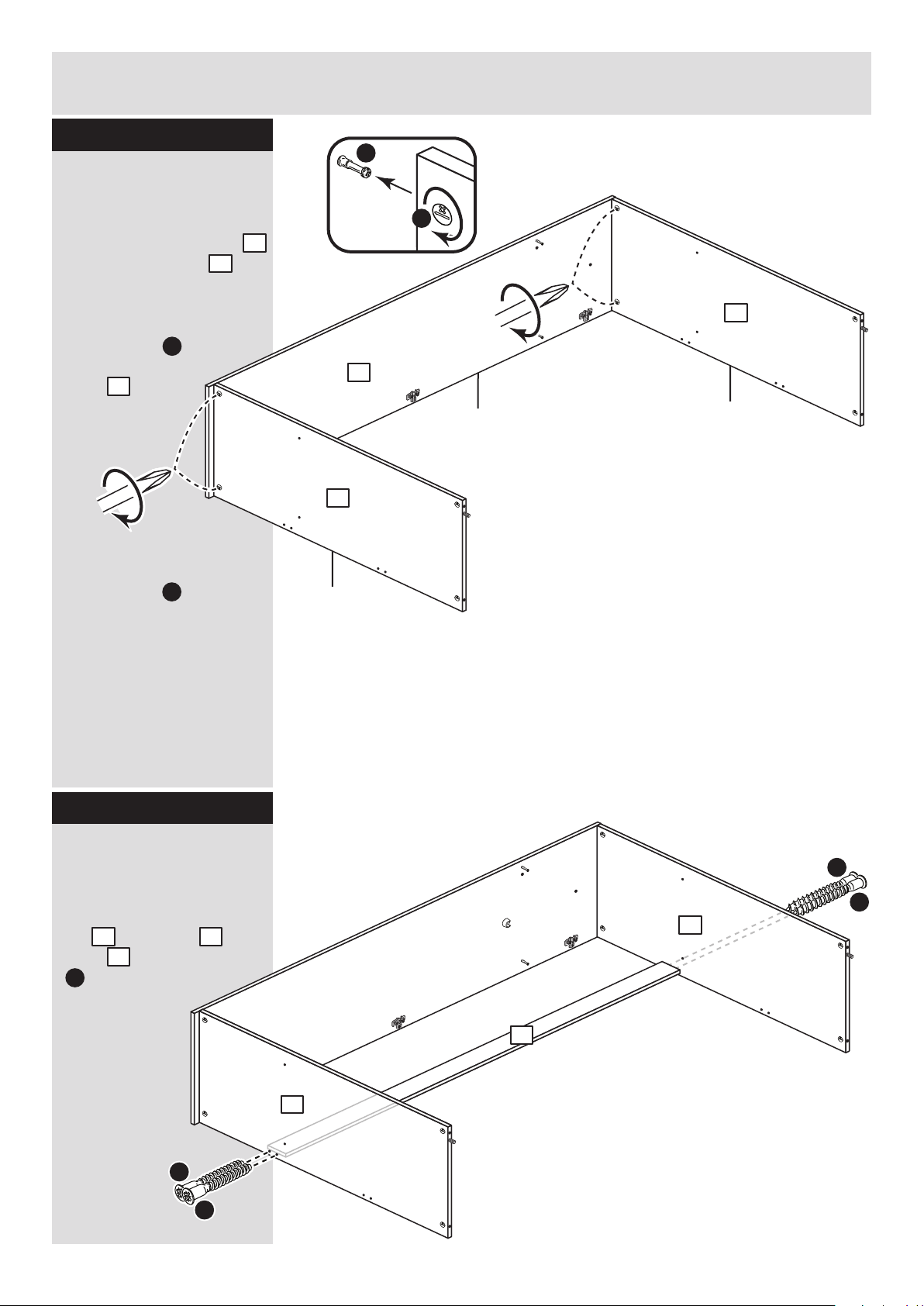

Step 10
Fit the top and base
to the right side
Push the top and base
onto the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top and the
base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
11
9
D
11
D
B
D
9
11
Finished
front edge
11
Fit the large vertical
rail
Attach the large vertical
rail to the top and
base using 4 screws
. .
16 11
11
E
E
E
11
11
16

Assembly Instructions
Step 11
Step 12
8
13
Fit the small shelf to
the right side and fit
the 2 brackets to the
large vertical rail
Push the small shelf
onto the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small shelf .
Fit the 2 brackets
onto the back of the
large vertical rail ,
flush to the edge in the
positions shown, using
screws .
13
9
D
13
A
D
A
D
Finished
front edge
D
D
13

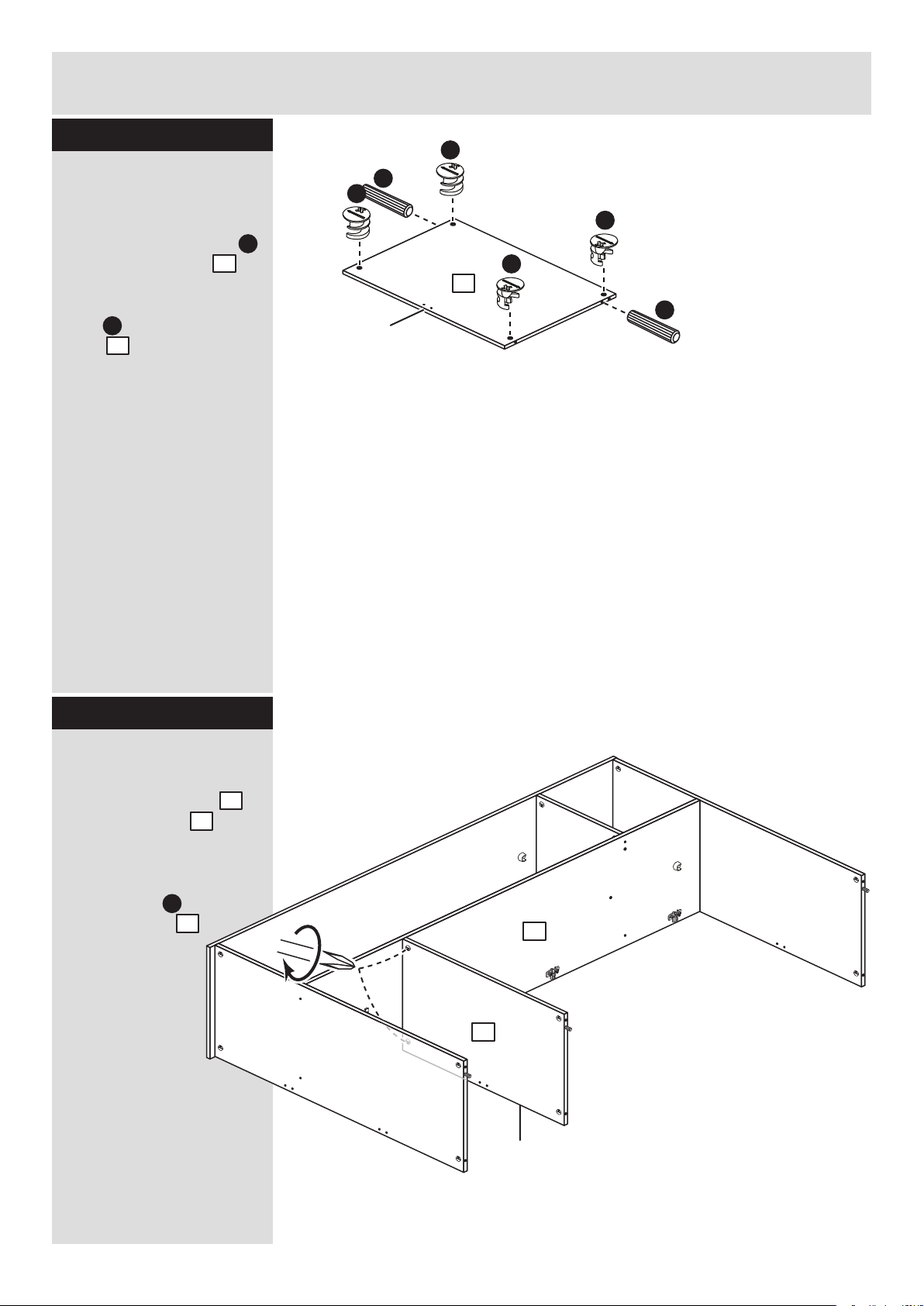

Prepare the small
shelf
Tap 2 wooden dowels
into the small shelf .
Insert 4 large locking
nuts into the small
shelf .
D
A
13
13
Finished
front edge
13
9
U
T
T
T
T
16
U
16

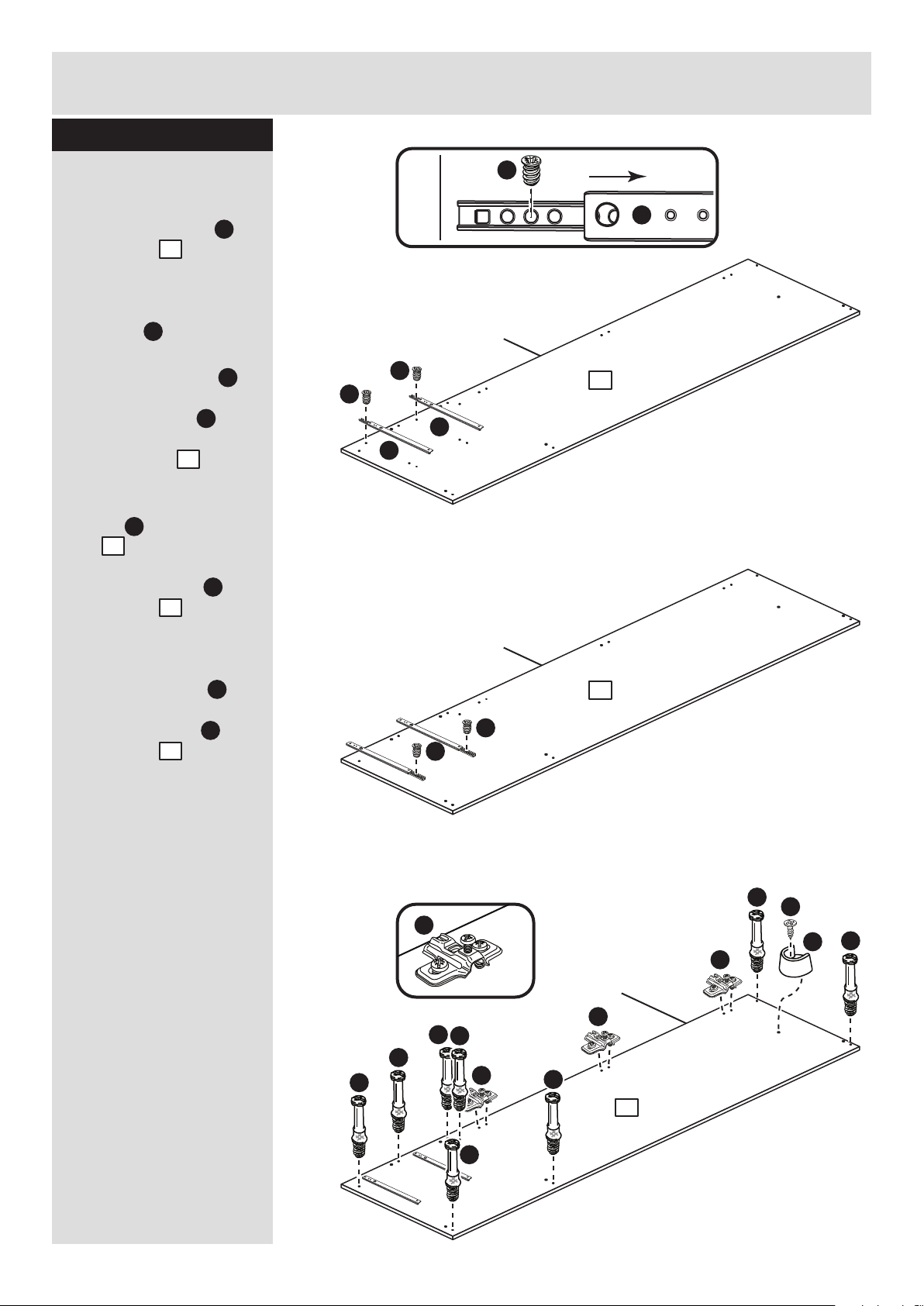

Assembly Instructions
9

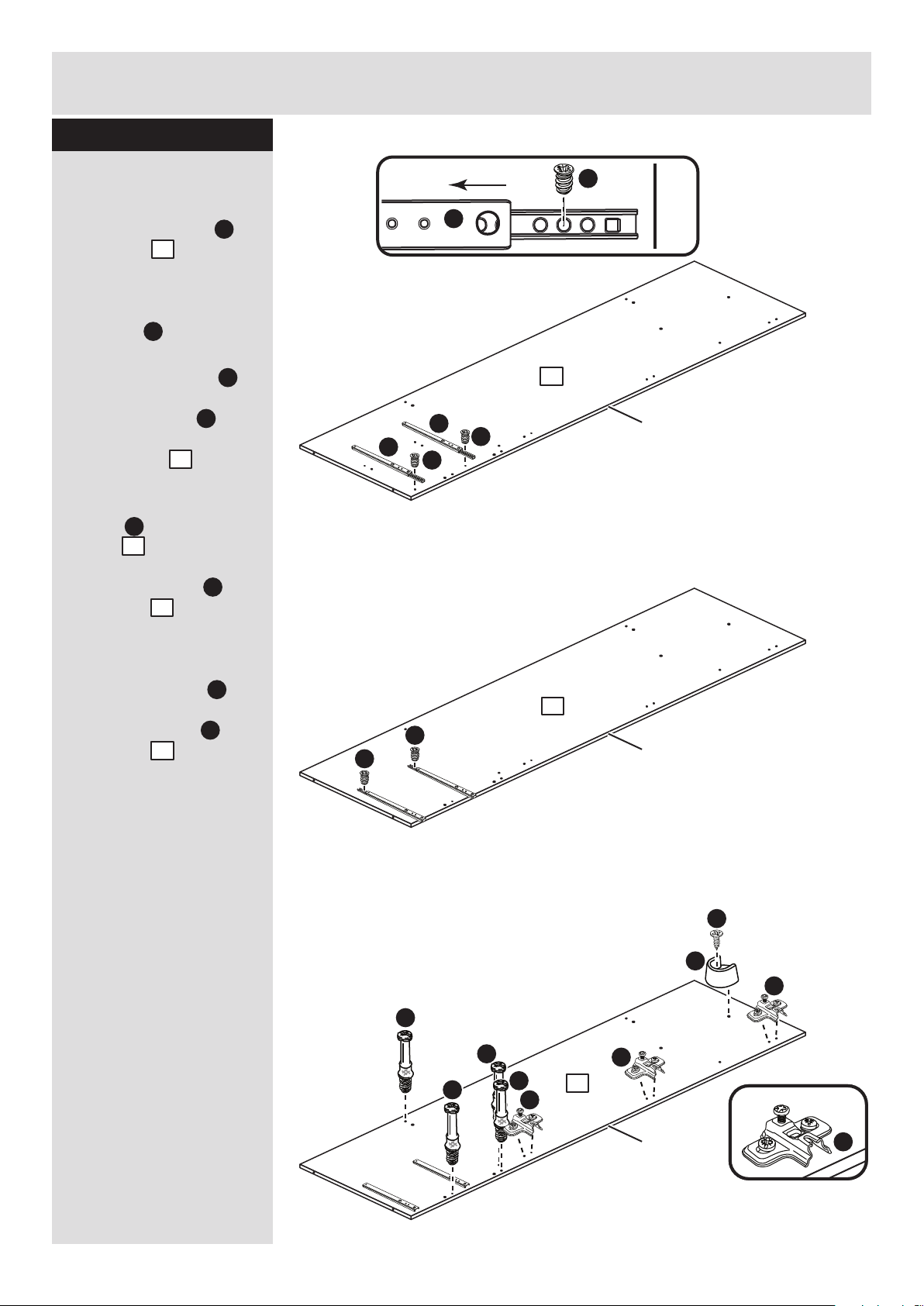

Step 13
Prepare the divider
a: Place 2 runners on
the divider . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
c: Screw 4 metal
dowels into the
divider .
Push a rail holder into
the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
10
I
I
B
10
P
P
10
Finished
front edge
I
P
a:
b:
c:
L
10
N
G
10
N
I
P
I
P
I
I
Finished
front edge
Finished
front edge
Finished
front edge
B
B
B
B
N
N
N
10
10
10
L
G
N
Important: Use the hinge plates
in the bag marked as ...1046

E
Finished
front edge
Finished
front edge
Assembly Instructions

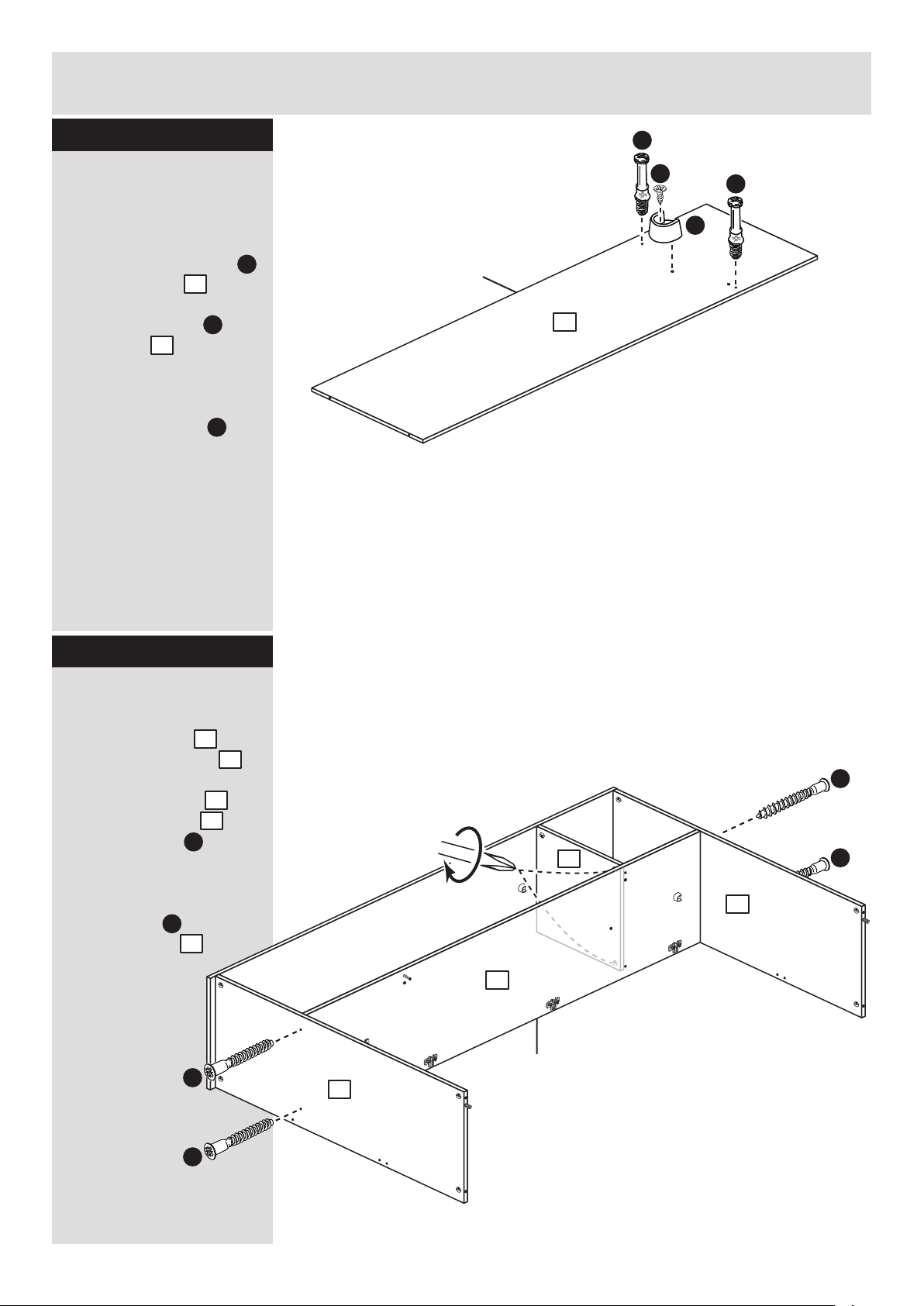

Step 14
Step 15
10
13

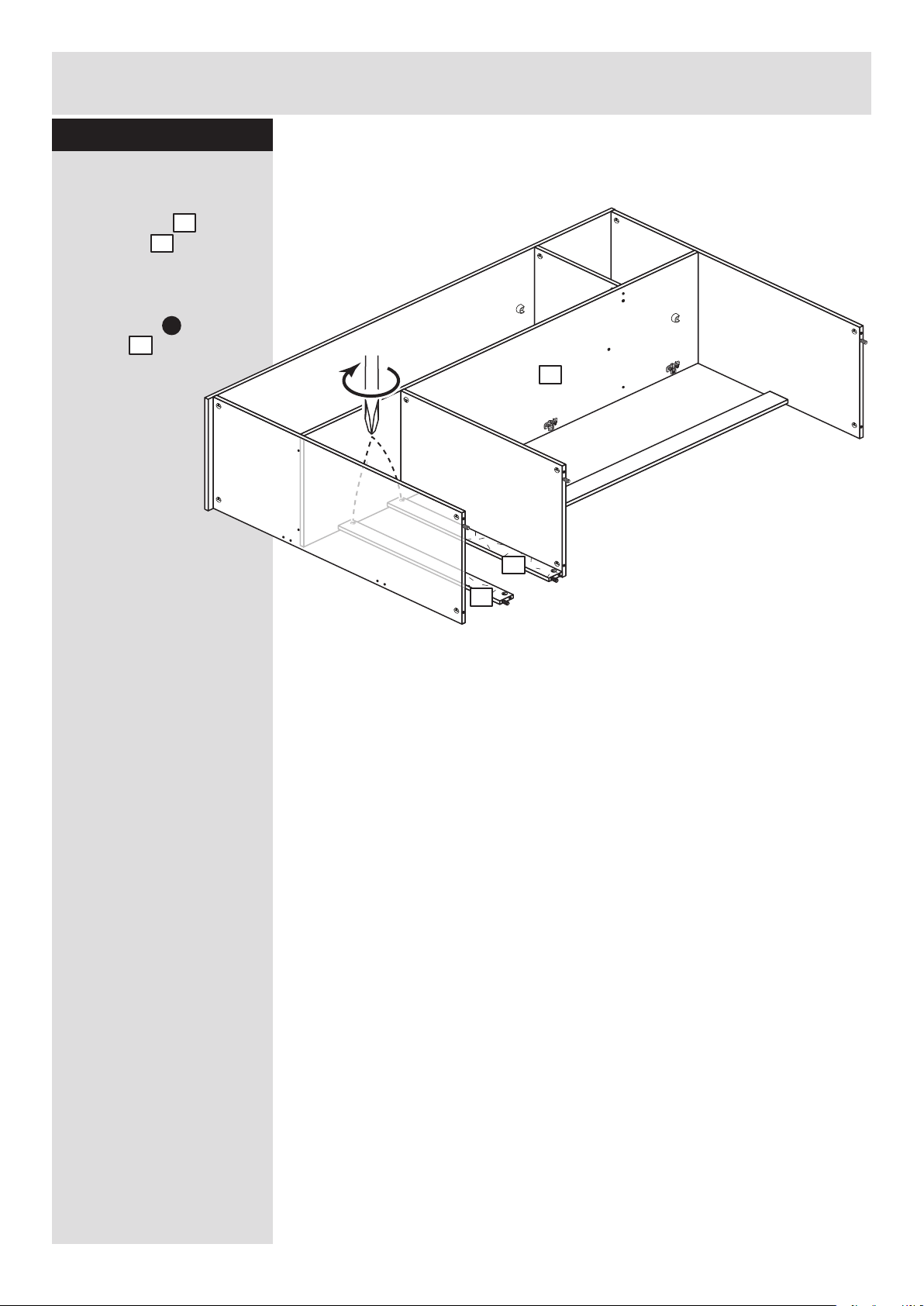

Fit the divider
Push the divider
onto the small shelf .
Attach the divider to
the top and base
using 4 screws .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small shelf .
Turn the divider over
and prepare the other
surface
Screw 2 metal dowels
into the divider .
Push a rail holder into
the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
B
L
GB
B
10
L
10
G
10
13
10
10
10
11
13
13
D
E
E
E
E
11
11

Finished
front edge
Assembly Instructions
11
Step 16
10
Finished
front edge
Prepare the wide
shelf
Tap 2 wooden dowels
into the wide shelf .
Insert 4 large locking
nuts into the wide
shelf .
D
A
12
12
D
A
D
A
D
D
12

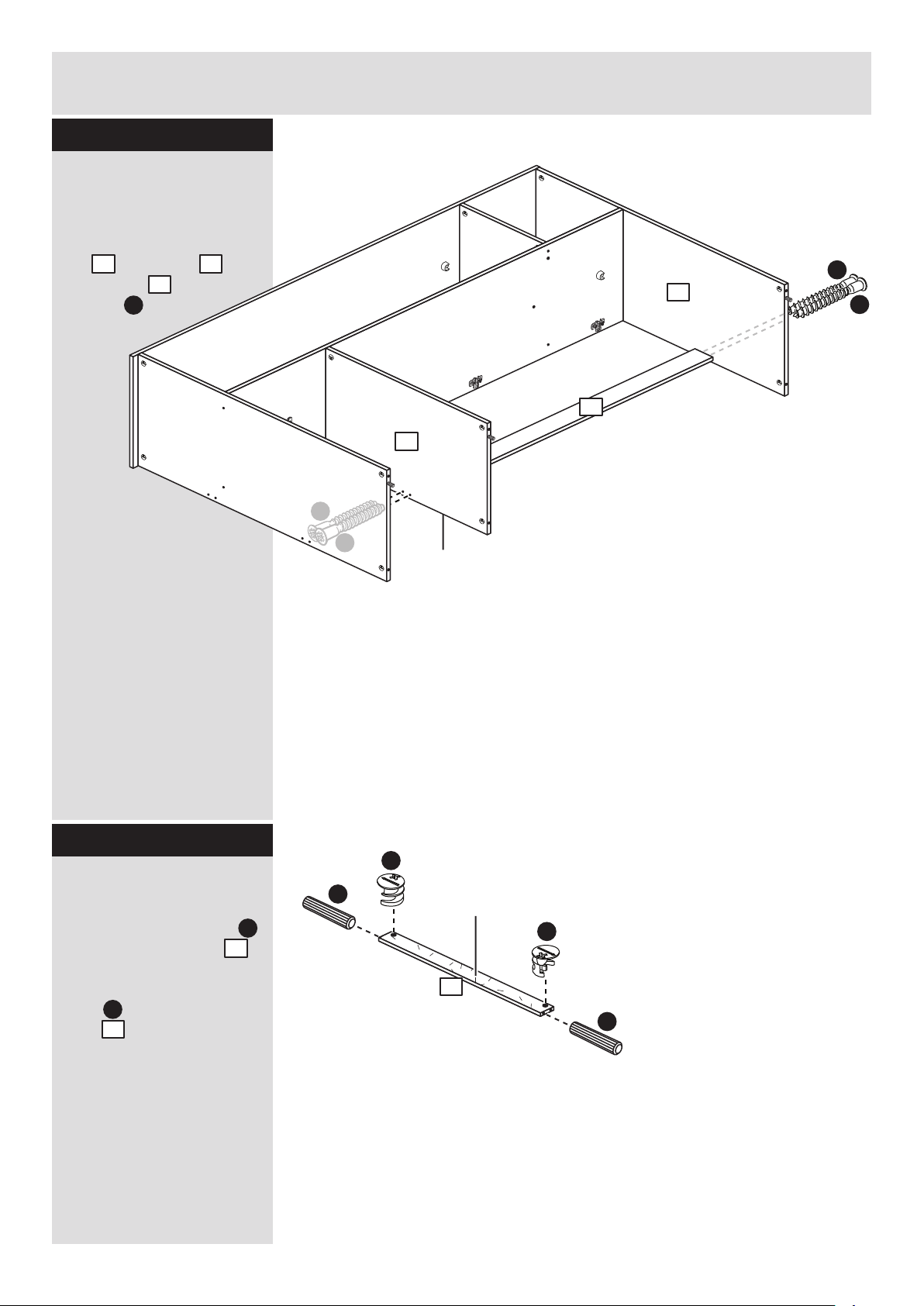

Step 17
Fit the wide shelf
Push the wide shelf
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the wide shelf .
12
12
10
D
12

E
E
Assembly Instructions
Step 18
12
13
Finished
front edge
12
15
11
A
D
A
Prepare the 2 rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
14
14
D
14
Plain chipboard
surface
x 2
D
Step 19
E
E
Fit the small vertical
rail
Attach the small vertical
rail to the top and
wide shelf using 4
screws .
15 11
12
E

Assembly Instructions
13
Step 20
Fit the rails
Push the rails onto
the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
14
10
D
14
14
14
10

Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
Step 21
14
13
Finished
front edge
I
P
a:
b:
c:
Prepare the left side
a: Place 2 runners on
the left side . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Screw 8 metal
dowels into the left
side .
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
8
I
I
B
8
P
P
8
N
L
G
8
N
8
I
P
I
P
I
I
B
B
N
N
NB
BB
B
B
B
L
G
8
8
8
Important: Use the hinge plates
in the bag marked as ...1046

Assembly Instructions
15

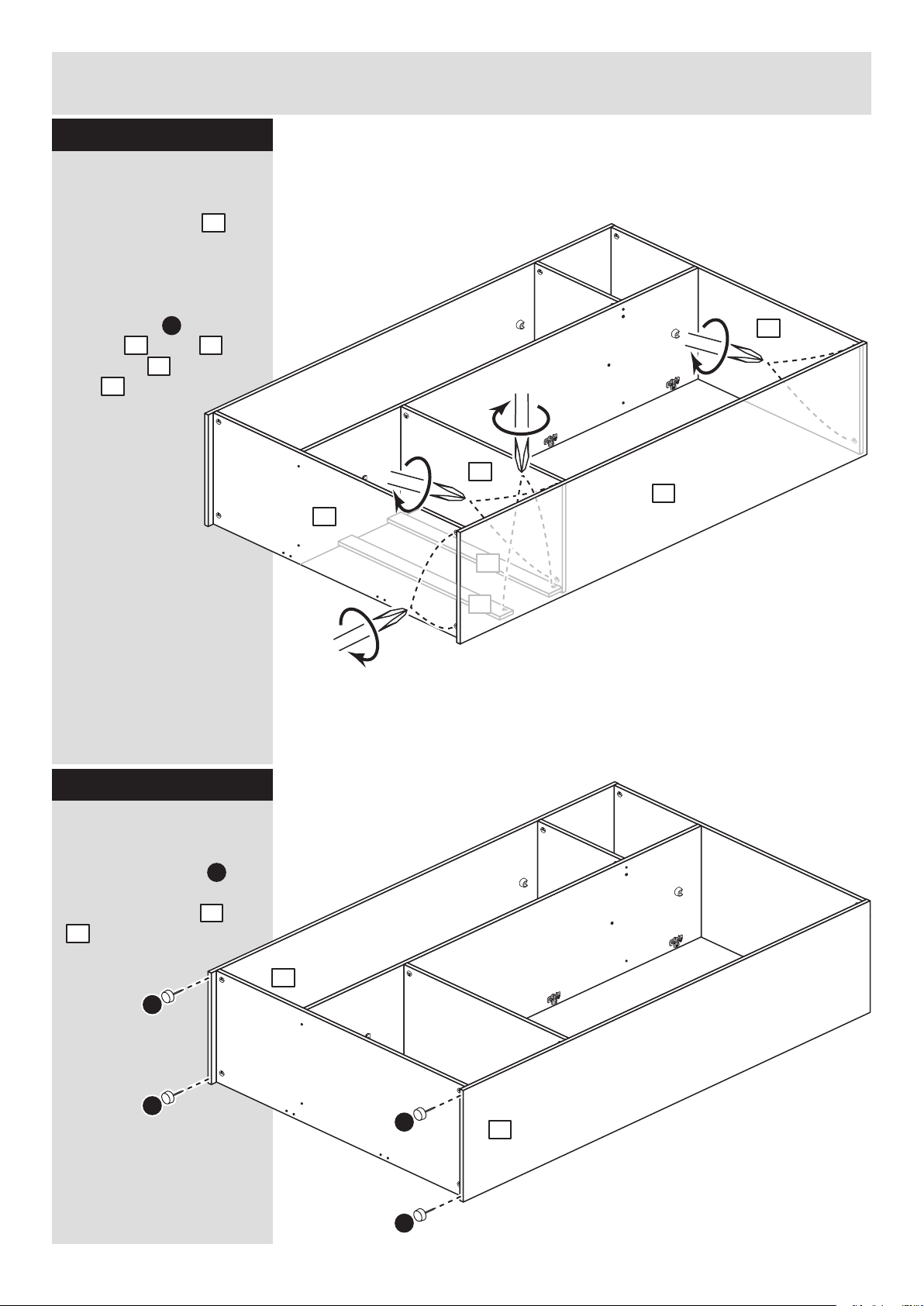

Step 22
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 8 large
locking nuts fitted to
the top , base ,
wide shelf and the 2
rails .
8
D
11 11
12
14
14
14
8
11
11
12
14
14
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
M
8
9
M
M
M
M
Step 23
8
9

Assembly Instructions

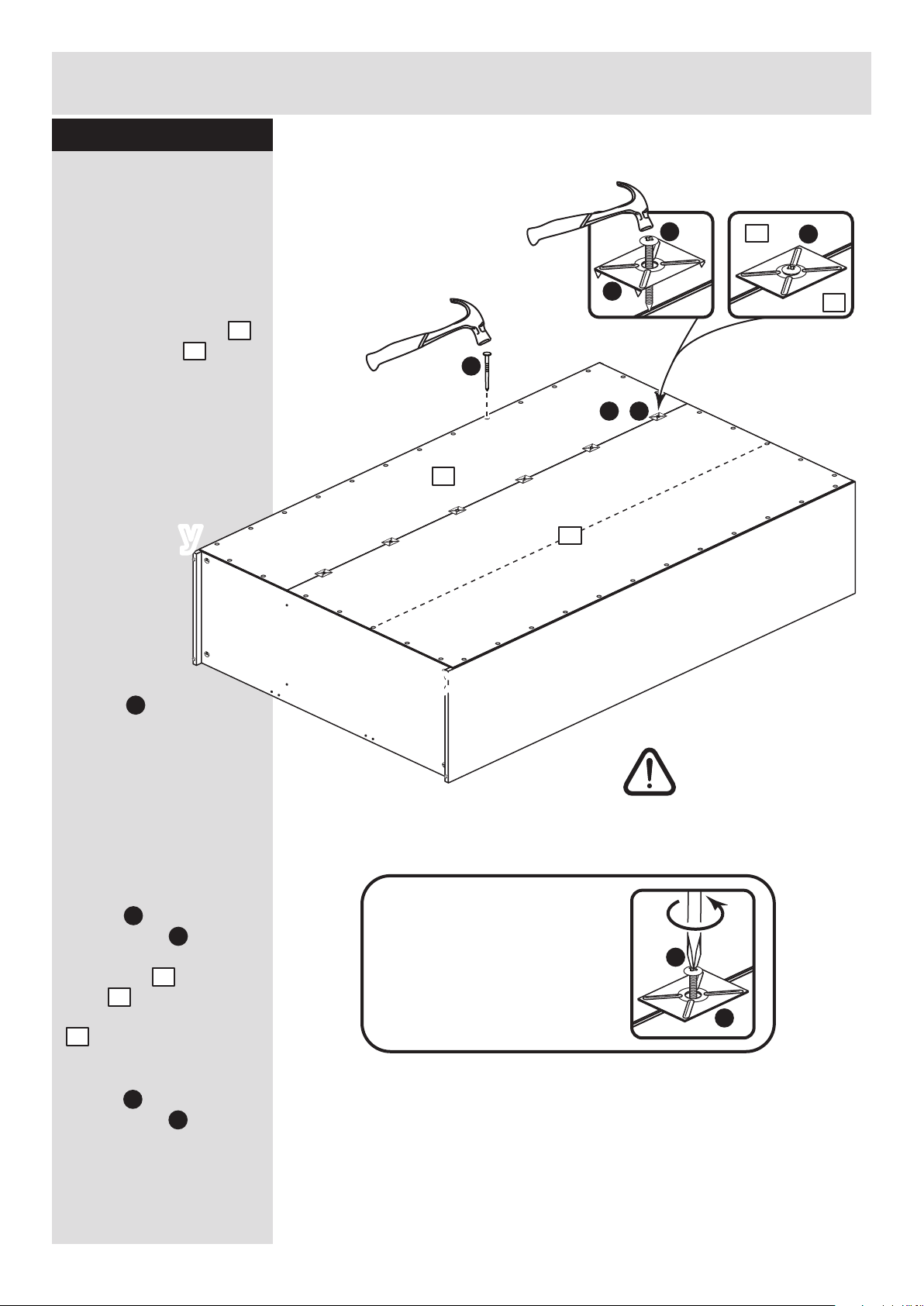

Step 24
16
13
yy
yy
xx
xx
Fit the back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back down,
onto the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet and
nails should be spaced
about 150mm apart.
c: Push the 6 nail
screws through the 6
back holders and tap
them down between the
small back and large
back and into the
back edge of the divider
. .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
19
20
K
Q
S
19
20
10
Q
S
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
Q
S
Warning: The
unit is heavy.
Lift with care.
c:
Q
S
19
20
S
b:
K
SQ +
19
20

Assembly Instructions
17

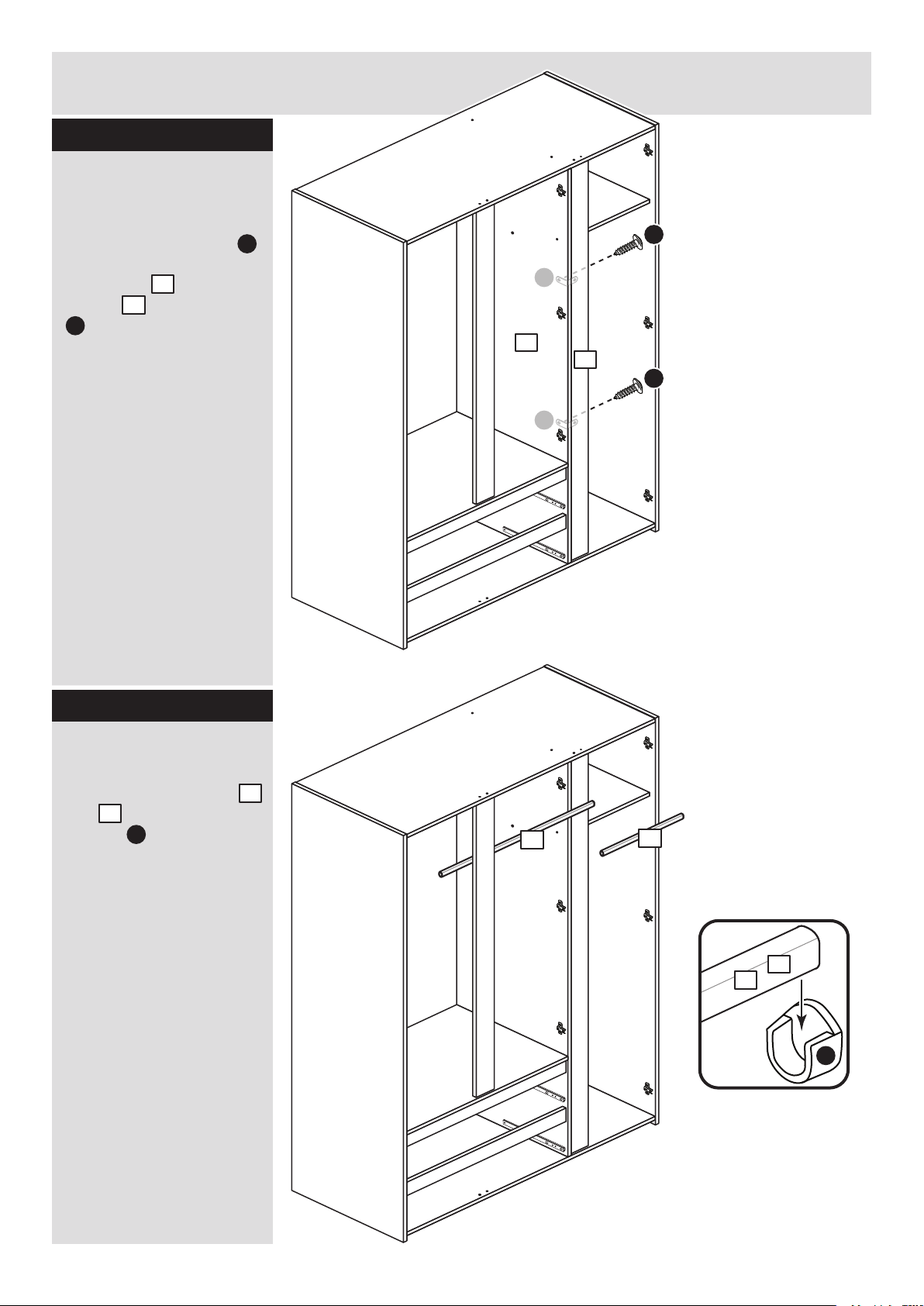

Step 25
Step 26
Fix the brackets to
the divider
Secure the 2 brackets
on the back of the large
vertical rail to the
divider using screws
. .
10
T
16
U
6
7
7
L
Fit the hanging rails
Push the hanging rails
and into the rail
holders .
6
7
L6
U
U
16
10
T
T

Assembly Instructions

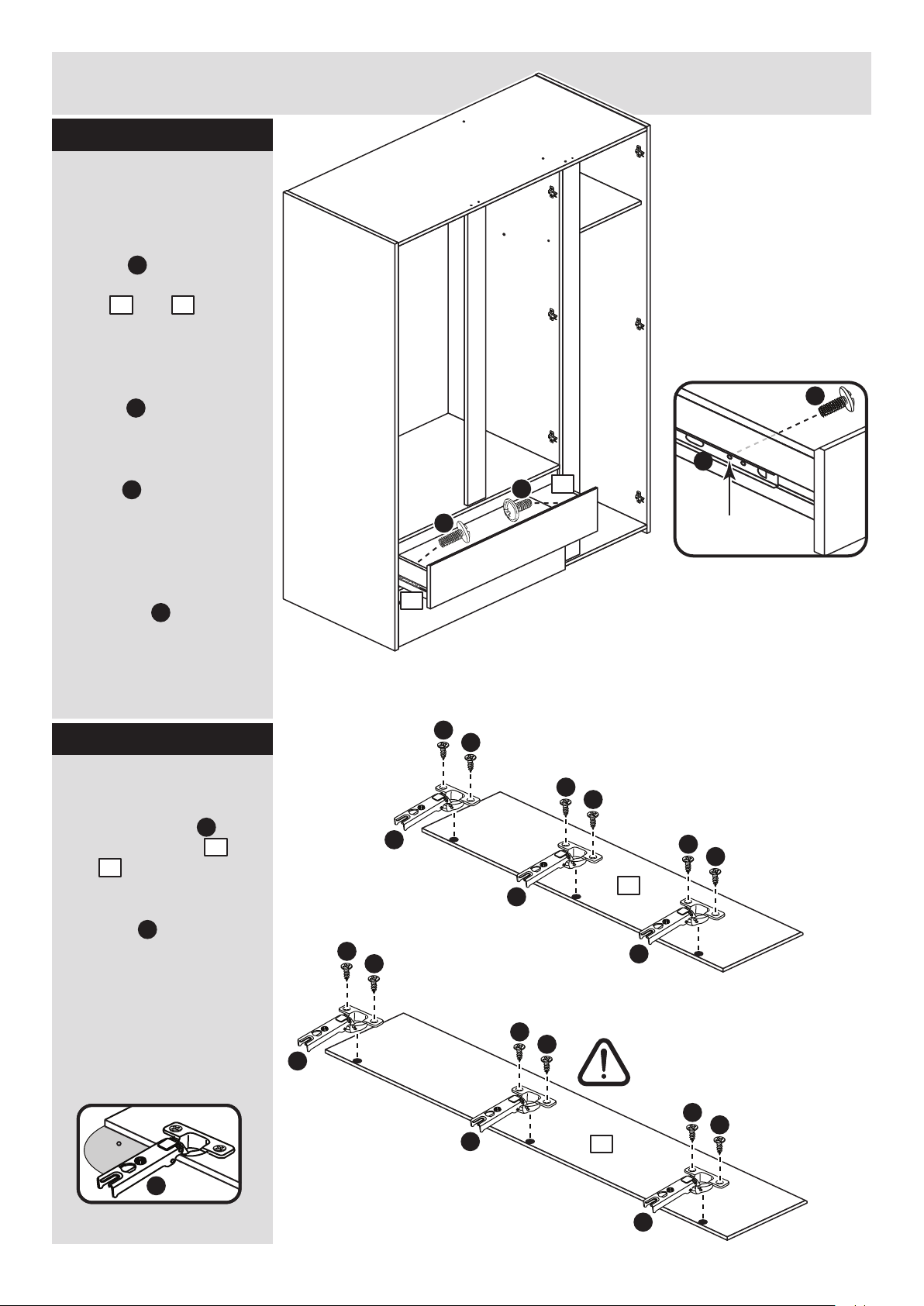

Step 27
18
Step 28
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Prepare the 3 doors
Push fit 3 hinges into
each of the doors
and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
90
O
O
17
18
G
x 2
H
P
P
H
2 3
2nd threaded
hole
P
H
H
H
O
GG
O
GG
O
GG
O
GG
O
GG
O
GG
17
18
Warning:
Glass! Handle
with care
x 2
2
3
Important: Use the hinges
in the bag marked as ...1046
Important: Use the hinges
in the bag marked as ...1043

Assembly Instructions
19

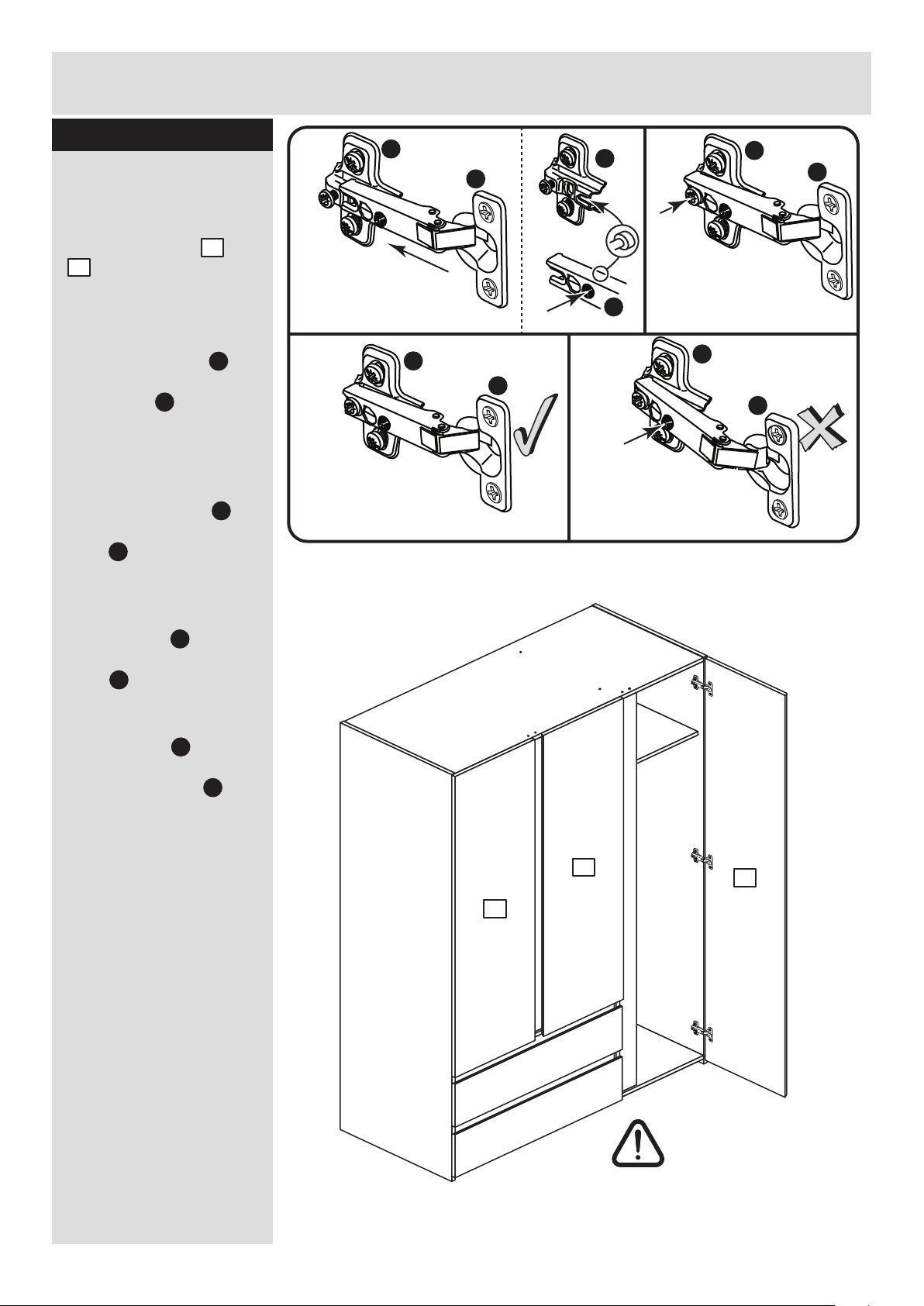

Step 29
Fit the 3 doors
Note: The easiest way to
attach each door and
is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
O
O
O
N
N
N
O
N
17
a: b:
c: d:
N
O
N
N
B
N
O
O
O
A
O
N
B
18
Warning:
Glass! Handle
with care
17
17 18
