Argos 408/5935 User manual

MADE IN
BRITAIN
Dimensions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Assembly Instructions - Please keep for future reference
ALR3196
408/5935
397/9468
425/5954
Issue 1 - 10/06/15
Sparkle - 1 Drawer 3 Door Robe
Width - 105.1cm
Depth - 51.6cm
Height - 182.3cm

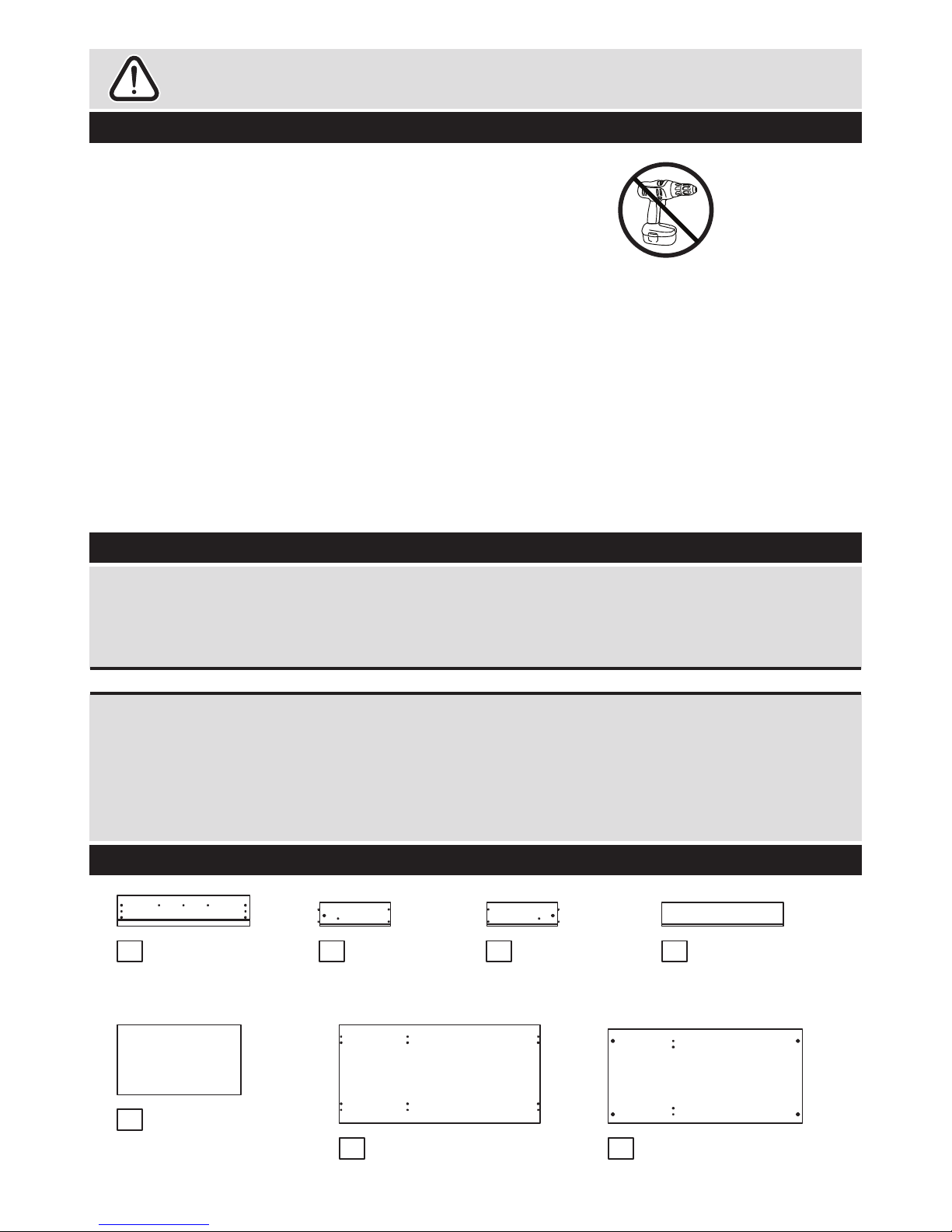

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 72kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Drawer Front (DF3872)
(69.3 x 16.2cm)
Drawer Base (T647-367)
(64.7 x 36.7cm)
Drawer Back (W636-124)
(63.6 x 12.4cm)
Left Drawer
Side (W370-124LH)
(37 x 12.4cm)
Right Drawer
Side (W370-124RH)
(37 x 12.4cm)

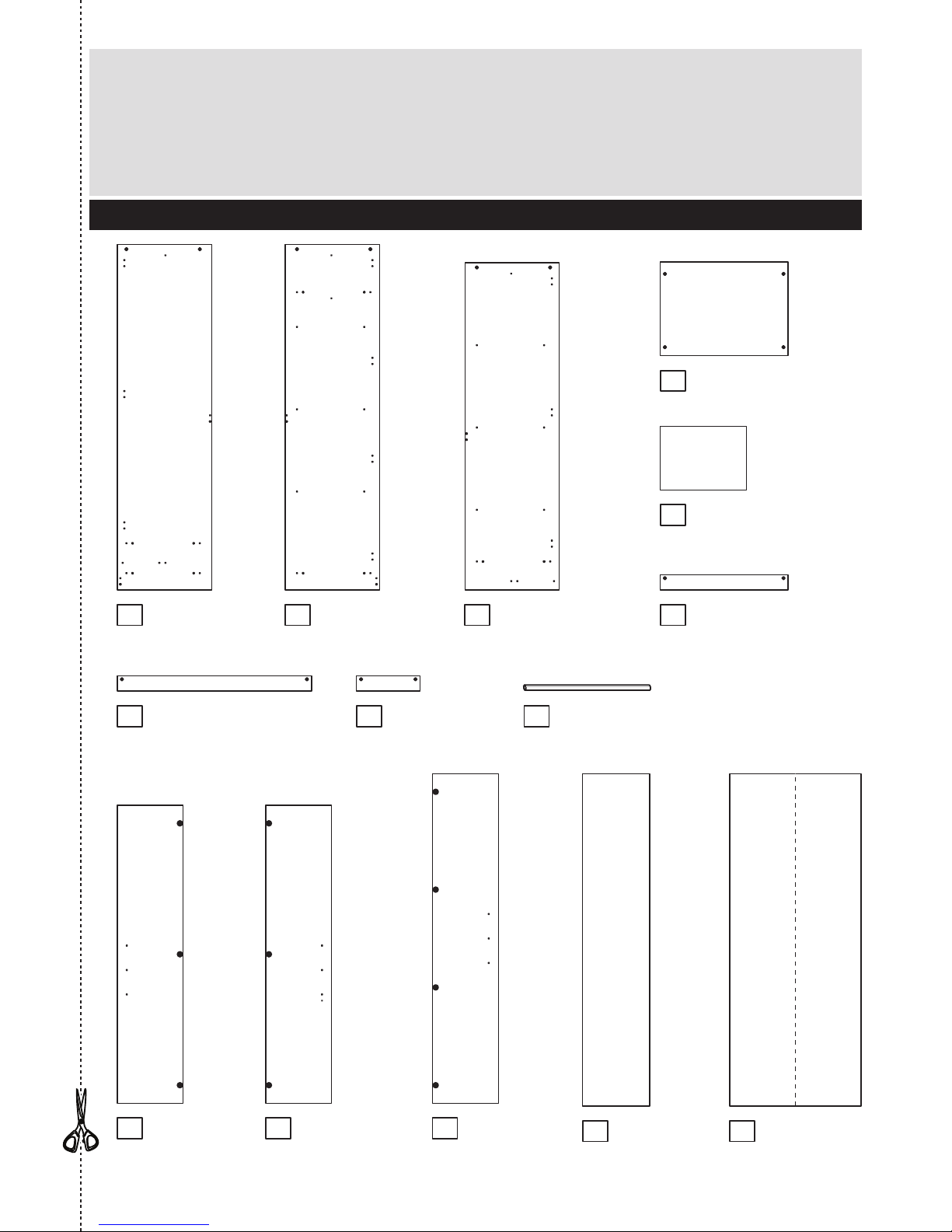

Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
12 3 4
5
Top (DF3844)
(105.1 x 51.6cm)
6 7 Base (DF3846)
(101.7 x 49.3cm)

Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
2
80%
x 3
90%
x 1 89 10
15
Shelf (DF3848)
(33.3 x 45cm) x 3
Large Rail (DF3840)
(66.9 x 8cm)
Right Side (DF3838)
(180.8 x 49.4cm)
13
Small Rail (DF4400)
(33.3 x 8cm)
Large Back
(X1739-688)
(173.9 x 68.8cm)
Small Back
(X1739-352)
(173.9 x 35.2cm)
12
14 Plinth (DF3845)
(101.7 x 8cm)
1917 20 21
Hanging Rail (FHR663)
(66.3cm long)
16
Left Side (DF4402)
(180.8 x 49.4cm)
Divider (DF4401)
(171.25 x 49.2cm)
Horizontal (DF3871)
(66.9 x 49.1cm)
Right Door
(DF3842)
(172.4 x 34.5cm)
Left Door
(DF3870)
(155.9 x 34.5cm)
18 Middle Door
(DF4456)
(155.9 x 34.5cm)
11

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

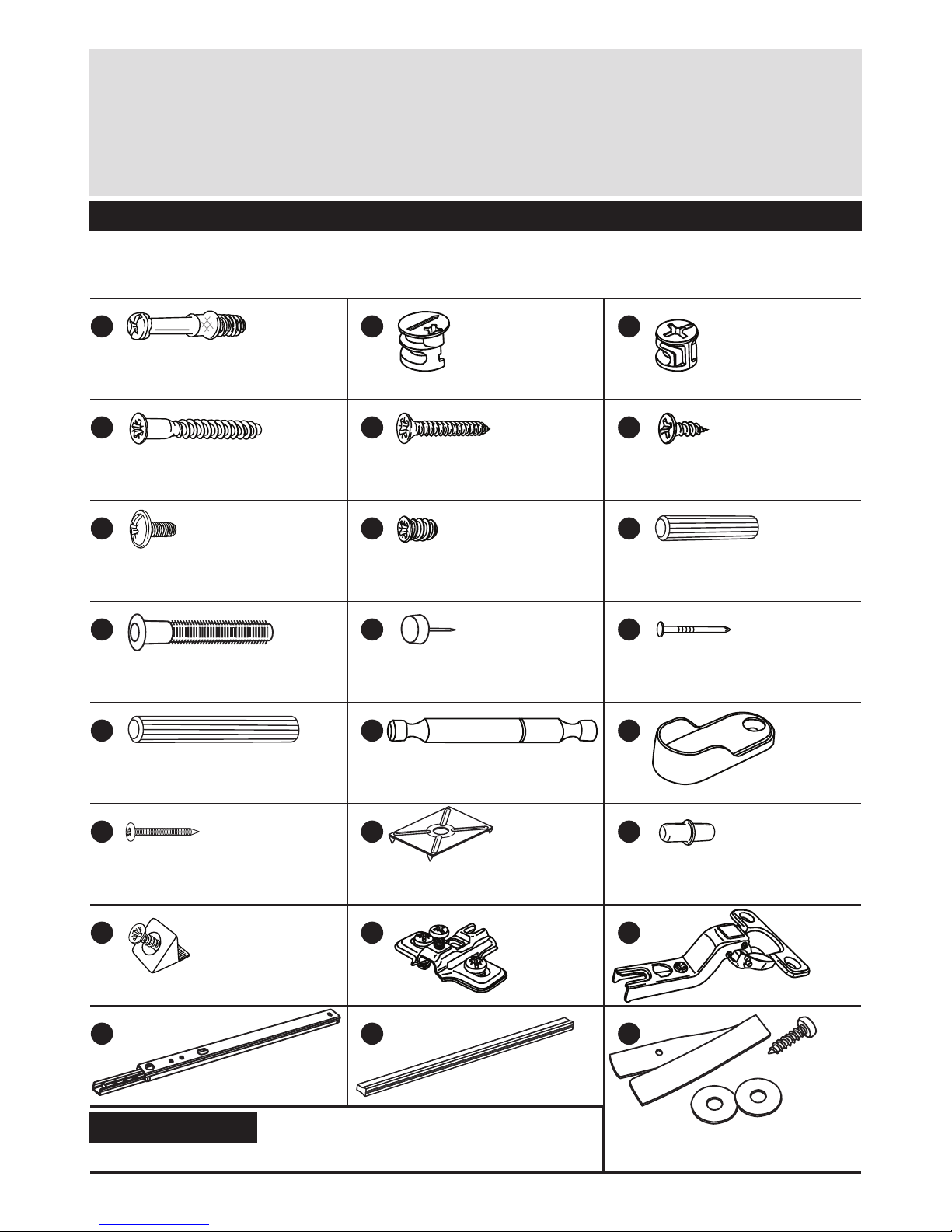

Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
3
A B
D E F
IG H
T U
Large locking
nut (F900) x 20
Metal dowel (F901) x 20
Wooden dowel (F22) x 20
X
O
Rail Holder
(F891) x 2
13mm Screw (F63) x 24
Hinge plate
(F523) x 10
Strap
Screw
Washer x 2
Overbalance protector kit (F269) x 1
Hinge (F522) x 10
25mm Screw (F50) x 12
Handle (F569) x 4
40mm Screw (F910) x 2
M
Large wooden dowel (F40) x 1
N
Double metal dowel (F566) x 1
Q
Back holder (F276) x 5
*These can also be round
P
Nail screw (F277) x 5
J
Small locking
nut (F3) x 2
C
9mm Screw (F74) x 2 9mm Screw (F73) x 4
Knock-in Peg (F171GY) x 4
R
W
V
LK
Nail (F51) x 40
Plastic Nail (F91) x 4
Shelf stud (F110) x 12
S
Drawer runner (F1004) x 2
Wedgefix (F639) x 4
Scissors / Rule / Square / Spirit level / Hammer / Cross-head screwdriver
Eye protection / Electric drill / Step ladder
Tools required

1
Assembly Instructions
4

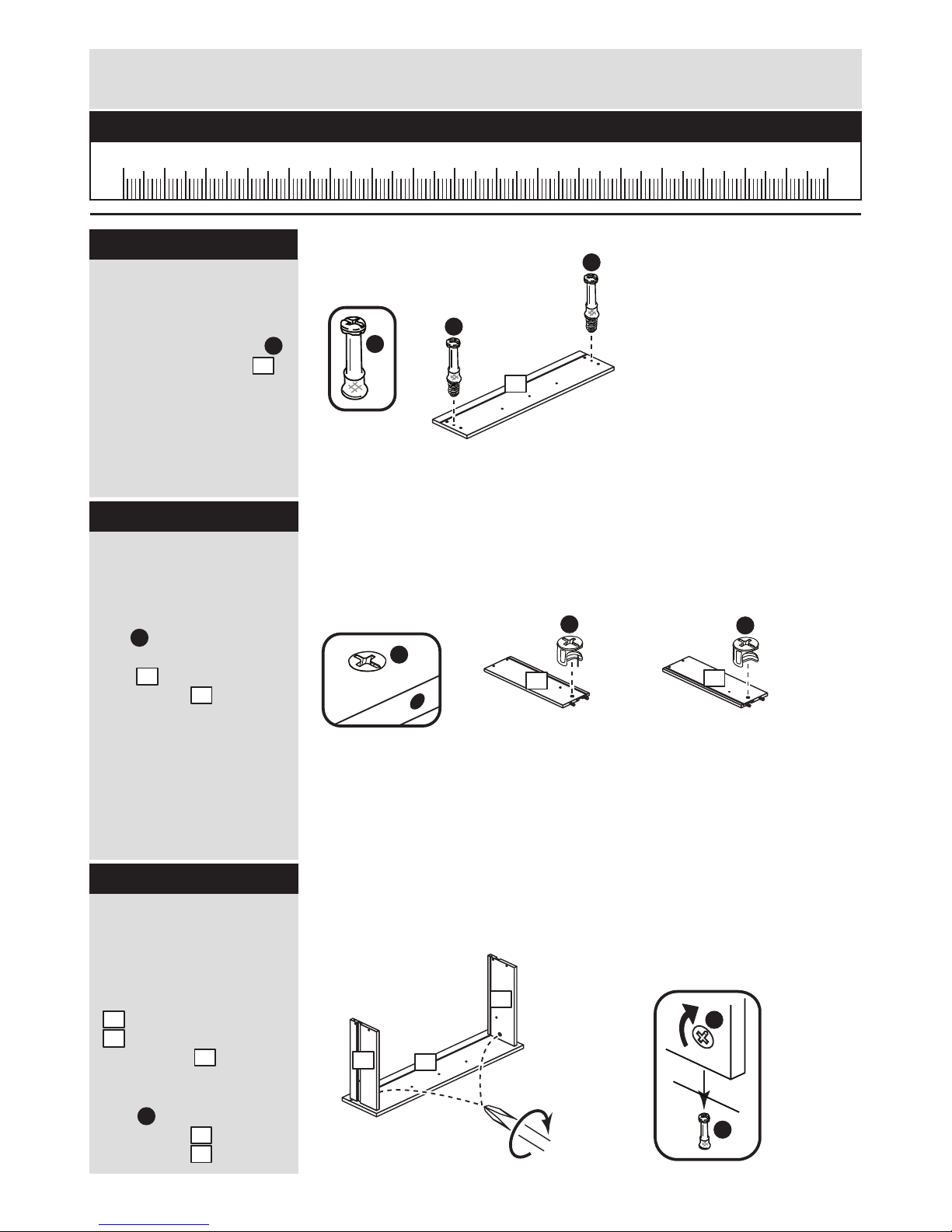

Step 1
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A
C
C
C
23
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
1
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
C
2
3
A
A
1
A
C
Step 3
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking nuts
clockwise to secure panels -
more than 1/2 a turn.
2
3
1
C
2
3
2
3
80% x 3

1
Assembly Instructions
5
Step 4
J
J
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
5
2 3
1
4
2 3
5
4
4
J
Attach the handles
Attach a handle to the
drawer front using 3
screws .
Note: Do not
overtighten the screw.
W
E
1
2 3
Step 7
Fit the wedgefixes
Turn the drawer
assembly over and slide
4 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
S
J
J
S
S
S
SS
5
2
3
5
2
3
4
E
E
E
W
1

Finished
front edge
Assembly Instructions
6

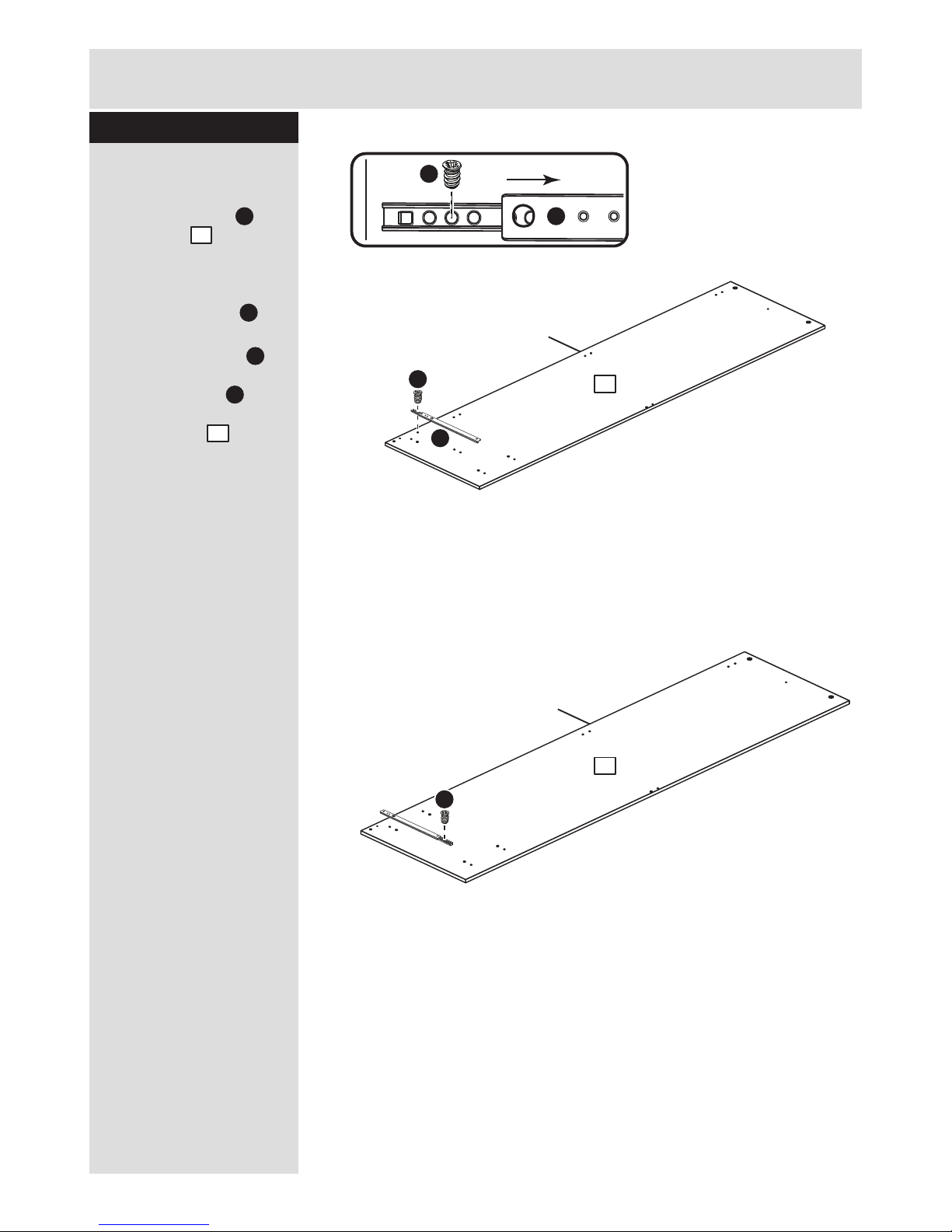

Step 8
Prepare the left side
a: Place a runner on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
8
H
H
8
V
V
a:
b:
H
V
Finished
front edge
H
V
H
8
8
80% x 3
90% x 1

Finished
front edge
Finished
front edge
I
I
Assembly Instructions
7
Step 9
Finish preparing the
left side
a: Screw 6 metal
dowels into the left
side .
Note: Tighten the metal
dowels up fully against
the panels.
Insert 2 large locking
nuts into the
left side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b: To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
A
8
8
I
8
A
F
O
F
O
F
F
O
10mm
I
A
AA
A
A
B
B
B
T
T
T
T
B
O
F
8
F
T
8
8
8
b:
a:
A

I
I
Assembly Instructions
8
Step 10
A
A
A
A
B
B
T
T
T
T
T
Finished
front edge
Finished
front edge
Prepare the right side
a: Screw 4 metal
dowels into the right
side .
Insert 2 large locking
nuts into the right
side .
Tap 2 wooden dowels
into the right side .
b: Fit 4 hinge plates
onto the right side ,
making sure that the slot
is facing towards the
finished front edge.
A
9
9
I
9
B
T
9
9
9
b:
a:
I
I
Prepare the base
Insert 4 large locking
nuts into the base .
Tap 4 wooden dowels
into the base .
7
I
7
B
Step 11
Finished
front edge
B
B
B
B
I
I
7

Assembly Instructions
9
Step 12
Finished
front edge
Finished
front edge
A
B
Fit the base to the
right side
Push the base onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
7
9
B
B
7
9
7
Prepare the divider
a: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
10
H
H
10
V
Va:
b:
H
V
H
V
H
Finished
front edge
Finished
front edge
10
10
Step 13

I
I
Assembly Instructions
10
Step 14
I
I
B
B
T
T
T
F
F
O
Finished
front edge
I
I
T
Finish preparing the
divider
Screw 2 metal dowels
into the divider .
Insert 2 large locking
nuts into the
divider .
Tap 4 wooden dowels
into the divider .
To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 3 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
10
I
10
B
O
F
10
F
T
10
10
Prepare the horizontal
Insert 4 large locking
nuts into the
horizontal .
Tap 4 wooden dowels
into the horizontal .
11
I
11
B
Step 15 B
BB
B
I
I
11
Finished
front edge
A
A
A
10

Finished
front edge
Finished
front edge
Assembly Instructions
11
Step 16
9
Finished
front edge
15
Fit the small rail
Push the small rail
onto the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the small
rail .
9
15
B
15 Note: Support the small
rail until the divider has
been fitted in the next
step.
Step 18
Fit the horizontal to
the divider
Push the horizontal
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
10
11
B
11
10
11
I

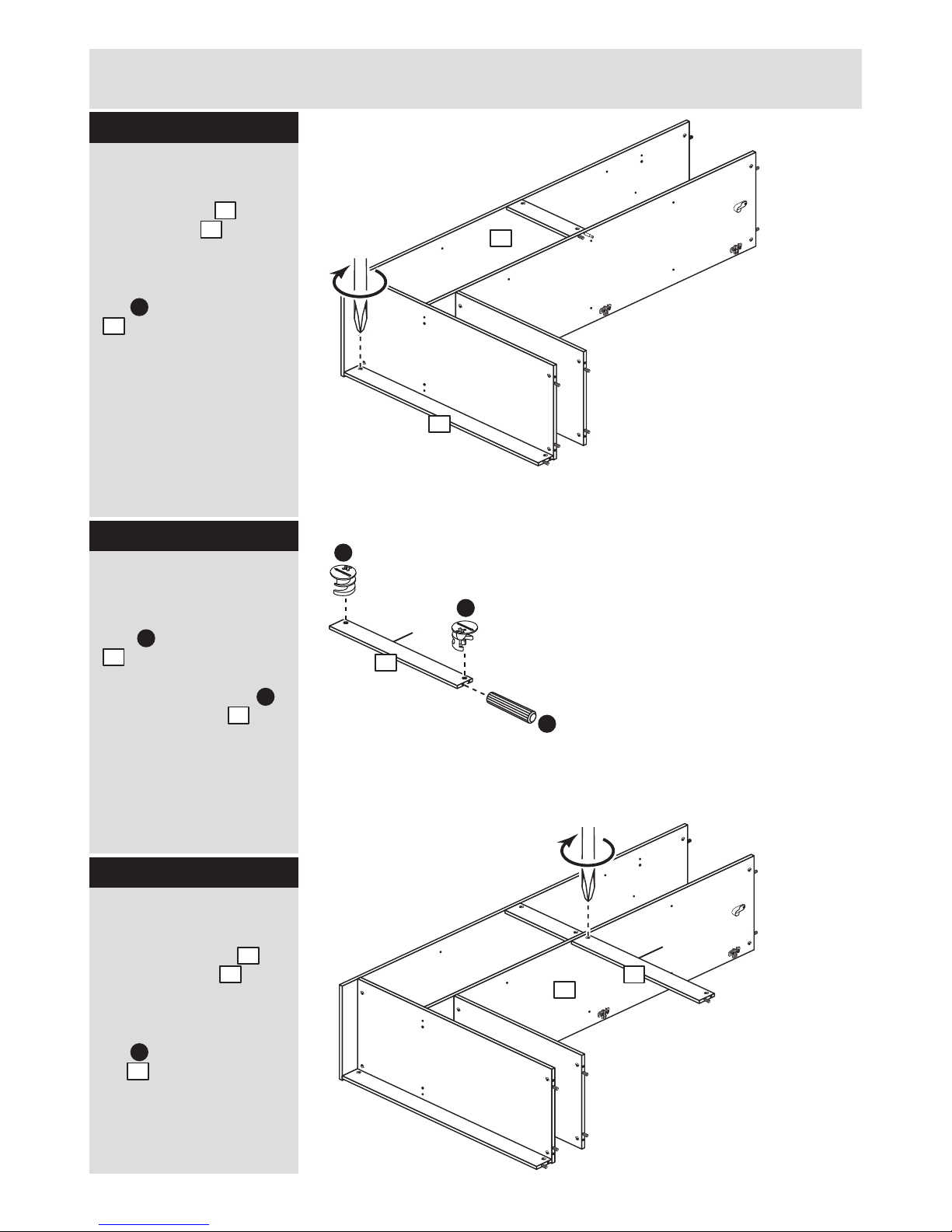

Prepare the small rail
Insert 2 large locking
nuts into the small rail
. .
Tap a wooden dowel
into the small rail .
15
I
15
B
B
B
Finished
front edge
15
Step 17

Assembly Instructions
12
Step 19
Step 20
7
D
D
N
N
M
B
M
Fit the divider
a: Push the divider
onto the base and
attach it using 2 screws
. .
b: Tap a double metal
dowel through the
divider and into the
small rail until it
‘’bottoms out’’.
Tap a large wooden
dowel through the
divider and into the
small rail until it
‘’bottoms out’’.
c: Use a screwdriver to
tighten the large locking
nut fitted to the small
rail .
7
10
D
N
10
15
M
10
15
B
15
b:
c:
a:
10
15
I
Prepare the plinth
Insert 2 large locking
nuts into the plinth .
Tap 2 wooden dowels
into the plinth .
14
I
14
B
B
B
I
14

Assembly Instructions
13
Step 21
Finished
front edge
Fit the plinth
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
Step 22
9
14
B
14
9
14
Prepare the large rail
Insert 2 large locking
nuts into the large rail
. .
Tap a wooden dowel
into the large rail .
13
I
13
B
B
I
B
13
Fit the large rail
Push the large rail
onto the divider .
Use a screwdriver to
tighten the large locking
nut fitted to the large
rail .
10
13
B
13
Note: Support the large rail
until the left side has been
fitted in the next step.
Finished
front edge
13
Step 23
10

Assembly Instructions
14
Step 24
7
9

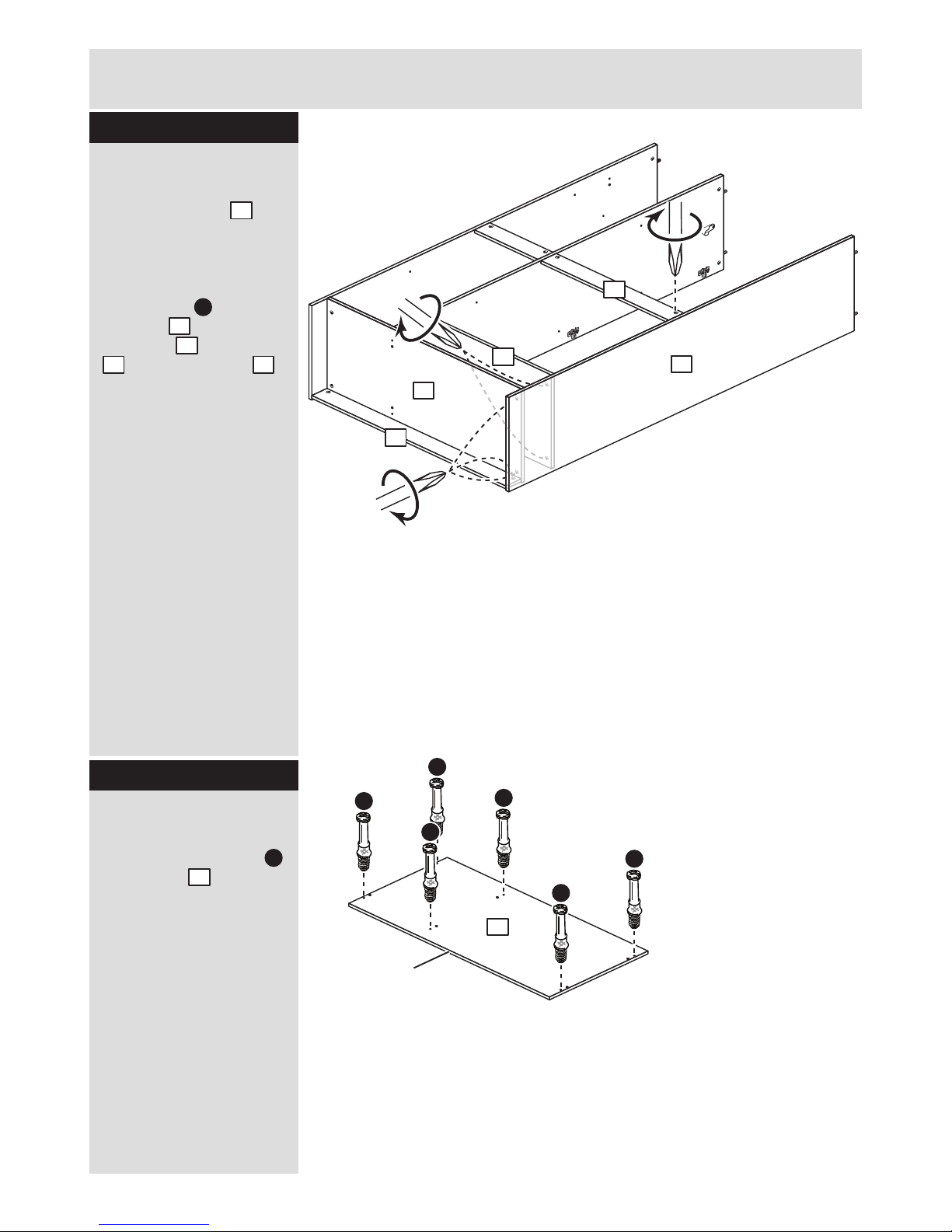

Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the base , the
horizontal , the plinth
. and the large rail .
8
B
7
11
14 13
5
1
13
8
7
11
14
Prepare the top
Screw 6 metal dowels
into the top .
A
6
A
A
A
A
A
A
Finished
front edge
Step 25
6

Finished
front edge
Assembly Instructions
15
Step 26
Fit the top
Note: To make it easier
to fit the top, place
polystyrene blocks from
the packaging
underneath the side and
divider panels to raise
the assembly.
Push the top onto
the assembly.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side , the right
side and the divider
. .
6
B
8
9
10
Polystyrene
block
Polystyrene
block
6
8
9
10
Step 11
Step 27
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
K
8
9
K
KK
K
8
9

Assembly Instructions
16
Step 28
7
9
5
1
yy
yy
xx
Fit the 2 back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back ,
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the divider .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
20
21
L
P
Q
20
21
10
P
Q
Warning: The
unit is heavy.
Lift with care.
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
P
Q
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Note: These can
also be round
QP +
c:
P
Q
20
21
Q
b:
L
20
21
xx

Assembly Instructions
17
Step 29
Fit the hanging rail
and shelves
Push the hanging rail
into the rail holders
fitted to the side panels.
For each of the 3
shelves , insert 4 shelf
studs .
Lower the 3 shelves
down onto the shelf
studs .
12
R
12
RRx 4
Rx 4
Rx 4
12
12
12
16
16
O

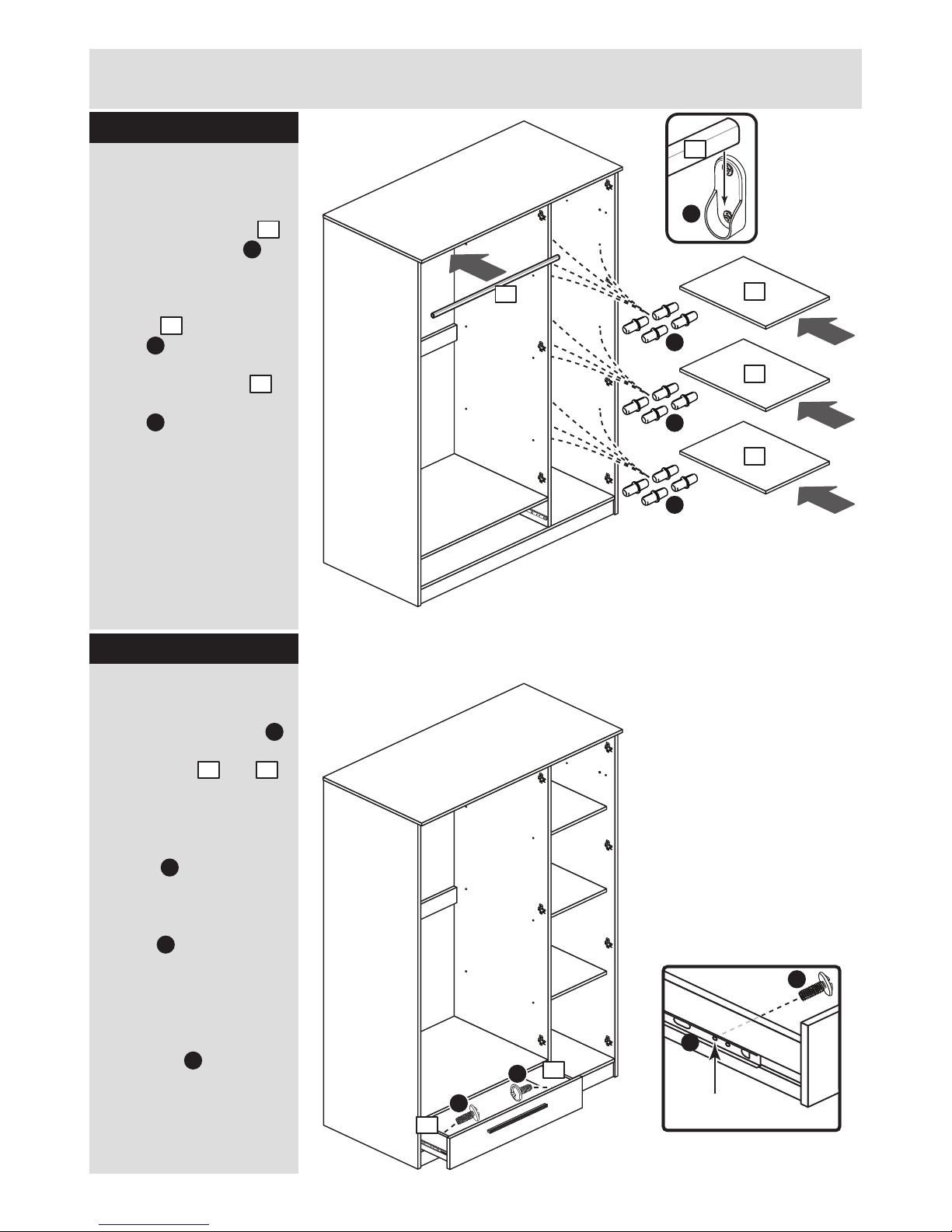

Step 30
Fit the drawers
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
G
V
V
G
2nd threaded
hole
V
G
2 3
G
G
16
O
2
3

Assembly Instructions
18
Step 31
Prepare the right door
Push fit 4 hinges into
the right door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
U
19
Prepare the left door
and middle door
Push fit 3 hinges into
the left door and
middle door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
U
18
17
90
U
U
F
F
U
F
F
U
F
F
U
F
F
19
Step 32
U
F
F
U
F
F
U
F
F
U
F
F
U
F
F
U
F
F
18
17
Note: The middle door has
a small identification hole.

Assembly Instructions
19
Step 33
Fit doors and handles
Note: The easiest way to
attach each door ,
and is to fit the top
hinge first, then align and
fit the other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door , and
. . using 3 screws .
U
U
U
T
T
T
U
T
W
E
17 18
19
17
19
18
a: b:
c: d:
T
U
T
T
B
T
U
U
U
A
U
T
B
e:
E
E
E
W
19
17
Note: The middle door has
a small identification hole.
W
W
18
