Argos Amersham 706/1262 User manual

Amersham - Solid Pine Large Sideboard
706/1262
Dimensions
Width - 131cm
Depth - 42cm
Height - 84cm
Issue 2 - 08/08/18
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Important – Please read these instructions fully before starting assembly

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Care and maintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.

Components - Panels
Please check you have all the panels listed below
2
top
top
1Top panel (131 x 42cm)
2Base panel (125.6 x 38.4cm)
3Shelf (125.4 x 22.6cm)
4Front frame x 2 (114.8 x 6.5cm)
5Middle front frame (114.8 x 6.5cm)
6Right side panel (82 x 40cm)
Left side panel
(82 x 40cm)
7
Right front frame
(82 x 9.2cm)
8
Left front frame
(82 x 9.2cm)
9
Back column x 2
(70.6 x 6.5cm)
10
11 Back panel x 3 (73 x 42cm)
12 Door x 3
(43 x 31.8cm)
13 D x 3rawer bottom
(30.5 x 30.5cm)
14 Drawer front x 3
(32 x 14cm)
15 Drawer sides x 6
(31.8 x 14cm)
Drawer back x 3
(29.6 x 14cm)
16
17 Vertical frame x 2
(47.7 x 6.5cm)
18 Small vertical
frame x 2
(18.8 x 6.5cm)
19 Side drawer
runner x 2
(35.2 x 8cm)
Middle drawer
runner x 2
(36.4 x 8cm)
21 Bottom Support
(20 x 9.6cm)
20
22 Block x 4
(10 x 2cm)
underside
underside

Wooden dowel x 42 14mm Screw x 40
35mm Screw x 28
30mm Screw x 24
22mm Bolt x 6 Metal dowel x 8
Locking
nut x 8
Door
hinge x 6
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
0510 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Phillips screwdriver
(medium & large)
Eye protection
(when using a
hammer or glue)
Small
hammer
Ruler/tape
measure
2m
3
Components - Fittings If you have damaged or missing components,
call the Customer Helpline: 03456 400 800
G
A
D
J
E
H
B
K
C
F
I
L
M N O
PQ
Washer x 4
Wall strap x 2
Door
spacer x 1
Nail x 48
Door / Drw
handle x 6
Clip x 3 Plug x 3
Shelf
support x 4
Metal
bracket x 1

Step 2
Step 1
Fixing right front frame
to the right side panel
(Two people required for
an easier assembly).
a: Insert right side panel
into right front frame
through joints.
c: Fix front frame through
blocks using screws
.
D
Assembly Instructions
4
Fixing left front frame
to the left side panel
(Two people required for
an easier assembly).
a: Insert left side panel
into left front frame
through joints.
c: Fix front frame through
blocks using screws
.
D
Attention: correct
position of panel.
Top
Note:
Before fixing
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
b: Place blocks
between the two marks as
shown. First fix to the side
panel using screws .
D
Note:
Before fixing
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
b: Place blocks
between the two marks as
shown. First fix to the side
panel using screws .
D
a: b: c:
D
D
Yes!No!
a: b: c:
D
D
Yes!No!
Attention: correct
position of panel.
Top
6
8
22
6 8
22
22
22
22
6
8
6
8
22
7
9
22
22
22
9
7
22
22
9
7
7
9
22

Assembly Instructions
5
Step 3
Step 4
F
Fitting Metal dowels.
Screw metal dowels
into right side panel ,
left side panel and top
panel .
Insert metalNote:
dowels as far as
shown.
Do not over tighten.
Insert dowels into the
indicated parts.
Insert shelf supports
into the right side panel
and left side panel
.
A
F
F
F
F
1
F
1
A
A
A
A
A
2x
L
6
7
6
7
67
and
A
A
A
A
2x
A
A
L
L
2
2x 10
19
20
6
7

Assembly Instructions
6
Step 5
Fixing side drawer
runners.
a: Fit side drawer
runner to the right
side panel . Fit and
push dowels into the
front frame first.
b: Attach side drawer
runner using screw .
Repeat step 5 for the
left side panel and
side drawer runner.
D
D
a:
b:
Step 6
Assembling parts.
Put parts , , and
together as shown in
the diagram.
D
6
19
19
6
7
19
4
4
5
17
17
18
18
4517
18

Assembly Instructions
7
Insert the assembled
frame into the holes on
left side panel .

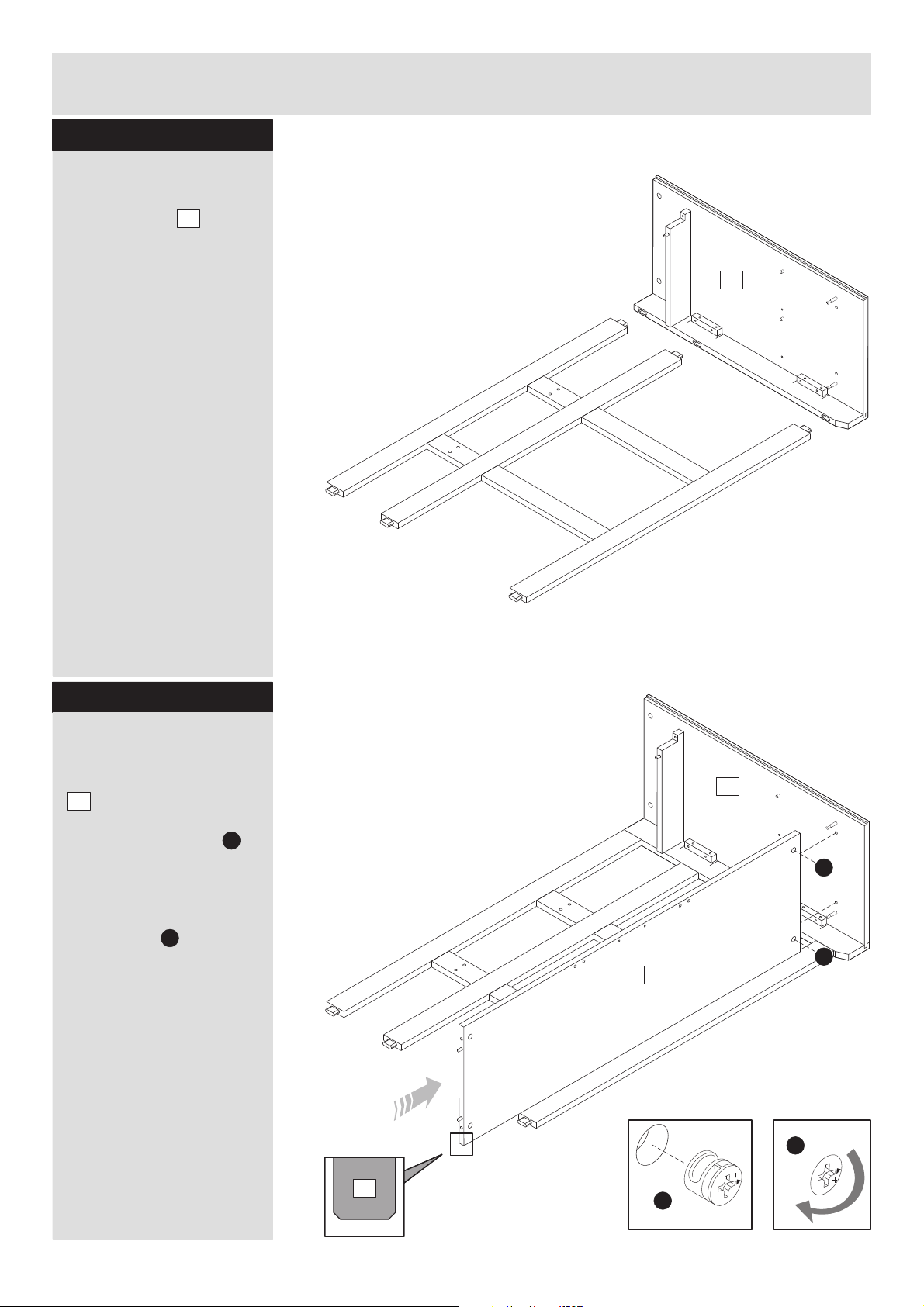

Step 7
Step 8
Fixing base panel.
With help, fit base panel
to the left side panel.
Insert 2 locking nuts
into base panel where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
G
G
G
G
7
7
G
G
2
7
2
2

Assembly Instructions
8

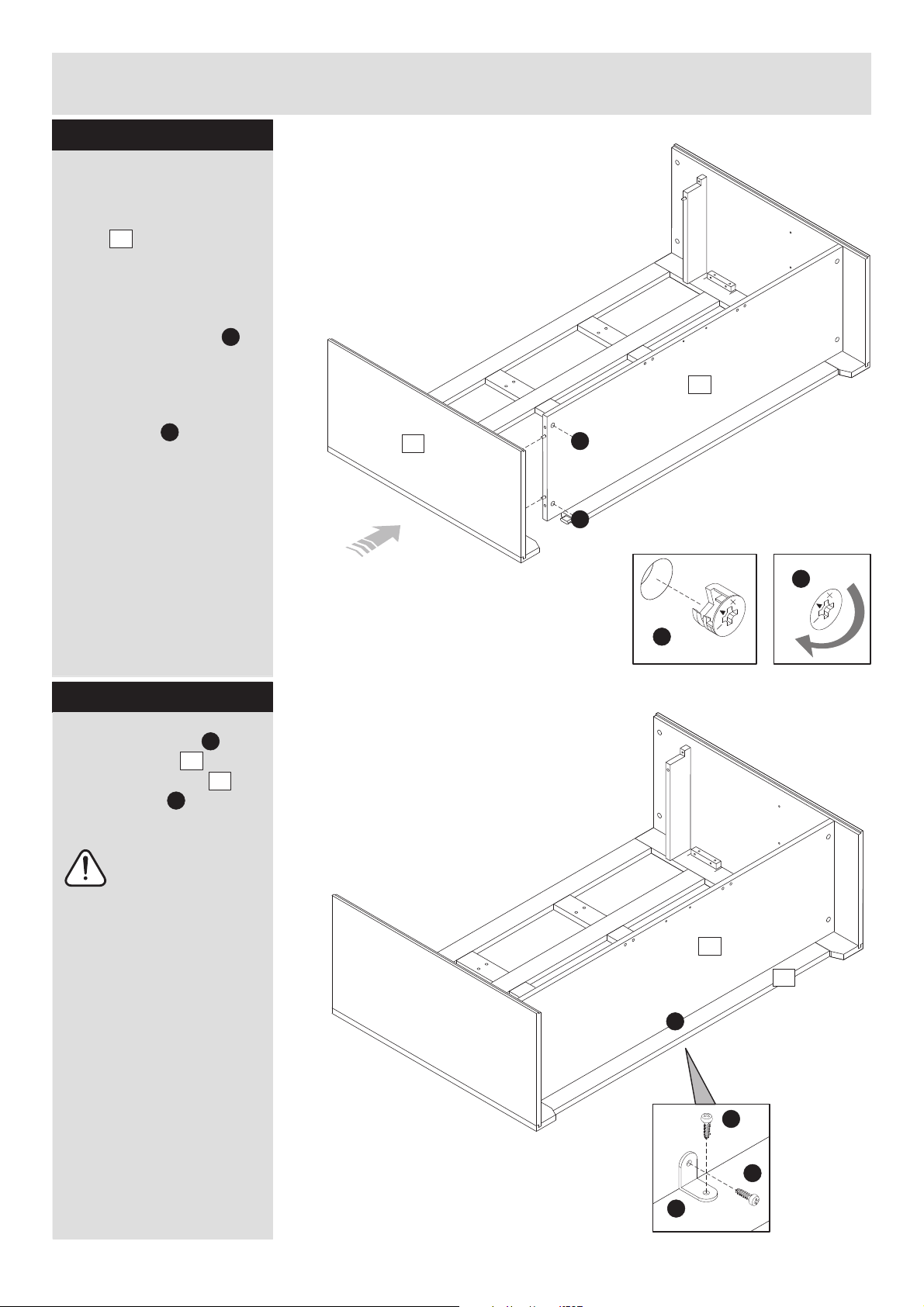

Step 9
Step 10
Fix metal bracket in
the base panel and
bottom front frame
using screws as
shown.
Important:
With help, carefully
stand the product upright.
M
B
Fixing right side panel.
With help, place right side
panel properly
ensuring dowels and front
frames are all fit into their
holes at the same time.
Insert 2 locking nuts
into base panel where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
G
G
G
G
B
B
M
M
6
G
G
2
6
4
2
2
4

Assembly Instructions
9

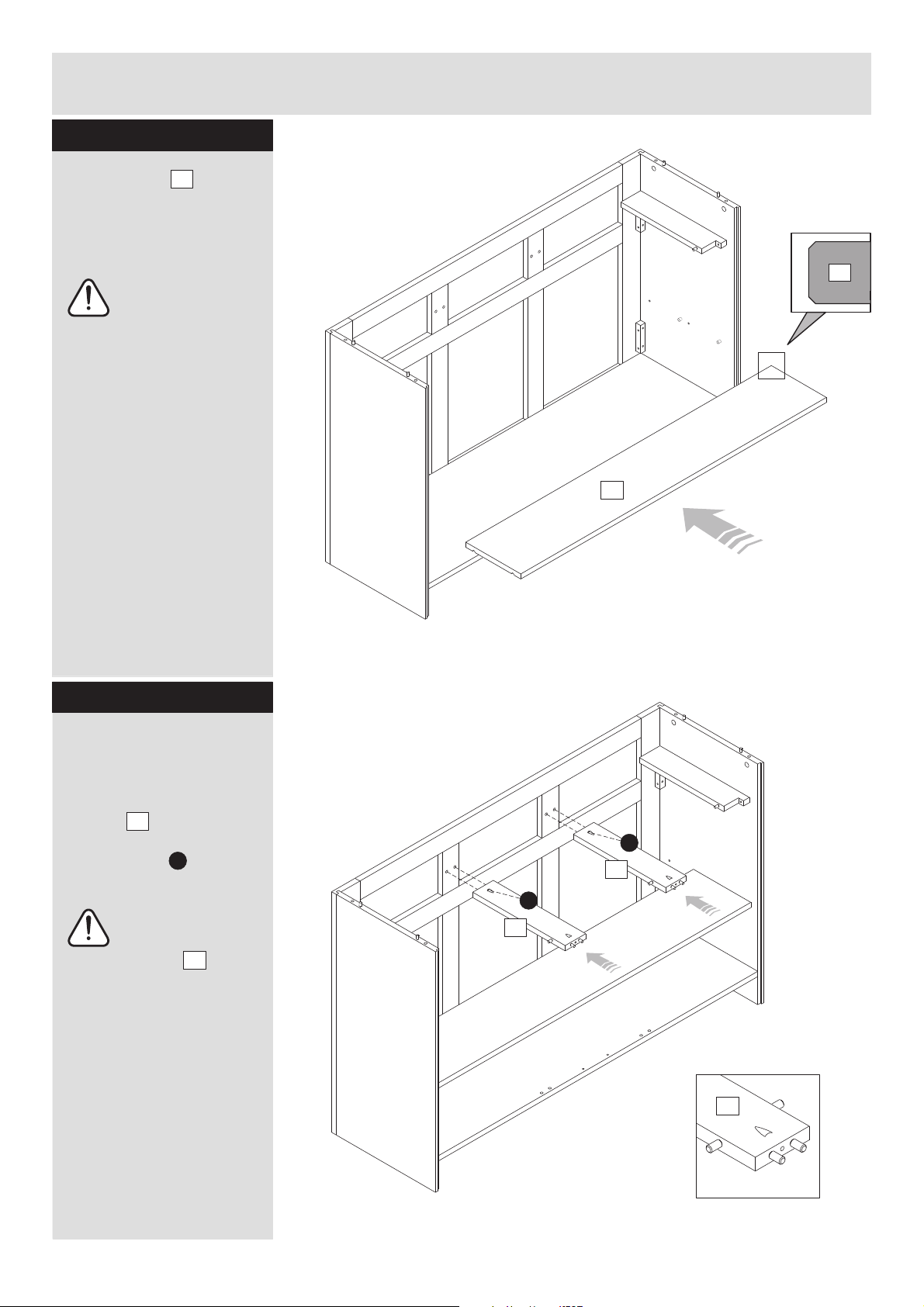

Step 11
Step 12
Fixing middle drawer
runners.
Fit middle drawer
runners at the small
vertical frames then fix
using screws .
Attention:
Make sure middle
drawer runners are
positioned as shown in
the diagram prior to
fixing.
Position shelf into
place.
Make sure round edge is
facing front.
Note:
This shelf is
adjustable it can
be placed near the back
panel and leave a gap in
the front or it can be
placed near the doors,
leaving a gap in the back.
3
3
3
View from behind
D
20
D
20
20
20
D
Attention:
20

Step 13
Assembly Instructions
10
Step 14
Fixing back column.
Fit back column to
middle drawer runners
and base panel .
Attach back column
to middle drawer runners
using screws .
D
D
10
10
20
2
10
20 2
10
D
Fixing top panel.
With help, fit top panel
to the cabinet.
Insert locking nuts4
side p sinto anel where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
Attach back column
to top panel and base
panel using screws .
1
G
G
G
G
1
G
G
G
D
D
D
D
10
10
10
D

Assembly Instructions
11

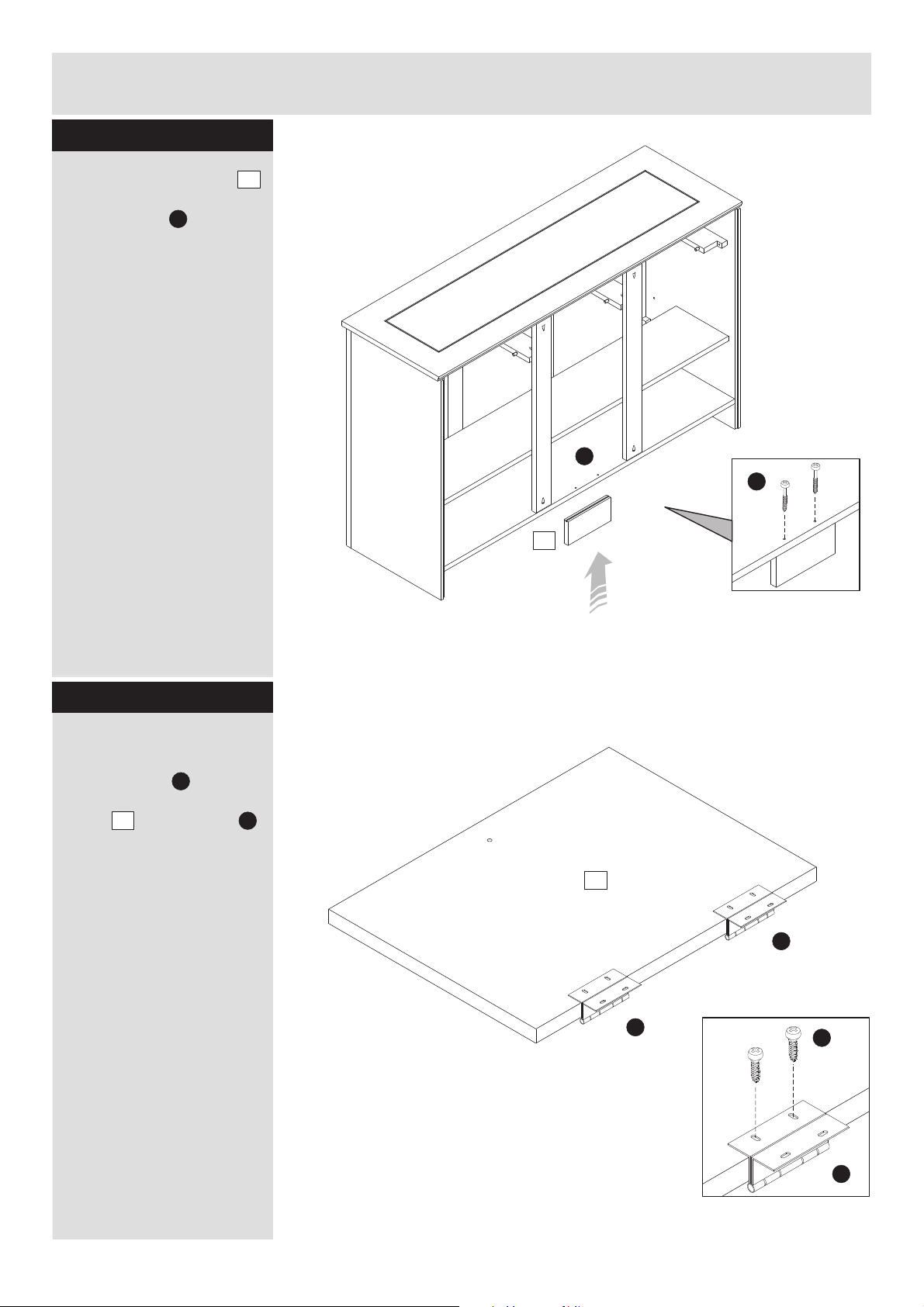

Step 15
Attach bottom support
to the base panel
using screws .
Step 16
Fitting hinges to doors.
Attach hinges in the
pre marked holes on
doors using screws
as shown.
B
B
3x
I
I
21
21
12
I
I
12
D
D
D

Step 17
Assembly Instructions
12
Step 18
B
a:
b:
View from behind
View from behinda:
b:
Q
Hanging doors.
With help, centralise
a:
the doors in the opening
of the cabinet using the
door spacer to ensure
correct spacing, as
shown.
b: From inside the
cabinet fix the hinges
using screws as
shown.
Note:
To ensure the
alignment of the doors is
correct, centralise the
doors in the opening
before attaching to the
cabinet.
B
Q
Hinge adjustment.
a: To move doors up or
down: loosen screws
shown and move doors
to suit.
Once doors are aligned,
re-tighten screws.
b: To move doors left or
right: loosen screws
shown and move doors
to suit.
Re-tighten screws.
Q
12
Q
12
Q
12
12

Step 19
Assembly Instructions
13
Fitting handles to doors.
Attach handles to
the doors using bolts
as shown.
a:
b: d:
c:
B
B
Step 20
B
Fitting door lock.
a: Screw clip in place
using screws .
Ensure that the 2 small
wheels are flush with
the edge of the base as
shown in the diagram.
b: Insert plug into
clip , ensuring they
are leveled as shown in
the diagram.
c: Push the door against
the plug . This will
make 2 small marks on
the door as shown in the
diagram.
d: The door can then be
opened and plug can
be screwed into place
using the 2 marks made
as a guide. This will
ensure that the 2 parts of
the door clips are lined
up correctly.
J
K
E
H
E
J
K
K
K
K
J
J
J
H
2
12
12
12
K
K
K
J
J
2
12 12
12
12
12
12
H
H
H

Insert drawer into unit.
With the back of the
drawer past the front
frames, use a hammer to
tap dowels in flush to
drawer sides. This is a
safety catch to stop
drawer falling out.
Assembly Instructions
14
a: b:
c: d:
Step 22
Step 21
d: Using bolts attach
drawer handle to
drawer front.
Repeat step 21 for the
other drawers.
Drawer assembly.
a: Attach drawer sides
to the drawer front
using screws .
b: Slide drawer bottom
into slots on drawer
sides and position drawer
back in place.
c: Holding the drawer
back , press the
drawer sides and fix them
using screws .
15
14 C
13
16
16
C
E
H
15
15
14
C
C
13
16
C
C
E
H
A
A A
3x

Step 24
Note: Wall plugs not supplied.
The correct type of fixing must
be used for your wall, seek
professional advice if in doubt.
wall
B
P
O
O
Assembly Instructions
15
Step 23
Fixing back panels.
Important:
Cabinet beMUST
‘square’ when back
panels are attached.
Attach back panels
using nails .
N
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
11 11
11
11
N
N
N
N
B
O
P
Fixing to wall
Furniture must be fixed to
a wall.
Fix wall straps to
top of furniture using
washers and screws
.
With help, move furniture
into position.
Assembly is complete.

Important note:
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with plasterboard partitions or
hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
No.1 “General Purpose”wall plug No.3 “Cavity Fixing”wall plug No.5 “Hammer Fixing”wall plug
No.2 “Plasterboard”wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.6 “Shield Anchor”wall plug
Heavy loads
A Guide to - Wall Mounting & Fixings
Care &
Maintenance
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.

Your 1 Year Guarantee
Peace Of Mind
Knowing Your Furniture Is Protected
Protection received within the
Manufacturer’s Guarantee
Covers you for manufacturing defects
for 1 year.
he event of a problem within this time
please call , or visit an Argos0345 640 0800
store. Please retain your receipt and order
number as proof of purchase.
Optional Added Protection
with Furniture Care
Covers you for up to 2 years
for specific following thestructural defects
expiry of the manufacturer’s guarantee.
- covers you for up toPlus accidental damage
3 years for incidents such as household spills,
rips, tears and burns. Accidental damage cover
begins from the moment your plan starts.
Key exclusions applying to both the Manufacturer’s Guarantee and Furniture Care include where
the fault is due to misuse, abuse, deliberate damage, wear and tear, neglect, use in contravention
with the instructions, or if the product has been the subject of unauthorised alterations or
commercial use (for full list of exclusions please visit or visithttps://argos.productaftercare.co.uk
an Argos store for more information).
You have up to 45 days post purchase to take out Furniture Care.
Terms and conditions apply. Your statutory rights remain unaffected.
If you want to purchase
Furniture Care visit
https://argos.productaftercare.co.uk
or go into an Argos store
Register
For Your Manufacturer’s Guarantee
Register Today
https://argos.productaftercare.co.uk
Thank you for choosing Argos Home.
We hope you love your shiny new things!
To provide you with the best possible after sales service, don’t forget to visit
where you can for yourhttps://argos.productaftercare.co.uk register
guarantee.
Once you’ve registered, you can upload your receipt to store safely online,
alongside details of our after sales support service, ready at hand should you
need it.
You can also take out Furniture Care which protects you against accidental
damage, from the moment you take the plan out, to keep your new furniture
looking newer for longer.
