Argos Capella 268/1647 User manual

MADE IN
BRITAIN
Dimensions
Width - 120cm
Depth - 59.5cm
Height - 181cm
Capella - 2+2 Sliding Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 28/03/14
Important - Please read these instructions fully before starting assembly
ALR2998
268/1647
262/0488
244/0273
259/4071
Issue 2 - 28/03/14
Add 6 Plastinails.
Remove old cat codes and add new ones.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 79kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Components - Panels

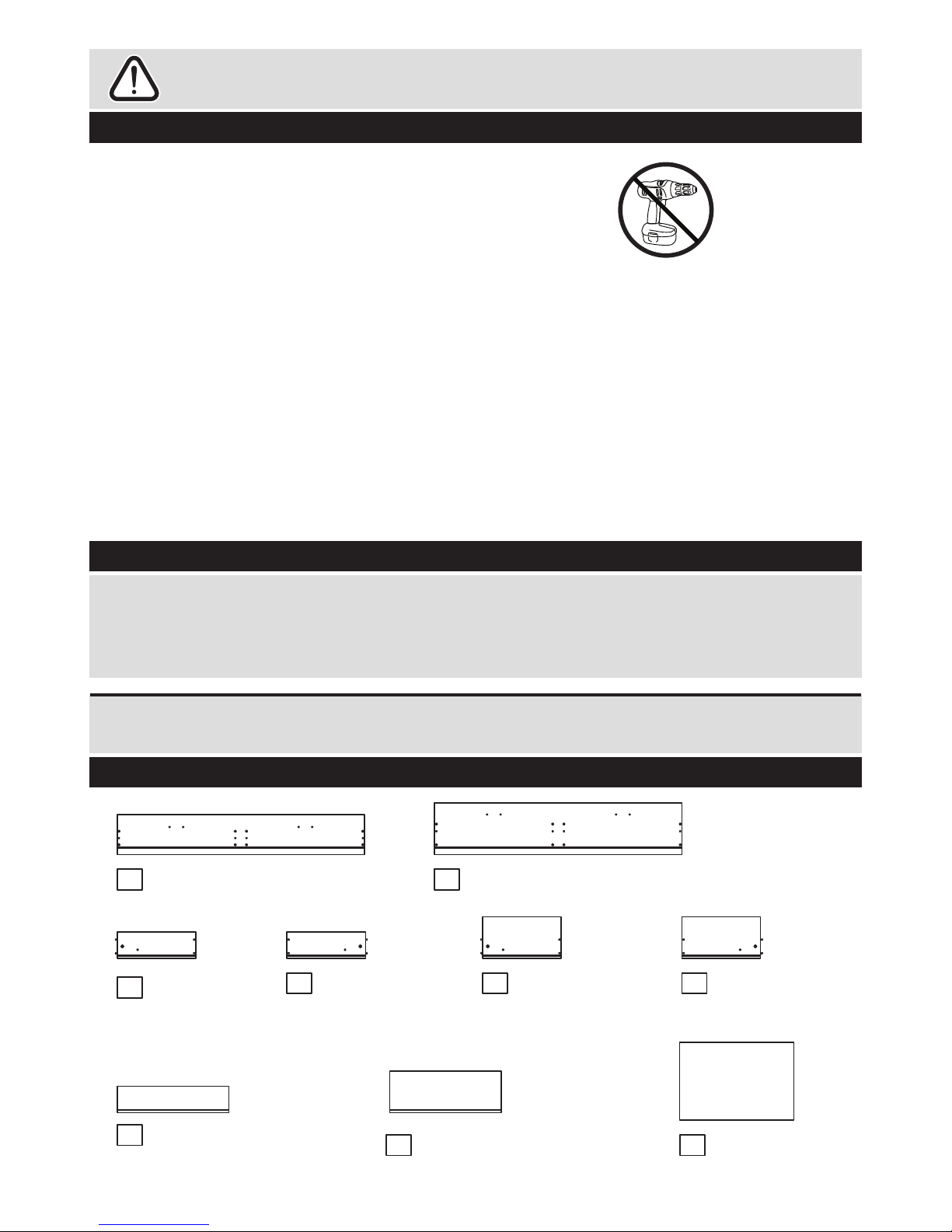

Please check you have all the panels listed below
1
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Top Drawer Front (D2716A)
(1165 x 185mm)
7
Bottom Drawer Front (D2718A)
(1165 x 244mm)
Top Drawer Back (W526-124)
(526 x 124mm) x 2
Bottom Left Drawer
Side (W370-165LH)
(370 x 165mm) x 2
Bottom Drawer Back (W526-165)
(526 x 165mm) x 2
2
34 5 Bottom Right Drawer
Side (W370-165RH)
(370 x 165mm) x 2
6
8 9 Drawer Base (T537-367)
(537 x 367mm) x 4
Top Left Drawer
Side (W370-124LH)
(370 x 124mm) x 2
Top Right Drawer
Side (W370-124RH)
(370 x 124mm) x 2

Components - Panels
Please check you have all the panels listed below
2
10 11 12
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D2710A)
(1808 x 592mm)
13
Right Side (D2711A)
(1808 x 592mm)
Top/Base (D2709A)
(1169 x 587mm) x 2
Large Divider (D2712A)
(1246 x 496mm)
Rail (D2714A)
(1169 x 85mm) x 2
Back Rail (D2715A)
(577 x 120mm) x 2
Door (D2717A)
(1237 x 592mm) x 2
15
14
Small Divider (D2713A)
(437.5 x 560mm)
16
17 19
Hanging Rail (FHR569)
(566mm long) x 2
18
Back (X1722-597)
(1722 x 597mm) x 2

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 16
C
D E F
G
40mm Screw (F910) x 4 13mm Screw (F63) x 38
Rail holder
(F1014) x 4
JH
K
I
Top glide
(F956) x 4
Bottom glide
(F952) x 4
M
N
Q
L
P
Bracket (F327) x 1
1167mm Track (F221) x 4
O
B
Metal dowel (F901) x 22
Large locking
nut (F900) x 22
Nail (F51) x 40
13mm Screw (F79) x 1
25mm Screw (F50) x 12
Buffer bracket
(F261) x 1
R
W X Y
Small locking
nut (F3) x 8
Knock-in Peg (F171GY) x 16
Mushroom Head Pin (F260) x 4
S
TR Runner (F160) x 4
b
L Runner (F161) x 4
Tc
L Runner (F159) x 4
Ta
R Runner (F162) x 4
Td
350mm long
9mm Screw (F73) x 24
U
Double metal dowel (F566) x 2
Back holder (F276) x 5
V
Nail screw (F277) x 5
Wedgefix (F639) x 16
45mm Screw (F65) x 1
Handle (F930) x 6
Z
Plastic Nail (F91) x 6

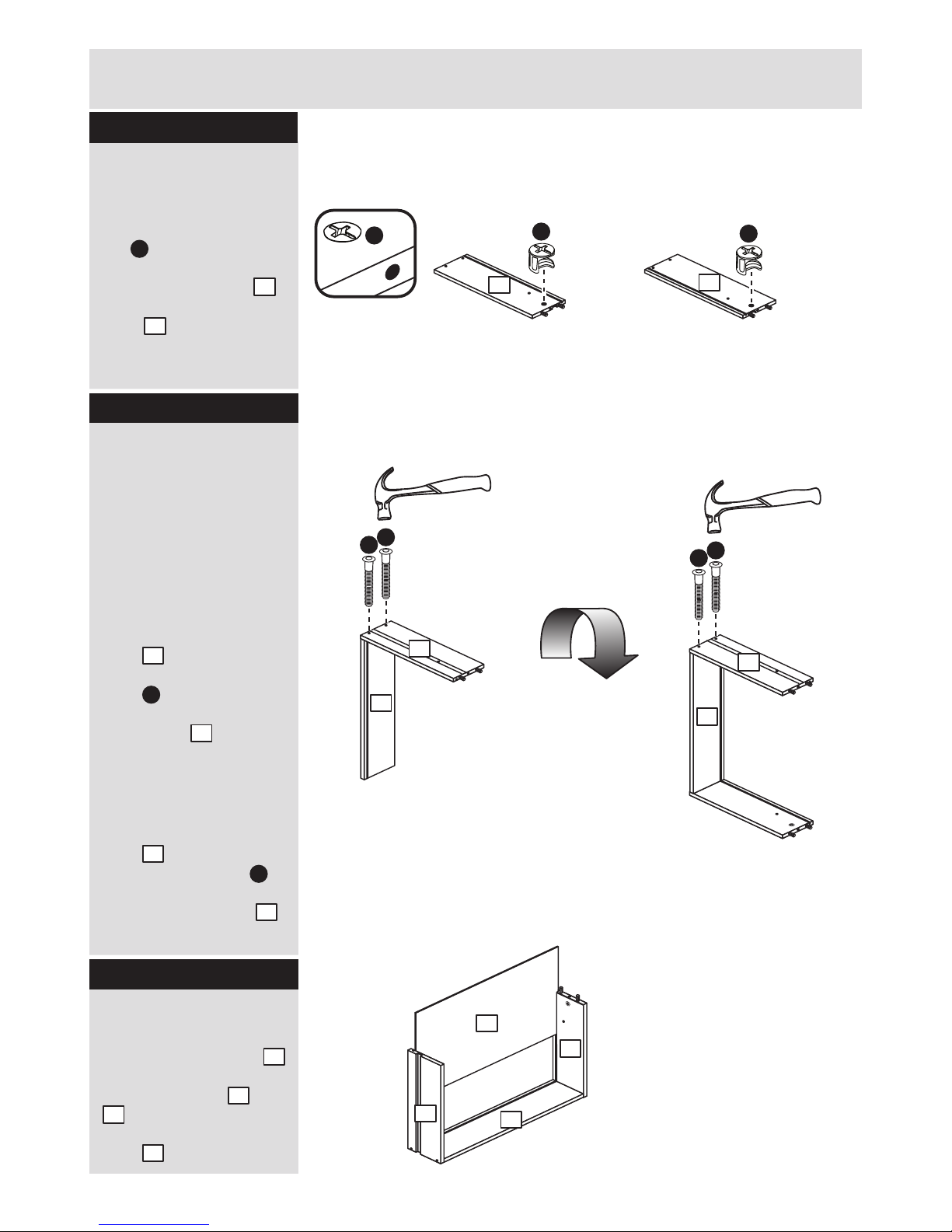

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 2
Fit the top drawer
sides to the top
drawer backs
Make sure that the
grooves on the inside of
the drawer assembly line
up.
a: With the top drawer
back in an upright
position tap 2 knock-in
pegs through the
holes in the top left
drawer side .
Turn the assemblies
over
b: Hold the top drawer
back in position and
tap 2 knock-in pegs
through the holes in the
top right drawer side .
Step 3
Fit the drawer bases
Slide the drawer base
down the grooves in the
top drawer sides and
. and down into the
groove in the top drawer
back .
b:
a:
Turn the
assembly over
Prepare the 4 top
drawer sides
Insert a small locking
nut into the hole
shown on each of the 2
top left drawer sides
and 2 top right drawer
sides .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
3
4
D
x 2
x 2 x 2
x 2
80%
x 2 x 2
7
P
3
7
P
4
9
3
4
7
Top Left Drawer Side (W509LH)
(330 x 115mm)
Top Right Drawer Side (W509RH)
(330 x 115mm)
Top Drawer Back (W526-115)
(526 x 115mm)
PP
PP
7
7
9
7
3
Note: Due to the manufacturing process,
the holes for the locking nut can be on
either surface of the drawer sides.
DD
34
3
4
4

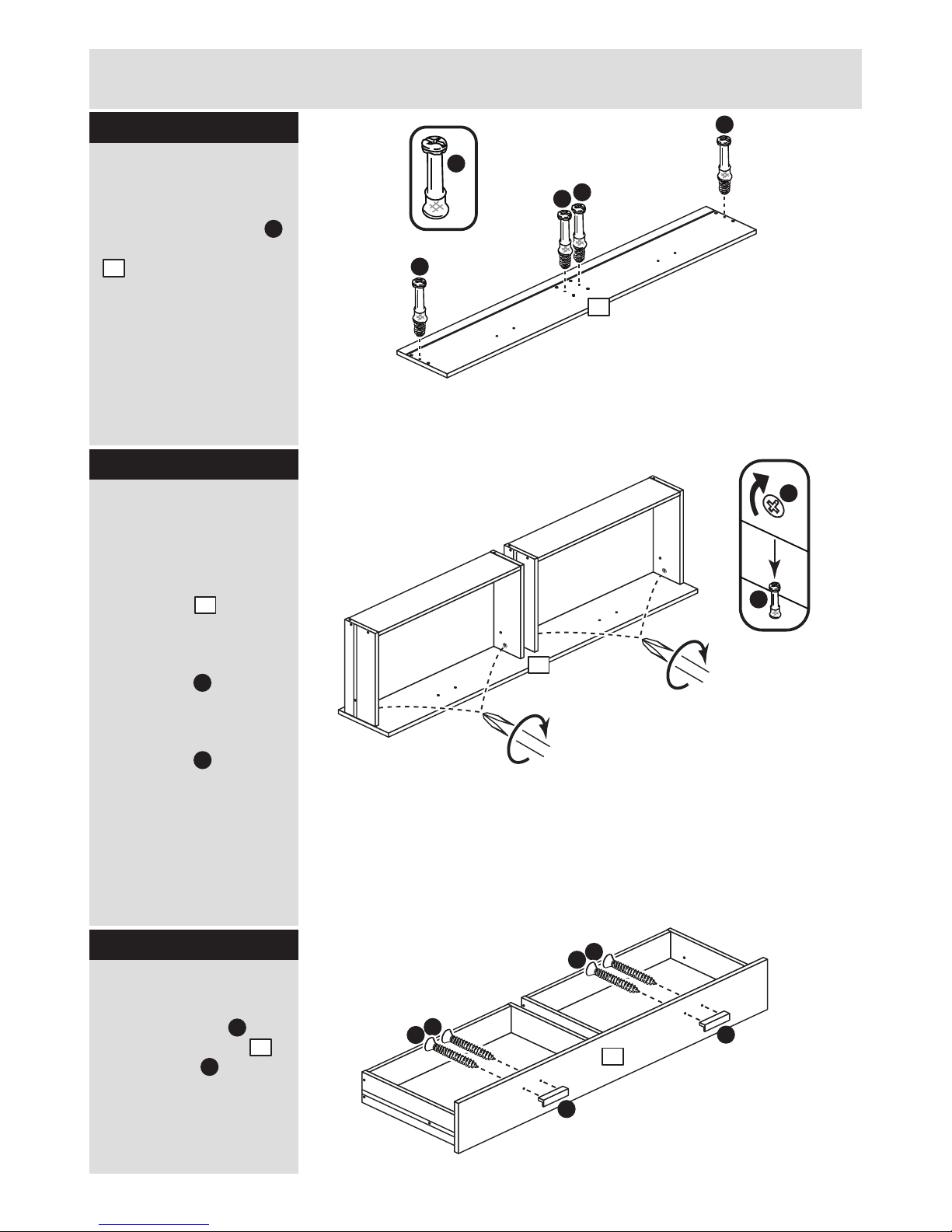

Assembly Instructions
5
Step 4
Fit the drawer front
Lower the 2 top drawer
assemblies down onto
the back of the top
drawer front .
Use a screwdriver to
tighten the 4 small
locking nuts fitted to
the drawer sides.
Note: Turn the small
locking nuts as far as
they will go - more than
1/2 a turn.
Step 5
B
Prepare the top
drawer front
Screw 4 metal dowels
into the top drawer front
. .
Note: Tighten the metal
dowels up fully against
the panels.
B
1
D
B
1
D
D
B
B
B
B
1
Attach the handles
Attach 2 handles to
the top drawer front
using screws .
U
H
Step 6
11
U
U
1
H
H
H
H

Assembly Instructions
6
Step 7
Fit the runners and
the wedgefixes
Turn the top drawer
assembly over.
a: Fit a runner to
the bottom edge of the
top left drawer side ,
as shown, making sure
that it is pushed up
against the back of the
top drawer front . Use
a bradawl to mark the
fixing positions, then
secure with 2 screws .
Fit a runner to the
bottom edge of the top
right drawer side
using the same method.
b: Repeat the
instructions above to fit
the runners to the other
top drawer sides.
c: Slide 2 wedgefixes
along each drawer base
. and into the small
groove on the back of
the top drawer front .
Slide 2 more wedgefixes
. along each drawer
base and into the
small groove on the back
of the top drawer back
. .
Once in place, tighten up
the screws.
4
T c
3
1
J
T d
a:
b:
c:
Runners must be
pushed up against
the drawer front
J
J
J
J
L
T c
L
T d
R
R
J
J
J
J
T c
T d
4
1
4
3
1
X
X
X
X
X
X
X
X
X
X
X
9
9
1
7
9
9
1
7
7
3

Assembly Instructions
7
Step 8
Step 9
Fit the bottom drawer
sides to the bottom
drawer backs
Make sure that the small
grooves on the inside of
the drawer assembly line
up.
a: With the bottom
drawer back in an
upright position tap 2
knock-in pegs
through the holes in the
bottom left drawer side
. .
Turn the assemblies
over
b: Hold the bottom
drawer back in
position and tap 2
knock-in pegs
through the holes in the
bottom right drawer side
. .
Step 10
Fit the drawer bases
Slide the drawer base
down the grooves in the
bottom drawer sides
and . and down into
the groove in the bottom
drawer back .
b:
a:
Turn the
assembly over
Prepare the 4 bottom
drawer sides
Insert a small locking
nut into the hole
shown on each of the 2
botom left drawer sides
. and 2 bottom right
drawer sides .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
5
6
D
x 2
x 2 x 2
x 2 x 2
8
P
5
8
P
6
9
5
6
8
DD
56
PP
PP
5
6
8
8
9
5
68

Assembly Instructions
8
Step 11
Fit the drawer front
Lower the 2 bottom
drawer assemblies down
onto the back of the
bottom drawer front .
Use a screwdriver to
tighten the 4 small
locking nuts fitted to
the drawer sides.
Note: Turn the small
locking nuts as far as
they will go - more than
1/2 a turn.
Step 12
B
Prepare the bottom
drawer front
Screw 4 metal dowels
into the bottom drawer
front .
B
2
D
B
2
D
D
B
B
B
B
Attach the handles
Attach 2 handles to
the bottom drawer front
. using screws .
U
H
Step 13
2
2
2
2
U
U
H
H
H
H

Assembly Instructions
9
Step 14
Fit the runners and
the wedgefixes
Turn the bottom drawer
assembly over.
a: Fit a runner to
the bottom edge of the
bottom left drawer side
, as shown, making sure
that it is pushed up
against the back of the
bottom drawer front .
Use a bradawl to mark
the fixing positions, then
secure with 2 screws .
Fit a runner to the
bottom edge of the
bottom right drawer side
. using the same
method.
b: Repeat the
instructions above to fit
the runners to the other
bottom drawer sides.
c: Slide 2 wedgefixes
along each drawer base
. and into the small
groove on the back of
the bottom drawer front
. .
Slide 2 more wedgefixes
. along each drawer
base and into the
small groove on the back
of the bottom drawer
back .
Once in place, tighten up
the screws.
6
T c
5
2
J
T d
a:
b:
Runners must be
pushed up against
the drawer front
J
J
J
J
L
T c
L
T d
R
R
J
J
J
J
T d
T d
6
5
2
6
5
2
c:
X
X
X
X
X
X
X
X
9
9
X
X
9
9
2
8
X
8
8
2

Assembly Instructions
10
Step 15
A
A
A
O
Prepare the top and
base
Place 2 plastic tracks
down onto each of the
top and base
panels, making sure that
they are flush with the
edges of the panel.
Gently tap along the
length of the plastic
tracks until they are
fitted flat to the surface
of the panel.
Turn the top and the
base panels over
Tap 4 wooden dowels
into each of the top
and base panels.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into each of the
top and base
panels.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
10mm
A
13 13
O
13
13
O
O
13
Turn the top and
the base over
C
13 13
x 2
x 2
C
O
O
C
C
C
C
A
A
13
13
Finished
front edge
Finished
front edge

Assembly Instructions
11
Step 16
Finish preparing the
base
Take 1 of the top/base
panels you have just
prepared and screw in 2
metal dowels .
This will now be used as
the base.
Step 17
A
A
Finished
front edge
Prepare the large
divider
Push a rail holder into
the large divider .
Make sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Tap 4 wooden dowels
into the large divider .
Turn the large divider
over
Push a rail holder into
the other surface of the
large divider . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
E
12
E
12
Turn the large divider over
J
J
E
J
E
J
Finished
front edge
A
AA
12
12
12
13
Finished
front edge
B
B
B
13
x 1

Fit top and base to
the divider
Attach the top and
base to the large
divider using 4
screws .
Finished
top edge
G
G
Assembly Instructions
12
Step 18
13
13
12
G
Step 19
Prepare the back rails
Insert 4 large locking
nuts into each of the
2 back rails .
15
C
G
G
Note: The plastic
tracks must be on
the inside surfaces
of the top and base
Note: The base is
the one that has
the 2 metal dowels.
13
Top
13
12
Base
C
C
C
C
Plain chipboard
surface
x 2
15

Assembly Instructions
13
Step 20
E
J
T b
Finished front edge
J
Prepare the right side
a: Fit 2 runners to
the right side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
Push a rail holder into
the right side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Screw 6 metal dowels
into the right side .
K
K
T b
K
T b
11
K
K
J
T b
T b
Finished front edge
1st
screw
2nd
screw
3rd
screw K K K
K
K
T b
K
B
B
B
B
B
B
J
J
B
11
E
11
J
a:
b:
11
11
Finished
front edge
Finished
front edge

15

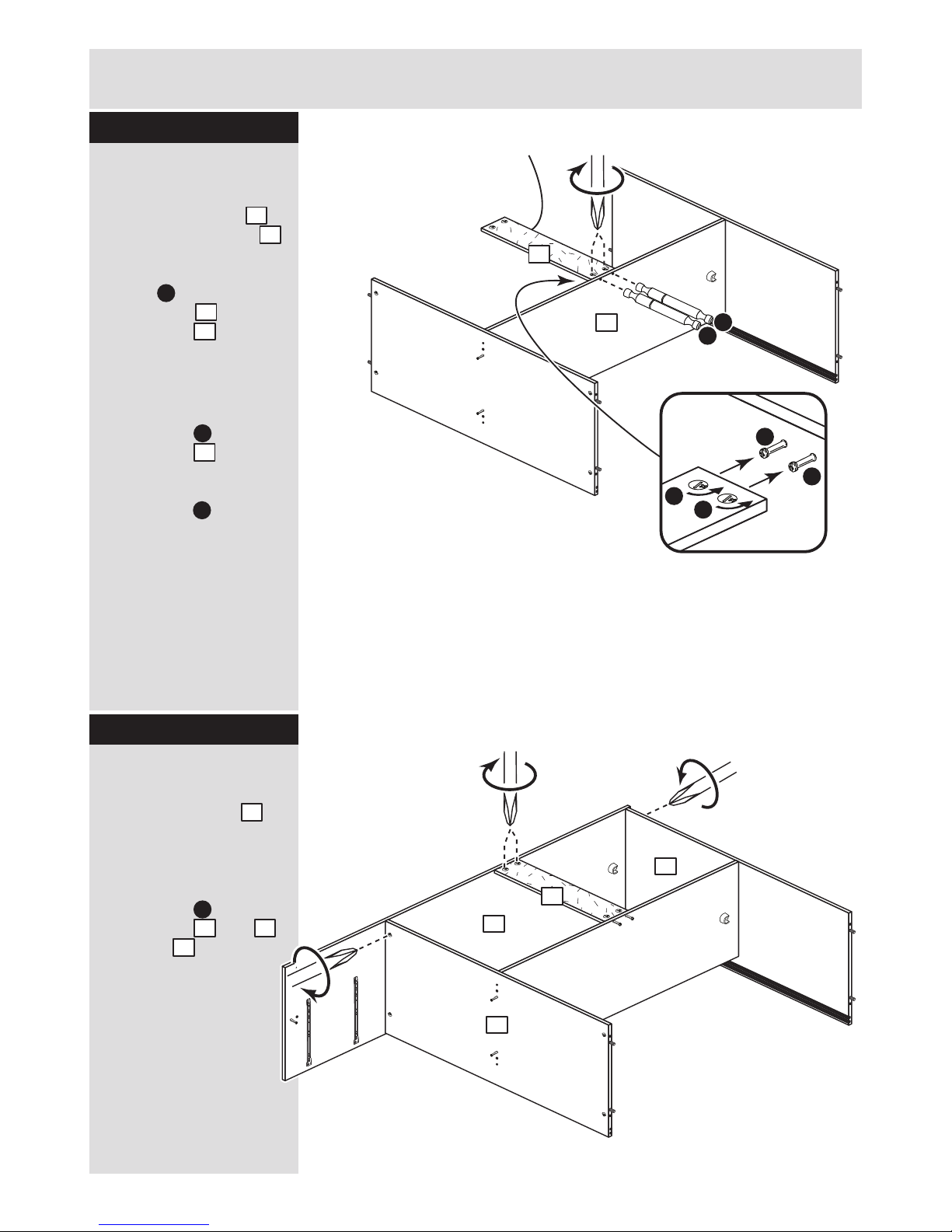

Assembly Instructions
14
Step 21
12
Fit a back rail
a: Push a back rail
onto the large divider .
Tap 2 double metal
dowels through the
large divider and into
the back rail until
they ‘’bottom out’’.
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the back rail .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
15
12
S
Note: Support the
back rail until the
right side has been
fitted in the next step.
a:
12
15
C
C
15
Step 22
Fit the right side
Push the right side
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the back rail , top
and base .
11
C
15 13
13
S
S
C
S
C
S
b:
Finished
top edge
15
13
13
11

A
b:
b:

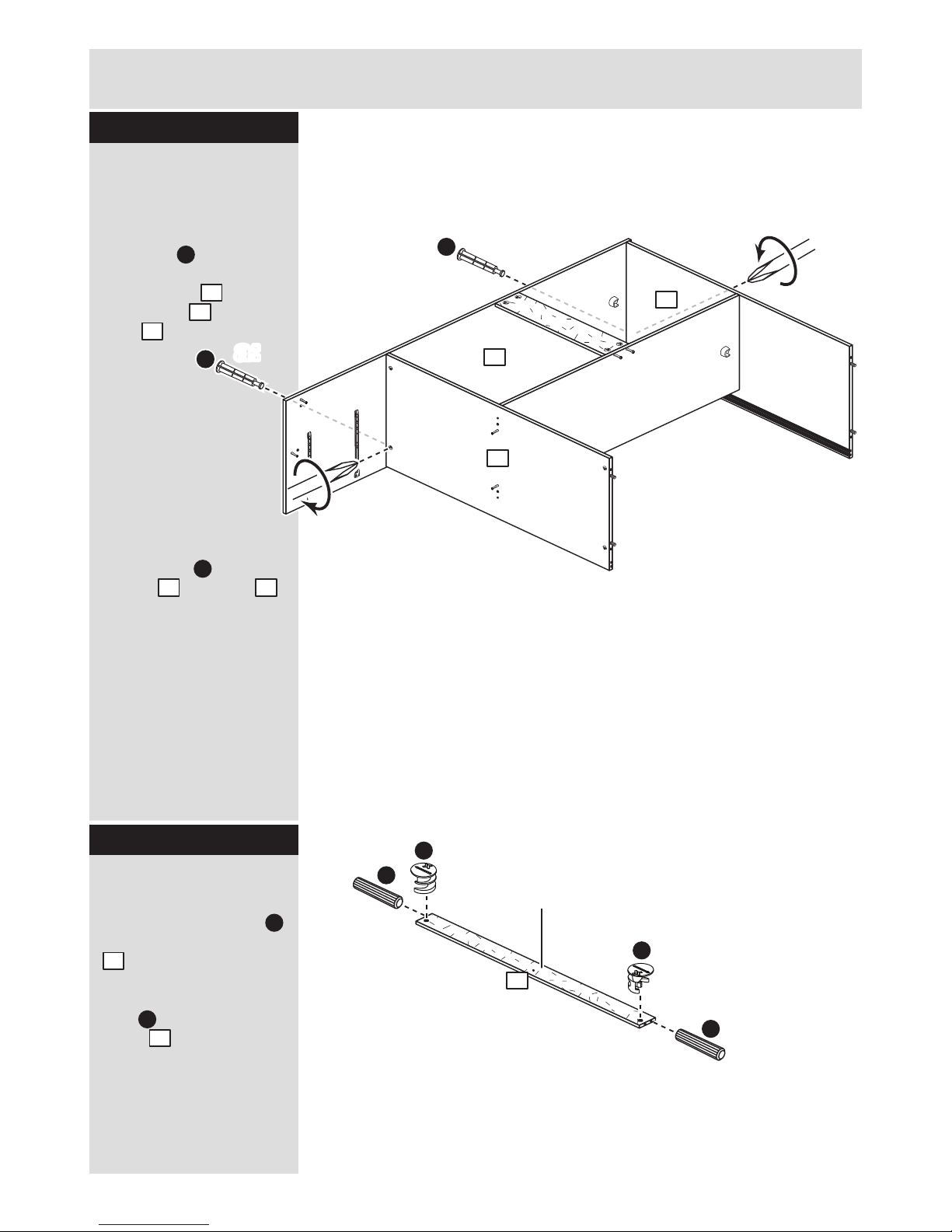

Assembly Instructions
15
Step 23
a:
a:
Qa:
Qa:
13
13
11
Fit the mushroom
head pins
a: Tap 2 mushroom
head pins into the
holes on the outside of
the right side and
into the top and
base .
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top and base .
Q
11
13
13
C
13 13
Prepare the 2 rails
Tap 2 wooden dowels
into each of the 2 rails
. .
Insert 2 large locking
nuts into each of the
2 rails .
A
14
C
Step 24
C
C
A
Plain chipboard
surface
14
x 2
14

Finished
front edge
Finished
front edge
Assembly Instructions
16
Step 25
T a
Finished front edge
J
J
J
T a
Finished front edge
1st
screw
2nd
screw
3rd
screw
K K K
K
T a
KK
K
T a
KK
C
C
T b
Finished front edge
J
K
K
T b
K
T b
Finished front edge
1st
screw
2nd
screw
3rd
screw K K K
K
K
T b
K
J
J
Finished
front edge
Finished
front edge
Turn the small
divider over
Prepare the small
divider
a: Fit 2 runners to
the small divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Insert 2 large locking
nuts into the small
divider .
Turn the small divider
over
c: Fit 2 runners to
the small divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
d: Fit a screw into
the 2nd hole in at the top
of the runner .
T a
16
K
K
J
T a
T b
16
K
K
J
T b
C
16
a:
b:
c:
d:
16
16
16
16

Finished
front edge
Assembly Instructions
17
Step 26
Finished
front edge
T a
Finished front edge
J
T a
Finished front edge
1st
screw
2nd
screw
3rd
screw
K K K
J
J
K
T a
KK
K
T a
KK
E
J
Prepare the left side
a: Fit 2 runners to
the left side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Screw 6 metal dowels
into the left side .
T a
10
K
K
J
T a
B
10
E
10
J
a:
b:
B
B
B
B
B
B
10
10
a:
b:

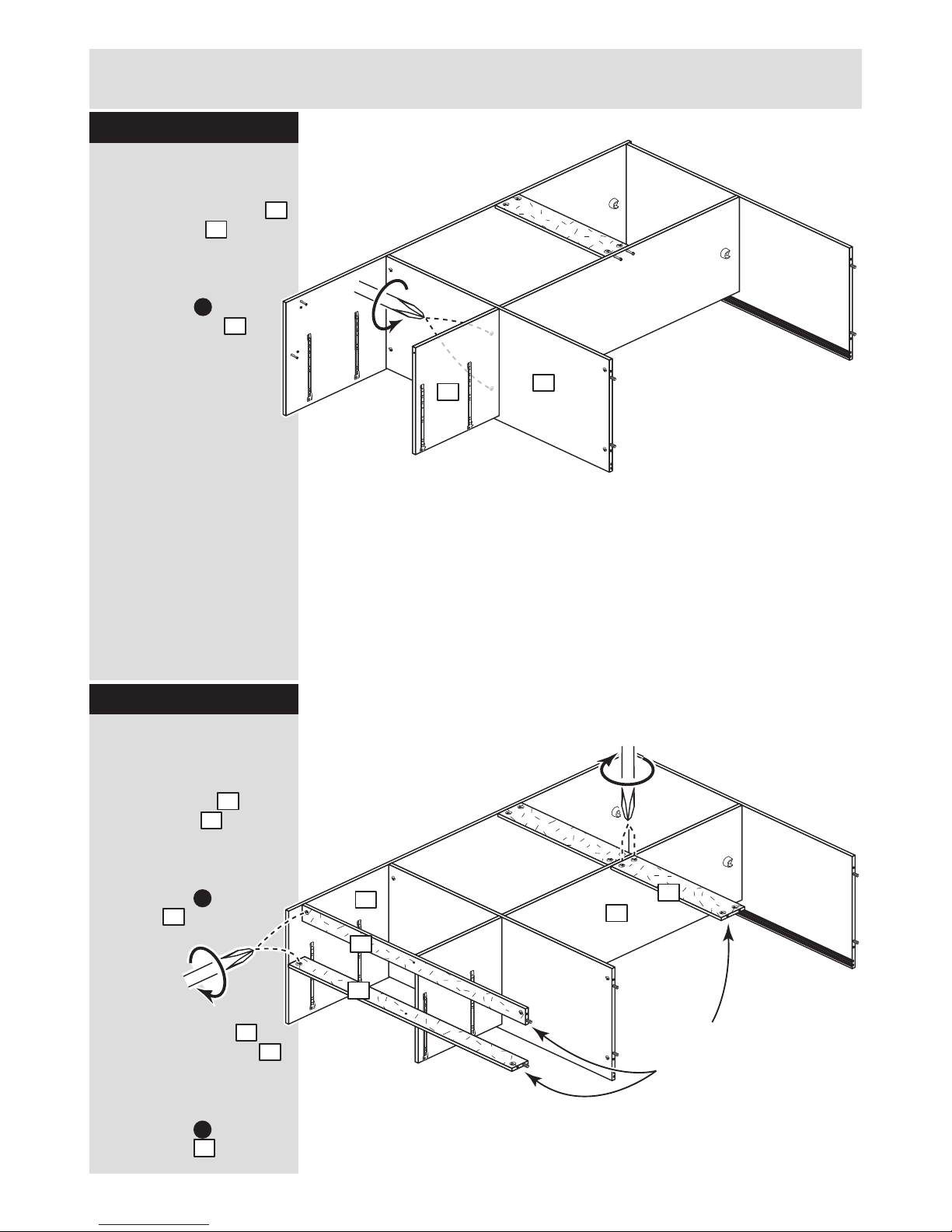

Assembly Instructions
18
Step 27
Fit the small divider
Push the small divider
onto the base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small divider .
C
Step 28
16
16
13
16 13
Fit the 2 rails and the
2nd back rail
Push the 2 rails onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
Push the back rail
onto the large divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the back rail .
14
14
11
C
15
C
14
14
11 15
12
Note: Support the 2 rails
and the back rail until the
left side has been fitted in
the next step.
15
12

Assembly Instructions
19
Step 29
a:
b:
14
14
13
13
15
10
13
c:
13
10
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts as
shown, fitted to the top
. , the base , the 2
rails and the back rail
. .
10
C
13 13
14
15
a:
b:
Q
a:
c:
Q
b:
Fit the mushroom
head pins
a: Tap 2 mushroom
head pins into the
holes on the outside of
the left side and into
the top and base .
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top and base .
c: Fit the rail at the
back of the unit to the
small divider using
screw .
Q
10
13 13
C
13
14
16
13
Step 30
L
14
L
