Argos Linear 276/3503 User manual

MADE IN
BRITAIN
Dimensions
Width - 119cm
Depth - 49cm
Height - 184cm
Linear - 3 Door Mirror Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 30/07/14
Important - Please read these instructions fully before starting assembly
ALR3054
276/3503
237/7432
249/3347
Issue 2 - 30/07/14 - Notes added to Step 21 to secure the 2 outer screws 1st when fitting the handle.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 76kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

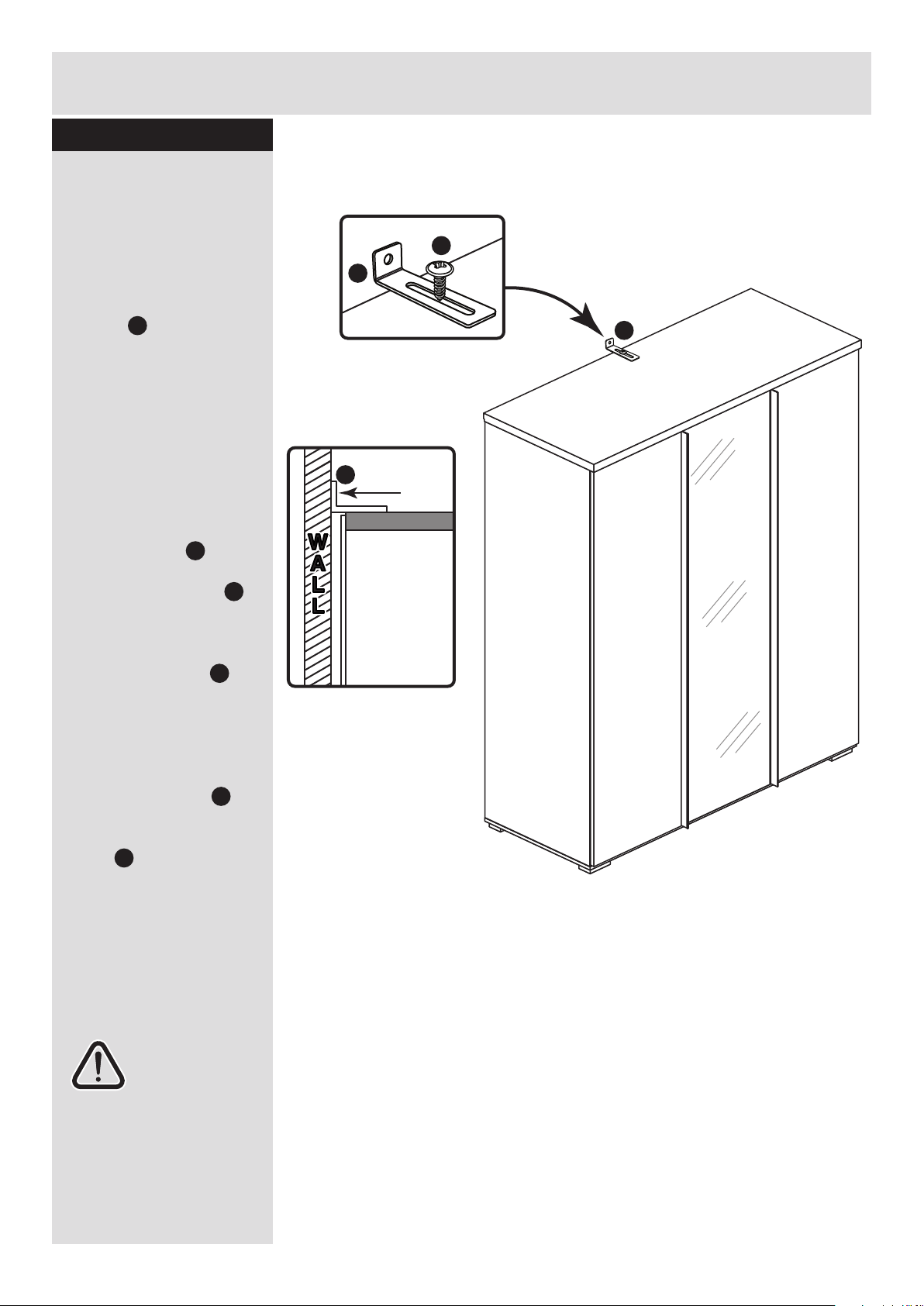

• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
80%
x 3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
13
4
Hanging Rail (FHR751)
(751mm long)
6
Divider (DF851)
(1763 x 466mm)
2
Top (DF849)
(1188 x 490mm)
Base (DF850)
(1184 x 468mm)
Left Side (DF846)
(1763 x 466mm)
Right Side (DF847)
(1763 x 466mm)
Fixed Shelf (DF155)
(759 x 465mm)
7 8
Small Back (X1784-397)
(1784 x 397mm)
Loose Shelf (DF852)
(378 x 465mm) x 3
Door (DF848)
(1757 x 390mm) x 2
5
9Mirror Door (DF848M)
(1757 x 390mm)
10 11 Large Back (X1784-778)
(1784 x 778mm)
12
Mirror - SG27
1755 x 388mm
Safety Back SAR

3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

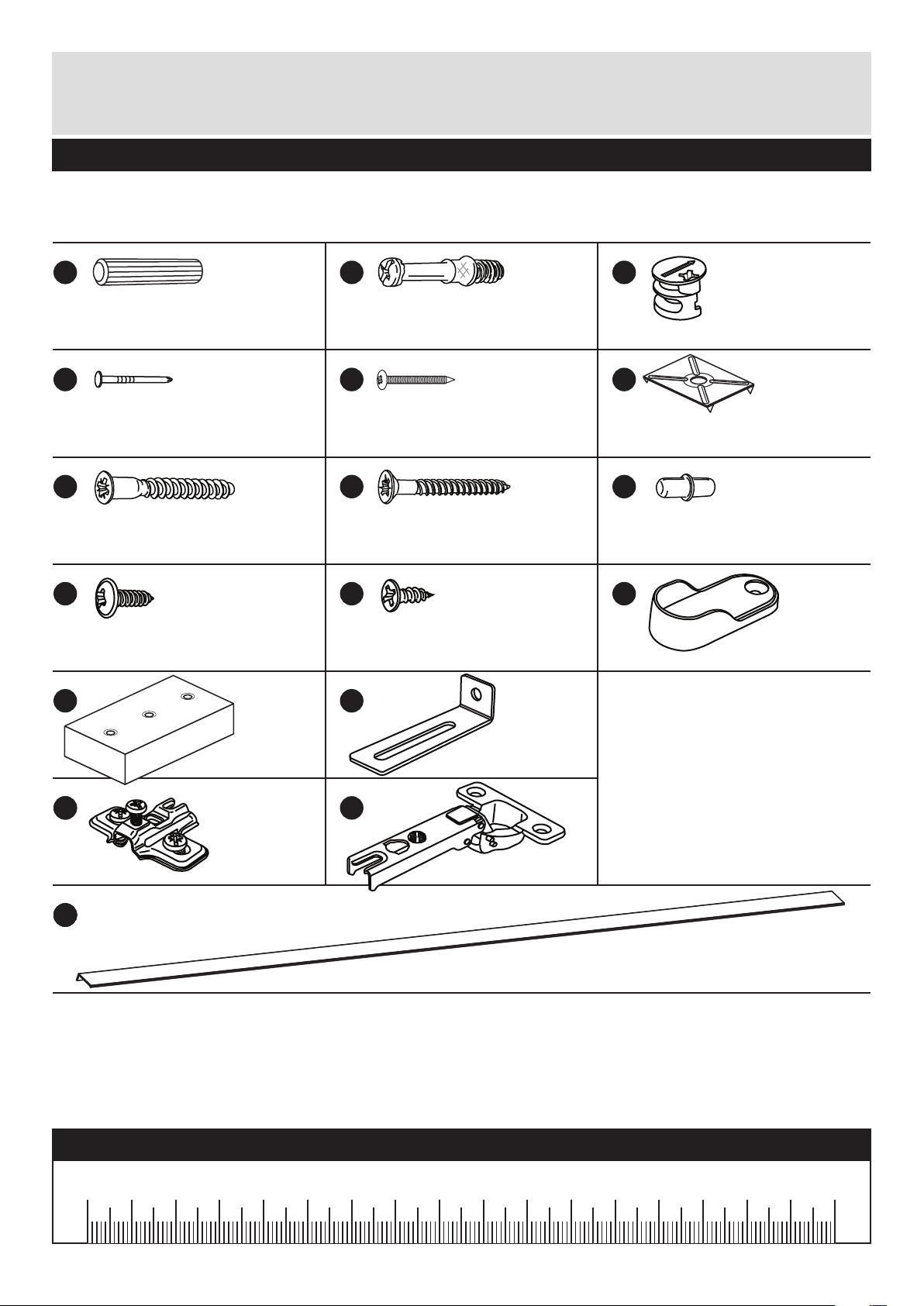

Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
B C
D E F
G H
M
Nail (F51) x 36
I
A
Wooden dowel (F22) x 12 Metal dowel (F901) x 10 Large locking
nut (F900) x 10
40mm Screw (F910) x 6
J
13mm Screw (F79) x 21 13mm Screw (F63) x 28
KL
38mm Screw (F81) x 10
P
Rail Holder
(F891) x 2
N
O
Foot
(F233) x 5
Hinge (F518) x 12
Hinge plate
(F523) x 12
Nail screw (F277) x 8 Back holder (F276) x 8
*These can also be round
Shelf stud (F110) x 12
N
Bracket (F327) x 1
N
P
N
P
Q
Handle (F332) x 2 - 1756mm long

A
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Finished
front edge
O
A
A
B
B
K
K
L
K
L
K
L
B
10mm
A
C
C
O
O
O
OFinished
front edge
a:
b:

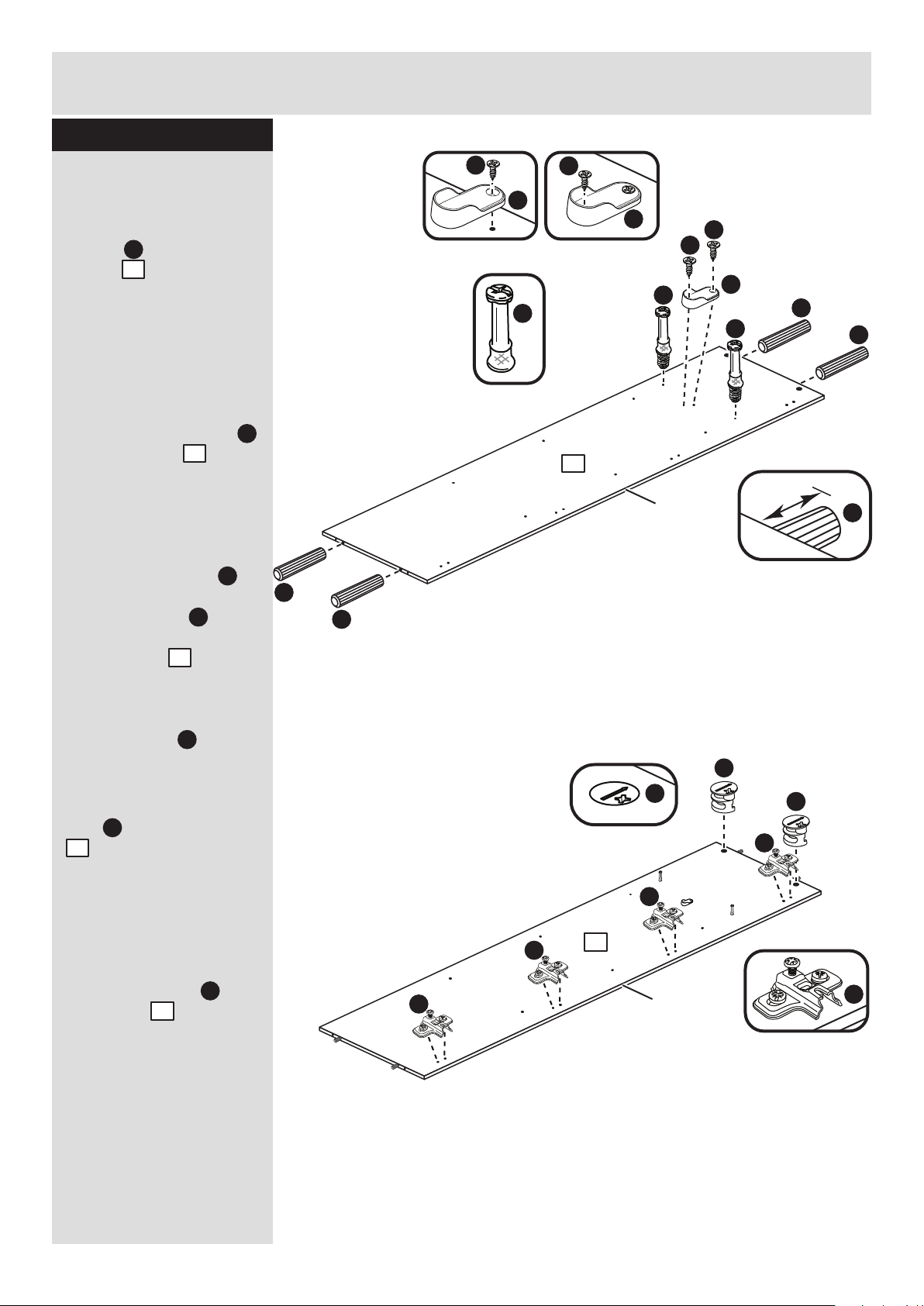

Prepare the divider
a: Tap 4 wooden
dowels into the
divider .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 2 metal dowels
into the divider .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
b: Insert 2 large locking
nuts into the divider
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit 4 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
A
2
B
2
L
K
K
2
C
2
O
2
C
2
2

Prepare the fixed shelf
Insert 4 large locking
nuts into the fixed
shelf .
Finished
front edge
A
A
Assembly Instructions
5
Step 2
Step 3
Finished
front edge
A
A
B
B
K
K
L
O
O
O
O
C
C
Prepare the left side
a: Tap 4 wooden
dowels into the left
side .
Screw 2 metal dowels
into the left side .
To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
b: Insert 2 large locking
nuts into the left side
. .
Fit 4 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
A
1
B
1
L
K
K
1
C
1
O
1
a:
b:
1
1
C
C
C
C
Finished
front edge
C
44
O

Finished
front edge
Finished
front edge
Assembly Instructions
6
Step 4
Fit the fixed shelf to
the divider
Push the fixed shelf
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the fixed shelf .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
4
C
C
4
Finished
front edge
4
2
B
C
4
1
Fit the left side to the
fixed shelf
Push the left side
onto the fixed shelf .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the fixed shelf .
4
1
C
4
Step 5

A
A
A
A
Polystyrene
block
Polystyrene
block
Finished
front edge
Assembly Instructions
7
Step 6
Step 7
Fit the base
Fit the base onto the
assembly using 4 screws
. .
Note: To make it easier
to fit the top and base
panels, place
polystyrene blocks from
the packaging
underneath the side
panels and divider to
raise the assembly.
8
G
G
GG
G
8
C
C
O
O
O
O
Prepare the right side
a: Tap 4 wooden
dowels into the right
side .
b: Insert 2 large locking
nuts into the right
side .
Fit 4 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
A
3
C
3
O
3
a:
b:
3
3
Finished
front edge
Finished
front edge

Assembly Instructions
8
Step 8
Step 9

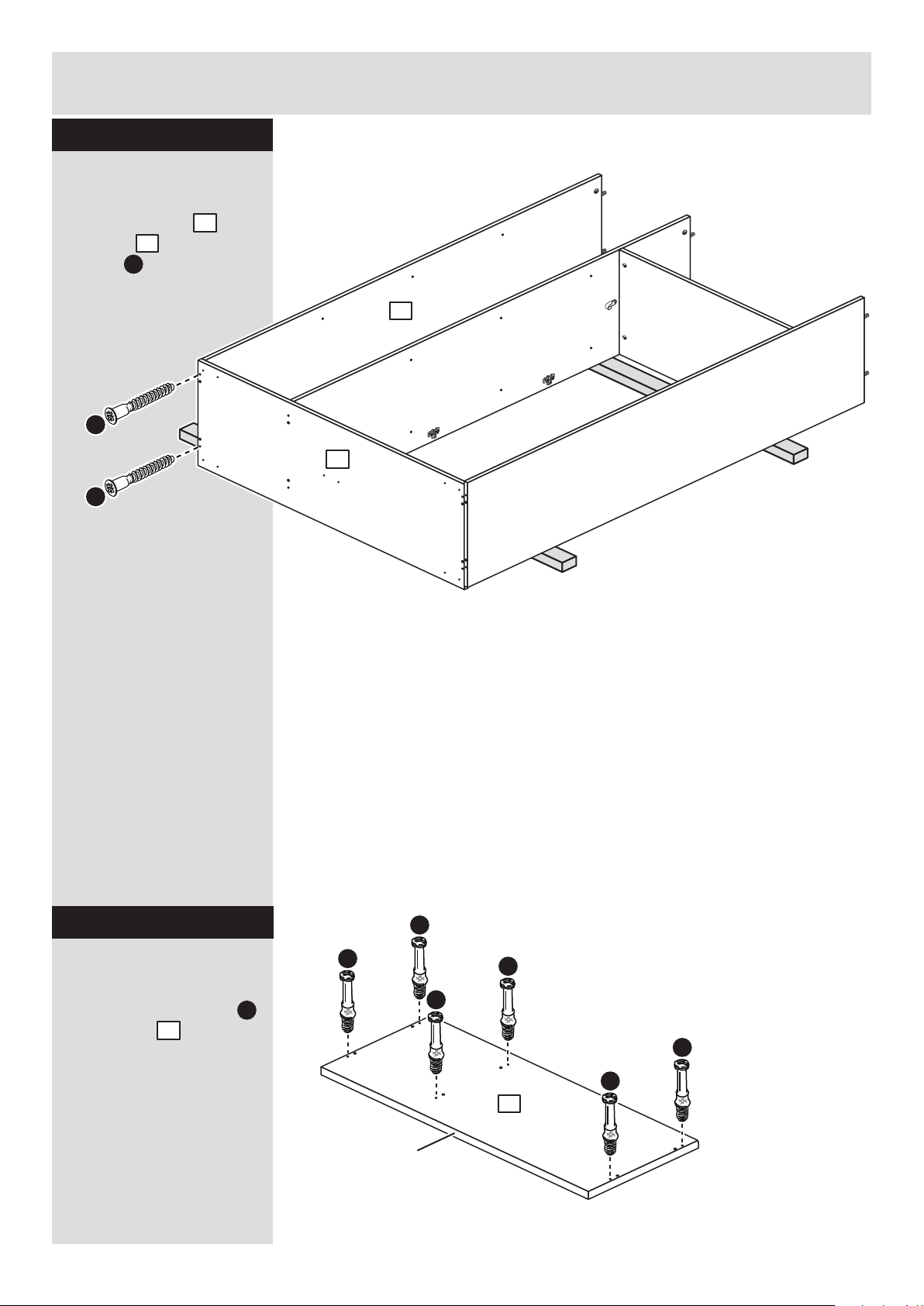

Fit the right side
Fit the right side to
the base using 2
screws .
Note: Place polystyrene
blocks underneath the
right side .
3
8
G
3
8
G
G
Prepare the top
Screw 6 metal dowels
into the top .
B
7
Finished
front edge
B
B
B
B
B
B
7

Finished
front edge
Assembly Instructions
9
Step 10
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the left side , upright
. and right side .
7
C
1
2 3
7
1
2
3
Step 11
Fit the feet
Fit the feet to the
base using screws .
H
M
8
M
HH
M
HH
M
HH
M
HH
8
M
HH

yy
Assembly Instructions
10
Step 12
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
E
F
Fit the back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back down,
onto the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet and
nails should be spaced
about 150mm apart.
c: Push the 8 nail
screws through the 8
back holders and tap
them down between the
small back and large
back and into the
back edge of the divider
. .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Carefully stand the
unit up for the next
step.
11
12
D
E
F
11
12
2
E
F
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
c: E
F
11
12
F
FE +
Note: These can
also be round
xx
xx
yy
b:
D
11
12
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
11
Step 13
Step 14
Ix 4
Ix 4
Ix 4

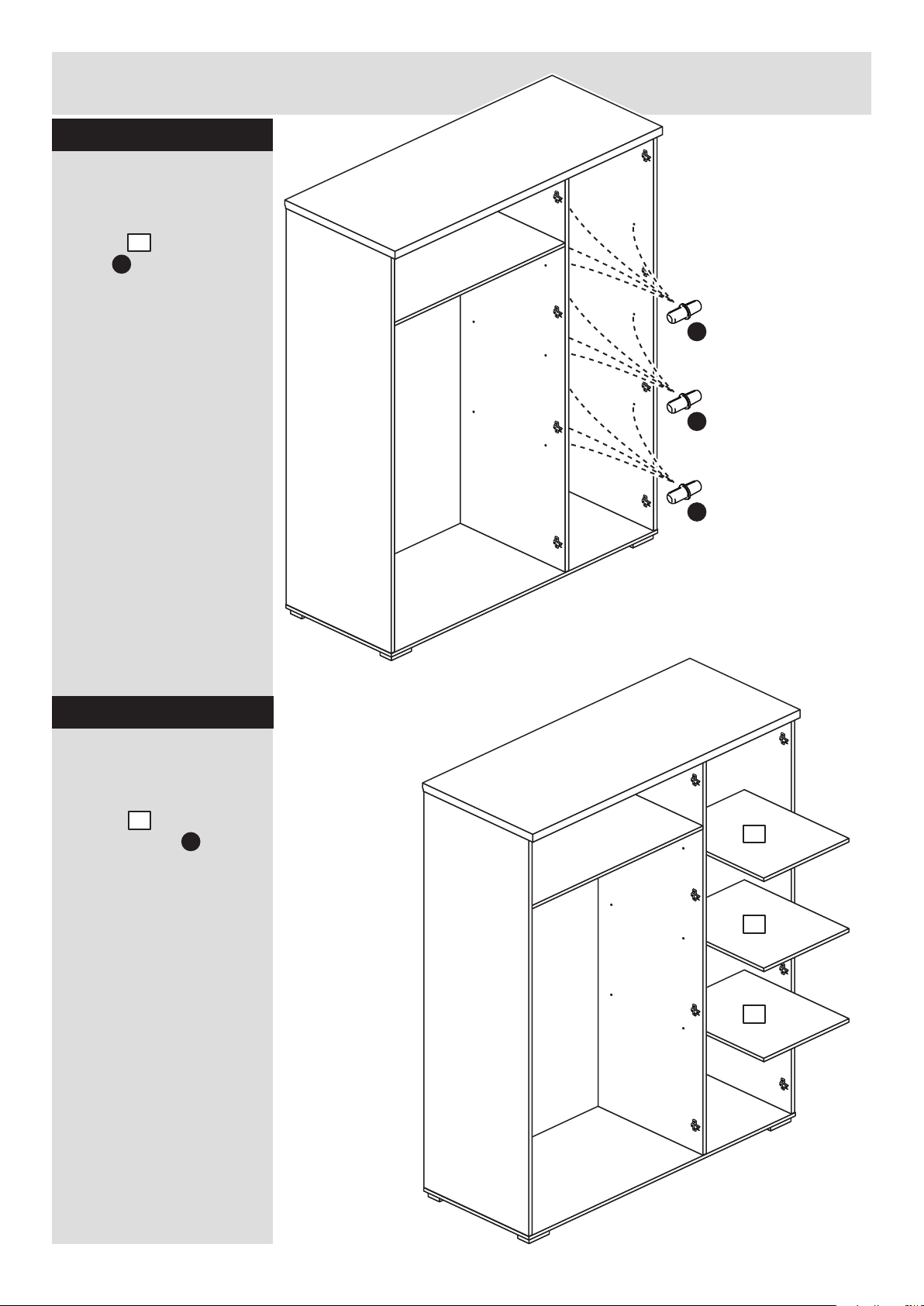

Fit the shelf studs
For each of the 3 loose
shelves , insert 4 shelf
studs .
5
I
Fit the loose shelves
Lower the 3 loose
shelves down onto
the shelf studs . 5
5
5
5
I

Assembly Instructions
12
Step 15
6
L
6

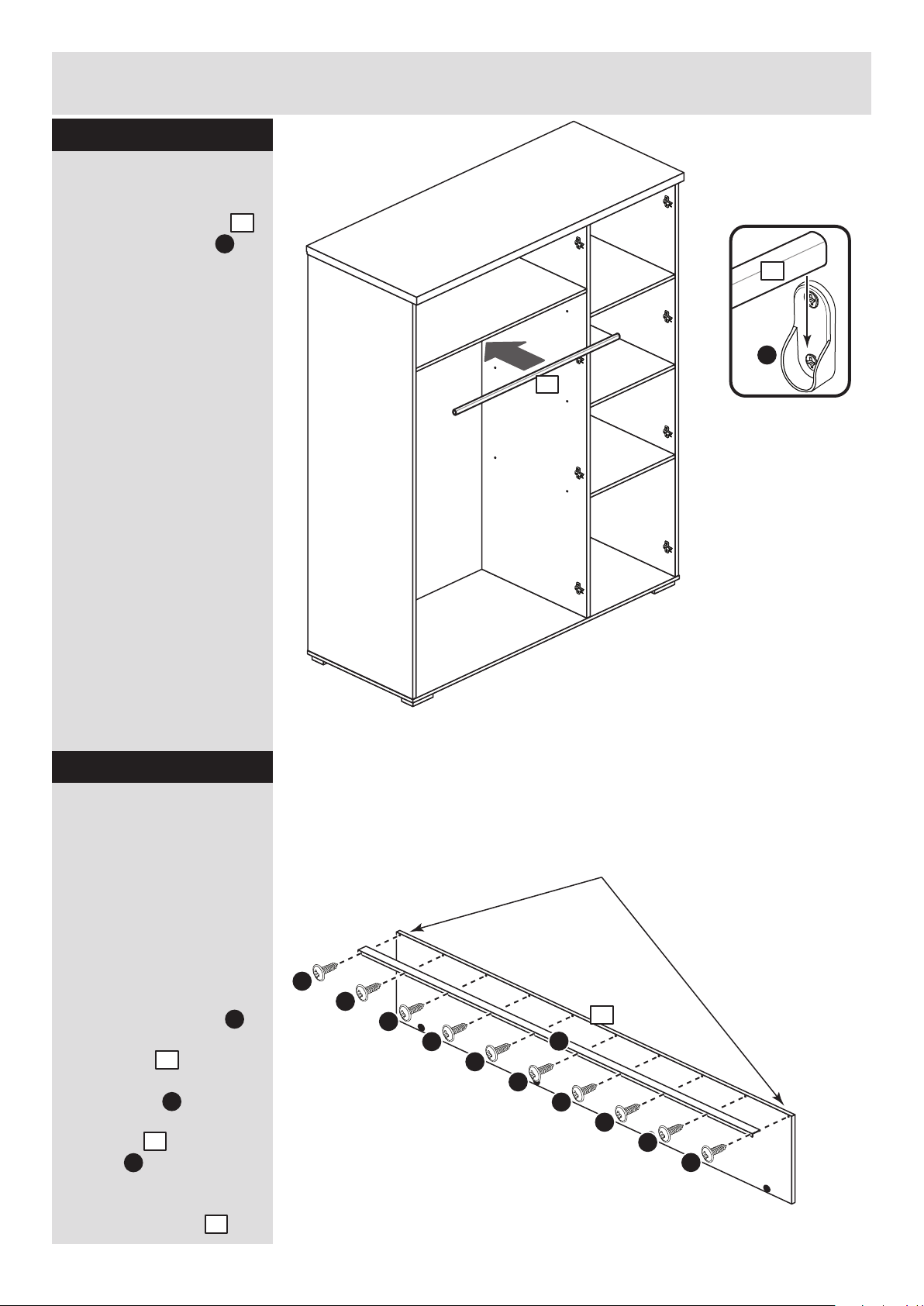

Fit the hanging rail
Push the hanging rail
into the rail holders
fitted to the left side and
divider.
6
L
Step 16
Fit the handles to the
2 plain doors
Note: Attach the handles
using the 2 outer screws
1st then, screw in the
rest once the handles
have been secured at
both ends.
Position the handles
onto the side edge of the
plain doors .
Fix a handle to the
back surface of each of
the doors using 10
screws .
Note: Do not fit a handle
to the mirror door .
Q
9
Q
J
9
10
x 2
J
J
J
J
J
J
J
J
J
J
9
Q
Attach the handles
using the 2 outer
screws 1st.

Polystyrene
blocks
Polystyrene
blocks
Polystyrene
blocks
Polystyrene
blocks
Assembly Instructions
13
Step 17
90
P
Fit the hinges to the
doors
Note: To make it easier
to fit the hinges and to
protect the handles,
place polystyrene blocks
from the packaging
underneath the 2 plain
doors to raise them up.
Push fit 4 hinges into
each of the 3 doors
and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
K
P
9
9
9
P
KK
10
Warning:
Glass! Handle
with care
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
P
KK
10
Fit the hinges to the
doors
Note: To make it easier
to fit the hinges and to
protect the handle, place
polystyrene blocks from
the packaging
underneath the door with
the handle to raise it up.
Push fit 3 hinges into
each of the doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.

Assembly Instructions
14
Step 18
Fit the doors
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
P
P
P
O
O
O
P
O
9
10
a: b:
c: d:
O
P
O
O
B
O
P
P
P
A
P
O
B
9
9
10
Note: The middle door
is the mirror door.
Warning:
Glass! Handle
with care

Assembly Instructions
15
Step 19
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C

Assembly Instructions
16
Step 20
Fit the bracket
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
Assembly is complete
Top of Unit
WALL WALL
Back of Unit
N
N
J
N
N
J
N
J
N
N

Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been
manufactured by DECORATIVE PANELS FURNITURE LTD, TEESSIDE
INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT .
The product code for this unit and the item code(s) for the glass
components are listed in the Assembly Instructions along with a description
of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements
of BS 6206 Class C. If the glass component contained in this unit is chipped
or broken consult the furniture manufacturer, retailer, or agent with regard to
obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to
glass surface(s) unless adequately thick insulating material is used to
prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up
liquid or soft soap if necessary - do not use washing powders or any other
substance containing abrasives since these substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE

ALR3054
