Cheval - Dresser and Stool
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 13/03/14
Important - Please read these instructions fully before starting assembly
ALR2970
152/6435
151/5154
151/2621
147/6695
Dresser
Dimensions
Width - 97cm
Depth - 36cm
Height - 78cm
Stool
Dimensions
Width - 43cm
Depth - 35.5cm
Height - 48cm
Issue 2 - 13/03/14 - 4 Wedgefixes added.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 28kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
12
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D2771A)
(762 x 318mm)
Top (D2757A)
(970 x 360mm)
Upright (D2759A)
(167 x 300mm)
Right Side (D2756A)
(762 x 318mm)
Mirror Back (D2768A)
(496 x 332mm)
Stool Base (D0997A)
(400 x 348mm)
Stool Rail (D0998A)
(400 x 144mm) x 2
Stool Side (D0996A)
(451 x 352mm) x 2
Seat Pad (FMANPAD)
(398 x 348mm)
3
4 5
8
Modesty (D2758A)
(934 x 353mm)
6 7
11
(Mirror - SG25
460 x 300mm
Safety Back SAR)
Right Drawer Front (D2760A)
(475 x 164mm)
Left Drawer Front (D2767A)
(475 x 164mm)
Drawer Base (T439-297)
(439 x 297mm) x 2
Left Drawer Side (W300-124LH)
(300 x 124mm) x 2
Right Drawer Side (W300-124RH)
(300 x 124mm) x 2
9
12 13
10 Drawer Back (W428-124)
(428 x 124mm) x 2
14
15 16 17 18
Left Support (D2769A)
(150 x 250mm)
Right Support (D2772A)
(150 x 250mm)

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 6
B
Metal dowel (F901) x 26
D E
Large locking
nut (F900) x 22
F
G H I
K
Small locking
nut (F3) x 4
C
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
see malibu fitment mk2 for large number of panels and fittings
9mm Screw (F74) x 4
9mm Screw (F73) x 8
L
Knock-in Peg (F171) x 8
M
P
Plastic Nail (F91) x 8
N
Bracket (F327) x 1
13mm Screw (F79) x 1
Drawer runner (F1004) x 4
O
Mini block (F25) x 4
Handle (F273) x 2
25mm Screw (F50) x 4
19mm Screw (F461) x 4
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Wedgefix (F639) x 4

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
x 2
x 2
B
B
B
E
Step 2
Prepare the 2 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts and .
Note: Tighten the metal
dowels up fully against
the panels.
B
9 10
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
E
12
13
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front and .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
12
13
9 10
E
E
12
13
E
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
B
B
B
B
E
12
910
12
13
9 10
x 2
E
13
Note: The right drawer
front has a shallow
identification mark.

L
L
Assembly Instructions
5
Step 4
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front and .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
14
12 13
9 10
11
12 13
14
11
11
L
12 13
Attach the handles
Attach a handle to
each of the drawer fronts
. and using 2
screws .
O
G
9 10
12
9 10
13
14
13
14
12
L
L
11
O
9 10
x 2
x 2
x 2
G
G

Assembly Instructions
6
Step 7
Step 8
Finished
front edge
Finished
front edge
I
J
I
B
B
D
D
D
Prepare the left side
a: Place a runner on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
Screw 2 metal dowels
into the left side .
1
I
I
D
1
1
J
J
1
1
B
1
Finished
front edge
I
J
a:
b:
x 2
M
M
M
Fit the wedgefixes
Turn the 2 drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
M

B
B
Assembly Instructions
7
Step 9
Prepare the right side
a: Place a runner on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
Screw 2 metal dowels
into the right side .
2
I
I
D
2
2
J
J
B
2
D
D
I
J
Finished
front edge
Finished
front edge
Finished
front edge
K
M
I
a:
b:
2
2

Finished
front edge
Finished
bottom edge
Assembly Instructions
8

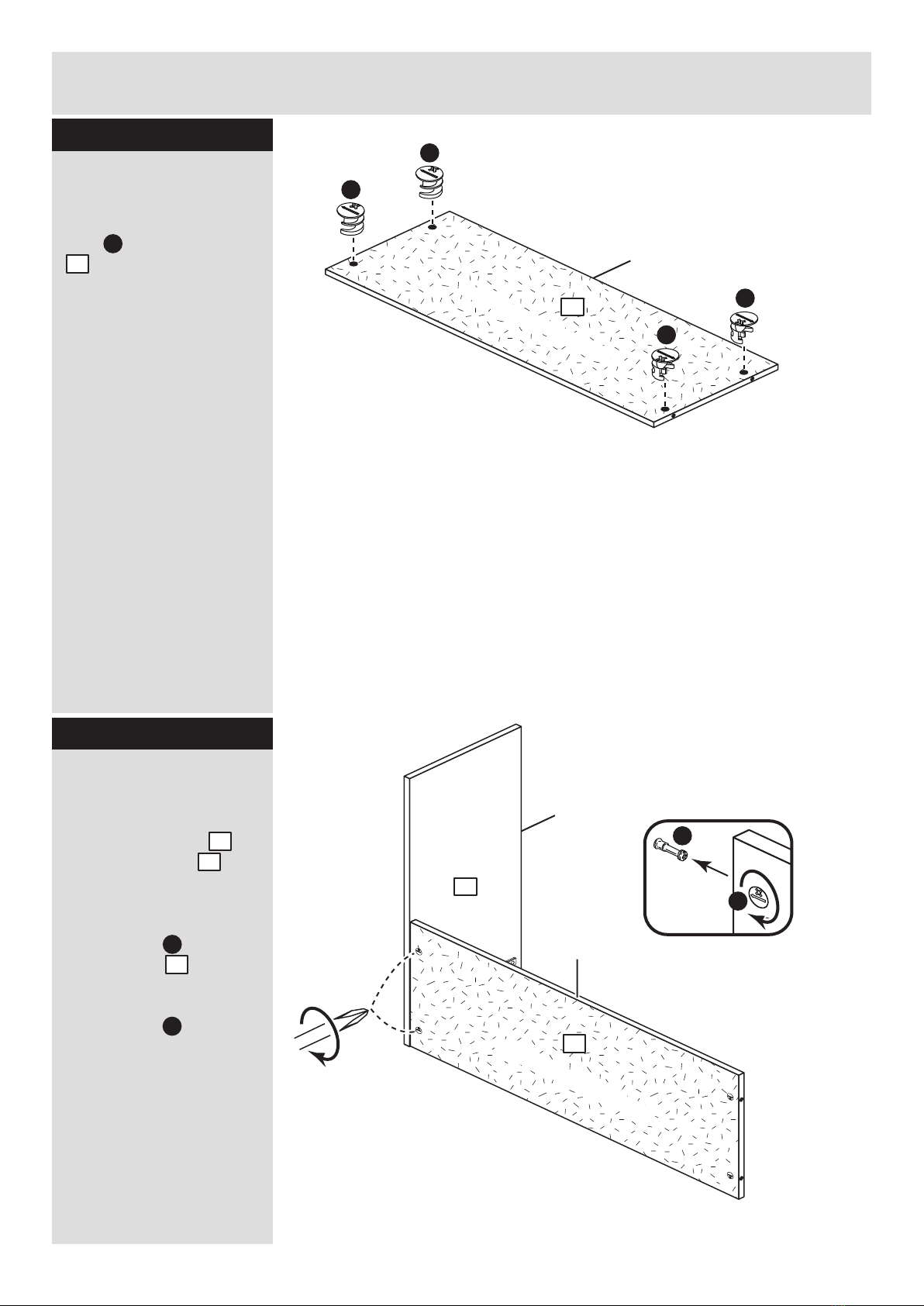

Step 10
D
D
D
D
Prepare the modesty
Insert 4 large locking
nuts into the modesty
. .
D
6
6
Step 11
B
D
Fit the modesty to the
left side
Push the modesty
onto the left side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the modesty .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
6
1
D
6
D
6
1
Finished
bottom edge
plain chipboard surface
plain chipboard surface
Note: The modesty can have
a plain chipboard surface.

Assembly Instructions
9
Step 12
Finished
front edge
Fit the right side
Push the right side
onto the modesty .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the modesty .
2
6
D
6
6
2
Step 13
Prepare the top
Screw 6 metal dowels
into the top .
B
B
B
B
B
B
Finished
front edge
B
3
3

Finished
front edge
Finished
front edge
Assembly Instructions
10
Step 14
Prepare the upright
Note: The colour of the
upright may differ from
the main unit colour or
may be plain chipboard.
a: Place a runner on
the upright as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
Insert 2 large locking
nuts into the upright
. .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the upright .
Turn the upright over
c: Place a runner on
the upright as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
d: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the upright .
4
I
I
D
4
4
J
4
I
J
J
I
4
J
I
J
D
D
I
Finished
front edge
Finished
front edge
I
J
Finished
front edge
I
J
I
Finished
front edge
K
M
Turn the upright over
a:
b:
c:
d:
Note: Due to the manufacturing
process, the 2 holes for the large
locking nuts can be on either
surface of the upright.
4
4
4
4

Assembly Instructions
11
Step 15
Step 16
Fit the top
Push the sides and
down onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the sides and
. .
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. as shown.
Carefully stand the
unit up for the next
step.
Finished
front edge
1
3
2
1
3
2
D
Fit the upright to the
top
Push the upright
down onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the upright .
1
2
Finished
front edge
D
3
4
3
4
4
Remember: The 2 holes for the
large locking nuts can be on
either surface of the upright.
M
M
M
M
1
2
M
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
12
Step 17
10
2nd threaded
hole
J
K
K
K
Fit the drawers
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
K
J
J
12 13
K
9
C
C
C
8
Step 18
Prepare the left and
right support
Gently tap 2 mini blocks
. into the holes on the
left support and the
right support ,
orientated as shown.
5
8
C
C
C
5
K
K
Remember: The right drawer front
has a shallow identification mark
(refer back to Step1).

Assembly Instructions
13
Step 19
Step 20
Position the mirror on
assembly and fit the
bracket
Place the mirror
assembly on the top of
the dresser.
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall using the bracket ,
fitted just below the
modesty, on one of the
side panels with the
screw .
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
Fit the supports to the
mirror back
Place the left support
and right support
onto the mirror back .
Tighten up the screws in
the mini blocks into
the holes in the mirror
back .
Warning:
Glass! Handle
with care
8
5
7
C
7
5
8
7
The Bracket can be
fitted to either the Left
Side or the Right Side.
N
H
N
H

Assembly Instructions
14
Step 21
Prepare the 2 stool
sides
Screw 6 metal dowels
into each of the 2 stool
sides , as shown.
Step 22
B
Prepare the stool
base
Insert 4 large locking
nuts into the holes in
the stool base .
Tap 2 wooden dowels
into the ends of the stool
base .
Step 23
15
16
16
D
Fit a stool side to the
stool base
Fit one of the stool
sides to the stool
base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
15
16
D
D
15
Step 24
Prepare the 2 stool
rails
Insert 4 large locking
nuts into each of the
2 stool rails .
Tap 2 wooden dowels
into each stool rail .
D
17
A
B
15
D
D
D
D
A
16
C
C
C
C
A
x 6
17
17 x 2
x 2
15
16
A
A
A

Assembly Instructions
15
Step 25
Step 26
Fit the 2 stool rails
Push the 2 stool rails
down onto the stool side
. , as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each stool rail .
17
15
D
17 15
17
Fit the other stool
side
a: Push the other stool
side down onto the
assembly, as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the stool rails .
17
15
16
15
D
16
b:
a:
D
17
17 17

Assembly Instructions
16
Step 27
Fit the seat pad
Position the seat pad
onto the assembly and
make sure that its 4
edges line up with the
stool base .
Hold the seat pad in
position and screw up
through the 4 holes in
the stool base using
screws .
Note: Make sure that
you screw into the hard
surface of the seat pad.
Assembly is complete
18
16
F
18
16
18
16
Hard
surface
Soft
surface
Step 28
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the stool sides
as shown.
F
F
F
F
Fit the top
Push the sides and
down onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the sides and
. .
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. as shown.
Carefully stand the
unit up for the next
step.
M
1
2
M
M
M
M
15
M
15
15

Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 29
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been manufactured by
DECORATIVE PANELS FURNITURE LTD, TEESSIDE INDUSTRIAL ESTATE,
THORNABY-ON-TEES, CLEVELAND, TS17 9LT .
The product code for this unit and the item code(s) for the glass components are listed in the Assembly
Instructions along with a description of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements of BS 6206 Class C. If the
glass component contained in this unit is chipped or broken consult the furniture manufacturer, retailer,
or agent with regard to obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to glass surface(s) unless
adequately thick insulating material is used to prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up liquid or soft soap if
necessary - do not use washing powders or any other substance containing abrasives since these
substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
Assembly is complete

ALR2970
