Montana - Coffee Table
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 16/04/15
Important - Please read these instructions fully before starting assembly
ALR3145
395/7370
408/9474

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 35kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
2
13
80%
90%
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Left End (DF3784)
(353 x 475mm)
Top (DF3795)
(1200 x 495mm)
Fixed Shelf (DF3793)
(404 x 450mm)
2Left Divider (DF3787)
(353 x 475mm)
4Right Divider (DF3792)
(353 x 475mm)
Base (DF3796)
(1200 x 495mm)
Loose Shelf (DF3788)
(366 x 456mm) x 2
Large Back (DF3524)
(366 x 353mm) x 2
Low Back (DF3797)
(404 x 203mm)
Drawer Front (DF3794)
(398 x 215mm)
Left Door (DF3521)
(347 x 394mm)
Left Drawer Side
(W370-124LH)
(370 x 124mm)
Right Drawer Side
(W370-124RH)
(370 x 124mm)
Right Door (DF3947)
(347 x 394mm)
Right End (DF3791)
(353 x 475mm)
56
7 8 9 10
11 12 13 14
15 16 17
Drawer Back (W370-124)
(370 x 124mm)
Drawer Base (T381-367)
(381 x 367mm)

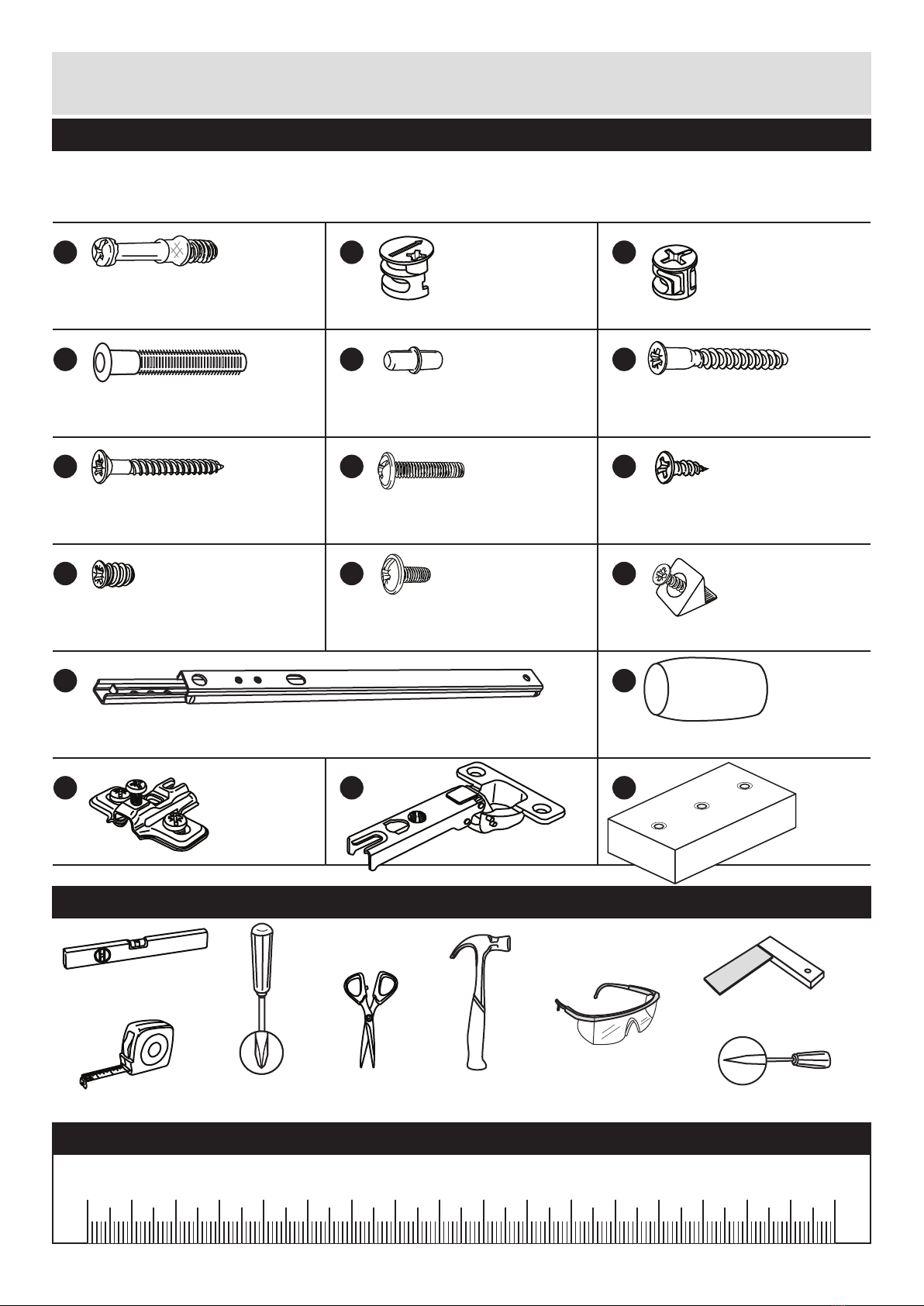

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Rule
Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H I
L
N
Small locking
nut (F3) x 2
C
40mm Screw (F910) x 8
M
9mm Screw (F74) x 2
K
O P
J
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
Knock-in Peg (F171GY) x 4
Large locking
nut (F900) x 24
Metal dowel (F901) x 26
Q
Wedgefix (F639) x 2
Shelf stud (F110) x 8
19mm Screw (F461) x 3
38mm Screw (F81) x 10
Square
Bradawl
Spirit
level
13mm Screw (F63) x 8
Handle (F341) x 3
Foot
(F233) x 5
Hinge (F518) x 4
Hinge plate
(F523) x 4

11
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
A
A
C
C
C
C
12 13
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
11
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
12
13
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
12
13
11
C
C
12
13
12
13
A
A
11
80%

11
Assembly Instructions
5
Step 4
D
D
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
15
12 13
11
14
12 13
15
14
14
D
Attach the handle
Attach a handle to the
drawer front using
screw .
N
H
11
12 13
D
D
15
12
14
12
13
15
13
Step 7
Fit the wedgefixes
Turn the drawer
assembly over and slide
2 wedgefixes into the
front and back groove,
as shown, and tighten up
the screws.
L
L
L
H
L
N
11

Assembly Instructions
6
Step 8

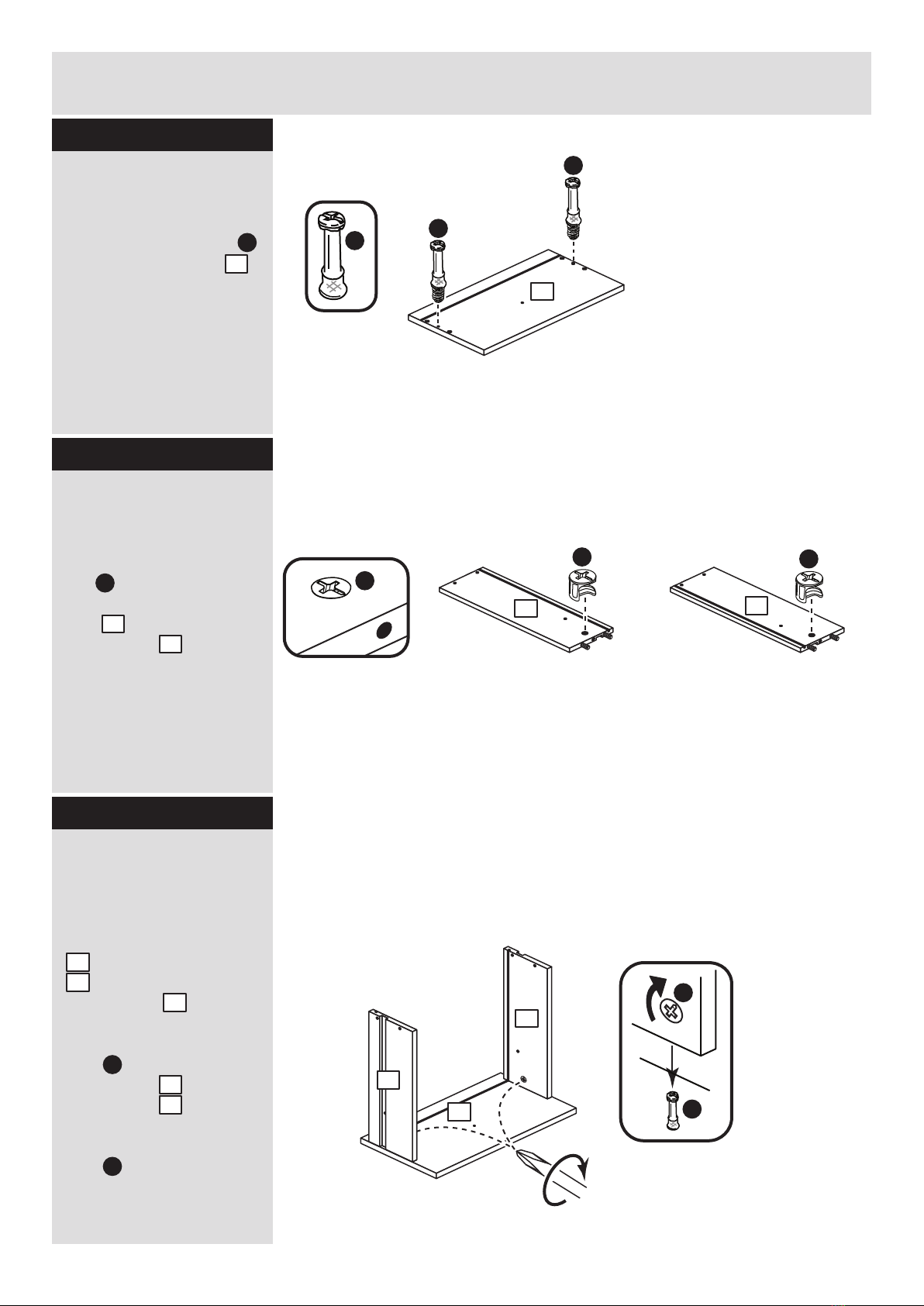

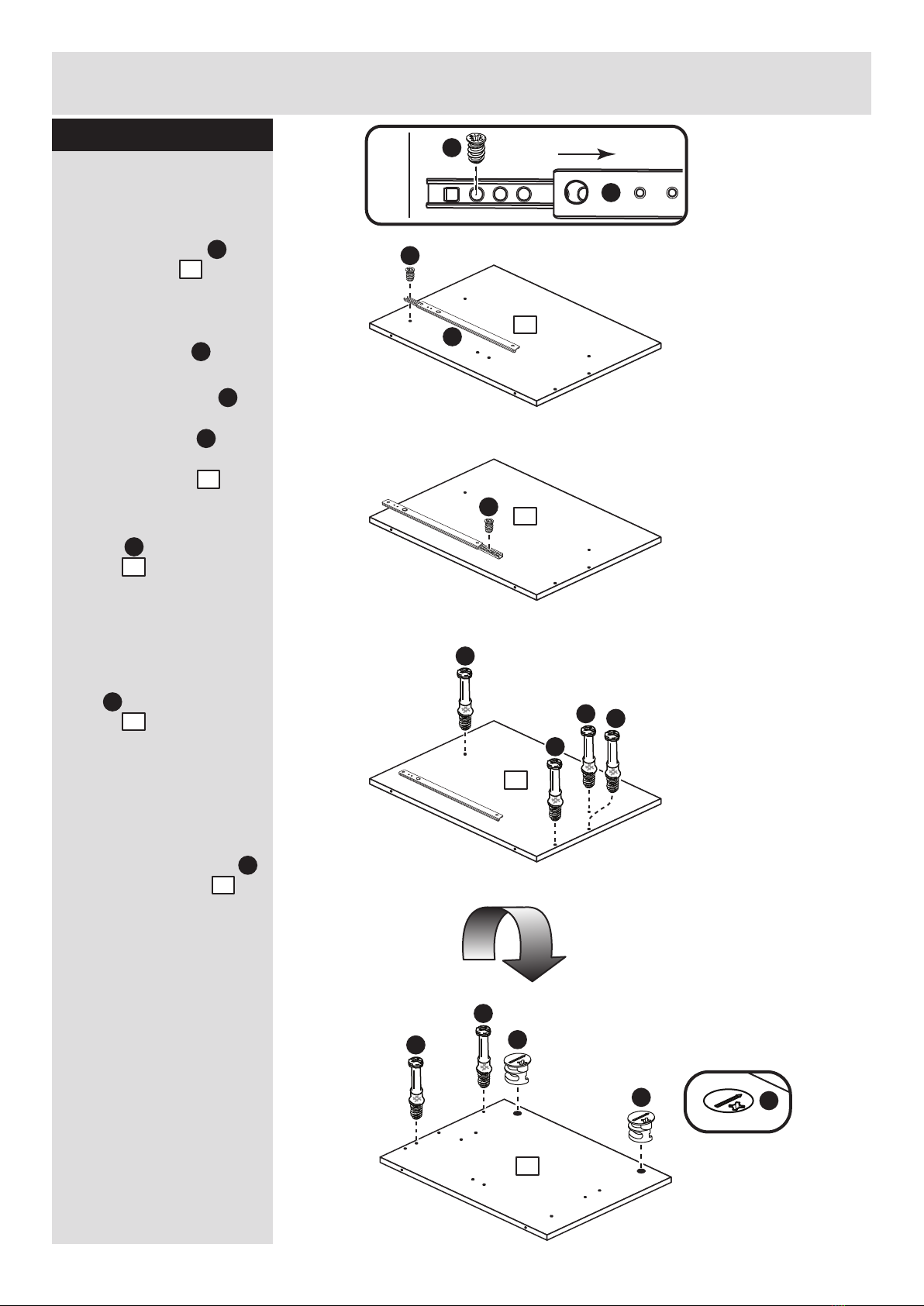

Prepare the left
divider
a: Place a runner on
the left divider as
shown. Slide back the
top of runner and use the
1st hole from the front to
fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left divider .
c: Screw 4 metal
dowels into the left
divider .
Turn the left divider
over
d: Insert 2 large locking
nuts into the left
divider .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
Screw 2 metal dowels
into the left divider .
3
J
J
B
3
3
M
M
A
3
A
3
Front
edge
J
M
J
M
J
A
A
A
A
B
B
B
a:
b:
c:
d:
3
3
3
3
Turn the left divider over
A
A

Assembly Instructions
7
Step 9
Prepare the right
divider
a: Place a runner on
the right divider as
shown. Slide back the
top of runner and use the
1st hole from the front to
fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right divider .
c: Screw 4 metal
dowels into the right
divider .
Turn the right divider
over
d: Insert 2 large locking
nuts into the right
divider .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
Screw 2 metal dowels
into the right divider .
4
J
J
B
4
4
M
M
A
4
A
4
a:
b:
c:
d:
Turn the right divider over
Front
edge
J
M
J
M
J
A
A A
A
B
B
B
A
A
4
4
4
4

Assembly Instructions
8
Step 10
Prepare the fixed shelf
Insert 4 large locking
nuts into the fixed
shelf .
B
7
Prepare the low back
Insert 4 large locking
nuts into the low back
. .
B
10
B
B
B
B
10
B
B
B
B
7
Finished
front edge
A
B
Fit the fixed shelf to
the left divider
Push the fixed shelf
onto the left divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the fixed shelf .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
7
B
B
7
7
3
Step 11
Step 12

Assembly Instructions
9
Step 13
3
10
10
Fit the low back
Push the low back
onto the left divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the low back .
3
10
B
10
4
7
Fit the right divider
Push the right divider
onto the fixed shelf
and low back .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the fixed shelf and
low back .
7
10
10
4
B
7
Step 14
Prepare the 2 large
backs
Insert 4 large locking
nuts into each of the
2 large backs .
B
9
Step 15
B
B
B
B
9
B
B
B
B
9

Assembly Instructions
10
Step 16
9
9
Fit the 2 large backs
Push one of the large
backs onto the left
divider and the other
onto the right divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the large backs
. .
3
4
9
B
9
3
4
Prepare the left end
Insert 2 large locking
nuts into the left end
. .
Screw 2 metal dowels
into the left end .
Fit 2 hinge plates onto
the left end , making
sure that the slot is
facing towards the front
edge.
Step 17
Step 18
B
O
O
O
A
AB
2
O
O
B
O
A
A
B
B
1
1
1
1
A
O
Prepare the right end
Insert 2 large locking
nuts into the right end
. .
Screw 2 metal dowels
into the right end .
Fit 2 hinge plates onto
the right end , making
sure that the slot is
facing towards the front
edge.
B
2
2
2
A
O

Assembly Instructions
11
Step 19
Step 20
Fit the left and right
end panels
Push the left end and
right end onto the
large backs .
Use a screwdriver to
tighten the 2 large

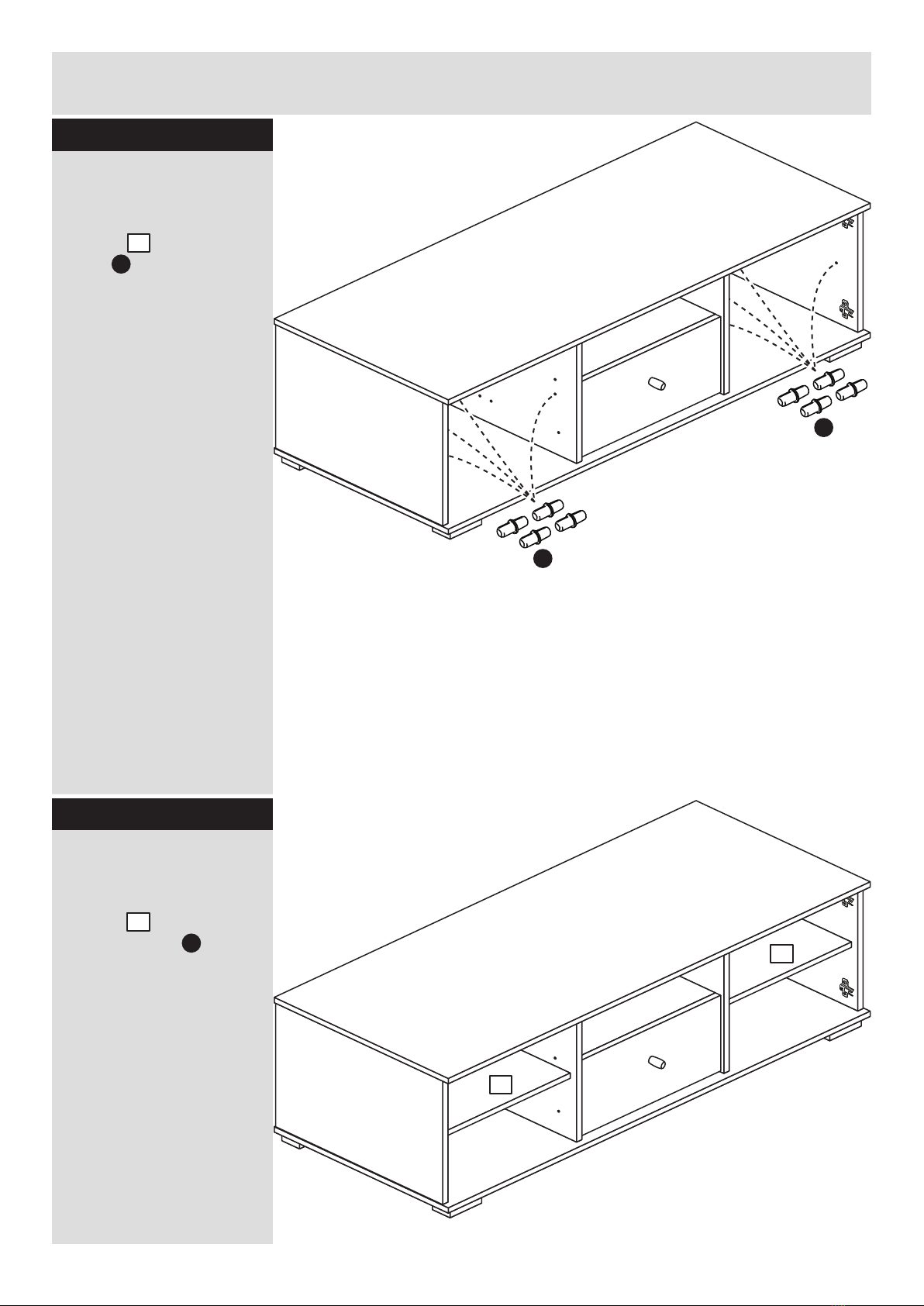

locking nuts fitted to
the large backs .
2
9
1
B
9
A
2
9
1
9
AA
AA
AA
A
Prepare the top
Screw 8 metal dowels
into the top .
5
A
5

Assembly Instructions
12

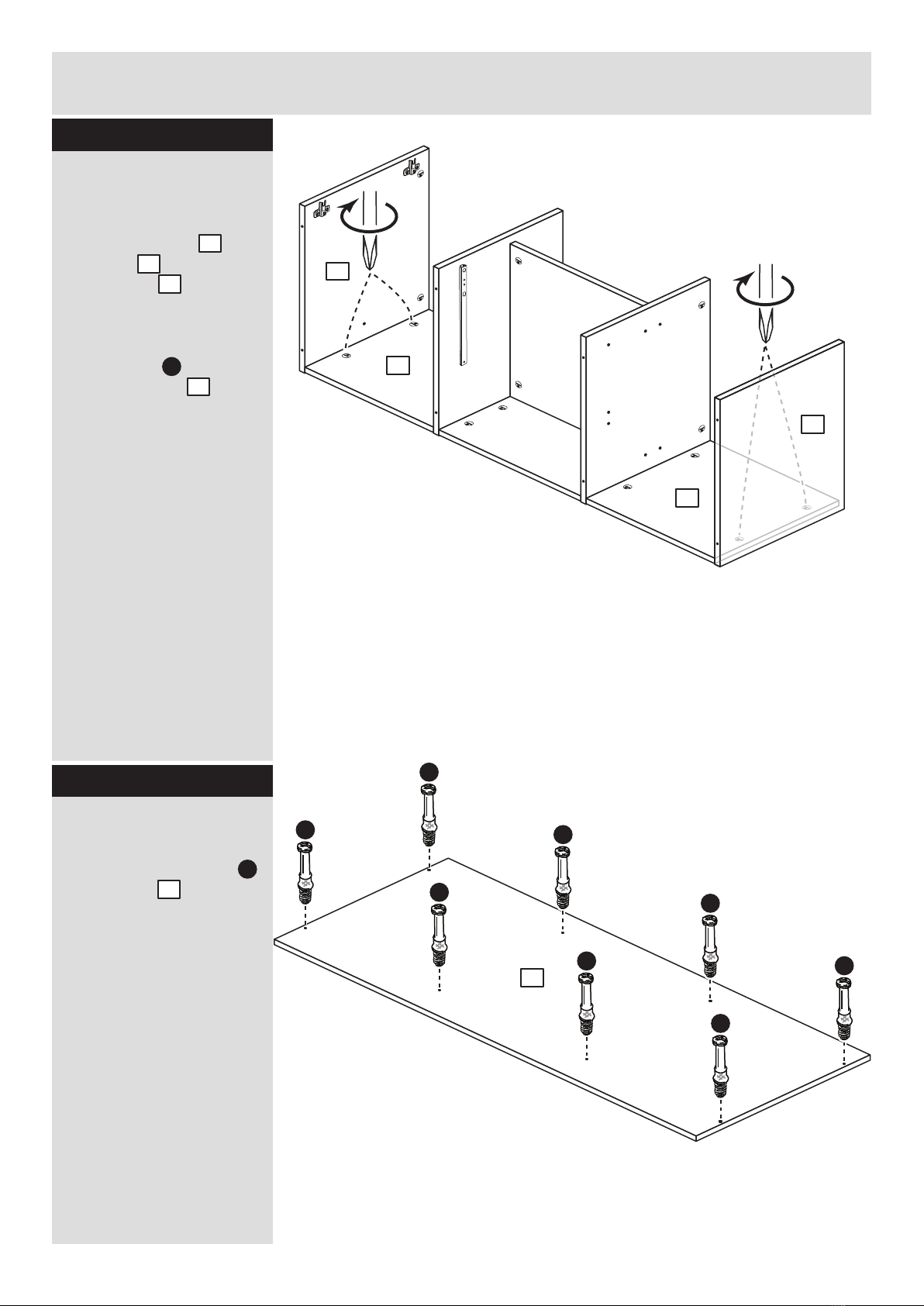

Step 21
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 8 large
locking nuts fitted to
the left end , right end
. , left divider and
right divider .
B
5
1
2 3
4
5
1
2
3
4
Step 22
Fit the base
Fit the base onto the
assembly using 8 screws
. .
6
F
F
F
F
F
F
F
F
F
6

Assembly Instructions
13

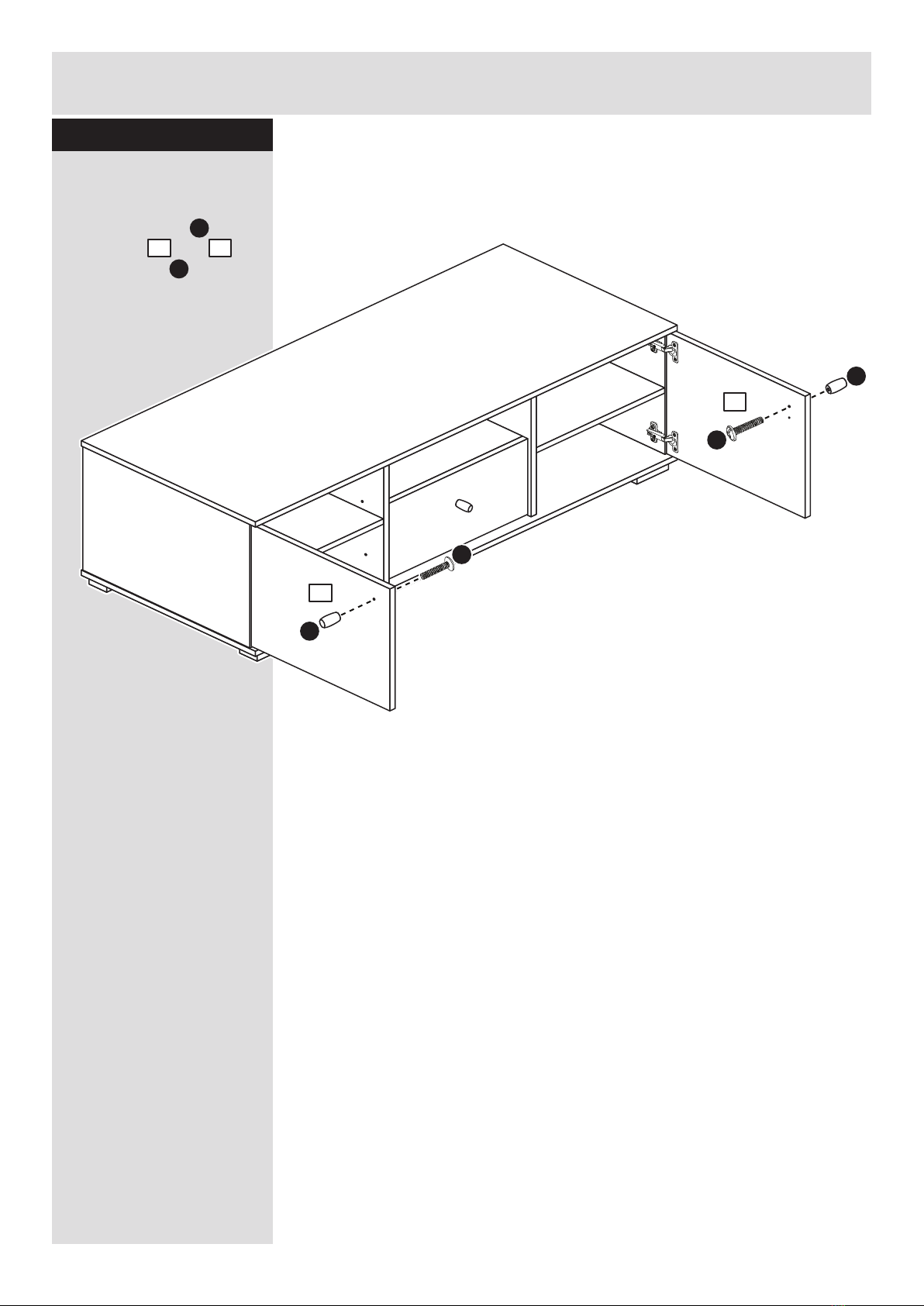

Step 23
Step 24
6
Fit the feet
Fit the feet to the
base using screws .
Q
6
G
G
Q
G
G
Q
G
G
Q
G
G
Q
G
K
K
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
K
M
M
K
2nd threaded
hole
M
K
12 13
Carefully stand the
unit up for the next
step.
Warning: The
unit is heavy.
Lift with care.
G
G
Q

Assembly Instructions
14
Step 25
Step 26
Ex 4
Fit the shelf studs
For each of the 2 loose
shelves , insert 4 shelf
studs .
Ex 4
Fit the 2 loose shelves
Lower the 2 loose
shelves down onto
the shelf studs .
E
8
E
8
8
8

Assembly Instructions
15
Step 27
P
I
I
90
P
P
I
I
P
I
I
P
I
I
Prepare the 2 doors
Push fit 2 hinges into
the left door and the
right door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
I
P
16
17 16
17
Note: The right door has
a small identification mark.

Assembly Instructions
16
Step 28
Fit the 2 doors
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinge.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
P
P
P
O
O
O
P
O
16
17
a: b:
c: d:
O
P
O
O
B
O
P
P
P
A
P
O
B
17
16

N
H
16
Assembly Instructions
17
Step 29
Fit the handles
Attach a handle to
each door and
using screws .
N
H
16 17
N
17
H

Assembly Instructions
18
Step 30
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C
a:
A
A
B
C
b:
c:
d:

Assembly Instructions
19
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR3145
Step 31
Assembly is complete
