Puerto Rico - 3 Door Wardrobe
332/6901
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Important –Please read these instructions fully before starting assembly
Dimensions
Width - 158.8cm
Depth - 57cm
Height - 188cm
Issue 1 - 01/10/14
338/7012

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.
Care and maintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.

Components - Panels
Please check you have all the panels listed below
2
1Right side panel (177.3 x 53cm)
2Left side panel (177.3 x 53cm)
3Middle wall panel (164.5 x 52.5cm)
4Top panel (152.8 x 50cm)
5Base panel (149.3 x 51.4cm)
7Back panel left x 2 (167 x 50.8cm)
6Back panel right (167 x 48.8cm)
8Right front frame (178 x 6.5cm)
9Left front frame (178 x 6.5cm)
10 Right middle front frame
(167 x 6.5cm)
11 Left middle front frame
(167 x 6.5cm)
12 Horizontal front frame
(140 x 6.5cm)
13 Larger H profile (137 x 2cm)
16 Front plinth (158.8 x 11.2cm)
14 Curved top rail (149 x 21cm)
15 Curved top moulding
(158.8 x 12.6cm)
19 Left door (166.6 x 41.6cm)
17 Right door (166.6 x 41.6cm)
18 Middle door (166.6 x 41.6cm)
20 Left shelf
(100.5 x 51.5cm)
21 Right fixed shelf
(47 x 51.5cm)
22 Right shelf x 2
(47 x 51.5cm)
23 Hanging rail
(100 x 2.8cm)
24 Side top moulding
x 2 (54 x 2.8cm)
25 Side plinth x 2
(54 x 11.2cm)
26 Smaller H profile
(25 x 2cm)
28 Blocks x 2
(20 x 2.5cm)
29 Blocks x 11
(10 x 2cm)
30 Hanging rail support
x 2 (7 x 6.5cm)
27 Bottom Support
(20 x 10.3cm)
top
top
left side
underside
underside
underside
top

3
Components - Fittings
Please check you have all the fittings listed below
If you have damaged or missing components,
call the Customer Helpline: 03456 400 800
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
0510 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Phillips screwdriver
(medium & large)
Eye protection
(when using a
hammer or glue)
Small
hammer
Ruler/tape
measure
2m
O
Shelf support x 8
R
A
D
G
K
B
E
H
L
C
F
J
M
NP
Q
Wooden dowel x 34 14mm Screw x 70 25mm Screw x 12
35mm Screw x 26 35mm Screw x 49 50mm Screw x 8
S
Plug x 6
Clip x 6
Door
hinge x 9
Door
handle x 3
19mm Bolt x 3
Metal dowel x 12 Locking
nut x 12
T
Door
spacer x 1
Wall strap x 1
Washer x 2Nail x 64
Metal
stud x 2

Attention: this
side lined up.
Assembly Instructions
4

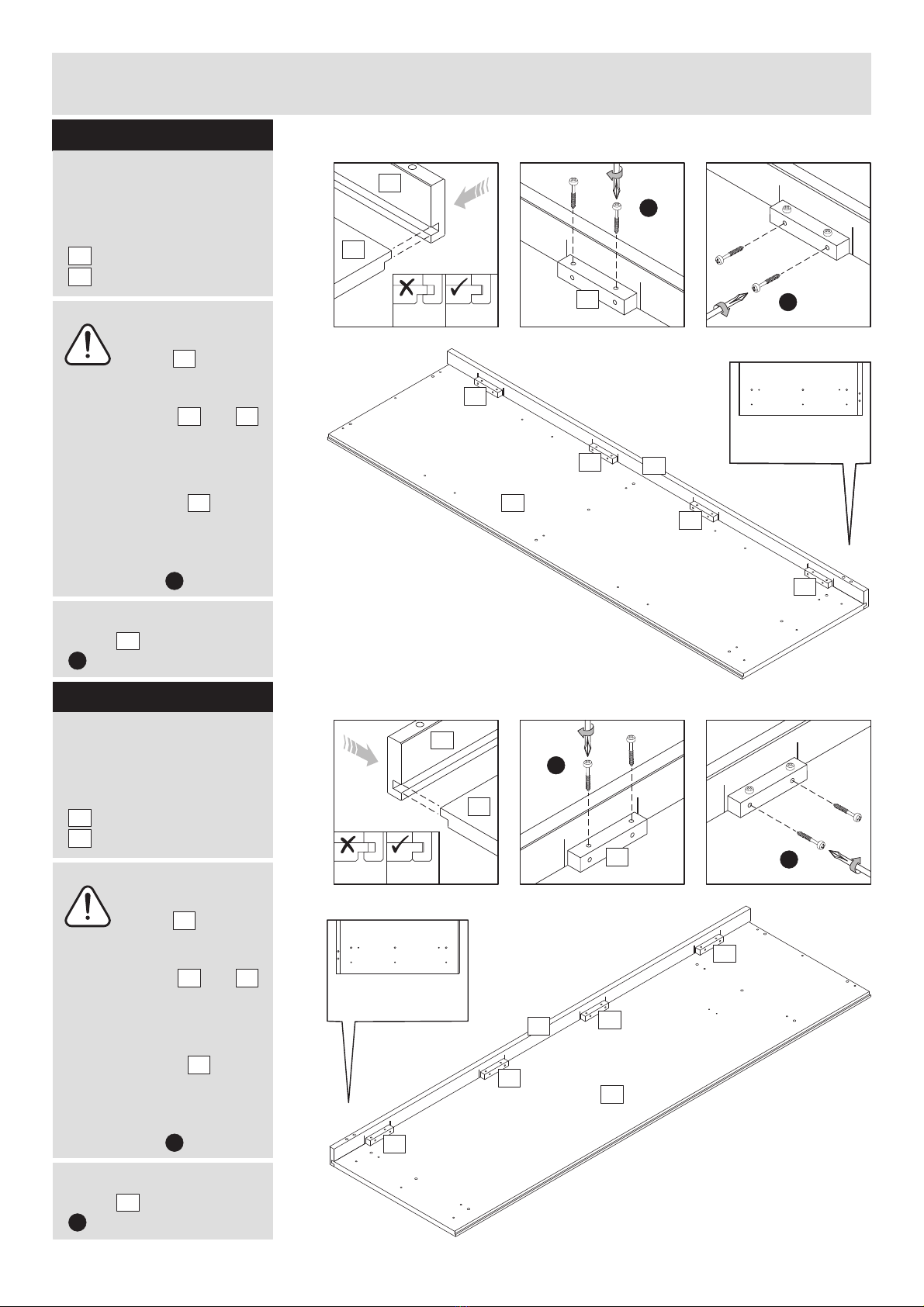

Step 2
Step 1
Fixing right front frame.
(Two people required for
an easier assembly).
a: Insert right side panel
into right front frame
through joints.
c: Fix front frame through
blocks using screws
.
a: b: c:
a: b: c:
Note:
Before fixing the
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
1
1
1
1
Top
Top
b: Place blocks
between the two marks on
the front frame as shown.
First fix to the side panel
using screws .
Fixing left front frame.
(Two people required for
an easier assembly).
a: Insert left side panel
into left front frame
through joints.
c: Fix front frame through
blocks using screws
.
Note:
Before fixing the
blocks into
place it is important to
ensure that the slot and
groove of parts and
are fully pushed together
and lined up correctly at
the top and bottom.
b: Place blocks
between the two marks on
the front frame as shown.
First fix to the side panel
using screws .
2
2
E
E
E
E
E
E
Yes!No!
E
E
Yes!No!
Attention: this
side lined up.
2
2
8
29
8
29
29
9
29
9
29
29
8
29
29
8
29
29
29
9
29
9
29
29
29
29

Assembly Instructions
5
Step 3b: c:
a:
3
E
E
29
Fixing middle front
frame.
(Two people required for
an easier assembly).
a: Insert middle wall
panel into right middle
front frame through
joints.
c: Fix middle front frame
through blocks using
screws .
Attention:
Ensure to leave
of middle9mm
front frame out before
fixing.
b: Place blocks
between the two marks on
the front frame as shown.
First fix to the middle wall
panel using screws .
E
E
29
29
3
10
Yes!No!
9mm
10
3
10
29
29
29
Attention!
Correct position out.9mm
9mm
10
3
Step 4
Insert shelf supports
into the right side panel
and middle wall
panel .
O
3
1
1
3
O
O
O
O

Step 5
Assembly Instructions
6
Insert dowels into the
indicated parts.
Fix hanging rail supports
in the pre marked
holes on left side panel
and middle wall
panel using screws
, as shown.
A
2
3
A
A
A
A
A
A
5
20
21
12
A
A
2x 24
A
A
A
A
A
A
A
3
2
30
E
30
E

Assembly Instructions
7
Step 6
Step 7
1
Fitting Metal dowels.
Screw metal dowels
into right side panel
and left side panel .
Insert metalNote:
dowels as far as
shown.
Do not over tighten.
G
2
Fitting Metal dowels.
Screw metal dowels
into both sides of middle
wall panel .
Insert metalNote:
dowels as far as
shown.
Do not over tighten.
3
180O
G
G
G
1
2
G
G
G
G
3
G
3
G

Step 9Attention!
3
20
3
21
Assembly Instructions
8
3
5
F
Step 8
Fixing base panel.
Fit base panel to the
middle wall panel then
fix it using screws .
Attention!
Round edge on
base panel must
be facing front.
3
Attention:
F
5
5
F
21
3
12
10
20
H
H
H
H
Fixing shelves.
With help, fit shelf and
fixed shelf to middle
wall panel .
Insert 4 locking nuts
into shelf and fixed shelf
where shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
Attention!
Round edge on
shelves must be
facing front.
Insert horizontal front
frame into the right
middle front frame .
20
21
H
H
20
21
3
12
10

Assembly Instructions
9

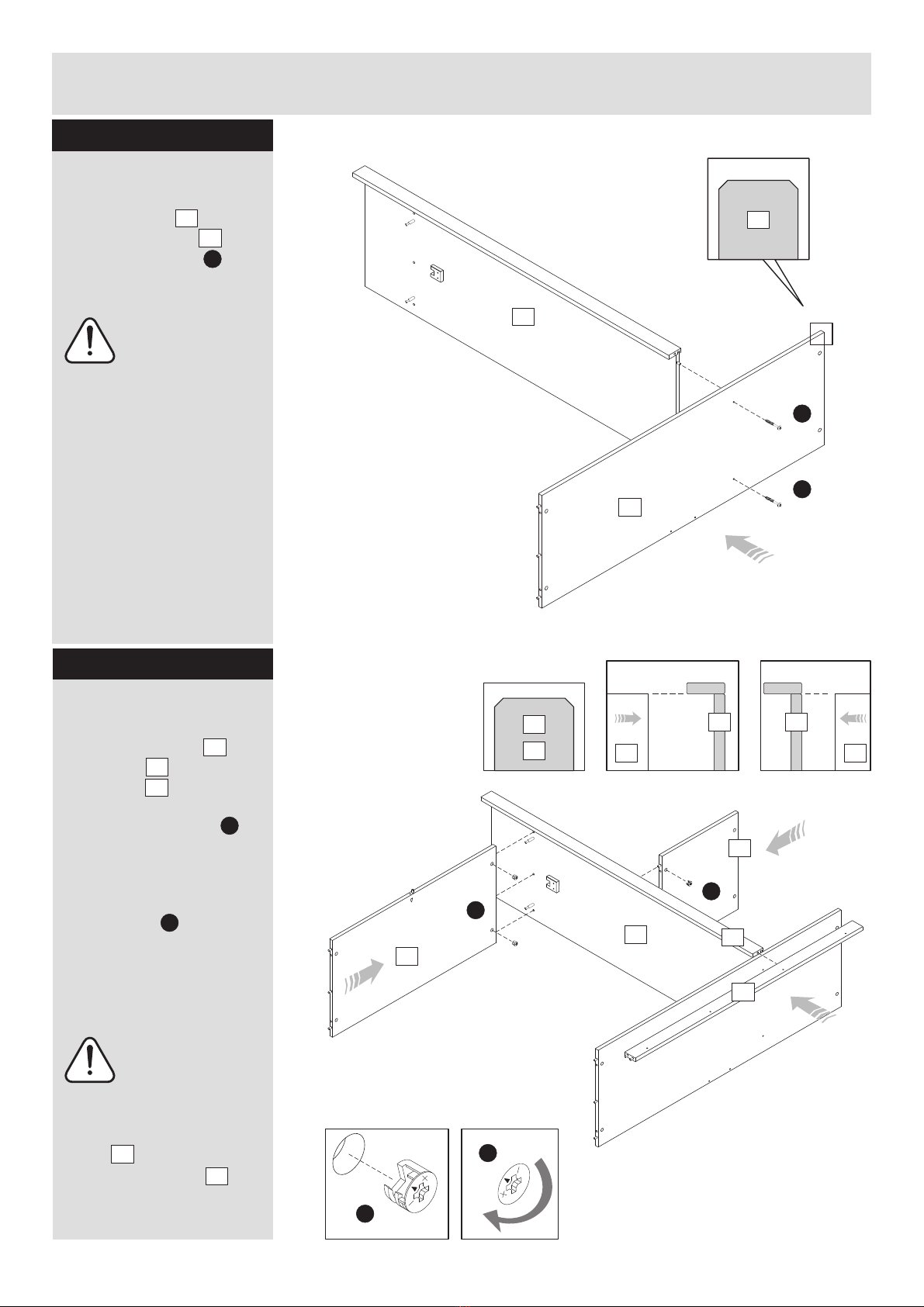

Step 11
Step 10
1
5
21
H
H
H
H
Fixing right side panel.
Two people are required
for an easier assembly.
With help, place right side
panel properly
ensuring dowels are all
fit into their holes at the
same time.
Insert 4 locking nuts
into base panel and fixed
shelf where shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
H
H
1
H
H
2
5
20
H
H
Fixing left side panel.
Two people are required
for an easier assembly.
With help, place left side
panel properly
ensuring dowels are all
fit into their holes at the
same time.
Insert 4 locking nuts
into base panel and shelf
where shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
H
H
2

Assembly Instructions
10
Step 13
Fix curved top rail to
the right front frame
and left front frame
using screws .
Fix curved top rail to
the left middle front frame
using screws .
9
8
C
C
11
Step 12
5
12 D
D
28
28
Place left middle front
frame properly
ensuring dowels are all
located into their holes.
Attach left middle front
frame to left shelf
using screw .
Attach the block in
base panel and to the
horizontal front frame
using screws .
20
11
20
E
E
28
5
12
D
5
12
C
14
8
9
11
C
14
14
14
C
11
20

Assembly Instructions
11
Step 14
Step 15
D
7mm
Attention:
Fix curved top moulding
to the curved top rail
using screws .
Note:
Make sure top
moulding is aligned to the
top rail and to the side
mouldings.
F
F
D
D
24
24
F
F
15
15
15
Fix side top mouldings
to the sides using
screws .
Attention:
Ensure top
mouldings are fixed in the
correct position in a height
of from the top7mm
edge of the side panels.
D
24

Assembly Instructions
12
Step 16
Fixing top panel.
Attach top panel to
the cabinet using screws
and middle wall
panel using screws .
Do not over tighten
screws.
Attention:
Make sure top
panel is completely
pushed against the top
moulding before fixing.
C
C
Attention:
D
D
D
4
4
4
4
Step 17
Attach the block in
top panel and curved
top rail using screws
.
4
D
28
14
28
28
D
D
14
4
C
C

Assembly Instructions
13
Step 18
a:
25
D
b: 16
a:
25
D
D
D
a: Fix side plinths to
the side panels using
screws .
Note:
Make sure side
plinths are aligned to
the bottom and front
edges of the side panels.
b: Fix front plinth
to the bottom front frame
using screws .
Chanfred edges to be
facing up!
Note:
Make sure front
plinth is aligned to the
bottom edge of the side
panels and in line to the
side plinths.
D
25
25
D
16
16
Step 19
Fix metal studs into
the pre drilled holes in
the front plinth.
Important:
After fixing the
metal studs, with help,
carefully stand the
product upright.
P
NO! NO! YES!
P
P

Assembly Instructions
14
Step 20
27
Step 21
Fitting hinges to the
doors.
Attach hinges to the
pre drilled holes in the
doors using screws .
B
BL
27
17
18
19
5
F
27
Attach bottom support
to the base panel
using screws .
5F
L
L
L
L
L
L
L
L
L

17
Assembly Instructions
15
Step 22
Hanging doors.
With help, centralise
a:
the door in the opening
of the cabinet using the
door spacer to ensure
correct spacing, as
shown.
b: Fix hinges using
screws as shown.
Note:
To ensure the
alignment of the doors is
correct, centralise the
doors in the opening
before attaching to the
cabinet.
B
a:
B
b:
Step 23
Attach handles to the
doors using bolts .
K
J
T
17
18
19
18 19
T
T
T
T
K
K
K
J

Assembly Instructions
16
Step 24
Hinge adjustment.
a: To move doors up or
down: loosen screws
shown and move doors
to suit.
Once doors are aligned,
re-tighten screws.
b: To move doors left or
right: loosen screws
shown and move doors
to suit.
Re-tighten screws.
a:
b:
Step 25
Insert hanging rail into
the supports.
Position shelves into
place. These are
adjustable.
23
22
22
23
23
30
22

Assembly Instructions
17
a: b: d:
c:
B
M
N
M
B
N
17 18 19
5
Step 26
Fitting door locks.
a: Screw clips in place
using screws .
Ensure that the 2 small
wheels are flush with
the edge of the base as
shown in the diagram.
b: Insert plugs into
clips , ensuring they
are leveled as shown in
the diagram.
c: Push the door against
the plug . This will
make 2 small marks on
the door as shown in the
diagram.
d: The doors can then be
opened and plugs can
be screwed into place
using the 2 marks made
as a guide. This will
ensure that the 2 parts of
the door clips are lined
up correctly.
B
17
18
19
M
N
M
N
N
N
N
N
N
N
N
M
M
M
M

Assembly Instructions
18
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
wall
Note: Wall plugs not supplied.
The correct type of fixing must
be used for your wall, seek
professional advice if in doubt.
B

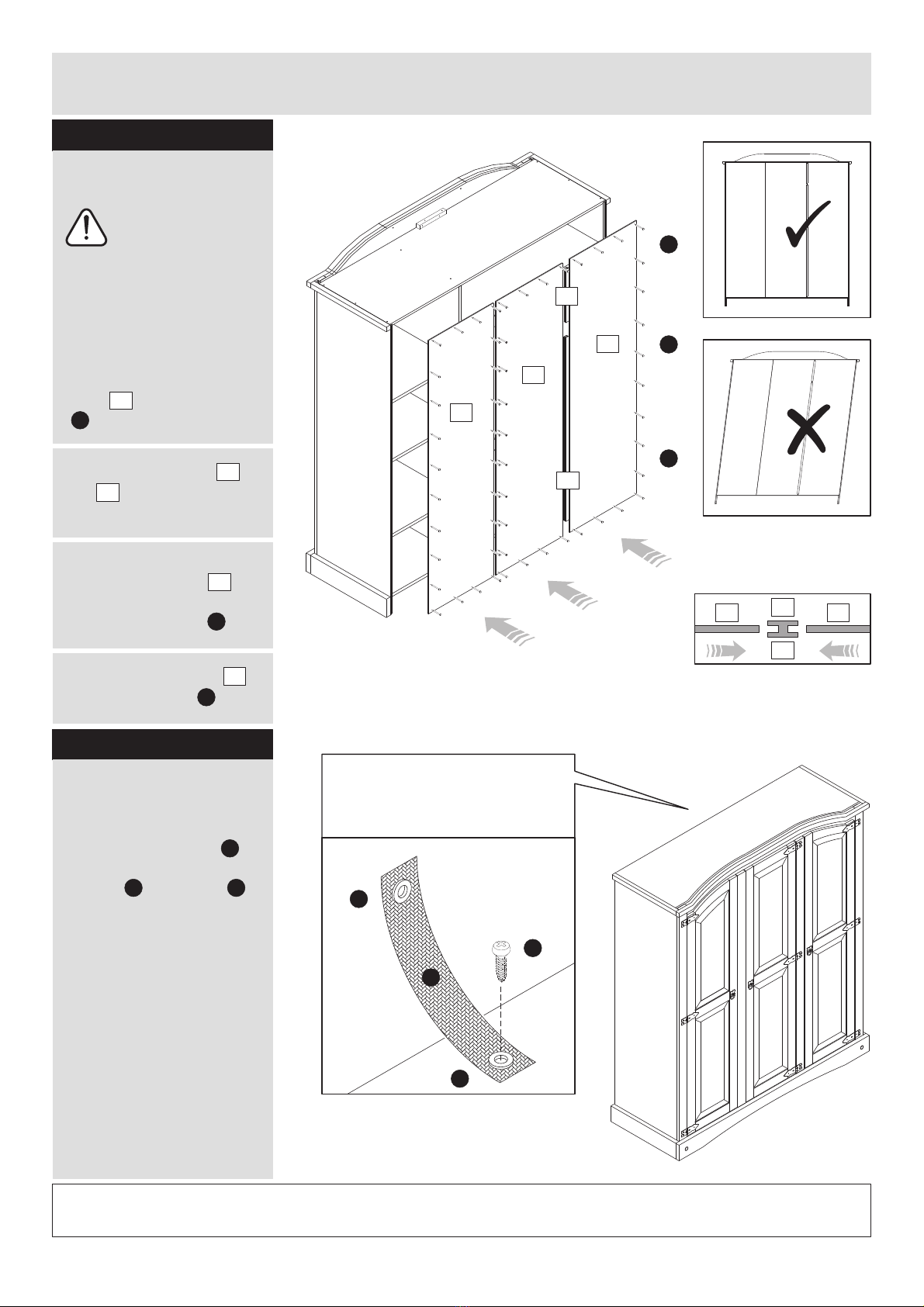

Step 27
Step 28
Fixing to wall.
Furniture must be fixed to
a wall. Fix wall strap to
top of furniture using
washer and screw .
With help, move furniture
into position.
Assembly is complete.
B
Fixing back panels.
Important:
Cabinet beMUST
‘square’when back panels
are attached. Make sure
back panels are in flush
with the edge of the top
panel prior to fixing.
a: Attach the left back
panel first using nails
.
c: Carefully slot the
second back panel into
the profile and fix it to the
cabinet using nails .
b: Position profiles
and onto back panel
(just attach).
d: Attach right back
panel using nails .
26
13
7 7
26
13
7
7
6
7
Q
13
26
7
6
S
R
R
Q
Q
Q
Q
Q
S
R

Important note:
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with plasterboard partitions or
hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
No.1 “General Purpose”wall plug No.3 “Cavity Fixing”wall plug No.5 “Hammer Fixing”wall plug
No.2 “Plasterboard”wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.6 “Shield Anchor”wall plug
Heavy loads
A Guide to - Wall Mounting & Fixings
Care &
Maintenance
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
