Argos Winchester 395/5798 User manual

MADE IN
BRITAIN
Dimensions
Width - 90cm
Depth - 33cm
Height - 92cm
Winchester - Console Table
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 2 - 28/07/15
Important - Please read these instructions fully before starting assembly
ALR3166
395/5798
Issue 2 - 28/07/15 - The 2 Backs are now secured to the 2 Shelves.
4 extra nails have been added to the kit.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 30kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.

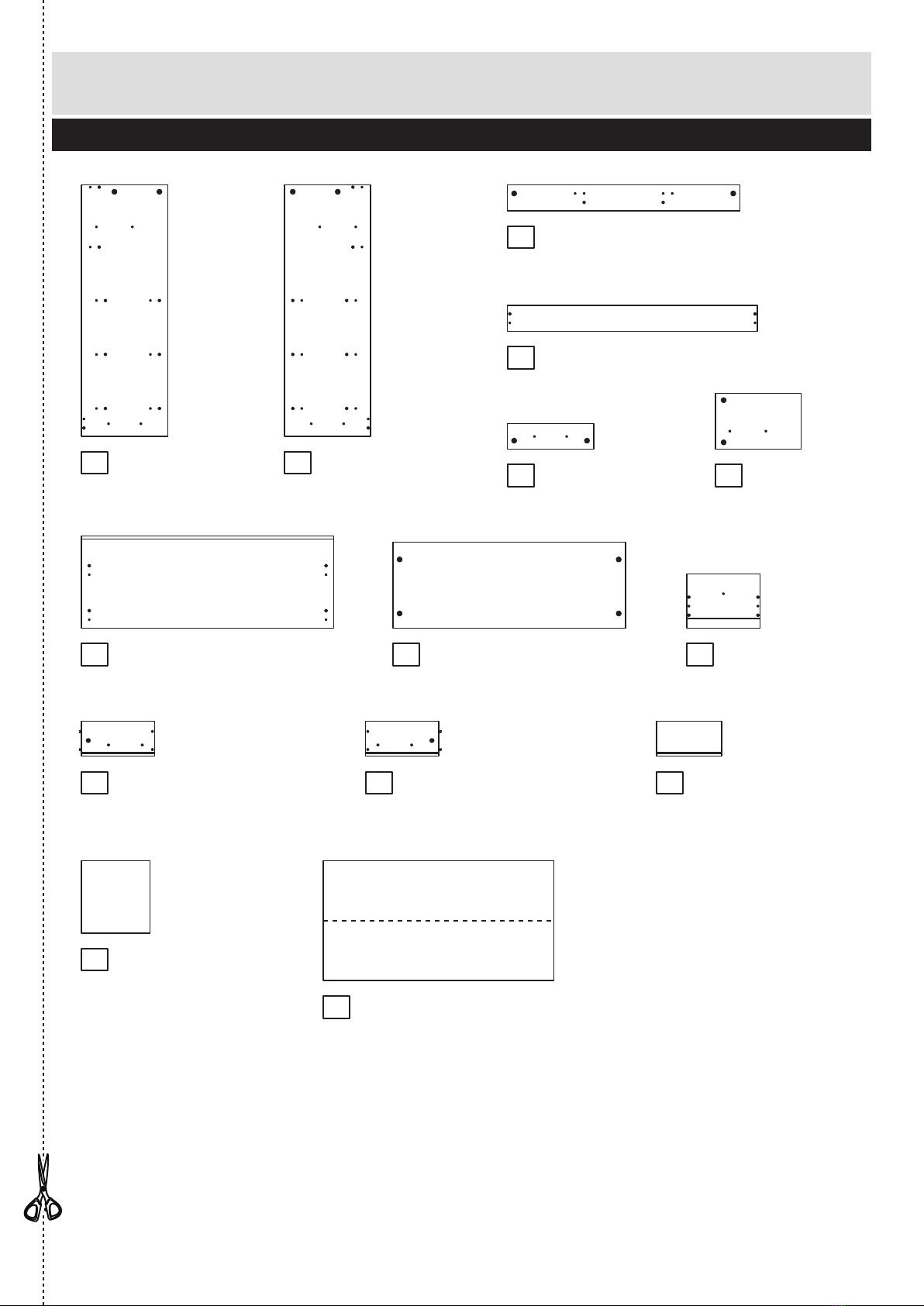

Components - Panels
Please check you have all the panels listed below
2
1 2 6
80%
x 2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Left End (DF2944)
(894 x 307mm)
Top (DF3377)
(897 x 327mm)
Shelf (DF2949)
(827 x 306mm) x 3
Cross Rail (DF2946)
(827 x 92mm) x 3
Drawer Front (DF2947)
(259.5 x 192mm) x 3
Right End (DF2945)
(894 x 307mm) Divider (DF2950)
(198 x 305mm) x 2
Side Plinth (DF2941)
(307 x 91mm) x 2
Front Plinth (DF2948)
(889 x 92mm)
Left Drawer Side (W260-124LH)
(260 x 124mm) x 3
Right Drawer Side (W260-124RH)
(260 x 124mm) x 3
Drawer Back (W232-124)
(232 x 124mm) x 3
Back (X820-426)
(820 x 426mm) x 2
Drawer Base (T243-257)
(243 x 257mm) x 3
3
4
5
789
10 11 12
13
14

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H
Small locking
nut (F3) x 6
C
M
J
9mm Screw (F73) x 12
Knock-in Peg (F171GY) x 12
Large locking
nut (F900) x 28
Metal dowel (F901) x 34
Wedgefix (F639) x 6
9mm Screw (F74) x 6
OStrap Screw Washer x 2
Overbalance protector kit (F269) x 1
38mm Screw (F81) x 3 25mm Screw (F50) x 8
I
Plastic Nail (F91) x 4
K
Nail (F51) x 26
L
Wooden dowel (F22) x 28
N
Handle (F463) x 3
Drawer runner (F307) x 6
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)

9
9
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 3
x 3 x 3
x 3
A
B
A
C
Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the 3 drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
A
9
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
10
11
Attach the drawer
sides to the drawer
fronts
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
11
9
C
C
10
11
C
CC
10 11
A
A
11
10

9
Assembly Instructions
5

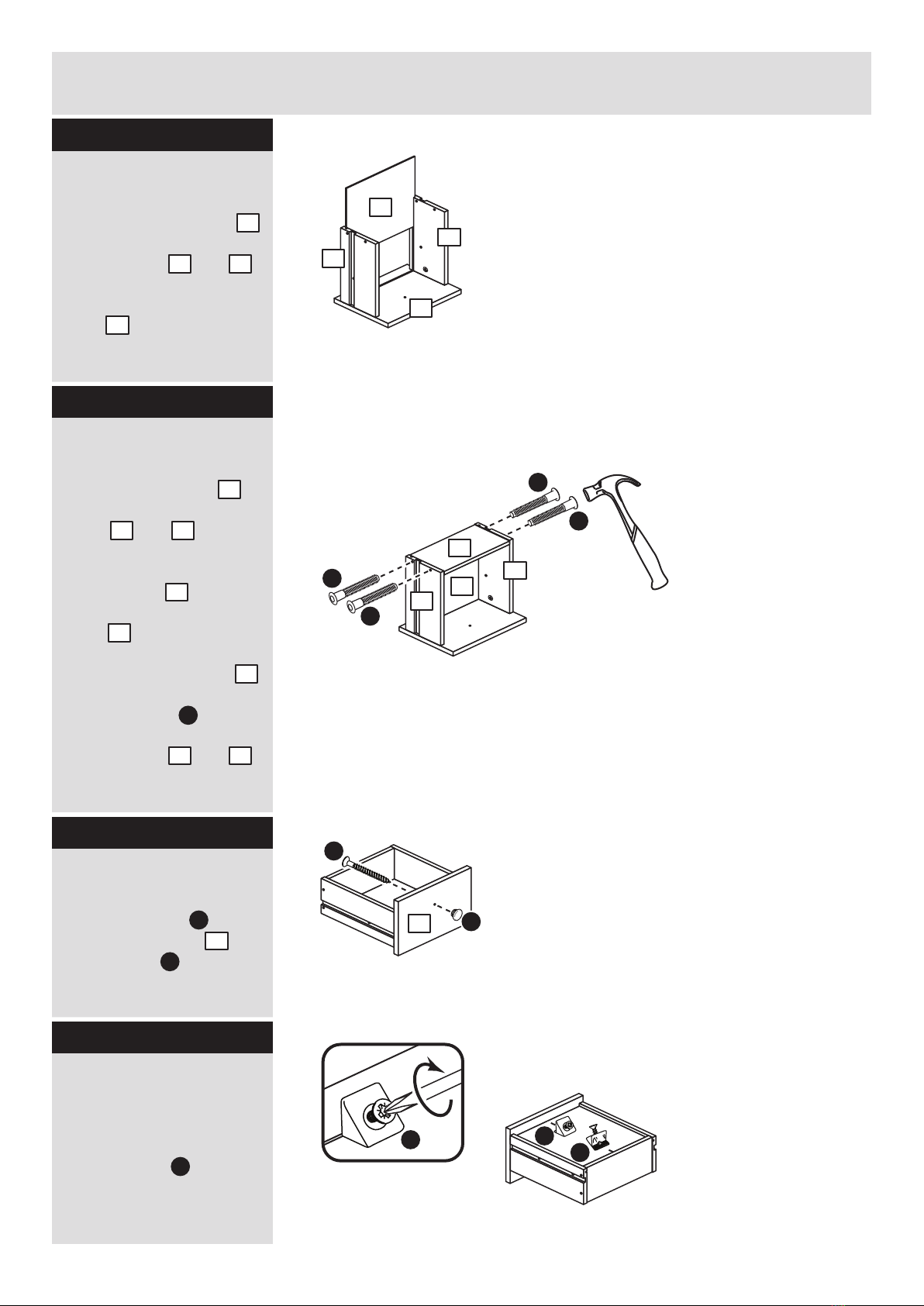

Step 4
D
D
Fit the drawer bases
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer backs
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 7
13
10 11
9
12
10 11
13
12
12
D
10 11
D
D
J
Fit the wedgefixes
Turn the drawer
assembies over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
J
13
10
11
12
10
11
13
x 3
x 3
x 3
x 3
J
J
Step 6
Attach the handle
Attach a handle to
each drawer front
using screw .
N
E
9
E
N
9

Finished
front edge
L
L
Assembly Instructions
6
Step 8
Finished
front edge
Finished
front edge
Prepare the left end
a: Place a runner
onto the left end .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Screw 9 metal
dowels into the left
end .
Insert 2 large locking
nuts into the left end
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the left end .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
G
M
G
M
1
G
M
G
Finished
front edge
G
M
G
M
A
1
B
1
A
A
A
A
A
A
A
10mm
L
B
B
B
L
1
a:
b:
c:
1
1
1
A
A

L
L
Assembly Instructions
7
Step 9
Prepare the right end
a: Place a runner
onto the right end .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
c: Screw 9 metal
dowels into the right
end .
Insert 2 large locking
nuts into the right end
. .
Tap 2 wooden dowels
into the right end .
M
2
G
M
G
A
2
B
2
L
2
a:
b:
c:
G
Finished
front edge
G
M
G
M
G
M
A
A
AA
A
A
AA
A
B
B
Finished
front edge
Finished
front edge
Finished
front edge
2
2
2

L
Finished
front edge
Finished
front edge
Assembly Instructions
8

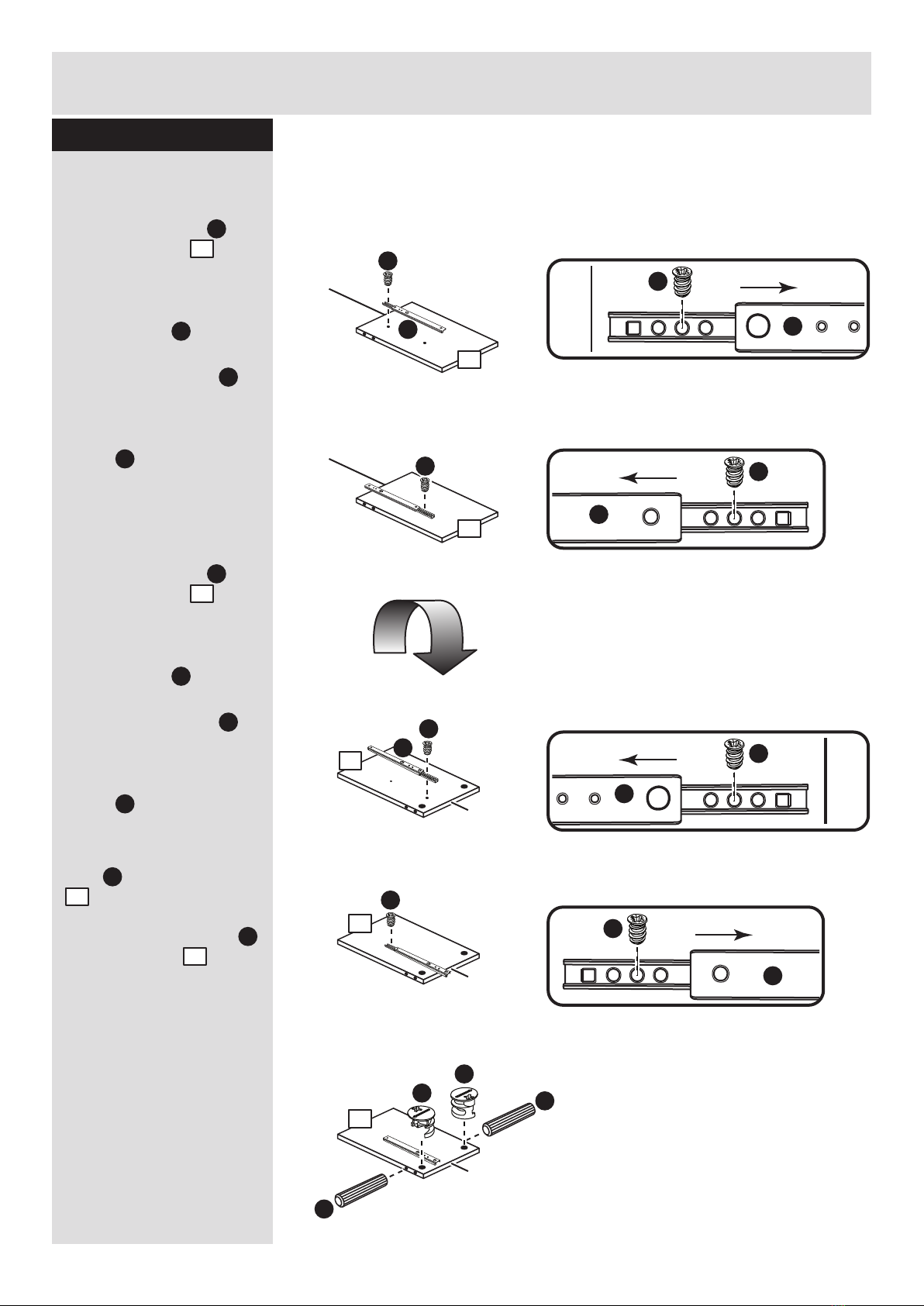

Step 10
Prepare the 2 dividers
a: Place a runner
onto the divider .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
Turn the divider over
c: Place a runner
onto the divider .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
d: Slide the runner
back the other way and
use the 2nd hole from
the back to fit the 2nd
screw .
e: Insert 2 large locking
nuts into the divider .
.
Tap 2 wooden dowels
into the divider .
G
M
G
M
6
G
M
G
M
6
G
M
G
Finished
front edge
G
M
G
M
B
6
L
6
a:
b:
c:
d:
e:
Note: Due to the manufacturing process,
the 2 holes for the large locking nut can
be on either surface of the 2 dividers.
Turn the divider over
G
Finished
front edge
G
M
G
M
Finished
front edge
G
Finished
front edge
Finished
front edge
L
B
B
x 2
x 2
x 2
x 2
x 2
6
6
6
6
6
M

Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
9
Step 11
L
Prepare 2 of the cross
rails
Screw 2 metal dowels
into 2 of the cross rails
. .
Insert 2 large locking
nuts into 2 of the
cross rails . .
Tap 2 wooden dowels
into 2 of the cross rails
. .
A
A
B
B
L
3
Finished
front edge
x 2
A
3
3
B
3
L
B
A
Fit a divider to a cross
rail
Push a divider onto a
cross rail .
Use a screwdriver to
tighten the large locking
nut fitted to the
divider .
Note: Turn the large
locking nut as far as it
will go - more than 1/2 a
turn.
6
6
3
B
B
Step 12
Fit another divider
Push another divider
onto the cross rail .
Use a screwdriver to
tighten the large locking
nut fitted to the
divider .
6
6
3
B
Step 13
3
3
6
Remember: The large locking
nuts can be on either surface
of the dividers.
6

L
L
Finished
front edge
Assembly Instructions
10
Step 14
Fit the other cross rail
Push the other cross rail
. onto the dividers .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the dividers .
6
3 6
B
6
6
3
3
3
Fit the cross rails to
the right end
Push the cross rails
onto the right end .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the cross rails .
3
3
2
B
Step 15
Step 16
2
B
B
L
Finished
front edge
B
B
L

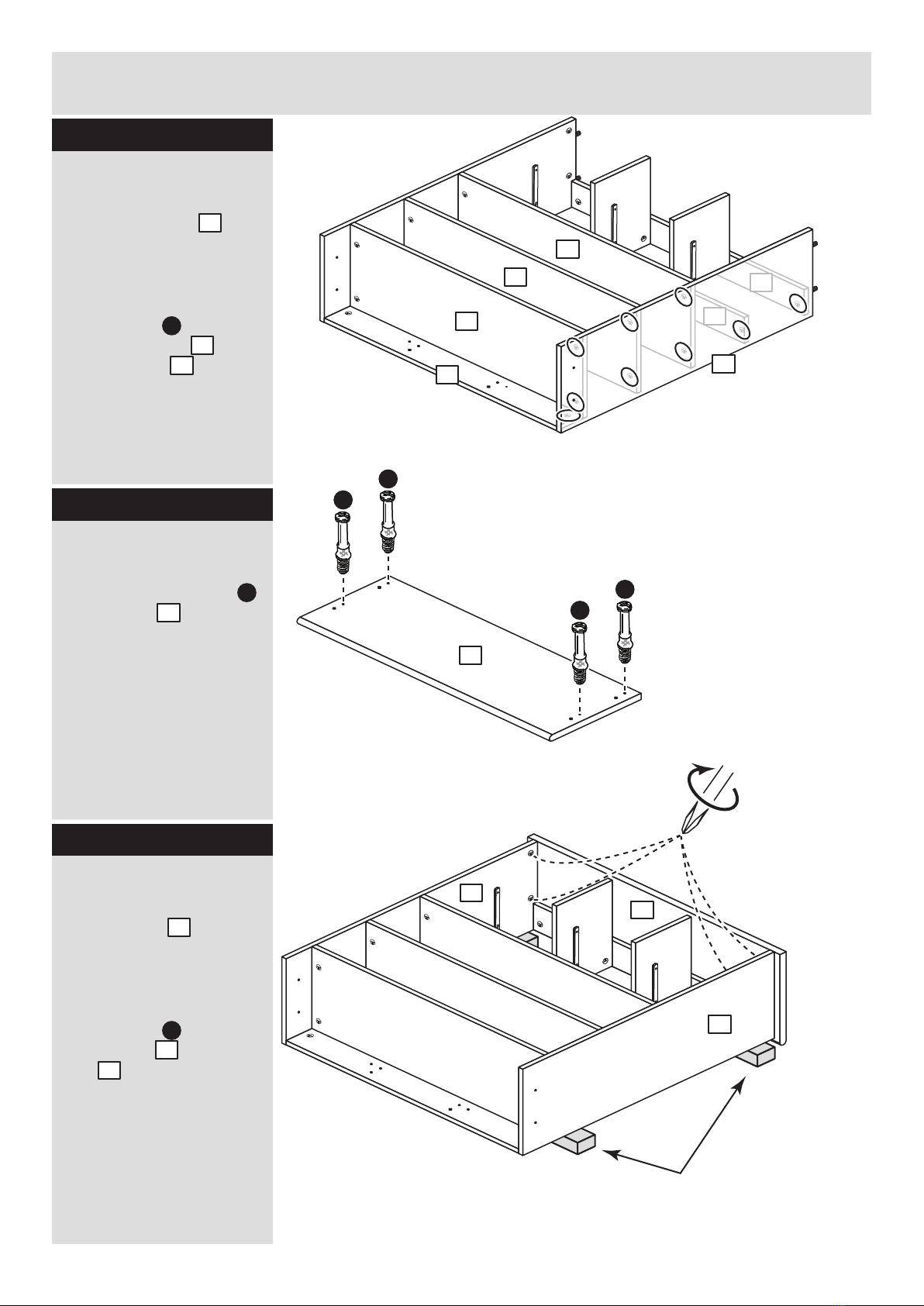

Prepare the 3 shelves
Insert 4 large locking
nuts into each of the
3 shelves . .
Tap 4 wooden dowels
into each of the 3
shelves . .
8
B
8
L8
x 3

Finished
front edge
Assembly Instructions
11
Step 17
Step 18
Fit the 3 shelves
Push the 3 shelves
onto the right end .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the 3 shelves .
8
8
2
B
2
8
8
8
2
L
Prepare the remaining
cross rail
Insert 2 large locking
nuts into the cross rail
. .
Tap 2 wooden dowels
into the cross rail .
Step 19
B
B
L
3
Finished
front edge
3
B
3
L
Fit the cross rail
Push the cross rail
onto the right end .
Use a screwdriver to
tighten the large locking
nut fitted to the cross
rail .
3
3
2
B
3

Assembly Instructions
12
Step 20
Step 21
Fit the left end
Push the left end
onto the assembly.
Use a screwdriver to
tighten the 9 large
locking nuts fitted to
the 3 cross rails and
the 3 shelves .
1
3
8
B
1
3
3
3
8
8
8
1
Prepare the top
Screw 4 metal dowels
into the top .
Step 22
A
A
7
A
A
A
7
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the left end and right
end .
7
1
2
B
7
2
Note: To make it easier to fit the top and the plinths,
place 4 polystyrene blocks from the packaging
underneath the side panels to raise the assembly.

Finished
top edge
Finished
top edge
Assembly Instructions
13
Step 23
Prepare a side plinth
Insert a large locking
nut into 1 of the side
plinths .
Tap a wooden dowel
into the side plinth .
5
B
5
L
B
L
Step 24
5
L
B
5
Step 25
Prepare the front
plinth
Screw 2 metal dowels
into the front plinth .
Step 26
A
A
4
A
4
4
Prepare the other side
plinth
Insert a large locking
nut into the side plinth
. .
Tap a wooden dowel
into the side plinth .
5
B
5
L
5
5
Fit the plinths together
Push the 2 side plinths
onto the front plinth .
Use a screwdriver to
tighten the large locking
nuts fitted to the side
plinths .
5
4
B
5
Finished
top edge
Finished
top edge

Assembly Instructions
14
Step 27

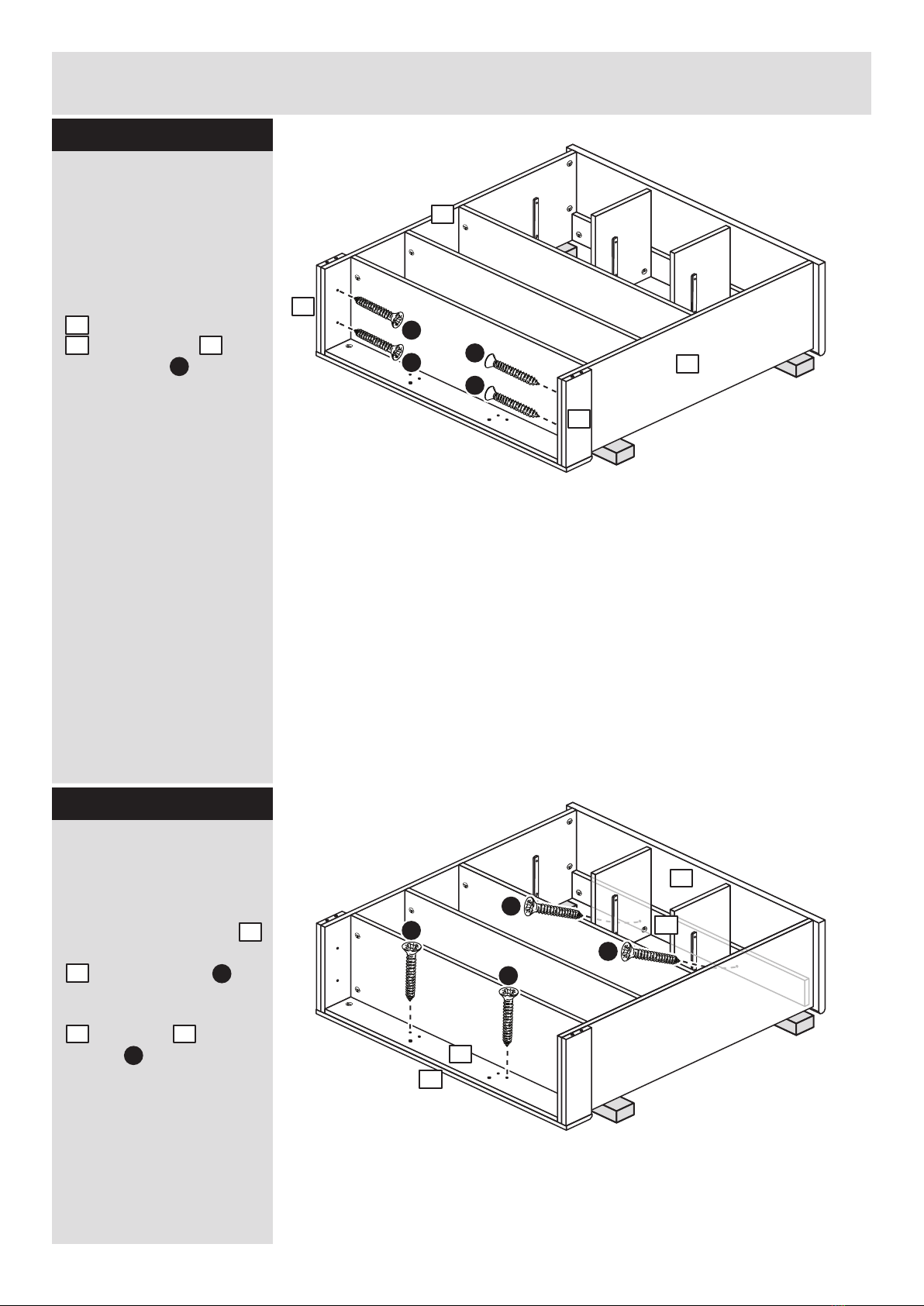

Fit the plinths
Position the 3 plinths
onto the assembly, as
shown.
Secure the 2 side plinths
. through the left end
. . and right end
using screws .
Use the 2 mark holes on
the side plinths to line
them up with the holes in
the ends.
Step 28
F
F
1
2
F
F
7
5
1 2
F
F
F
F
F
Secure the front
plinth and the top
cross rail
Secure the front plinth
to the bottom cross rail
. using 2 screws .
Secure the top cross rail
. to the top using 2
screws .
4
3
3 7
F
F
5
5
4
3
3

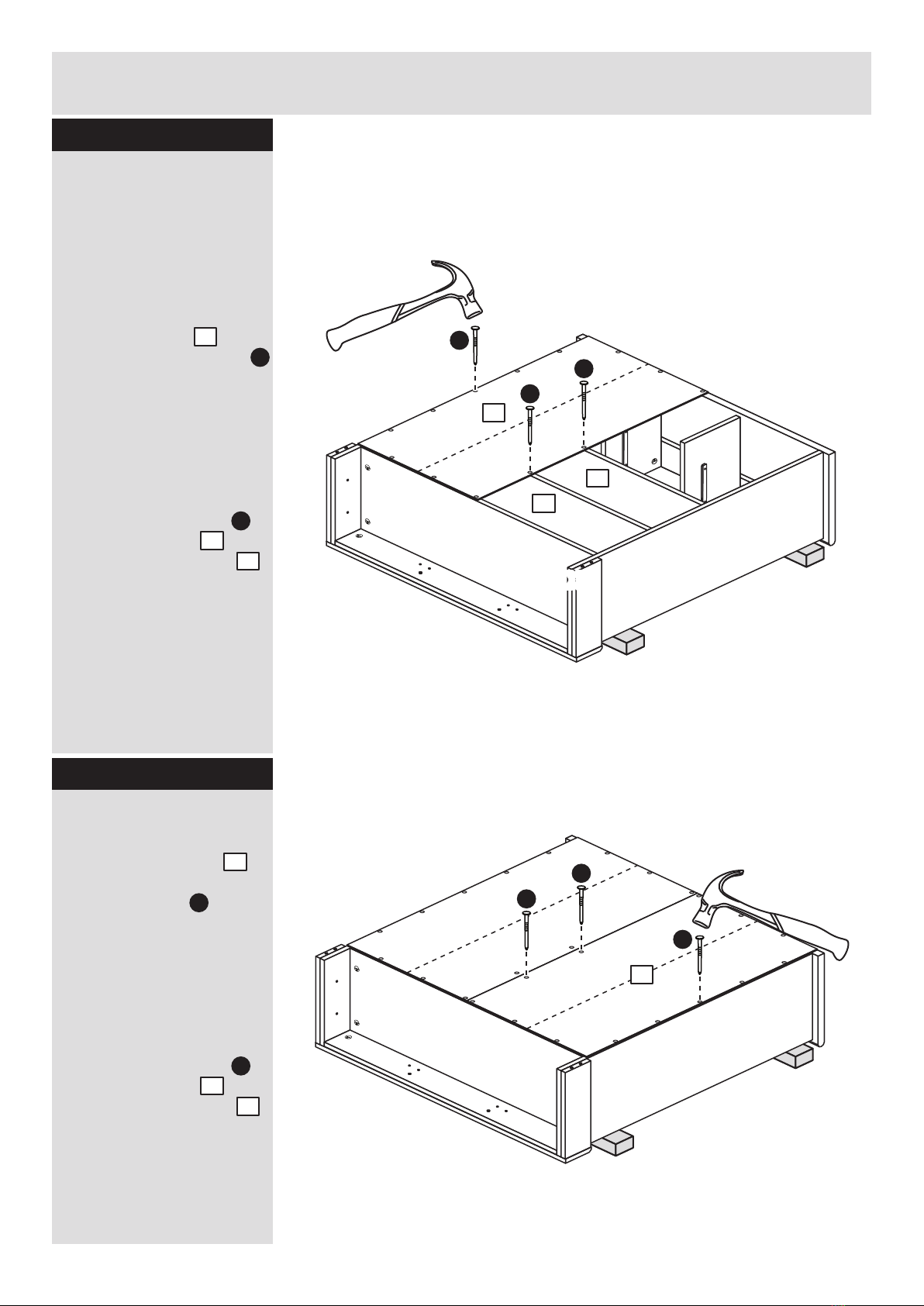

Fit the other back
Push the other back
up against the 1st back
and tap 11 nails
around its 3 outside
edges, as shown.
Note: Nails should be
spaced about 150mm
apart.
Tap 2 additional nails
through the back and
down into the shelves .
Note: Make sure that the
nails are fitted central to
the shelves to avoid
damage.
yyyy
xx
xx
Assembly Instructions
Step 29
b:
K
Fit a back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place a back onto
the unit and tap 11 nails
around its 3 outside
edges, as shown.
Note: Nails should be
spaced about 150mm
apart.
Tap 2 additional nails
through the back and
down into the shelves .
Note: Make sure that the
nails are fitted central to
the shelves to avoid
damage.
14
K
K
K
14
14
8
8
14
K
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Step 30
14
15
14
14
625mm
430mm
K
14
K
K
K
K
8
8

Assembly Instructions
Step 31
Step 32

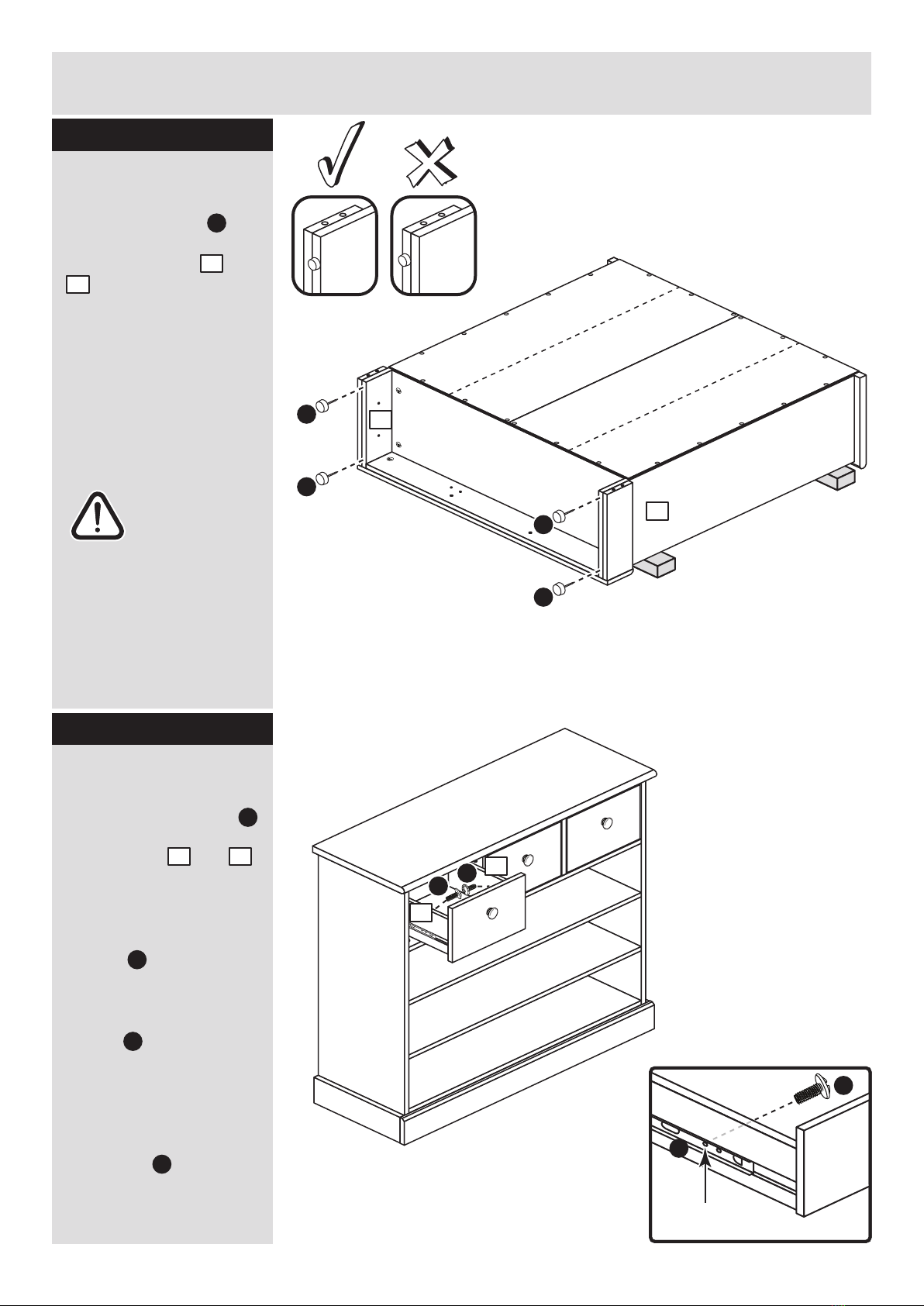

Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
DO NOT fit the
plastinails to the side
plinths.
Carefully stand the
unit up for the next
step.
I
1
2
I
I
I
I
Warning: The
unit is heavy.
Lift with care.
1
2
Fit the drawers
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
H
M
M
H
2nd threaded
hole
M
H
10 11
H
H
10
11

Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 33
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
O
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap Strap
OO
Example
Screw
(not supplied)
Washer
Screw
UNIT

ALR3166
