A R R I S
Xfinity TG1682
Telephony Gateway
User's Guide
Get ready to experience the Internet's express lane! Whether you're checking out
streaming media, downloading new software, checking your email, or talking with
friends on the phone, the Xfinity TG1682 Telephony Gateway brings it all to you
faster and more reliably. All while providing toll quality Voice over IP telephone ser-
vice and both wired and wireless connectivity. It also supports a Lithium-Ion bat-
tery backup to provide continued telephone service during power outages.
The Xfinity Telephony Gateway provides four Ethernet connections for use as the
hub of your home/office Local Area Network (LAN). The Xfinity Telephony Gateway
also provides 802.11a/b/g/n wireless connectivity for enhanced mobility and ver-
satility. In addition, the Xfinity Telephony Gateway provides for up to two separate
lines of telephone service and Digital Enhanced Cordless Telecommunications
(DECT) funtionality to allow using cordless telphones within the home. The Tele-
phony Gateway also offers integrated MoCA 2.0 home networking providing Inter-
net access and transfer of multimedia content between devices over coaxial cable
in the home.
Installation is simple and your cable company will provide assistance to you for
any special requirements. The links below provide more detailed instructions.
Safety Requirements
Getting Started
Battery Installation and Removal
Installing and Connecting Your Telephony Gateway
Configuring Your Ethernet Connection
Using the Telephony Gateway
Troubleshooting
Glossary

Export Regulations
This product may not be exported outside the U.S. and Canada without U.S. Department of Commerce, Bureau of Export Administra tion au-
thorization. Any export or re-export by the purchaser, directly or indirectly, in contravention of U.S. Export Administration Regulation is prohib-
ited.
©ARRIS Enterprises, Inc. 2014 All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any
derivative work (such as translation, transformation, or adaptation) without written permission from ARRIS Enterprises, Inc. ("ARRIS"). ARRIS
reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide
notification of such revision or change.
ARRIS provides this guide without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of mer -
chantability and fitness for a particular purpose. ARRIS may make improvements or changes in the product(s) described in this manual at any
time. The capabilities, system requirements and/or compatibility with third-party products described herein are subject to change without no-
tice.
ARRIS and the ARRIS logo are all trademarks of ARRIS Enterprises, Inc. Other trademarks and trade names may be used in this document to
refer to either the entities claiming the marks and the names of their products. ARRIS disclaims proprietary interest in the marks and names of
others.
Protected under one or more of the following U.S. patents: 7,031,435. Other patents pending.
Release 16 Draft 1.0 February 2014

Xfinity TG1682 Telephony Gateway User's Guide 3
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Safety Requirements
These Telephony Gateways comply with the applicable requirements for perform-
ance, construction, labeling, and information when used as outlined below:
CAUTION
Risk of shock
Mains voltages inside this unit. No user serviceable parts inside. Refer
service to qualified personnel only!
CAUTION
Potential equipment damage
Potential loss of service
Connecting the Telephony Gateway to existing telephone wiring should
only be performed by a professional installer. Physical connections to
the previous telephone provider must be removed and the wiring must
be checked; there must not be any voltages. Cancellation of telephone
service is not adequate. Failure to do so may result in loss of service
and/or permanent damage to the Telephony Gateway.
CAUTION
Risk of explosion
Replacing the battery with an incorrect type, heating a battery above
75°C, or incinerating a battery, can cause product failure and a risk of
fire or battery explosion. Do not dispose of in fire. Recycle or dispose
of used batteries responsibly and in accordance with local ordinances.
The Telephony Gateway is designed to be connected directly to a telephone.
Connecting the Telephony Gateway to the home's existing telephone
wiring should only be performed by a professional installer.
Do not use product near water (i.e. wet basement, bathtub, sink or near a
swimming pool, etc.), to avoid risk of electrocution.

Xfinity TG1682 Telephony Gateway User's Guide 4
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Do not use spray cleaners or aerosols on the Telephony Gateway.
The product shall be cleaned using only a damp, lint-free, cloth. No solvents or
cleaning agents shall be used.
Avoid using and/or connecting the equipment during an electrical storm, to
avoid risk of electrocution.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Do not locate the equipment within 6 feet (1.9 m) of a flame or ignition source
(i.e. heat registers, space heaters, fireplaces, etc.).
Use only power supply and power cord included with the equipment.
Equipment should be installed near the power outlet and should be easily
accessible.
The shield of the coaxial cable must be connected to earth (grounded) at the
entrance to the building in accordance with applicable national electrical in-
stallation codes. In the U.S., this is required by NFPA 70 (National Electrical
Code) Article 820. In the European Union and in certain other countries, CATV
installation equipotential bonding requirements are specified in IEC 60728-11,
Cable networks for television signals, sound signals and interactive
services, Part 11: Safety. This equipment is intended to be installed in
accordance with the requirements of IEC 60728-11 for safe operation.
If the equipment is to be installed in an area serviced by an IT power line
network, as is found in many areas of Norway, special attention should be
given that the installation is in accordance with IEC 60728-11, in particular
Annex B and Figure B.4.
In areas of high surge events or poor grounding situations and areas prone
to lightning strikes, additional surge protection may be required (i.e.
PF11VNT3 from American Power Conversion) on the AC, RF, Ethernet and
Phone lines.
When the Telephony Gateway is connected to a local computer through Eth-
ernet cables, the computer must be properly grounded to the building/res-
idence AC ground network. All plug-in cards within the computer must be
properly installed and grounded to the computer frame per the manufacturer's
specifications.

Xfinity TG1682 Telephony Gateway User's Guide 5
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Ensure proper ventillation. Position the Telephony Gateway so that air flows
freely around it and the ventillation holes on the unit are not blocked.
Do not mount the Telephony Gateway on surfaces that are sensitive to heat
and/or which may be damaged by the heat generated by the modem, its power
supply, or other accessories.
FCC Part 15
This equipment has been tested and found to comply with the requirements for a
Class B digital device under Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the fol-
lowing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this equipment not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
RF Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment. This equipment should be installed and operated with minimum
distance of 7.9 inches (20cm) between the radiator and your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.

Xfinity TG1682 Telephony Gateway User's Guide 6
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Getting Started
About Your New Telephony Gateway
The Xfinity TG1682 Telephony Gateway is DOCSIS compliant with the following fea-
tures:
Speed: much faster than dialup or ISDN service; up to eight times faster than
DOCSIS 2.0 cable modems.
Convenience: supports Ethernet and 802.11a/b/g/n wireless connections;
both can be used simultaneously
Flexibility: provides two independent lines of telephone service as well as high
speed data
Compatibility:
Data services: DOCSIS 3.0 compliant and backward-compatible with
DOCSIS 2.0 or 1.1; supports tiered data services (if offered by your cable
company)
Telephony services: PacketCableTM 1.5 or 1.0 compliant
DECT support for CAT-iq 2.0 compliant DECT 6.0 hardware with multi line
calling capabilities
The TG1682 provides:
Wireless 802.11a/b/g/n connectivity
Four Ethernet ports for connections to non-wireless devices
Up to two lines of telephone service with Digital Enhanced Cordless Telecom-
munications (DECT) funtionality
Integrated MoCA 2.0 home networking
DOCSIS 3.0 compliant with Li-Ion backup battery
Two USB host ports (future support for external USB devices)

Xfinity TG1682 Telephony Gateway User's Guide 7
Coax Cable
Phone Cable
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
What's in the Box?
Make sure you have the following items before proceeding. Call your cable
company for assistance if anything is missing.
Telephony Gateway
Power Cord
Quick Installation Guide
End User License Agreement
Items You Need
If you are installing the Telephony Gateway yourself, make sure you have the fol-
lowing items on hand before continuing:
Telephony Gateway package: see What's in the Box? for a list of items
in the package.

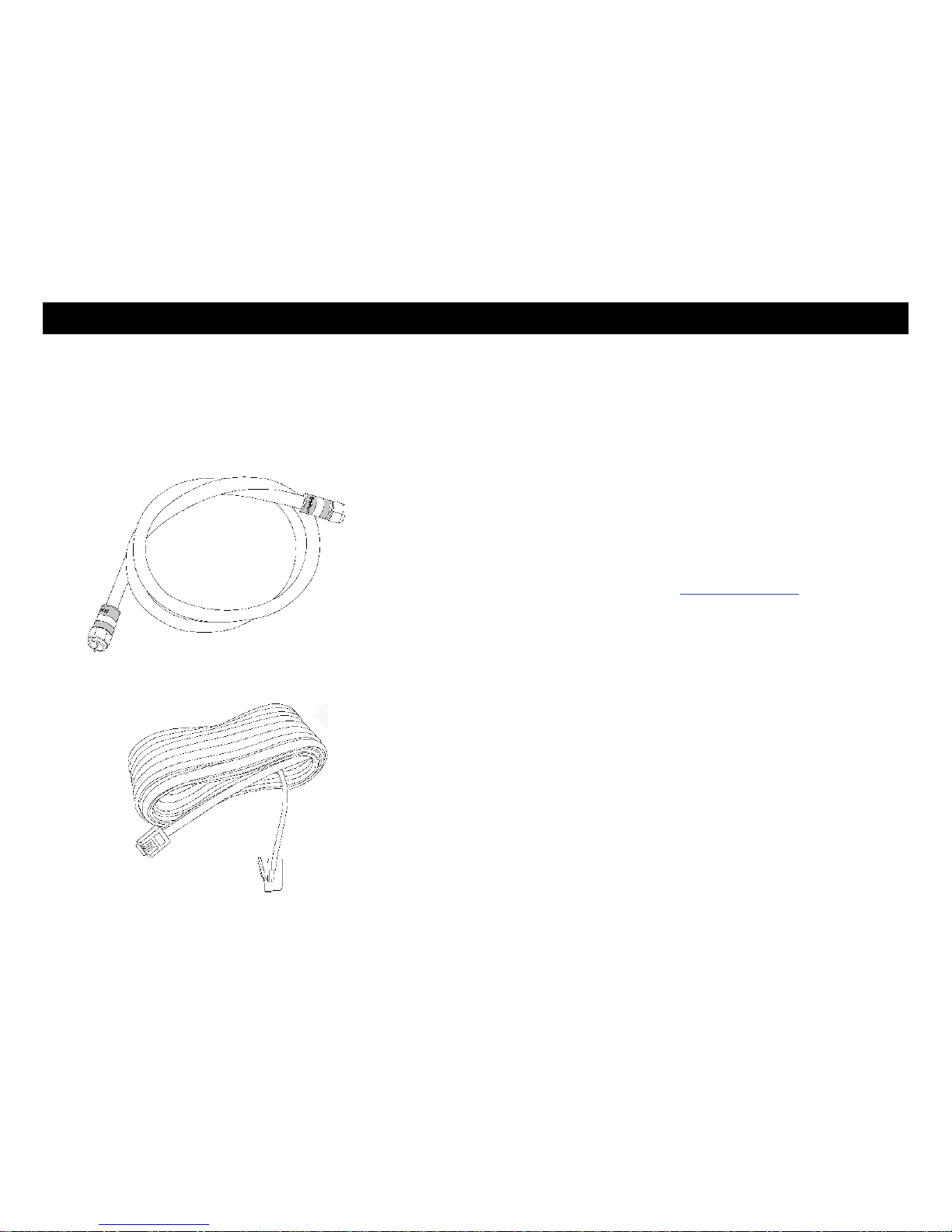

Coaxial cable (coax): as shown in the image to the left, this is a round
cable with a connector on each end. It is the same kind of wire used to
connect to your television for cable TV. You can buy coax from any
electronics retailer and many discount stores; make sure it has connectors
on both ends. There are two types of connectors, slip-on and screw-on;
the screw-on connectors are best for use with your Telephony Gateway.
The coax should be long enough to reach from your Telephony Gateway to
the nearest cable outlet.
Note: For best performance, use high-quality RG-6 type coax cable and mini-
mize or eliminate splitters between the cable jack and the Telephony Gateway.
Phone Cable: as shown in the image to the left, this is a standard phone
cable with standard phone connectors (RJ11 type) on both ends. You can
buy phone cables from any electronics retailer and many discount stores.
Splitter (optional): provides an extra cable connection by splitting a single
outlet into two. You may need a splitter if you have a TV already connected
to the cable outlet that you want to use. You can buy a splitter from any
electronics retailer and most discount stores; you may also need a short
piece of coax cable (with connectors); use it to connect the splitter to the
cable outlet and then connect the Telephony Gateway and TV to the splitter.

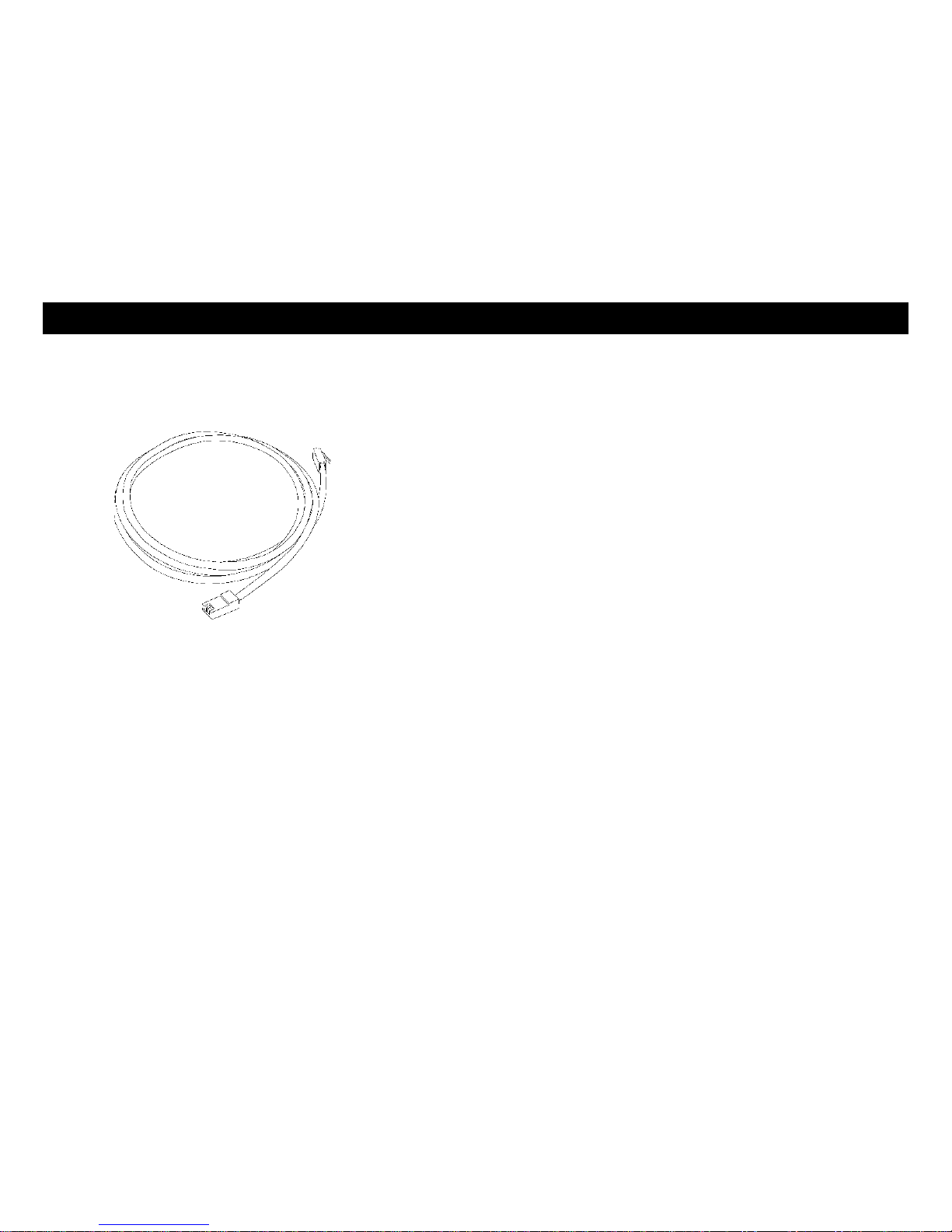

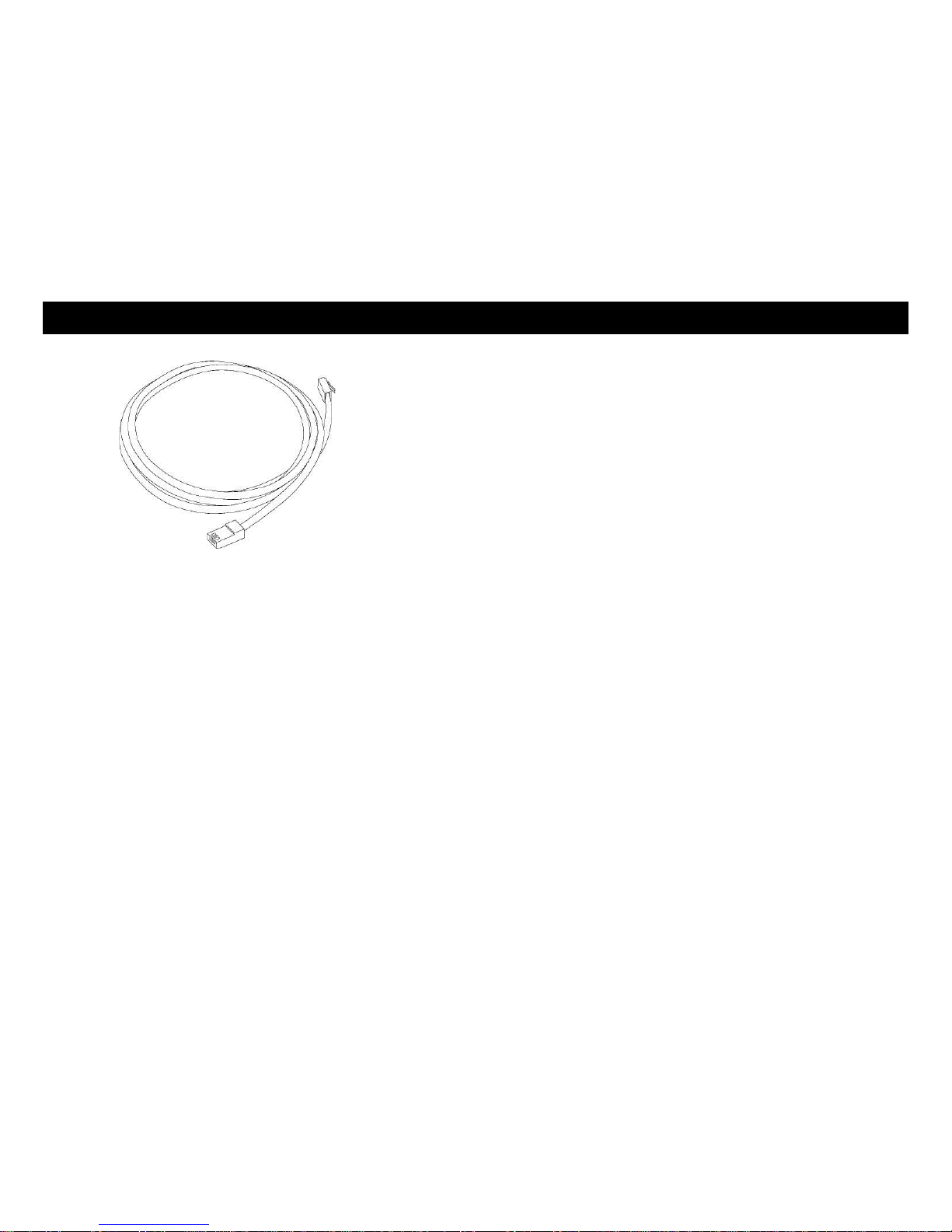

Ethernet Cable
Xfinity TG1682 Telephony Gateway User's Guide 8
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Note: A splitter effectively cuts the signal in half and sends each half to its
two outputs. Using several splitters in a line may deteriorate the quality of
your television, telephone, and/or internet connection.
Ethernet Cable(s): as shown in the image to the left, this is a Category 5e
(CAT5e) straight-through cable for connecting computers to the Gateway.
Wall-mount hardware (optional): if you want to wall-mount your Tele-
phony Gateway, you need to obtain two drywall anchors or wood screws.
See the Wall-Mount Template and Instructions for more details.
Information packet: your cable company should furnish you with a packet
containing information about your service and how to set it up. Read this in-
formation carefully. Contact your cable company if you have any questions.
Getting Service
Before trying to use your new Telephony Gateway, contact your local cable
company to establish an Internet account and telephone service. When you call,
have the following information ready:
the Telephony Gateway serial number and cable MAC addresses of the
unit (printed on a sticker on the bottom of the Telephony Gateway)
the model number of the Telephony Gateway
If the Telephony Gateway was provided by your cable company, they already
have the required information.
In addition, you should ask your cable company the following questions:
Do you have any special system requirements or files that I need to down-
load after I am connected?
When can I start using my Telephony Gateway?
Do I need a user ID or password to access the Internet or my e-mail?
Will my phone number(s) change?
What new calling features will I have and how do I use them?

Xfinity TG1682 Telephony Gateway User's Guide 9
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
System Requirements
The Telephony Gateway operates with most computers. The following describes
requirements for each operating system; see the documentation for your system
for details on enabling and configuring networking.
To use the Telephony Gateway, you need DOCSIS high-speed Internet service
from your cable company. Telephone service requires that the cable company has
Pack-etCable support.
Recommended Hardware
The following hardware configuration is recommended. Computers not meeting
this configuration can still work with the TG1682, but may not be able to make
maximum use of TG1682 throughput.
CPU: P4, 3GHz or faster
RAM: 1GB or greater
Hard drive: 7200 RPM or faster
Ethernet: Gig-E (1000BaseT)
Windows
Windows XP, Windows Vista, Windows 7, or Windows 8. A supported Ethernet or
wireless LAN connection must be available.
MacOS
System 7.5 to MacOS 9.2 (Open Transport recommended) or MacOS X. A
supported Ethernet or wireless LAN connection must be available.
Linux/other Unix
Hardware drivers, TCP/IP, and DHCP must be enabled in the kernel. A supported
Ethernet or wireless LAN connection must be available.

Xfinity TG1682 Telephony Gateway User's Guide 10
Model
Number
1.1.04.18dM
IMMIZEIHMEI
013014=1.4.1.1...11
133.1)11.0.10.. 4.4
01.M101.401Pia.....1
YE
Ef
11
0
11
1E
if
1
-
1
EE
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
About this Manual
This manual covers the Xfinity TG1682 Telephony Gateway. The model number is
on the label affixed to the bottom of the Telephony Gateway. See the image at the
left.
What About Security?
Having a high-speed, always-on connection to the Internet requires a certain amount
of responsibility to other Internet users—including the need to maintain a reasonably
secure system. While no system is 100% secure, you can use the following tips to
enhance your system's security:
Keep your operating system updated with the latest security patches. Run the
system update utility at least weekly.
Keep your email program updated with the latest security patches. In addition,
avoid opening email containing attachments, or opening files sent through
chat rooms, whenever possible.
Install a virus checker and keep it updated.
Avoid providing web or file-sharing services over your Telephony Gateway.
Besides certain vulnerability problems, most cable companies prohibit running
servers on consumer-level accounts and may suspend your account for
violating your terms of service.
Use the cable company's mail servers for sending email.
Avoid using proxy software unless you are certain that it is not open for
abuse by other Internet users (some are shipped open by default). Crimi-
nals can take advantage of open proxies to hide their identity when break-
ing into other computers or sending spam. If you have an open proxy, your
cable company may suspend your account to protect the rest of the net-
work.
If you use the wireless LAN, make sure you enable wireless security on the
Telephony Gateway (for the same reasons that you should run only secured
proxies). See Configuring Your Wireless Connection.

Xfinity TG1682 Telephony Gateway User's Guide 11
Ethernet Cable
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Ethernet or Wireless?
There are two ways to connect your computer (or other equipment) to the Tele-
phony Gateway. The following will help you decide which is best for you:
Ethernet
Ethernet is a standard method of connecting two or more computers into a Local
Area Network (LAN). You can use the Ethernet connection if your computer has
built-in Ethernet hardware.
Note: To connect more than four computers to the TG1682 through the Ether-
net ports, you need an Ethernet hub (available at computer retailers).
The Telephony Gateway comes with one 4-foot (1.2m) Ethernet cable (the
connectors look like wide telephone connectors); you can purchase more cables if
necessary at a computer retailer. If you are connecting the Telephony Gateway
directly to a computer, or to an Ethernet hub or broadband router with a cross-
over switch, ask for Category 5e (CAT5e) straight-through cable. CAT5e cable is
required for gigabit Ethernet (Gig-E), not regular CAT5 cable
Wireless
Wireless access lets you connect additional (wireless-capable) devices to Telephony
Gateway. The 802.11 wireless LAN standard allows one or more computers to ac-
cess the TG1682 using a wireless (radio) signal. These connections are in addition
to the connections supported via Ethernet.
Note: You can use the wireless connection if your computer has a built-in or af-
termarket wireless card. To learn more about which wireless hardware
works best with your computer, see your computer dealer.
Both
If you have two or more computers, you can use Ethernet for up to four devices
and wireless for the others. To connect five or more computers to the Ethernet
ports, you will need an Ethernet hub (available at computer retailers.)

Xfinity TG1682 Telephony Gateway User's Guide 12
Bas ic Backup Battery (black)
6L'Vttts'iva:d
ar2
'
rrrR1
0 r '12 igeET1
oNie.:rdZInSIM
8 . 4 V D C . 2 4 0 0 m . . . h
C h a r g i n g C u r r e n t :
151
_ v a r g e n n i e
L i t h i u m -i o n
B a t t e r y M o d u l e
A R R I S
Safety
Getting Battery Ethernet
Started Installation Installation Configuration Usage Troubleshooting Glossary
Battery Installation and Removal
The TG1682 Telephony Gateway supports a Lithium-Ion backup battery to provide
backup in the event of a local power loss. The battery backup is not intended to take
the place of AC power.
Note: For safety and regulatory purposes, batteries are shipped outside of the
Telephony Gateway and must be installed.
PS- ARCT00777 01
8.4V 2.2Ab
3N:26053000045I.
111111111H
Assembled in Taiwan
E187242
The TG1682 supports the following battery models:
Basic backup battery —provides up to 5 hours (black) or 8 hours (grey) of
backup time, depending on your Telephony Gateway model and usage. It may be light
grey (recommended battery) or black.
Basic B attery Installation and Replacement
Extended backup battery —provides up to 12 hours of backup time, depending
on model and usage. It has a strap between the battery guides.
Extended Battery Installation and Replacement
Your cable company may include a backup battery with your Telephony Gateway.
Basic Backup Battery (grey) You can order
batteries at http://yourbroadbandstore.com/
•
PN. 4120100777 01 8
45 2Ah
SN 26053000045
itn1111111111111111
Assembled in Taiwan
6187242
Extended Backup Bat t ery

Xfinity TG1682 Telephony Gateway User's Guide 13
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary

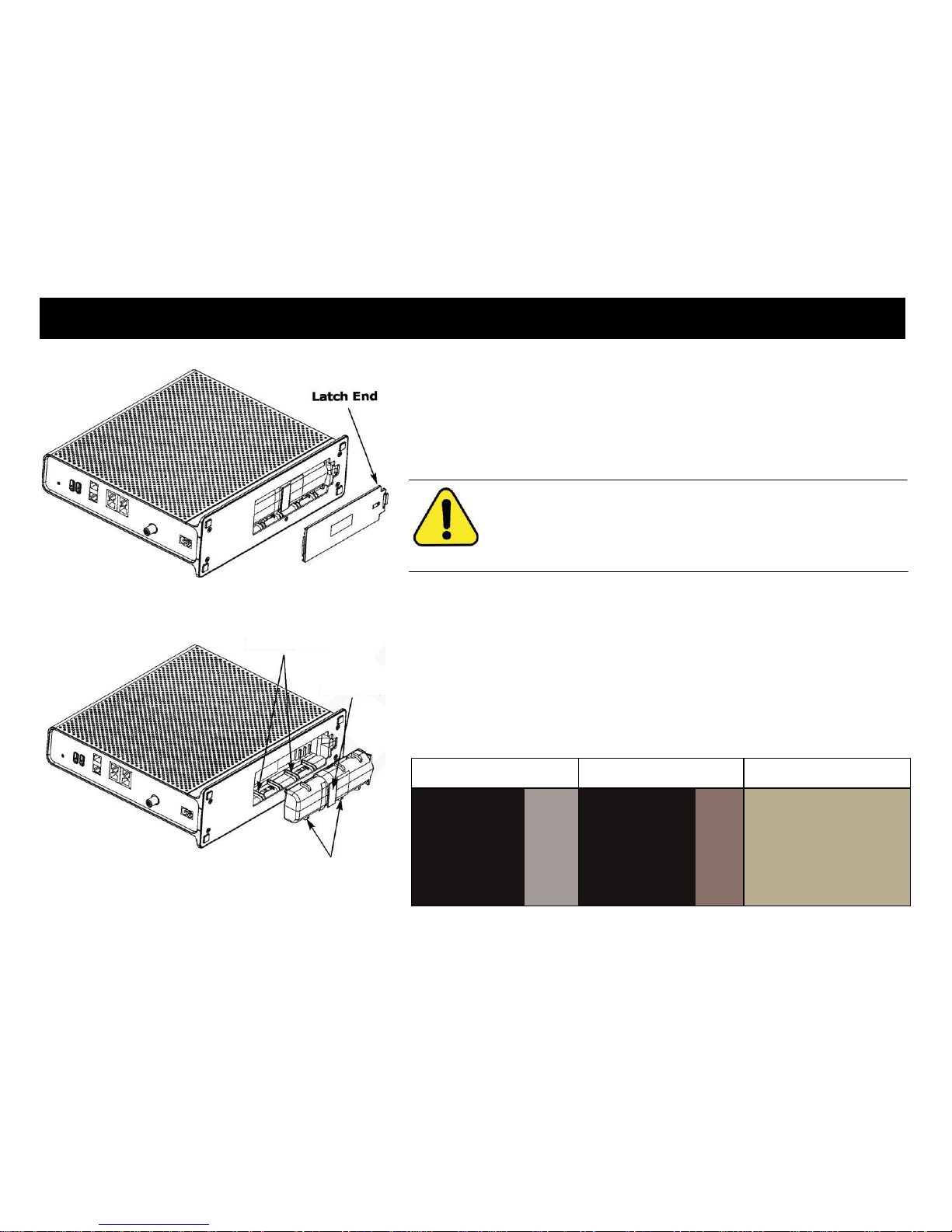

Basic Battery Installation and Replacement
This model of the Telephony Gateway has the ability to provide battery backup in
the event of a local power loss. The battery backup is not intended to take the
place of AC power.
Use this procedure to install and to replace the backup battery.
1 Press down and pull back on the latch holding the battery door (on the bot-
tom of the Telephony Gateway). Pull the door toward you. Set the door
aside in a safe place.
CAUTION
Risk of equipment damage
Improperly inserting the battery may damage the battery connector
in the Telephony Gateway. Carefully follow the instructions in the
next step to avoid damage.
2 Hold the battery pack so that the guides on the battery align with the slots
on the Telephony Gateway and slide the battery into the bay. The diagram
on the left shows the proper orientation.
Note: Batteries will not insert completely into the Telephony Gateway if not
oriented correctly. The battery should slide into the bay without significant
force. Line up the guides on the battery with the slots in the battery bay.

Battery
Compartment
Hinge Tab
Xfinity TG1682 Telephony Gateway User's Guide 14
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Receiver
Slot

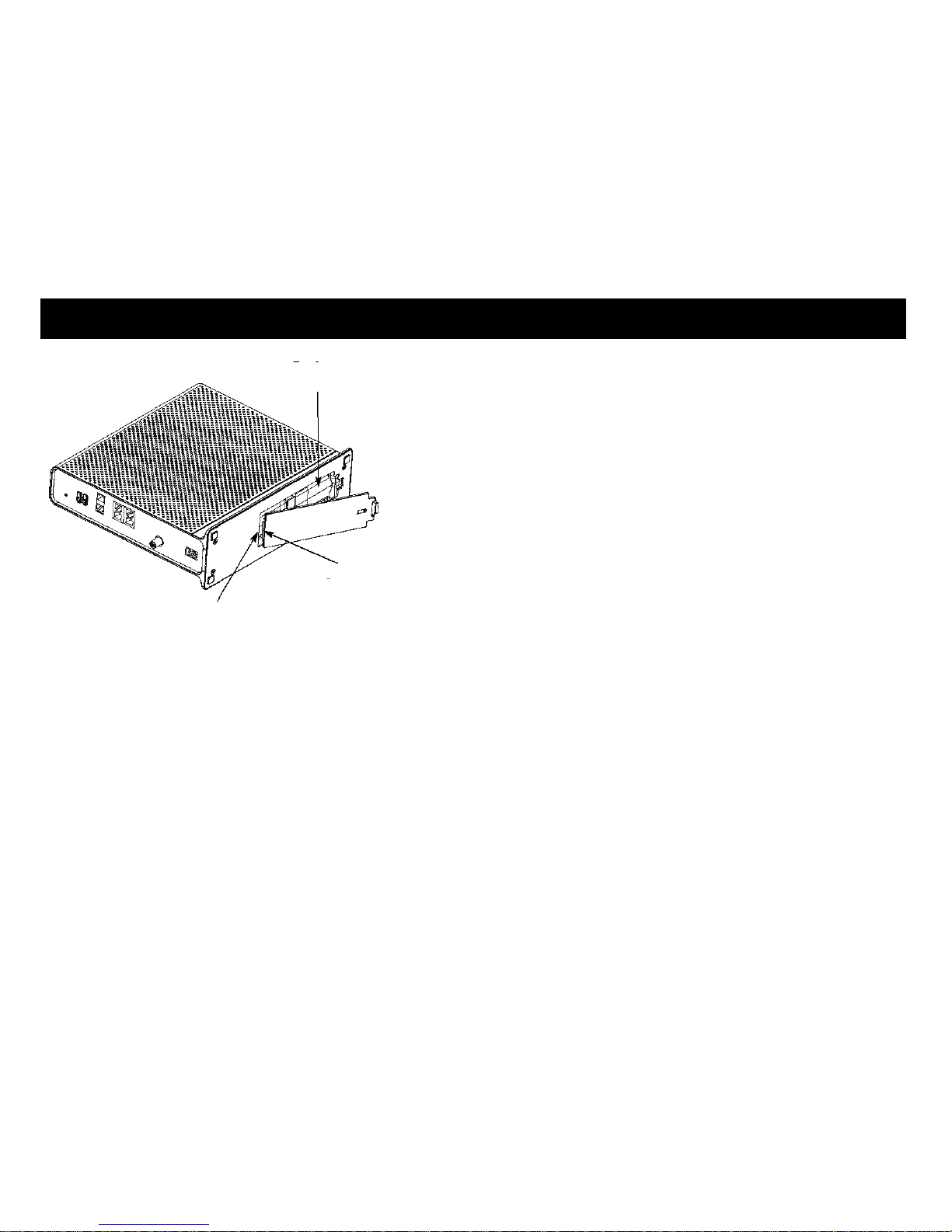

3 Push the battery pack into the bay until it seats into place. If you are tak-
ing the battery out of the Telephony Gateway, position your finger
in the battery opening area and use leverage to dislodge the
battery while pulling it straight back.
Note: The Telephony Gateway will not begin operating until you apply AC
power.
4 Replace the door. To do so, place the hinge tab of the battery door into the
receiver slot inside the Telephony Gateway battery compartment on the
opposite end of the battery opening. Rotate the door toward the unit until
the latch snaps back into place.
Note: Telephony Gateways use a Lithium-Ion battery pack. Please recycle
or dispose of the battery responsibly and in accordance with local ordi-
nances.

Battery Slots
Battery
Pull Strap
Battery Guides
A R R I S
Safety
Getting
Started
Battery
Installation
Ethernet
Installation Configuration Usage Troubleshooting Glossary
Extended Battery Installation and Replacement
Use this procedure to install or replace the backup battery.
1 Press down and pull back on the latch holding the battery door (on the bot-
tom of the Telephony Gateway). Pull the door toward you. Set the door
aside in a safe place.
CAUTION
Risk of equipment damage
Improperly inserting the battery may damage the battery connector
in the Telephony Gateway. Carefully follow the instructions in the
next step to avoid damage.
2 Hold the battery pack so that the guides on the battery align with the slots
on the Telephony Gateway and slide the battery into the bay. The diagram
on the left shows the proper orientation.
Note: Batteries will not insert completely into the Telephony Gateway if
not oriented correctly. The battery should slide into the bay without
significant force. Line up the slots in the battery bay with the guides on
the battery and apply even pressure on both ends of the battery.
WRONG
WRONG
RIGHT
,
—......„............._
Sj
.i,
I
IBPA
..."
.
Xfinity TG1682 Telephony Gateway User's Guide 15

Xfinity TG1682 Telephony Gateway User's Guide 16
Battery
Compartment
Hinge Tab
Receiver
Slot
A R R I S
Safety
Getting Battery Ethernet
Started Installation Installation Configuration Usage Troubleshooting Glossary
3 Push the battery pack into the bay until it latches into place. If you are
taking the battery out of the Telephony Gateway, use the battery
pull strap to dislodge the battery.
Note: The Telephony Gateway will not begin operating until you apply AC
power.
4 Replace the door. To do so, place the tab of the battery door into the slot in-
side the Telephony Gateway battery compartment. Rotate the door toward
the front of the Telephony Gateway until the latch snaps back into place.
Note: Telephony Gateways use a Lithium-Ion battery pack. Please recycle
or dispose of the battery responsibly and in accordance with local ordi-
nances.

Xfinity TG1682 Telephony Gateway User's Guide 17
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Installing and Connecting Your
Telephony Gateway
Before you start, make sure that:
You have contacted your cable company and verified that they provide
data and telephone service using standard DOCSIS technology.
You have all the items you need.
Cable, phone, and power outlets are available near the computer. If a cable
outlet is not conveniently located, your cable company can install a new one.
If you have ordered service, your cable company should configure the Telephony
Gateway automatically. You need only follow the instructions in this section to in-
stall and connect the Telephony Gateway.
CAUTION
Risk of equipment damage
Only qualified installation technicians should connect the Telephony
Gateway to house wiring. Incumbent telephone service must be physi-
cally disconnected at the outside interface box before making any
connections.

0
0
r
(.1) Power
ge'er MOS (6
Online
("?12A GHz
';\ 5 GHz
tee Tel' ik.
Tee ,ales
atter
0
0
0
0
0
0
0
0
Xfinity TG1682 Telephony Gateway User's Guide 18
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Front Panel
The front of the Telephony Gateway has the following indicators:
A WPS button with indicator light: indicates Wireless Protected Setup (WPS) is active. (Button with light ring is
located on top of unit.)
4inity B DECT button with indicator light: Pressing the button pages all the regis-
tered handsets. Pressing again cancels paging. Pressing and holding the button
for 15 seconds places the unit in registration mode for handset registration.
(Button with light ring is located on top of unit.)
C Power: indicates whether AC power is available to the unit.
DUS/DS: indicates upstream and downstream connectivity.
EOnline: indicates internet data transmission status.
F 2.4 GHz: indicates the status of the wireless LAN.
G5 GHz: indicates the sttus of the 5GHz wireless LAN.
HTel 1: indicates the status of telephone line 1.
I Tel 2: indicates the status of telephone line 2.
3 Battery: indicates the battery status.
ARMS
TG1682
..........
. - - - - -

Xfinity TG1682 Telephony Gateway User's Guide 19
O
O
O
laff11111111111111111111
111
lalnilarr11111
WAN MAC:X%X~000OOOO(
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Rear Panel
The rear of the Telephony Gateway has the following connectors and controls:
A Reset button: resets the Telephony Gateway as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
BUSB: USB host connectors - future support for external USB devices
C Tel 1: connector for the first phone line.
DAlarm/Tel 2: connector for the second phone line and a home alarm con-
nection.
EEthernet (1 - 4): connectors for use with a computer LAN port.
F Cable: connector for the coaxial cable.
GMoCA: indicates connectivity between the Telephony Gateway and other
home devices connected via the MoCA network.
HPower: connector for the power cord.

Xfinity TG1682 Telephony Gateway User's Guide 20
A R R I S
Getting Battery Ethernet
Safety Started Installation Installation Configuration Usage Troubleshooting Glossary
Selecting an Installation Location
There are a number of factors to consider when choosing a location to install your
Telephony Gateway:
Is an AC outlet available nearby? For best results, the outlet should not be
switched and should be close enough to the Telephony Gateway that
extension cords are not required.
Is a cable jack available? For best performance, keep the number of split-
ters between the jack and cable drop to a minimum. Each splitter
attenuates (reduces) the signal available to the Telephony Gateway. A
large number of splitters can slow down the Internet connection and even
affect your telephone service.
Can you easily run cables between the Telephony Gateway's location and
the phones?
If you are connecting devices to the Ethernet ports, can you easily run ca-
bles between the Telephony Gateway's location and those devices?
If you want to install the Telephony Gateway on a desktop, is there
enough space on either side to keep the vents clear? Blocking the vents
may cause overheating.
How close are your wireless devices? The Telephony Gateway wireless
connection range is typically 100-200 feet (30m-65m). A number of
factors can affect connection range, as described below.
Desktop mounting instructions
Position the Telephony Gateway so that:
air flows freely around it
the back faces the nearest wall
it will not fall to the floor if bumped or moved
the ventilation holes on the side of the unit are not blocked.
