Arthrex Synergy Resection User manual

SynergyResection
Quick Guide
Product Description

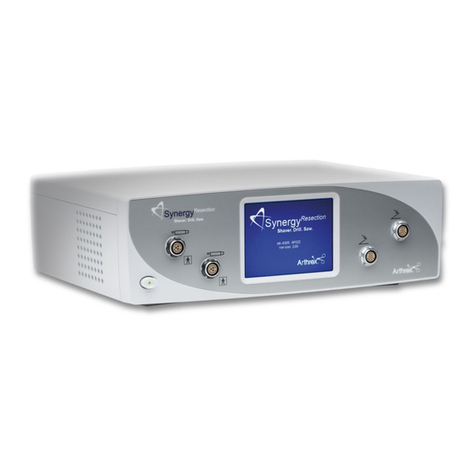

AR-8305 Console – Front View
1On / o power switch
2Handpiece connectors
3Touch screen display
4Footswitch connectors
Main Screen
1Speed setting
2Speed up button
3Speed down button
4Oscillation mode (STD, EFF, AGG)
5Settings button
6Handpiece activated
7Foot control handpiece connected
8Standard footswitch connected
AR-8330F, AR-8332H, AR-8332RH, AR-8330SJ
Shaver Handpiece
1Suction connection
2Suction regulator
3Cable plug with soaker cap
4Hand control buttons (AR-H, AR-RH)
5Hub bore and locking pin
AR-8305 Console – Rear View
1Main power input plug
2Equipotential bonding pin
3Serial ports for Arthrex integration
4USB port (for Arthrex service purposes)
AR-8310, AR-8310SP, AR-8315C, AR-8315W Footswitch
Footswitch (SFS = Standard Footswitch, GFS = Gas Pedal)
Definition of Direction
. Reverse / counterclockwise (REV)
. Forward / clockwise (FWD)
. Oscillation (OSC)
1
2
2 4
4
3
1
2
34
1
3
2 4
5
Single channel
handpiece activated
Single channel
handpiece not active
1 1
77
88
6
2
3
4
5

Operation and Frequently Used Functions
. Turn console power on.
. Adjust settings:
a) Speed adjustment:
Use Up and Down buttons.
b) Oscillation modes:
Choice of  dierent OSC modes:
■ Standard (STD)
■ Ecient (EFF)
■ Aggressive (AGG)
■ The sterile suction tube set is connected with the suction connection of the shaver handpiece
■ Adjust the flow volume with the suction control
■ To insert a shaver blade or burr, fully insert the hub into the hub bore of the handpiece. Watch the locking
pin slide back and forth to check that it is locked in place; there will be an audible “click” sound when the
handpiece is securely locked
■ Use the RPM selection button on the front panel of the console, the selection mechanism on the hand-
piece, or the footswitch to adjust the speed of the handpiece
. Connect shaver handpiece (the console will recog-
nize the handpiece type, and display available options
for the operator to adjust as desired).
■ Insert the handpiece connector into the handpiece
receptacle of the console so that the red dots on the
connector and receptacle align and engage easily
■ The shaver handpiece cable connects and locks to
the console to prevent accidental separation during
use. To avoid damage, only disconnect the shaver
handpiece by pulling on the cable connector
■ Connect footswitch

Troubleshooting
Fault Cause Solution
Unit does not power on. 1. Not receiving power from the wall receptacle or
the power strip
2. Blown fuses
3. Console has an internal power failure
1. Check the main power plug and wall receptacle
2. Check the fuses
3. Send in for repairs
Handpiece does not work. 1. Handpiece is not connected to the
correct channel
2. Not fully or properly connected or
connector is damage
3. Liquid in the receptacle or connector
4. Connector is damaged
5. Footswitch is defective
6. Footswitch is functional
7. Handpiece is too hot after sterilization
8. Handpiece over-current is detected
9. Defective handpiece
1. Check that the connector is plugged into the
correct channel receptacle
2. Check that both connectors are plugged in
properly
3. Dry thoroughly
4. Send in for repairs
5. Operate the device using the console unit
6. Replace the handpiece
7. Allow it to cool down as indicated in the
WARNING in the SynergyResection User’s Guide
8. Allow 30 seconds for the console to reset the
aected channel
9. Send in for repairs
Motor runs but shaver blades / burrs
do not work.
1. Shaver blade / burr incorrectly inserted
2. Damaged hub
3. Bent sleeve
1. Insert the shaver blade so that it engages
Fully close the locking mechanism
2. Replace the shaver blade / burr
3. Replace the shaver blade / burr
No suction. 1. Clogged suction connection
2. Clogged shaver blade or burr
3. Closed suction control
4. Damaged suction control
1. Rinse with a syringe
2. Clean with a brush
3. Open suction control
4. Send in for repairs
This description of technique is provided as an educational tool and clinical aid to assist properly licensed medical professionals in
the usage of specific Arthrex products. As part of this professional usage, the medical professional must use their professional
judgment in making any final determinations in product usage and technique. In doing so, the medical professional should rely on
their own training and experience, and should conduct a thorough review of pertinent medical literature and the product’s directions
for use. Postoperative management is patient-specific and dependent on the treating professional’s assessment. Individual results
will vary and not all patients will experience the same postoperative activity level and/or outcomes.
View U.S. patent information at www.arthrex.com/corporate/virtual-patent-marking
arthrex.com
©Arthrex GmbH, 2021. All rights reserved. LI2-80003-EN_B
