Arthrex DualWave User manual

DualWave™ Arthroscopy Pump
User’s Guide
The Arthrex DualWave™ Arthroscopy Pump User’s Guide provides safety operation information
for all components of the Arthrex DualWave Arthroscopy Pump (model AR-6480), including
accessories. All operating personnel must read this User’s Guide for version 1.7 or higher
thoroughly prior to using this system and follow all safety warnings, cautions, and precautions.
U.S. PATENTS No. 5,520,638 and 8,206,342
0086
Arthrex, Inc.
1370 Creekside Blvd.
Naples, FL 34108-1945 USA
Toll Free: 1-[phone]
www.arthrex.com
Arthrex GmbH
Erwin-Hielscher-Strasse 9
81249 München, Germany
Tel: [phone]
www.arthrex.de
DFU-0212
Revision 1
© 2015 Arthrex, Inc. All rights reserved
DFU-0212, Rev. 1 English

This page intentionally left blank

Table of contents
DFU-0212 Rev. 1 Page i
1.0 General Warnings and Safety Notices - Read This First.....................1
1.1 Important Safety Conventions............................................................................1
1.2 Symbols Definition .............................................................................................4
1.3 Shipping, Unpacking, and Warranty Information................................................6
2
2. .0 0Product Description............................................................................7
2.1 Product Description and Intended Use...............................................................7
2.2 Product Features................................................................................................9
2
2. .2 2. .1 1AR-6480 Console: Front View............................................................................... 9
2
2. .2 2. .2 2AR-6480 Console: Rear View..............................................................................10
2
2. .2 2. .3 3AR-6480 Operator Display Messages and Iconography.......................................11
2.3 Foot Pedal Unit (AR-6483)...............................................................................13
2.4 Remote Control Unit (AR-6482).......................................................................14
2.5 Tubing..............................................................................................................15
2
2. .5 5. .1 1Tubing Configurations..........................................................................................15
2
2. .5 5. .2 2Main Pump Tubing Set (AR-6410: Region A).......................................................17
2
2. .5 5. .3 3ReDeuce™Pump Tubing Set (AR-6411: Region A)............................................18
2
2. .5 5. .4 4ReDeuce Patient Tubing Set (AR-6421: Region A)..............................................18
2
2. .5 5. .5 5Extension Tubing System (AR-6220: Region A)...................................................18
2
2. .5 5. .6 6One-Piece Tubing Set System (AR-6415/AR-6415CL: Region B)........................18
2
2. .5 5. .7 7Main Pump Tubing Set (AR-6420/AR-6420CL: Region B) ...................................18
2
2. .5 5. .8 8Patient Extension Tubing System (AR-6425: Region B).......................................19
2
2. .5 5. .9 9Outflow Pump Tubing Set (AR-6430)...................................................................19
2
2. .5 5. .1 10 0Outflow Tub set with ReDeuce Tubing System (AR-6435: Region A) ..................19
2
2. .5 5. .1 11 1Y-Adapter Tubing (AR-6215) ...............................................................................19
3
3. .0 0Technical Specifications...................................................................21
3.1 Console............................................................................................................21
3.2 Foot Pedal........................................................................................................22
3.3 Remote Control................................................................................................22
3.4 Safety, EMC, and Regulatory Requirements....................................................22
4
4. .0 0Setup................................................................................................23
4.1 How to Set Up the Console..............................................................................23
4.2 AC Power Safety Considerations.....................................................................23
4.3 Replacing the Fuses ........................................................................................24

Table of contents
DFU-0212 Rev. 1 Page ii
4.4 Electromagnetic Compatibility (EMC)...............................................................25
4.5 Basic Setup Procedure for the AR-6480..........................................................25
4.6 Shaver Detect ..................................................................................................27
4
4. .6 6. .1 1Shaver Detect, Synergy System Connection .......................................................27
4
4. .6 6. .2 2Shaver Detect, Shaver Power Cable....................................................................27
4
4. .6 6. .3 3Shaver Detect, Inflow only ...................................................................................28
4
4. .6 6. .4 4Shaver Detect, Inflow/Outflow..............................................................................28
4
4. .6 6. .5 5Adjusting the Shaver Detect.................................................................................29
4.7 How to Set Up the Synergy Heads-Up Display................................................30
4.8 How to Set Up Pump Tubing............................................................................30
4.9 How to Set Up the Two-Piece Tubing System .................................................31
4.10 How to Set Up the Outflow Tubing................................................................31
4.11 How to Change the Language Setting..........................................................32
4.12 How to Test the Power Supply Voltages.......................................................32
4.13 Safe Setup and Performance........................................................................32
4
4. .1 13 3. .1 1Abnormal Operation.............................................................................................32
4
4. .1
13 3. .2 2Overpressure Sensing.........................................................................................32
4
4. .1 13 3. .3 3Roller Housing .....................................................................................................32
4
4. .1 13 3. .4 4Tubing Sensor Coupler........................................................................................33
4.14 Shutdown Procedure ....................................................................................33
5
5. .0 0Operation and Frequently Used Functions .......................................34
5.1 Initial Pressure Settings ...................................................................................34
5.2 How to Operate the AR-6480 in INFLOW ONLY Mode....................................35
5.3 How to Operate the AR-6480 in INFLOW/OUTFLOW Mode ...........................36
5.4 How to Operate the AR-6480 in LAVAGE Mode..............................................36
5.5 How to Operate the AR-6480 in RINSE Mode .................................................37
5.6 Alternative Suction Pathway (ASP) Mode........................................................37
6
6. .0 0Cleaning and Disinfecting.................................................................38
6.1 Console (AR-6480) ..........................................................................................38
6.2 Remote Control Unit (AR-6482).......................................................................38
6.3 Foot Pedal Control Unit (AR-6483) ..................................................................39
6.4 Tubing..............................................................................................................40
7
7. .0 0Sterilization.......................................................................................41

Table of contents
DFU-0212 Rev. 1 Page iii
7.1 Transmissible Spongiform Encephalopathy Agents.........................................41
8
8. .0 0Maintenance.....................................................................................42
8.1 Periodic Maintenance.......................................................................................42
9
9. .0 0Technical Support.............................................................................43
9.1 How to Display the Software Version...............................................................43
9.2 Additional Technical Information......................................................................43
1
10 0. .0 0Troubleshooting.............................................................................44
10.1 Troubleshooting Interference with Other Devices.........................................45
1
11 1. .0 0Repair Policy ....................................Error! Bookmark not defined.
1
12 2. .0 0End of Life, Environmental Directives............................................47
1
13 3. .0 0Electromagnetic Emissions............................................................48
List of Figures
Figure 1 Front Panel of Console ..........................................................................................................9

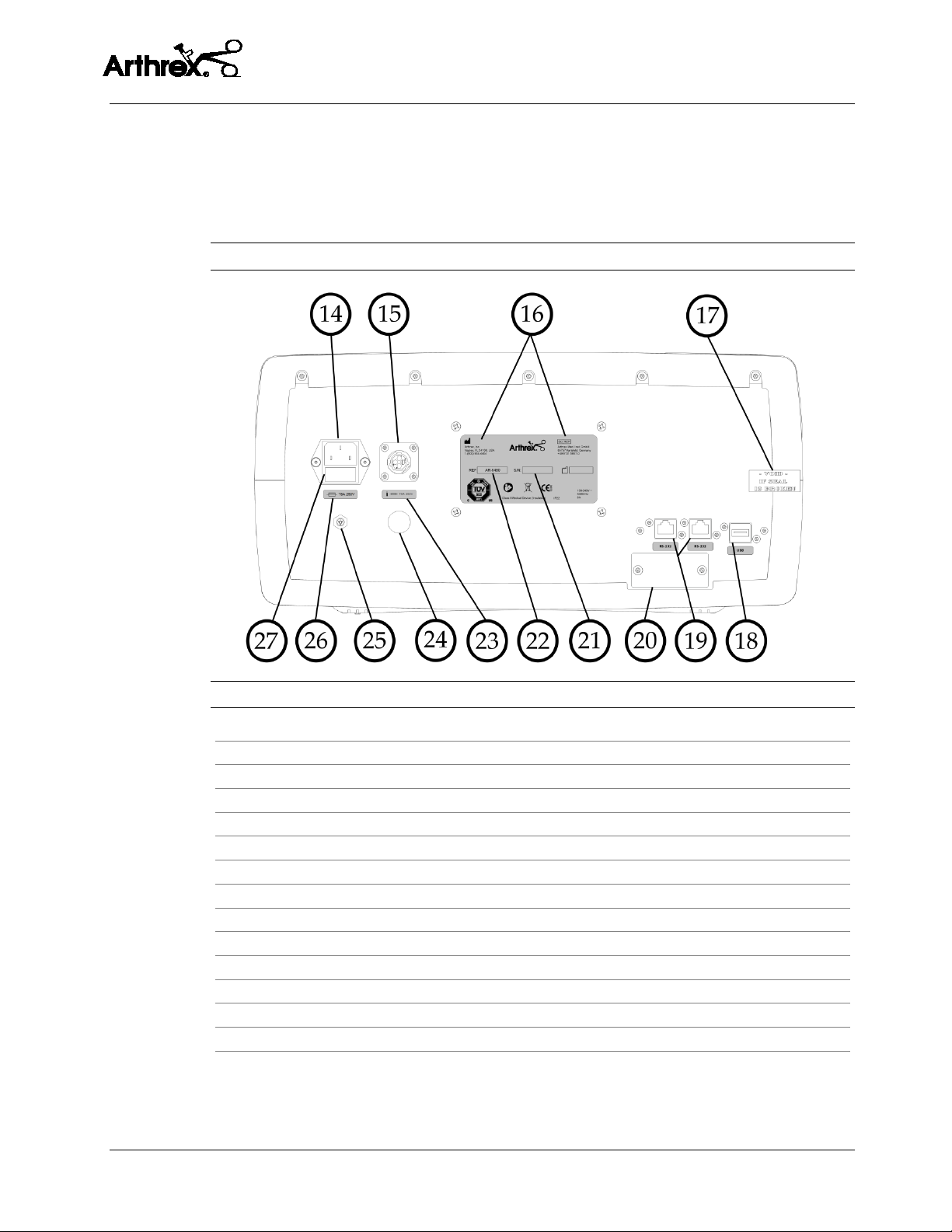

Figure 2 Rear Panel of Console..........................................................................................................10

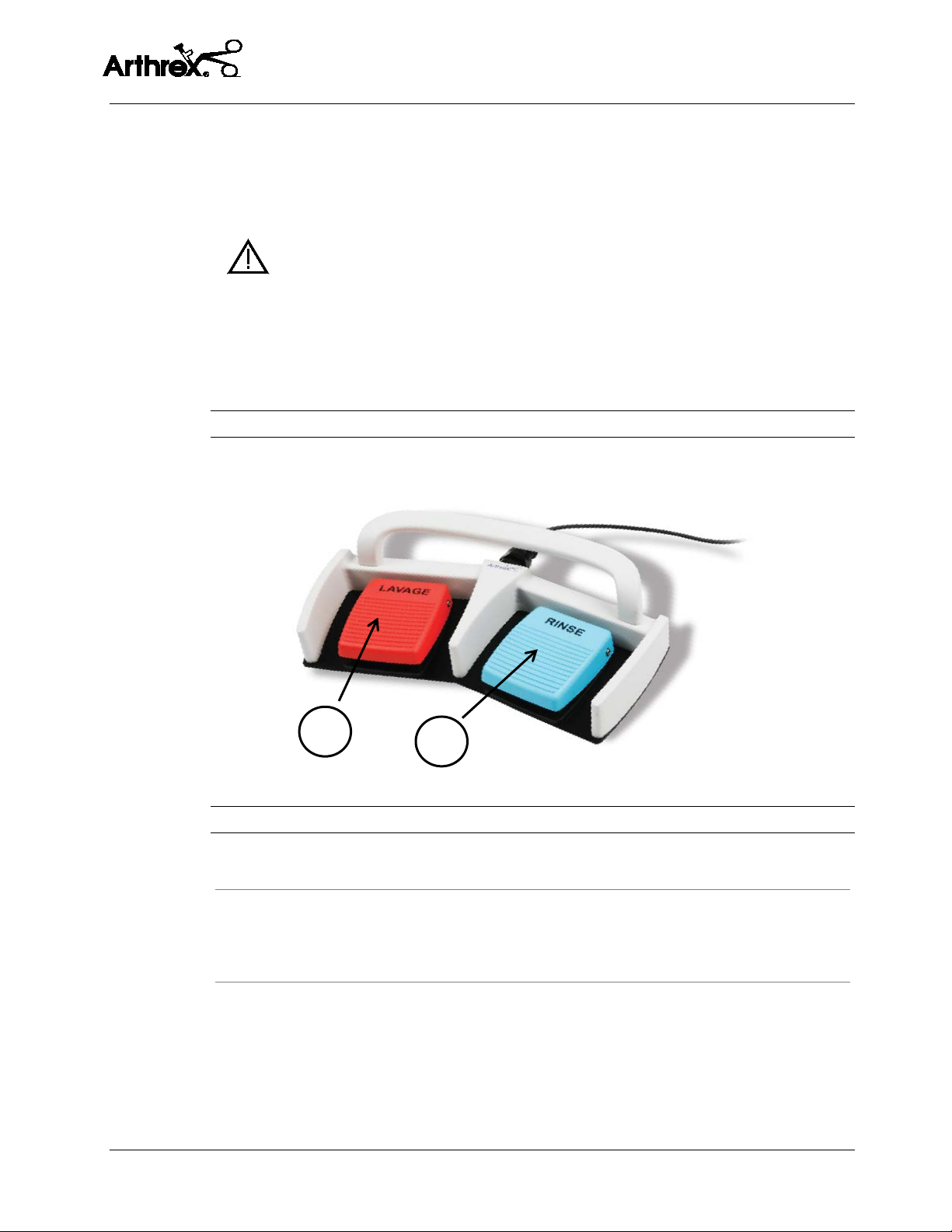

Figure 3 Foot Pedal Unit (AR-6483) ..................................................................................................13

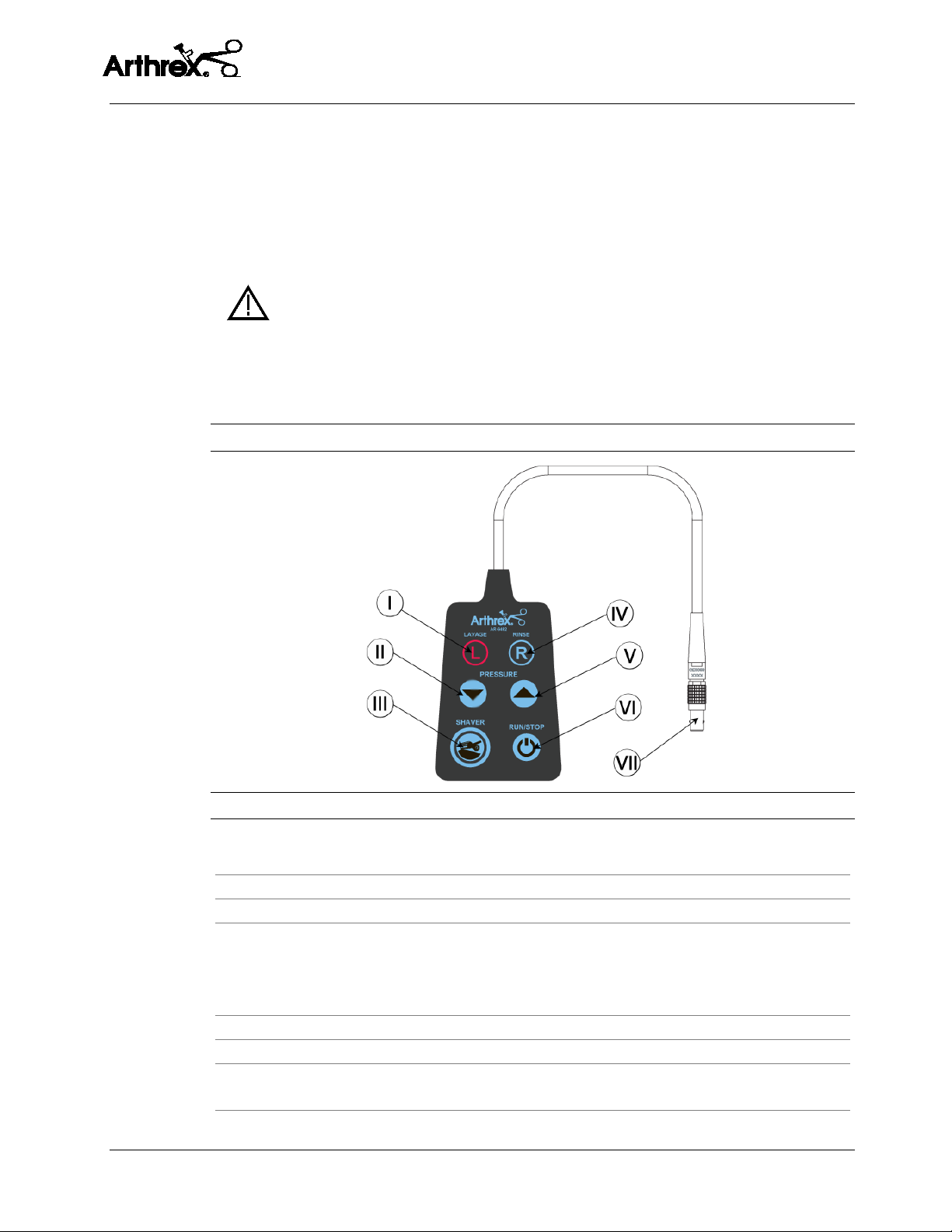

Figure 4 Remote Control Unit (AR-6482)......................................................................................... 14
Figure 5 One-Piece Tubing Configuration....................................................................................... 15
Figure 6 Two-Piece Tubing Configuration ......................................................................................16
Figure 7 Outflow Tubing Configuration (AR-6430) .......................................................................17

Table of contents
DFU-0212 Rev. 1 Page iv
List of Tables
Table 1 Front Panel Elements.............................................................................................................9
Table 2 Rear Panel Elements ............................................................................................................10
Table 3 AR-6480 Operator Display Messages and Iconography................................................. 11
Table 4 Foot Pedal Elements (AR-6483).......................................................................................... 13
Table 5 Remote Control Unit Elements (AR-6482)........................................................................ 14
Table 6 Elements of the One-Piece Tubing Configuration...........................................................15
Table 7 Elements of the Two-Piece Tubing Configuration ..........................................................16
Table 8 Elements of the Outflow Tubing Configuration.............................................................. 17
Table 9 Tubing Set Correlation and Comparisons ........................................................................ 20
Table 10 Control Unit (AR-6480) Specifications ..............................................................................21
Table 11 Ambient conditions for operation ..................................................................................... 21
Table 12 Ambient conditions for storage (in shipping packaging)...............................................21
Table 13 Foot Pedal Unit (AR-6483) Specifications.........................................................................22
Table 14 Remote Control Unit (AR-6482) Specifications................................................................22
Table 15 Initial Pressure Settings.......................................................................................................34
Table 16 Troubleshooting: Faults, their Causes, and Solutions.....................................................44
Table 17 Guidance and Manufacturer's Declaration - Electromagnetic Emissions....................48
Table 18 System Cables....................................................................................................................... 48
Table 19 Guidance and Manufacturer's Statement - Electromagnetic Immunity....................... 49
Table 20 Guidance and Manufacturer's Statement - Electromagnetic Immunity (cont’d)........50
This is not a warranty document. For all warranty information, including disclaimers, exclusions,
terms, conditions and related provisions, refer to the "Arthrex U.S. Product Warranty" section of the
Arthrex, Inc. website, found at www.arthrex.com whose provisions are incorporated herein by
reference.

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 1 of 54
1.0 General Warnings and Safety Notices - Read This First
It is imperative that the symbols and conventions listed below be clearly understood. The
DualWave Arthroscopy Pump User’s Guide identifies critical, important, and useful
information using these symbols and conventions.
1.1 Important Safety Conventions
Users of this device are encouraged to contact their Arthrex representative if they
require a more comprehensive surgical technique.
WARNING!
WARNING! is the most important safety symbol. It identifies critical
information that must be followed precisely to avoid injury or death.
1. All fluid inflow devices, including gravity assist, may cause fluid extravasations
into the surrounding tissues. This extravasation may be mild, moderate or
severe. In severe cases, the resulting edema may result in a serious adverse
patient event which may include compartment syndrome, nerve compromise,
or death. Undiagnosed capsular defects will exacerbate fluid extravasation
conditions.
2. Failure to follow the setup instructions and/or continuing to use the pump
without resolving an alarm condition could result in a serious patient adverse
event.
3. Failure to adhere to the setup instructions and use of Arthrex certified tubing
may result in inaccurate pressure sensing and monitoring by the device. It is
imperative that the user is aware that patient safety may be compromised when
an alarm on the pump is ignored or silenced incorrectly. NEVER ignore or
silence alarms. Follow appropriate troubleshooting procedures and carefully
monitor the patient. Only Arthrex certified tubing must be used
4. This device is only for use in normal arthroscopic procedures as described in
the User’s Guide, under the supervision of a trained and licensed physician.
This device should not be used by untrained personnel or used for indications
other than those described in this User’s Guide.
5. When utilizing any fluid management device, the patient (extremity and
surrounding area) must be monitored closely by the surgical team for signs of
excess fluid buildup. Fluid usage volumes should be monitored and compared
to similar surgical procedures. With all arthroscopy pumps, correct setup and
proper user operation is required. Always select the lowest possible pressures
in order to achieve the required intra-articular distention. All alarms or alerts
must be acknowledged and the appropriate troubleshooting procedure
followed.
6. No modification of the console (AR-6480) or accessories is allowed.

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 2 of 54
Do not open or attempt to service this system, as this may void your warranty.
There are no user-serviceable parts inside. Removing the cover may introduce
an electric shock hazard by exposing you to dangerously high voltages or other
risks. If the system malfunctions, return it for servicing immediately.
7. To avoid the RISK of electric shock, this equipment must only be connected to
a MAINS POWER SUPPLY with a protective earth terminal.
8. Do not have the device in direct contact with the patient if high-frequency
devices are in use, or if the patient requires defibrillation.
9. To ensure that correct pressure monitoring occurs, the pump and operative site
MUST be in the same horizontal plane.
10. DO NOT stack or place equipment adjacent to the AR-6480 console, if
possible. If such a configuration is necessary, carefully observe the
configuration in question to ensure that electromagnetic interference does not
degrade performance.
11. Use only Arthrex approved accessories. Other accessories may result in
increased emissions or decreased immunity of the system. Contact your
Arthrex representative for a complete list of accessories. DO NOT modify any
accessory. Failure to comply may result in injury to the patient and/or operating
room staff.
12. This equipment is NOT suitable for use in the presence of a flammable
anesthetic mixture with air, or with oxygen rich or nitrous oxide environment.
13. Do not use in the presence of flammable anesthetics or oxidizing gases such
as nitrous oxide, oxygen, or endogenous gases. All oxygen connections must
be leak free for the duration of the surgical procedure.
14. Use only Arthrex approved tubing accessories. Other accessories may result in
decreased pressure accuracy. Contact your Arthrex representative for a
complete list of accessories. DO NOT modify any accessory. Failure to comply
may result in patient and/or operating room staff injury.
15. The extension, patient, and/or outflow tubing must be replaced before each
new patient and/or procedure.
16. The sterile connector cap must be used to cover the pump tubing set connector
after each surgical procedure. This maintains sterility of the pump tubing and
ensures its safe operation throughout the entire surgical day.
17. If the tubing is disconnected from the pump, it MUST be replaced. Do not
attempt to reconnect the tubing to the pump as it could lead to unreliable
pressure.
18. The safety and effectiveness of the AR-6480 is verified and documented;
however, the AR-6480 must be used with an awareness of the risk of extra-

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 3 of 54
articular edemas for patients with pathologically-changed articular capsules
and for procedures involving an opening of the capsule (e.g. lateral release).
19. Slight swellings have been observed and described in the literature in cases
where roller pumps are used in arthroscopy. This build-up of fluid can lead to
postoperative swellings and pathological changes in patients. It is of the utmost
importance that the surgeon monitors both the system and the patient closely
while the roller pump is in operation.
20. Always start with the lowest possible pressure to achieve the desired joint
distention. Continue to increase distention pressure until a clear liquid medium
is obtained.
21. The initial pressure settings are recommendations. It is always appropriate and
prudent to use the lowest possible pressure setting to minimize extravasation
and any other pressure-related injury to the patient.
22. User-programmed “Pressure Set” values are increased by as much as 50% to
a maximum of 120 mmHg during the LAVAGE function. Exercise caution to
avoid injury to the patient.
23. After autoclaving, the accessory devices are VERY HOT. Handle with care to
avoid burns.
The PRECAUTION! symbol identifies methods and procedures that
must be followed to avoid damaging the device or causing it to
malfunction.
1. Do not disconnect the plug of the remote control or foot pedal unit by pulling on
the cable. Remove it by grasping and pulling on the body of the connector.
2. Only use replacement power cords that comply with medical grade standards,
IEC 60320-1 Subclause 3.21, Detachable Power Supply Cords or electrical
standards for the designated country where the AR-6480 is being used.
Contact your Arthrex representative for further information.
3. Avoid positioning the console so that it is difficult to disconnect the coupler or
plug from the mains power supply.
4. To prevent electrical shock do not use extension cords or two-prong/three-
prong adaptors.
5. Always use fuses with the correct values to avoid allowing overcurrent to enter
the system.
6. An incorrect fuse may increase the risk of electrical shock or fire hazard.
7. This device has passed testing for EMI / RFI radiation and susceptibility, and
EMC compatibility. This device may cause interference with other devices in
the near vicinity if not set up and used as instructed by Arthrex.
8. Do not attach the remote control or the foot pedal during the Self Test or
Programming Modes.

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 4 of 54
9. NEVER use liquid to clean the accessory device connector contacts. Remove
dust regularly using dry compressed air.
10. Liquid on the cable connector of the accessory device can damage the device.
Before connecting the cable, ensure the receptacles are clean and dry.
11. Always comply with the instructions issued by the manufacturer of the cleaning
disinfectant regarding concentration, exposure times, temperature, and
material compatibility.
12. Never allow the console receptacles to come into contact with liquids. If there is
dust or moisture on the receptacles, remove using dry compressed air. ONLY
dry connectors should be plugged into the console.
13. Do NOT clean the device with abrasive cleaning or disinfectant compounds,
solvents, or other materials that could scratch or damage the device.
14. Refer to the Instructions for Use package insert (DFU-0144) for detailed remote
control cleaning and sterilization instructions included with each remote control.
Additional copies of this insert can be obtained from the Arthrex website at
www.arthrex.com, or by contacting your local Arthrex representative.
15. Refer to the Instructions for Use package insert (DFU-0140) for detailed tubing
cleaning and sterilization instructions included with each tube set. Additional
copies of this insert can be obtained from the Arthrex website at
www.arthrex.com, or by contacting your local Arthrex representative.
16. The foot pedal is NOT suitable to be cleaned and disinfected in a thermo
washer disinfector.
17. After sterilization in the autoclave, let the accessory device cool down slowly.
NEVER use cold water to cool the remote control. This will damage the
electronic components and seals.
1.2 Symbols Definition
Safety Sign
Follow operating
instructions
Caution: Federal law
restricts this device to
sale by or on the order
of a physician.
On/Off (push-push)
Type CF Defibrillator
Proof
Caution
Fragile, handle with
care
Keep dry
This side up

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 5 of 54

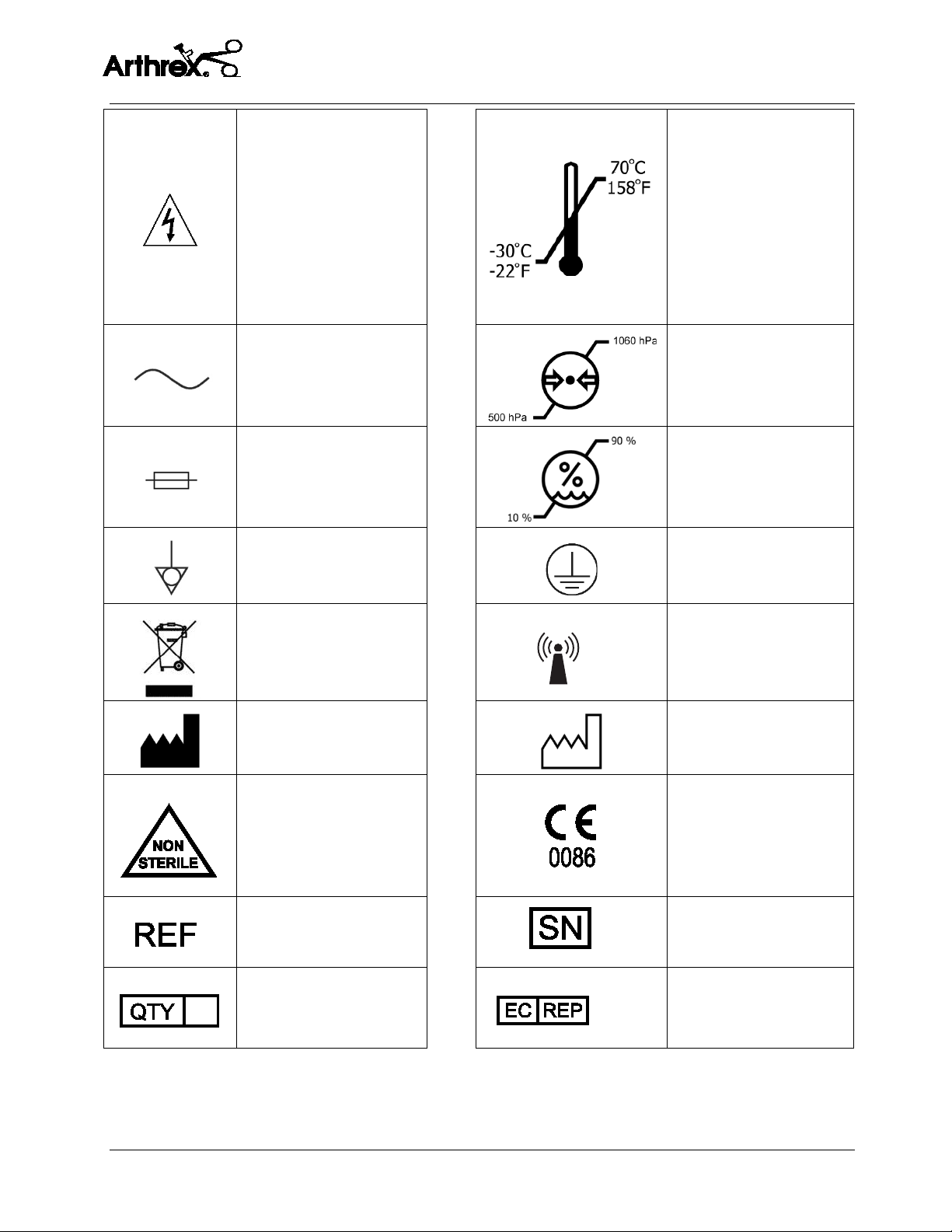

Electrical hazard,
dangerous voltages
are present. Never
attempt to repair the
equipment. Only
trained service
personnel may remove
the cover, or obtain
access to system
components.
Temperature limits for
storage and transport
Alternating current
Atmospheric pressure
limitation
Fuse
Humidity limits for
storage and transport
Equipotential
[equipment potential]
Protective earth
terminal
Electrical waste
RF symbol. Non-
ionizing
electromagnetic
radiation
Manufacturer
Date of manufacture;
year and month.
Non sterile
The product meets the
essential
requirements of
Medical Device
Directive 93/42/EWG
Catalog number
Serial number
Quantity Authorized
representative in the
European Community

General Warnings and Safety Notices - Read This First
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 6 of 54

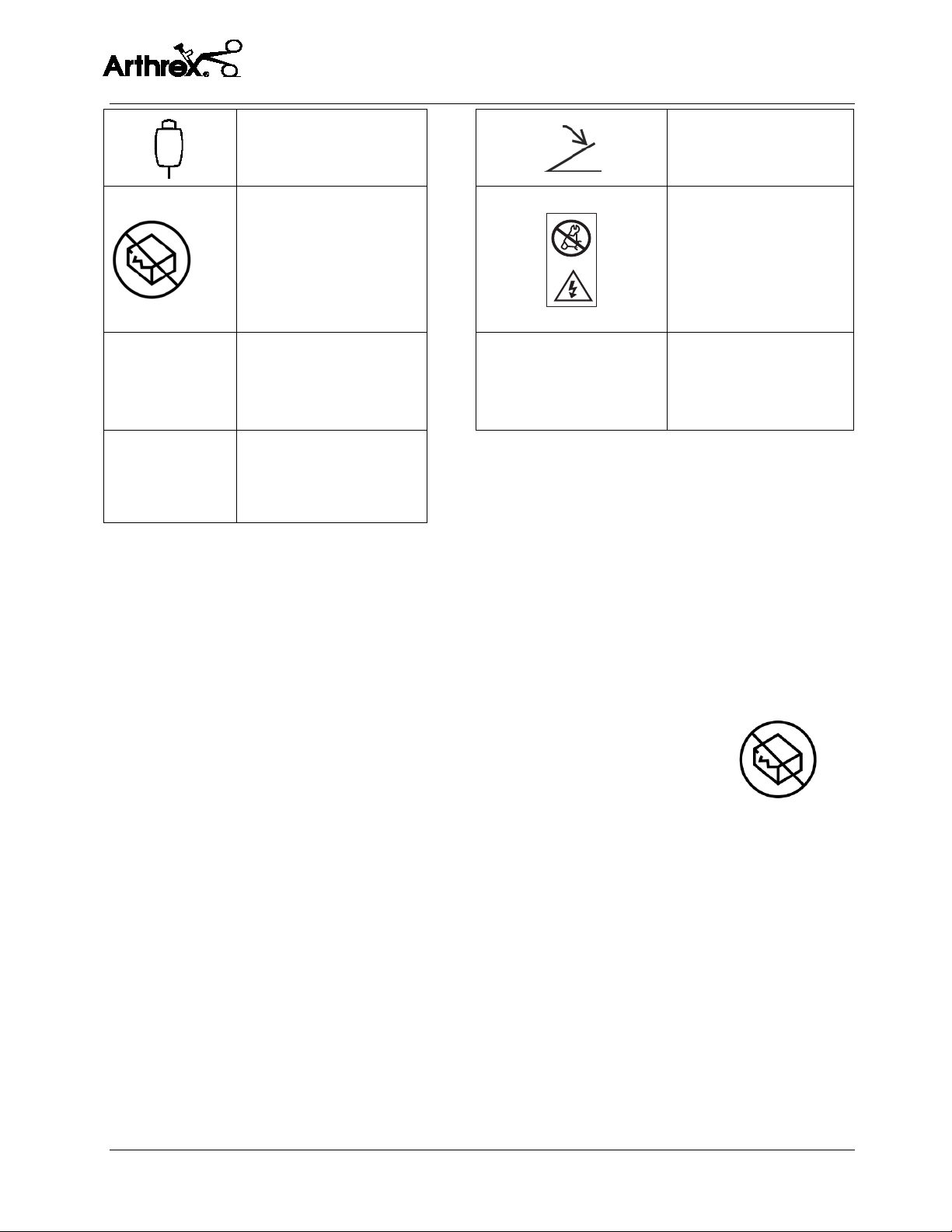

Remote control
connection Foot pedal connection
Do not use if package
is damaged
No user-serviceable
parts inside
Electrical hazard
IP22 International
protection marking RS-232 Serial port [Arthrex
integration]
USB
Universal serial bus
[for use ONLY with
Arthrex approved
thumb drive]
[x] Square brackets that enclose a letter, number, or Roman numeral
reference a callout on a line drawing. Section 2.2, Product Features,
includes drawings of products associated with the AR-6480. Each
line drawing has its own callout system to identify important
elements of each product.
1.3 Shipping, Unpacking, and Warranty Information
Carefully unpack and inspect all components for shipping
damage. Any damage could compromise patient safety and
should be reported immediately to Arthrex or any authorized
Arthrex distributor. The warranty could be voided if shipping or
first-installation damage is not reported within seven business days of receiving
the device. Refer also to our General Terms of Business.
All defective products will be repaired or replaced at the discretion of Arthrex at
no charge. The warranty does not cover damage caused by unlawful use or
improper handling of a product.
The warranty is not valid if modifications are made to the product or repairs are
carried out outside of Arthrex or an authorized Arthrex distributor. Arthrex will
answer any questions referring to the quality, reliability, and/or shelf life of any
product identified in this User’s Guide.

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 7 of 54
2
2. .0 0 Product Description
2.1 Product Description and Intended Use
The Arthrex AR-6480 DualWave Arthroscopy Pump is a system that maintains
constant, non-pulsed control of intra-articular rinsing and distention pressure
throughout all phases of an arthroscopic surgical procedure. The AR-6480 is
intended to provide continuous pulse-free flow that reacts immediately to changes
in the intra-articular pressure so that joint distention can be sustained even under
high shaver extraction volumes or secondary outflow.
WARNING!
All fluid inflow devices, including gravity assist, may cause fluid extravasations into
the surrounding tissues. This extravasation may be mild, moderate, or severe. In
severe cases, the resulting edema may result in a serious adverse patient event
which may include compartment syndrome, nerve compromise, or death.
Undiagnosed capsular defects will exacerbate fluid extravasation conditions.
When utilizing any fluid management device, the patient (extremity and
surrounding area) must be monitored closely by the surgical team for signs of
excess fluid buildup. Fluid usage volumes should be monitored and compared to
similar surgical procedures. With all arthroscopy pumps, correct setup and proper
user operation is required. Always select the lowest possible pressures in order to
achieve the required intra-articular distention. All alarms or alerts must be
acknowledged and the appropriate troubleshooting procedure followed.
WARNING!
FAILURE TO FOLLOW THE SETUP INSTRUCTIONS AND/OR CONTINUING TO
USE THE PUMP WITHOUT RESOLVING AN ALARM CONDITION COULD
RESULT IN A SERIOUS PATIENT ADVERSE EVENT.
Failure to adhere to the setup instructions and use of Arthrex certified tubing may
result in inaccurate pressure sensing and monitoring by the device. It is imperative
that the user is aware that patient safety may be compromised when an alarm on
the pump is ignored or silenced incorrectly. NEVER ignore or silence alarms.
Follow the appropriate troubleshooting procedures and carefully monitor the
patient. Only Arthrex certified tubing must be used.
WARNING!
This device is only for use in normal arthroscopic procedures as described in the
User’s Guide, under the supervision of a trained and licensed physician. This
device should not be used by untrained personnel or used for indications other
than those described in this User’s Guide.

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 8 of 54
The AR-6480 includes:
•A universal medical-grade switching power supply that allows the pump to
function automatically at voltage ranges found worldwide.
•An automatic universal Shaver Detect feature that allows the device to
automatically switch from low cannula suction to high flow shaver suction on
demand. There is a touch panel display for user inputs.
•A Lavage function to provide elevated pressure to stop bleeding and a Rinse
function to clear joint spaces quickly.
The user-defined settings for inflow pressure and outflow rates are adjustable
through controls located on the touch panel screen or on the remote control.
There are four Applied Part pump tubing options for the AR-6480:
1. One-piece tubing only.
This tubing, when used alone, must be replaced after each patient.
2. One-piece tubing and extension tubing combination.
The AR-6410 can be reused for an entire surgical day, while the AR-
6220 must be replaced after each patient.
3. Two-piece tubing combination.
The pump tubing can be reused for an entire surgical day. The patient
tubing must be replaced after each surgical procedure.
4. Outflow tubing.
When the Outflow Tubing Set is attached to the AR-6480, the DualWave
Arthroscopy Pump changes from an inflow-only pump to an
inflow/outflow fluid management system.
The optional Y-Adapter Tubing is intended to be used with all inflow Arthrex
tubing sets/system combinations to connect up to four irrigation bags.
The AR-6480 can be used as an inflow-only irrigation pump or, with the outflow
tubing attached; it can be used as an inflow/outflow fluid management system.
Other optional accessories:
•Remote control
•Foot pedal
•Shaver Detect cord
•Synergy integration cable

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 9 of 54
2.2 Product Features
2
2. .2 2. .1 1 AR-6480 Console: Front View
Figure 1 uses a numeric callout system to identify the main elements of the
console’s front panel, which are listed and labeled in Table 1. These callouts are
referenced throughout this User’s Guide.
Figure 1 Front Panel of Console
Table 1 Front Panel Elements
1.
Inflow tubing track
2.
Tubing sensor coupler with indicator LED. A steady green LED
indicates that the tubing is connected properly. A flashing red
LED indicates that the tubing is not connected, or that it is
connected incorrectly
3.
AC mains power switch
4.
Remote control or foot pedal connector
5.
Operator display
6.
Outflow suction tubing pinch roller
7.
Outflow tubing sensor
8.
Outflow roller assembly
9.
Outflow door
10.
Outflow door locking mechanism
11.
Inflow door locking mechanism
12.
Inflow door
13.
Inflow roller assembly

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 10 of 54
2
2. .2 2. .2 2 AR-6480 Console: Rear View
Figure 2 uses a numeric callout system to identify the main elements of the
console’s rear panel, which are listed and labeled in Table 2. These callouts are
referenced throughout this User’s Guide.
Figure 2 Rear Panel of Console
Table 2 Rear Panel Elements
14.
AC mains power input plug
15.
Shaver Detect power socket
16.
Address
17.
Void seal sticker
18.
USB port (For use ONLY with an Arthrex approved thumb drive)
19.
Serial ports for Arthrex integration (refer to IFU 950-0052-00)
20.
Access panel (for Arthrex authorized use only)
21.
Serial number label
22.
Model number label
23.
Shaver or output fuse label
24.
Shaver or output fuse
25.
Equipotential ground connector and symbol
26.
Main power input - Fuse label
27.
Main power input - Fuse holder

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 11 of 54
2
2. .2 2. .3 3 AR-6480 Operator Display Messages and Iconography
The console’s operator display [5] provides information about the status of the AR-
6480 modes, pressure, and flow settings in real time. Table 3 describes each
message or button, cause and explanation when the pump is in the ready state.
Table 3 AR-6480 Operator Display Messages and Iconography
Message
Cause
Explanation
Arthrex DualWave Message appears when the AC mains power
switch is activated.
Power on message display.
** Tubing Out ** Message appears when tubing is not plugged
into the tubing sensor coupler [2].
Check tubing installation.
** Door Open ** Message appears when the roller housing door
[9] or [12] is open.
Roller housing door is not
closed.
** Over Pressure ** Message appears when the sensed pressure
exceeds over-pressure software limit of 300
mmHg.
Software overpressure
condition.
Critical Failure Message appears on the first line of the operator
display if one of three conditions is met:
Failure Condition 1: ** Power Failure **
Appears if the power supply self-test fails when
the pump is turned on.
Failure Condition 2: ** OVP Detect Fail **
Appears if the hardware overpressure diagnostic
test fails when the pump is turned on.
Failure Condition 3: ** Sensor Failure **
Appears if the pump detects a problem with the
pressure sensors.
Critical failure, cannot
continue operation.
** Power Failure ** Message appears if the power supply self-test
fails when the pump is turned on.
Power supply test fails.
** OVP Detect Fail ** Message appears if the hardware overpressure
diagnostic test fails when the pump is turned on.
Hardware overpressure
diagnostic fails.
** Sensor Failure ** Message appears if the pump detects a problem
with the pressure sensors.
Sensor failure.
** Pressure Fault ** Message appears when the pump is unable to
reach a desired set pressure within a specific
amount of time. This typically indicates
improperly installed tubing or a split in the tube
from continuous use.
Insufficient pressure.
Remote Control Icon Icon appears when the remote is attached. Remote connected.
Foot Pedal Icon Icon appears when the foot pedal is attached. Foot pedal connected.
+Button The operator display shows the pressure reading
until the PRESSURE (+) button is pressed. Once
pressed, the displayed pressure reading will
change to the pressure setting. Each subsequent
press of the pressure button will increase the
pressure setting in increments of 5.
Pressure set increase.

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 12 of 54
Message
Cause
Explanation
−
Button The operator display shows the pressure reading
until the PRESSURE (-) button is pressed. Once
pressed, the displayed pressure reading will
change to the pressure setting. Each subsequent
press of the pressure button will decrease the
pressure setting in increments of 5.
Pressure set decrease.
RUN Button Button appears when the pump is stopped. Press
this button to start the pump.
Motors on.
STOP Button Button appears when the pump is running. Press
this button to stop the pump.
Motors off.
LAVAGE Button Button appears when the pump is in either
inflow only or inflow/outflow mode. Press the
button and the pump will increase pressure by a
user-defined amount and length of time.
Pressure increased for a set
time.
RINSE Button Button appears when the pump is in
inflow/outflow mode. Press the button and the
pump will increase outflow by a user-defined
amount and length of time.
Outflow rate and pressure
increased for a set time.
BOOST Button Button appears when the pump is in inflow only
mode. Press the button and the user may define
the pressure increase when the shaver is
activated.
Pressure increased.
CANNULA Button Button appears when the pump is in
inflow/outflow mode. Press the button and the
user may define the outflow rate.
Outflow rate change.
SHAVER Button Button appears when the pump is in
inflow/outflow mode. Press the button and the
user may define the outflow rate of the shaver
and pressure increase. In ASP mode (Alternative
Suction Pathway), the button is red.
Shaver suction change and
pressure increase.
MENU Button Button appears when the pump is stopped. Press
the button and the pump will enter the setup
menu.
User setups displayed.

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 13 of 54
2.3 Foot Pedal Unit (AR-6483)
The AR-6480 DualWave Arthroscopy Pump can be remotely controlled with the
optional foot pedal unit (AR-6483). It provides a Lavage function and a Rinse
function. See Figure 3 and Table 4.
Do not disconnect the plug of the foot pedal unit by pulling on the
cable. Remove the foot pedal unit plug by grasping and pulling on
the body of the connector.
Figure 3 uses a lowercase Roman numeral callout system to identify the main
elements on the foot pedal unit, which are listed and labeled in Table 4. These
callouts are referenced throughout this User’s Guide.
Figure 3 Foot Pedal Unit (AR-6483)
Table 4 Foot Pedal Elements (AR-6483)
i
Lavage increases the pressure by a percentage and time selected
by the user.
ii
Rinse increases the outflow rate and pressure by a rate and time
selected by the user. The pump can also enter Alternative Suction
Pathway (ASP) if pressed while the shaver is activated and the
ASP mode is enabled via the outflow shaver menu.
i
ii

Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 14 of 54
2.4 Remote Control Unit (AR-6482)
The AR-6480 DualWave Arthroscopy Pump can be remotely controlled with the
optional, autoclavable remote control unit (AR-6482). It provides the ability to
control pressure adjustments; a Lavage function; a Rinse function; shaver suction
controls; and the ability to activate and deactivate the pump motor. The remote
control unit’s cable is 3 meters (9.8 ft.) in length.
Do not disconnect the plug of the remote control unit by pulling on
the cable. Remove the remote control unit plug by grasping and
pulling on the body of the connector.
Figure 4 uses an uppercase Roman numeral callout system to identify the main
elements on the remote control, which are listed and labeled in Table 5. These
callouts are referenced throughout this User’s Guide.
Figure 4 Remote Control Unit (AR-6482)
Table 5 Remote Control Unit Elements (AR-6482)
I
Lavage - Increases the pressure by a percentage and time selected
by the user.
II
Pressure Decrease - Decreases target pressure by five mmHg.
III
Shaver Suction - Cycles through shaver suction settings.
IV
Rinse - Increases the outflow rate and pressure by a rate and time
selected by the user. The pump can also enter Alternative Suction
Pathway (ASP) if pressed while the shaver is activated and the
ASP mode is enabled via the outflow shaver menu.
V
Pressure Increase - Increases target pressure by five mmHg.
VI
Run/Stop
VII
Lemo Connector - Attaches to the corresponding plug on the front
panel [4] of the AR-6480.
