ASI FS-0700 User manual

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
FS-0700
29 SEP 2020
17/32" [13]

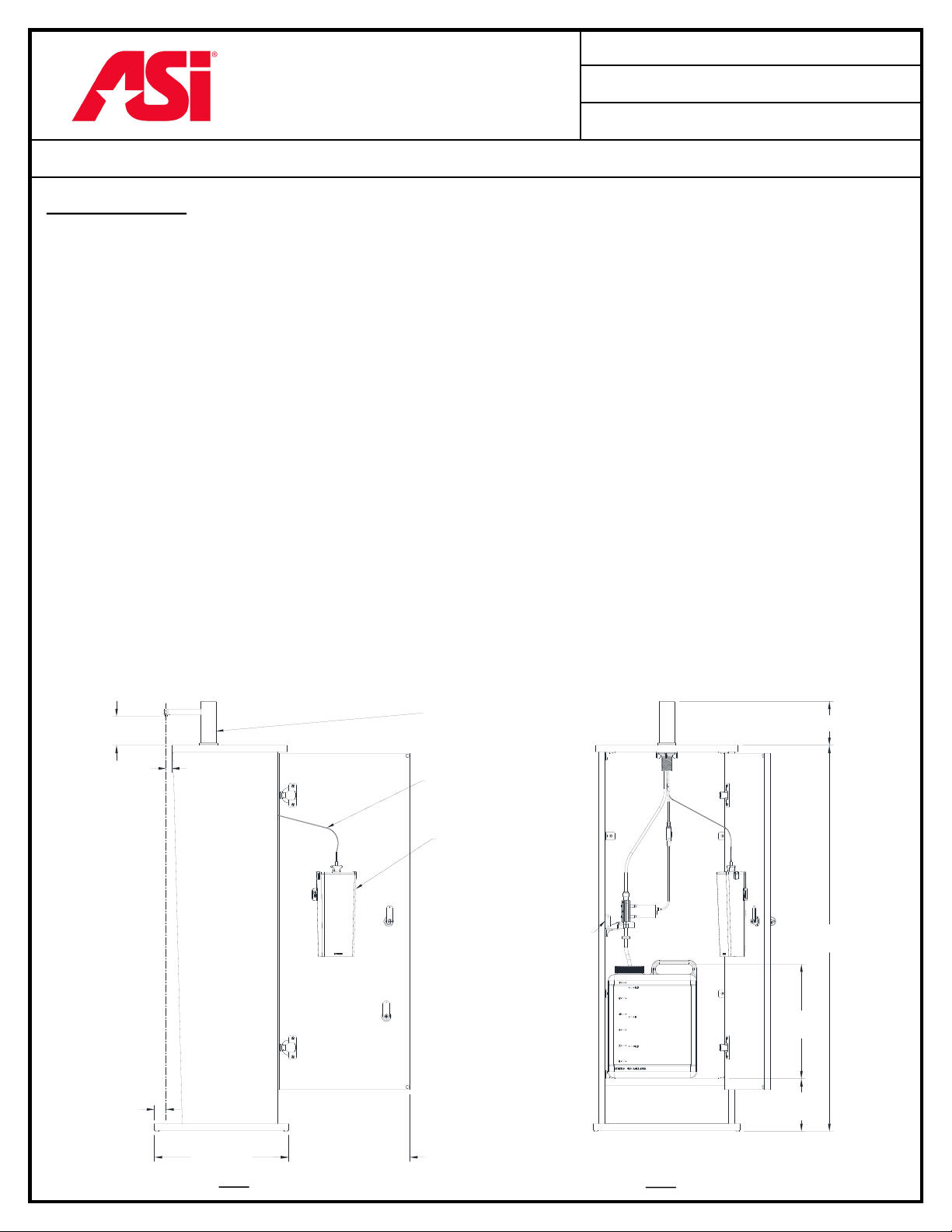

2-3/4" [70] SPOUT MODULE SECURE
SHANK WITH BASIN NUT AND
WASHERS PROVIDED FULLY
CONNECT SUPPLY TUBE
AND COM CABLE PLUGS
POWER CABLE OBSERVE
BATTERY PLUG POLARITY
ENSURE NO KINKS
BATTERY PACK SECURE
CASE WITH SCREWS
PROVIDED LOAD WITH D
CELLS SECURE COVER
1-7/64" [28]
12-3/4" [324] CLEARANCE REQUIRED
12-5/64" [307] FOR DOOR
SWING ACCESS FOR
SERVICE
4-11/64" [106]
5"
[127]
11"
[279]
36-23/32"
[933]
ADJUSTABLE LOCK KEEPER
KEEP SCREWS TIGHT TO
MAINTAIN DOOR SECURITY
C
L
INSTALLATION
1. Install spout and sensor housing with escutcheon flange, rubber washers and basin nut (supplied)
through 1" Dia [Ø25] mounting hole (provided) on stand top. See OM&IG for Model No 0390-HSD,
provided in box with dispenser
2. Install motor-pump module onto inside wall of stand at predrilled holes provided using two (2) № 8-32 x 1/2"
self-threading Phillips FH stainless steel screws (provided) through holes provided in mounting bracket.
Connect flex tubing (provided installed) from dispenser shank to fitting on top of pump/control housing with
firm press-in until hard stop.
3. Connect spout Com-cable plug into control unit inline cable connector.
Note: Com plug should be inser ted fully so that the white O-ring is not visible and a clicking sound is
heard. If Com plug is not connected properly, the motor will run continuously.
4. Connect clear supply flex tubing (provided attached to fitting on pump/control housing) to the 1.6 Gal [6 L]
tank (supplied) through the port in the cap so that tube end is just above bottom of tank. (see Figs. 2 and 2.a)
5. Install battery box (if so provided) on inside face of access door at predrilled screw holes with two (2) № 8 x
5/8" Type AB Phillips pan head stainless steel screws (provided). Load six (6) ‘D’-size 1.5V cells (by others)
in battery carrier tray by removing two (2) Phillips screws and placing batteries according to polarity
indication. Re-install battery carrier tray and re-tighten the screws, plug battery cable jack into battery box
socket in cover handle and screw lock cover. Alternatively, plug AC Adapter (Model No 0390-ACA, if so
provided) into GFCI power outlet (by others) located within reach range of secured cable (straight length is
13.5 ft [4115] and will be reduced by securing wraps and allowable slack) on tank handle and plug connector
into mating inline power connector. (see Fig's. 1 and 3)
6. Remove the protective sticker covering the sensor.
7. Fill tank with correct sanitizer product (see 0390-HSD TDS and OM&IG) and prime system.
Fig. 1 Fig. 2
7 OCT 2020
FREESTANDING PLASTIC LAMINATE SANITIZING STATION INSTALLATION GUIDE (Pg 1 of 2)

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
FS-0700
29 SEP 2020
MAINTENANCE
Care and cleaning of chrome and special finishes- see also PCM document.
DO NOT use steel wool or cleansing agents containing acids, bleach, chlorine, ammonia, abrasives, or the
like. Use of any cleaning or maintenance products containing these substances may damage the surface of
the dispenser. For surface cleaning use ONLY soap and water, then wipe dry with a clean cloth or towel.
When cleaning adjacent installation surfaces, protect the soap dispenser from any splattering of harsh
cleansers.
Replacement Hardware :
 Feet/Door Bumpers: 65-21740
 Hinge: 10-75T1550
 Hinge Spacer: 10-70T3507
 Hinge Mounting Plate: 65-1001-1012
Fig. 2.a
1/16" [2]

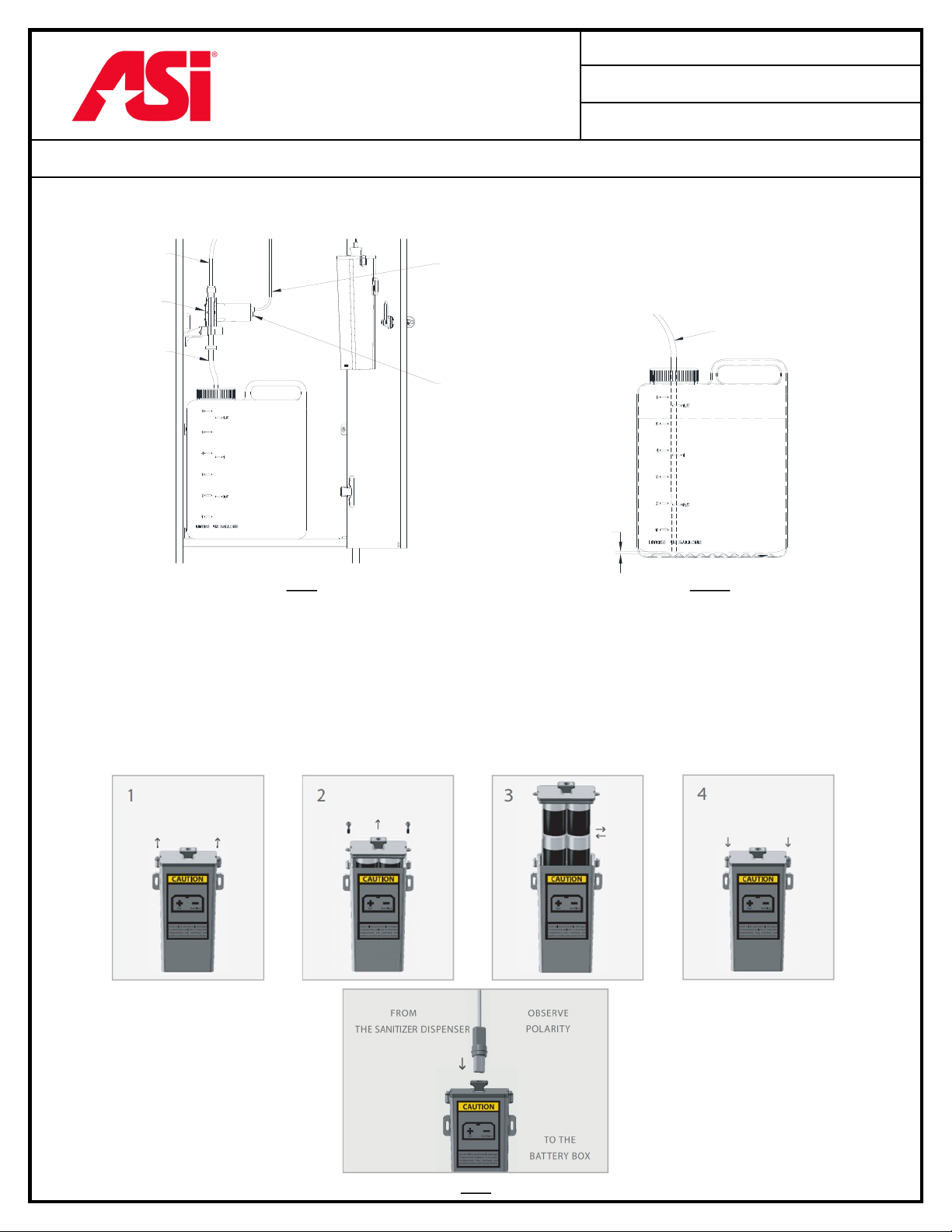

SUPPLY TUBE
MOTOR & PUMP MODULE
SECURE BRACKET WITH
SCREWS PROVIDED
COM CABLES CONNECTION
ENSURE COMPLETE PLUGS
INSERTION FOR CORRECT
OPERATION
SANITIZER FEED TUBE
ENSURE COMPLETE
INSERTION FOR
CORRECT OPERATION
SANITIZER DISPENSER
PRIME BUTTON PRESS BUTTON
UNTIL SANITIZER DISPENSES
FROM SPOUT NOZZLE
WHEN USING AC ADAPTER,
WRAP WIRE 3~5 TURNS AROUND
TANK HANDLE WITH AN
UNDER-TUCK (CLOVE-HITCH) TO
SECURE. ENSURE ADEQUATE
SLACK TO ALLOW TANK
REMOVAL FOR REFILL WITHOUT
UNPLUGGING CONNECTOR
POWER CABLE WITH
INLINE CONNECTOR
Fig. 3
7 OCT 2020
FREESTANDING PLASTIC LAMINATE SANITIZING STATION INSTALLATION GUIDE (Pg 2 of 2)

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
0390-HSD
30 SEP 2020
7 OCT 2020
PODIUM MOUNTED AUTOMATIC GEL HAND SANITIZER DISPENSER (HSD) INSTALLATION GUIDE (Pg 1 of 4)
INSTALLATION

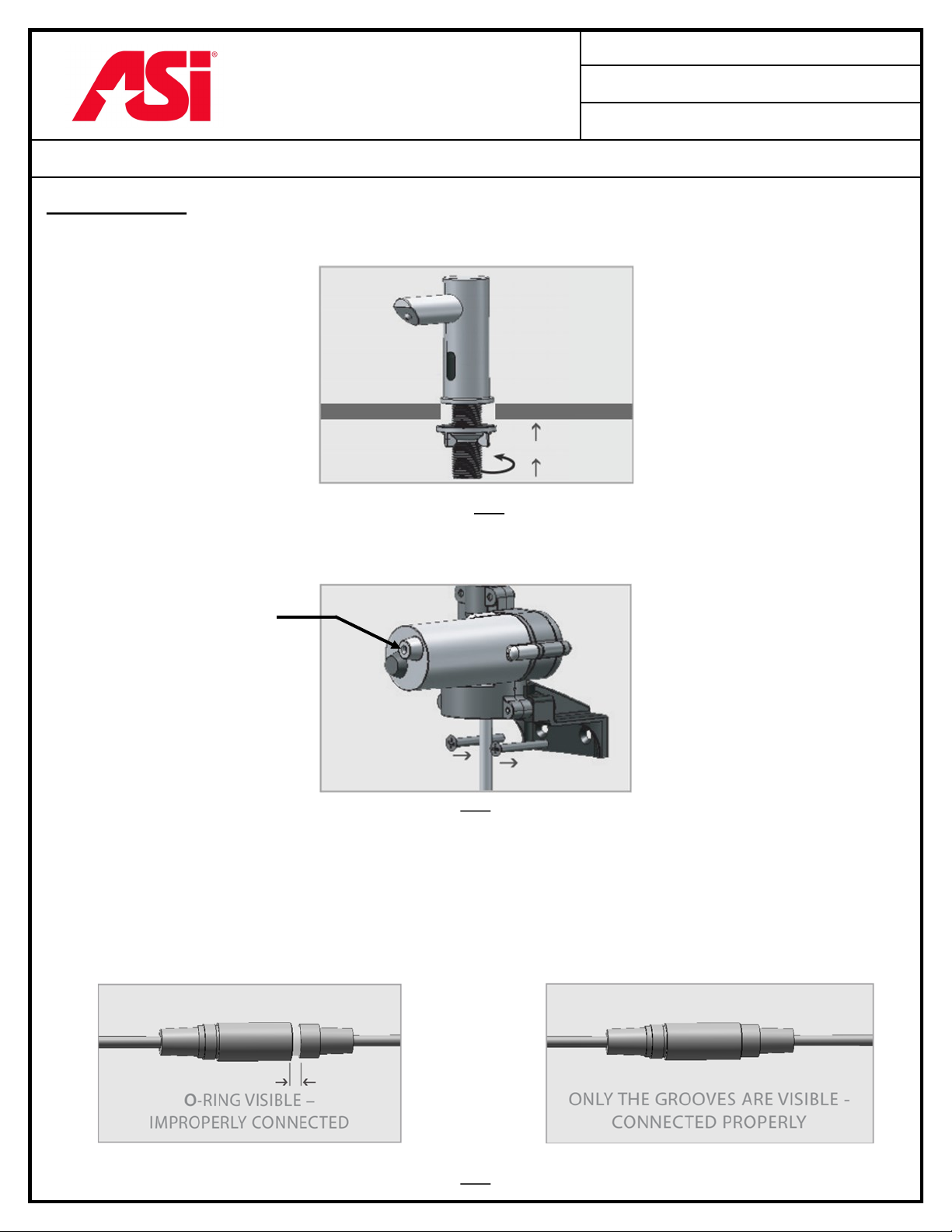

1. Install spout and sensor housing with escutcheon flange, rubber washers and basin nut (supplied)
through 1" Dia. [Ø25] mounting hole. (see Fig. 1)
2. Fix the pump to the desired location by securing the bracket with two (2) № 8-32 x 1/2" self-threading Phillips
FH stainless steel screws (provided) or hardware to suit site conditions.
3. Connect flex tubing from dispenser shank to fitting on top of pump/control housing. Ensure square cut if
shortening tube from supplied length and completely insert into connector until hard stop with firm push
4. Connect spout Com-cable plug into control unit inline cable connector.
Note: Com plug should be inser ted fully so that the white O-ring is not visible and a clicking sound is
heard. If Com plug is not connected properly, the motor will run continuously. (see Fig. 3)
COM CABLE NOT SHOWN FOR CLARITY
Fig. 2
Fig. 3
Fig. 1

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
0390-HSD
30 SEP 2020
PODIUM MOUNTED AUTOMATIC GEL HAND SANITIZER DISPENSER (HSD) INSTALLATION GUIDE (Pg 2 of 4)
1/16" [2]
SUPPLY TUBE
4. Connect clear supply flex tubing (provided attached to fitting on pump/control housing) to the 6L tank
(supplied) through the port in the cap so that tube end is just above bottom of tank. (see Figs. 4 and 4.a)
5. Install battery box (if so provided) on inside face of access door at predrilled screw holes with two (2) № 8 x
5/8" Type AB Phillips pan head stainless steel screws (provided). Load six (6) ‘D’-size 1.5V cells (by others)
in battery carrier tray by removing two (2) Phillips screws and placing batteries according to polarity
indication. Re-install battery carrier tray and re-tighten the screws, plug battery cable jack into battery box
socket in cover handle and screw lock cover. Alternatively, plug AC Adapter (Model No 0390-ACA, if so
provided) into GFCI power outlet (by others) located within reach range of secured cable (straight length is
13.5 ft [4115] and will be reduced by securing wraps and allowable slack) on tank handle (or other securing
means, by others) and plug connector into mating inline power connector. (see Fig. 5)
MOTOR &
PUMP MODULE
FLEX TUBE
SUPPLY TUBE
COM CABLE
SANITIZER
DISPENSER
PRIME BUTTON
Fig. 4
Fig. 5
Fig. 4.a
7 OCT 2020

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
0390-HSD
30 SEP 2020
PODIUM MOUNTED AUTOMATIC GEL HAND SANITIZER DISPENSER (HSD) INSTALLATION GUIDE (Pg 3 of 4)
6. Remove the protective sticker covering the sensor. (see Fig. 6)
7. Fill the 1.6 Gal [6 L] tank with Gel Sanitizer in a viscosity range of 3.5k – 6.5k cP (mPa•s) and a pH in range of 7
± 1.5.
8. Push-button on pump motor runs pump continuously to prime Gel in tubes until Sanitizer is dispensed from the
spout.
OPERATION
System shall operate each time an object is positioned within the sensing range of 1-3/16" to 3-15/16" ± 3/8" (30
to 100 ± 10) directly in front of the spout of the dispenser. A stream of appropriate viscosity nonabrasive Gel
Sanitizer drops with total dispense amount of 0.03 oz (0.8 ml) will be pumped from the nozzle during each
activation. LED will display blue flash for sensing and continuous flashing for low battery condition.
BATTERY MODE ONLY:
When the batteries weaken, the red indicator light will blink at a constant rate when the user’s hands are within the
sensor range. The batteries should be replaced within two weeks.
To replace the batteries (same as Step 5. above):
1. Carefully open the battery box, use Phillips drive #2 to remove cover screws.
2. Remove the old batteries from carrier tray.
3. Replace the used batteries with new ‘D’ batteries in same polarity.
4. Close the box and re-tighten the screws and reconnect battery cable.
NOTE: Do not mix used batteries with new ones
MAINTENANCE
Care and cleaning of chrome and special finishes- see also PCM document.
DO NOT use steel wool or cleansing agents containing acids, bleach, chlorine, ammonia, abrasives, or the like. Use of
any cleaning or maintenance products containing these substances may damage the surface of the dispenser. For
surface cleaning use ONLY soap and water, then wipe dry with a clean cloth or towel.
Fig. 6
7 OCT 2020

AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
[phone] • [phone]
www.americanspecialties.com
MODEL №:
ISSUED:
REVISED:
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
0390-HSD
30 SEP 2020
PODIUM MOUNTED AUTOMATIC GEL HAND SANITIZER DISPENSER (HSD) INSTALLATION GUIDE (Pg 4 of 4)
PROBLEM INDICATOR CAUSE SOLUTION
Supply quantity
diminished Low volume dispense Voltage of batteries is low Replace batteries
Red light in the sensor flashes
continuously when the user’s
hands are within the sensor
range
Voltage of batteries likely below
1.47V per cell Replace batteries
No supply coming
out of the spout
No supply dispensed
Supply level is below supply tube. Refill supply tank
The tank has been filled but supply
has not reached the spout.
Press the refill button on the pump
until supply starts to come out of the
spout again, or press remote “Fill”
button.
The connector between the motor
and the dispenser head is not
properly engaged.
Connect the Com Cable plug and
socket properly so that the white O-
ring is not visible.
Red light in the sensor does
not flash (once) when user ’s
hands are within the sensor
range
Sensor is picking up reflections
from another object Eliminate cause of reflection
Connectors between the dispenser
head and the pump assembly and/or
the power supply are disconnected
or not properly connected.
Connect the plugs and sockets
correctly.
Batteries are completely depleted. Replace batteries
Red light flashes (once) and
the motor operates. Supply solidification at the supply tube.
Fill the tank with warm water at
120~140°F (49-60°C) and run the
pump constantly until supply is
dispensed
Supply dispensing
from the spout
continuously
Steady stream of droplets is
dispensing.
The Com Cable between the pump
assembly and soap dispenser is not
connected properly.
Connect the Com Cable plug and
socket properly so that the white O-
ring is not visible.
7 OCT 2020
