Introduction
On reading these user manuals you will soon become familiar with
the features of this appliance. Please read the appliance’s safety and
maintenance instructions.
Please retain the operating and installation instructions as these may be
useful for future reference.
Please read the separate safety instructions
prior to use.
YOUR COOKER HOOD

EN 5
USE
Description hood
1. Button control
2. LED spot
3. Edge extraction panel
4. Grease filter
5. Magnet
Description button control
6. Filter reset button, signals when filters require cleaning
7. Filter indicator
8. Lighting button, switches on/off and dims the lighting
9. Light indicator
10. Speed down button, reduces air extraction capacity and switches off
11. Speed up button, switches on and increases air extraction capacity
12. Speed level 1 indicator
13. Speed level 2 indicator
14. Speed level 3 indicator
15. Speed level 4/boost indicator
16. Timer function, turns off hood after time
17. Timer indicator
2 3 1 2
5 54
6 8 10 11 16
7 9 12 13 14 15 17

EN 6
USE
Operation
Switching extraction on and off
• Press the ‘+’ button.
The cooker hood will switch on at the lowest setting.
• Press the ‘+’ button again for a higher fan setting. Press and hold
the ‘+’ button for 1 second to select the highest setting (boost).
• Press the ‘-’ button to select a lower setting.
The extraction setting is indicated in the speed level indicators.
Each light area represents a speed level. Speed level indicator 4
also serves as a boost indicator when it blinks.
• If the extraction setting is set at 1, you can switch off the cooker
hood by quickly pressing and releasing the ‘-’ button.
• To switch off the cooker hood from, press and hold the ‘-’ button
for at least 1 second.
Switch on boost setting:
• Press and hold the ‘+’ button for at least 1 second.
The boost setting is switched on for 10 minutes. The speed level 4
indicator will flash during this period. The original extraction setting
will be reactivated after this period.
• Press and release the ‘-’ button to switch off the boost setting.
Note!
If the boost setting has been selected, you cannot activate the timer
function.
Switching on the timer
• Press the timer button.
The timer indicator will start to blink.
The cooker hood will switch off automatically after 10 minutes.

EN 7
• Switch off the timer function by pressing a random button (except
the one for lighting).
The cooker hood can be used in extraction mode or recirculation
mode. The air extraction capacity is adapted to the selected mode. The
hood will start up in the default extraction mode. Is has to be reset for
recirculation mode.
With an RMS kit (recirculation modification set) the air will first be
cleaned by the grease filters and then odours will be filtered by the
charcoal filter. The cleaned air is recirculated back into the kitchen.
Switching on recirculation mode
• Simultaneously press and hold the timer button and the light button
until the filter indicator flashes 3 times.
The carbon filter indicator is activated.
Switching off recirculation mode
• Simultaneously press and hold the timer button and the light button
until the filter indicator lights up for 3 seconds and then turns off.
Clean Air function
The Clean Air function allows you to freshen the air in your kitchen for a
maximum of 24 hours at level 1.
• Switch off the cooker hood.
• Press and hold the timer button for approximately 3 seconds.
The cooker hood will switch on automatically for 10 minutes every
hour at the lowest speed setting. During extraction the display
will show a fast moving ‘snake’. When the hood switches off after
10 minutes, the display will show a slow moving ‘snake’ until the
hood switches on again after 50 minutes.
• Switch off the Clean Air function in the meantime by pressing a
random button (any button other than the light button).
USE

EN 8
Switching the light on and off
• Quickly press and release the light button.
The light switches on at maximum strength.
• Press and hold the lighting button to set the lighting strength.
• To turn off the light, quickly press and release the light button while
the light is on.
The lighting changes from maximum to minimum strength and
vice versa.
Changing the colour temperature
You can adjust the lighting temperature.
• Press and hold the light button. Press the ‘-’ button to make the light
‘colder’ or press the ‘+’ button to make the light ‘warmer’.
Cleaning filters
Saturation of grease and carbon filters
The filters should be replaced or cleaned when the filter indicator is lit.
See ‘Maintenance’ chapter.
Grease filter
The filter indicator will light up after 30 operating hours.
• The grease filters should then be cleaned.
• Reset the memory by pressing and holding the ‘-’ button until the
filter indicator stops flashing.
Carbon filter
The filter indicator will flash after 120 operating hours.
• The carbon filter should then be cleaned or replaced.
• Reset the memory by pressing and holding the ‘-’ button until the
filter indicator stops flashing.
USE

EN 9
USE
Description remote control
The remote control is available as an accessory for this cooker
hood and is not included with this appliance.
1 6
2
37
4
8
10
5 9
1. Timer function
2. Increase light intensity
3. Colder light temperature
4. Decrease light intensity
5. Decrease air extraction capacity
6. Clean air function
7. Warmer light temperature
8. Switch on/off lighting
9. Increase air extraction capacity
10. Fan on/off

EN 10
USE
Buttons must be pressed and held. This is to prevent functions from
being accidentally switched on or off.
Operation

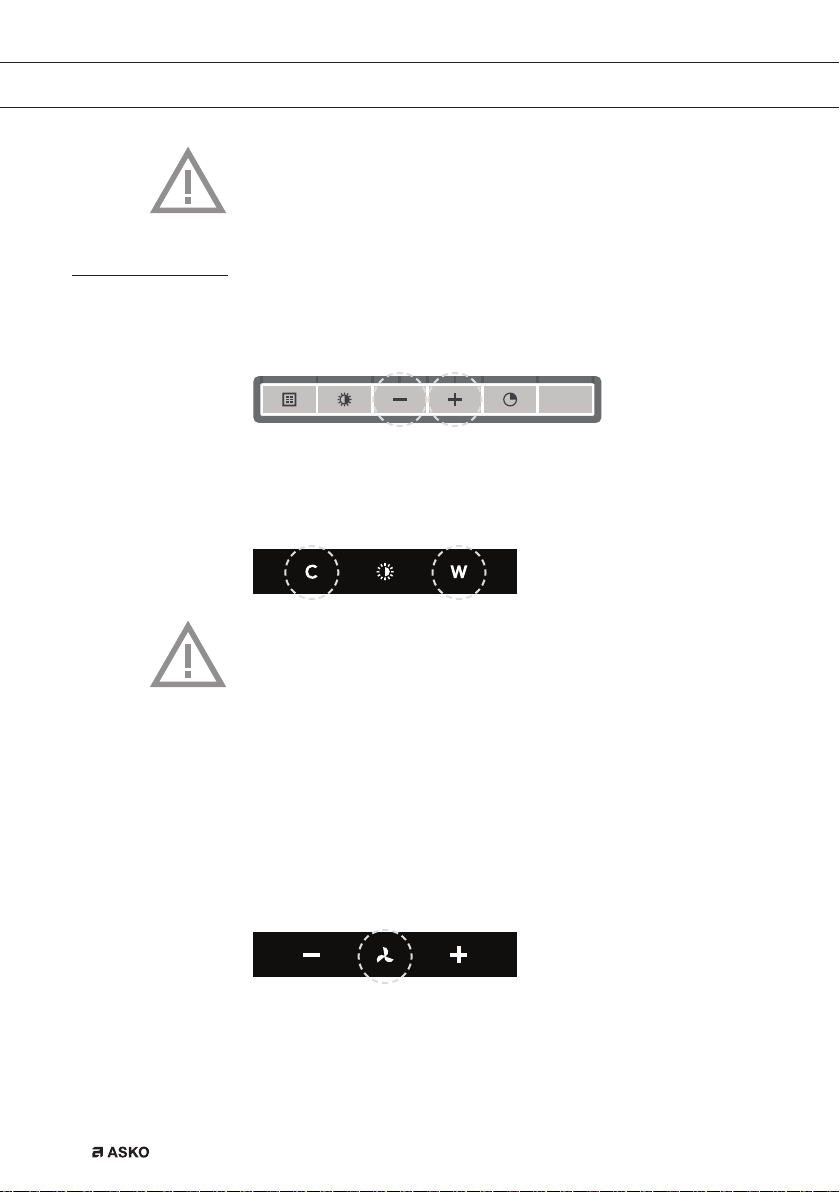

Pairing the remote
This remote control must be paired to the cooker hood before first use.
• Start up the appliance (power on). Press and hold the -’and ‘+ for
3 seconds. The hood will start ‘pairing mode’ for 5 minutes.
• Activate the ’Remote pairing mode’ by holding ‘c’ and ‘w’ for 3 sec.
• During pairing all the indicators on the hood and remote will blink. All
indicators will turn off when the connection is established.
If the connection is not established repeat the entire pairing process.
Remote control will go into standby after 30 seconds. The remote will
wake up when it is picked up or detects movement.
Switching extraction on and off
• Press and hold the ‘Fan’ key on the remote for 1 second.
The cooker hood will switch on at the lowest setting.
• Press the ‘+’ key again for a higher fan setting. Press and hold the
‘+’ key for 1 second to select the highest setting (boost).
• Press the ‘-’ key to select a lower setting.
The extraction setting is indicated by the speed level indicators on the hood.
• To switch off the cooker hood, press and hold the ‘Fan’ key for
1 second.

EN 11
USE
Switch on boost setting
• Press and hold the ‘+’ key for at least 1 second.
The boost setting is switched on for 10 minutes. The speed level 4
indicator will flash during this period. The original extraction setting
will be reactivated after this period.
• Press and release the ‘-’ key to switch off the boost setting.
Note!
If the boost setting has been selected, the timer function cannot be
activated.
Switching on the timer
• Press the timer key.
The timer indicator will start to blink.
The cooker hood will switch off automatically after 10 minutes.
• Switch off the timer function by pressing a random key (except the
one for lighting).
The cooker hood can be used in extraction mode or recirculation
mode. The air extraction capacity is adapted to the selected mode. The
hood will start up in the default extraction mode. Is has to be reset for
recirculation mode.
With an RMS kit (recirculation modification set) the air will first be
cleaned by the grease filters and then odours will be filtered by the
charcoal filter. The cleaned air is recirculated back into the kitchen.
Switching on recirculation mode
• When the light and fan are off, simultaneously hold the timer key
and the light key until the filter indicator flashes 3 times.
The carbon filter indicator is activated.

EN 12
Switching off recirculation mode
• When the light and fan are off, simultaneously hold the timer key
and the light key until the filter indicator lights up for 3 seconds and
then turns off.
Clean Air function
The Clean Air function allows you to freshen the air in your kitchen for a
maximum of 24 hours at level 1.
• Switch off the cooker hood.
• Press and hold the ‘clean air’ key for approximately 3 seconds.
The cooker hood will switch on automatically for 10 minutes every
hour at the lowest speed setting. During extraction the display
will show a fast moving ‘snake’. When the hood switches off after
10 minutes, the display will show a slow moving ‘snake’ until the
hood switches on again after 50 minutes.
• Switch off the Clean Air function by pressing the timer, clean air,
‘-’ or ‘+’ keys (any key other than the light key).
Switching the light on and off
• Press and hold the light key for 1 second.
The light switches on at maximum strength.
• Press and hold the ‘increase light’ or ‘decrease light’ key to set the
lighting intensity.
• To turn off the light, press and hold the light key for 1 second.
USE

EN 13
USE

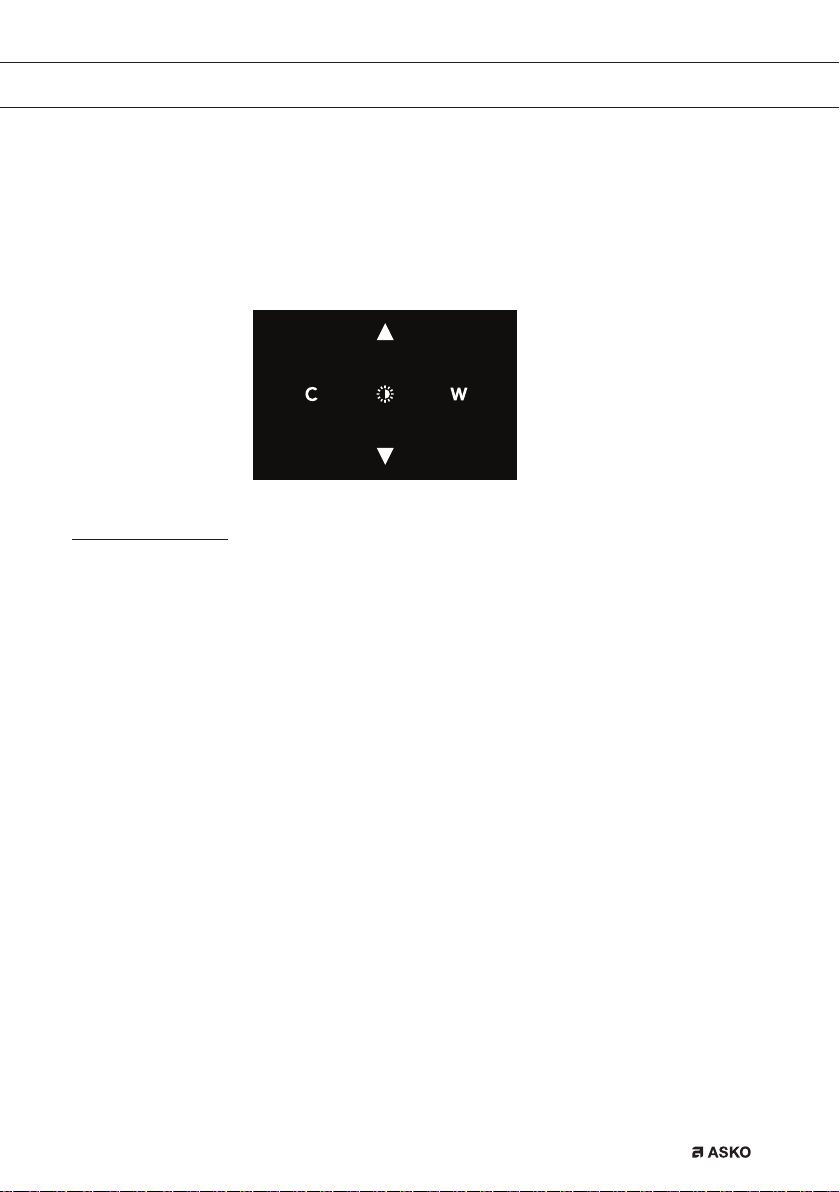

Changing the colour lighting temperature
You can adjust the lighting temperature.
• Press and hold the light key for 1 second.
The light switches on at maximum strength.
• Press the ‘C’ key to make the light ‘colder’ or press the ‘W’ key to
make the light ‘warmer’.
Cleaning filters
Saturation of grease and carbon filters
The filters should be replaced or cleaned when the filter indicator is lit.
See ‘Maintenance’ chapter.
Grease filter
The filter indicator will light up after 30 operating hours.
• The grease filters should then be cleaned.
• Reset the memory by pressing and holding the ‘-’ key until the filter
indicator stops flashing.
Carbon filter
The filter indicator will flash after 120 operating hours.
• The carbon filter should then be cleaned or replaced.
• Reset the memory by pressing and holding the ‘-’ key until the filter
indicator stops flashing.

EN 14
Cleaning
Important!
For all maintenance, first switch off the mains power to the cooker hood
by pulling the plug out of the socket or by turning off the home's master
switch. The hood needs to be cleaned regularly, both inside as well as
outside (at least as often as the grease filter).
Do not use abrasive cleaning products. Do not use alcohol!
Important!
If the instructions regarding cleaning of the appliance or replacing the
filters are not followed, this can cause a fire. These instructions must be
followed! The manufacturer is not liable for damage to the hood
or fire damage resulting from incompetent maintenance or from
non-adherence to the safety instruction above.
Cooker hood
Clean the cooker hood with soapy water and a soft cloth.
Then rinse with clean water. Do not use aggressive cleaning agents
such as caustic soda. The cooker hood finish stays in good condition if
it is buffed periodically following the application of wax.
Stainless steel cooker hoods
Do not use scouring pads or other abrasive cleaners on stainless steel
cooker hoods. Finish with a non-abrasive, non-polishing agent and buff
the stainless steel in the direction of the grain.
Metal grease filters
Metal grease filters should be cleaned once a month (or when indicated
by the filter cleaning indicator – if present on the model) using a neutral
cleaning agent, either by hand or in the dishwasher on a short, low-
temperature program. Place the grease filters with the openings facing
downwards in the dishwasher so the water can drain out of the filter.
Aluminium grease filters become dull as a result of dishwasher cleaning
agents. This is normal and does not effect the working.
MAINTENANCE

EN 15
Removing cassette filter
1 Switch off the motor and lighting.
2 Pull the edge extraction panel carefully out of the magnetic seal.
Tilt the edge extraction panel downwards.
3 Open the filter’s access latch.
Support the filter with your hand.
4 Remove the filter from the hood.
Cleaning
The filters can be cleaned in the dishwasher. Allow the filters to drain
well before replacing.
The filters can also be cleaned by hand.
Clean the filters in soapy water with washing up liquid and rinse. Allow
the filters to drain well. See page 13 for instructions. The underside of
the cooker hood can be cleaned with a mild cleaning agent and a damp
cloth. Dry off with a paper towel.
Replacing cassette filter
The filter should be placed with the locking mechanism on the front.
Open the filter access latch. The notches at the front of the filter will then
slot in. Hold the access latch in this position when placing the filters.
1 Slot the notches at the back of the filter in the specially designed
opening of the cooker hood.
2 Tilt the filter upwards.
3 Release the filter access hatch. The notches at the back of the
filter will extend outwards and slot into the specially designed
openings of the cooker hood.
The filter is now in position again.
4 Press the edge extraction panel firmly in the magnetic seal again
(you will hear a click)
The edge extraction panel can be removed for cleaning.
1
2
MAINTENANCE

EN 16
MAINTENANCE
Active carbon filters:
The regenerable active carbon filter must be washed by hand with
neutral cleaning products, or in the dishwasher at a maximum
temperature of 65 °C (the washing should be done without any plates,
dishes, cups, etc. in the machine). Do not use washing detergent.
Remove the excess water without damaging the filter, remove the
holder and let the filter dry in the oven for at least 40 minutes at a
maximum temperature of 70 °C.
To keep the regenerable carbon filter efficient, this action should be
repeated every 2 months or when indicated by the filter indicator.
The filter must be replaced after no more than 3 years, or if it has
been damaged.
It is important that the grease filters and the regenerable active
carbon filter are thoroughly dry before repositioning.
Replacing the carbon filter:
To replace the carbon filter, consult the manual of the recirculation kit.
Lighting
Attention!
The hood is fitted with LED lights. These must be replaced by an
authorized technician. Do not attempt to replace the LED lights yourself.
Battery of the remote
Important!
When the batteries are replaced the pairing connection will remain.
Replace the batteries in time, as the receiving distance will be
shortened if the voltage of the battery is too low.
Don’t forget to remove the batteries if you don’t use the remote for a
long time.
Don’t leave the remote lying upside down on a conductive surface.
The warranty does not cover the batteries.
The battery may drain more quickly in connection with the lit icons.
Battery specifications: Two AAA batteries.

EN 17
TECHNICAL DATA
EU Product Sheet
Data determined according to:
Standard EN61591 and Commission Regulations (EU) no. 65/2014 and
(EU) no. 66/2014.
CBB761S CBB861S
Trademark
ASKO ASKO
Type of model BU70BA-ADC01 BU90BA-ADC01
Annual Energy Consumption (AEChood)
36.1 kWh/a 36.8 kWh/a
Energy Efficiency Class
A+A+
Fluid Dynamic Efficiency (FDEhood) 35.1 % 35.5 %
Fluid Dynamic Efficiency class
A A
Lighting Efficiency (LEhood)
186.4 lux/W 186.4 lux/W
Lighting Efficiency class A A
Grease Filtering Efficiency (GFEhood) 94.2 % 91.6 %
Grease Filtering Efficiency class B B
Air flow at minimum and maximum speed in normal use 258 / 415 m3/h 242 / 387 m3/h
Air flow at intensive or boost setting 723 m3/h 716 m3/h
Airborne acoustical A-weighted sound power emissions
at minimum and maximum speed in normal use
42 / 52 dB(A) 43 / 53 dB(A)
Airborne acoustical A-weighted sound power emissions
at intensive or boost setting
65 dB(A) 65 dB(A)
Power consumption off mode (Po) - -
Power consumption in standby mode (Ps) 0.38 W 0.38 W
EU Product Fiche
CBB761S CBB861S
Time increase factor (f) 0.7 0.7
Energy Efficiency Index (EEIhood) 40 40
Measured air flow rate at best efficiency point (QBEP) 350 m3/h 353 m3/h
Measured air pressure at best efficiency point (PBEP) 481 Pa 493 Pa
Measured electric power input at best efficiency point
(WBEP)
133 W 136 W
Nominal power of the lighting system (WL) 2.8 W 2.8 W
Average illumination of the lighting system on the
cooking surface (Emiddle)
522 lux 522 lux

EN 18
ENVIRONMENTAL ASPECTS
Tips for energy-efficient cooking with hoods
• Use a low extractor setting and use the highest setting (boost) if
necessary.
• A well-ventilated kitchen makes the range hood more efficient.
• Clean filters regularly and replace filters when needed to keep the
filter efficiency high, as a saturated filter cannot perform and leads
to longer usage times.
Disposal of packaging and appliance
Sustainable materials have been used during manufacture of this
appliance. This appliance must be disposed of responsibly at the end
of its service life. Ask your local authorities for more information about
how to do this.
The appliance packaging is recyclable. The following materials may
have been used:
• cardboard
• polyethylene film (PE)
• CFC-free polystyrene (PS rigid foam)
Dispose of these materials in a responsible manner and in accordance
with government regulations.
The product has been marked with a crossed-out dustbin symbol
to remind you of the obligation to dispose of electrical household
appliances separately. This means that the appliance may not be
included with normal domestic refuse at the end of its service life.
The appliance must be taken to a special municipal centre for
separated waste collection or to a dealer providing this service.
Separate collection of household appliances helps to prevent any
potential negative impact on the environment and on human health
caused by improper disposal. It ensures that the materials of which
the appliance is composed can be recovered to obtain significant
savings in energy and raw materials.
Declaration of Conformity
We hereby declare that our products satisfy the applicable European
Directives, Orders and Regulations, as well as the requirements stated
in the referenced standards.

EN 19

798663 / VER 2 / 27-11-2019
The instructions for use can also be found on our website:
www.asko.com
 en (02-20)
