Asko CW4935SCN User manual

INSTRUCTIONS FOR USE
Cooker hood
EN
CW4935SCN
CW41235SCN

3Introduction ................................................
3Pictograms used ..........................................
3Introduction ..................................................
4Safety ..........................................................
4.....................................................................
7Use ..............................................................
7Description user interface ............................
7Cooker hood functions .................................
8Operation ....................................................
8Switching extraction on and off ...................
8Switch on the boost setting ..........................
8Switching on automatic delayed shut-off .....
9Switching the light on and off ......................
9Changing the colour temperature ................
9Clean Air function ........................................
9Active mode .................................................
10
Making the connection between cooker hood
and hob ........................................................
11Wi-Fi-connectivity ......................................
11Wi-Fi/ConnectLife-app .................................
14Maintenance ...............................................
14Cleaning .......................................................
16Lighting ........................................................
17Technical data ............................................
17Hazardous substances in products .............
18Compliance information ...............................
19Installation ..................................................
19.....................................................................
21Preparations for installation .........................
21Electrical connection ...................................
22Appliance dimensions .................................
23Built-in ..........................................................
28Environment ...............................................
28
Tips for energy-efficient cooking with
hoods ...........................................................
28Disposal of the appliance and packaging ....
29Your notes ..................................................
Contents

Pictograms used
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning –general danger
ELECTRIC SHOCK!
Warning –danger of electric shock
HOT SURFACE!
Warning –danger of hot surface
DANGER OF FIRE!
Warning –danger of fire
Introduction
On reading these user manuals you will soon become familiar with the features of this appliance.
Please read the appliance’s safety and maintenance instructions.
Please retain the operating and installation instructions as these may be useful for future reference.
TIP!
You can find the most recent version of the instructions for use on our website.
3
Introduction

WARNING!
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!
Safe use
•This appliance is only designed for household use.
•CAUTION: Accessible parts may become hot when used with
cooking appliances.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Do not allow children to clean or maintain the appliance unless
supervised.
•Always provide adequate ventilation!
•There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
•When the range hood and appliances supplied with energy other
than electricity are simultaneously in operation, the negative
pressure in the room must not exceed 4 Pa (4 × 10-5 bar).
•Local regulations concerning the discharge of air have to be
fulfilled.
•Never use a pressure cleaner or steam cleaner to clean the
appliance.
ELECTRIC SHOCK!
Avoid the risk of electric shock; make sure the appliance is
switched off before cleaning the appliance.
•Only use the appliance inside the home.
4
Safety

•Do not use the cooker hood if the grease filter has not been fitted
properly!
•Do not lean against the cooker hood.
•Never use the cooker hood as a working surface unless this is
indicated explicitly.
•Grease and oil are inflammable when overheated. Remain in the
cooking area when preparing meals.
•To prevent hot fat catching fire you should only deep-fry under
continuous supervision.
•The cooker hood should be cleaned regularly both on the outside
as well as the inside (at least 1 x per month). Insufficient cleaning
or a delay in the replacement of filters can cause a fire hazard.
•Clean the filters on time.
•The grease filters can become hot during use. After cooking wait
at least 30 minutes before cleaning.
•Please note! Intensive use can lead to condensation on the cooker
hood. Condensation is simple to remove with a dry cloth.
•Follow the instructions in the manual for cleaning or replacing the
grease filters and/or carbon filters!
DANGER OF FIRE!
There is a risk of fire if the instructions for cleaning or replacing
grease filters and/or carbon filters are not followed.
Through grease deposits in the metal grease filter. Never work
with open flame under the appliance (eg. flambéing). Always use
the appliance with the metal grease filter. Clean the grease filter
regularly.
Through overheated fat or oil. Never extinguish a fire with water;
always use a fire blanket, lid or plate.
•The appliance may have sharp edges; please be careful during
cleaning.
5
Safety

•The light emitted by LED lights is very dazzling and can damage
the eyes. Do not look directly into the switched on LED lights for
longer than 100 seconds.
•When washing grease filters in the dishwasher it is recommended
to use a short, non-intensive programme. Check the grease filter
after washing in the dishwasher for wear (loose material). Wear
can occur as a result of frequent washing. If loose material is
visible, replace the filters in order to prevent this loose material
from ending up in the food that is cooked.
•Do not use the appliance in temperatures below 5 °C.
6
Safety

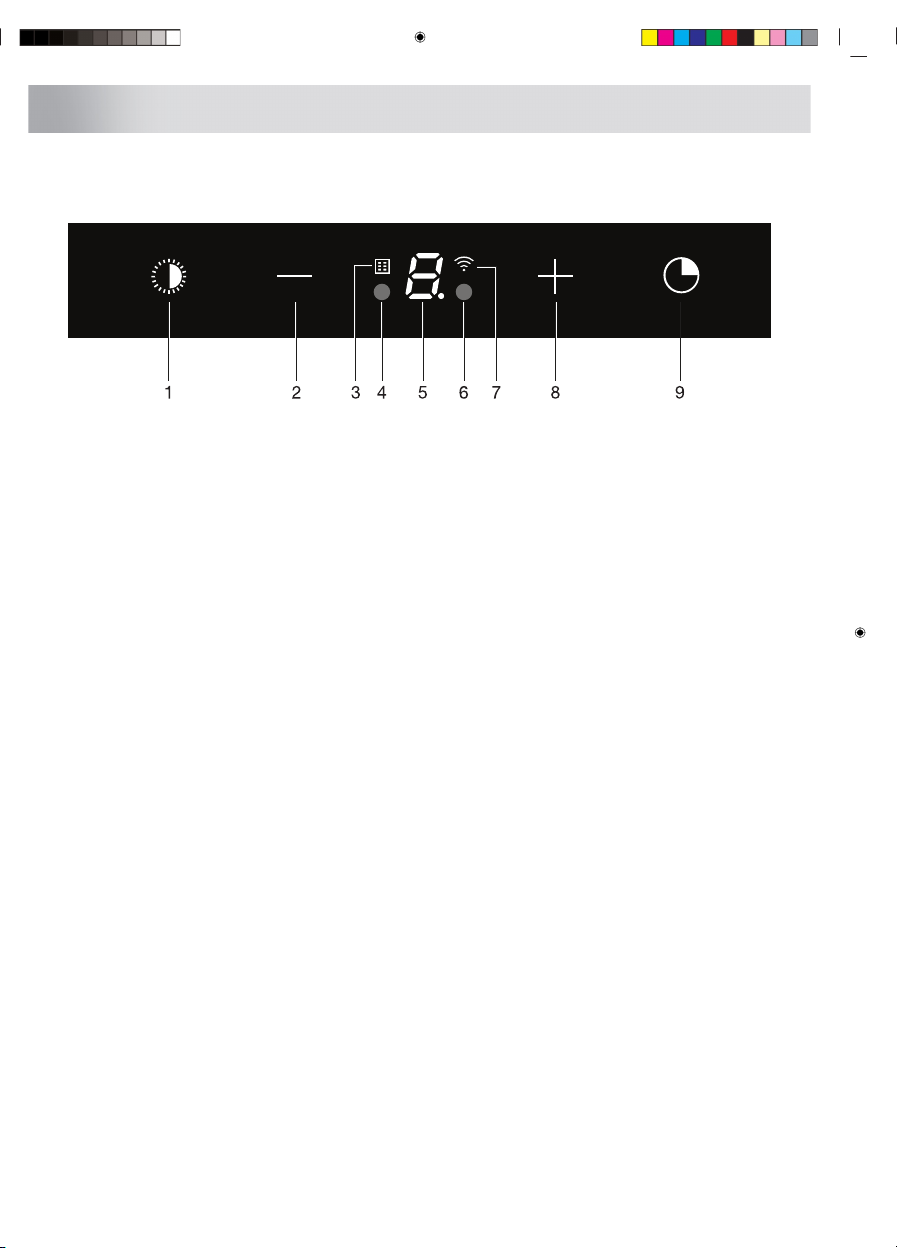

Description user interface
1. Switching on/off and dimming the lighting
2. Reducing air extraction capacity and switching off
3. Grease filter cleaning indicator
4. Proximity sensor
5. Display status
6. Proximity sensor
7. Wi-Fi key
8. Switching on and increasing air extraction capacity
9. Switch on automatic delayed shut-off
Cooker hood functions
Active mode
The proximity sensor detects a user standing in front of the hood and will illuminate the icons.
Automatic delayed shut-off
The time-controlled delayed shut-off ensures that the last cooking vapors are still extracted. The
delayed shut-off mode switches off automatically after 10 minutes.
Clean Air function
The Clean Air function switch on automatically for 10 minutes every 24 hours at the lowest speed
setting.
7

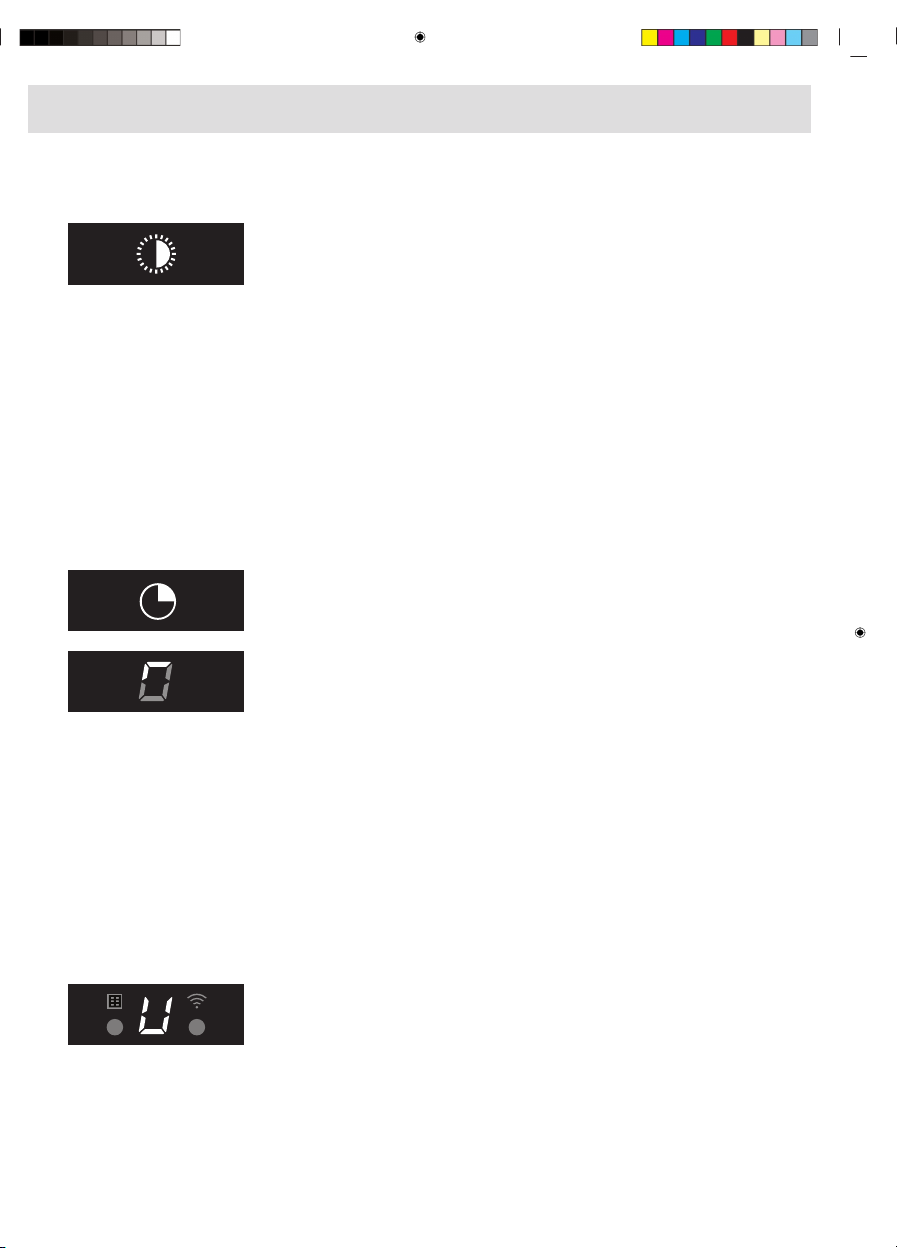

Use

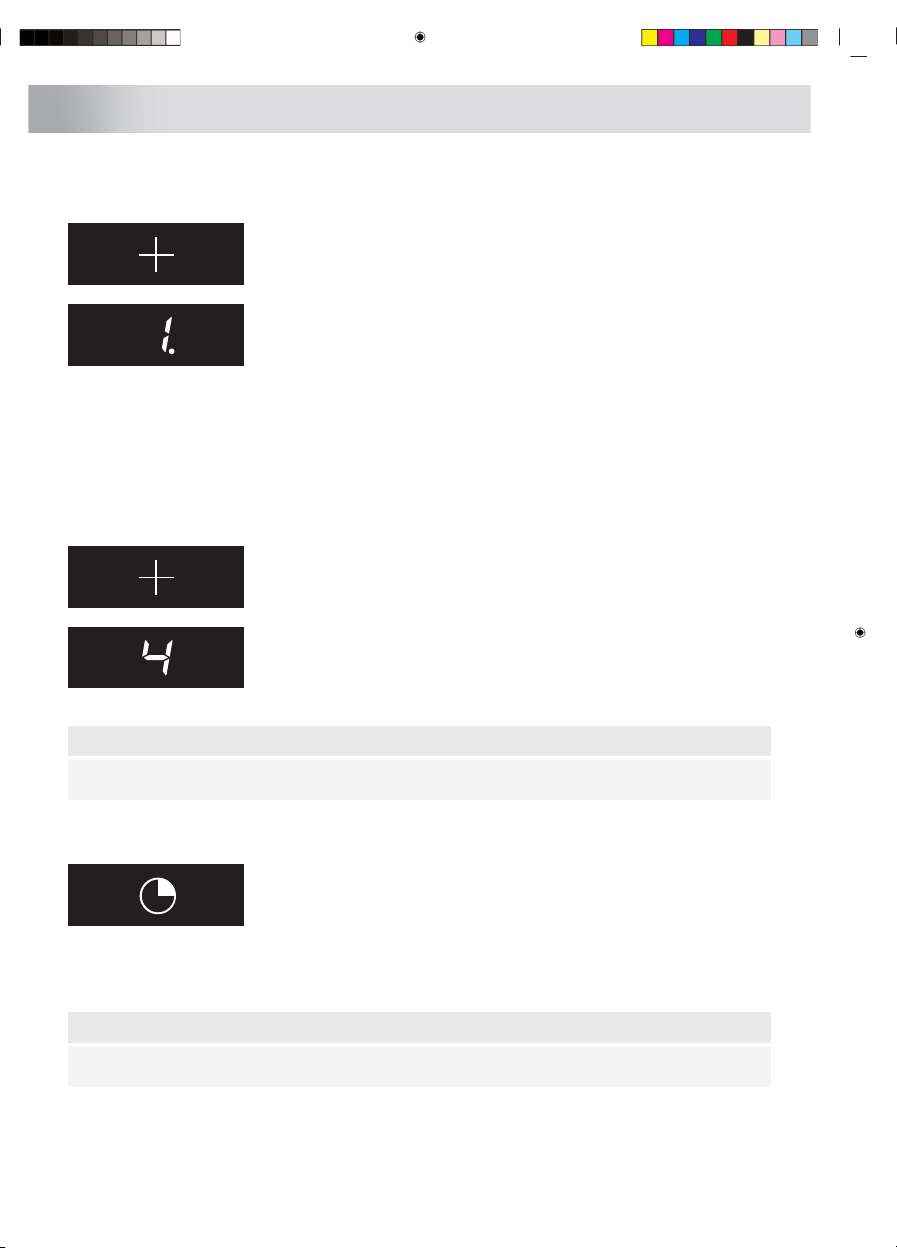

Switching extraction on and off
1. Press the ‘+’button.
The cooker hood will switch on at the lowest setting.
2. Press the ‘+’key for a higher fan setting. Press and hold the ‘+’key
for 2 seconds to select the highest setting (boost) (see 'Switch on
the boost setting').
3. Press the ‘-’key to select a lower setting.
The extraction setting can be read in the display.
The extraction setting can be set between speeds level 1 to 4.
4. To switch off the cooker hood press and hold the ‘-’key for at least
2 seconds.
Switch on the boost setting
1. Press and hold the ‘+’key for at least 2 seconds.
The boost setting is switched on for 5 minutes. The display will flash
during this period. The original extraction setting will be reactivated
after this period.
2. Quickly press and release the ‘-’key to switch off the boost setting.
NOTE!
Boost is not available in recirculation mode.
Switching on automatic delayed shut-off
1. Press the automatic delayed shut-off button.
The automatic delayed shut-off indicator will flash.
The cooker hood will switch off automatically after 10 minutes.
2. Switch off automatic delayed shut-off by pressing a random button
(except the one for lighting).
NOTE!
If the boost setting has been selected, the automatic delayed shut-off function cannot be activated.
8
Operation

Switching the light on and off
1. Shortly press and release the light button.
2. Press and hold the lighting button to set the lighting strength.
The lighting changes from maximum to minimum strength and vice
versa.
3. To turn off the light, shortly press the light button while the light is
on.
Changing the colour temperature
You can adjust the lighting temperature.
Press and hold the light button. Press the ‘-’button to make the light ‘colder’or press the ‘+’button
to make the light ‘warmer’.
Clean Air function
The Clean Air function allows you to freshen the air in your kitchen for
a maximum of 24 hours at level 1.
1. Switch off the cooker hood.
2. Press and hold the timer button for approximately 3 seconds.
The cooker hood will switch on automatically for 10 minutes every
hour at the lowest speed setting. During extraction, the display will
show a fast-moving ‘snake’. When the hood switches off after
10 minutes, the display will show a slow-moving ‘snake’until the
hood switches on again after 50 minutes.
3. Switch off the Clean Air function in the meantime by pressing a
random button (any button other than the light button).
Active mode
The proximity sensor detects a user standing in front of the hood and will illuminate the icons.
After 3 seconds the lighting will automatically switch on.
Disable the active mode
Simultaneously press the ‘+’and ‘timer’key for 3 seconds.
The active mode is disabled.
The display shows a static ‘U’.
Enable the active
Simultaneously press the ‘+’and ‘timer’key for 3 seconds.
The active mode is enabled.
The display shows 3 times a blinking ‘U’.
9
Operation

Making the connection between cooker hood and hob
To be able to operate the cooker hood with the hob, a connection must be made between the hob
and the hood.
To make the connection, the Connection setup mode of the cooker hood and the hob must be
activated.
See also the manual for the hob. Check our website for the full range of hobs that can be connected
to your cooker hood.
1. The hood and lights must be switched off.
2. Touch and hold simultaneously the –(minus) key and the + (plus) key for 3 seconds. The lighting
key, the + (plus), the –(minus) key, and the timer key will flash simultaneously for a maximum
of 3 minutes.
3. On your hob, activate the pairing mode in the user menu (see the hob manual). The connection
to the hob is established.
4. If the connection is successful, the cooker hood will return to standby.
NOTE!
When manually operating the hood in connection mode, the pairing will be lost and must be
paired again.
10
Operation

Wi-Fi/ConnectLife -app
The appliance is tted with a Wi-Fi module that allows the appliance to connect to a mobile device
such as a smartphone or tablet. It oers to monitor the appliance status via the mobile device.
NOTE!
The monitoring function via mobile device shall not be used to replace the personal supervision
of the cooking process directly on the appliance.
Requirements:
• To use the Wi-Fi connectivity of the appliance, the range of your Wi-Fi router must extend to the
appliance. The appliance only supports 2.4 GHz networks. If during the connection setup, your
home network is not shown, check the router settings for 2.4 GHz, that the network is not hidden,
and the signal is strong enough.
• Additionally, a mobile device with the ConnectLife -app installed and a registered user account
is required (see chapter 'ConnectLife -app').
First steps to set up the Wi-Fi connectivity:
Within the following steps, the “Connection setup ” is performed:
1. Check the “Requirements ” as described above.
2. The hood and lights must be switched o.

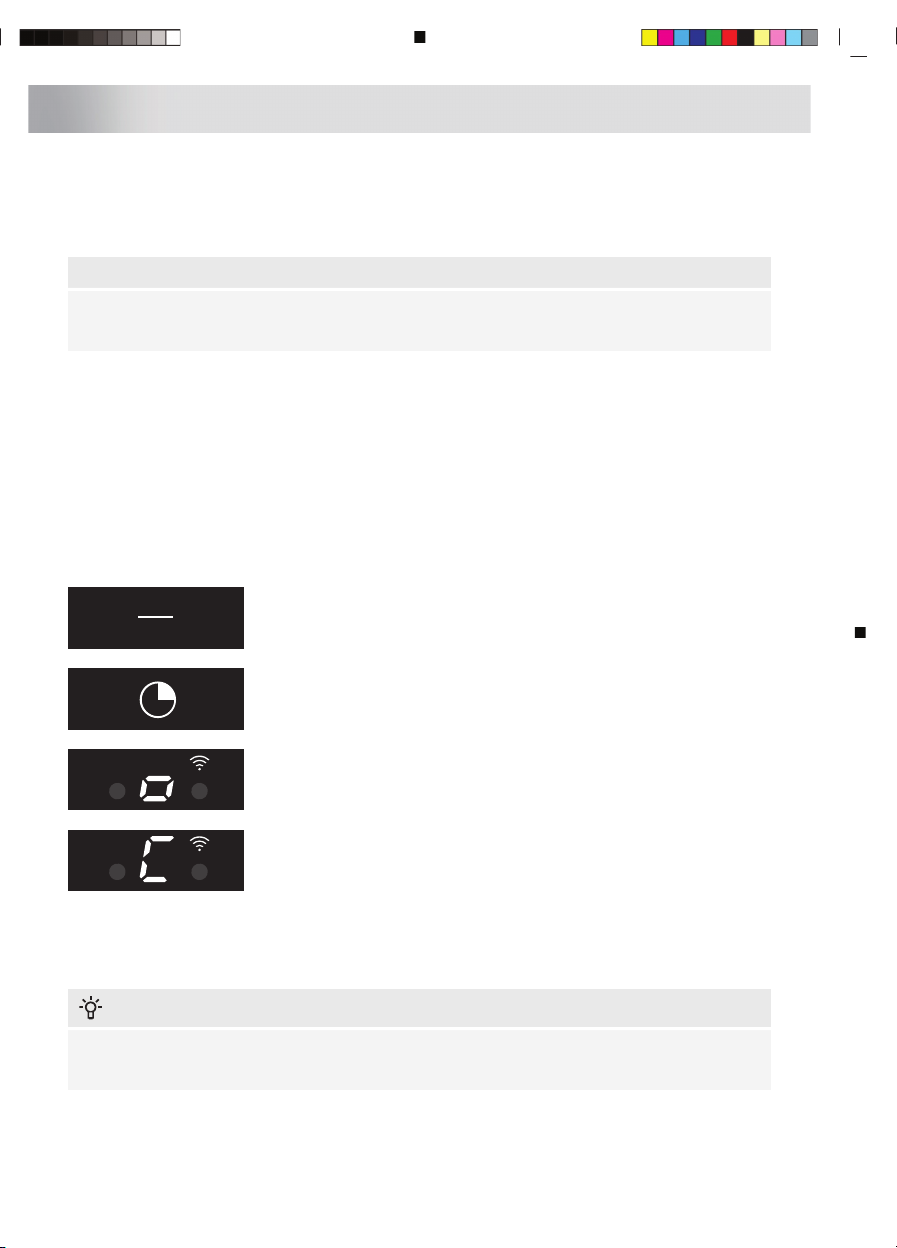

3. Touch and hold simultaneously the – (minus) and timer key for 3
seconds to enter the Wi-Fi menu. ‘Light' icon will be turned o.
4. Touch and hold simultaneously the – (minus) and timer key for 3
seconds to turn on Wi-Fi. ‘o’ willblink 3 times.Wi-Fisymbolwillblink.
5. Touch and hold simultaneously the + (plus) and timer key for 3
seconds. The display will show an ‘C’. Conrm with the timer key to
start the 'Connection menu'. This mode will be disabled
automatically after 5 minutes.
6. In the ConnectLife -app, select option 'Add Appliance' and follow
the instructions.
7. If the ConnectLife -app does not connect to the device, wait 10
minutes and repeat the steps described.
8. Optionally: When the process was successful and you want to pair
another user, you can use the 'Pairing mode' of the Wi-Fi menu and
the 'Pairing' or 'Discovery' option of the ConnectLife -app.
INFORMATION!
Troubleshoot quickly by turning the Wi-Fi module o and on again. More help can be found in
the "Wi-Fi troubleshooting" section.
11
Wi-Fi-connectivity

Switching on Wi-Fi:
•The hood must be switched off.
•Touch and hold simultaneously the –(minus) and timer key for 3 seconds to enter the Wi-Fi
menu. ‘Light' icon will be turned off.
•Touch and hold simultaneously the –(minus) and timer key for 3 seconds to turn on Wi-Fi. ‘o’
will blink 3 times. Wi-Fi symbol will blink.
Switching off Wi-Fi:
•The hood must be switched off.
•Touch and hold simultaneously the –(minus) and timer key for 3 seconds to enter the Wi-Fi
menu. ‘Light' icon will be turned off.
•Touch and hold simultaneously the –(minus) and timer key for 3 seconds to turn off Wi-Fi. ‘o’
will be static enlightened. The Wi-Fi symbol will turn off.
Wi-Fi menu
To access the Wi-Fi menu the hood must be on standby. Touch and hold simultaneously the –(minus)
and timer key for 3 seconds. Depending on the Wi-Fi state, there are 1 to 3 options available in the
menu: ‘C’,‘P’, and ‘c’. If more than 1 option is available then use the + (plus) and - (minus) keys to
toggle between the options. Confirm the selected option by touching the timer key.
Connection Setup Mode
The appliance must be connected to the Cloud for the application to be able to monitor and control
the appliance remotely.
‘C’is shown on the display. Touch the timer key to enable 'Connection Setup Mode'. The Wi-Fi symbol
will flash. This mode will be disabled automatically after 5 minutes.
Pairing Mode
By pairing you gain monitoring functionality inside the ConnectLife-app. During pairing, you connect
your appliance to your ConnectLife user account.
Pairing Mode is only available if the Wi-Fi connectivity setup has been performed.
‘P’is shown on the display. Touch the timer key to enable 'Pairing mode'. The Wi-Fi symbol will flash.
This mode will be disabled automatically after 3 minutes.
On the ConnectLife-app use the 'Pairing' or 'Discovery' option of the ConnectLife app to pair another
user.
Remote control mode
To be able to change function settings remotely, the appliance must be switched on and the
ConnectLife-app must be enabled.
‘c’is shown on the display. Remote control mode is only available if the Wi-Fi connectivity setup has
been performed. Touch the timer key to enable 'Remote control'.
Blinking ‘c’: Remote control is enabled.
Static ‘c’: Remote control is disabled.
Toggle between enabling or disabling with the - (minus) and + (plus) keys.
To close the Wi-Fi menu, touch and hold the –(minus) key for 3 seconds. If no key is touched within
10 minutes, the Wi-Fi menu will be switched off automatically, the hood will be back in standby mode.
12
Wi-Fi-connectivity

Displaying the Wi-Fi status:
•Wi-Fi module disabled: Wi-Fi symbol not displayed.
•Configuration in progress: Wi-Fi symbol flashes.
•Connected to home network router: Wi-Fi symbol flashes.
•Connected to home network router and cloud: Wi-Fi symbol continuously lit.
&
ConnectLife-app
The ConnectLife-app is available on the Apple App Store and Google Play Store. After pairing with
the appliance, the app can be used to monitor the status of the appliance.
Go to www.connectlife.io/getstarted to download the ConnectLife-app, information about the system,
support and available features. Find additional options under www.connectlife.io.
Getting started with the ConnectLife-app
Get started with your ConnectLife-app in 3 easy steps. Please check as addition the chapter “First
steps to setup the Wi-Fi connectivity”. More help under www.connectlife.io/getstarted.
1. Registration:
•Install the ConnectLife-app.
•Start the app.
•Choose “Get Started”and follow the process.
•If you are already registered, use the “Sign In”option.
2. Add the appliance:
•In the app: Go to “Appliances”.
•Choose “Add Appliances”or touch the + (plus) key.
•Make sure Wi-Fi on the appliance is turned ON and the appliance is in Connection Setup
Mode (see as addition 'First steps to set up the Wi-Fi connectivity').
•Follow the instructions of the ConnectLife-app.
3. Start cooking:
Congratulation, you can now start using ConnectLife together with your appliance.
13
Wi-Fi-connectivity

Cleaning
WARNING!
Important! For all maintenance, first switch off the mains power to the cooker hood by pulling
the plug out of the socket or by turning off the home's master switch. The hood needs to be
cleaned regularly, both inside as well as outside (at least as often as the grease filter).
Do not use abrasive cleaning products. Do not use alcohol!
If the instructions regarding cleaning of the appliance or replacing the filters are not followed,
this can cause a fire. These instructions must be followed! The manufacturer is not liable for
damage to the hood or fire damage resulting from incompetent maintenance or from
non-adherence to the safety instruction above.
Cooker hood
Clean the cooker hood with soapy water and a soft cloth.
Then rinse with clean water. Do not use aggressive cleaning agents such as caustic soda. The
cooker hood finish stays in good condition if it is buffed periodically following the application of wax.
NOTE!
Stainless steel cooker hoods
Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with
a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.
Filter cleaning indicator
The filter indicator will lit after 14 operating hours.
•The grease filters should then be cleaned.
•Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning
indicator) using a neutral cleaning agent, either by hand or in the dishwasher on a short,
low-temperature program.
•Place the grease filters with the openings facing downwards in the dishwasher so the water can
drain out of the filter. Stainless steel grease filters become dull as a result of dishwasher cleaning
agents. This is normal and does not effect the working. Allow the filters to drain well before
replacing.
•Reset the memory by pressing and holding the ‘-’key until the filter indicator goes off.
14
Maintenance

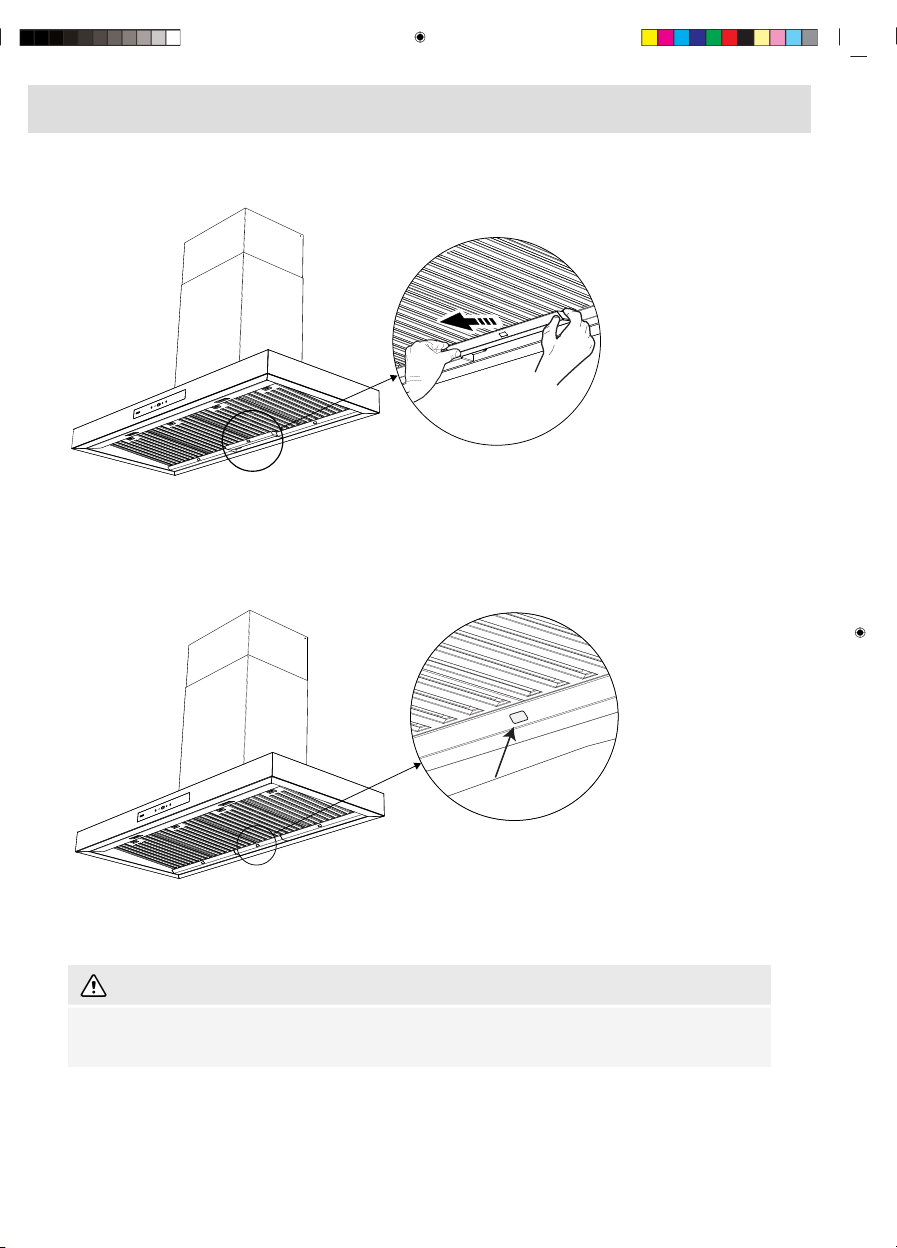

Removing grease filter
1. Switch off the motor and lighting.
2. Open the filter’s access hatch.
3. Removing the filter out of the hood.
Reposition the grease filter
The filter should be placed with the locking mechanism on the front. Open the filter access latch.
The notches at the front of the filter will then slot in. Hold the access latch in this position when placing
the filters.
1. Slot the notches at the back of the filter in the specially designed opening of the cooker hood.
2. Tilt the filter upwards.
3. Release the filter access hatch. The notches at the back of the filter will extend outwards and
slot into the specially designed openings of the cooker hood.
The filter is now in position again.
NOTE!
Replace the grease filters in their original assembled position. Positioning the grease filters
correctly ensures the most efficient extraction.
15
Maintenance

Remove grease trays
1. Grab the grease trays with both hands and slide them forward out of the hood ledge.
2. Empty the grease trays and clean them using a neutral cleaning agent, either by hand or in the
dishwasher on a short, low-temperature program.
Empty grease trays
The window in the grease trays indicates that the trays are full. Then empty the grease trays.
Lighting
WARNING!
The hood is fitted with LED lights. These must be replaced by an authorized technician. Do not
attempt to replace the LED lights yourself.
16
Maintenance

Hazardous substances in products
Name and content of hazardous substances in products
Hazardous substanceComponent
name Polybrominated
diphenyl
ethers
(PBDE)
Polybrominated
biphenyls
(PBB)
Hexavalent
Chromium
(Cr (VI))
Cadmium
(Cd)
Mercury
(Hg)
Lead (Pb)
00000xEnclosure
material
00000xHousing of
electronics
00000xPrinted circuit
board
assembly
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this
part is below the limit requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials
used for this part is above the limit requirement of GB/T 26572.
The number in this logo indicates that the environmental protection use of the product under normal
conditions is 10 years.
The Environmental Protection Use Period (EFUP) of all connected products and their parts
corresponds to the symbol shown here, unless otherwise specified. Some field replaceable parts
have different environmental protection usage periods, so they are marked separately. If the product
is used under normal conditions, the environmental protection use period is valid.
Description:
The solder used to form a reliable connection between the printed circuit board and the carrier
contains lead.
17
Technical data

Compliance information
Cooker hoodRadio equipment type
xx MHz (16 channels)Operating frequency range
xx dBm EIRP average (calculated)Maximum output power
xx dBiMaximum antenna gain
Hereby, ASKO declares that the radio equipment type Cooker hood is in compliance with Directive
2014/53/EU.
18
Technical data

Safety regulations
WARNING!
This appliance should only be connected by aregistered installer.
•Always follow the installation instructions in the installation manual
provided.
•Check the appliance for transport damage. Do not connect a
damaged appliance.
•Faulty parts may only be replaced by original parts. The
manufacturer can only guarantee that original parts meet safety
requirements.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•Always use the original Supply cord to connect the appliance.
•The electrical connection must comply with national and local
regulations.
•The wall plug socket and plug should always be accessible.
•If a stationary appliance is not fitted with a supply cord and a
plug, or with other means for disconnection from the supply mains
having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the
means for disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules. This is also applicable for
appliances with a supply cord and plug when the plug is not
accessible after installing the appliance. Using an omnipolar
switch with a contact separation of at least 3 mm fitted in the fixed
wiring will fulfil this requirement.
•The appliance should not be connected to the mains via a
multi-plug adapter or extension cable, as the safe use of the
equipment cannot be guaranteed.
19
Installation

WARNING!
Never open the casing of the appliance.
•Disconnect the appliance from the mains supply before starting
any repair work.
•We advise you to wear protective gloves when assembling the
cooker hood because of the possible sharp edges.
•The distance between the lowest point of the cooker hood and
the supporting surface for the cooking vessels gas hob should
be at least 65 cm.
•If the instructions of the gas hob specify a greater distance, this
has to be taken into account.
WARNING!
Failure to install screws or fixing devices in accordance with these
instructions may result in an electrical hazard.
If the safety instructions and warnings are not followed, the
manufacturer cannot be held responsible for any resulting damage.
If you decide to discontinue using the appliance because of a fault,
we recommend you cut off the cable after removing the plug from
the plug socket. Take the appliance to your municipality’s waste
disposal site.
Place the appliance in an environment that meets the following
conditions:
•Ambiant temperature range: +5….+40°C;
•Humidity: 30….70% RH;
•Maximum altitude: 2000 meters above sea level.
20
Installation
