Important
The latches, rods, and cassette are pre-installed.
This product must be installed by a factory trained technician.
Multi-Point Lock
FM7300 Series and BL7300 Series

2
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
TOC Table of Contents
1 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
a Tools Required for Electronic Access Control (EAC) Shield . . . . . . . . . . . . . . . . . . . . . . . .5
b Tools Required for Dogging Indicator Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
a Check Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
b Door Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
c Install Top Strike into Door Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
d Install Center Strike into Door Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
e Remove Retractor Inserts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
f Check Latches (uninstalled). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
g Install Bottom Strike. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
h Top and Bottom Latch Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
i Mortise Lock Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
j Final Mortise Lock and Trim Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
k Electronic Access Control (EAC) Reader and Controller Installation . . . . . . . . . . . . . 13
l Deadbolt Label Installation (FM7300 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
m Key Override with Deadbolt Function Operation Check . . . . . . . . . . . . . . . . . . . . . . . . 13
n Electronic Access Control (EAC) Shield (if applicable). . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
4 Optional Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
a Dogging Indicator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Addendum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
a Check Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
b Place Door Horizontal on Sawhorse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
c Install Lockbody Cassette (LBC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
d Latch Rod Guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
e Feed Top Rod into Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
f Align with Lockbody Cassette (LBC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
g Troubleshoot Latch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
h Correct Rod Installation Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
i Secure Top Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
j Tighten Set Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
k Bottom Latch Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
l Check Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
m Mortise Reinforcer and Mortise Lock Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
n Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com

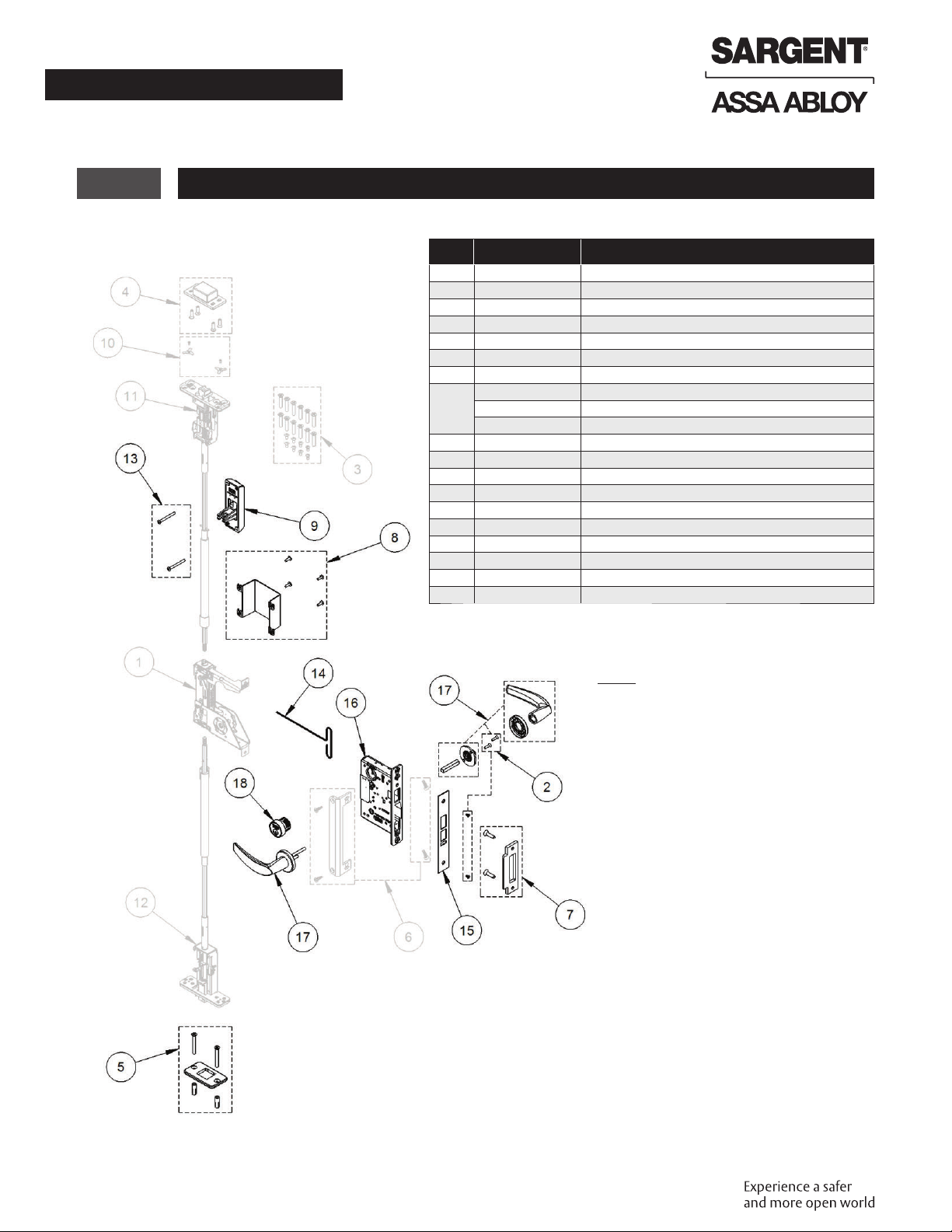

1 Package Contents
Part Number Description
1 82-5342 Multipoint cassette
2 82-5345 Trim mounting screw pack
3 82-5346 Top/bottom case mounting screw pack
4 82-5347 Top strike pack
5 82-5348 Bottom strike pack
6 82-5349 Mortise mounting/reinforcement pack
7 82-5350 Center strike pack
8
82-5351 IN/PN Inside cover shield pack
82-5352 Harmony inside cover shield pack
82-5353 Passport inside cover shield pack
9 188 Dogging indicator (includes item 13) (specify finish)
10 82-5383 Screw retainer pack
11 82-5386 Top case and rod assembly (specify door size)
12 82-5387 Bottom case and rod assembly (specify door size)
13 82-5400 Dogging indicator screw pack (specify finish)
14 01-4597 T-wrench, adjustment
15 Consult factory Outside armor front
16 Consult factory Mortise lock
17 Consult factory Mortise trim
18 Consult factory Cylinder
Note:
The grayed parts are preinstalled by the
door manufacturer and relate to the
Addendum section beginning on page 16.

5
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
2 Tools Required
Tape measure Hammer Flashlight 1/8" Allen
(supplied)
3/32" Allen
(supplied)
5/32" Allen
Drill 1/8" Masonry
drill bit
#3 Phillips
bit
Slotted
screwdriver
#1, #2, #3
Phillips head
screwdrivers
Chisel 3/8"
Anchor set
a Tools Required for Electronic Access Control (EAC) Shield
#29 Drill bit
(.136")
#8-32 Tap
b Tools Required for Dogging Indicator Option
#7 Drill bit
(.201")
82° Countersink

6
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation

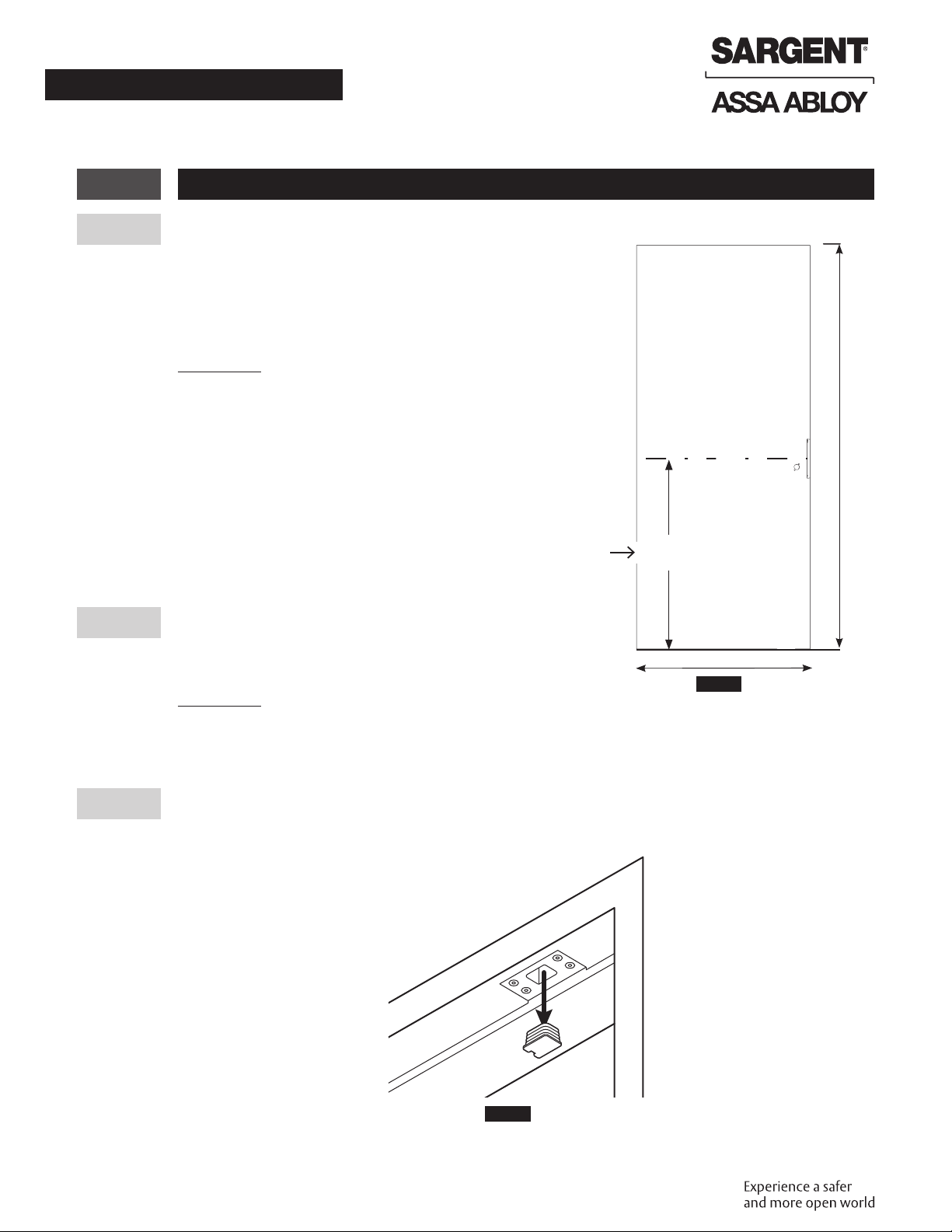

a Check Door
Verify the door is:
• Correct size and hand for opening.
• Correctly prepared to Template 4740.
IMPORTANT
If measurement is incorrect, DO NOT PROCEED
WITH INSTALLATION. Contact door manufacturer.
(Figure1)
b Door Installation
Hang the door on the frame.
IMPORTANT
If the door rubs along the floor, do not complete
this installation! Contact door manufacturer.

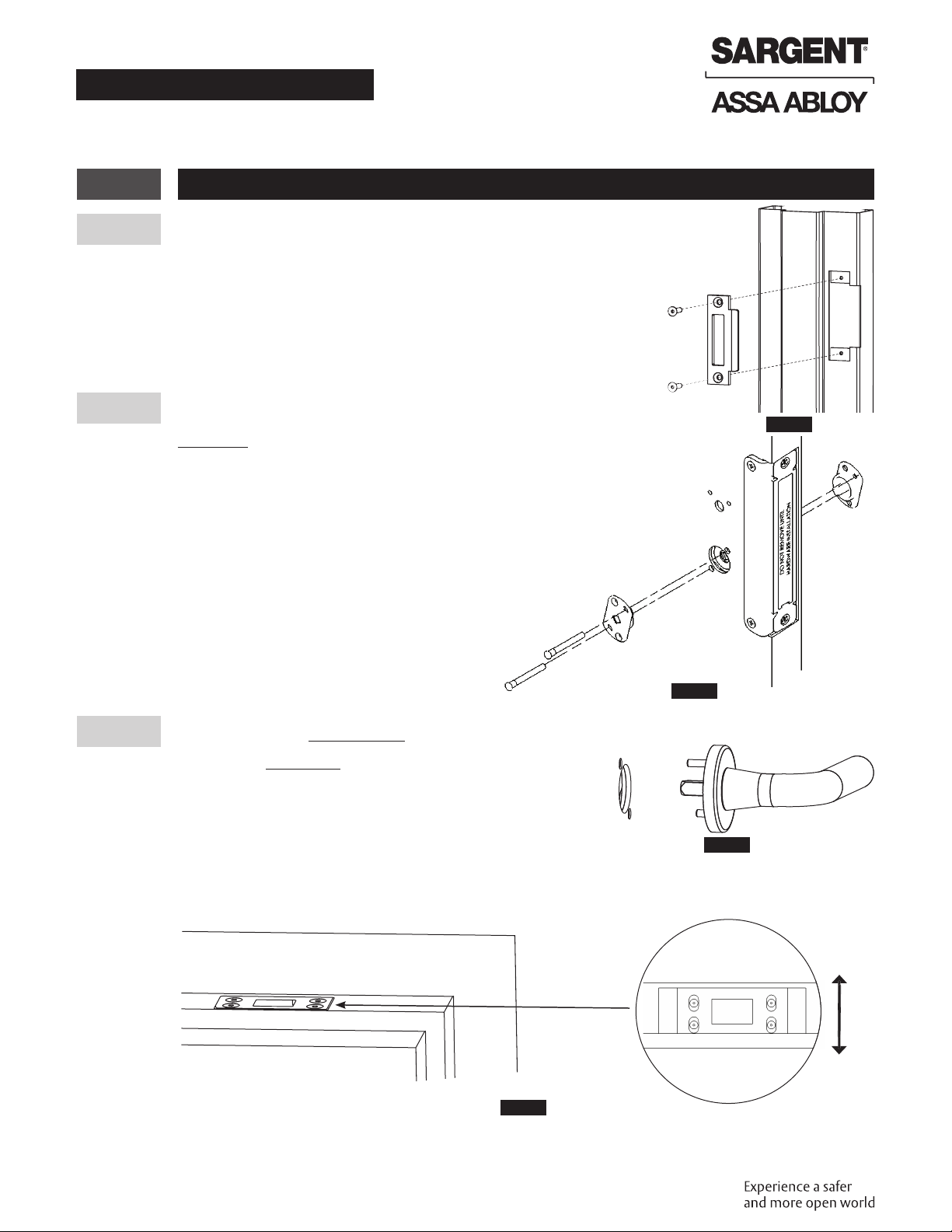

c Install Top Strike into Door Frame
• Remove plastic strike filler and discard.
Figure1
Door Height
Door Width
of Lockbody
Outswing Door
Shown
± 5/64"
39-9/16"
(101.4 cm)
L
C
X
Figure2

7
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)

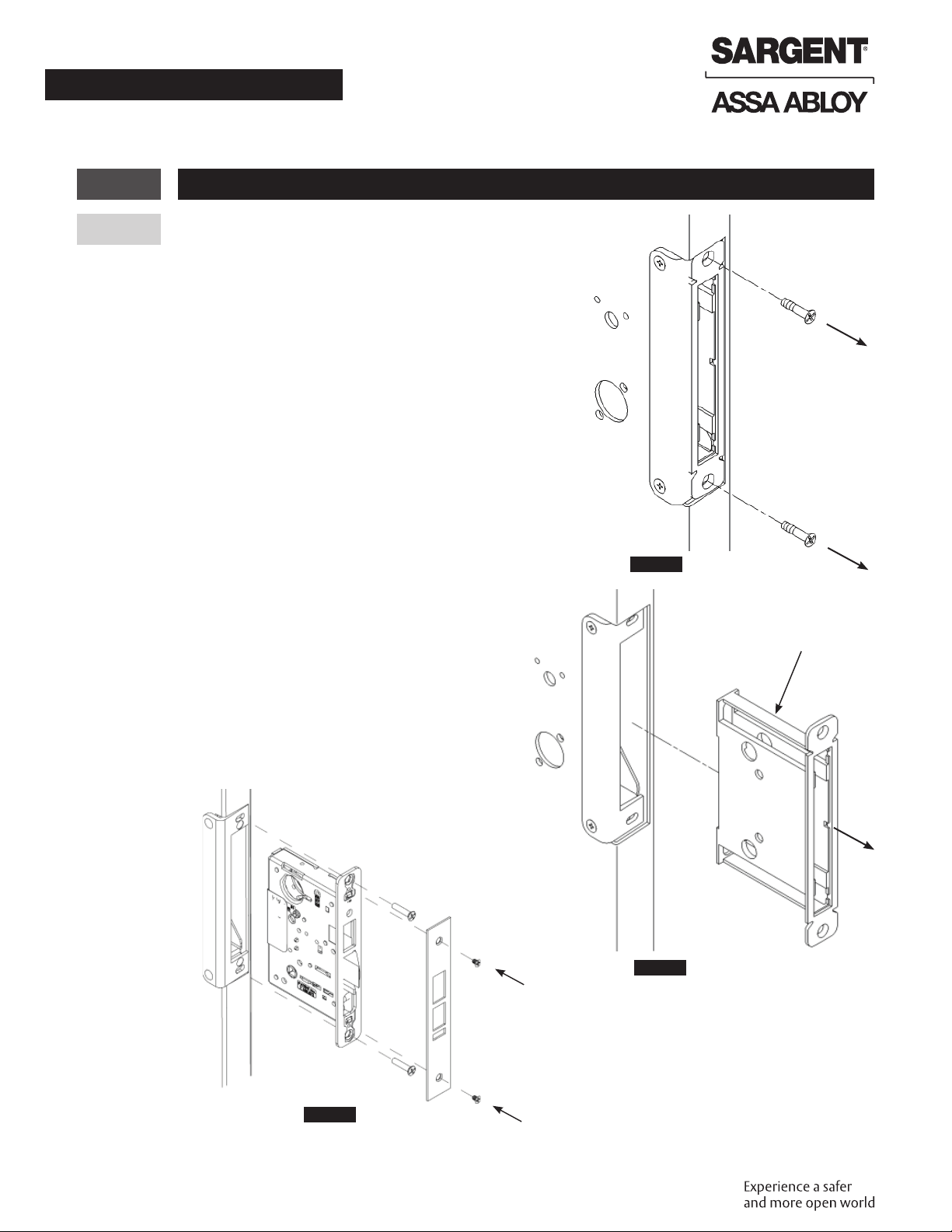

d Install Center Strike into Door Frame
• Install two (2) ¼-20 socket cap flat head screws.
(Figure3)
e Remove Retractor Inserts
WARNING
The door now has the ability to latch.
(Figure4)
f Check Latches (uninstalled)
• Insert the uninstalled outside mortise trim and
rotate to verify the top and bottom latches
retract flush with the door. Do not install
mortise trim at this time. (Figure5)
• Move the top strike back and forth until the top latch engages the strike. (Figure6)
Figure3
Figure4
Figure5
TOP OF DOOR FRAME
Figure6

8
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)
g Install Bottom Strike
• Close the door and mark the location of the bottom bolt.
3/8" MAX
Bottom of door
to floor.
✓
Figure7
• Open the door and place the strike over the bottom bolt location. Mark the location of the bottom
strike pocket and hole locations. (Figure7)
Note:
The strike is not symetric. Install as shown. If needed, the strike can later be rotated to increase bolt
clearance. (Figure8)
Door Swing
Jamb
Narrow
Wide
Bottom Strike Pocket
Figure8

9
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)
g Install Bottom Strike (cont.)
Flush Mount (Figure9)
Mortise the strike into the floor 1/4" deep.
(Optional for 3/8" door to floor gap.)
IMPORTANT
Use a vacuum or compressed air to
clear holes ofdebris. (Figure10)
Cross Sectional View
Flush Mount (Figure11)
Surface Mount (Figure12)
Drill two (2) 3/8"
diameter holes
by 2-1/4" deep.
Chisel the bottom strike pocket
1" deep to ensure the bolt has
full projection.
Figure12
IMPORTANT
Use a vacuum or compressed air to
clear holes ofdebris. (Figure13)
Cross Sectional View
Surface Mount (Figure14)
1"
2 1/4"
Figure14
Drill two (2) 3/8"
diameter holes
by 2-1/4" deep.
Chisel the bottom strike
pocket 1" deep to ensure
bolt has full projection.
1/4" D EEP
Figure9
Use the anchor tool
to set anchors.
Figure10
1"
2 1/4"
Figure11
Use the anchor tool
to set anchors.
Figure13

10
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)

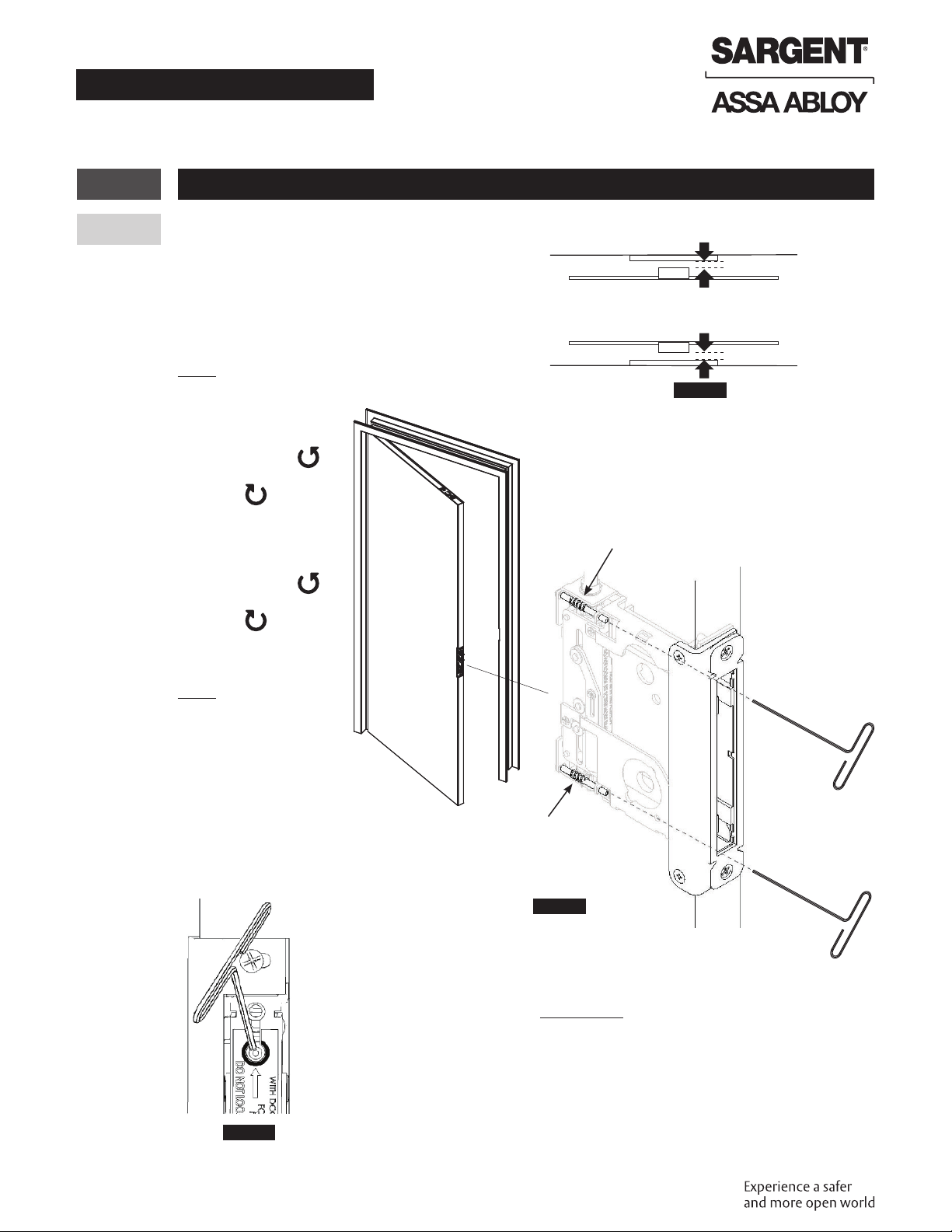

h Top and Bottom Latch Adjustment
• With the door hung, measure the clearance
between the top and bottom bolts and strikes.
(Figure15)
Note:
If both measurements equal 1/16" proceed to Step
3i, otherwise proceed with Step 3h as follows:
• Remove the mortise filler cap and discard.
(Figure16)
• Retract the latches by roting the lever and
opening the door. (Figure17)
Figure17
• Using the supplied 1/8" Allen wrench, loosen
the set screw 1/4 turn maximum. This allows
hex rods to rotate during the latch bolt
adjustment. (Figure18)
Figure15
1/16" Bolt to strike clearance.
TOP OF DOOR
1/16" Bolt to strike clearance.
BOTTOM OF DOOR
Figure16
Note location
of set screws.
Figure18

11
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)
h Top and Bottom Latch Adjustment (cont.)

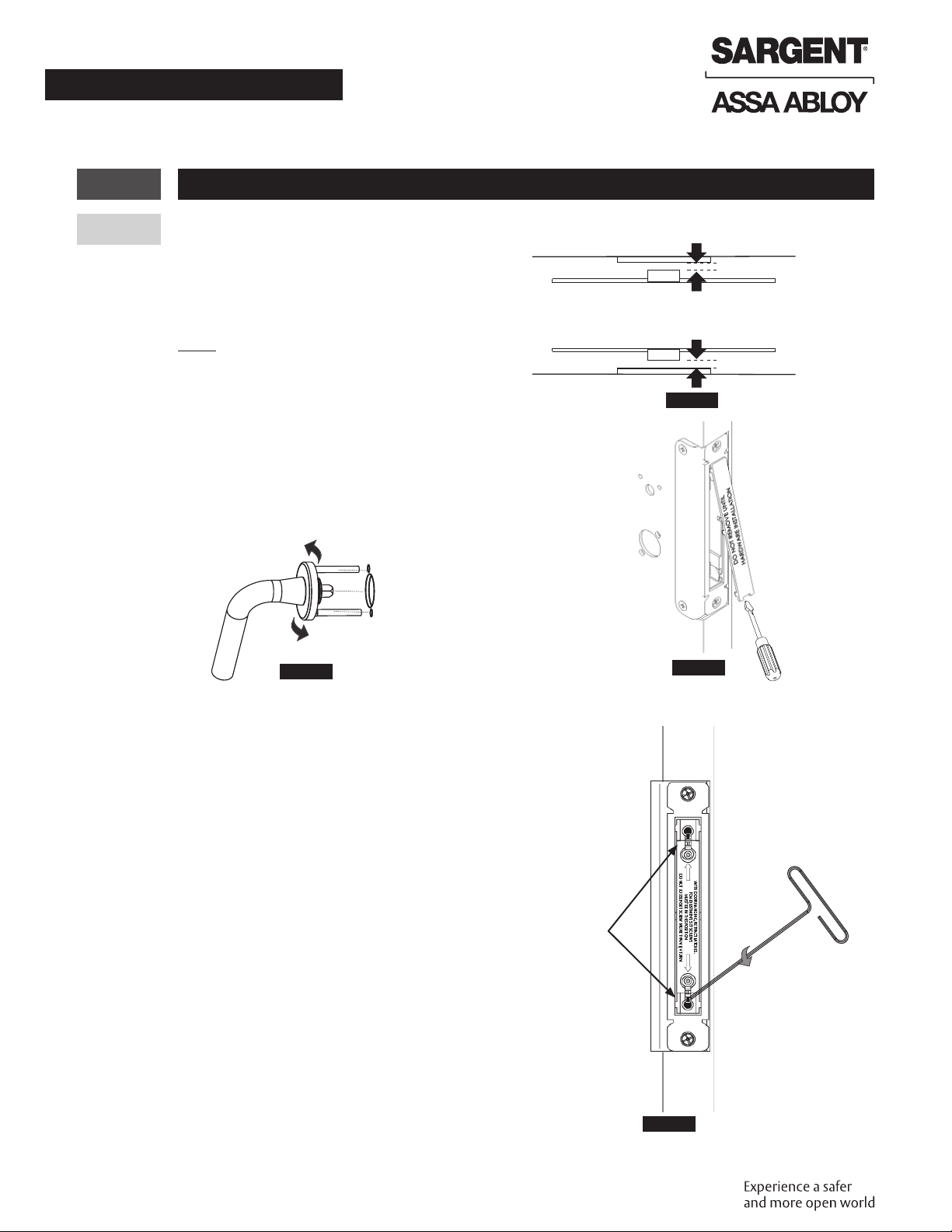

Using the supplied 3/32" Allen wrench, rotate the top
or bottom worm gears according to the directions
below (Figure19). Bolt to strike clearance should
equal 1/16". This sets the bolt projection. (Figure20)
Note:
Ten (10) turns equals approximately 1/16".
Rotate the top:
counterclockwise to
project the bolt;
clockwise to retract
the bolt.
Rotate the bottom:
counterclockwise to
retract the bolt;
clockwise to project
the bolt.
Note:
Latches have bottomed
if worm gears click.
Tighten set screws. (Figure21)
Figure21
IMPORTANT
Set screws must be fully
tightened after adjustment.
Figure19
TOP OF DOOR
1/16" Bolt to strike clearance.
1/16" Bolt to strike clearance.
BOTTOM OF DOOR
Worm Gear
Worm Gear
Figure20

12
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)
i Mortise Lock Install
• Remove the two (2) #12-24 x1" flat head
mounting screws. (Figure22)
• Remove the mortise lock filler and discard.
(Figure23)
• Install the mortise lock, two (2) #12-24 x1" flat
head mounting screws, outside front, and two
(2) #8-32 x1/4" flat head screws. (Figure24)
Figure24
Figure22
Mortise Lock Filler
Figure23

13
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)
j Final Mortise Lock and Trim Installation
Follow the supplied mortise lock installation instructions for trim and other function related hardware.
k Electronic Access Control (EAC) Reader and Controller Installation
Follow supplied EAC Installation Instructions (if applicable).
l Deadbolt Label Installation (FM7300 Only)
Install the deadbolt label on the inside of the door. (Figure25)
m Key Override with Deadbolt Function Operation Check
Verify hand and bevel of door to determine direction to rotate key and lever. Stand on outside of locked
door when determining door hand. (Figure26)
Left Hand
Hinges Left.
Open Inward.
(LH)
Right Hand
Hinges Right.
Open Inward.
(RH)
Left Hand
Reverse Bevel
Hinges Left.
Open Outward.
(LHRB)
Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
(RHRB)
Figure26
1. Rotate key to retract latch and hold. (Do not touch lever).
2. Continue holding key, rotate lever with other hand and open door. (Figure27)
Note:
Graphic is for reference only;
it does not represent all
door hand options.
Figure25
Figure27
11
22
RH LH

14
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
3 Installation (cont.)

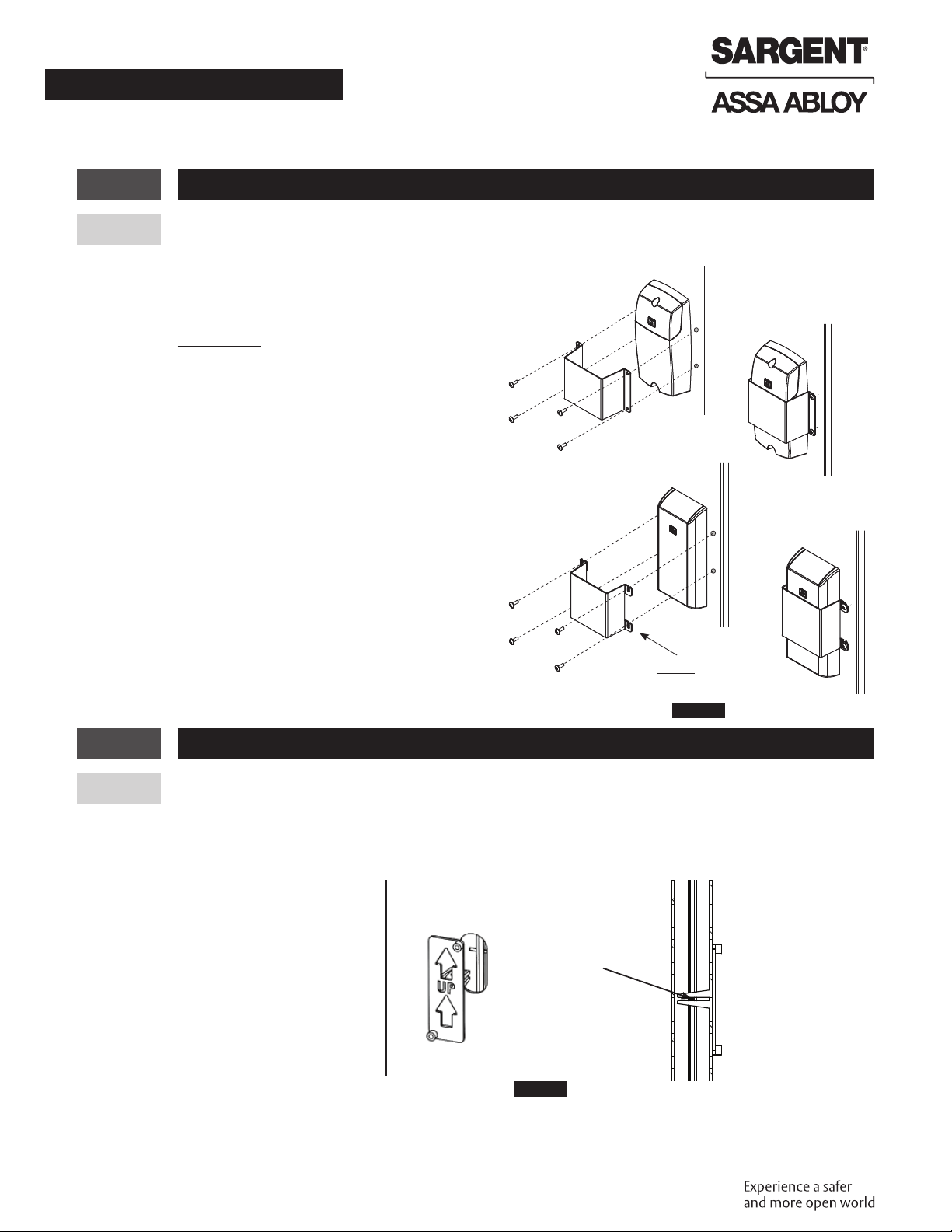

n Electronic Access Control (EAC) Shield (if applicable)
• Install the EAC shield (provided) over the inside controller. (Figure28)
• Drill and tap the door for #8-32 machine screws (provided).
IMPORTANT
EAC shield MUST be centered on controller.
4 Optional Installation
a Dogging Indicator Installation
• Ensure the door is latched and all bolts are projected.
• Place the plastic field template on the pin in the top rod through the oval cut-out in the door.
(Figure29)
Figure29
Front View Side View
Pin
Note:
Slots face up.
Figure28

15
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
4 Optional Installation (cont.)
a Dogging Indicator Installation (cont.)

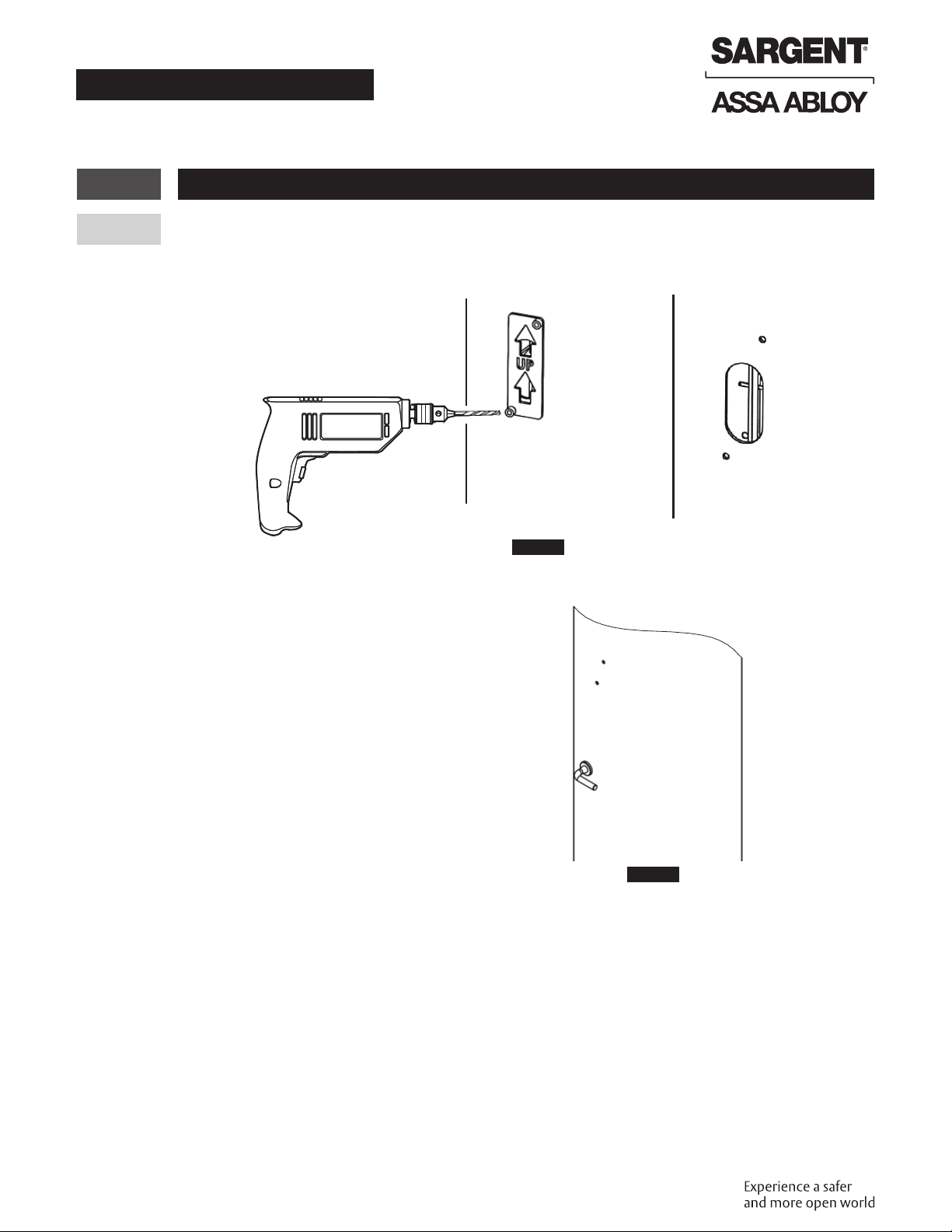

• Using a #7 drill bit, drill two (2) holes completely through the door, making sure
the drill remains square to the face of the door. (Figure30)
Figure30
• Countersink holes on the opposite face of the door
to fit the supplied oval head screws. (Figure31)
Figure31

16
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
4 Optional Installation (cont.)

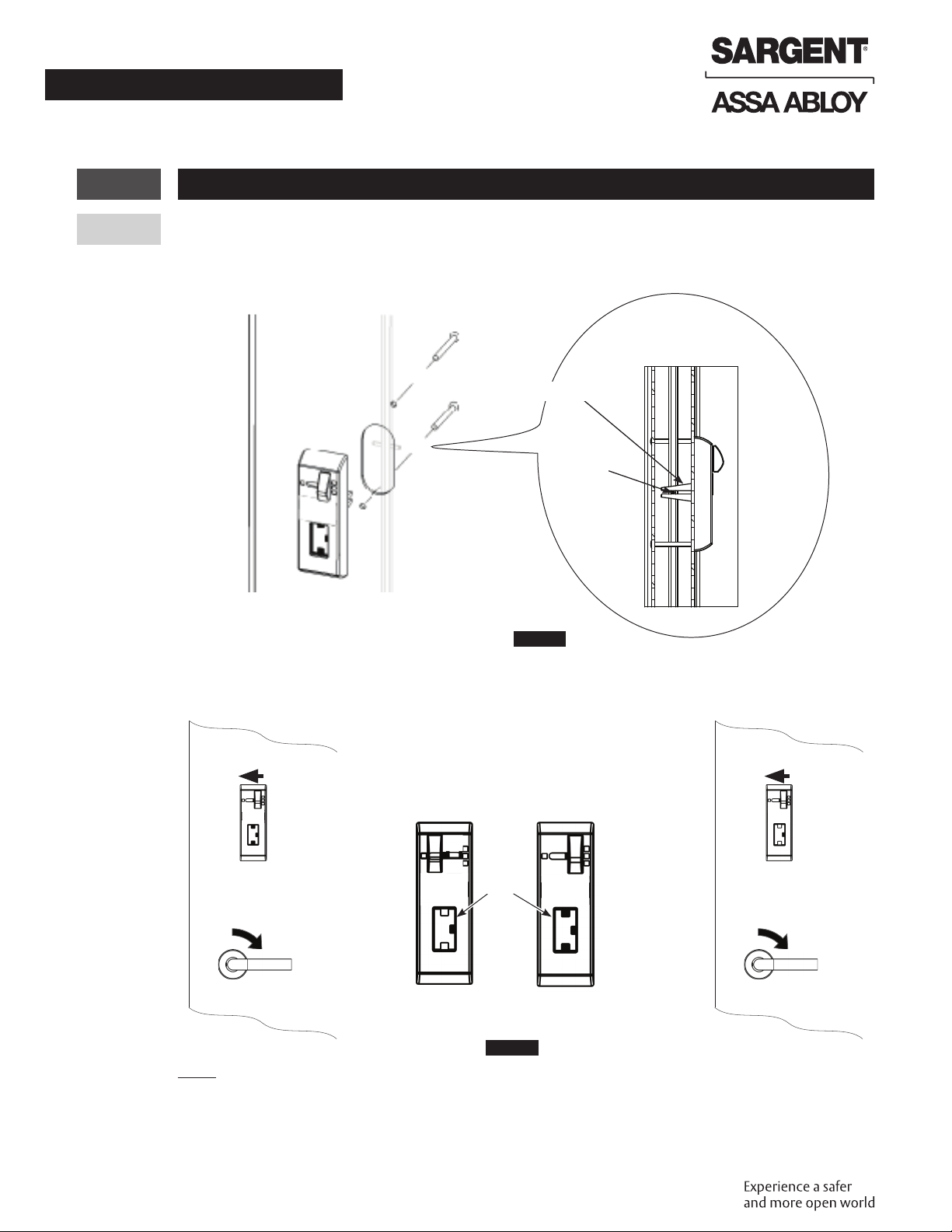

a Dogging Indicator Installation (cont.)
Install the indicator on the inside of the door using supplied 10-24 x 2" oval head screws. Make sure the
control fingers grab the top rod pin as shown. (Figure32)
Figure32
Side View
Pin
Control Fingers
Check for proper operation. Rotate the lever until the indicator window shows a single latch point.
(Figure33)
Figure33
Single Latch
Point
3-Latch
Points
Indicator
Window
Note:
To dog the top and bottom latches in a retracted state, fully rotate the lever and move the slider on the
indicator to the left.

17
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
5 Addendum
This addendum is to be used as a reference for pre-installed hardware (latches and cassette). The
following steps are for ease of reference as they have been completed in advance by the door
manufacturer.
a Check Door
Verify the door is:
• Correct size and hand for opening.
• Correctly prepared to Template 4740.
(Figure34)
IMPORTANT
If measurement is incorrect, DO NOT PROCEED
WITH INSTALLATION. Contact door manufacturer.
b Place Door Horizontal on Sawhorse
(Figure35)
Note:
Orient the door face holes on top.
Figure34
of Lockbody
Outswing Door
Shown
± 5/64"
39-9/16"
(101.4 cm)
L
C
Door Height
Door Width
Figure35

18
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
5 Addendum (cont.)
c Install Lockbody Cassette (LBC)
• Using the supplied 3/32" Allen wrench, rotate both
LBC worm gears to align
slots in the LBC gears to the orientation shown.
(Figure36)
Alignment is needed for
proper installation of the
rod guide. (Step 3h)
• Slide the LBC into the door case and secure with
two (2) #12-24x1" flat head screws.
(Figure37)
d Latch Rod Guides
• Rod guides help installation by directing the rod
into location in the LBC within the door cavity.
• Pull rod guides away from latches on both
rods until they stop. (Figure38)
LBC Gear
Worm Gear
Worm Gear
Slot
Figure36
Top Edge
Figure37
Before
After
Retainer Clip
Note:
Bolt retainer clips
must remain attached
until step 5g.
Guide
Guide
Figure38

19
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
5 Addendum (cont.)
e Feed Top Rod into Door
• Orient the latch chassis as shown. Rotate the
rod and rod guide so the rod guide tab faces
up. Slide the rod assembly into the door. Make
sure the rod guide remains in the correct
orientation with the guide tab facing up.
(Figure39)
f Align with Lockbody Cassette (LBC)
• When approaching the LBC, slightly elevate the rod and slide the guide tab on outer diameter of the
LBC gear. (Figure40)
Figure40
• To align the hex of rod with the hex of the LBC gear, fit the rod guide tab into the LBC gear slot. Once
aligned, push the rod assembly in until fully seated. (Figure41)
Figure41
Figure39
guide tab
Latch chassis holes
to mate with door
face holes.
Top Edge
LBC
Gear
Rod Guide

20
Multi-Point Lock
Installation Instructions
FM7300 Series and BL7300 Series
A8220D 04/20
Copyright © 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission ofSARGENT Manufacturing Company is prohibited.
1-800-727-5477 • www.sargentlock.com
5 Addendum (cont.)
g Troubleshoot Latch Installation
• If the latch will not fully seat in
the door, rod or rod guide is
not aligned properly with
LBC gear. (Figure42)
h Correct Rod Installation Check
• Be certain a portion of the red end of the rod can be seen in the LBC viewing window and set screw is
in the location shown. (Figure43)
Figure42
REPEAT:
Step 6E to align.
REPEAT:
Step 6E to align.
Rod GuideRod Guide
✓
Aligned
Rod Guide
Misaligned
✓
x
Figure43
Set Screw
Rod
Viewing
Window
✓
✓x x x x
