Assa Abloy Cabinet Lock Series User manual

1 Part Number 3085006.001, Rev 3
HES K200-622
Cabinet Lock Series
Installation Instructions
Machine
screw with
washer
Package Contents
Strike Plate
6-32 screws
2X
5/16”
1”
1-5/8”
1-1/4”
1-3/4”
2-1/2”
2X
1X
3X
2X
2X
Shaft Extension
0-80x½”
2-56x3/8”
2-56x1-1/4”
Key Override Paddle
2X
1X
1X
6 x 1/2”
3X
1-7/8”
2X
Recommended Tools
Optional:
Cam lock for key override
Double door bracket
Lock Body
Drill, Drill bits: 5/32”, 1/2”
Approved Credential:
i.e. iCLASS or Prox ID card
Phillips drivers P0, P2
Pencil, Wire Stripper
Voltage: 12–24 VDC ±10% (Power Supply not provided)
HES K200-622 (Reader) Current Consumption:
12 VDC: 38 mA peak for Red and Green LED only
226 mA peak for Red and Green LED and Motor Drive
24 VDC: 17 mA peak for Red and Green LED only
118 mA peak for Red and Green LED and Motor Drive
Operating Temperature: -10C to 50C
Holding Force: 150 lbs
Lock Reader
Specifications
Mounting
Template
Interface Cable, Lock Side
Interface Cable,
System Side
Cam

2 Part Number 3085006.001, Rev 3

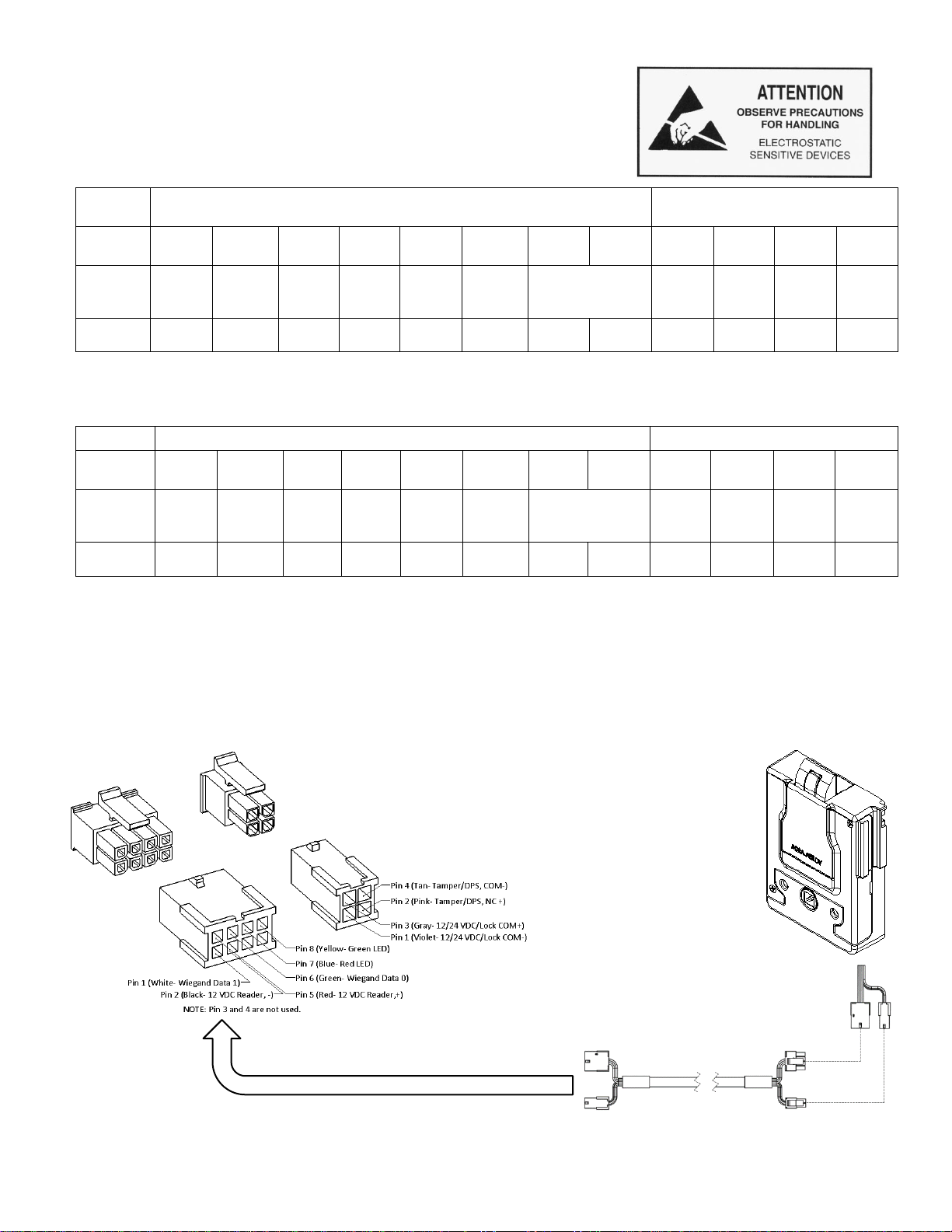

Connector Pin Wiring:
Molex 8-Pin Connector Pin
Wire Color
Description
1
Black
12 VDC Reader (–)
2
White
Wiegand Data (1)
3
N/A
N/A
4
N/A
N/A
5
Red
12 VDC Reader (+)
6
Green
Wiegand Data (0)
7
Blue
Red LED
8
Yellow
Green LED
Molex 4-Pin Connector Pin
1
Violet
12/24 VDC / Lock (COM, –)
2
Pink
Tamper / DPS (NC, +)
3
Gray
12/24 VDC / Lock (COM, +)
4
Tan
Tamper / DPS (COMM, –)
LED Function: LED states are controlled and defined by the User’s EAC. Enabling the red and green LEDs on
the HES K200 occurs via an active low (ground) signal.
Output Type: SIAAC-01-1996 Wiegand Output Compliant.
FCC Part 15, Compliant, Industry Canada Compliant
BHMA: A156.3, A156.36, A156.25 Compliant
NOTE: Contact HID Global Technical Support at [phone] for additional configuration cards to enable
the credential capabilities of “iCLASS Elite”and “NFC over HCE.”
Credentials Supported: 125 kHz Proximity or 13.56 MHz iCLASS, iCLASS Elite, iCLASS SEOS, iCLASS SE, ISO
15693 ICLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, and NFC over HCE.
SYSTEM OVERVIEW
The HES K200-622 wired cabinet lock (K200) extends access control to a cabinet or drawer. The HES K200
lock is capable of reading radio-frequency identification (RFID) credentials and providing that credential data
to an electronic access control (EAC) system via Wiegand data signaling. The EAC is responsible for
determining whether user access should be granted or denied. When the EAC provides an active-high unlock
signal to the lock in the access granted case, the HES K200 drives a motor to complete the unlock/lock cycle.
EAC indication of user access/denial is provided to the user by way of LED control inputs on each lock.
Additional lock monitoring features (e.g., door position, tamper) are monitored within the lock and status of
each is provided to the EAC.

3 Part Number 3085006.001, Rev 3
MOUNTING THE LOCK
NOTE: The HES K200 reader and lock body can be oriented in several ways to accommodate various cabinets and
drawers. When selecting an orientation, it should be noted that some reader orientations may prevent use
of the key override function. For example, in the door handing shown here, the key override paddle cannot
be accessed in orientation “A”, but it can be accessed in orientations “B,” “C” and “D”.
1. ESTABLISH the horizontal centerline of the latch.
a. HOLD the lock body to the inside of the door and POSITION it generally where you would like it to mount.
b. LOCATE lock centerline notch on the latch, and MARK this point on the inside of the cabinet door using a
pencil.
c. DRAW the horizontal latch centerline from this mark on the inside of the cabinet door and TRANSFER it to the
outside of the cabinet door.
d. TRANSFER this centerline to the inside of the cabinet or the second door on a double-door cabinet.
A
B
C
D
1d
1b + 1c
1a

4 Part Number 3085006.001, Rev 3

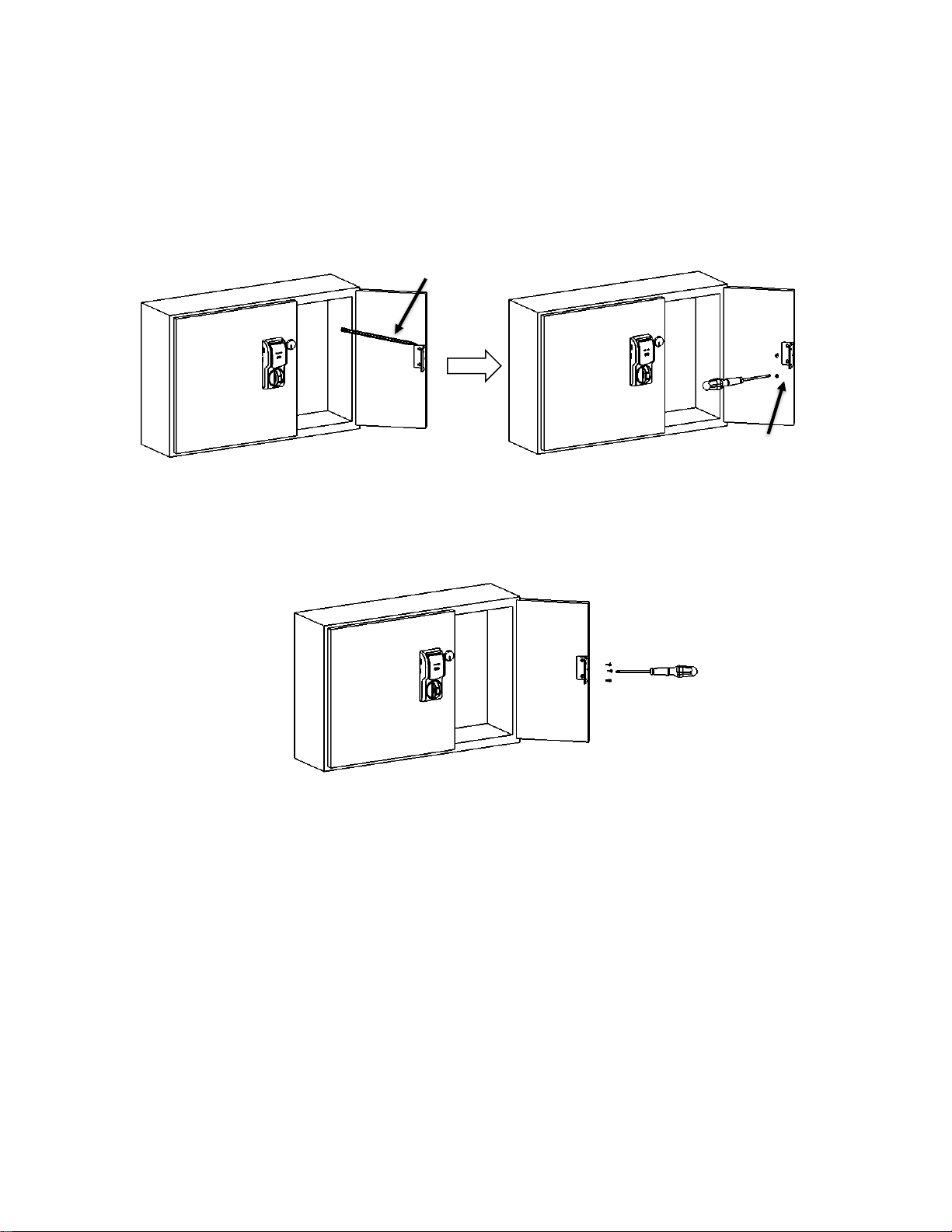

2. TRANSFER the location of the inside wall of the cabinet to the door.
a. MEASURE the horizontal distance between the inside edge of the cabinet and the door edge.
NOTE: The drawn line depicts the location of the strike mounting surface.
b. LOCATE the lock centerline notch on the latch and MARK this point on the inside of the cabinet door using a
pencil.
c. DRAW the horizontal latch centerline from this mark on the inside of the cabinet door and TRANSFER it to the
outside of the cabinet door.
3. PLACE and USE the Lock/Reader Template.
NOTE: The orientation will be reversed for a right hand door.
a. CUT through line to separate the Strike Plate Template.
b. PEEL OFF the protective layer of the Lock Template, ALIGN it to both the latch centerline and the line
depicting the inside wall of cabinet, and PRESS to secure.
NOTE: Two of the holes in the following step are 3/16” [4.76 mm] diameter and two are 1/2” [12.70 mm]
diameter. The two pilot holes are 1/16” [1.59 mm].
c. DRILL four holes and two pilot holes through the cabinet, as shown in the figure below.
d. DRILL only one 3/16” [4.76 mm] hole, depending on the desired Antenna/Reader orientation.
e. IF the optional key override will be installed,
THEN GO TO Step 5.
f. REMOVE the lock template from the door.

5 Part Number 3085006.001, Rev 3

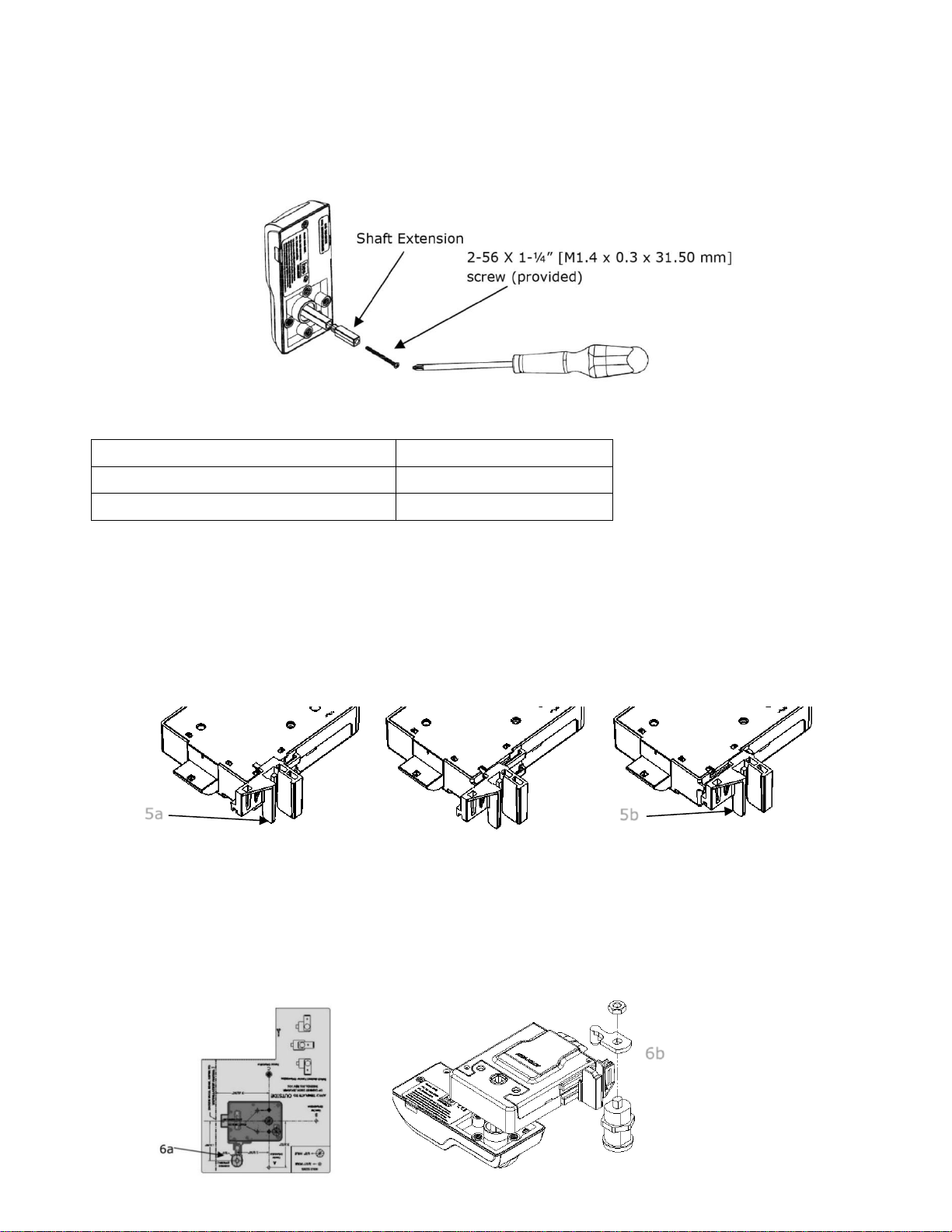

4. INSTALL the shaft extension.
IF the cabinet door thickness is greater than 1/2” [12.70 mm] (see Table 1),
THEN INSTALL the Shaft Extension to the Antenna/Reader as shown below to ensure proper engagement
into the lock. Firmly tighten the screw.
Table 1
Door Thickness
Extension Shaft Used?
1/16” [1.59 mm] – 1/2” [12.70 mm]
No
> 1/2” [12.70 mm] – 1-1/2” [38.10 mm]
Yes
5. IF a Cam Lock key override will be used,
AND the orientation allows for installation,
THEN INSTALL the Key Override Paddle.
a. INSERT the paddle’s arm into the opening shown, and ALIGN the rails of the paddle to the ones on the lock.
b. SLIDE the paddle gently until it stops.
6. PREPARE the Key Override Door.
NOTE: The Cam Lock is optional and is not included with the HES K200.
a. IF a Key Override is used,
THEN MARK and DRILL a hole for a 3/4” [19.05 mm] Cam Lock in the door using the template as a guide.
b. INSTALL the optional Cam Lock with the Cabinet Lock as shown in the figure.
5a
5b
6b

6 Part Number 3085006.001, Rev 3
7. INSTALL the Antenna/Reader.
CAUTION
Pinching the wires may prevent the Reader and Lock from properly functioning.
a. PLACE and HOLD the antenna/reader to the outside of cabinet, routing the wire through the 1/2” [12.70 mm]
offset hole, and ENSURE the knob is in the vertical, locked position.
NOTE: Use Table 2 to determine the length of the top mount screw needed, based on the thickness of the
cabinet door.
b. INSTALL the top mount screw to attach the antenna/reader to the outside case.
Table 2

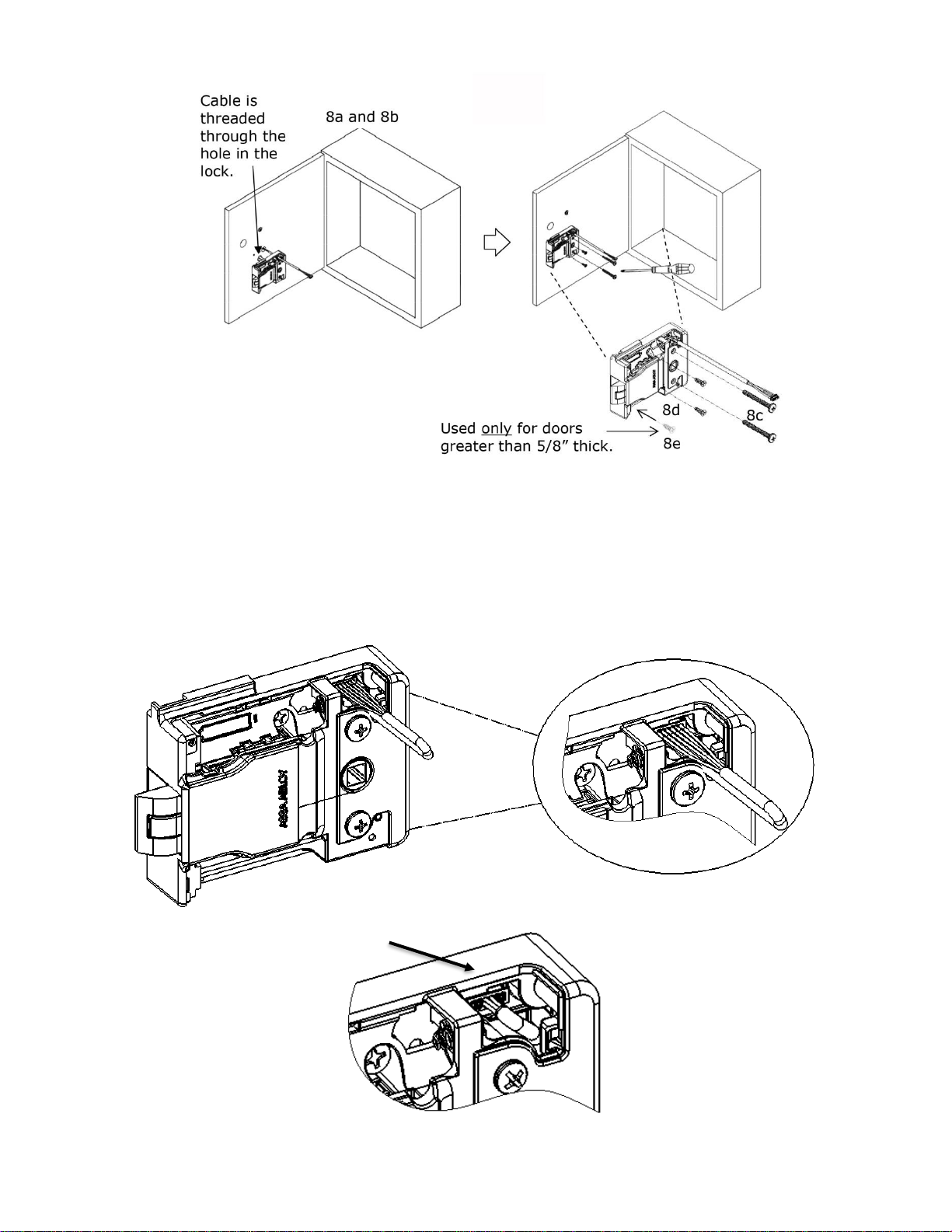

8. INSTALL the lock body.
a. REMOVE the cover from lock body.
b. PLACE the lock on the inside of the door, threading the cable through the lock.
c. ATTACH the lock to the antenna/reader using two 8-32 [4.00 mm] lock mount screws (see Table 2 for length),
and TIGHTEN the screws.
d. INSTALL the two #6 [3.5 mm] self-threading screws, and TIGHTEN.
NOTE: The third #6 [3.5 mm] self-threading screw is important to achieve maximum holding force for doors
greater than 5/8” [15.88 mm] thick.
e. INSTALL the third #6 [3.5 mm] self-threading screw only if the door is greater than 5/8” [15.88 mm] thick,
using the lock as a guide, and TIGHTEN.

7 Part Number 3085006.001, Rev 3
9. CONNECT the antenna/reader wire to the lock body.
NOTE: The antenna/reader wire connector is engineered to fit only one way.
a. INSERT the antenna/reader wire connector, ensuring correct orientation
b. TUCK excess cable into the lock body.
c. ATTACH the cover.
9a
Connector cable tucked in 9b

8 Part Number 3085006.001, Rev 3
10. Attaching the Wiring
New 4-/8-Pin Molex
Integrated Wiegand: K/KS200 Cabinet Locks, ElectroLynx Wire Color/Function Assignments
Connecto
r
8-Pin Molex Connector
4-Pin Molex Connector
Pin/Wire
Color
1
Black
2
White
3
N/A
4
N/A
5
Red
6
Green
7
Blue
8
Yellow
1
Violet
2
Pink
3
Gray
4
Tan
Function
12 VDC
Reader
Wiegand
Data
N/A
N/A
12 VDC
Reader
Wiegand
Data
LED
12/24
VDC/
Lock
Tamper
/ DPS
12/24
VDC/
Lock
Tamper
/ DPS
Setting
NEG
Data 1
N/A
N/A
POS
Data 0
RED
Green
COM, -
NC, +
COM, +
COM, -
Legacy 10-Pin Molex to 4-/8-Pin Molex
Integrated Wiegand: K/KS200 Cabinet Locks, ElectroLynx Wire Color/Function Assignments
Connector
8-Pin Molex Connector
4-Pin Molex Connector
Pin/Wire
Color
1
Black
2
White
3
N/A
4
N/A
5
Red
6
Green
7
Orange
8
Brown
1
Gray
2
Yellow
3
Violet
4
Blue
Function
12 VDC
Reader
Wiegand
Data
N/A
N/A
12 VDC
Reader
Wiegand
Data
LED
12/24
VDC/
Lock
Tamper/
DPS
12/24
VDC/
Lock
Tamper/
DPS
Setting
NEG
Data 1
N/A
N/A
POS
Data 0
RED
Green
COM, -
NC, +
COM, +
COM, -
a. CONNECT the Lock Side Interface Cable to the lock.
b. CONNECT the Lock Side Interface Cable to the optional System Side Interface Cable (see Connector and Cable Diagram).
c. RUN the System Side Interface Cable, as required.
d. ATTACH the included 4-Pin and 8-Pin Molex Female Connectors to the bare wire side of the System Side Interface Cable.
Locke side
Interface Cable
(Optional accessory)
CBL 6-QC12- lock side interface cable 6ft
CBL 12-QC12- system side interface cable 12ft

9 Part Number 3085006.001, Rev 3
NOTE: It is recommended that 10-conductor, 24 AWG, cable be used.
11. ENSURE the following power cabling guidelines are followed:
Wire AWG
Supply Voltage
Allowed Cable Length (ft.)*
20 AWG
12
872
24
6679
22 AWG
12
548
24
4201
24 AWG
12
345
24
2641
* Round trip loss. V = 2 x I x R x xft xft = V / (2 x I x R)
12. POSITION the cable out of the way, as required.
13. PREPARE for the single door strike plate. (If installing on a double door, skip to Step 15)
a. PEEL OFF the protective layer of the Strike Plate Template and ALIGN it to both the latch centerline and the
cabinet edge.
b. DRILL the two pilot holes shown on the template.
c. REMOVE the template.
CAUTION
The Installer must ensure that the lock can be opened before closing the cabinet door.
14. INSTALL the single door strike plate.
a. PLACE the strike plate over the pilot holes, and INSERT and TIGHTEN the two screws in the slotted
holes.
b. CLOSE the door to verify installation, and ADJUST the strike plate if necessary.
c. INSERT and TIGHTEN the lock down screw on the strike plate.

10 Part Number 3085006.001, Rev 3
15. INSTALL for the double-door strike plate mounting bracket. (OPTIONAL)
NOTE: The double-door strike plate bracket requires that one door can be inactive or secured.
a. PLACE the bracket on door, making sure it aligns with the mark made in Step 2c and the edge of the door.
b. MARK the door.
c. REMOVE the bracket and DRILL pilot holes at the two marks.
d. INSTALL the bracket using the provided mounting screws.
16. INSTALL the double-door strike plate.
a. PLACE the strike plate over the holes on the bracket.
b. INSERT and TIGHTEN the three 6-32 x 5/16” (3.5 mm x 7.94 mm) provided screws.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
IC Statement
This device complies with Industry Canada license-exempt RSS standards(s). Operation is subject to the following
two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation.
15a and 15b 15c and 15d

11 Part Number 3085006.001, Rev 3
CE Statement
ASSA ABLOY Electronic Security Hardware hereby declares that these proximity readers are in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC (http://ec.europa.eu/enterprise/sectors/rtte/files/guide2009-04-
20_en.pdf).
Conformité aux normes FCC
Cet appareil est confrome à la Partie 15 des règlements de la FCC. Son fonctionnement est souimes aux deux
conditions suivantes:
(1) cet appareil ne peut causer d’interférences, et
(2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un
fonctionnement indésirable du périphérique.
Conformité aux normes IC
Cet appareil est confrome avec Industrie Canada exempt de license RSS standard(s). Son fonctionnement est
souimes aux deux conditions suivantes:
(1) cet appareil ne peut causer d’interférences, et
(2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un
fonctionnement indésirable du périphérique.
Conformité aux normes CE
HES déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres
stipulations pertinentes de la Directive 1999/5/CE (http://ec.europa.eu/enterprise/sectors/rtte/files/guide2009-04-
20_en.pdf).

12 Part Number 3085006.001, Rev 3
For Technical Support
please call 1-800-626-7590
For information about ASSA ABLOY Electronic
Security Hardware cabinet lock solutions,
visit assaabloyesh.com
