Profile
WiFi Mortise Lock
Installation Instructions
v.S2
To view helpful video installation tips, scan the
Microsoft® Tags with your mobile phone.
Download the free mobile app at
http://getscanlife.com.

1-800-810-WIRE • www.sargentlock.com • A7786G
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
11/16/13
Warning: Changes or modifications to this unit not expressly approved by ASSA
ABLOY Inc. could void the user’s authority to operate the equipment.
Warning
1
1
2
3
4
5
6
7
Table of Contents
Warning ...................................................................................2
General Description.................................................................4
Hardware Specifications .........................................................4
Electronic Specifications.........................................................4
Installation Wiring Overview...................................................4
Lock Wiring..............................................................................5
Parts Breakdown .....................................................................6
Installation Instructions ..........................................................7
8
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
SARGENT Mfg. Co. v.S Series locksets utilizing a door position switch (DPS) are not rated for,
or intended for use in life safety applications.
!
FCC:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada:
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications
were met.
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des-
règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer
l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui
peut causer l’opération peu désirée.

4 1-800-810-WIRE • www.sargentlock.com • A7786G
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
03/31/15
Profile Series v.S2 WiFi Mortise Lock
Hardware Specifications
General Description
The SARGENT Profile Series v.S2 Mortise Lock* is available with either an HID® 125 kHz prox or 13.56 MHz
iCLASS® technology reader. It is designed for applications requiring wireless access control. The v.S2 is a
self-contained microprocessor-controlled access control product with non-volatile memory. It is able to utilize
the existing wireless LAN (802.11b/g) in order to communicate with the access control system. The v.S2 lock
holds a total of 2400 unique users per lock.
This product is operated by six (6) “AA” alkaline batteries or a SARGENT 3267 9VDC power supply. SARGENT
mortise locks are designed with quality components to provide high security, performance and durability.
The Profile Series v.S2 mortise lock may be used for both indoor and exterior applications. A weather-
protective gasket (provided with unit) is recommended for exterior applications.
HID® and iCLASS® are registered trademarks of HID Global Corporation.
• Wireless (WiFi 802.11 b/g) online,
battery-operated
• 2400 users per lock
• 10,000 Event audit trail
• Centralized lock management
• Door Status Monitoring**
• Easy installation (no need to hardwire)
• Input Power: DC 9V, 1.5A (6 AA alkaline
batteries or optional hard-powered)
• Lockdown capable**
• Supports HID® 125 kHz prox or 13.56
MHz iCLASS® credentials (26 - 39 bit);
supports CSN reads for other common
13.56 MHz cards, including MiFare,
DesFire, and Felica
• Supports most current WiFi networks
security standards
• For specific security information, please
contact a local ASSA ABLOY Door
Security Solutions sales consultant or
call 800-810-WIRE
3Electronic Specifications 4
2
• Latch: One-piece stainless steel, 3⁄4" projection
• Deadbolt: One-piece hardened stainless steel
• Guardbolt: Stainless steel, non-handed
• Handed: Easily field reversible without
opening case
• Case: 12-gauge, heavy duty wrought steel
• Locks furnished for 1-3/4” doors. Can be
furnished for other door sizes upon request.
Consult factory.
• UL Listed (3 hours)
• Inside lever retracts latch and deadbolt
802.11b/g Wireless Network Device
Lock Management
Tool (LMT)
v.S2 Lock
Internal
Building
Network (Intranet)
Network
Interface
Card
Ethernet LAN

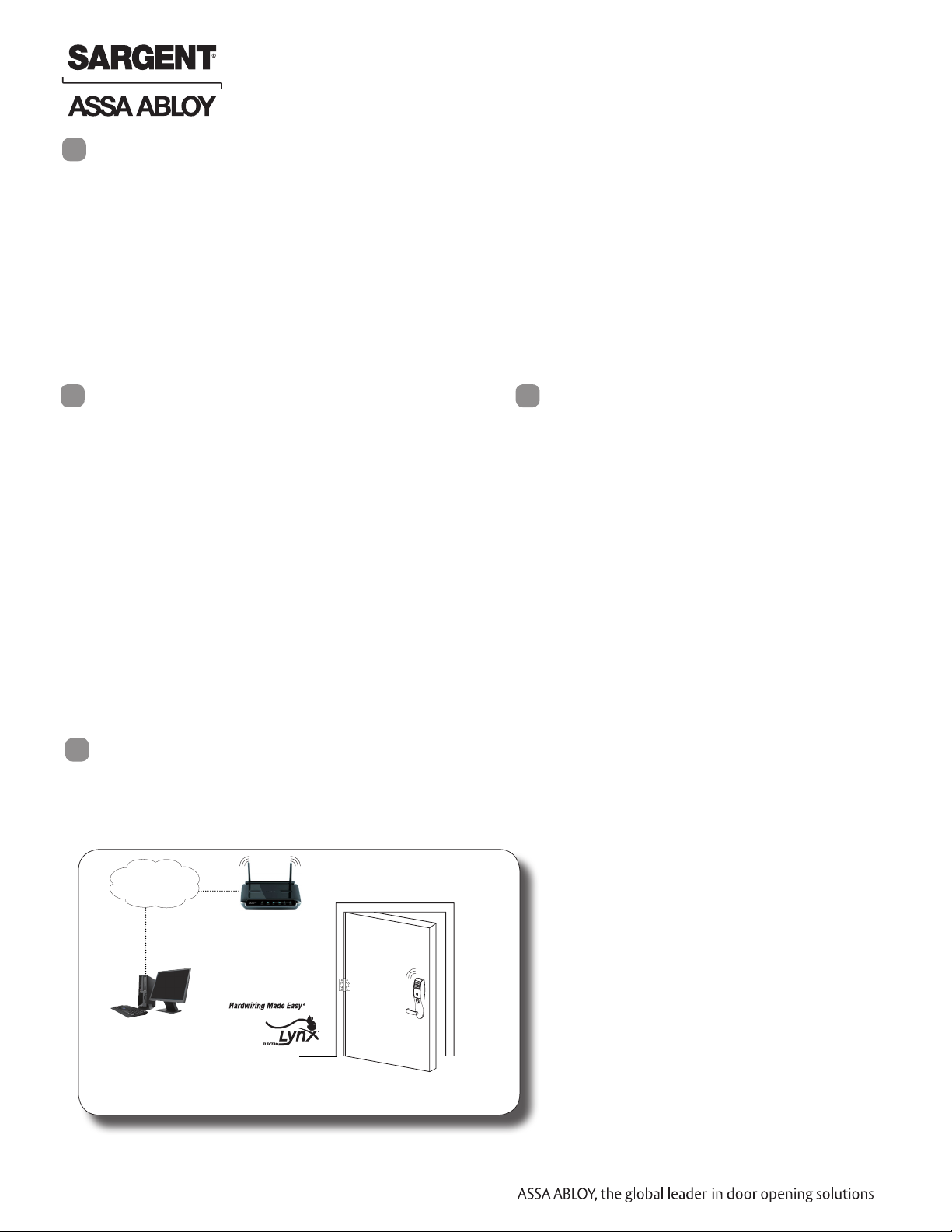

Installation Wiring Overview
5
SARGENT Profile Series WiFi
v.S2 Typical Application
**Lockdown and real-time door status
monitoring available only when lock is
hard-powered
*Patent pending

03/31/15
1-800-810-WIRE • www.sargentlock.com • A7786G 5
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S2 WiFi Mortise Lock
6Lock Wiring
DX NC (GREEN/WHITE)
RX COM (WHITE)
RX NC (GREEN)
DX (WHITE/BLACK)
LX NO (RED/YELLOW)
LX COM (RED/GREEN
Motor B (BLACK)
Motor A (RED)
TB1
E1 TB2
8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8
From
Lock Body
(+) 9VDC (RED)
(-) (BLACK)
AX/DPS NC (PINK)
AX/DPS COM (VIOLET)
Unused Unused Unused
EGND (GREEN)
DPS
Power
Ring Terminal
From Trim
Controller Board Connectors
(Inside Escutcheon)
DPS

6 1-800-810-WIRE • www.sargentlock.com • A7786G
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
03/31/15
Profile Series v.S2 WiFi Mortise Lock
Parts Breakdown 125 kHz Prox and 13.56 MHz iCLASS
7
5
4
8
9
9
16
3
7
9
2
10
9
1
12
11
13*
15
14
15
6
*Patent Pending

03/31/15
1-800-810-WIRE • www.sargentlock.com • A7786G 7
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S2 WiFi Mortise Lock
1 Outside Lever Reference 8200 Catalog for available levers 1
2 Inside Lever Reference 8200 Catalog for available levers 1
3 82-0493 O/S Escutcheon only with Cylinder 1
82-0495 O/S Escutcheon only without Cylinder
4 82-0492 Inside Escutcheon only without Thumb Turn 1
82-4571 Inside Escutcheon only with Thumb Turn 1
5
52-4496 125 kHz Prox Only Bezel Assembly (S2-PA)
1
52-4497 Keypad and 125 kHz Prox Bezel Assembly (S2-PK)
OR
52-4422 13.56 MHz Prox Only Assembly (S2-IA)
52-4423 Keypad and 13.56 MHz iCLASS Bezel Assembly (S2-IK)
6 52-4425 S2 Controller Assembly (Double Pulse) 1
7 52-3855 Battery Cover Assembly 1
8 01-1212 Security Screw 1
9 52-2427 Profile Screw Pack - Specify Finish (Includes: Fire Stop Plate,
Trim Mounting Screws, Security Allen Wrench)
1
10 Consult Factory Lever Handle Screw (Depends on Lever Style) 1
11 Consult Factory Inside Adapter Assembly (Depends on Lever Style) 1
12 Consult Factory Outside Adapter Assembly (Depends On Lever Style) 1
13* S2-82276-hand-finish Lockbody with Deadbolt with Cylinder 1
S2-82277-hand-finish Lockbody with Deadbolt without Cylinder
S2-82278-hand-finish Lockbody without Deadbolt with Cylinder
S2-82279-hand-finish Lockbody without Deadbolt without Cylinder
14 82-0084 Faceplate with Deadbolt (shown) 1
82-0081 Faceplate without deadbolt 1
15 77-4336 Mortise Screw Pack - Specify Finish (Includes: Wood and Me-
tal Lock body Screws, Faceplate Screws, and Strike Screws)
1
16 Consult Factory #43 Mortise Cylinder 1
ITEM PART NO. DESCRIPTION QTY.
Parts Breakdown 125 kHz Prox and 13.56 MHz iCLASS, continued
*Patent Pending

8 1-800-810-WIRE • www.sargentlock.com • A7786G
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
03/31/15
Profile Series v.S2 WiFi Mortise Lock
Installation Instructions
8
A. Verify Hand and Bevel of Door
Stand on outside/locked side of door when determining the door hand.
B. Door Preparation
Prior to installation, all holes must be free of burrs, debris and sharp edges.
Prepare door according to appropriate template (see website www.intelligentopenings.com):
Door Manufacturing Template: 4533
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward
1 – Door Preparation
Fig. 1A
Outside Cylinder Hole
(only with cylinder installation)
Outside of Door Inside of Door
Ribbon Cable Hole
(Controller to Keypad)
Lever Handle Hole
Through-bolt Hole
Ribbon Cable Hole
(Controller to Keypad)
Inside of Lockbody Wire Hole
Lever Handle Hole
Through-bolt Hole
Pre-drilled and/or
Tapped Holes
Mortised
Pocket
Thumb Turn Lever Hole
Fig. 1B
Through-bolt Hole
Trim Post Holes
Through-bolt Hole
Trim Post Holes

03/31/15
1-800-810-WIRE • www.sargentlock.com • A7786G 9
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S2 WiFi Mortise Lock
2 – How to Change Hand of Lockbody
B. Reverse Latch Hand
Beveled surface of latchbolt must face strike (Fig. 2B).
The deadlatch is self adjusting.
To change the hand of the latchbolt:
1. Insert the blade of a slotted screwdriver (>1/4”) into
the spade shape slot behind latch.
2. Rotate the screwdriver 90° to push latchbolt out until
back of bolt clears lock case front.
3. Rotate latchbolt 180° until the latchbolt
drops back into the lockbody.
Note: Latch cannot be unscrewed.
Latchbolt
Spade
Shaped
Slot
Fig. 2B
A. Reverse Lock Hand
Red surface of locking piece must face the outside/
locked side of door. To rotate locking piece (Fig. 2A):
1. Position lock body with red surface of locking piece
visible.
2. Insert blade type screwdriver into locking piece slot
to rotate locking piece toward back of lock body.
3. Rotate the locking piece 180° until RED surface is
on opposite side.
Note: Red indicates locked side (outside).
Locking Slide
Red on Locked Side
Push In
Right Hand
Lock Shown
Fig. 2A
Deadlatch

10 1-800-810-WIRE • www.sargentlock.com • A7786G
Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
03/31/15
Profile Series v.S2 WiFi Mortise Lock
3 – Install Lockbody
Fig. 3
Inside of Door
4 – Door Options
A. Fire Stop Plate (P/N 52-0033)
Fire-rated doors require a fire stop plate on
the outside of the door (Fig. 4A).
1. Drill (2) 1/8" x 1-1/4" deep holes in the
door if not already present.
Refer to template for fire-stop
prep locations.
2. Attach with flap up and
out using (2) #8 x 1/2”
self-tapping screws for
wood and metal doors.
B. Weather Conduit (52-2847)
Install weather conduit on
NON FIRE-RATED exterior doors only (Fig. 4B).
1. Carefully insert the weather conduit into the
ribbon cable hole on the inside of the door.
2. Place the O-ring around the weather conduit
on the outside and up against the door (Fig. 4C)
Outside of Door
Fig. 4B
Fig. 4C
Ribbon Cable Hole
O-Ring
1. Insert lock body into mortised cutout (Fig. 3).
2. Harness exits non-cylinder side of hole.
3. Hold lock body loosely in place with (2) lock
body screws (Fig. 3).
Note: Do not completely tighten screws at this time.
(2) #12-24 x 1/2”
Flat Head Screws
(Metal Doors)
(2) #12 x 1-1/4”
Flat Head Screws
(Metal Doors)
Connectors from
mortise lockbody
exit non-cylinder
side
Fig. 4A
Outside of Door
(2) 1/8” Diameter
Holes Required
Fire Stop Plate
(2) #8 Self-Tapping
Screws for Wood
and Metal Doors
Install Lock Body
Scan to see a video of this
installation step.
