Astral Pool System VRAC Basic Manual

BASIC AUTOMATIC MULTIPORT VALVE
VANNE MULTIVOIES AUTOMATIQUE BASIC
VÁLVULA SELECTORA AUTOMÁTICA BASIC
VALVOLA SELETTRICE AUTOMATICA BASIC
AUTOMATISCHES MEHRWEGE VENTIL BASIC
VÁLVULA SELECTORA AUTOMÁTICA BASIC
INSTALLATION AND MAINTENANCE MANUAL
MANUEL D’INSTALLATION ET D’ENTRETIEN
MANUAL DE INSTALACIÓN Y MANTENIMIENTO
MANUALE DI INSTALLAZIONE E MANUTENZIONE
INSTALLATIONS-UND BEDIENUNGSANLEITUNGEN
MANUAL DE INSTALAÇÃO E MANUTENÇÃO
S Y S T E M V R A C

2

5
"Important: This instruction manual contains basic information with respect to safety measures
which should be adopted during installation and putting into service. For this reason, it is
essential that both the installer and user carefully read these instructions before carrying out
any installation or putting into service operations."
In order to obtain optimum performance from the automatic valve, it is recommended that the
instructions given below are strictly followed.
General safety prescriptions:
These symbols indicate the possibility of danger as the consequence of not
respecting the corresponding prescriptions.
DANGER. Risk of electrocution. The lack of warning of this prescription involves a risk of
electrocution.
DANGER. The lack of warning of this prescription involves a risk of personal injury or material
damages.
WARNING. The lack of warning of this prescription involves a risk of damage to the automatic valve
or the installation.
GENERAL SAFETY REGULATIONS
GENERAL.
The valve described in this manual has been specially designed to provide correct water circulation
in the swimming pool during the various operational phases.
It has been designed to work with clean water at temperatures not exceeding 35ºC.
The installation must be carried out in accordance with the specific instructions for each particular
implementation.
Current in-force regulations for the prevention of accidents must be observed.
Any modification to the valve’s electronic module requires the prior authorisation from the
manufacturer. Original spare parts and accessories authorised by the manufacturer will guarantee
greater safety. The manufacturer of this automatic valve is exempt from all responsibility for any
damage caused by non-authorised spare parts or accessories.
During operation, the valve’s electric and electronic parts have electric power connected to them.
Any work to the automatic valve and any equipment connected to it, must only be carried out when
the start-up devices have been disconnected.
The user must ensure that installation and maintenance work is carried out by adequately qualified
and authorised personnel, and these have previously carefully read the installation and service
instructions.
Automatic valve operational safety is only guaranteed by full compliance and respect of the installation
and service instructions.
The maximum voltage values must never be exceeded under any circumstances.
In the case of incorrect operation or a fault, please contact the closest manufacturer’s representative
or technical assistance service.
ENGLISH

6
ADVICE DURING INSTALLATION AND ASSEMBLY OPERATIONS.
During the connection operations of the electrical wiring to the valve modules, great attention must
be given to polarity, and it must be verified that pieces of wiring are not left inside after closing.
Make all connections by following the instructions in this manual.
It should be verified that the electrical wiring connections to the valves electronic card are firmly
made.
The seal on the module’s box should be checked for correct positioning to prevent the entry of water,
it should also be checked that the compression gland is also correctly located
Particular attention should be paid, so that, under no circumstances, is it possible for water to
enter the electronic module. In the case where the intended use is not that for which the valve was
designed, adaptation and supplementary technical regulations may be necessary.
ADVICE FOR WHEN PUTTING INTO SERVICE.
Before putting the automatic valve into service, it is necessary to verify the calibration of the
electrical protection devices in the operations cabinet and that they are correctly positioned and
fixed in place.
NOTE: It is recommended that the bathing facilities are not used while the filtration equipment
is in operation.
ADVICE DURING INSTALLATION AND MAINTENANCE WORK.
National installation regulations must be taken into account when assembling and installing the
automatic valve.
Extra care must be taken so that it is not possible, under any circumstances, for water to enter the
automatic valve electronic circuit.
All contact, including accidental, must be avoided at all times with the moving parts in the automatic
valve during operation and/or before complete shutdown.
Before carrying out any maintenance or any other electrical or electronic work, it must be ensured
that switch-on devices are locked.
It is recommended that the following steps be taken before performing any maintenance on the
automatic valve.
1.- Remove electrical power to the valve.
2.- Lock the switch-on devices.
3.- Verify that there is no electrical power being applied to the circuits, including auxiliary
and supplementary services.
This list must be considered indicative and not binding with respect to safety, there may be other
specific safety standards in particular regulations.
IMPORTANT: due to the complexity of the situations covered, the instructions for installation, use
and maintenance contained in this manual, do not make any attempt to cover all possible service
and maintenance cases. If additional instructions are necessary or specific problems arise, please
do not hesitate in contacting the distributor or the valve manufacturer directly.
Our automatic valves may only be installed in swimming or other pools which fully comply with the
HD 384.7.702 standard. When any doubt exists a specialist should be consulted.
Please check the packing contents.
ENGLISH

7
CONTENTS
1. Valve characterisctics
1.1 Verification of valve type
1.2 Flow diagram for the various valve operating positions
1.3 Specifications
1.4 Control module
2. Installation
2.1 Electrical connection
2.2 Example of connecting a single phase 230 V electrical cabinet
2.3 Fuse
2.4 Pressostat adjustment
2.5 Drainage safety
3. Maintenance and guarantees
3.1 Hydraulic installation maintenance
3.2 Specific valve maintenance
3.3 Guarantees
4. Operating and programming
4.1 Control cover
4.2 Timed backwashed switch
4.3 Programming
4.4 Drainage (on “filtration” position and while timer program stopped)
4.5 Drainage (forced while timer program running)
4.6 Test
4.7 Backwash press button
5. Instructions for removing the module installed on the valve
5.1 Valve disassembly procedure
5.2 How to disassemble the valve module
5.3 Instructions for installing the module on the valve
5.4 Temporary conversion of the system to manual operation
5.5 How to change the valve from manual to automatic operation
6. Identifying errors
7. Annexes
7.2 Appendix 1: Valve assembly and dismantling
ENGLISH

8
1. VALVE CHARACTERISTICS
1.1 VERIFICATION OF VALVE TYPE.
Multiport valve, 1½” Model BASIC - 115-230VAC (50-60 Hz); Model 2” BASIC - 115-230VAC
(50-60 Hz). Both the model and code are indicated on a label, together with the valve operating
specifications and the label itself is located on the rear section of the electronic module cover
which is installed on the valve.
Valve hydraulic and electrical operation are verified before it leaves the factory.
It is recommended that before carrying out the installation, a visual inspection be performed in
case any knocks were received which could have damaged the valve.
The valve will be replaced in any justified complaint.
1.2 FLOW DIAGRAM FOR THE VARIOUS VALVE OPERATING POSITIONS.

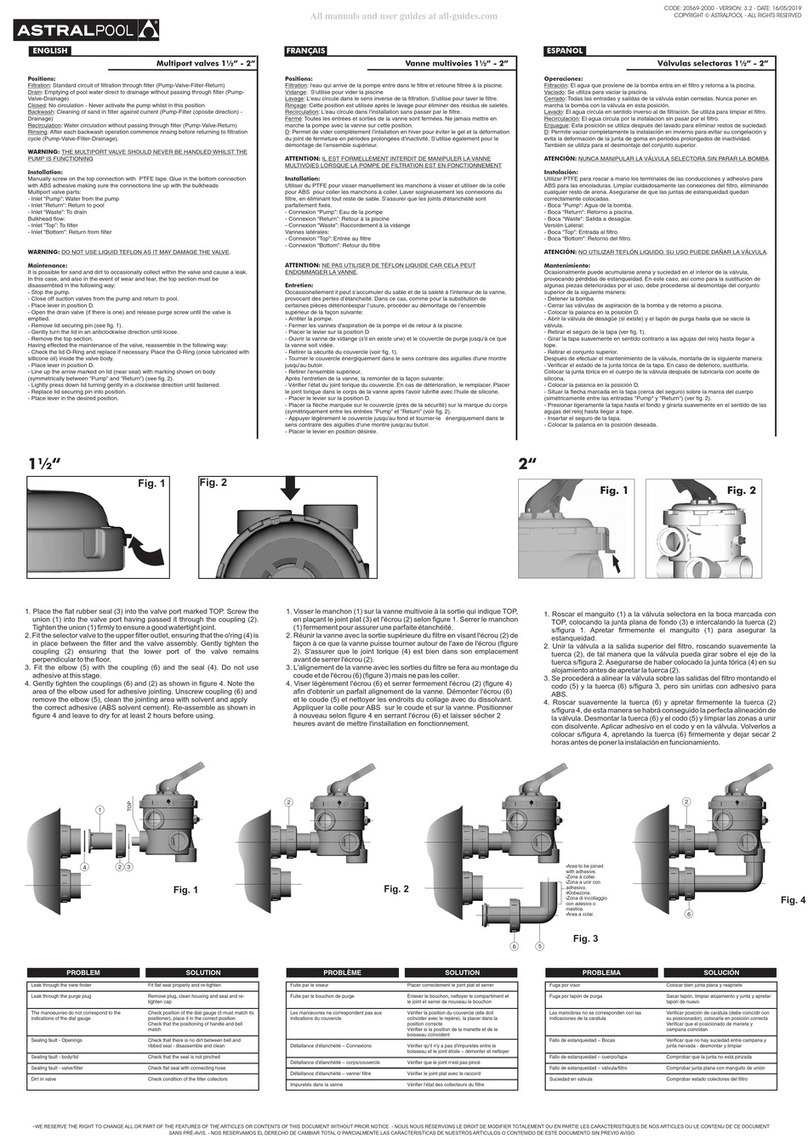

The valve should be installed in the filter following the instructions provided in the included
leaflet.
The valve may be positioned on the side or top of the filter, in whichever position is most comfortable
for subsequent use.
Installation under load, the maximum water column that can be supported by the pump is six
metres (19.68 ft).
The hydraulic connections for correct operation are made by following the markings on the valve
itself.
PUMP indicates the connection coming from the pump.
TOP indicates the upper input to the filter.
BOTTOM indicates the lower return from the filter to the valve.
RETURN indicates the return from the valve to the swimming pool.
WASTE indicates the connection to the drains.
Introduction to the filtration process operation:
The pump sucks water from the swimming pool via the skimmer, bottom cleaner or drain, it is taken
to the multiport valve (PUMP connection) and from here to the filter (TOP). It passes through the
filter bed and returns to the valve once again via the BOTTOM connection and is taken back to the
swimming pool by means of the RETURN connection.
The valve includes a pressure switch which is factory set to an operating pressure of 1.5kg/cm2
(21.3 psi). If this requires further adjustment, it should be set to the pressure of the installed pump,
adjustment range: 0.3 to 2 kg/cm2(4.2-28.4 psi). According to requirements, it can be installed
with an adjustment of between 1 and 6 kg/cm2(14.22-85.3 psi).
If the pressure exceeds the pre-established limit, the valve will automatically change over to the
Backwash position.
This change can also be automatically time controlled, after 7 days of the valve being connected
to the mains supply.
ENGLISH

9
Wash process:
The valve automatically reverses the filtration cycle and commences the sand wash process, this
requires that the valve is set so that the water coming from the PUMP connection passes through
the valve and is taken to the filter by the BOTTOM connection, the sand is stirred and the water,
together with any accumulated dirt exits the valve TOP connection which communicates with the
WASTE connection and is taken to the drains. This process is carried out in accordance with the
pre-established timing.
Back-wash process:
The valve is positioned to compress the filter bed and not to send water containing sand to the
swimming pool, this is achieved by water coming from the PUMP connection entering the filter by
the TOP connection, it then compresses the sand and the water enters the valve via the BOTTOM
connection which then sends it to the WASTE connection. This process is carried out in function
of the pre-established time and once it has elapsed, the valve commences the filtration process
again.
1.3 VALVE SPECIFICATIONS
Sizes 1½” and 2”, side and top mounting
Valve body manufactured in ABS
Internal distributor manufactured in PPO
Connection via threaded female, BSP or NPT, BOTTOM connection for gluing
Maximum operating pressure 3.5 bars
Test pressure 5.2 bars
ENGLISH

10
ENGLISH
1.4 CONTROL MODULE.
This is the part of the valve which consists of a geared motor and an electronic card with limit
switches for the various valve operational positions.
An electronic circuit, which emits commands commands so that the pre-established program is
executed.
Mechanical components which carry out the various valve movements.
The entire assembly is mounted inside a transparent casing which is closed by four screws.
The module features a cover with push buttons and LEDs to indicate its various functions.
The electrical input and output connections are protected by compression glands which provide
perfect protection against external agents which could damage the assembly.
The power supply is 115-230 AC Volts.
2. INSTALLATION.
2.1 ELECTRICAL CONNECTION.
Follow the following instructions in order to prepare the control box and its connection to the
electronic module:
- Power Supply: when connecting to the electronic module, it is advisable to take the current from
the control box, connect it to the “out” terminal of the differential (if used) or else connect the L,
N and T terminals from the magneto thermal breaker to the corresponding L, N and T terminals of
the electronic module. Without polarity.
- Contactor's coil control: cut the contactor coil A1and connect to the terminal "+" (J10) on the
module. Connect terminal "-" to the contactor coil A1. Don't worry about polarity.
Please see electric diagram for a clearer explanation of these connections.
All connecting leads between module and control box should have a section of 0.7 mm2. It is
advisable to use a three lead cable in order to ensure a watertight fit with the gland.

11
ENGLISH
ELECTRICAL CABINET AFTER CONNETING
INCORRECT CONNECTION

12
ENGLISH
2.2 EXAMPLE OF CONNECTING A SINGLE PHASE 230 V ELECTRICAL CABINET
Before proceeding with the installation of the materials, users must ensure that the assembly and
maintenance work is carried out by qualified and authorised workers who have read and unders-
tood the installation and service instructions.
The following diagram shows the external connections required to connect a System VRAC multi-
port valve to an ASTRALPOOL 25717 cabinet.
Disconnect the A1 end of the cable leading from connection 2 of the 3-position switch and add a
terminal block for the valve connection.
A1 / A2 are the terminals used to connect the filtration pump's contactor coil. Terminal
J10 of the multiport valve must always be connected to connection A1 of the contactor
coil.
It is important to ensure that nothing is connected in parallel with the solenoid valve of
the pump contactor and that the total power consumption does not exceed 0.4 A.
In cases where another component has to be connected which needs be activated
at the same time as the pump, we recommend the use of an auxiliary contact of the
pump contactor.

13
2.3 FUSE
The valve's electronics board incorporates a safety fuse to prevent any damage being caused to
the J10 connection.
As stated in the previous point, incorrect connections or other connected components which increase
power consumption at the connection between the solenoid valve of the pump contactor and the
valve may result in operational faults.
A fuse therefore prevents the consumption through this conductor exceeding 0.4 A, thus preventing
such faults. In the event that the fuse fails, check the electrical installation to ensure that it matches
the electrical diagram before replacing the fuse with a new one of the same specifications (5x20).
0.4 A fast acting fuse.
2.4 PRESSOSTAT ADJUSTMENT.
Use the filter or valve manometer as a reference guide when reading the pressure gauge. Proceed
as follows:
1º Turn the pressostat screw (1) (APPENDIX 1 – fig. 1) until it is flush with the black piece (it is
not necessary to tighten it all the way).
2º With the pump running, close the return valve going to the pool until the desired pressure level
is displayed on the manometer.
3º Gently slacken the pressostat screw (1) (APPENDIX 2 – fig. 1) until the LED on the electronic
board comes on (1) (APPENDIX 3). This LED can be seen throught the transparent cover at the
bottom on the right. After 10 seconds, the pump will stop.
4º IMPORTANT. Open the pool return valve.
5º The pool’s return tube has to be equipped with a ball valve to ensure a correct adjustment.
2.5 DRAINAGE SAFETY.
The valve comes ready to be installed in an electrovalve in the drainage circuit. Its use is
recommended in order to avoid water loss in case the electric flow is insufficient and the valve ends
up in a position that could lead to the pool emptying. The electrovalve used should have as low a
pump pressure orifice as possible (0.4 - 0.5 bars). The voltage of the solenoid should be 24 Volts
AC. (See APPENDIX 1 - Fig. 9)
ENGLISH

14
3.3 GUARANTEES.
The valves leave the factory in a fully tested condition, which enables us to guarantee operation.
The guarantee will be effective provided that the installation and maintenance has been correctly
carried out and this requires that the actual installation operation be performed by a person with
the necessary qualifications for this type of work.
3. MAINTENANCE AND GUARANTEES.
3.1 HYDRAULIC INSTALLATION MAINTENANCE
Regular maintenance needs to be carried out on all components of the pool's hydraulic circuit in
order to ensure optimum operation of the installation and thereby prevent damage to the valve or
any other components.
The maintenance operations that may have a direct impact on the operation of the multiport valve
are listed below:
- Be sure to empty and wash the skimmer baskets on a regular basis to keep them clear of leaves
and any other waste. Baskets should be replaced if they are damaged.
- Be sure to empty the basket of the pump pre-filter, clearing away leaves and any other waste.
Replace the basket in the event of damage.
- Regulate the suction and return valves by adjusting the valve's pressure switch before setting the
filter wash pressure. This operation should be repeated whenever a component is changed or added
to the installation or whenever the regulation setting of the valves is changed.
3.2 SPECIFIC VALVE MAINTENANCE
The internal elements of the valve require regular maintenance in accordance with the following
specifications:
- Perform all operations with the pump off and with the input and output valves to the filter and
the multiport valve closed.
- Remove the actuator as described in point 6.2 of the manual.
- Remove the remaining 3 screws holding the valve cover in place.
- Remove the cover to allow access to the internal distributor.
- Lift the distributor and clean the area around the distributor seal, clearing away any residue that
may hinder rotation.
- At least once a year, grease the O-rings on the distributor shaft to facilitate the movement of the
distributor. The grease used to lubricate the O-rings should be TURMSILON GL320 NLGI 1-2
(LUBCON). The manufacturer supplies the specified grease together with the valve. The guarantee
will be valid provided that all installation and maintenance operations are carried out correctly.
Grease
ENGLISH

15
ENGLISH
Filtration:
1º Programme the filtration time via the timer to be found in the control box.
2º Programme wash time using the push button control on the cover of the electronic module,
pressing (+) or (-) to select the desired time shown in minutes on the LED display (when the
valve performs this function the LED display will flash).
3º Programme rinse time using the push button control on the cover of the electronic module,
pressing (+) or (-) to select the desired time shown in minutes on the LED display (when the
valve performs this function the LED display will flash). If any button is pushed during the
wash and rinse cycles, in order to change the time programmed, the time entered will remain
programmed for the next time the appliance is used.
WARNING: when the valve is on “filtration” position and out of the hour programming, the pump
can be started by using the switch (position “forced” “1” – see APPENDIX 1).
If the filter pressure rises while the valve is working in this position, the pressure switch will
activate and start the backwashing and rinsing processes.
4. OPERATING ANG PROGRAMMING
4.1 CONTROL COVER
The valve’s module cover features a panel with push buttons and LEDs to indicate its various functions
TEST – Indicates potential problems that might affect the valve (flashing)
WASTE-VACIADO – Indicates drainage function
(-) Reduces programmed time
(+) Increases programmed time
(0.5’ 1’ 2’ 3’ 4’) Indicates programmed wash time (in minutes)
(20” 40”) Indicates length of programmed rinse cycle (in seconds)
In the event of an interruption to the power supply, the programmed times for wash and rinse
cycles will be erased, settings reverting to the default setting of 0.5’ and 20” until the appliance
is re-programmed.
A conventional control box (if possible, an AstralPool model) is always necessary in order to
programme filtration for your automatic valve set.
The basic components necessary in the control box are: Differential (advisable) Magneto thermal
breaker, pump contactor, Position switch (on “II”, high “I”) and timer programmer.
4.2 TIMED BACKWASH SWITCH
The bottom right hand area of the electronics board (2) (APPENDIX 2 Item 2) contains a microswitch
used to connect ("ON" position) and disconnect ("OFF" position) the 7-day cleaning function.
The 7-day timer resets when:
- The 7-day cleaning function has completed
- A pressure clean has completed
- Power is connected or reconnected after a power outage.
All cleaning will be pressure cleaning while the 7-day microswitch is set to the "OFF" position.
4.3 PROGRAMMING.

16
ENGLISH
4.4 DRAINAGE (on “filtration” position and while timer program stopped).
Operation to be performed manually. Follow these steps:
1º Press “WASTE / VACIADO” on the electronic module
for 3 seconds until the LED comes
on, the valve will now be in the Drainage position.
2º Turn the switch in the control box to the “I” position, thus activating the pump and starting
the drainage process.
These operations are to be carried out when the valve is in the “filtration” position. If the wash or
rinse cycles are running, please wait until they have finished.
Appliance users should watch for when this operation finishes. Once the appliance has stopped,
proceed as follows:
1º Turn switch to “II” position in the control box in order to stop pump
2º Press “WASTE / VACIADO” on the electronic module for 3 seconds until the LED goes
off, the valve will now be in the filtration position.
4.5 DRAINAGE (forced while timer program running)
1º Press 3 seconds until the led lights up. The electronic module will stop the pump and
the valve will turn to “WASTE” position. The pump will start up again.
2º To stop the process press again. The module will stop the pump and the valve will
turn to “FILTRATION” position.
4.6 TEST.
This is used in order to:
1º Know when the appliance is connected to the mains (LED lit).
2º Flashing LED indicates possible operational problem:
- Two flashes: Stop microswitch not found, the microswitch may be broken.
- Four flashes: excessive motor consumption due to bell braking, possibly caused by incorrect
filter operation which is allowing sand to pass through the system.
- Six flashes: Failure of the bell elevation microswitch.
4.7 BACKWASH PRESS BUTTON
On this valve there is a push button (see Photo) which enables the backwash routine to be started
(wash + rinse) without having to use the pressure switch or the return valve. The valve must be
correctly connected to the electrical cabinet and the program timer activated.
In order to start the operation, press the button and maintain the pressure for at least 7 seconds.
Once the routine is finished, the valve returns to the filter position. The backwash and rinse times
are in accordance with the indications on the valve.

17
ENGLISH
5. DISASSEMBLY PROCEDURE
5.1 Valve disassembly procedure:
The automatic valve consists of two sections, the hydraulic part which includes a conventional
valve and an automatic module.
The filter valve is disassembled in the same manner as a manual valve.
5.2 How to disassemble the electronic module:
(illustrations in APPENDIX 1) BEFORE ANY OPERATION IS CARRIED OUT ON THE VALVE, IT
MUST DISCONNECTED FROM THE POWER SUPPLY.
Disassembly: First remove the four screws which hold the cover (1) in place. (Fig. 2).
Disconnect all input wires to the module (AAPPENDIX 1 - Fig. 8). WARNING: All mains power
supply connections must be removed first.
Refit the cover 1 (Fig. 2)
Remove the three screws (11) which hold the module in place on the valve (Fig. 3).
Carefully remove the module in an upwards direction.
Protect inside suitable packaging to prevent any damage and send it to the manufacturer.
From this point there are two possibilities:
1. Replacement of the module.
2. Temporarily convert the system to manual valve operation.
5.3 Instructions for installing the module on the valve.
The manufacturer will ship the valve-module assembly to the technical service or installer ready for
installation. It should be installed as follows:
1. Install the valve assembly by positioning the module so that marking 2 (APPENDIX 1 - Fig. 3)
coincides with the mark on the valve cover, carefully lower the module until it is correctly in
place with respect to the screw 3 (APPENDIX 1 - Fig. 4). In a situation where it does not fit, the
screw may be rotated until it couples with the motor pin (4) (APPENDIX 1 - Fig.4). Care must
be taken not to lower it too brusquely since this could damage the module’s microswitches.
2. Install the three screws (11) (APPENDIX 1 - Fig. 3 ).
3. Remove the cover 1 (APPENDIX 1 - Fig. 2) by removing the four screws (13) in order to access
the connection strip.
4. Connection (MAKE SURE THERE IS NO MAINS VOLTAGE). Connect the cables as indicated
in the attached diagram. IMPORTANT! Use the gland seals that come installed in the module.
5. Replace the cover 1 (APPENDIX 1 - Fig. 2) and replace it with the screws (13).
6. Connect the power input to the control board. The valve will be in the Filtration position, standing
by for when the programmed time is entered.
Backwash press button

18
ENGLISH
5.4 Temporary conversion of the system to manual operation.
The module should be dismounted as described in Section 5.2.
Once the supply system is out, unplug the wires in the control box (L-N) that supply the electronic
module.
Disconnect the wires from terminal (J10) on the electronic module and connect thme to each other
with a bridge between these two terminals.
Remove screw (3) (APPENDIX 1 - Fig. 4), and pull the pawl (5) upwards, then (see APPENDIX
1 - Fig. 5) remove the pin (6) in the direction of the arrow sale, remove part (7), leaving the valve
in position for installing the handle.
To install the handle, position the handle* (14) (APPENDIX 1 - Fig. 6) such that the triangle on
the bell shaft always coincides with the handle positioner (9). Once it is installed, the pin* (10)
can be inserted .
In the event that there is an electrovalve in the drainage system, turn the lever (APPENDIX 1 – Fig.
9 - detail 1) to position manual.
The 3 position switch, On “II”, Hi “I” should be in the “I” position.
* Supplied as spare parts.
5.5 How to change the valve from manual to automatic operation.
Remove the pin (10) (APPENDIX 1 - Fig. 6), remove the handle (14) and install the part (7)
(APPENDIX 1 - Fig. 5). This is accomplished by orienting the mark (A) such that it coincides with
the triangle (APPENDIX 1 - Fig. 6). Once fitted in place, the pin (6) (APPENDIX 1 - Fig. 5) should
be inserted, which should be centred along its length. Then install the part (5) (APPENDIX 1 - Fig.
4). Slot the inside notch (15) into the mark (16). See assembly illustration in APPENDIX 1, fig.7.
Which should be well-positioned (it only has one mounting direction). Insert the screw (3) and
screw in. It should not be fully tightened since it has to be loosened in order to orient it with the
pin (4) on the motor assembly. At this point, it is now possible to install the module assembly as
described in the valve module installation process.
In the event that there is an electrovalve in the drainage system, turn the lever (APPENDIX 1 – Fig.
9 - detail 1) to position nº2 (automatic).
Control box: The 3 position switch, On “II”, Hi “I” should be in the “II” position.
6. IDENTIFYING ERRORS
The situation might arise that owing to the a problem in installation (air working in depression) the
time needed to prime the pump is greater than that programmed for the wash and rinse cycles,
something that would cause the valve to start this operational mode without the filter working correctly.

19
PROBLEM CAUSE SOLUTION
The valve does not start up
and the LED is either not lit or
all lights are flashing
Incorrect electrical connection Check the power connection
and the control connection of
the contactor's solenoid valve.
The actuator does not work
and the red light is flashing
twice
Failure of the position micro Contact technical assitance
The actuator does not work
and the red light flashes 4
times
The valve distributor is
blocked
Disconnect the power supply
and take off the actuator. Take
off the valve lid, clean the dis-
tributor and aply grease shaft
and o-rings with TURMSILON
GL320 grease.
The actuator does not work
and the red light flashes 6
times
Problem with the distributor
ascend micro
Check the connection from the
micro to the J2. If the problem
persists, gert in contact with
Technical Assistance
The buttons on the keypad do
not work
The connecting cable is dis-
connected
Check that it is correctly
connected
The valve keeps on doing
washings with the pressure
switch LED lit up
The pressure is not correctly
graduated
Consult the manual to
correctly adjust the pressure
switch
The return ball valve is closed
or nearly closed
Open the ball valve
There is a faulty connection in
the pressure switch circuit
Check the pressure switch
connection cable
The pump does not stop when
it is changing position
The terminal block J10 and
the control cabinet are con-
nected incorrectly
Check that the connection
matches the wiring diagram
The valve does not work and
the fuse has blown
There is an incorrect electrical
connection producing an
excessive level of power
consumption at terminal J10
of the valve
Measure the consumption
level at the J10 connection
and check the electrical
installation
The waste water electro-valve
does not oper (in the case that
one has been installed)
The polarity of the cables has
not been respected
Check the cable connections:
red to positive and black to
negative
Error in the electronic board Use a tester to check the
tension in the electro-valve
terminal: if it is less than
15 Vdc, contact Technical
Assistance
Error in the electro-valve If the tension is correct, the
problem has to be in the
electro-valve
ENGLISH

20
"Important: La présente notice d’instructions contient des informations essentielles quant aux
mesures de sécurité a adopter lors de l’installation et de la mise en service. Il est donc impératif
que l’installateur, mais aussi l’utilisateur, lisent attentivement ces instructions avant tout montage
et toute mise en marche."
Pour un rendement optimal de la vanne automatique, il est important de respecter les consignes
ci-après:
Consignes générales de sécurité:
Les symboles signalent un danger éventuel en cas de non respect des consignes
correspondantes.
DANGER. Risque d’électrocution. Le non respect de cette consigne entraîne un risque
d’électrocution.
DANGER. Le non respect de cette consigne implique un risque de dommage corporel ou
matériel.
ATTENTION !. Le non respect de cette consigne comporte un risque d’endommagement de la vanne
automatique ou de l’installation.
CONSIGNES GÉNÉRALES DE SÉCURITÉ
GÉNÉRALITÉS
La vanne mentionnée dans ce manuel a été spécialement conçue pour assurer la circulation de
l’eau dans la piscine pendant les différents cycles de fonctionnement.
Elle est prévue pour fonctionner avec de l’eau propre, à une température ne dépassant pas 35ºC.
Son installation doit s’effectuer conformément aux spécifications particulières de chaque
implantation.
La réglementation en vigueur en matière de prévention des accidents devra être respectée.
Toute modification de l’électronique de la vanne est soumise à autorisation préalable du constructeur.
L’utilisation de pièces de rechange d’origine et d’accessoires agréés par le constructeur sont le gage
d’une sécurité optimale. Le constructeur de la vanne automatique décline toute responsabilité en
cas de dommages liés à l’utilisation de pièces de rechange ou d’accessoires non agréés.
En cours de fonctionnement, les parties électriques et électroniques de la vanne sont sous
tension.
Avant toute intervention portant sur la vanne automatique ou sur des équipements connexes, les
dispositifs de mise en route devront être mis hors tension.
Il appartient à l’utilisateur de s’assurer que les opérations de montage et de maintenance sont
effectuées par un personnel qualifié et agréé ayant lu attentivement, au préalable, la notice
d’installation et de fonctionnement.
La sécurité de fonctionnement de la vanne automatique n’est garantie que si les consignes figurant
dans la notice d’installation et de fonctionnement ont été respectées.
Les valeurs de tension maximales ne devront en aucun cas être dépassées.
En cas de dysfonctionnement ou de panne, s’adresser au distributeur agréé le plus proche ou au
service technique du constructeur.
FRANÇAIS
