Asus Z01GS User manual

User Guide
15060-96230100
E13402
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 1 2017-09-27 10:24:04

Second Edition / September 2017
ASUS Phone (Mobile Phone)
Model: ASUS_Z01GS (ZS551KL)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
Receiver
Front
camera
Proximity
sensor
Touch screen
display
Fingerprint sensor /
Home key
Back
key
Recent apps
key
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 2 2017-09-27 10:24:04

Side features
Power
key
Nano SIM
x1/ micro SD
card slot
Eject
hole Volume
key
Speaker
USB Type-C port
Audio jack
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 3 2017-09-27 10:24:05

Rear features
2X
ZOOM
Flash
Rear camera
NOTES:
• TheNanoSIMcardslotsupportsGSM,
WCDMA,FDD-LTE,andTDD-LTEnetwork
bands.
• ThemicroSDcardslotsupportsmicroSDand
microSDXC card formats.
Laser
focus
NFC detection
area
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 4 2017-09-27 10:24:05

Charging your ASUS Phone
To charge your ASUS Phone:
1. ConnecttheUSBconnectorintothepower
adapter’s USB port.
2. Connect the other end of the USB cable to your
ASUS Phone.
3. Plugthepoweradapterintoawallsocket.
NOTES:
• Forsafetypurposes,useONLYthepower
adapterandcablethatcamewithyourdevice.
Usingadifferentpoweradapterandcable
may damage your device and may cause
personal injuries.
• Forsafetypurposes,useONLYthepower
adapterandcablethatcamewithyourdevice
to charge your ASUS Phone.
• Theinputvoltagerangebetweenthewall
outlet and this adapter is AC 100V - 240V.
TheoutputvoltageoftheUSBcableis+9V
2A, 18W.
IMPORTANT!
• WhenusingyourASUSPhonewhileitis
pluggedtoapoweroutlet,thegrounded
poweroutletmustbeneartotheunitand
easily accessible.
• WhenchargingyourASUSPhonethrough
your computer, ensure that you plug the USB
cable to your computer’s USB port.
• AvoidchargingyourASUSPhoneinan
environmentwithambienttemperatureof
above 35oC(95oF).
2
3
1
Rear features
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 5 2017-09-27 10:24:05

Installing a Nano SIM/ microSD
card
To install a Nano SIM/ microSD card:
3. Push the tray
to close it.
1. Push the bundled eject pin into the hole on the
card slot to eject the tray out.
2. InserttheNanoSIMormicroSDcardintothe
appropriate slot.
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardNanoSIMcardonyour
ASUSPhone.AtrimmedSIMcardmaynot
properlytintoandmaynotbedetectedby
your ASUS Phone.
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 6 2017-09-27 10:24:05

Peer-to-Peer mode:Transfersphotos,contacts,
orotherdatabetweenyourphoneandanNFC-
enabled smartphone.
BringtheNFCareasofbothsmartphonestogether,
withoutanyspacebetweenthem.
Card Emulation mode: Your phone can be used
likeacontactlesscard.
PlacetheNFCareaofyourphoneontheNFCarea
oftheNFCreader.

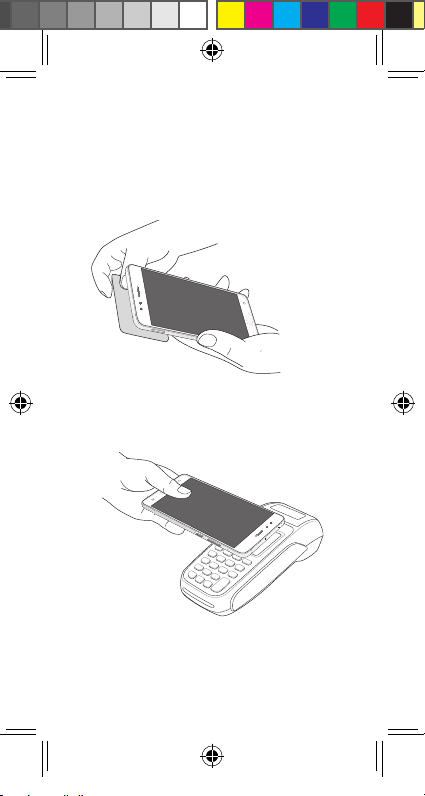

Using NFC
YoucanuseNFCinthefollowingthreescenarios:
Reader mode: Your phone reads information from a
contactlesscard,NFCtag,orotherNFCdevices.
PlacetheNFCareaofyourphoneonthe
contactlesscard,NFCtag,orNFCdevice.
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 7 2017-09-27 10:24:05

Federal Communications
Commission Statement
Thisdevicecomplieswithpart15oftheFCCRules.
Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the
user‘s authority to operate the equipment.
Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimits
are designed to provide reasonable protection
against harmful interference in a residential
installation.Thisequipmentgenerates,uses
and can radiate radio frequency energy and, if
notinstalledandusedinaccordancewiththe
instructions, may cause harmful interference to radio
communications.However,thereisnoguarantee
thatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
theinterferencebyoneormoreofthefollowing
measures:
- Reorientorrelocatethereceivingantenna.
- Increasetheseparationbetweenthe
equipment and receiver.
- Connect the equipment into an outlet on a
circuitdifferentfromthattowhichthereceiver
is connected.
- Consultthedealeroranexperiencedradio/TV
technician for help.
Theantenna(s)usedforthistransmittermustnotbe
co-locatedoroperatedinconjunctionwithanyother
antenna or transmitter.
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 8 2017-09-27 10:24:06

Thecountrycodeselectionisfornon-USmodels
only and is not available to all US models. Per FCC
regulation,allWiFiproductsthataremarketedinUS
mustbexedtoUS-operatedchannelsonly.
RF Exposure Information (SAR)
Thisdevicehasbeentestedandmeetsapplicable
limitsforRadioFrequency(RF)exposure.
SpecicAbsorptionRate(SAR)referstotherateat
whichthebodyabsorbsRFenergy.SARlimitsare
1.6Wattsperkilogram(overavolumecontaining
amassof1gramoftissue)incountriesthatfollow
theUnitedStatesFCClimitand2.0W/kg(averaged
over10gramsoftissue)incountriesthatfollowthe
CounciloftheEuropeanUnionlimit.TestsforSAR
are conducted using standard operating positions
withthedevicetransmittingatitshighestcertied
powerlevelinalltestedfrequencybands.
ToreduceexposuretoRFenergy,useahands-free
accessoryorothersimilaroptiontokeepthisdevice
awayfromyourheadandbody.Carrythisdevice
atleast15mmawayfromyourbodytoensure
exposurelevelsremainatorbelowtheas-tested
levels. Choose the belt clips, holsters, or other
similarbody-wornaccessorieswhichdonotcontain
metallic components to support operation in this
manner.CaseswithmetalpartsmaychangetheRF
performance of the device, including its compliance
withRFexposureguidelines,inamannerthat
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
ThehighestFCCSARvaluesforthedeviceareas
follows:
• 1.194W/Kg@1g(Head)
• 0.547W/Kg@1g(Body)
TheFCChasgrantedanEquipmentAuthorization
forthisdevicewithallreportedSARlevelsevaluated
asincompliancewiththeFCCRFexposure
guidelines.SARinformationonthisdeviceisonle
withtheFCCandcanbefoundundertheDisplay
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 9 2017-09-27 10:24:06

Grant section of www.fcc.gov/oet/ea/fccid after
searchingonFCCID:MSQZ01GS.
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In2003,theFCCadoptedrulestomakedigital
wirelesstelephonescompatiblewithhearingaids
andcochlearimplants.Althoughanalogwireless
phonesdonotusuallycauseinterferencewith
hearingaidsorcochlearimplants,digitalwireless
phones sometimes do because of electromagnetic
energyemittedbythephone’santenna,backlight,
orothercomponents.Yourphoneiscompliantwith
FCCHACregulations(ANSIC63.19-2011).While
somewirelessphonesareusednearsomehearing
devices (hearing aids and cochlear implants), users
maydetectabuzzing,humming,orwhiningnoise.
Some hearing devices are more immune than others
to this interference noise and phones also vary
intheamountofinterferencetheygenerate.The
wirelesstelephoneindustryhasdevelopedarating
systemforwirelessphonestoassisthearingdevice
usersinndingphonesthatmaybecompatiblewith
theirhearingdevices.Notallphoneshavebeen
rated. Phones that are rated have the rating on
theirboxoralabellocatedonthebox.Theratings
arenotguarantees.Resultswillvarydepending
ontheuser’shearingdeviceandhearingloss.If
your hearing device happens to be vulnerable to
interference, you may not be able to use a rated
phonesuccessfully.Tryingoutthephonewithyour
hearingdeviceisthebestwaytoevaluateitforyour
personal needs.
Thisphonehasbeentestedandratedforusewith
hearingaidsforsomeofthewirelesstechnologies
thatituses.However,theremaybesomenewer
wirelesstechnologiesusedinthisphonethathave
notbeentestedyetforusewithhearingaids.Itis
important to try the different features of this phone
thoroughly and in different locations, using your
hearing aid or cochlear implant, to determine if you
E13402_ZS551KL_1SIM_UM_Booklet_EU_V2.indd 102017-09-27 10:24:06
