Asus ZB602KL User manual

ZB602KL
User Guide

2
Care and safety
Guidelines
Road safety comes rst. We strongly recommend not to use your device when
driving or operating any type of vehicle.
This device should only be used in environments with ambient temperatures
between 0°C (32°F) and 35°C (95°F).
Turn o your device in restricted areas where the use of mobile devices is prohibited.
Always obey rules and regulations when in restricted areas, such as, in aircraft, movie
theater, in hospitals or near medical equipment, near gas or fuel, construction sites,
blasting sites and other areas.
Use only AC adapters and cables approved by ASUS for use with this device. Refer to
the rating label on the bottom of your device and ensure that your power adapter
complies with this rating.
Do not use damaged power cables, accessories, and other peripherals with your
device.
Keep your device dry. Do not use or expose your device near liquids, rain, or
moisture.
You can put your device through x-ray machines (such as those used in conveyor
belts for airport security), but do not expose the device to magnetic detectors and
wands.
The device screen is made of glass. If the glass gets broken, stop using the device
and do not touch the broken glass parts. Immediately send device for repair to
ASUS-qualied service personnel.
Do not listen at high volume levels for long periods to prevent possible hearing
damage.
Disconnect the AC power before cleaning your device. Use only a clean cellulose
sponge or chamois cloth when cleaning your device screen.
Send device for repair to ASUS-qualied service personnel only.
E14447
June 2018
Revised Edition

3
Proper disposal
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
DO NOT throw the battery in municipal waste. The symbol of the crossed out
wheeled bin indicates that the battery should not be placed in municipal waste.
DO NOT throw this product in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic equipment and mercury-
containing button cell battery) should not be placed in municipal waste. Check local
regulations for disposal of electronic products.
DO NOT throw this product in re. DO NOT short circuit the contacts. DO NOT
disassemble this product.
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)
WARNING
Cancer and Reproductive Harm-
www.P65Warnings.ca.gov
NOTE: The app descriptions shown in this manual are for reference purposes only, and may not
exactly match what you see on your device.
NOTE: For more legal and e-labelling information, check on your device from Settings > System >
About phone > Legal information.

4
1 Basics
Welcome!.................................................................................................................................................. 7
Get your ASUS Phone ready!............................................................................................................. 8
Starting for the rst time ..................................................................................................................15
Using the touchscreen.......................................................................................................................16
2 There’s no place like Home
Zen Home features .....................................................................................................19
Home screen .........................................................................................................................................19
Quick settings .......................................................................................................................................20
Notications ..........................................................................................................................................21
Personalizing your Home screen...............................................................................22
Widgets ..................................................................................................................................................22
Wallpapers .............................................................................................................................................23
Setting up the date and time..........................................................................................................24
Setting up your ringtone and alert sounds................................................................................24
Lock Screen .................................................................................................................25
Customizing your lock screen.........................................................................................................25
Fingerprint ID sensor..................................................................................................26
Starting your ASUS phone for the rst time ..............................................................................26
Setting up ngerprint ID from Settings ......................................................................................27
Face Unlock .................................................................................................................28
Setting up face unlock from Settings...........................................................................................28
3 Work hard, play harder
Chrome ........................................................................................................................31
Launching Chrome .............................................................................................................................31
Sharing pages.......................................................................................................................................32
Bookmarking pages ...........................................................................................................................32
Clearing the browsing data .............................................................................................................32
Gmail............................................................................................................................33
Google Calendar .........................................................................................................34
Creating events ....................................................................................................................................34
Editing or removing events .............................................................................................................34
Creating reminders.............................................................................................................................35
Editing or removing reminders ......................................................................................................35
4 Keeping in touch
Call in style ..................................................................................................................36
Dual SIM feature...................................................................................................................................36
Making calls...........................................................................................................................................38
Calling your favorite contacts .........................................................................................................40
Receiving calls ......................................................................................................................................40
Other call options................................................................................................................................41
Managing multiple calls....................................................................................................................41
Contents

5
Managing contacts .....................................................................................................42
Contacts Settings ................................................................................................................................42
Setting up your prole ......................................................................................................................42
Adding contacts...................................................................................................................................43
Marking your favorite contacts ......................................................................................................44
Social networking with your contacts .........................................................................................45
Send messages and more ..........................................................................................46
Messages ................................................................................................................................................46
5 Fun and entertainment
Using a headset...........................................................................................................47
Connecting the audio jack...............................................................................................................47
Google Play Music ......................................................................................................48
6 Your precious moments
Capture moments .......................................................................................................49
Launching the Camera app .............................................................................................................49
Using the Photos.........................................................................................................51
Viewing the photo location.............................................................................................................51
Sharing les from the Photos..........................................................................................................51
Deleting les from the Photos........................................................................................................51
Editing images......................................................................................................................................52
7 Staying connected
Mobile network...........................................................................................................53
Enabling the mobile network .........................................................................................................53
Wi-Fi .............................................................................................................................53
Enabling Wi-Fi .......................................................................................................................................53
Connecting to a Wi-Fi network.......................................................................................................54
Disabling Wi-Fi......................................................................................................................................54
Bluetooth®...................................................................................................................54
Enabling Bluetooth®...........................................................................................................................54
Pairing your ASUS Phone to a Bluetooth® device....................................................................55
Unpairing your ASUS Phone from the Bluetooth® device....................................................55
Tethering .....................................................................................................................56
Wi-Fi Hotspot .........................................................................................................................................56
Bluetooth Tethering............................................................................................................................57
8 Travel and Maps
Clock ............................................................................................................................58
Clock.........................................................................................................................................................58
Alarm clock ............................................................................................................................................59
Stopwatch ..............................................................................................................................................59
Timer ........................................................................................................................................................60

6
9 Zen Everywhere
Special Zen Tools.........................................................................................................61
Calculator ...............................................................................................................................................61
Sound Recorder ...................................................................................................................................62
10 Maintain your Zen
Keeping your device up-to-date................................................................................64
Updating your system .......................................................................................................................64
Storage....................................................................................................................................................64
Backup.....................................................................................................................................................64
Reset.........................................................................................................................................................64
Securing your ASUS Phone..............................................................................................................65
Appendix
Safety information......................................................................................................68
Notices .........................................................................................................................70
Index

7
Chapter 1: Basics
Basics 1
1 Basics
Welcome!
Explore the intuitive simplicity of ASUS ZenUI!
ASUS ZenUI is a charming and intuitive interface exclusively for ASUS Phones. It provides you with
special apps, which are integrated in or with other apps, to t your unique individual needs and
make your life easier while letting you have fun with your ASUS Phone.
Camera
With PixelMaster technology, capture those precious moments in vivid and high-quality
photos and videos.
Messages
Messages, an intuitive and delightful app, lets you send/receive SMS/MMS messages,
as well as send group texts, photos, or audio messages. You can add emojis or stickers
to your messages, share your location, archive your messages, and easily block SMS
senders. You can also take photos or record videos and easily share these les.
NOTE: Availability of ASUS ZenUI apps vary per region and ASUS Phone model. Swipe up from the
lower part of your Home screen to check the apps available on your ASUS Phone.

8 Chapter 1: Basics
Get your ASUS Phone ready!

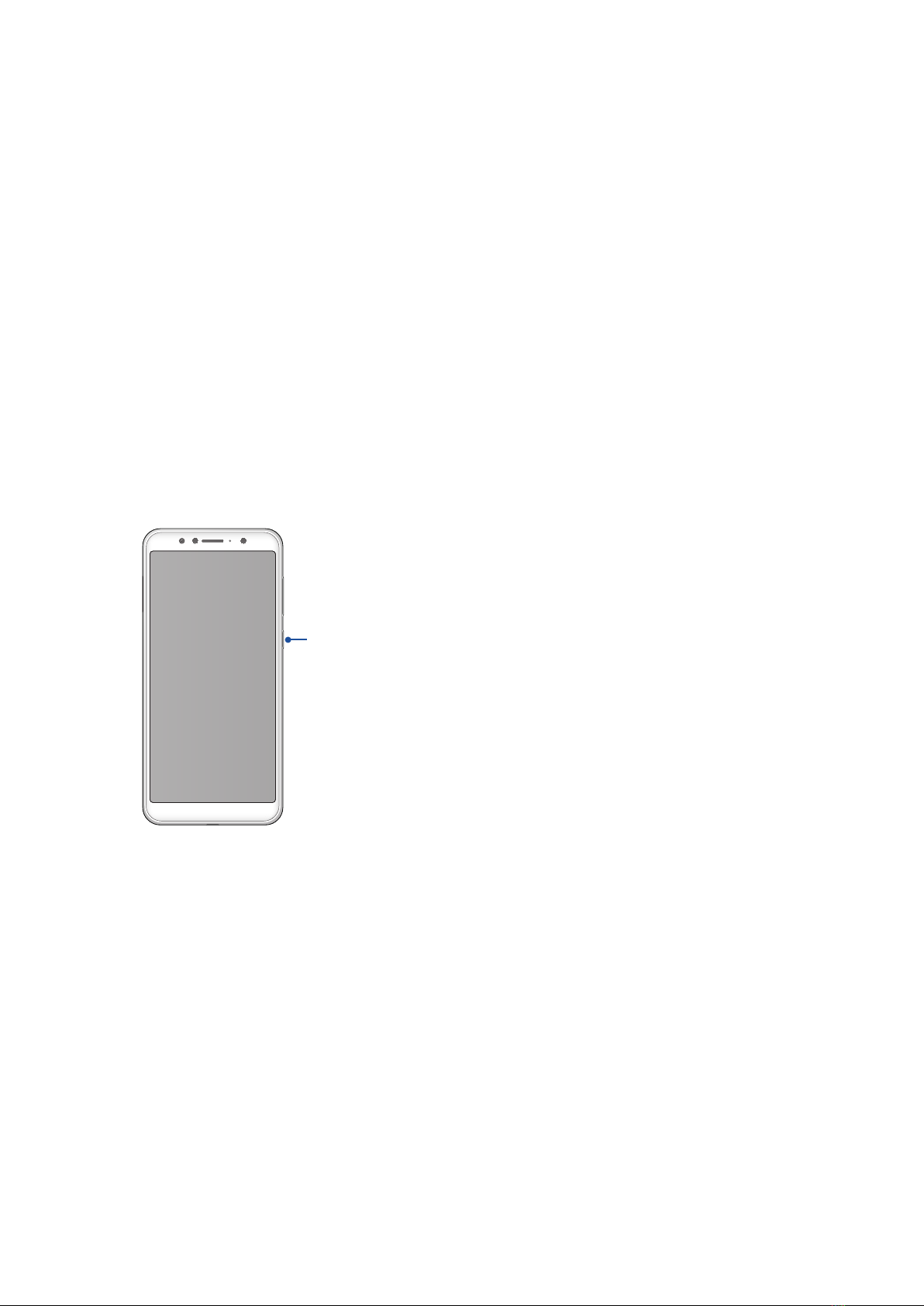

Parts and features
Take a hold of your device and have it running in a jiy.
WARNING!
• Toavoidnetworkconnectionandbatteryissues:
 • DONOTplaceametallicstickerontheantennaarea.
 • DONOTuseametallicprotectiveframe/caseonyourASUSPhone.
 • DONOTcovertheantennaareawithyourhandsorotherobjectswhileusingsomefunctionssuch
as making calls or using the mobile data connection.
• WerecommendthatyouuseASUS-compatiblescreenprotectors.Usingnon-ASUS-compatible
screen protectors may cause your ASUS Phone's sensor to malfunction.
NOTE: The microSD card slot supports microSD and microSDXC card formats.
IMPORTANT!
• Wedonotrecommendusingascreenprotectorasitcaninterferewiththeproximitysensor.Ifyou
want to use a screen protector, ensure that it does not block the proximity sensor.
• Keepthedevice,particularlythetouchscreen,dryallthetime.Waterorotherliquidscancausethe
touch screen to malfunction.
Micro USB port
Speaker
LED indicator
Touch screen
display
Front camera
Receiver
Proximity sensor
and light sensor
Audio jack
Microphone
Microphone
Flash
Nano SIM 1, Nano
SIM 2, microSD
card slot
Power key
Volume key
Camera ash
Rear cameras
Fingerprint sensor
NFC detection areas

9
Chapter 1: Basics
Installing a nano SIM card / memory card
Both nano SIM card slots support GSM, WCDMA, FDD-LTE, and TDD-LTE bands.
NOTE: To prevent connector damage, ensure to use a standard nano SIM card without a SIM adapter or
the use of a cutter.
Your ASUS Phone supports a microSD and microSDXC memory card with up to 2 TB capacity.
NOTES:
• SomememorycardsmaynotbecompatiblewithyourASUSPhone.Ensurethatyouuseonlycompatible
memory cards to prevent loss of data, damage to your device, or memory card, or both.
• ThemicroSDcardissoldseparately.
CAUTION! Be extra careful when handling a nano SIM card / memory card. ASUS is not responsible for
any data loss or damage incurred to your nano SIM cards / memory card.
To install a Nano SIM card / memory card:
1. Push the bundled eject pin into the hole on the card slot to eject the tray out.
CAUTION!
• Becarefulnottodamagethecardslotcoverorinjureyourngernailswhenyouremovethecover.
• Donotforciblyremove,shear,ordistortthecard slot cover.
• Donotusesharptoolsorsolventonyourdevicetoavoidscratchesonit.
2. Insert the Nano SIM or microSD card into the appropriate slot.
3. Gently push the tray back in until it’s securely closed.
IMPORTANT! When two SIM cards are inserted, only one SIM card slot supports 4G/3G/2G service. The
other SIM card slot only supports 2G/3G service.

10 Chapter 1: Basics
Removing a nano SIM /memory card
CAUTION!
• BeextracarefulwhenhandlingananoSIMcard/memorycard.ASUSisnotresponsibleforanydata
loss or damage incurred to your nano SIM cards / memory card.
• Ejectthememorycardproperlytosafelyremoveitfromdevice.Toejectthememorycard,swipe
down from the top of your screen and tap > Storage, then under Portable storage, tap
beside SD card.
To remove a nano SIM card / memory card:
1. Push the bundled eject pin into the hole on the card slot to eject the tray out.
CAUTION!
• Becarefulnottodamagethecardslotcoverorinjureyourngernailswhenyouremovethecover.
• Donotforciblyremove,shear,ordistortthecard slot cover.
• Donotusesharptoolsorsolventonyourdevicetoavoidscratchesonit.
2. Remove the nano SIM or microSD card from the card slot.
3. Gently push the tray back in until it’s securely closed.
