Asus Prime AP201 User manual

E19759_ASUS_Prime_AP201_UM.indd 1E19759_ASUS_Prime_AP201_UM.indd 1 3/15/2022 4:42:47 PM3/15/2022 4:42:47 PM

Q19759
First Edition
2022 March
Copyright © 2022 ASUSTeK Computer Inc.
All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the express written permission of
ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such
repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is
defaced or missing.
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR
AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING
DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS
AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE
ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the owners’
benefit, without intent to infringe.
E19759_ASUS_Prime_AP201_UM.indd 2E19759_ASUS_Prime_AP201_UM.indd 2 3/15/2022 4:42:47 PM3/15/2022 4:42:47 PM

1
Accessory Kit Contents 2
Installation Guide 3
Remove the Side Panels ............................................................................................................... 4
Install the Power Supply Unit (PSU) ......................................................................................... 6
Install the Cooler & RAM on the Motherboard .................................................................... 10
Install the I/O Shield ...................................................................................................................... 11
Install the Motherboard Unit ..................................................................................................... 12
Attach the Front I/O Connectors .............................................................................................. 13
Install the PCI-E Card ..................................................................................................................... 14
Install the 2.5” Drives ..................................................................................................................... 15
Install the 3.5” / 2.5” Drives .......................................................................................................... 17
Installation and Maintenance of the Dust Filters ................................................................ 19
Additional Information 20
CPU Cooler Height Limitation ................................................................................................... 21
Graphics Card Limitation ............................................................................................................. 22
Fan Setup Compatibility .............................................................................................................. 23
Water-cooling Radiator Options ............................................................................................... 24
Safety Information 25
Contents
E19759_ASUS_Prime_AP201_UM.indd 1E19759_ASUS_Prime_AP201_UM.indd 1 3/15/2022 4:42:47 PM3/15/2022 4:42:47 PM

2

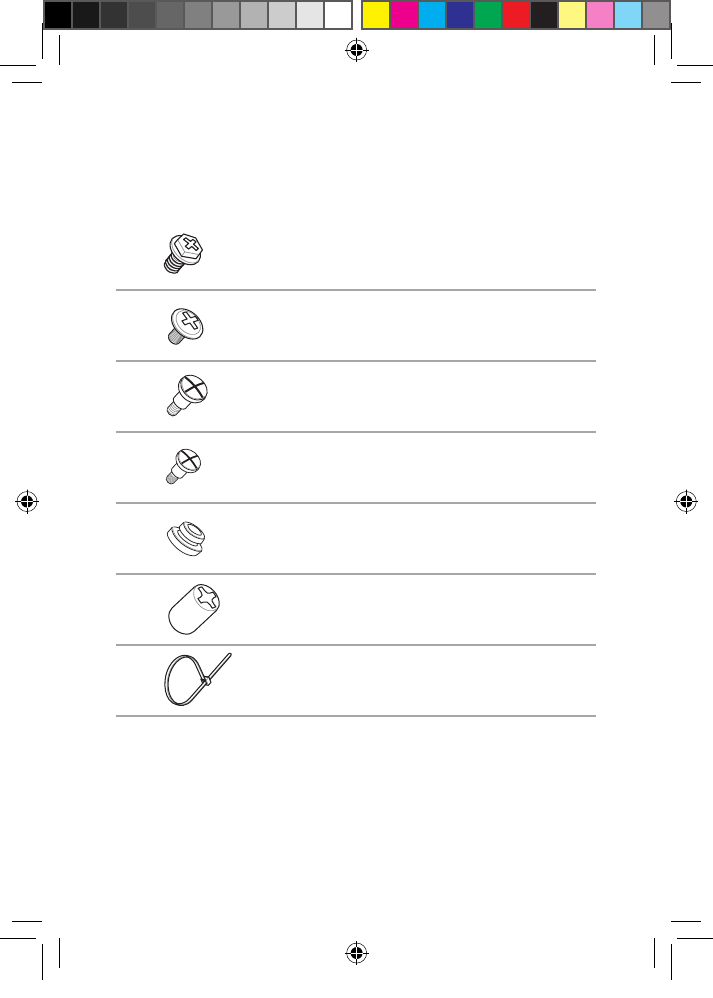

Accessory Kit Contents
A
PSU x4
B
Motherboard / 2.5” Drive Screws x12
C
3.5” Drive Screws x12
D
2.5” Drive Screws x12
E
Rubber Washers x12
F
Standoff Tool x1
G
Cable Ties x8
配備零組件內容物 | 配备组件内容物 | Obsah sady příslušenství | Contenu du kit d’accessoires | Verpackungsinhalt des
Zubehörsatzes | Accessori contenuti nel kit | アクセサリキットの内容| 액세서리 키트 내용물 | Zawartość zestawu
akcesoriów | Conteúdo do kit de acessórios | Содержимое комплекта | Contenido del kit de accesorios | Tillbehörssatsens
innehåll | Aksesuar Kitinin İçindekiler | 
E19759_ASUS_Prime_AP201_UM.indd 2E19759_ASUS_Prime_AP201_UM.indd 2 3/15/2022 4:42:47 PM3/15/2022 4:42:47 PM

Installation Guide
安裝指南 | 安装指南 | Instalační příručka | Guide d’installation | Installationsanleitung | Guida all’installazione | 組み立てガイド| 설치 설명서 | Instrukcja instalacji | Manual de instalação | Руководство по установке | Guía de instalación |
Installationsguide | Kurulum Kılavuzu | 
E19759_ASUS_Prime_AP201_UM.indd 3E19759_ASUS_Prime_AP201_UM.indd 3 3/15/2022 4:42:47 PM3/15/2022 4:42:47 PM

4

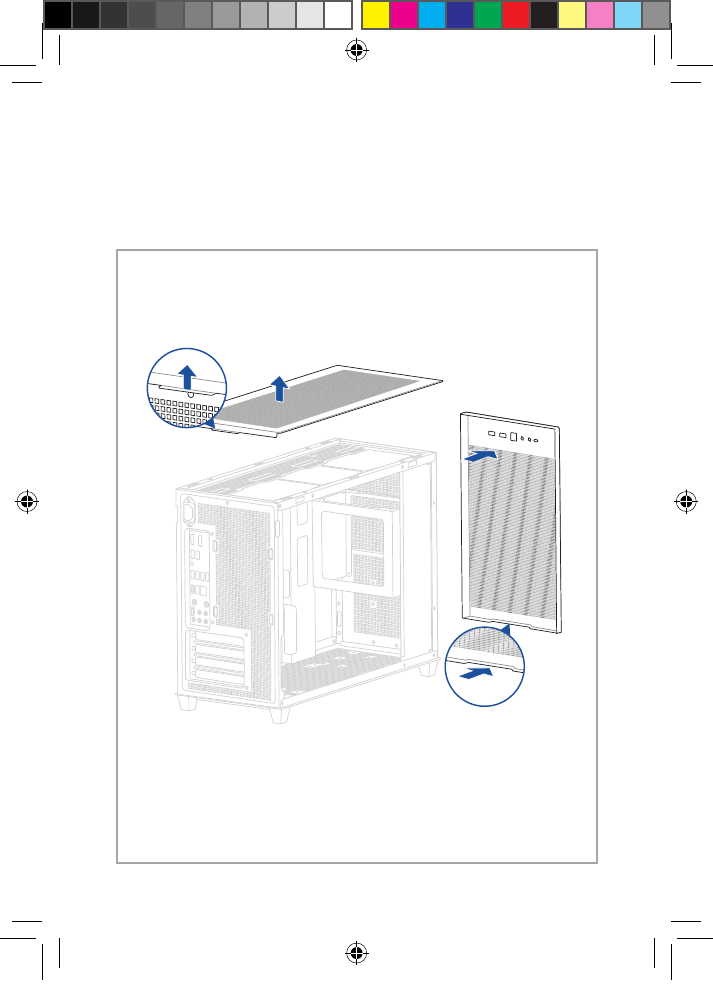

Remove the Side Panels
移除側面板 | 移除侧面板 | Sejměte boční panely | Retirer les panneaux latéraux | Entfernen der Seitenwände | Rimuovete
i pannelli laterali | サイドパネルを取り外す| 측면 패널 제거 | Zdejmij panele boczne | Remover os painéis laterais |
Снимите боковые панели | Quite los paneles laterales |Ta bort sidopanelerna | Yan Panelleri Çıkarın |

E19759_ASUS_Prime_AP201_UM.indd 4E19759_ASUS_Prime_AP201_UM.indd 4 3/15/2022 4:42:50 PM3/15/2022 4:42:50 PM

5
E19759_ASUS_Prime_AP201_UM.indd 5E19759_ASUS_Prime_AP201_UM.indd 5 3/15/2022 4:42:53 PM3/15/2022 4:42:53 PM

6

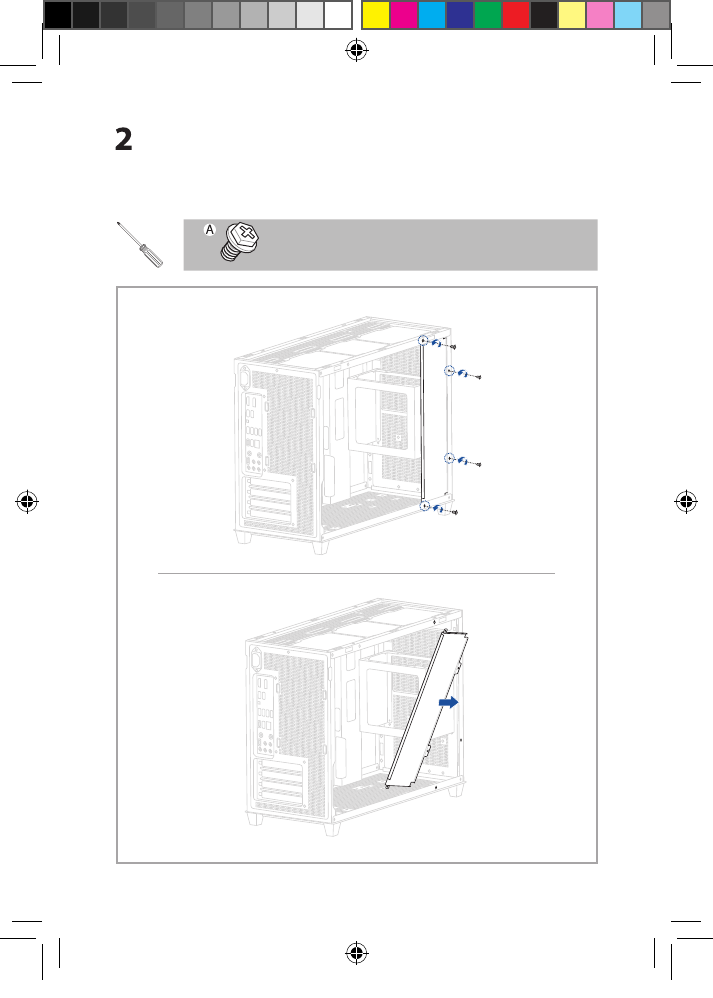

Install the Power Supply Unit (PSU)
x4
安裝電源供應器 | 安装电源供应器 | Nainstalujte zdroj napájení (PSU) | Installer le bloc d’alimentation | Installation des
Netzteils | Installate l’alimentatore (PSU) | 電源装置を取り付ける| 전원 공급장치(PSU) 설치 | Zainstaluj zasilacz (PSU) |
Instalar a fonte de alimentação (PSU) | Установите блок питания | Instalar la fuente de alimentación (PSU) | Sätt i
strömförsörjningsenheten (PSU) | Güç Kaynağı Ünitesini (PSU) Takın | (PSU) 
1
2
E19759_ASUS_Prime_AP201_UM.indd 6E19759_ASUS_Prime_AP201_UM.indd 6 3/15/2022 4:42:54 PM3/15/2022 4:42:54 PM

7
3
4
E19759_ASUS_Prime_AP201_UM.indd 7E19759_ASUS_Prime_AP201_UM.indd 7 3/15/2022 4:42:54 PM3/15/2022 4:42:54 PM

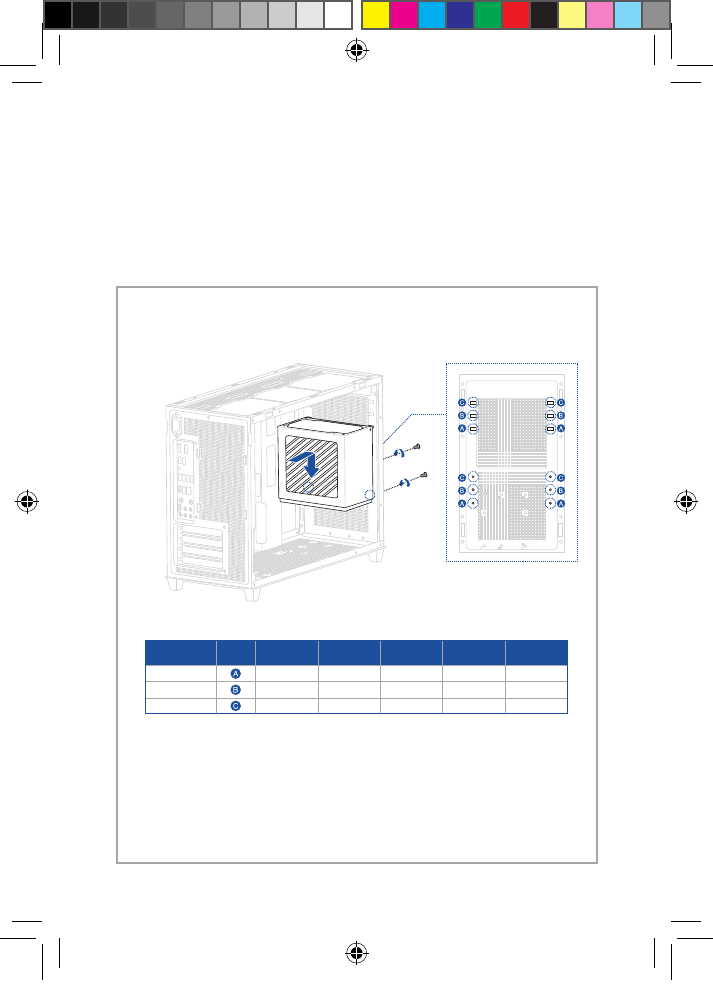

8
5
Scenario PSU
mount
Optimized
PSU length
3.5” HDD 2.5” SSD Top 360 AIO Top 120mm
fan
Liquid Cooling 170mm   3 pcs
Neutral 170mm 3 pcs
Full Storage 160mm   2 pcs
• Liquid-cooling: Supports a 360mm AIO CPU cooler on the top and ensures full thermal performance.
• Neutral: Supports one 2.5” storage drice and enough space for PSU cable management.
• Full storage: Supports either one 3.5”or 2.5” storage device on the front panel.
E19759_ASUS_Prime_AP201_UM.indd 8E19759_ASUS_Prime_AP201_UM.indd 8 3/15/2022 4:42:55 PM3/15/2022 4:42:55 PM

9
6
7
E19759_ASUS_Prime_AP201_UM.indd 9E19759_ASUS_Prime_AP201_UM.indd 9 3/15/2022 4:42:56 PM3/15/2022 4:42:56 PM

10

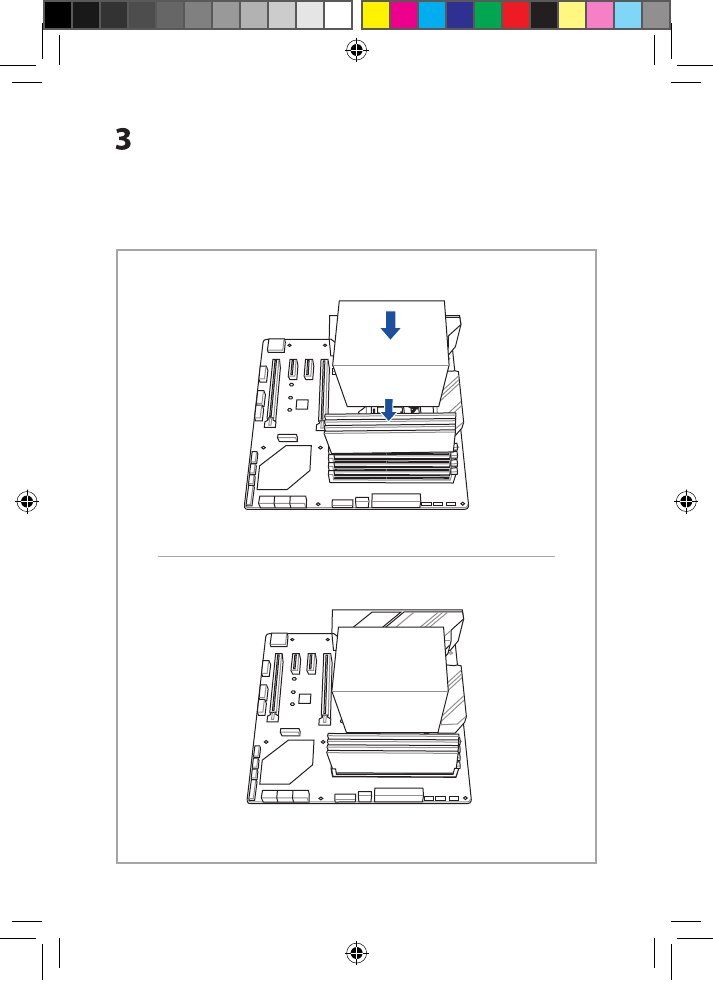

Install the Cooler & RAM on the Motherboard
安裝主機板散熱器和記憶體 | 安装主板散热器和内存卡 | Nainstalujte chladič a paměť RAM na základní desku | Installer le
refroidisseur et la mémoire RAM sur la carte mère | Installation des Kühlers und der RAM-Module auf das Motherboard |
Installate dissipatore e RAM sulla scheda madre | CPU、クーラー、メモリーをマザーボードに取り付ける| 메인보드에 쿨러
및 RAM 설치 | Zainstaluj element chłodzący i pamięć RAM na płycie głównej | Instalar o dissipador e memória RAM na
placa principal | Установите на материнскую плату кулер и память | Instalar el refrigerador y la memoria RAM en la placa
base | Montera kylare och RAM på moderkortet | Soğutucu ve RAM’i Anakarta Takın |  RAM
1
2
E19759_ASUS_Prime_AP201_UM.indd 10E19759_ASUS_Prime_AP201_UM.indd 10 3/15/2022 4:42:56 PM3/15/2022 4:42:56 PM

11

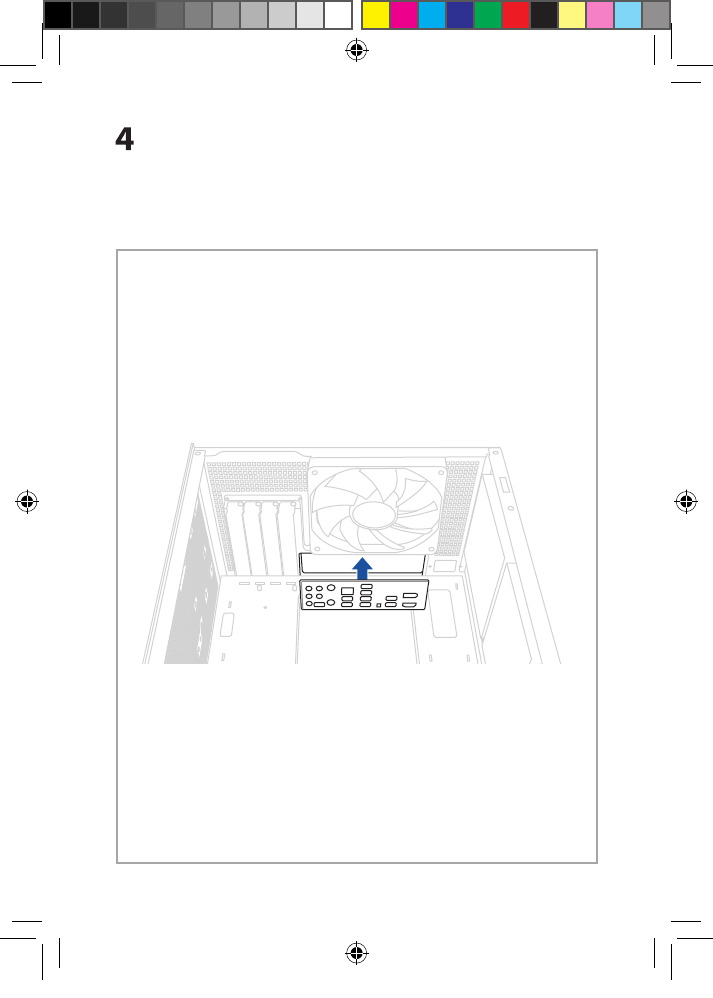

Install the I/O Shield
安裝 I/O 擋板 | 安装 I/O 挡板 | Nainstalujte I/O štít | Installer le cache d’E/S | Installation der E/A-Blende | Installate la
mascherina I/O | I/Oシールドを取り付ける| I/O 쉴드 설치 | Zainstaluj osłonę portów We/Wy | Instalar a tampa de E/S |
Установите заглушку разъемов ввода-вывода | Instalar la protección de ES/ | Installera I/O-skölden | G/Ç Koruyucuyu
Takın |  
E19759_ASUS_Prime_AP201_UM.indd 11E19759_ASUS_Prime_AP201_UM.indd 11 3/15/2022 4:42:56 PM3/15/2022 4:42:56 PM

12

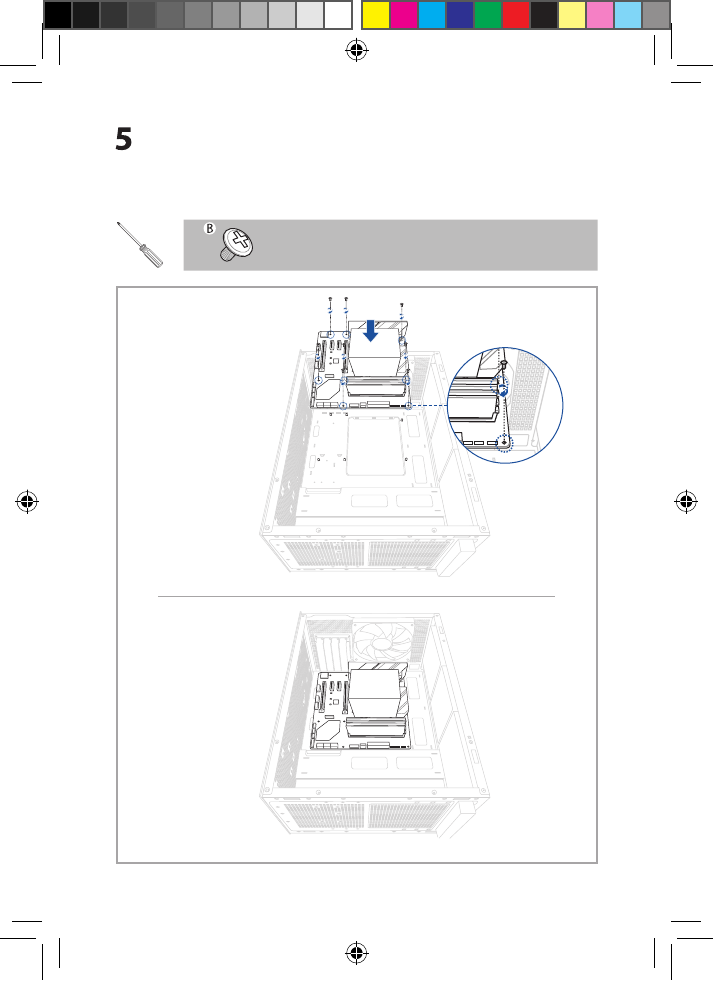

Install the Motherboard Unit
x8
將主機板裝入機殼 | 将主板装入机箱 | Nainstalujte základní desku | Installer la carte mère | Installation der
Motherboard-Baugruppe | Installate la scheda madre | マザーボードを取り付ける| 메인보드 유닛 설치 | Zainstaluj płytę
główną | Instalar a placa principal | Установите материнскую плату | Instalar la unidad de la placa base | Installera
moderkortsenheten | Anakart Ünitesini Takın |  
1
2
E19759_ASUS_Prime_AP201_UM.indd 12E19759_ASUS_Prime_AP201_UM.indd 12 3/15/2022 4:42:57 PM3/15/2022 4:42:57 PM

13

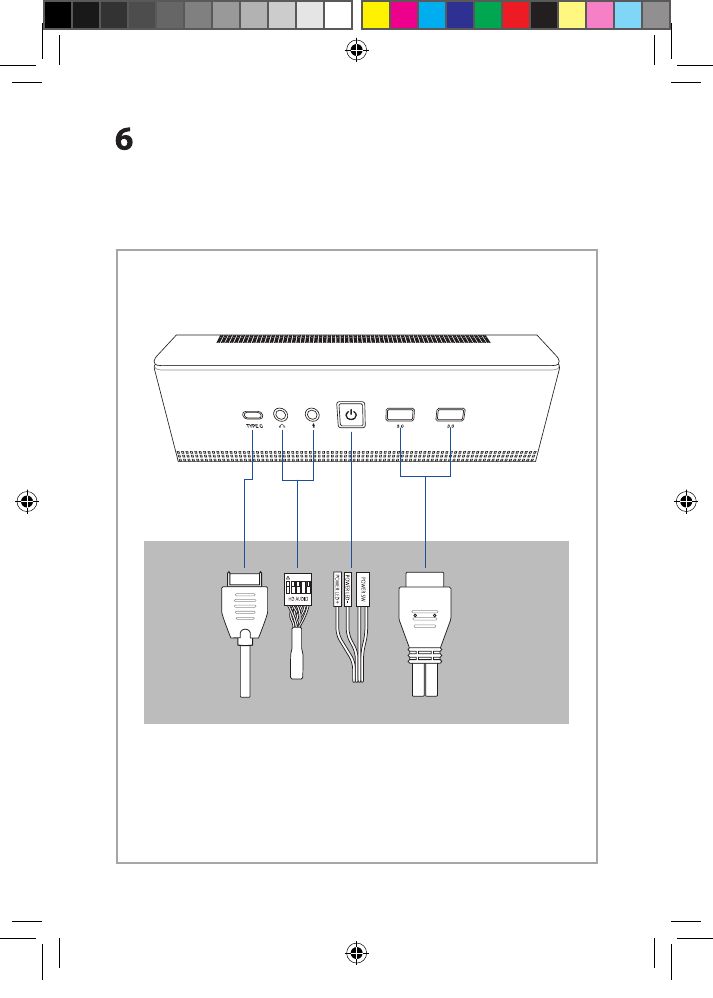

Attach the Front I/O Connectors
連接前面板 I/O 插孔 | 连接前面板 I/O 插孔 | Připojte přední I/O konektory | Fixer les connecteurs d’E/S avants | Befestigen
der vorderen E/A-Anschlüsse | Collegate i connettori di I/O frontali | フロントI/Oコネクターを取り付ける| 전면 I/O
커넥터 연결 | Zamocuj przednie złącza We/Wy | Encaixar os conectores de E/S frontais | Подключите разъемы для
передней панели | Acoplar los conectores de E/S frontales | Anslut de främre I/O-kontakterna | Ön G/Ç Konektörlerini
Takın |  
E19759_ASUS_Prime_AP201_UM.indd 13E19759_ASUS_Prime_AP201_UM.indd 13 3/15/2022 4:42:57 PM3/15/2022 4:42:57 PM

14
Install the PCI-E Card
安裝 PCI-E 卡 | 安裝 PCI-E 卡 | Nainstalujte PCI-E kartu | Installer la carte PCI-E | Installation der PCI-E-Karte | Installate la
scheda PCI-E | 拡張カードを取り付ける| PCI-E 카드 설치 | Zainstaluj kartę PCI-E | Instalar a placa PCI-E | Установите карту
PCI-E | Instalar la tarjeta PCI-E | Installera PCI-E-kortet | PCI-E Kartını Takın | PCI-E 
1
2
E19759_ASUS_Prime_AP201_UM.indd 14E19759_ASUS_Prime_AP201_UM.indd 14 3/15/2022 4:42:58 PM3/15/2022 4:42:58 PM

15

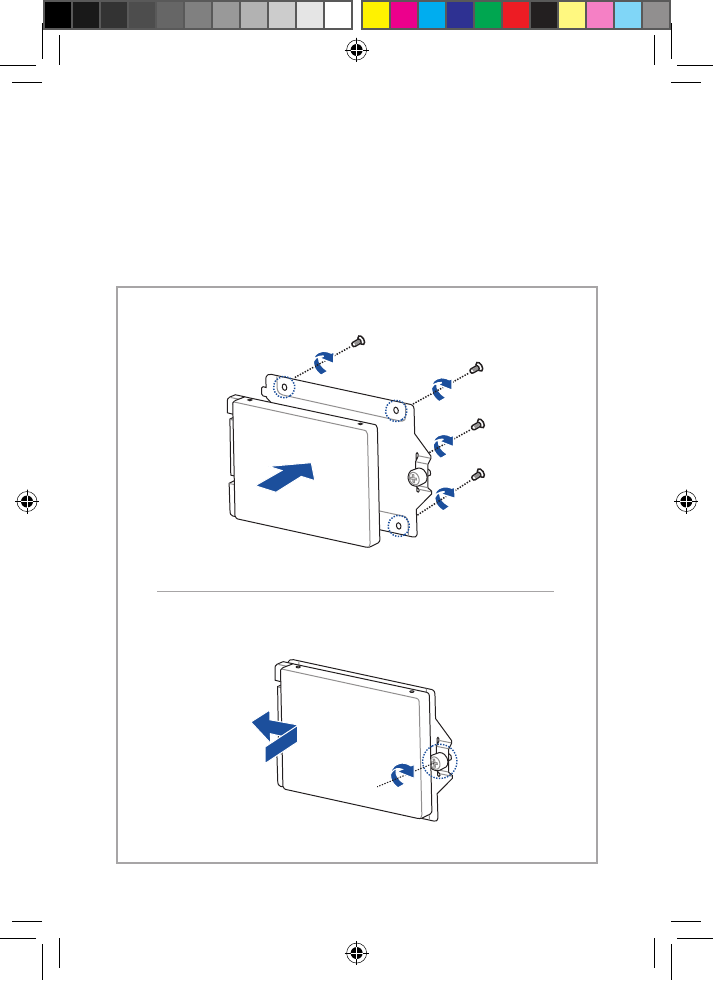

Install the 2.5” Drives
x4
安裝2.5 吋硬碟或固態硬碟 | 安裝 2.5 英寸硬盘或固态硬盘 | Nainstalujte 2,5”jednotky | Installer les lecteurs 2.5” |
Installation der 2,5-Zoll-Laufwerke | Installate i drive 2.5”| 2.5イン チ ドラ イブを 取り付 ける| 2.5” 드라이브 설치 |
Zainstaluj napędy 2,5”| Instalar as unidades de 2,5” | Установите 2,5-дюймовые диски | Instalar las unidades de 2,5”|
Installera 2,5”-enheterna | 2,5” Sürücüleri Takın | 2.5 
1
E19759_ASUS_Prime_AP201_UM.indd 15E19759_ASUS_Prime_AP201_UM.indd 15 3/15/2022 4:42:58 PM3/15/2022 4:42:58 PM

16
2
3
E19759_ASUS_Prime_AP201_UM.indd 16E19759_ASUS_Prime_AP201_UM.indd 16 3/15/2022 4:42:58 PM3/15/2022 4:42:58 PM

17
Install the 3.5” / 2.5” Drives
x12 x12 x12
安裝 3.5 / 2.5 吋硬碟 | 安裝 3.5 / 2.5 英寸硬盘 | Nainstalujte 3,5”/2,5”jednotky | Installer les lecteurs 3.5”/2.5” | Installation
der 3,5-Zoll-/2,5-Zoll-Laufwerke | Installate i drive 3.5”/2.5”| 3.5インチ/2.5イン チ ドライブ を取り付 ける | 3.5”/2.5” 드라이브
설치 | Zainstaluj napędy 3,5”/2,5”| Instalar as unidades de 3,5”/2,5” | Установите 3,5/2,5-дюймовые диски | Instalar las
unidades de 3,5”/2,5”| Installera 3,5”/2,5”-enheterna | 3,5”/2,5” SürücüleriTakın | 2.5/3.5 
3.5”
NOTE: When installing
the storage device
to the front of the
chassis, ensure to take
the PSU length into
consideration and
make sure that the
storage device does not
interfere with the PSU.
H: 3.5”HDD
S: 2.5”SSD
H: 3.5”HDD
S: 2.5”SSD
E19759_ASUS_Prime_AP201_UM.indd 17E19759_ASUS_Prime_AP201_UM.indd 17 3/15/2022 4:42:59 PM3/15/2022 4:42:59 PM

18
2.5”
NOTE: When installing
the storage device
to the front of the
chassis, ensure to take
the PSU length into
consideration and
make sure that the
storage device does not
interfere with the PSU.
H: 3.5”HDD
S: 2.5”SSD
H: 3.5”HDD
S: 2.5”SSD
E19759_ASUS_Prime_AP201_UM.indd 18E19759_ASUS_Prime_AP201_UM.indd 18 3/15/2022 4:43:00 PM3/15/2022 4:43:00 PM
