ATEN VM7804 User manual

VM7804 / VM8804
4-Port HDMI Input/Output Board Quick Start Guide
Hardware Review
VM7804 Front View
1. HDMI Input Ports
2. Audio Input Ports
3. Status LED
VM8804 Front View
1. HDMI Output Ports
2. Audio Output Ports
3. Status LED
Hardware Setup
I/O Board Installation
1. (Optional) Power off the Modular Matrix switch.
Note: The Input/Output Boards are hot swappable.
2. On the rear of the VM1600 unscrew the two phillips head screws and
remove a back panel cover.
3. Slide the I/O board into the open slot on the VM1600 until it secures
in place.
Note: The upper four slots are for input boards; the lower four slots
are for output boards.
4. Tighten the screws on the I/O board to fasten it to the Modular Matrix
switch, until its secure.
5. Repeat the steps if you are installing more I/O boards.
6. Power on the Modular Matrix switch.
VM7804 Front View VM8804 Front View
1
23
1
23

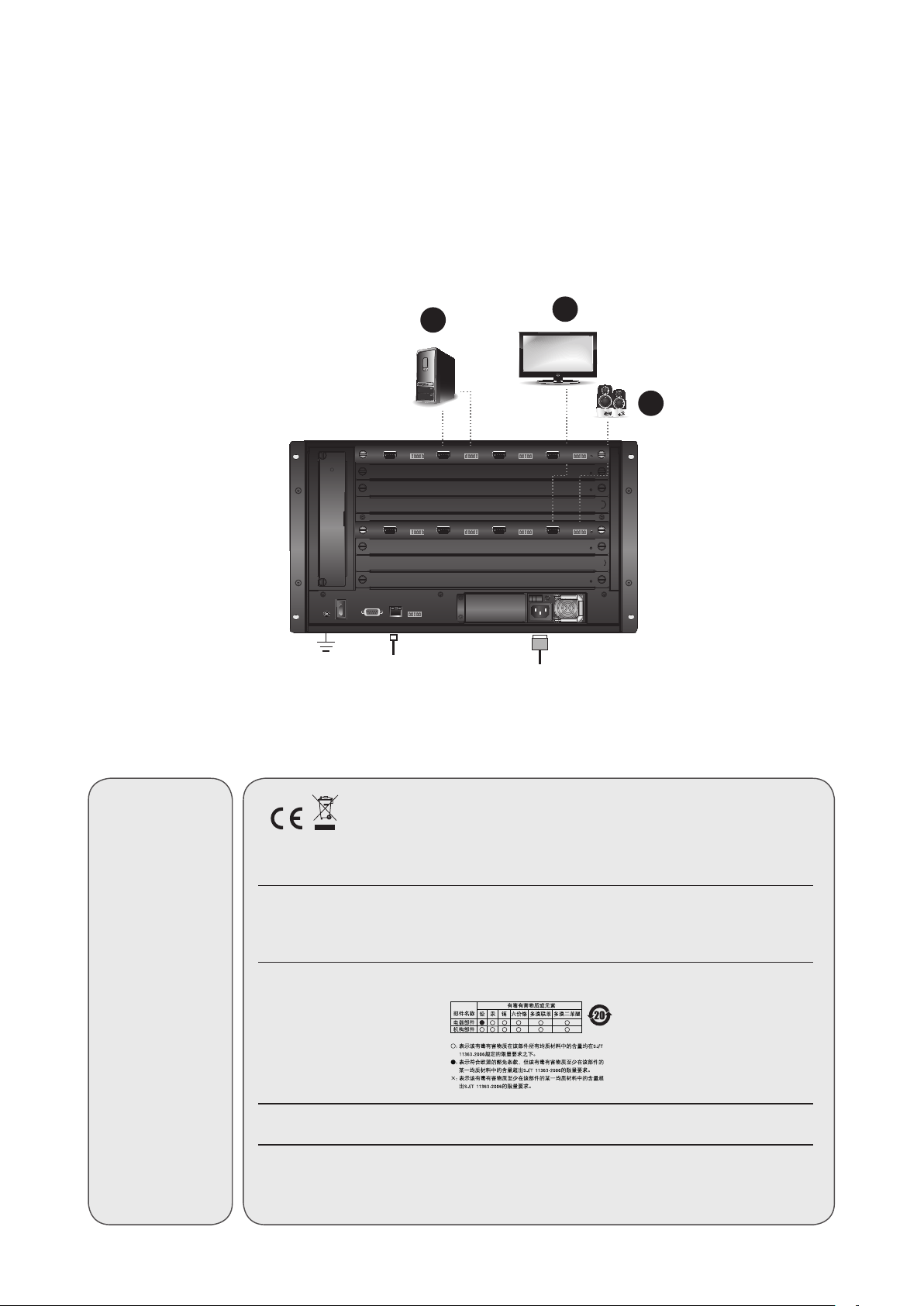

Installation
1. Connect your A/V input source device to the HDMI / audio input port of the VM7804.
2. Connect your video display device to the HDMI output port of the VM8804.
3. Connect your speakers / audio output device to the Audio output port of the VM8804.
4. Power on the VM1600 and all devices in the installation.
2
3
1
The following contains information that relates to China:
Online Registration
http://eservice.aten.com
Technical Phone
Support
International:
886-2-86926959
North America:
1-888-999-ATEN
Ext: 4988
United Kingdom:
44-8-4481-58923
All information, documentation, firmware, software utilities, and specifications contained in this package are subject to change without
prior notification by the manufacturer. Please visit our website http://www.aten.com/download/?cid=dds for the most up-to-date versions.
Important Notice
Considering environmental protection, ATEN does not provide a fully printed user manual for this product. If the information
contained in the Quick Start Guide is not enough for you to configure and operate your product, please visit our website www.
aten.com, and download the full user manual.
