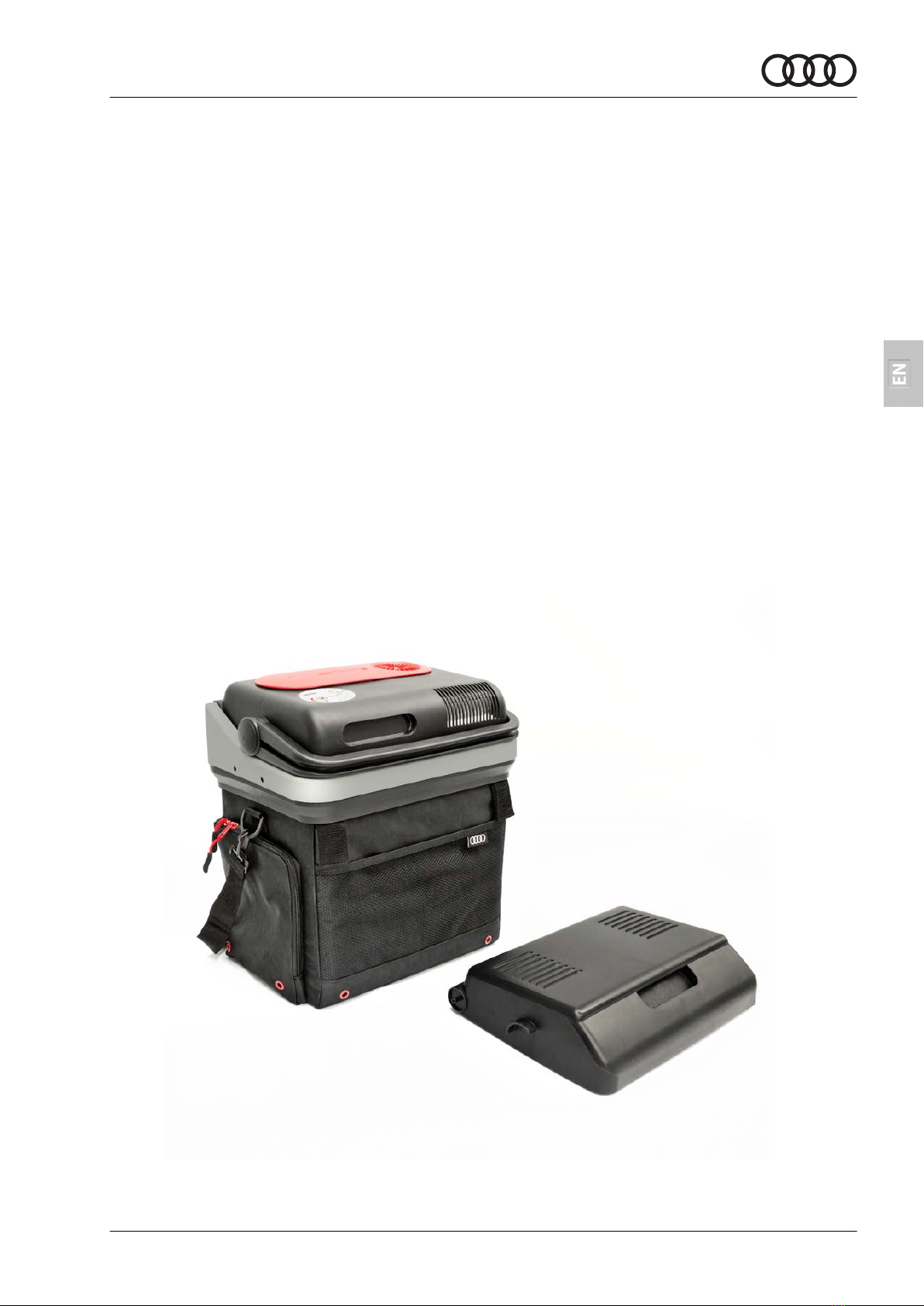

Audi 4M8.065.402 User manual

Installation instructions
Cool box with cooling unit
Scope of delivery 4M8.065.402
Instructions for the cool box with 12-V thermo-
electric cooling unit
Edition 01
Service
Service Department. Technical Information

Contents
1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1 Safety information concerning operation of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Overview of the cooling unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 General technical data and energy-saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.1 General technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.2 Energy-saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.1 Using the cool box with the 12-V cooling unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.1.1 Replacing the fuse in the 12-V plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.1.2 Using the shoulder strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.1.3 Replacing the cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Cleaning and maintenance, warranty, troubleshooting and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.1 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.2 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service
All rights reserved.
No reproduction without prior agreement from publisher.
Copyright © 2017 Audi AG, Ingolstadt Printed in Germany

1 General notes
This document refers solely to the cool box with cooling unit!
Please read and note the WARNING, caution and note descriptions before operating the cool box
with cooling unit!
DANGER!
Text with this symbol contains information concerning risks to life and limb.
WARNING
Text with this symbol contains information concerning your safety and indicates potential acci-
dent and injury risks.
Caution
Text with this symbol indicates the risk of damage to your vehicle.
Note
Text with this symbol contains additional information.
AUDI AG accepts no responsibility for personal injury, property damage or secondary damage
caused by failure to comply with these installation instructions.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
1 General notes 1

2 Safety notes
DANGER!
If there are any visible signs of damage to the cool box or electrical system, it should not be put
into operation.
Do not store any explosive substances in the device, such as spray cans with propellants.
The cooling unit is not suitable for transporting corrosive substances or substances containing
solvents.
WARNING
When the cooling unit is connected to the vehicle's 12-V socket:
Disconnect or switch off the cooling unit when you switch off the engine. Otherwise, the battery
may be discharged.
When operating the unit while the vehicle is not running, always ensure that your power supply/
battery still has sufficient capacity.
Disconnect your cooling unit and other electrical consumers from the battery before connecting
a quick charger.
WARNING
Electrical equipment is not a toy!
People (including children) who are not able to use the device safely due to their physical, senso-
ry or mental skills, inexperience or ignorance may not use the appliance without supervision or
instruction from a responsible person.
Store and use the device out of the reach of children.
Children must be supervised to make sure that they do not play with the device.
Never pull out the plug of the 12-V socket using the connection cable.
If the connecting cable of this device is damaged, it must be replacedby the manufacturer, the
manufacturer’s customer service department or another qualified person in orderto avoid poten-
tial hazards.
Caution
Repairs to this device must be performed only by skilled personnel. Incorrect repairs can cause con-
siderable damage.
Foodstuffs may be stored within the device only in their original packaging or suitable containers.
Disconnect the device from the on-board supply:
– Before cleaning and maintenance
– After every use
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
22 Safety notes

2.1 Safety information concerning operation of the device
DANGER!
Never touch uninsulated wire with your bare hands. This instruction applies in particular when
working with AC power.
Do not use any electrical equipment within the cooling unit apart from equipment recommended
by the manufacturer for this purpose.
Do not place the device in the vicinity of open flames or other heat sources (heating, strong sun-
light, gas ovens, etc.).
WARNING
When the cooling unit is connected to the vehicle's 12-V socket:
Disconnect or switch off the cooling unit when you switch off the engine. Otherwise, the battery
may be discharged.
When operating the unit while the vehicle is not running, always ensure that your power supply/
battery still has sufficient capacity.
Disconnect your cooling unit and other electrical consumers from the battery before connecting
a quick charger.
WARNING
Risk of overheating!
Always make sure that the heat generated during use can be adequately dissipated. Make sure
that the device is a sufficient distance away from walls and other objects so that the air can circu-
late.
Make sure that the ventilation openings are not covered.
Do not pour liquids or ice into the internal container.
Never immerse the device in water.
Protect the device and the cable from heat and moisture.
Caution
Before commissioning, make sure that the connection cable and plug are dry.
2.2 Intended use
The cooling unit is suitable for cooling or heating food.
The device is suitable for use with:
◆An on-board 12-V power supply in a vehicle (e.g. cigarette lighter), boat or caravan
The device is also suitable for use while camping. The device must not exposed to rain.
Note
To ensure safety in the vehicle interior, the cool box must be transported in the vehicle's luggage compart-
ment.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
2 Safety notes 3

2.3 Technical description
The cooling unit is suitable for mobile use. It can cool items to or keep items at max. 18 °C/64.4 °F below
ambient temperature. It can also heat items to or keep items at a maximum of 60 °C/140.0 °F.
Disconnect or switch off the cooling unit when you switch off the engine. Otherwise, the battery may be dis-
charged.
The lighter insulating lid provided can be used as an alternative to the device cover. Note that the insulating
lid does not cool or heat.
Cooling is performed by a wear-free Peltier module and heat is dissipated by a fan.
Additional external pockets provide further storage space. Please note that objects stored here will not be
cooled or warmed.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
42 Safety notes

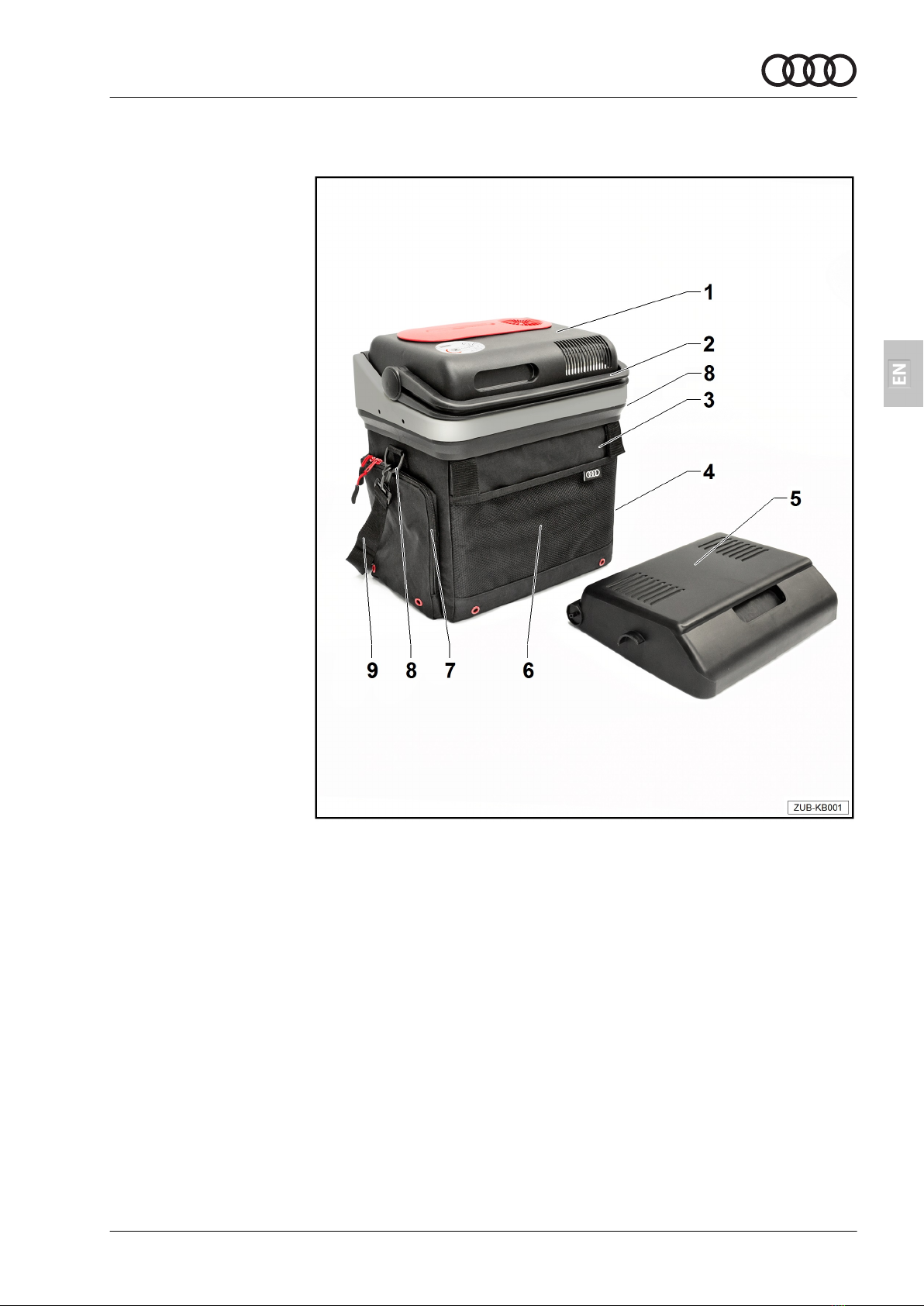

3 Scope of delivery
1 - Cooling unit
qRemovable/replace-
able
2 - Carrying handle
3 - Cool box with fabric
cover
4 - Right-hand side
pocket
5 - Insulating lid
qRemovable/replace-
able
6 - Mesh bag
7 - Left-hand side pocket
8 - Belt fastening loop
9 - Shoulder strap
qRemovable
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
3 Scope of delivery 5

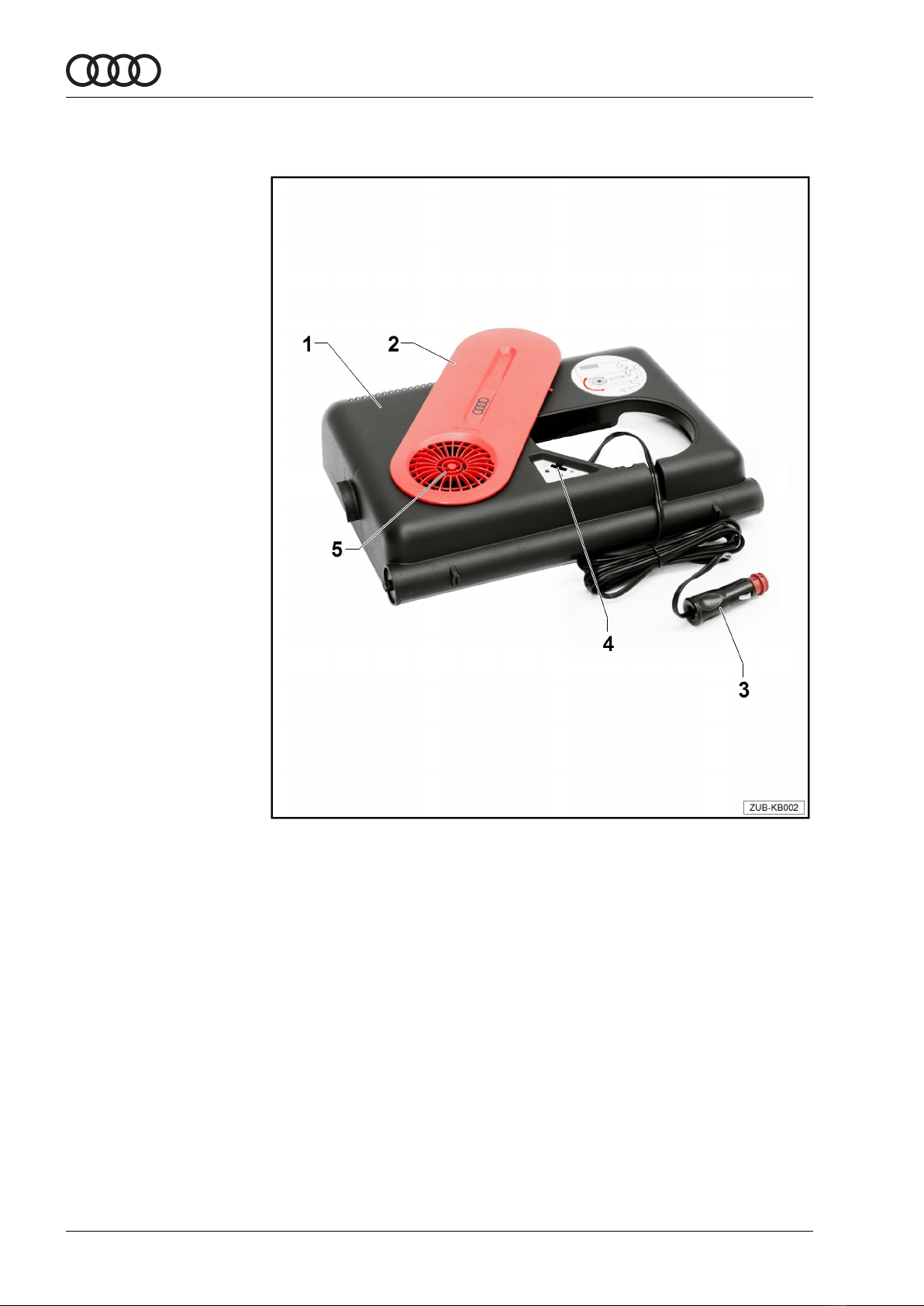

4 Overview of the cooling unit
1 - 12-V DC cooling unit
with voltage monitor-
ing
2 - Cover
3 - Connecting cable/
connecting plug for
12-V DC cooling unit
Plastic cover on the ca-
ble with two spare 5-A
fuses
4 - Warm, off and cold
selector switch
5 - Fan
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
64 Overview of the cooling unit

5 General technical data and energy-saving tips
5.1 General technical data
Designation Technical data
Nominal voltage 12 V
Power consumption 47 W(12 V, cooling)
39 W(12 V, heating)
Cooling power: Max. 18 °C/64.4 °F below ambient temperature
Heating: Up to max. 60 °C/140 °F
Usable volume: 20 L
Gross volume: 21 L
Gross volume with insulating lid: 24 L
Climate class: N
Ambient temperature: +16 °C/60.8 °F up to +32 °C/ 89.6 °F
Noise emissions: 39 dB
Dimensions (L x W x H): 390 x 280 x 430 mm
Weight: 5 kg
5.2 Energy-saving tips
◆Select a well-ventilated position, sheltered from direct sunlight.
◆Leave warm food to cool down before cooling it in the device.
◆Do not open the cooling unit more often than necessary.
◆Do not leave the cooling unit open longer than necessary.
◆Clean the lid seal regularly.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
5 General technical data and energy-saving tips 7

6 Handling
6.1 Using the cool box with the 12-V cooling unit
WARNING
Ensure that all objects or goods in the cool box can be
cooled or heated to the selected temperature.
Ensure that food or drink in glass containers does not
cool down too much. When frozen, drinks and liquid
foodstuffs will expand. This can destroy glass containers.
Ensure that the cooling unit is well ventilated so that ex-
tracted heat can be dissipated. Proper functionality can-
not be guaranteed otherwise. In particular, the ventilation
slots must not be covered.
Lift the cool box using only the handle and not using the
shoulder strap – risk of tipping!
Note
If the handle is pushed to the rear or the cool box is being car-
ried, the lid is locked. You can open the lid only when the han-
dle is pushed to the front.

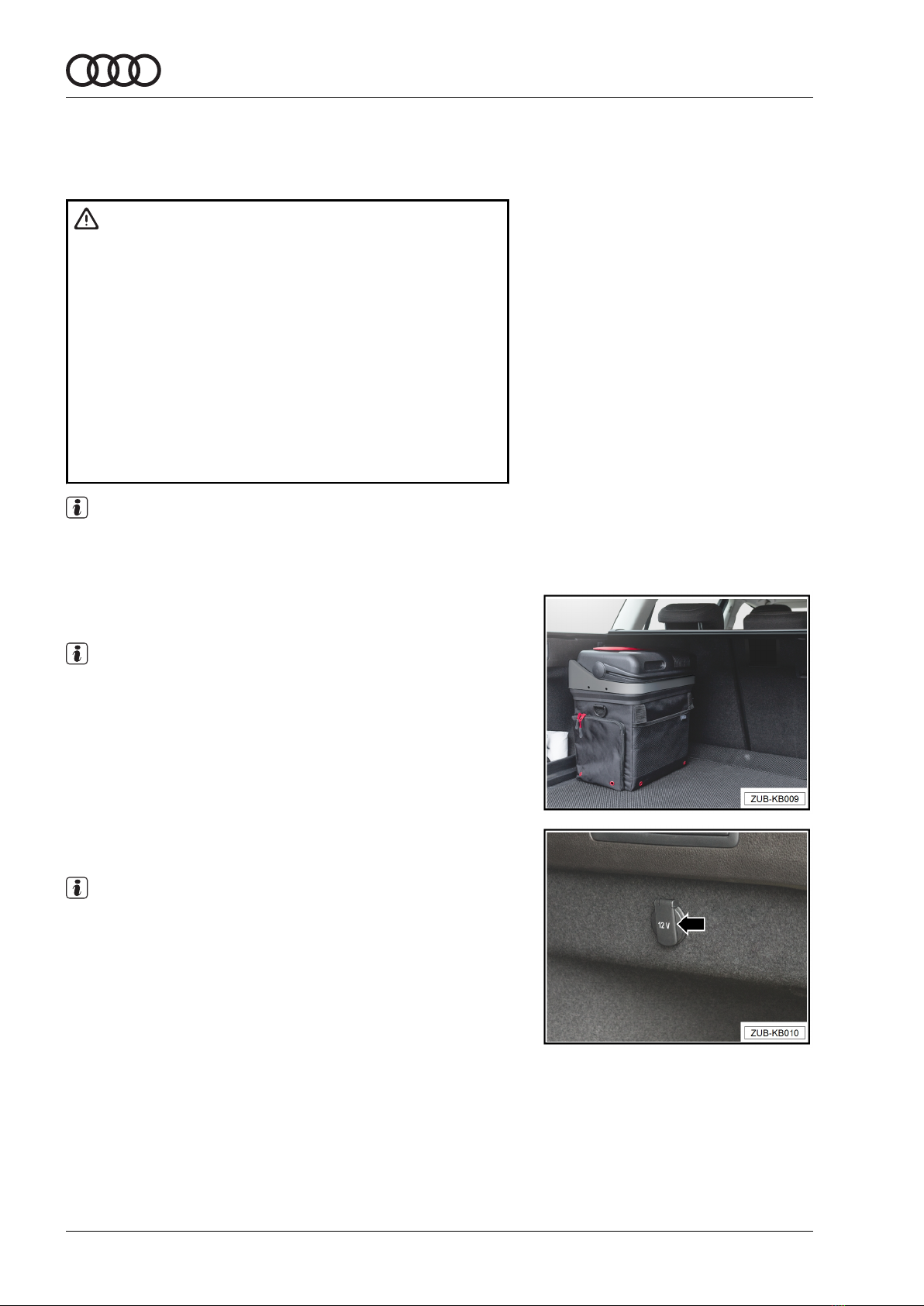

– Place the cool box on a stable surface in the luggage com-
partment.
Note
To ensure safety in the vehicle interior, the cool box must be
transported in the vehicle's luggage compartment.
– Connect the cool box to the power supply in the vehicle us-
ing the 12-V connection cable.
Note
◆To do this, use the cigarette lighter or a12-V socket.
◆If you connect the cool box to the cigarette lighter of your ve-
hicle, note that it may be necessary to switch off the ignition
to supply the device with power.
– Firmly close the box by pushing the lid back into place.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
86 Handling

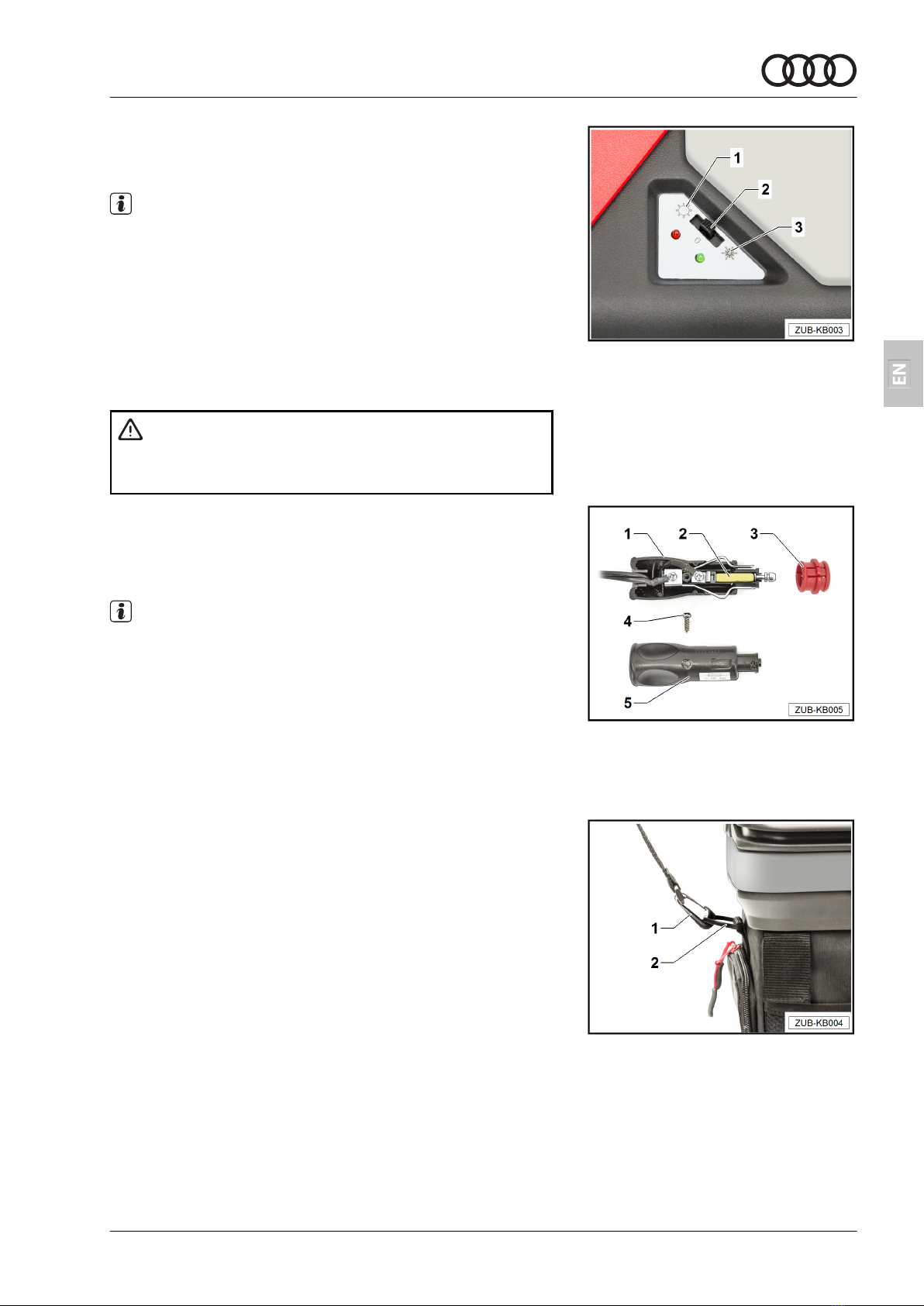

– Slide the switch -2- to the "HOT" position -1- (heating) or to
the "COLD" position (cooling) -3- toswitch on the cooling
unit.
Note
When switching to the required function, the red LED illumi-
nates for "HOT" (heating) and the green LED for "COLD" (cool-
ing).
– The cool box begins to cool or heat the container.
– To cease operation of the cooling unit, slide the switch to the
"OFF" position and pull the connector out of the 12-V socket.
6.1.1 Replacing the fuse in the 12-V plug
WARNING
Before starting the repair, disconnect the connector from
the vehicle's on-board supply.
– Remove the grommet -3- from the 12-Vconnector housing
-1-.
– Unscrew the 12-V connector housing -1-, remove the screw
-4- and separate the connector housing.
Note
Open the connector housing carefully – contains small parts!
– Replace the fuse -2-.
– Reassemble the 12-V connector housing -1- and screw in
the screw -4-.
– Tighten the bolt -4- until it is hand-tight.
6.1.2 Using the shoulder strap
– There is a clip on each end of the shoulder strap -1-.
– There is a fastening loop -2- on the left-hand and right-hand
side of the cool box.
– If you wish to use the shoulder strap, insert the clips -1- into
the belt fastening loops -2- on the cool box.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
6 Handling 9

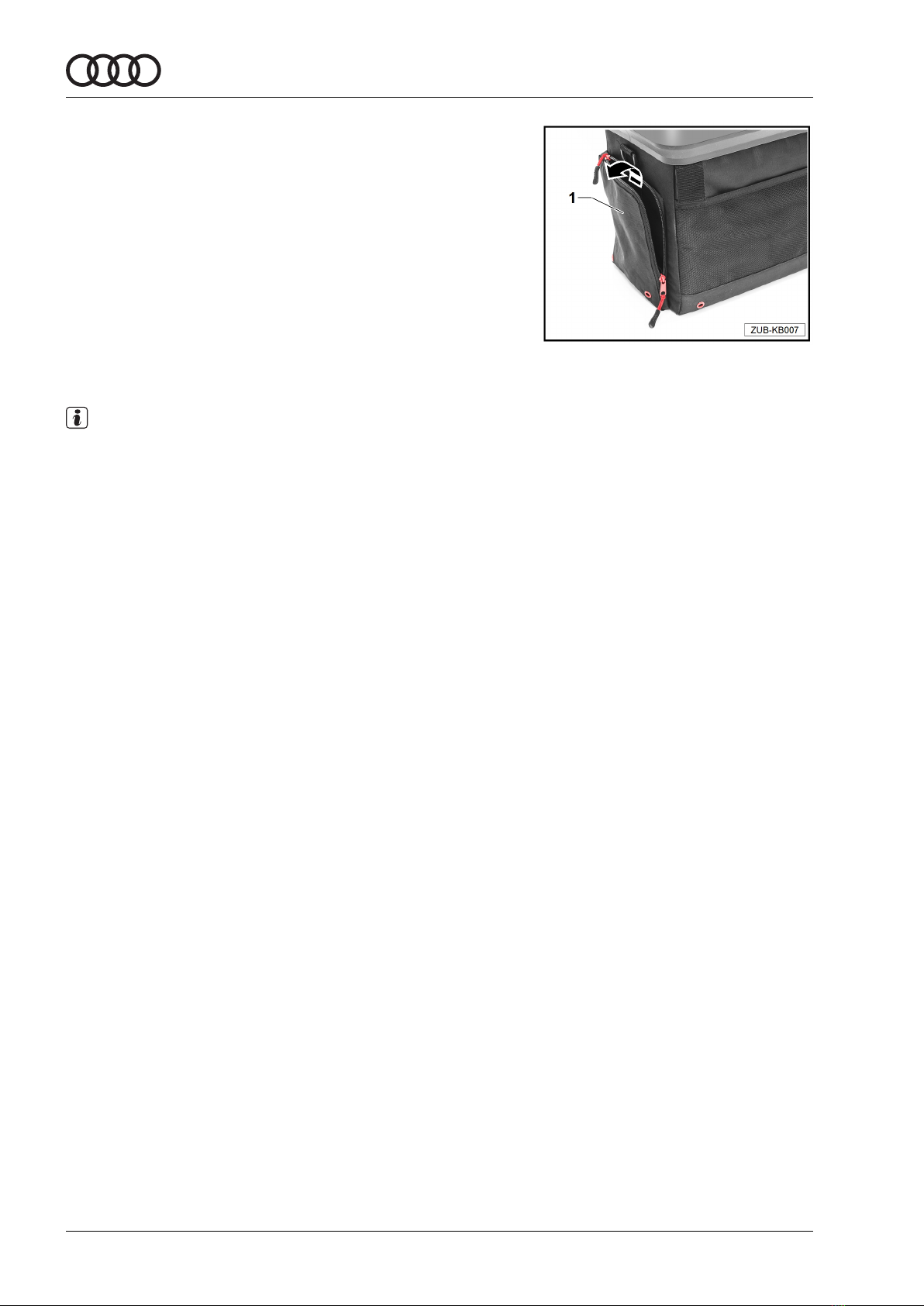

– There is a pocket -1- on each side of the fabric cover for
storing personal items or the shoulder strap.
6.1.3 Replacing the cover
Note
◆You can use the insulating lid as an alternative to the device lid for transportation.
◆Please note: The lid is suitable only for keeping items cool or warm and not for active cooling or heating.
– Pull the cool box handle forwards.
– Open the lid until it is in a vertical position and remove the lid, pulling it upwards.
– Insert the insulating lid with the guide tabs into the slots on the cool box.
– Close the insulating lid again.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
10 6 Handling

7 Cleaning and maintenance, warranty, troubleshooting and
disposal
7.1 Cleaning and maintenance
WARNING
Disconnect the device from the on-board power supply before cleaning and maintenance.
Caution
Never clean the cooling unit under running water or even in the sink.
Do not use caustic cleaning agents or hard objects to clean the cooling unit as these items could
damage the appliance – risk of accident/loss of functionality!
– Clean the device inside and outside occasionally with a damp cloth.
– Ensure that the ventilation openings in the device are free of dust and dirt so that the heat generated dur-
ing use can be dissipated and to prevent damage to the device.
7.2 Warranty
The statutory warranty period applies. If the product is faulty, please contact your specialist retailer.
To enable repairs and warranty claims to be processed, please enclose the following documents:
◆A copy of the invoice with the date of purchase
◆The reason for the complaint or a description of the fault
7.3 Troubleshooting
Fault Possible cause Proposed solution
Your cool box is not working (but
the connector is plugged in).
There is no power to the 12-V
socket (cigarette lighter) in the ve-
hicle.
In most vehicles, the ignition must
be switched on for the cigarette
lighter to receive power.
The battery has insufficient
charge.
Charge the battery or use a differ-
ent 12-V power source.
The internal fan or the cooling ele-
ment is faulty.
The repair can be performed only
by an authorised customer service
centre.
Operation via the 12-V socket
(cigarette lighter): The ignition is
switched on but the cool box does
not work. Pull the connector out of
the socket and check the items
described.
The 12-V socket is dirty, resulting
in poor electrical contact.
If the connector of your cool box
becomes very warm in the 12-V
socket, either the socket needs to
be cleaned or the plug may not
have been assembled correctly.
The fuse in the 12-V connector
has blown.
Replace the fuse (5-A) of the 12-V
connector.
The vehicle fuse has blown. Replace the fuse for the 12-V
socket in your vehicle (please re-
fer to the operating instructions for
your vehicle).
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
7 Cleaning and maintenance, warranty, troubleshooting and disposal 11

7.4 Disposal
– Separate the packaging material as far as possible for recycling.
Note
If the product is to be permanently decommissioned, please check with your local recycling centre or with
your dealer regarding the relevant disposal regulations.
Installation instructions - Cool box with cooling unit Scope of delivery 4M8.065.402
Edition 01
12 7 Cleaning and maintenance, warranty, troubleshooting and disposal
