auto maskin Marine Pro 400 Series User manual

Publication P/N 1100413
Installation Manual
400 Series
SDU 404 Safety Shutdown Unit, P/N 1006418
SDU 420 Safety Shutdown Unit, P/N 1500158

Table of contents
1 Preface 3
1.1 About this Manual 3
1.2 Responsibilities 3
1.3 Revisions 3
2 Ordering Information 3
3 System Overview 4
3.1 DCU Engine Controller 4
3.2 RP Remote Panel 4
3.3 Ethernet Switch 4
4 Installation 5
4.1 General 5
4.1.1 LED Overview 5
4.2 Wiring 7
4.2.1 DC Supply 7
4.2.2 Switch Channels 7
4.2.2.1 Broken Wire Detection 8
4.2.2.2 Short Circuit Detection 8
4.2.3 Analog Channels 8
4.2.3.1 Fault Detection 8
4.2.4 Pickup Channel 9
4.2.5 Shutdown Override & Acknowledge Inputs 9
4.3 DCU Communication 9
4.3.1 Connection Parameters 10
4.3.2 Configuration Mismatch Warning 10
4.4 Buttons 11
4.4.1 Acknowledge 11
4.4.2 Overspeed Test 11
5 Configuration 11
5.1 Configure SDU using the DCU 11
5.1.1 Version 11
5.1.2 Speed Sensor 11
5.1.3 Switch 11
5.1.4 Analog 12
5.1.5 Miscellaneous 13
5.1.6 Output Functions 14
5.1.7 Synchronize 14

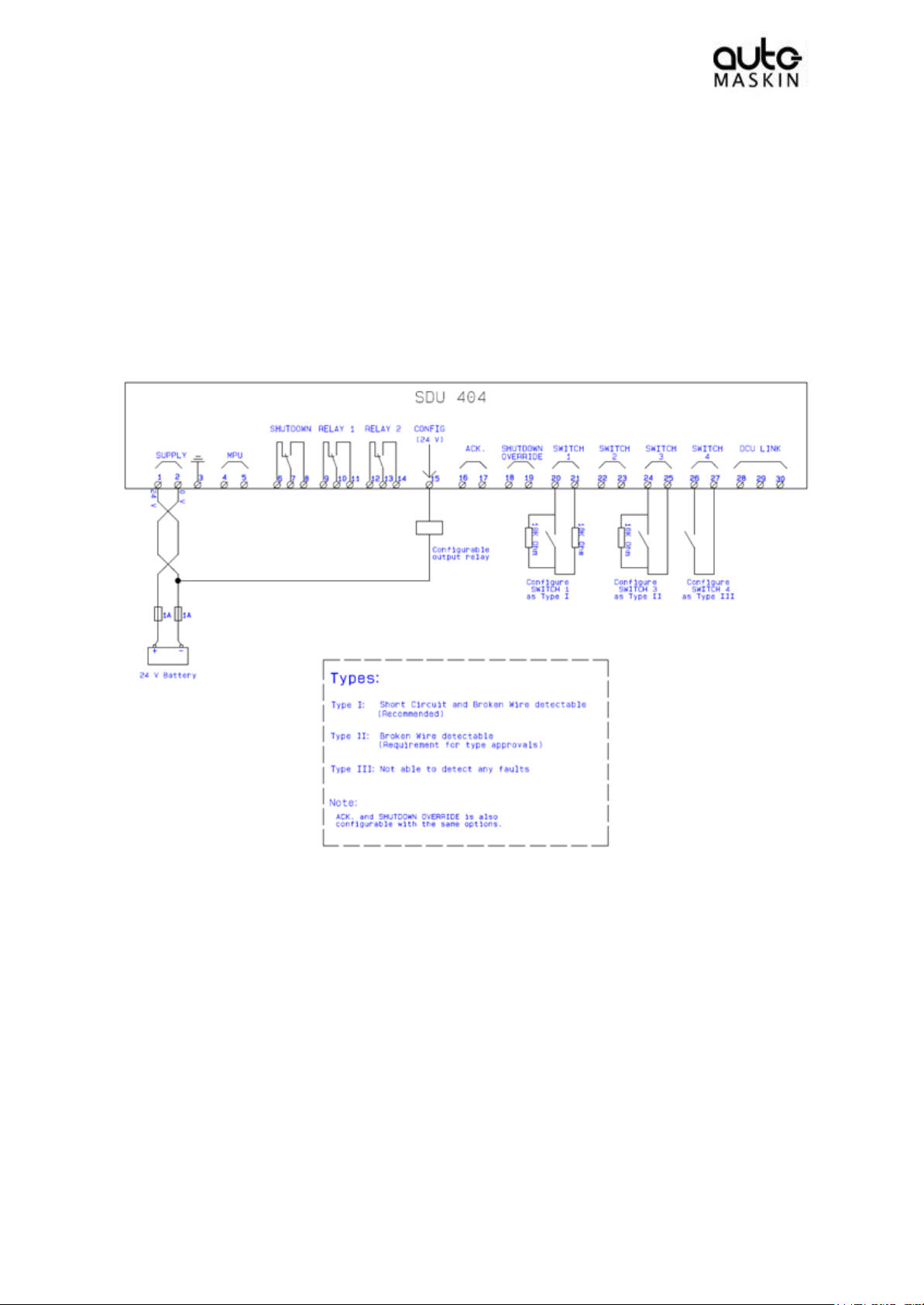

6 Appendix A - Wiring 14

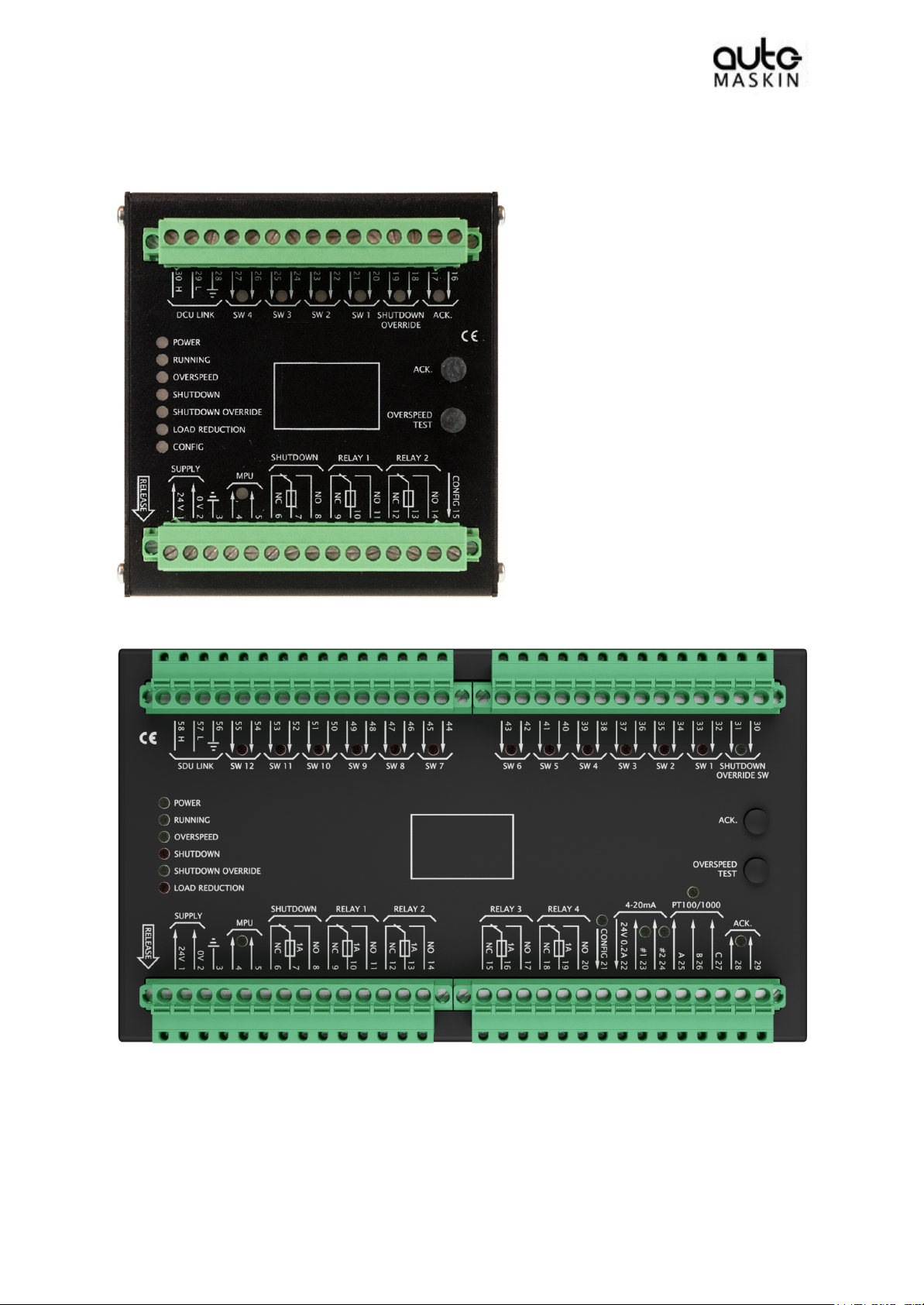

7 Appendix B - Front & Back 15
Page 2 (15)

1 Preface
1.1 About this Manual
This manual has been published primarily for professionals and qualified personnel.
The user of this material is assumed to have basic knowledge in marine systems, and must
be able to carry out related electrical work.
Work on the low-voltage circuit should only be carried out by qualified and
experienced personnel.
Installation or work on the shore power equipment must only be carried out by
electricians authorized to work with such installations.
1.2 Responsibilities
It is the sole responsibility of the installer to ensure that the installation work is
carried out in a satisfactory manner, that it is operationally in good order, that the
approved material and accessories are used and that the installation meets all
applicable rules and regulations.
Auto-Maskin continuously upgrades its products and reserves the right to make
changes and improvements without prior notice.
All information in this manual is based upon information at the time of printing. For updated
information, please contact your local distributor.
The crossed-out wheeled bin symbol indicates that the item should be
disposed of separately. The item should be handed in for recycling in
accordance with local environmental regulations for waste disposal.
By separating a marked item, you will help reduce the volume of waste
sent to incinerators or land-fill and minimize any potential negative impact
on human health and the environment.
1.3 Revisions
Installation Manual revision: January 2022
2 Ordering Information
The Marine Pro covers a wide range of compatible products within both the 200- and 400
Series. Please visit our website for more information.
http://auto-maskin.com/marine/
Page 3 (15)

3 System Overview

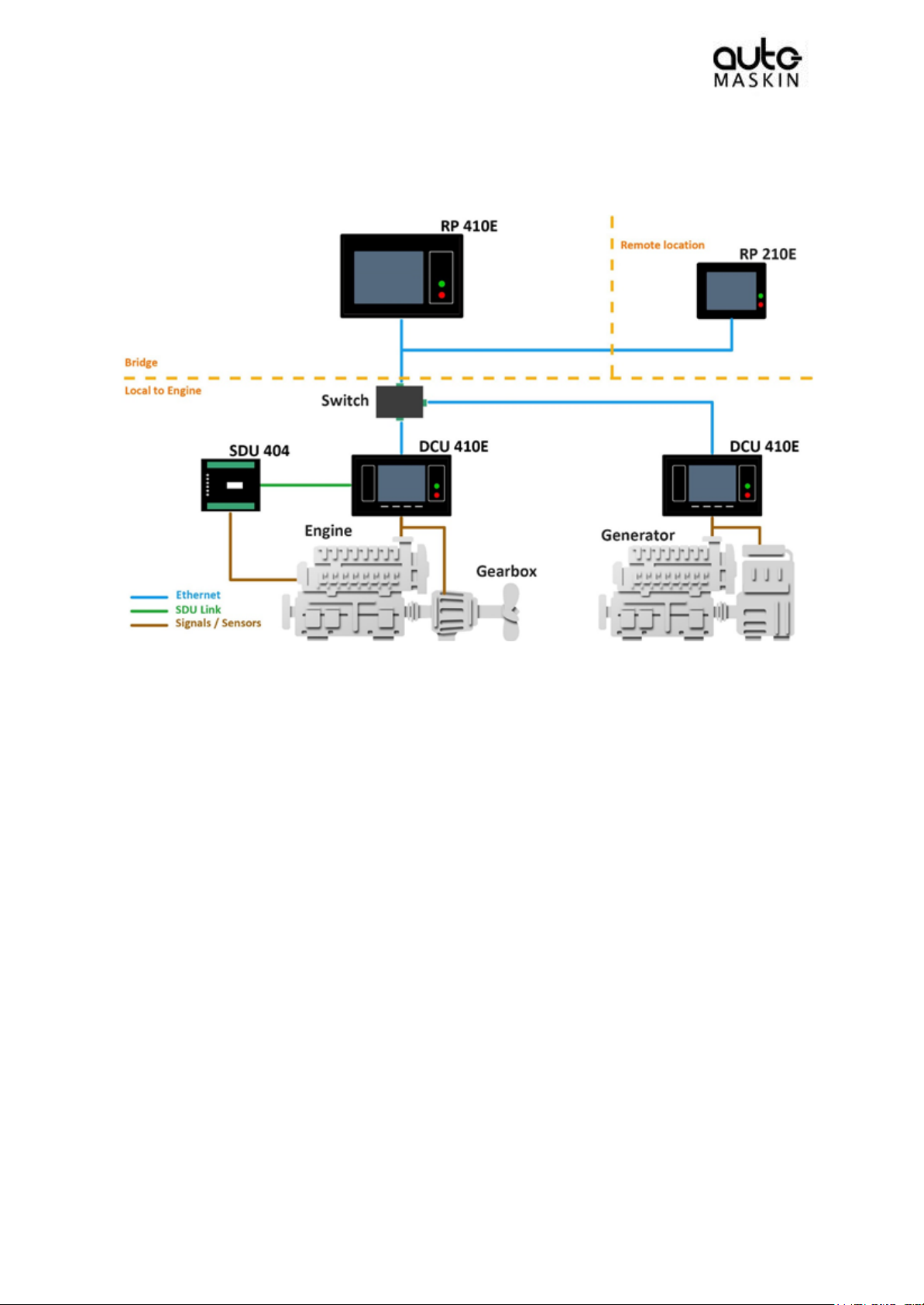

The figure below shows a typical layout with the SDU included for one engine.
3.1 DCU Engine Controller
The DCU Engine Controller is the main building block in the Marine Pro family.
Engine sensor values are displayed on the colour touch screen, and commands and other
user interaction is also here.
3.2 RP Remote Panel
The optional RP Remote Panel brings the DCU data and interface to a remote location with
no need for any configuration.
3.3 Ethernet Switch
It’s recommended to always use an Ethernet switch even though direct connection between
DCU and RP will work. PC connection for configuration and setup is also more convenient
with the Ethernet switch available.
Page 4 (15)

4 Installation
This chapter covers the installation of the SDU 404 and SDU 420.
4.1 General
The SDU 404 and SDU 420 are engine safety modules. They are primarily designed to be
used together with the Marine Pro family, although stand-alone operation is possible.
1
They can be installed separate from the DCU or in the same cabinet. The SDU units are
intended to be mounted on a DIN rail.
The engine shutdown switches shall be wired to the switch input channels on the SDU.
The two-wire SDU Link shall be established between the DCU and the SDU.

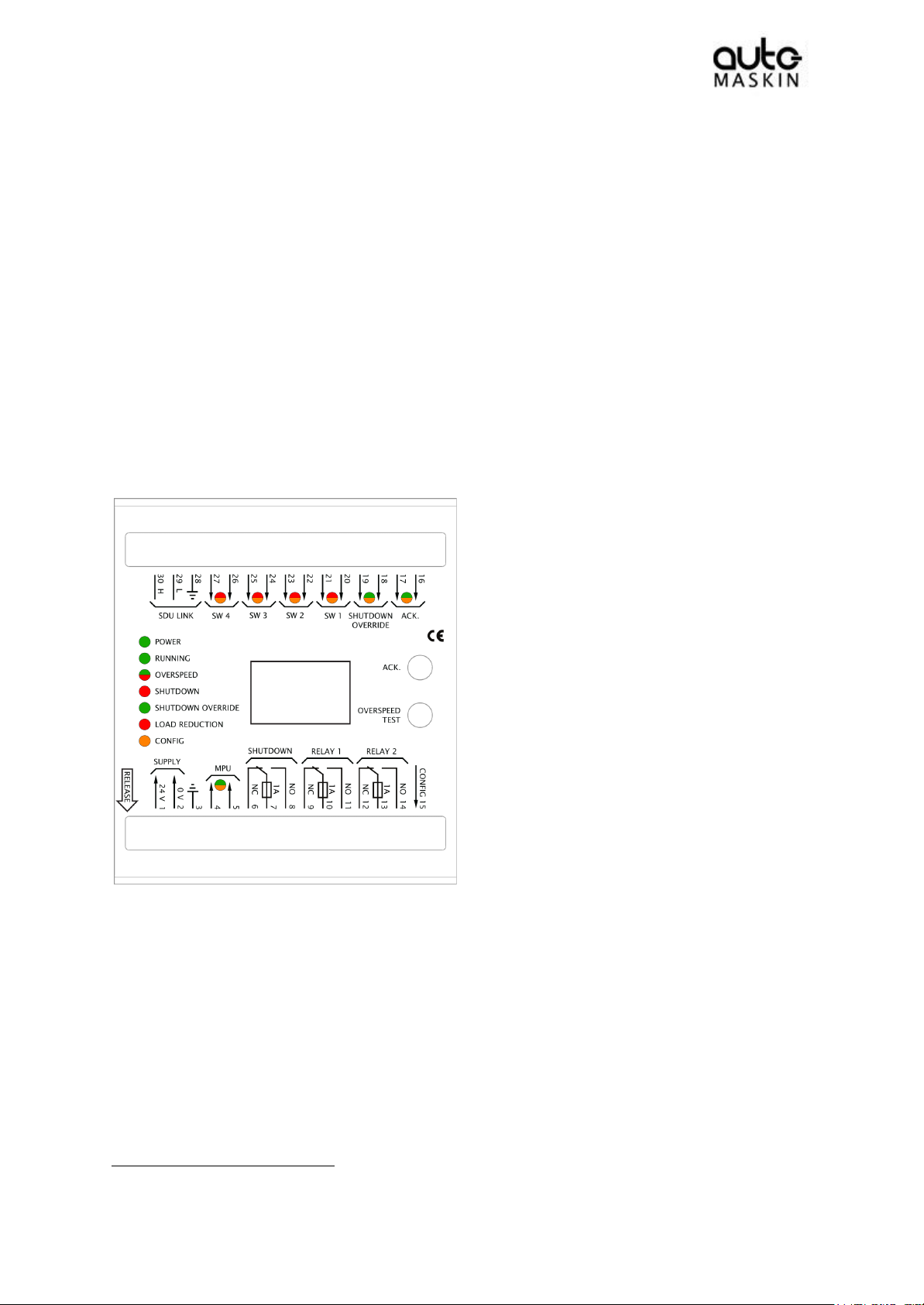

4.1.1 LED Overview
Details regarding indicators are described in the User’s manual but the illustration and the
following table has a brief description.
1Use a DCU for configuration.
Page 5 (15)

LED
Color
Description
Power
Green
Steady lit when power supply is OK.
Flashing when below the configurable “very low threshold”.
Running
Green
Steady lit when the engine is running.
Overspeed
Red
Flashing when unacknowledged overspeed.
Steady lit when acknowledged overspeed.
Green
Test mode
Shutdown
Red
Flashing when unacknowledged shutdown.
Steady lit when acknowledged shutdown.
Shutdown Override
Green
Steady lit when active.
Load Reduction
Red
Flashing when unacknowledged load reduction.
Steady lit when acknowledged load reduction.
Config
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
MPU
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
Green
Steady lit when MPU connected.
ACK.
Amber
Flashing when unacknowledged fault.
Page 6 (15)

Steady lit when acknowledged fault.
Green
Active.
Shutdown Override Switch
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
Green
Active.
SW 1-12
Red
Flashing when unacknowledged shutdown/load reduction.
Steady lit when acknowledged shutdown/load reduction.
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
4-20 mA 1-2
Red
Flashing when unacknowledged shutdown/load reduction.
Steady lit when acknowledged shutdown/load reduction.
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
PT100 / PT1000
Red
Flashing when unacknowledged shutdown/load reduction.
Steady lit when acknowledged shutdown/load reduction.
Amber
Flashing when unacknowledged fault.
Steady lit when acknowledged fault.
4.2 Wiring
Follow these wiring guidelines.
4.2.1 DC Supply
Connect 24 VDC to terminals 1 (24 V) and 2 (0 V). Connect a ground connection to
terminal 3.
SDU supply wires shall have a minimum area of 0.5 mm2.
4.2.2 Switch Channels
Switch channels are configurable for loop monitoring and short circuit.
All switch channels use a two-wire layout, where both wires from the switch are to be routed
to the SDU.
Switch wires shall have a minimum area of 0.5 mm2.
Page 7 (15)

4.2.2.1 Broken Wire Detection
Requirement for type approved installations. Each switch shall have a 10 kΩ resistor
connected across.
The 10 kΩ resistors shall be connected directly at the switch, and not at the SDU.
Switches shall be normally open (NO), and shall close to indicate engine shutdown.
4.2.2.2 Short Circuit Detection
Each switch shall have a 10 kΩ resistor connected in series.
The 10 kΩ resistors shall be connected directly at the switch, and not at the SDU.
4.2.3 Analog Channels
Analog channels are available for shutdown configuration.
The 4-20 mA channels shall be powered from terminal 22.

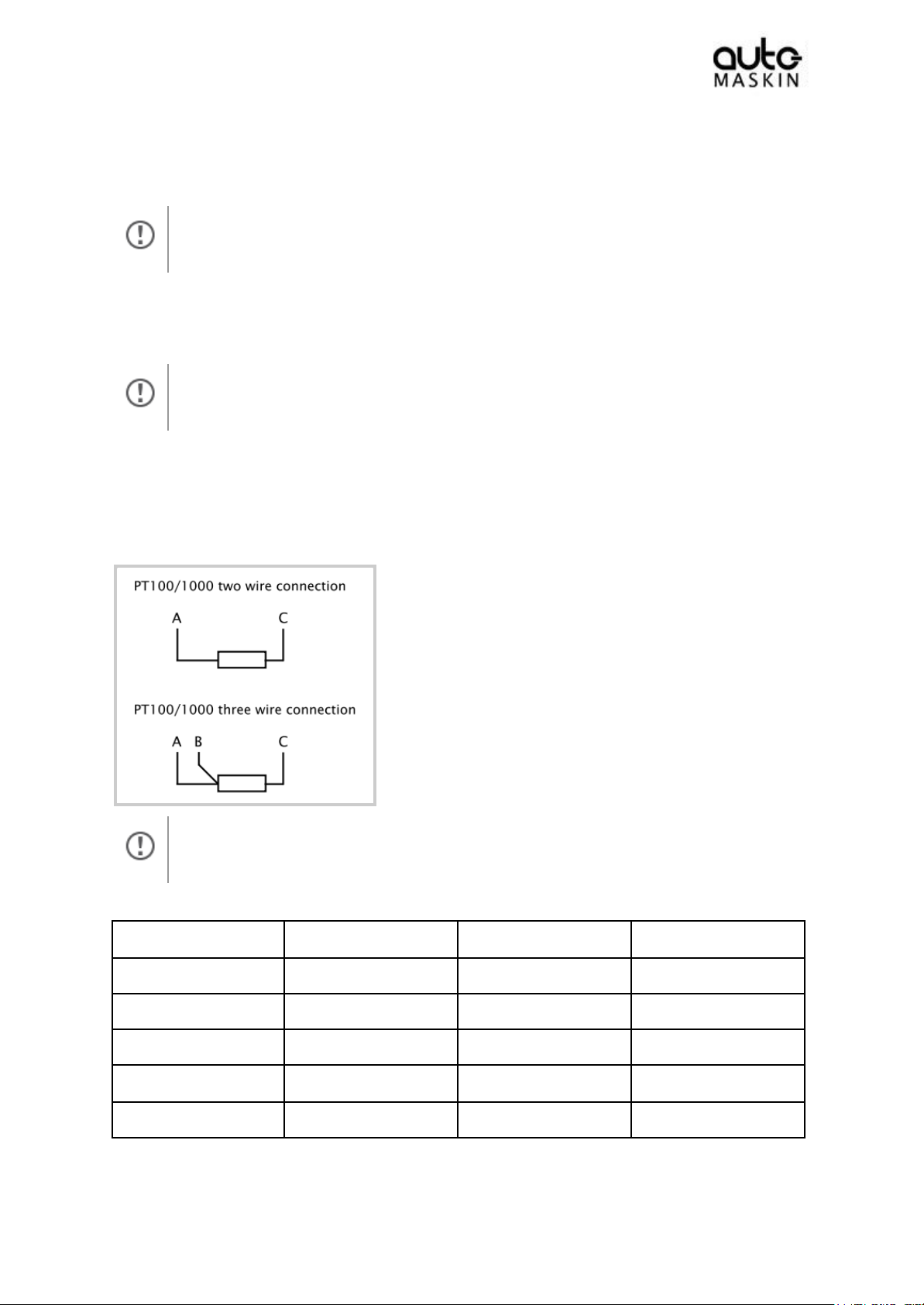

The PT100 / PT1000 channels shall be connected according to the image below, depending
on whether it is a two wire or three wire sensor.
Analog channel wires shall have a minimum area of 0.5 mm2.
4.2.3.1 Fault Detection
Validity
4-20 mA
PT100
PT1000
Sensor Fault
< 2 mA
< 90 ohm
< 900 ohm
Crop to min value
2-4 mA
90-100 ohm
900-1000 ohm
Valid reading
4-20 mA
100-377 ohm
1000-3770 ohm
Crop to max value
20-22 mA
377-390 ohm
3770-3900 ohm
Sensor Fault
> 22 mA
> 390 ohm
> 3900 ohm
Page 8 (15)

4.2.4 Pickup Channel
The SDU can operate with a magnetic or active pickup source. In case of an active pickup
source, the SDU needs to be configured properly.
Connect the pickup to terminals 4 and 5, with shield to terminal 3.
Make sure the cable shield is connected at the SDU side and not at the pickup
side.
4.2.5 Shutdown Override & Acknowledge Inputs
This is to be wired exactly like a Switch Input, that is; it shall be a normally open switch.
Close the switch to activate the function.
If broken wire detection is desired, connect a 10 kΩ resistor across the switch. If
short circuit detection is desired, connect a 10 kΩ in series with the switch. Make
sure the SDU configuration is matching this setup.
Typically, the Shutdown Override switch input is configured to detect broken wire.
Typically, the Acknowledge input is configured for no wire break detection.

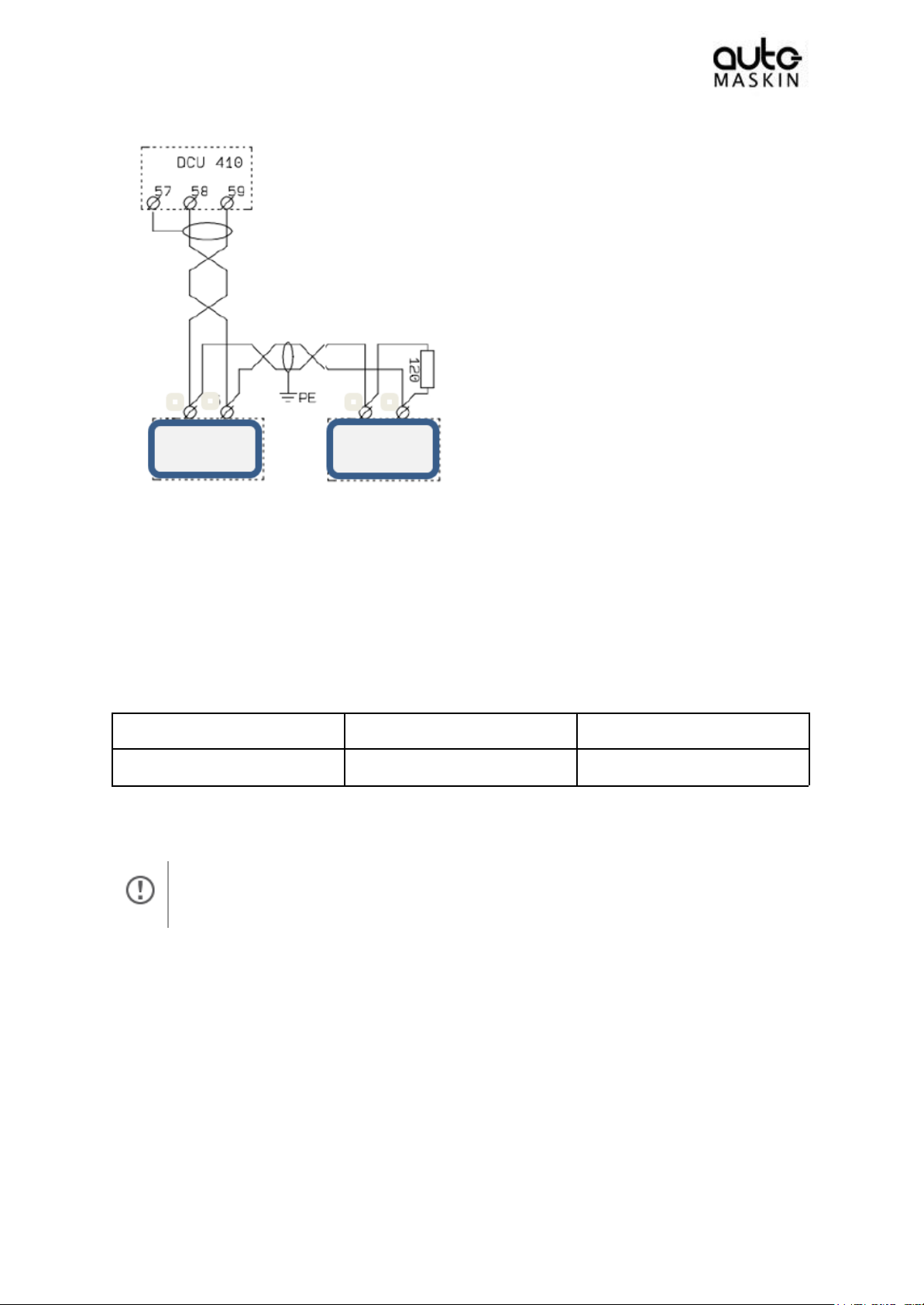

4.3 DCU Communication
Depending on the DCU model, connect the wires in the shielded communication cable to the
terminals as shown in the table below:
SDU 404
SDU 420
DCU 410E /
DCU 408E
DCU 210E /
DCU 208E
DCU 210 /
DCU 208
28 (Shield)
56 (Shield)
60 (Shield)
22 (Shield)
29 (L)
57 (L)
61 (L)
C1.5 (L)
23 (L)
30 (H)
58 (H)
62 (H)
C1.6 (H)
24 (H)
Only connect the cable shield at one end.
To minimize the effect of external noise it is recommended to use twisted pair wires.
The SDU Link shall be terminated with a 120 ohm resistor at the end of the
communication link. Note that the DCU is already terminated internally.
Page 9 (15)

If there are several units attached to the
link then connect the 120 ohm resistor
together with the last unit on the bus only.
4.3.1 Connection Parameters
The two-wire SDU Link has fixed communication parameters.
The Baud rate is 19200 baud.
● 8 data bits
● 1 stop bit
● Even parity
SDU 404
SDU 420
Modbus Address
104
120
When properly connected, the DCU will find the SDU automatically. To start using the SDU,
enable it via the DCU web interface.
The communication parameters are only relevant if using a 3rd party equipment to
communicate with the SDU.
4.3.2 Configuration Mismatch Warning
When the SDU is connected to the DCU, the DCU will analyze the configuration in the SDU
and compare it to the stored configuration in the DCU. If these do not match, the DCU will
give a “Configuration Mismatch” warning.
The warning can be acknowledged, but DCU login rights are required to reset this warning.
With login rights, the configuration can be copied from the DCU to the SDU, or vice versa.
Please see the relevant Marine Pro manual for further details.
Page 10 (15)

4.4 Buttons
4.4.1 Acknowledge
This button is used to acknowledge alarms and faults. See User’s Manual for more details.
4.4.2 Overspeed Test
Press and hold the “Overspeed Test” button for more than two seconds to enter the
overspeed test mode. See User’s Manual for more details.
5 Configuration

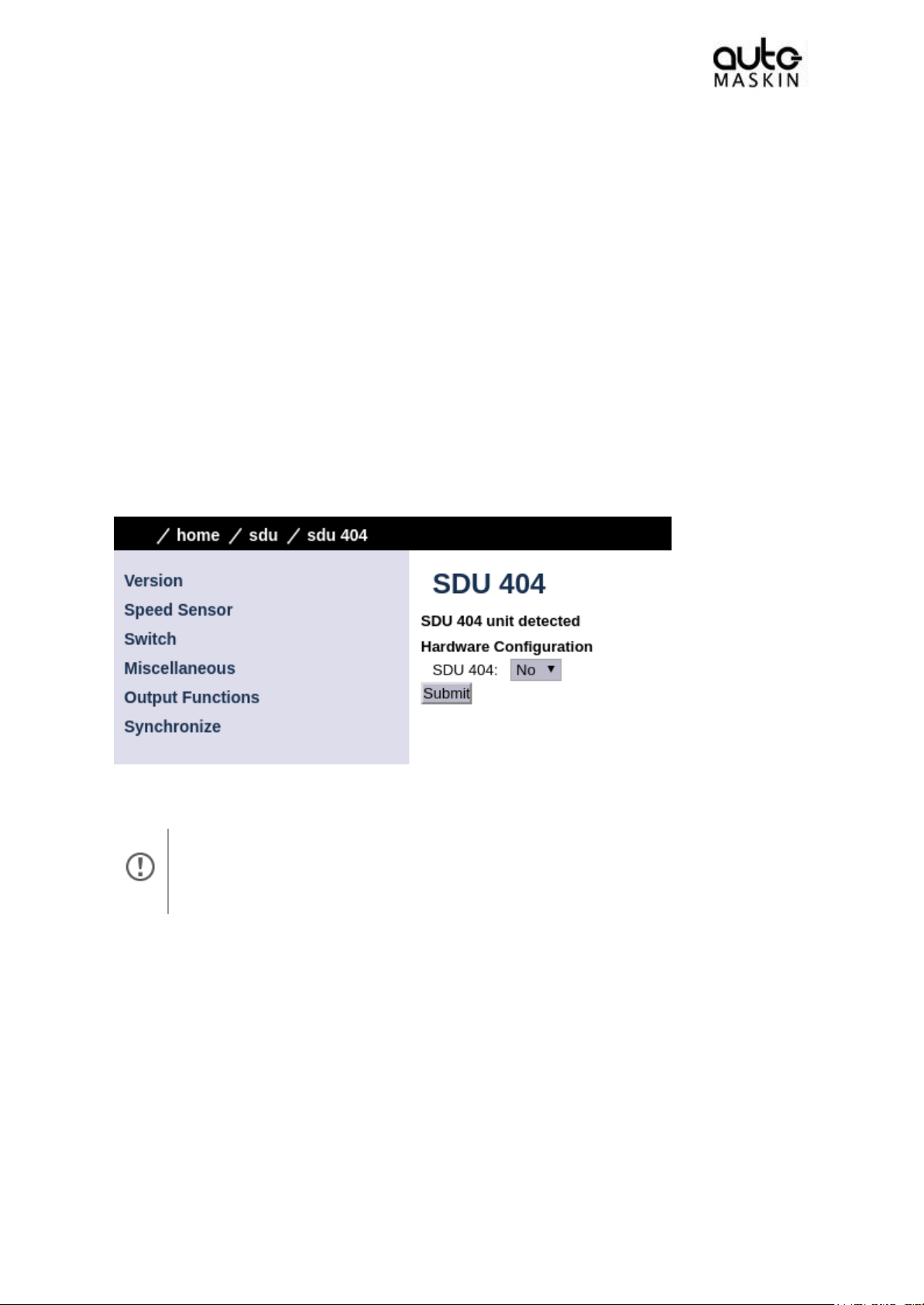

5.1 Configure SDU using the DCU
The recommended method of configuring the SDU is to login to the DCU via the web
interface.
When logged in, enter the SDU section and configure the SDU.
Next, from the menu on the left, select the sub-section to be configured.
Press the Submit button after each configuration change.
The configuration is stored in the DCU’s current active configuration file. If a new
SDU is connected to the DCU the configuration is transferred to the SDU when it is
connected.
For more configuration information, please consult the Marine Pro 400E/200E Series
Configuration Manual.
5.1.1 Version
This page gives information about the hardware and software version of the SDU.
5.1.2 Speed Sensor
This page has the configuration of the pickup channel.
5.1.3 Switch
This page has the configuration for each of the four switch channels.
Page 11 (15)

Type
Select the type of short circuit and broken wire detection.
Type 1: Short circuit and broken wire detection. A 10 kΩ resistor to be connected in series
and a 10 kΩ resistor to be connected in parallel over the switch.
Type 2: Broken wire detection. Minimum requirement for type approved installations.
A 10 kΩ resistor to be connected in parallel over the switch.
Type 3: No fault detection.
Event
Select the event (Shutdown and/or Load Reduction) that will be activated when the switch is
closed.
On Run Only
Enable this if the event shall be enabled only when the engine is running.
This is typical for all pressure channels.
Requires In Gear
Enable this if the event shall be enabled only when in gear. Note that the gear information
must be provided using the configurable inputs.
Shutdown Override Disabled
Enable this if the event shall be triggered even if SDU is in shutdown override state.
This is typical for a manual E-stop button.
Delay Before Load Reduction
Set the number of seconds until load reduction.
Delay Before Shutdown
Set the number of seconds until shutdown.
Initial Delay
Set the number of seconds until the switch channel is activated for monitoring.
The “Initial Delay” countdown starts when all criteria (“Engine is running” and “Speed Limit”)
are met.
Speed Limit Enabled
Set if Speed limit is enabled or not. The actual engine speed is set in the Speed limit [RPM]
section.
Speed Limit [RPM]
● If the engine speed is above the set value, then the channel is enabled.
● If the engine speed drops 50 RPM below the set value, then the channel is disabled.
Delayed Shutdown
Set the number of seconds the shutdown will be delayed.
5.1.4 Analog2
This page has the configuration for the analog channels.
Event
2Analog sensors are only available on SDU 420.
Page 12 (15)

Select the event (Shutdown and/or Load Reduction) that will be activated when the switch is
closed.
Sensor Min / Sensor Max3
Defines the sensor value at 4 mA and 20 mA.
Load Reduction Threshold and Type
Set the threshold value and threshold type.
Shutdown Threshold and Type
Set the threshold value and threshold type.
On Run Only
Enable this if the event shall be enabled only when the engine is running.
This is typical for all pressure channels.
Requires In Gear
Enable this if the event shall be enabled only when in gear. Note that the gear information
must be provided using the configurable inputs.
Shutdown Override Disabled
Enable this if the event shall be triggered even if SDU is in shutdown override state.
Delay Before Load Reduction
Set the number of seconds until load reduction.
Delay Before Shutdown
Set the number of seconds until shutdown.
Initial Delay
Set the number of seconds until the switch channel is activated for monitoring.
The “Initial Delay” countdown starts when all criteria (“Engine is running” and “Speed Limit”)
are met.
Speed Limit Enabled
Set if Speed limit is enabled or not. The actual engine speed is set in the Speed limit [RPM]
section.
Speed Limit [RPM]
● If the engine speed is above the set value, then the channel is enabled.
● If the engine speed drops 50 RPM below the set value, then the channel is disabled.
Delayed Shutdown
Set the number of seconds the shutdown will be delayed.
5.1.5 Miscellaneous
● Set input voltage warning levels.
● Enable “Allow Load Reduction Override” to override load reductions via the shutdown
override switch.
● Enable “Automatic Buzzer Off” to make the SDU buzzer silence automatically after
five seconds.
● “Shutdown Override Switch” and “Acknowledge Switch” configuration.
3Only for 4-20 mA channels.
Page 13 (15)

5.1.6 Output Functions
Configuration of relays and digital output.
5.1.7 Synchronize
Synchronization of DCU and SDU configuration.
6 Appendix A - Wiring
The diagram below shows recommended wiring for SDU 404 including 3 different types of
Switch inputs. The SDU 420 is similar to this diagram.
Page 14 (15)

7 Appendix B - Front & Back
Page 15 (15)
