Automatic Technology Toro GDO-10V2L2 User manual

GDO-10V2L2
Roll Up Garage Door Opener
INSTALLATION INSTRUCTIONS | OWNERS COPY
Featuring TrioCode™Technology
Technical Document
Installation Manual
v1.00
27 Jan 2012
English
Part # 13288 (Manual)

2GDO-10V2L2 Toro™Owner Installation Instructions
WARNING: It is vital for the safety of persons to follow all
instructions.Failuretocomplywiththeinstallationinstructions
and the safety warnings may result in serious personal injury
and/or property and remote control opener damage. Please
save these instructions for future reference.
Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology Australia Pty Ltd Garage Door Opener. Automatic Technology Australia Pty Ltd hereby further
expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a
result whether directly or indirectly from failure to install the Automatic Technology Australia Pty Ltd Garage Door Opener
in accordance with these installation instructions.

Owner Installation Instructions GDO-10V2L2 Toro™3
Important Safety Instructions 4
Features 6
Controller Input And Output 8
Operating Controls 9
Package Contents 10
Pre-installation Requirements 11
Installation 12
Safety Beam Installation 14
Programming The Opener 15
Menu Structure 15
Viewing And Editing Parameters 16
Setting Limits 17
Setting Limits: Via Transmitter 18
Safety Obstruction Force 19
Adjusting Safety Obstruction Forces 20
Coding Transmitters 21
Transmitter Editing 22
Transmitter Management 24
Remotely Coding Transmitters 26
Setting Pedestrian Position 27
Standard Operating Modes 27
Control Board Adjustments 29
Time Clock 34
Diagnostic Tools 36
Memory Tools 38
Accessories Installation 38
Light 38
Lock 39
Auto-Close Mode 40
Wall Transmitter Installation 41
SmartSolar™ Installation 42
Replacing Backup Batteries 43
Specifications 44
Troubleshooting 45
Maintenance 46
Spare Parts 47
Warranty 48
GDO-10V2L2 Toro™
Roll Up Garage Door Opener

4GDO-10V2L2 Toro™Owner Installation Instructions
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
Automatic Technology strongly recommends Safety Beams are installed with the automatic opener
ensuring additional safety and peace of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such as
cars and children/people. Make sure that the door has finished moving before entering or leaving
the garage.
DO NOT operate the opener when children/people are near the door. Children must be
supervised at all times when the opener is in use. Serious personal injury and/or property
damage can result from failure to follow this warning.
DO NOT allow children to operate the opener. Serious personal injury and/or
property damage can result from failure to follow this warning.
Regularly check to make sure that the Safety Obstruction Force is working
correctly, and is tested and set as per page 19 of this manual. Failure to follow
these instructions could result in serious personal injury and/or property
damage. This test must be repeated at regular intervals and the necessary
adjustments made as required.
A Safety Beam must be used, if the closing force as measured on the
bottom of the door is over 400N (40kg).
DO NOT disengage the door opener to manual operation with
children/people or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infirm persons without adequate supervision. Children
should be supervised to ensure that they do not play with
the remote transmitters or the opener.
Keep hands and loose clothing clear of the door and
door opener at all times.
The unit should be installed so that it is protected
from the elements. It should not be exposed to
water or rain. It is not to be immersed in water
or sprayed directly by a hose or other device.
WARNING: It is vital for the safety of people to follow all
instructions. Failure to comply with the following safety
instructions may result in serious personal injury and/or
property damage.
Important Safety Instructions

Owner Installation Instructions GDO-10V2L2 Toro™5
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualified garage door
installer prior to installation of the opener.
Frequently examine the installation for signs of wear, damage or imbalance. DO NOT use if repair or
adjustment is needed since a fault in the installation or an incorrectly balanced door may cause injury. DO
NOT attempt to repair the door yourself as hardware is under extreme tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 240V mains power outlet installed by a
qualified electrical contractor.
Disconnect the power cord from mains power and backup batteries before making any repairs
or removing covers. Only experienced service personnel should remove covers from the
opener.
When using Auto-Close mode, a Safety Beam must be fitted correctly and tested for
operation at regular intervals. Extreme caution is recommended when using Auto-
Close mode. All safety rules must be followed.
In order for the opener to sense an object obstructing the door way, some force
must be exerted on the object. As a result the object, door and/or person may
suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an Automatic
Technology service agent or garage door professional.
Make sure that the door is fully open before driving in or out of the
garage and fully closed before leaving the driveway.
Make sure that remote controls are kept out of reach of children.
Install the wall transmitter in a location where the garage door
is visible, at a height of at least 1.5m, out of the reach of
children.
Important Safety Instructions

6GDO-10V2L2 Toro™Owner Installation Instructions
Operation
To open or close the door simply press the open or close button on the wall
control unit, a button on a coded TrioCode™ hand held transmitter, optional wall
mounted transmitter, or optional wall switch for two seconds. During open and
close cycles, the door can be stopped by pressing the button again or by pressing
the stop button on the wall control unit.
TrioCode™ Code Hopping Technology
Every time a TrioCode™ transmitter is used, a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security of
the system and makes “code grabbing” a thing of the past.
These transmitters also overcome interference issues by simultaneously sending a
signal over three slightly different frequencies. Even if two of the three signals are
jammed, the system will still work.
M-ALPS (Magnetic Automatic Limits Positioning System)
M-ALPS does away with manual adjustment of the door’s limits position using mechanical
parts, such as cams and microswitches. During installation the hand held transmitter can be
programmed to set the door limit positions.
ISS (Intelligent Safety Obstruction System)
While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Auto Courtesy Light
The courtesy light (if connected) comes on automatically for one minute whenever the door is activated. The
light can also be operated independently of the door by coding a dedicated button on a transmitter.
Features
Thank you for purchasing the Automatic Technology
Toro™ Automatic Garage Door Opener. Designed
by our renowned engineers to suit roll up doors, the
Toro™ will provide years of smart, simple & secure
convenience to your home.

Owner Installation Instructions GDO-10V2L2 Toro™7
SmartSolar™ Compatibility (Optional)
The opener can be fitted with a SmartSolar™ kit (Part Number 60142) for operation
where mains power access is not available. NOTE: If the door is the only entrance to
the garage, a keyed cable release should be fitted external to the garage.
Vacation Mode
A hand held transmitter can be programmed to lock and unlock all other
transmitters that have been programmed into the openers’ memory. The Vacation
Mode can be used when the door is left idle for long periods of time.
Pet/Pedestrian Mode
The transmitter can be programmed to open the door to an adjustable partial height
so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable only for pedestrian access.
Auto-Close Mode
The opener can be programmed to automatically close after an open cycle. The Auto-
Close time is adjustable. It is compulsory to install a Safety Beam if this mode is selected,
otherwise the door may cause personal injury or damage to property.
Safety Beams (S.B)
The opener has three inputs to connect one, two or three Safety Beams for extra safety and use of the
Auto-Close mode.
Manual Operation
The opener is equipped with a unique patented manual disengaging device. If the power to the opener is
disrupted for any reason, the door can be put into manual mode by pulling down on the string handle, then
releasing. This will allow you to manually open or close the door. When power is restored, by pulling down on
the string handle and releasing, the opener is put back into automatic mode.

8GDO-10V2L2 Toro™Owner Installation Instructions
Controller Input And Outputs
Light Relay Output N/O, Com, N/C Contact
Lock Relay Output N/O, Com, N/C Contact
Serial Interface Connector
12 volts 6 Amp - Hr Batteries
Engage/Disengagement Handle
Standby Battery Charger/Solar Connector
Solar Shunt
11
03
12
06
07
04
02
01
05
08
01
02
09
03
04
05
06
07
08
09
10
11
12
01
fig
10
Standby Battery Shunt
Motor Connector
10 Amps Slow Blow Fuse
24 Volts Ac In Connector
Position Sensor Connector

Owner Installation Instructions GDO-10V2L2 Toro™9
16
15
20
14
13 21
19
18 17

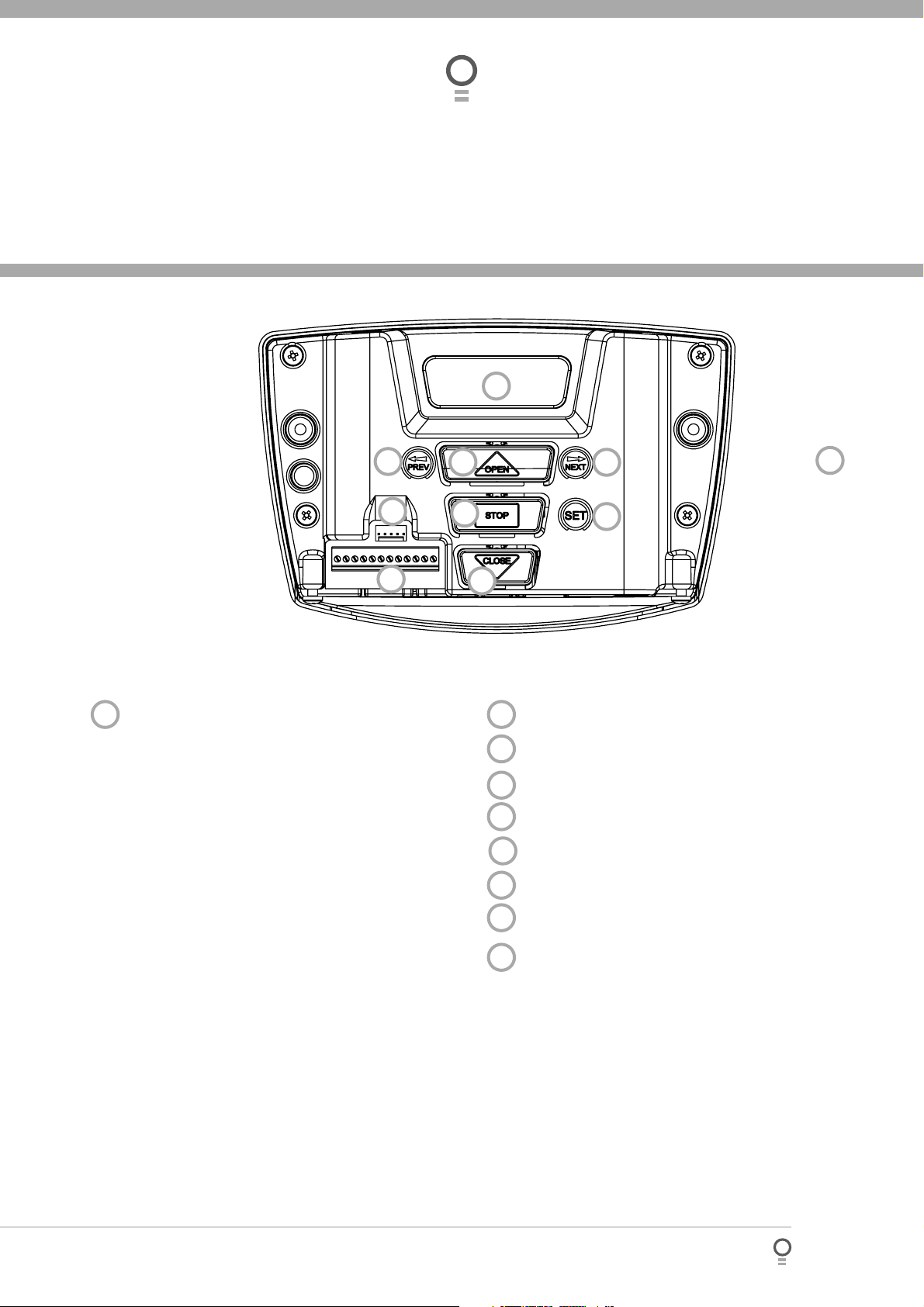

Terminal Block ( From Left To Right )
AUX OUT Receiver’s Auxiliary Output
V+ Accessory Supply
SB3 Third Safety Beam Input
SB2 Second Safety Beam Input
SB1 First Safety Beam Input
0V Common For Safety Beams
0V Common Terminal For Control Inputs
FIRE N/O , N/C Input Terminal
GPI N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
Programmer PG-3 Input
Console Previous Button
Liquid Crystal Display
Console Next Button
Console Open Button
Console Stop Button
Console Set Button
Console Close Button
13 14
15
16
17
18
19
20
21
02
fig
Operating Controls

10 GDO-10V2L2 Toro™Owner Installation Instructions

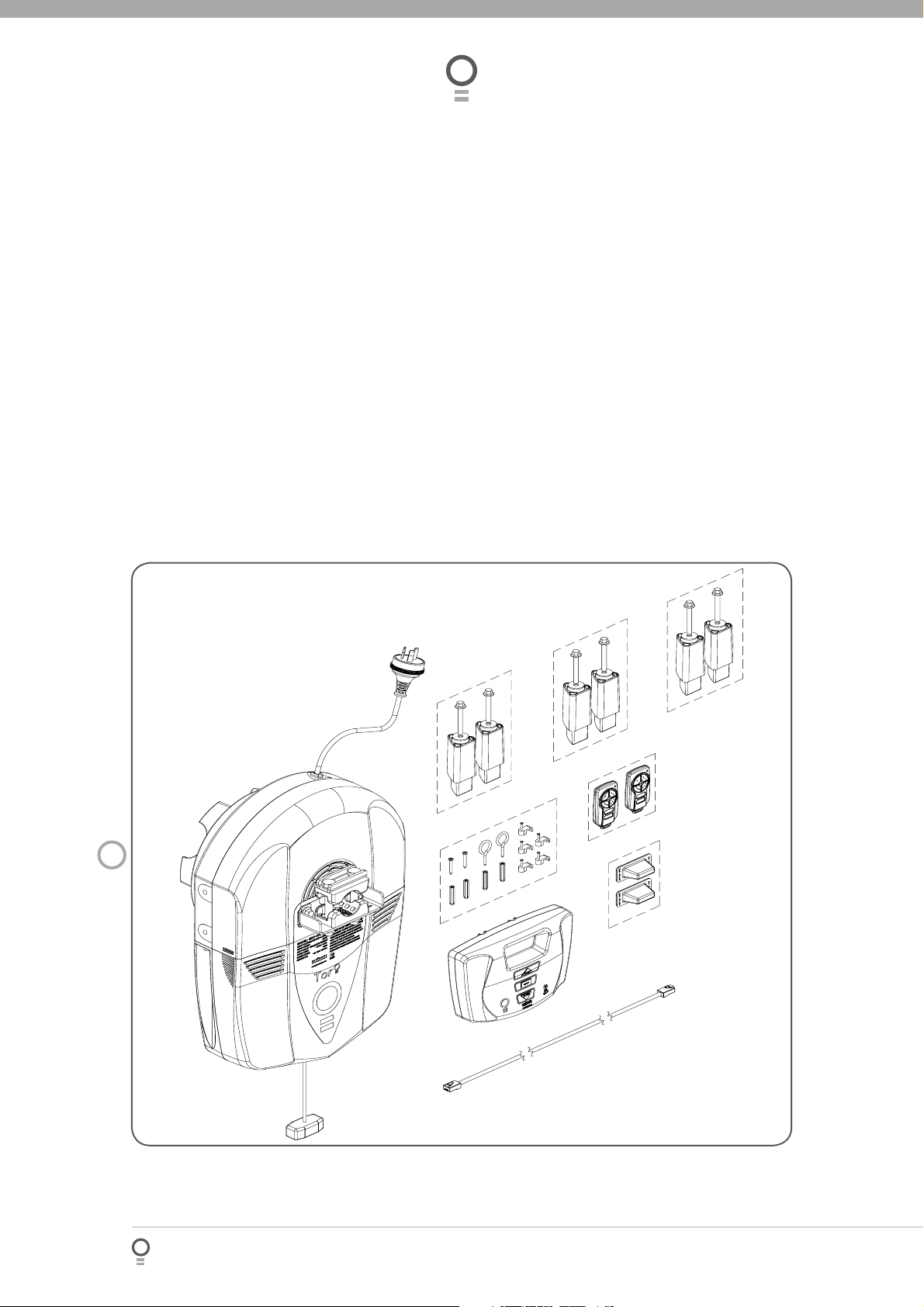

Package Contents
GDO-10V2L2 Toro™ Drive Unit 1
Wall Control Unit L2 1
Network Cable 1
Accessory Guide Pack 1
Fork Extension Pack 3
TrioCode™ Keyring Transmitters 2
Installation Manual 1
Locking Bar Covers 2
03
fig
Drive unit
Network cable
Wall control unit L2
Locking bar covers
Accessory pack
Triocode™ transmitters
Fork extension

Owner Installation Instructions GDO-10V2L2 Toro™11
Pre-Installation Requirements
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
04
fig
NOTE: Planetary chain equipment must be removed from
the door prior to installation of GDO-10V2L2.
Door Operation
The door must be in good operating condition. The
maximum effort to move the door up or down, from
stationary, should not exceed 150 Newtons (15 kg force) at
the bottom rail.
Lift the door to about halfway. When released, the door
should stay in place supported entirely by its springs. Raise
and lower the door to check for binding or sticking.
The door may need to be serviced to meet these
requirements – refer to the door manufacturer’s servicing
instructions or contact an authorised dealer.
Unsuitable Door Types
The fitting of an opener to doors with removable mullions or
doors incorporating a wicket door is not recommended.
Position
The opener can be installed on either the right or left hand
side of the door (when viewed from inside the garage). The
opener is factory set for right hand side installation.
This opener must be installed in a dry position that is
protected from the weather. Moisture or corrosion damage
is not covered by the Warranty.
Power Supply
Properly earthed 3 pin single-phase power is required.
WARNING! Using a portable power generator
is not recommended. The opener may appear
to malfunction due to spikes, surges and
fluctuations in the generated voltage.
Sideroom For Right Hand Side Installation
The minimum sideroom required from the edge of the door
curtain is 140 mm to the inside of the door bracket when the
opener is mounted on the door bracket (Fig. 04).
NOTE: The door axle diameter must not exceed 35mm.
140
185

12 GDO-10V2L2 Toro™Owner Installation Instructions
Installation
Sideroom For Left Hand Side Installation
The minimum sideroom required from the edge of
the door curtain is 127 mm to the inside of the door
bracket when the opener is mounted on the door
bracket (Fig. 05).
Step 1 - Preparation
Check the door’s operation:
The door must travel smoothly and
be easy to operate by hand.
Adjust any tight or twisted guides.
Clean the guides if there is any oil or
wax present using a suitable white
spirit. The only lubricant suitable for
use on door guides is silicon spray.
DO NOT use WD-40, RP-7, petroleum
grease, or similar.
Install the locking bar covers if there are
locking bar holes in the guides.
a.
i.
ii.
iii.
b.
IMPORTANT NOTE - Do not lock your door
with the locking bars after installing the
opener. Remove or disable the lock. Security
is not affected as the opener has an inbuilt
locking facility.
Affix the warning labels supplied with this opener in
a prominent place where they are clearly visible.
Choose the side where the opener will be installed
ensuring there is sufficient sideroom.
Check that the door is still balanced and smooth to
operate. If it is not, the door may require servicing (refer
to door manufacturer’s instructions).
Step 2 - Fitting The Opener

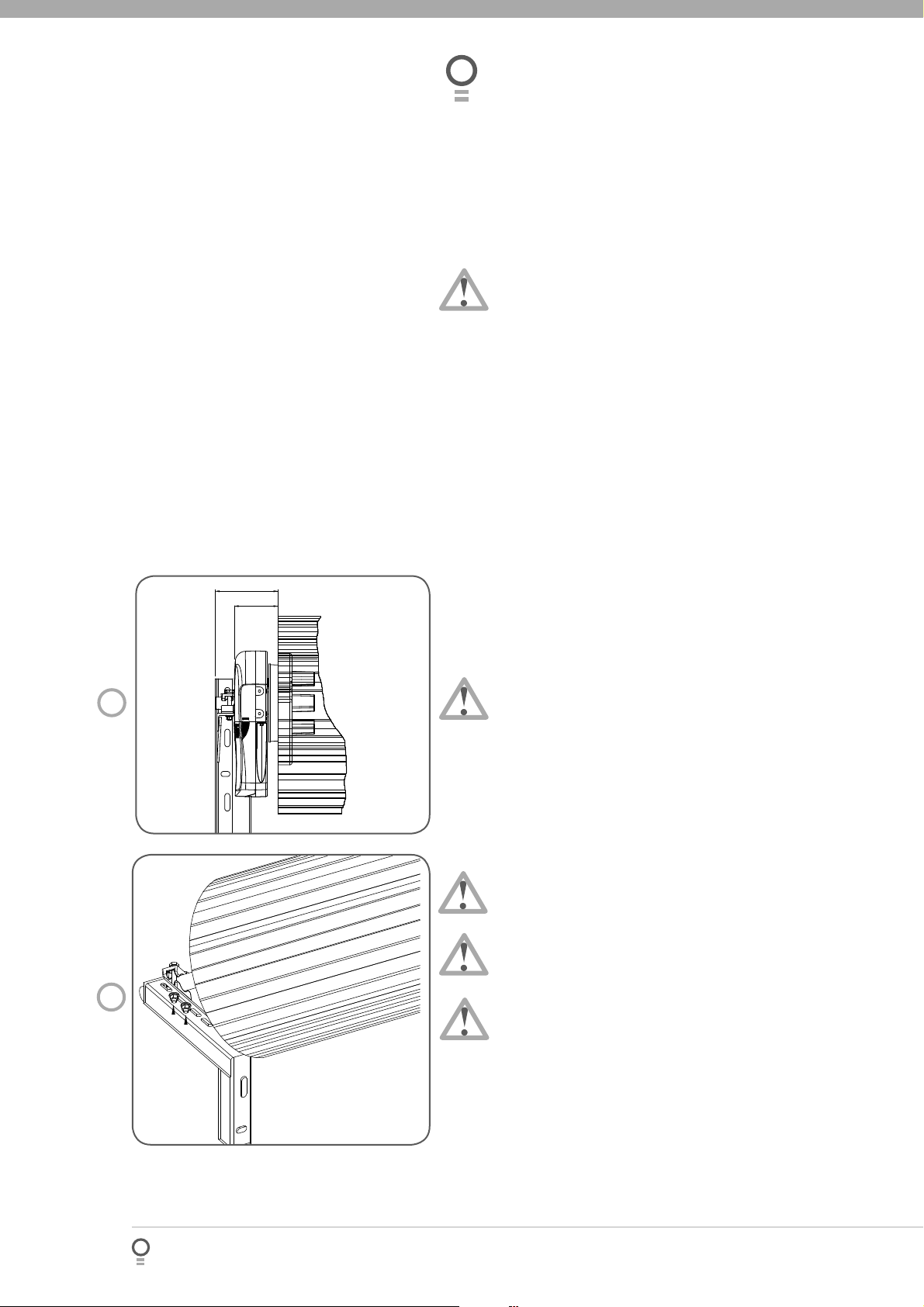

At the end opposite to where the opener will be
fitted, check that the door axle is tightened to the
bracket securely. (Fig. 06)
Open the door completely and tie safety ropes
around the door roll approximately 300 mm from
each end. Do not tie the ropes too tight as damage
to the curtain may ensue.
At the end where the opener is to be fitted, support
the door with a safe and suitable lifter.
WARNING! Make sure the support is snug
under the door, is stable and will not move.
At the end where the opener will be fitted, use
pen to mark the position of the saddle on the door
bracket and the position of the door bracket on the
wall to assist in reassembling.
Remove the bolts and saddle from the door
bracket.
Remove the door bracket allowing the door to rest
on the support
NOTE - For minimum sideroom installations,
the door may have to be taken down.
WARNING! The opener must not be used with
a door incorporating a wicket door.
WARNING! The door and its springs are under
significant tension. Adjustments should only
be carried out by experienced persons, as this
function can be dangerous if not performed
under strict safety procedures.
c.
d.
a.
b.
c.
d.
e.
f.
Tighten nuts
06
fig
182
127
05
fig

Owner Installation Instructions GDO-10V2L2 Toro™13
Step 3 - Mounting The Opener
If the internal gear does not rotate freely, switch the
opener to manual by pulling the disengagement
handle down (there will be a click), so the ring gear
can be rotated by hand.

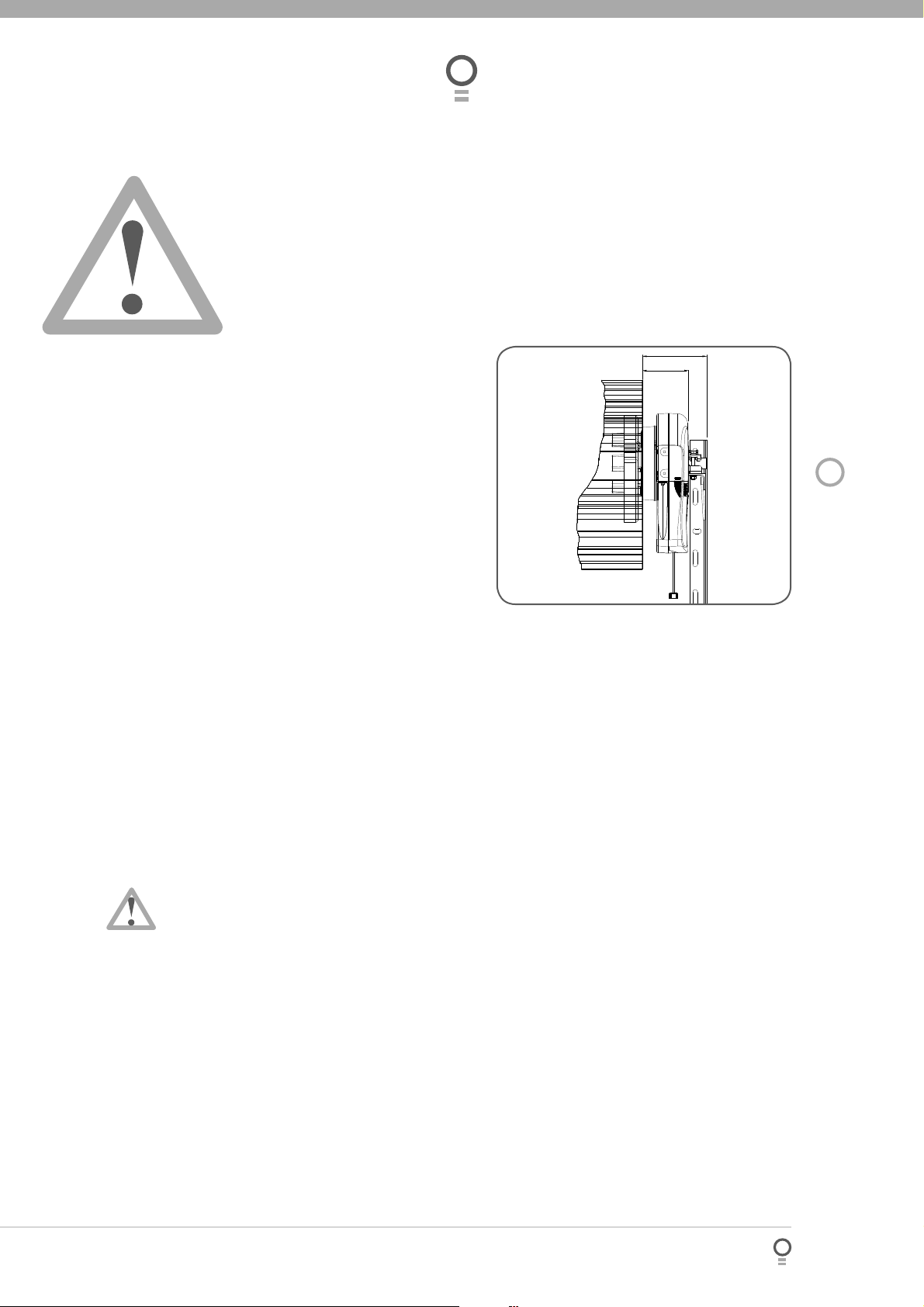

Slide the opener over the door axle and into the
drum of the door (Fig. 07).
Ensure the internal gear is pushed in as far as
possible (without interfering with the door curtain)
and that all of the door drum’s wheel spokes are
completely between the opener’s drive forks.
Re-attach the door bracket using your reference
marks as a guide and tighten the bolts. Ensure that
the slots in the mounting bracket of the opener
align with the slots in the door bracket, otherwise
the door bracket may have to be relocated. If the
bracket cannot be relocated, the opener may be
fitted onto the axle using the opener’s saddle and
bolts as follows:
Using your reference marks as a guide,
sit the opener on the door mounting
bracket and secure with the opener’s
bolts and saddle and tighten firmly (Fig.
08).
Adjust the door position (if necessary)
on the brackets so that the door feeds
smoothly into the guides. Make sure that
the centre of the door doesn’t hit the
lintel and that the curtain is not pushed
forward hard into the guide.
Remove the support and safety ropes.
IMPORTANT NOTE - If the manual release
handle is more than 1.8 metres from floor level
when the opener is installed, extend the handle
to a height less than 1.8 metres.
Step 4 - Installing The Wall Mounted Control
Unit
Remove the face cover from the wall mount
control unit.
Affix the wall mount control unit at a height of
1.5 metres within sight of the door but away
from moving parts. Make sure this location of the
wall control unit is out of reach of children and
convenient to the customer.
Replace the face cover.
Connect the network cable from the wall control
unit to the GDO-10V2L2 powerhead unit and
secure with p clips (supplied).
Connect the power cord to a suitable power
point, but DO NOT SWITCH ON.Secure the
power cord away from any moving object (e.g.
the door) with the cable clips.
With the opener still disengaged, pull the door
up and down to make sure it runs freely.
a.
b.
c.
d.
i.
ii.
e.
a.
b.
c.
d.
e.
f.
07
fig
08
fig
Installation
Tighten Nuts

14 GDO-10V2L2 Toro™Owner Installation Instructions
o
ck Kit Installation Instructions
RED
BLACK
RED
BLACK
RED
BLACK
BLACK
09
fig
10
fig
11
fig
STRUCTIONS | OWNERS COPY
Safety Beams Installation
Step 5 - Safety Beams
Safety Beams extend across the garage door opening.
The Safety Beam is designed to detect an obstruction
while the door is closing and to send a signal to the
garage door opener to reverse or stop the door
movement. One, two or three sets of Safety Beams can
be connected to GDO10V2L2 opener.
Step 5.1 - Fitting the Safety Beam
Attach the mounting bracket (4) to the adjustment
bracket (3) with the pan head screw (6) (supplied).
(Fig. 09)
Attach the bracket (2) to the Safety Beam
transmitter with four taptite screws (m3x5) and
attach the other side to the adjustment bracket (3)
with the pan head screw (6) . (Fig. 10)
Repeat steps a and b to assemble the Safety Beam
receiver.
Locate the Safety Beam in a strategic location in the
doorway. Automatic Technology recommend that the
sensor is placed 100mm above the floor level and as
close as possible to the door opening. Connect as per
the wiring diagram (Fig. 11).
Step 5.2 - Alignment
Power up the GDO10V2L2 with the Safety Beam
connected. The green LED on the transmitter
should turn ON to indicate power is present.
If the receiver is connected to power and the
red LED is flashing while the green LED on the
transmitter is on, the transmitter and receiver are
not aligned.
Make horizontal and/or vertical adjustment on the
transmitter and/or receiver until the red LED on the
receiver turns on, indicating alignment.
NOTE: The sensors need to be 100mm above
the flour level however, The exact position
must be chosen in such a manner that it suits
the application, the environmental conditions
and provides maximum safety protection.
WARNING: Install the Safety Beam as per
diagram in (Fig. 03). Tampering with the Safety
Beam could result in serious personal injury
and/or property damage and will void the
warranty.
WARNING: Safety Beam must be installed if
the closing force as measured at the bottom
edge of the door exceeds 400N (40kg).
NOTE: Three wire safety beam is not compatible with
GDO-10V2L2 opener.
a.
b.
c.
a.
b.
c.
1
2
3
4
6
6

Owner Installation Instructions GDO-10V2L2 Toro™15
Programming The Opener
Menu 8
Diagnostics
Menu 9
Memory tools
Menu 10
Setup Travel
Menu 1
Code
transmitter
Menu 2
Current
Trips
Menu 3
Auto-Close
times
Main Screen
Door status &
information
Menu 10.2
Reprofile
Travel
Menu 10.3
Set pedestrian
Code/edit
transmitter
procedure.
See page 21
Parameter
1. CLOSE margin
2.
OPEN margin
see p 20
3.OBST reverse
time see p 29
Parameter list
1. STD Auto-Close 2. Safety Beam Auto-Close 3. Ped’n Auto- Close 4. PE Ped’n Auto- Close 5.A/C After CLS Obst 6.A/C After OPN Obst 7.A/C After PWR up
See page 40
Reprofile the
door travel
see page 20
Ped’n position
set up
procedure.
See page 27
Menu 9.1
CLR control?
Menu 9.2
CLR Tx’ers?
Memory reset see page 38
Menu 8.1
Test inputs
Menu 8.2
Test tx’ers
Menu 8.3
Display history
Menu 8.5
Service counter
Menu 8.8
Parameters
Menu 8.4
Memory Usage
Control input
status display.
See page 36
Transmitter
testing
See page 36
Event history
display
See page 36
Periodic service
cycle counter
See page 37
View
Parameters
See page 37
Memory usage
See page 36
Parameter list 1. Open speed voltage 2. Close speed voltage See page 29
See page 29
Lock Parameter list 4. Open lock time 5. Close lock time 6. Pre-opn lock time 7. Pre-cls lock time.
See page 38
NOTES
1. Press PREV/NEXT buttons move to Left/Right.
2. Press OPEN/CLOSE buttons to change setting.
3. Press SET button to save changes.
4. Press STOP to return to MENU without saving changes.
Menu 5
Motor settings
Menu 6
Operating
Modes
Menu 4
Light / Lock
times
Menu 10.1
Setup
Limits
Travel limit set
up procedure.
See page 17
Menu 8.9
Version Info
Firmware
Version Info
See page 37
Menu 7
Time Clock
Modes
Menu 7.1
Set Time/Date
Menu 7.2
View
Programes
Menu 7.3
Settings
Set time/date
See page 34
View/Edit
programs
See page 34
Settings
See page 35
Light Parameter list 1. On after cycle time 2. On before open time 3. On before close time
See page 39
Menu 8.6
Event counter
Menu 8.7
Install Data
Cycle and
event counter
See page 37
1. Open, Ped
position.
2.Open Close
times
see page 37
NOTE: System will automatically return to the main screen
after 30 secs if a menu screen is displayed and no buttons
are pressed.
Menu structure

16 GDO-10V2L2 Toro™Owner Installation Instructions

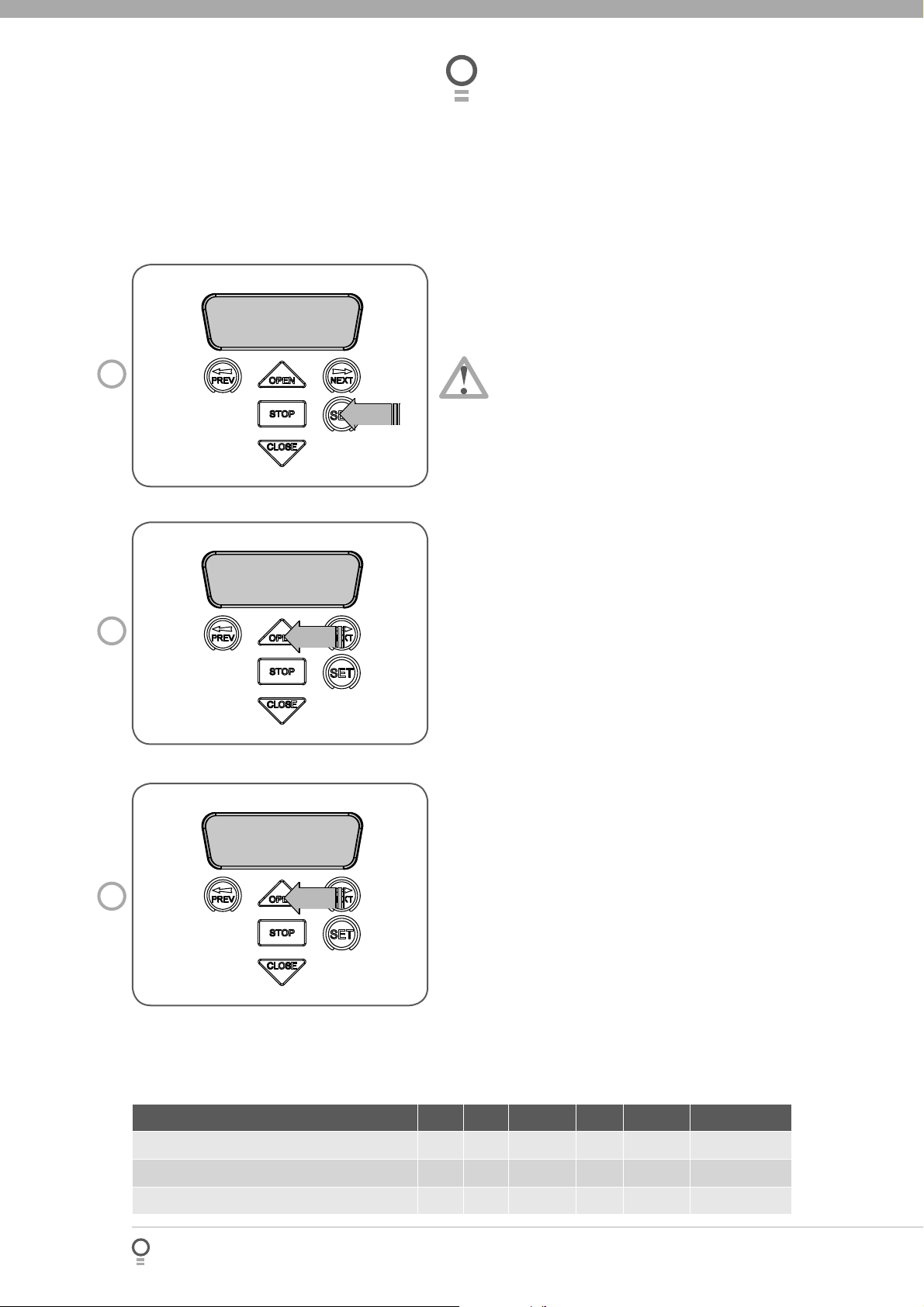

Viewing and Editing Parameters
This section illustrates how to locate, view and
adjust parameters.
Locating parameters
Refer to MENU STRUCTURE on Page 15 or the preceding
section for CONTROL BOARD ADJUSTMENTS. Locate
the required parameter and note the MENU number.
The example used in (Fig. 12) displays “CLOSE LOCK
TIME”
Changing Setting
1. Press NEXT/PREV to navigate to the required menu.
2. Press SET to show the sub-menu.
3. Press NEXT/PREV to go to the required sub-menu.
4. Press OPEN/CLOSE to change parameter setting.
Holding the button down causes the parameter’s
value to change rapidly. The longer the button is
held the faster the value changes.
5. Press SET to SAVE setting.
Reload Default Setting
1. Press NEXT/PREV buttons to display LOAD
DEFAULT screen.
2. Press SET to load the default value.
Return To Menu
If the parameter’s value is not to be changed, press
STOP to return to the sub menu. Press STOP again to
return to the MAIN SCREEN.
12
fig
5: Close Lock
Time (sec) 0.5
13
fig
5: Close Lock
Time (sec) 0.∆
Parameter name
Parameter
value
Displays next
parameter
in list
Parameter number in sub menu
Displays
previous
parameter in list
Returns back to menu
Enter Edit Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays “Load
Default?” screen,
giving option of
loading default value
Exits back to View Mode
Decrease
value
Saves new
value
Cursor shown

Owner Installation Instructions GDO-10V2L2 Toro™17
Setting Limits
14
fig
To Desired
CLOSE Limit,
SET
To Desired
OPEN Limit, SET
16
fig
Step 6.1 - Setting Travel Limits
WARNING! Use caution when operating the
manual release with the door open since it may
fall rapidly due to weak or broken springs, or
an improperly balanced door.
CAUTION! Do not disengage the opener to
manual operation with children, persons or
any objects including motor vehicles within the
doorway.
Secure the engage/disengage handle and string
with the accessory supplied in such a manner so
that the string is away from the moving parts.
Move the door to half way open. If necessary,
disengage the opener by pulling the cord down
(Fig.14). Re-engage the opener by pulling the cord
down again.
Turn on the power to the opener. The controller will
go through a start up sequence.
After a short delay the MAIN SCREEN (Fig. 15)
will be displayed. If this is the first time the GDO-
10v2L2 is being used, the MAIN SCREEN should
enter into limit set mode and the blue close LED
will be flashing. If the display shows that an input is
active, then rectify the situation before continuing
with the procedure for setting the travel limits.
Press and hold the CLOSE button - the door should
start closing.
If the door opens, release the CLOSE
button and press the STOP button once
to change the motor’s direction. Press and
hold the CLOSE button until close position
of the door is reached.
If the door overshoots press the OPEN
button to move the door in the open
direction.
When the door is at the desired close position, press
the SET button to record the close limit position. The
display will change and green open LED will start to
flash (Fig. 16).
Press and hold the OPEN button to open the door.
When the door is at the desired open position, release
the OPEN button
If the door overshoots, press the CLOSE
button to move the door in the CLOSE
direction.
WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of the
door.
Press the SET button to store the open limit. The door
will now automatically close and open to calculate the
safety obstruction settings. After this, if Safety Beam
is installed, the opener can be operated with the
OPEN or CLOSE button on the wall control unit or
from the transmitter. Otherwise, the controller will be
loaded with “Safety Close Mode.” See Control Board
Adjustments (Page 29) for further details.
a.
b.
c.
d.
»
»
e.
f.
»
g.
15
fig
Pull Down To
Engage/Disengage

18 GDO-10V2L2 Toro™Owner Installation Instructions
Setting Limits: Via Transmitter
17
fig
The GDO-10V2L2 has the alternate ability to set travel
limits using the transmitter, allowing free movement
around the garage to better assess the desired limit
positions. In order to use a transmitter, it must first have
at least one of its buttons coded to the door controller.
The function assigned to the transmitter’s buttons is of
no concern here as the buttons are temporally assigned
to OPEN, CLOSE and SET (Fig. 18).
Step 7 - Code A Transmitter For Limit Setting
Step 7.1 - Navigating to “code transmitter”
menu
1. Press NEXT to navigate to Menu 1.
2. Press SET to enter the code set procedure (Fig. 17).
Step 7.2 - Storing Transmitter Code
1. Controller will prompt to press one of the
transmitter’s button.
2. Press the transmitter button you wish to use to
operate the door opener (e.g. button 1) .
3. Press the same transmitter button again as
prompted by display.
4. Press the set button to store the transmitter.
Step 7.3 - Navigating To “Set Door Travel
Menu”
1. Press PREV to navigate to Menu 10.
2. Press SET to display MENU 10.1.
3. Press SET two times to enter the limit setting
procedure. The close blue LED will start to flash.
Setting Limits Via Transmitter
Press and hold Button 4 on the transmitter to close the
door.
If the door opens, release button 4 and press
the stop button once on the wall control unit to
change the direction of the motor. Then press
and hold Button 4 on the transmitter to close
the door.
If the door is closed too far, press Button 1 to
“inch” the door towards open.
When happy with the close limit position, press
Button 2 to store this in the memory. The open
green LED will starts to flash.
Press Button 1 to open the door.
If the door is opened too far, press Button 4 to
“inch” the door towards close
WARNING: The door will automatically close
and open once next step is performed. Ensure
that no persons or objects are in the door’s
path.
When happy with the open limit position, press Button
2 on the transmitter to store into memory.The door will
now automatically close and open to calculate the safety
obstruction settings. After this, if Safety Beam is installed,
then the opener can be operated with the OPEN or CLOSE
button on the wall control unit or from the transmitter.
Otherwise, the controller will be loaded with “Safety Close
Mode”. See Control Board Adjustments (Page 29) for further
details.
»
»
»
Button 1
(Inch Open)
Button 4
(Inch Close)
Button 2
(Set)
MENU 1
Code Transmitter
PR E S S
18
fig

Owner Installation Instructions GDO-10V2L2 Toro™19
Safety Obstruction Force
Wood (40mm high)
Safety Obstruction Force Test
WARNING! Take care when testing or adjusting
the Safety Obstruction Force. Excessive force
may cause SERIOUS PERSONAL INJURY and/
or PROPERTY DAMAGE.
Step 8.1 - Testing Close Cycle
Press the OPEN button to open the door.
Place a piece of timber approximately 40mm high
on the floor directly under the door (Fig. 19).
Press the CLOSE button to close the door. The door
should strike the object and start to re-open.
Step 8.2 - Testing Open Cycle
Press the CLOSE button to close the door.
Press the OPEN button to open the door. When the
door reaches the half open point, grab the bottom
rail of the door firmly and the door should stop.
If the door does not reverse readily when closing,
or stop when opening, the force may be excessive
and need adjusting.
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the
door by hand and call for service.
a.
b.
c.
a.
b.
c.
19
fig

20 GDO-10V2L2 Toro™Owner Installation Instructions
Safety Obstruction Force
The Safety Obstruction Force is calculated automatically
during setup. Adjusting this is normally only necessitated
by environmental conditions such as windy or dusty areas,
and areas with extreme temperature changes.
WARNING: The Safety Beam must be used if
the closing force as measured on the bottom
of the door is over 400N (40kg).
Step 9.1 - Force Pressure For Close Cycle.
Navigating To “Current Trips”
Press NEXT or PREV to navigate to Menu 2
Current Trips.
Press SET (Fig. 20)
MENU 2.1: CLOSE Margin is displayed (Fig. 21).
Press OPEN to increase or CLOSE to decrease the
value.
Press SET to save the new value.
Test the force again as per “Safety Obstruction
Force Test” on page 19.
Step 9.2 - Force Pressure For OPEN Cycle.
Navigating To “Current Trips”
Press NEXT to navigate to the Menu 2 Current
Trips.
Press SET (Fig. 20)
Press NEXT.
MENU 2.2: OPEN Margin is displayed (Fig. 22).
Press OPEN to increase or CLOSE to decrease the
value.
Press SET to save the new value.
Test the force again as per “Safety Obstruction
Force Test” on page 19.
Step 9.3 - To Recalculate Force Margins
Reprofiling is a simplified way of re-learning the
travel characteristic of a previously setup Limit
Switch travel installation. Re-profiling can be used
when the travel characteristics of the door change
due to mechanical adjustments etc. To initiate a re-
profile, simply locate “MENU 10.2 Reprofile Travel”,
press SET and follow the prompts. The door will
start to move and re-calculate force margins. The
door can move between the open and close limit
positions up to two (2) times (depending on the
position of the door and the power up condition).
A single beep will be heard once the process is
complete.
Test the force again as per “Safety Obstruction
Force Test” on page 19.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
7.
a.
b.
c.
Adjusting Safety Obstruction Force
20
fig
21
fig
22
fig
Menu 2
Current Trips
PRESS
1: CLOSE Margin
(Amps) 0.7
PRESS
2: OPEN Margin
(Amps) 0.9
PRESS
Parameter Min Max Default Step Unit Menu No.
CLOSE MARGIN 0.0 2.0 0.7 0.1 AMPS 2.1
OPEN MARGIN 0.0 2.0 0.9 0.1 AMPS 2.2
OBST REVERSE TIME 5.0 60 FULL 1.0 SEC 2.3
