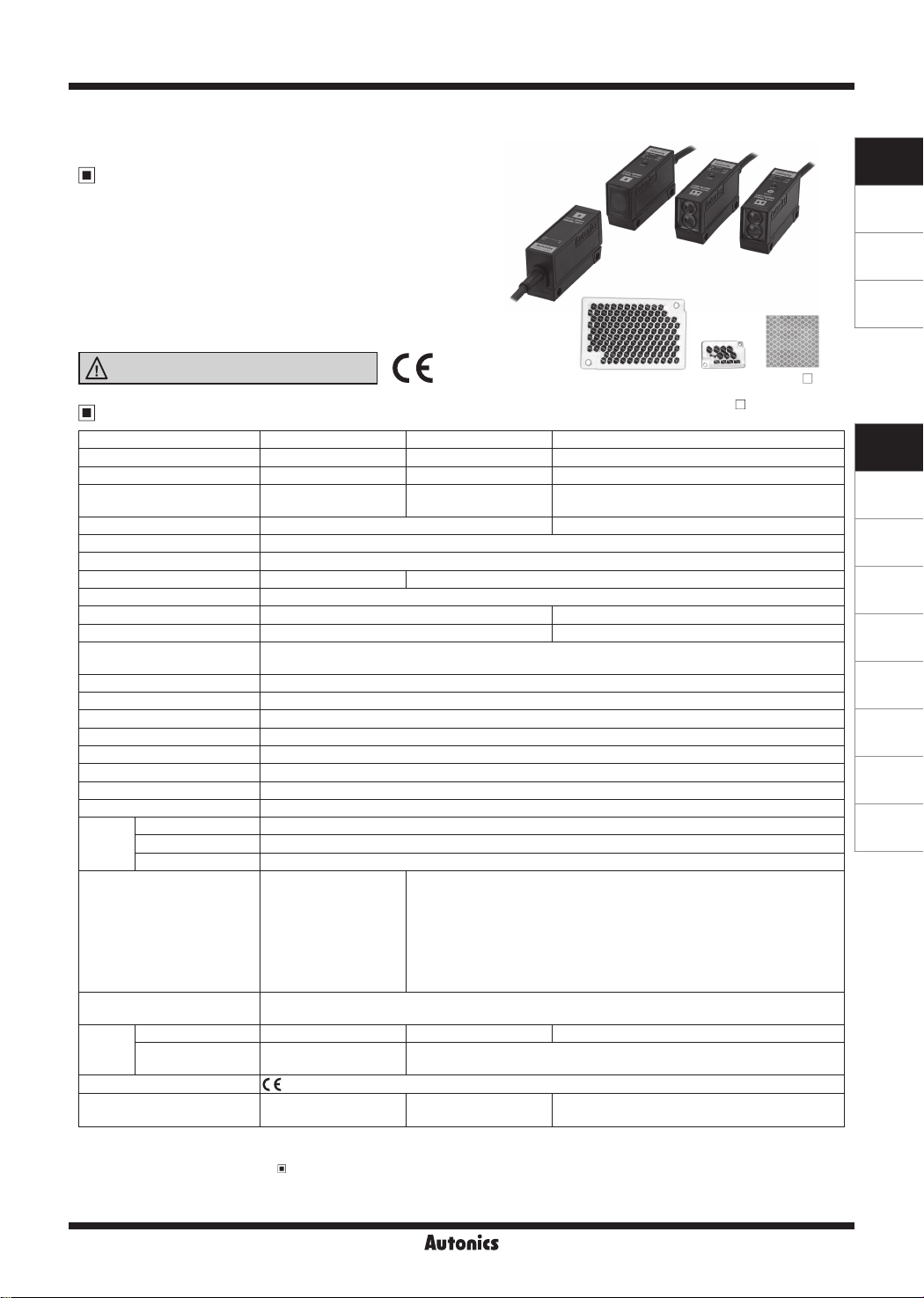

Autonics BM Series User manual

A-69
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
Features
● Easy to mount at a narrow space with small size
and light weight.
● Convenient to adjust the sensitivity by external
sensitivity adjustment control. (diffuse reflective type only)
● Easy to mount by screw type in mounting hole.
● Built-in reverse polarity protection circuit.
Small and Light, Common Type
Specifications
Model BM3M-TDT BM1M-MDT BM200-DDT
Sensing type Through-beam Retroreective Di󰀨use reective
Sensing distance 3m 1m※1200mm※2
Sensing target Opaque materials of Min.
Ø8mm
Opaque materials of Min.
Ø60mm Transparent, translucent, opaque materials
Hysteresis - Max. 10% at rated setting distance
Response time Max. 3ms
Power supply 12-24VDCᜡ ±10% (ripple P-P: max. 10%)
Current consumption Max. 45mA Max. 40mA
Light source Infrared LED (940nm)
Sensitivity adjustment Fixed Sensitivity adjuster
Operation mode Dark ON Light ON (Dark ON: option)
Control output NPN open collector output
●Load voltage: max. 30VDCᜡ ●Load current: max. 100mA ●Residual voltage: max. 1VDCᜡ
Protection circuit Reverse polarity protection circuit
Indication Operation indicator: red LED
Connection Cable type
Insulation resistance Over 20MΩ (at 500VDC megger)
Noise immunity ±240V the square wave noise (pulse width: 1㎲) by the noise simulator
Dielectric strength 1,000VAC 50/60Hz for 1 minute
Vibration 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock 500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Environ-
ment
Ambient illumination Sunlight: max. 11,000㏓ incandescent lamp: max. 3,000㏓ (receiver illumination)
Ambient temperature -10 to 60℃, storage: -25 to 70℃
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH
Material
Case: acrylonitrile
butadiene styrene,
sensing part: polycarbonate,
bracket: steel plate cold
commercial,
bolt: steel chromium
molybdenum, nut: steel
chromium molybdenum
Case: acrylonitrile butadiene styrene, sensing part: acrylic,
bracket: steel plate cold commercial, bolt: steel chromium molybdenum,
nut: steel chromium molybdenum
Cable Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)
(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm)
Acces-
sories
Individual - Reector (MS-2) Adjuster driver
Common Fixing bracket,
4M bolt: 4, 4M nut: 4 Fixing bracket, 4M bolt: 2, 4M nut: 2
Approval
Weight※3Approx. 240g
(approx. 170g)
Approx. 188g
(approx. 105g)
Approx. 156g
(approx. 88g)
※MS-5, MST- is sold separately.
(MS-2) (MS-5) (MST- )
※1: The sensing distance is specified with using the MS-2 reflector, and it is the same when using MS-5 (sold separately).
The distance between the sensor and the reflector should be set over 0.1m. When using reflective tapes, the reflectivity will vary by size
of the tape. Please refer to the “ Reflectivity by Reflective Tape Model” table before using the tapes.
※2: Non-glossy white paper 200×200mm.
※3: The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
Please read “Safety Considerations”
in the instruction manual before using.
BM Series

A-70
Parallel shifting characteristic Angle characteristic
Measuring method Data Measuring method Data
ℓ1
LL
θ
Emitter
Emitter
Receiver Receiver 3
2
1
0
40° 20° 0 20° 40°
Operation angle (θ)
Left Right
Center
Sensing distance L (m)
ℓ1ℓ1
3
2
1
0
400 200 0 200 400
Left Right
Center
Sensing distance L (m)
Sensing area ℓ1 (mm)
BM Series
Feature Data
Through-beam type
● BM3M-TDT
Retroreflective type
● BM1M-MDT
Retroreflective type
● BM1M-MDT
Diffuse reflective type
● BM200-DDT
Reector angle characteristic
Measuring method Data
Sensing area characteristic
Measuring method Data
ℓ1
20
0
30 20 0 20 30
L
L
θ
Standard sensing target:
Non-glossy white paper
200×200mm
Reector (MS-2)
ℓ1ℓ1
Left Right
Center
100
50
30
0
40˚ 20˚ 0 20˚ 40˚
Operation angle (θ)
Left Right
Center
Sensing distance L (cm)
Sensing distance L (cm)
Sensing area ℓ1 (mm)
Retroreective Di󰀨use reective
Parallel shifting characteristic Sensor angle characteristic
Measuring method Data Measuring method Data
ℓ1
ℓ1
ℓ1
ℓ1
100
50
30
0
40 20 0 20 40
LL
θ
Retroreective Retroreective
Reector (MS-2) Reector (MS-2)
Left Right
Center
Sensing distance L (cm)
100
50
30
0
40° 20° 0 20° 40°
Operation angle (θ)
Left Right
Center
Sensing distance L (cm)
Sensing area ℓ1 (mm)

A-71
Amplier Built-in Type for General Purpose
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
Photoelectric sensor circuit Connection
Through-beam: BM3M-TDT2 Di󰀨use reective: BM200-DDT
Retroreective: BM1M-MDT
Through-beam (Dark ON)
(brown) +V (brown) +V
(blue) 0V (blue) 0V
(black) output
+
-
+
-
● BM3M-TDT1 ● BM3M-TDT2
Sensing
target
Emitter Receiver
Load
12-24VDC 12-24VDC
Retroreective (Dark ON) Di󰀨use reective (Light ON)
Control Output Circuit Diagram Operation Mode
Connections
Dimensions
(brown) +V
(blue) 0V
39V
(black) Output
12-24VDC
Max. 100mA
Load
+
-
(unit: mm)
Main circuit
Operation mode Light ON
Receiver operation Received light
Interrupted light
Operation indicator
(red LED)
ON
OFF
Transistor output ON
OFF
Operation mode Dark ON
Receiver operation Received light
Interrupted light
Operation indicator
(red LED)
ON
OFF
Transistor output ON
OFF
● BM1M-MDT ● BM200-DDT
(brown) +V (brown) +V
(blue) 0V (blue) 0V
(black) output (black) output
Load Load
+
-
+
-
Sensing
target
Sensing
target
Reector (MS-2)
Reective tape
(MST series)
12-24VDC 12-24VDC
※
The product is not equipped with the output short over current
protection circuit. If short-circuit the control output terminal or
supply current over the rated specification, it may result in product
damage.
Operation indicator (red)
Sensivitity adjuster
51.5 14.9
16.4
Ø4, 2m
28.4
3.5
7 39.5 2-Ø4
<Retroreflective/
Diffuse reflective type>
13.4 7.8
Optical
axis
<Through-beam
type>
17.3
Optical
axis
50.5
3-4.2
46.5
24
13
20
3-6.8
1.6
46.5
24
8
13
20
3-6.8
3-4.2
● Bracket

A-72
BM Series
Installation and Adjustment
1. The sensitivity should be adjusted depending on a
sensing target or mounting place.
2. Set the target at a position to be detected by the beam,
then turn the sensitivity adjuster until position ⓐ where
the operation indicator turns ON from MIN position of the
sensitivity adjuster.
3. Take the target out of the sensing area, then turn the
sensitivity adjuster until position ⓑ where the operation
indicator turns ON. If the indicator dose not turn ON,
MAX position is ⓑ.
4. Set the sensitivity adjuster at the center of two switching
position ⓐ, ⓑ.
※The sensing distance indicated on specification chart is
for 200×200mm of non-glossy white paper. Be sure that
it can be different by size, surface and gloss of target.
Through-beam type
For optical axis adjustment
For installation
Diffuse reflective type
Optimal
position
ⓐ
ⓑ
Sensing
target
MAXMIN
Photoelectric
sensor
1. Supply the power to the photoelectric sensor, after
setting the emitter and the receiver facing each other.
2. Set the receiver in center of position in the middle of the
operation range of indicator by adjusting the receiver or
the emitter right and left, up and down.
3. After the adjustment, check the stability of operation by
putting the object at the optical axis.
※ If the sensing target is translucent body or smaller
than Ø8mm, it can be missed by sensor because light
penetrate it.
When using photoelectric sensors closely over two units, it may result in malfunction due to mutual interference.
When installing the product, tighten the screw with a tightening torque of 0.8 N.m.
Do not impact on the unit with the hard object or bend the cable with excessive power. Otherwise, It may result in damage
to the waterproof function.
Emitter
Adjust
Right/Left
Adjust Up/Down
Receiver
Optical axis
Reflective tape (MST Series, sold separately)
A0.38
Model A
MST-50-10 50
MST-100-5 100
MST-200-2 200
● Reector
MS-5 (sold separately)
9.5
2
11.4
15.4
2-Ø2.2
20.4
24
2
MS-2
34
2-Ø3.8
52
60.5
8.5
2.5
40.5
4.2
3.25
(unit: mm)

A-73
Amplier Built-in Type for General Purpose
SENSORS
CONTROLLERS
MOTION DEVICES
SOFTWARE
(A)
Photoelectric
Sensors
(B)
Fiber Optic
Sensors
(C)
LiDAR
(D)
Door/Area
Sensors
(E)
Vision
Sensors
(F)
Proximity
Sensors
(G)
Pressure
Sensors
(H)
Rotary
Encoders
(I)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/ Sockets
MST-50-10 (50×50mm) 70%
MST-100-5 (100×100mm) 110%
MST-200-2 (200×200mm) 170%
1. Supply the power to the photoelectric sensor, after
setting the photoelectric sensor and the reflector (MS-2)
or reflective tape face to face.
2. Set the photoelectric sensor in the position which
indicator turns on, by adjusting the reflector, reflective
tape or the sensor right and left, up and down.
3. Fix both units tightly after checking that the unit detects
the target.
※If using more than 2 photoelectric sensors in parallel,
the space among them should be more than 30cm.
※If reflectance of target is higher than non-glossy white
paper, it might cause malfunction by reflection from the
target when the target is near to photoelectric sensor.
Therefore put enough space between the target and the
photoelectric sensor or the surface of the target should
be installed at angle of 30° to 45° against optical axis.
※
If the mounting place is too narrow,
please use MS-5 instead of MS-2.
※Please use reflective tape (MST
series) for where a reflector is not
installed.
Retroreflective type
<MS-5>
Adjust
Right/Left
Reector (MS-2)
Reective tape
(MST Series)
Photoelectric
sensor
Adjust Up/Down
Optical axis
Reflectivity by Reflective Tape
Model
※This reflectivity is based on the reflector (MS-2).
※Reflectivity may vary depending on usage environment
and installation conditions.
The sensing distance and minimum sensing target size
increase as the size of the tape increases.
Please check the reflectivity before using reflective
tapes.
※For using reflective tape, installation distance should be
min. 20mm.
Reector (MS-2)
Reective tape
(MST Series)
Sensing
target
L
30° to 45°
