LE365S-41
CONTACT OUT:
250VAC 15A
RESISTIVE LOAD
SOURCE:
100-240VAC
50/60㎐
1234
Ordering information
Features
Specifications
W48×H48mm, Weekly/Yearly timer
●Easy to check and change the program setting.
●Customizable weekly or yearly unit time setting and
control by user
●Includes daylight saving time function
●1 independent control output.(Relay)
●Flush and surface, DIN rail mounting are in one unit.
Connections
Model LE365S-41
Power supply 100-240VAC 50/60㎐
Allowable voltage range 90 to 110% of rated voltage
Power consumption 2.4VA
Timing program 48 steps for weekly, 24 steps for yearly
Operation mode ON/OFF mode, cycle mode, pulse mode
Temperature error Panel flush, surface, DIN rail
Mounting ±15sec/month(25℃) (±4sec/week)
Time deviation ±0.01% ±0.05sec.
Memory protection Over 5 years(at 25℃)
Control
Output
Contact type SPST(Single Pole Single Throw)
Contact capacity 250VAC 15A resistive load
Output number Independent 1 output(1a)
Relay
life cycle
Mechanical Min. 5,000,000 operations(Switching capacity 30 times/minute)
Electrical 50,000 operations<Switching capacity 20 times/1 minute, at 250VAC 15A(resistive load)>
Insulation resistance Min. 100MΩ(at 500VDC megger)
Dielectric strength 2000VAC 50/60Hz for 1minute
Noise strength ±2kV the square wave noise(pulse width : 1㎲) by the noise simulator
Environ
-ment
Ambient temperature -10 to 55℃, storage: -25 to 65℃
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH
Unit weight Approx. 110g
Item
Size
Power supply
Output
LE365 S 4 1
1 1 Relay outputs
4 100-240VAC
S DIN W48×H48mm
LE365 Weekly/Yearly timer
Please read “Caution for your safety” in operation
manual before using.
※Environment resistance is rated at no freezing or condensation.
Weekly/Yearly Timer

K-88
LE365S-41
6
16
42.7
66 3
DIN rail
59
61
61.5 4
35
61
43
Panel
2-M3 TAP
※ Fix the Weekly/Yearly
timer on the panel with
M3 tapping screws.
6.8 60
44.8
48
48
①Unscrew 1 bolts
from terminal block
Remove terminals from the body after unscrewing terminals screws, and then assemble terminals to the body after
rotating terminals as shown below.
(Front panel mounting)
(Surface mounting type) (DIN rail type)
③Detach terminal
block from
case and rotate
it 180˚degree.
②Detach the terminal
block after unscrew
terminal screws with
tools.
※To raise panel holder,
tools must be used.
⑤Screw terminals block
with a fixing bolt.
④Assemble case
and terminal
block
Dimensions & Mounting
How to switch from the flush mounting to surface or DIN rail mounting type
(unit: mm)
1) Front panel mounting
2) Surface mounting
3) DIN Rail mounting
●Panel hole cut-out
Min. 55
Min. 65
●Panel cut-out
45+0.6
0
45+0.6
0

K-89
(A)
electric
sensor
(B)
Fiber
optic
sensor
(C)
Door/Area
sensor
(D)
Proximity
sensor
(E)
Pressure
sensor
(F)
Rotary
encoder
(G)
Connector/
Socket
(H)
Temp.
controller
(I)
SSR/
Power
controller
(J)
Counter
(K)
Timer
(L)
Panel
meter
(M)
Tacho/
Speed/ Pulse
meter
(N)
Display
unit
(O)
Sensor
controller
(P)
Switching
power
supply
(Q)
Stepping
motor&
Driver&Controller
(R)
Graphic/
Logic
panel
(S)
Field
network
device
(T)
Software
(U)
Other
Front panel identification
Functions
1
10
2
11
3
12
413
514
615
7
16
8
17
9
18
19 20 21 22 23
ON Time OFF Time
1. Day indicator
2. Day display
●Light : Day is selected.
●Light-out : Day is not selected.
3. Current time setting mode indicator
4. DST display(Daylight saving time)
5. AM/PM display(Main display)
6. Season display
7. Program display
8. Display ON time/day, OFF time/day, ON time width,
OFF time width
9. AM/PM display(Sub-display)
10. YEAR display : It turns ON when set, check, modify,
delete yearly program, set yearly
holidays and operate yearly program.
11. Yearly START/STOP day display
12. Main display
13. Remaining step display
14. Operation mode display
15. Output mode display
16. Year, month, date display
17. Unit of pulse width display
18. Sub display
19. CHECK key
20. MODE key
21. Operation key : Press +1h key over 3sec. in RUN mode,
DST mode is set and released.
22. SET key
23. Output selection switch
●AUTO : Control output according to the set program.
●ON : Output is ON.(Operation)
●OFF : Output is OFF.(Block)
Definitions
●Record : A part of program that controls output operation.
●Step : Basic component of Record.
Operation modes
●If the operation mode of Program1 (program2) is set on
puls
e mode initially, the pulse mode is fixed for additional
programs. If the operation mode of Program1 (program2) is
set on ON/OFF or cycle mode initially, pulse mode cannot
be use
d for additional pulse programs.
●If the weekly operation mode is set on ON/OFF or cycle
m ode, the yearly operation mode is fixed on ON/OFF mode.
If the yearly operation mode is set on ON/OFF, the weekly
op
eration mode is fixed on ON/OFF or cycle mode.
●If the weekly operation mode is set on pulse mode, the
yearly op
eration mode is fixed on pulse mode. If the yearly
operation mode is set on pulse mode, the weekly operation
mode is fi
xed on pulse.
●Weekly ON/OFF mode
Output operation by ON/OFF set time.
• Min. time setting unit : 1 min.
• It is able to set ON/OFF day separately.
• One record in two steps
(ON day/ON time, OFF day/OFF time)
●Weekly Cycle operation
It outputs ON the set ON time width which is from Cycle
operation ON time to Cycle operation OFF time, and it
outputs OFF the set OFF time width.
Weekly/Yearly Timer

K-90
LE365S-41

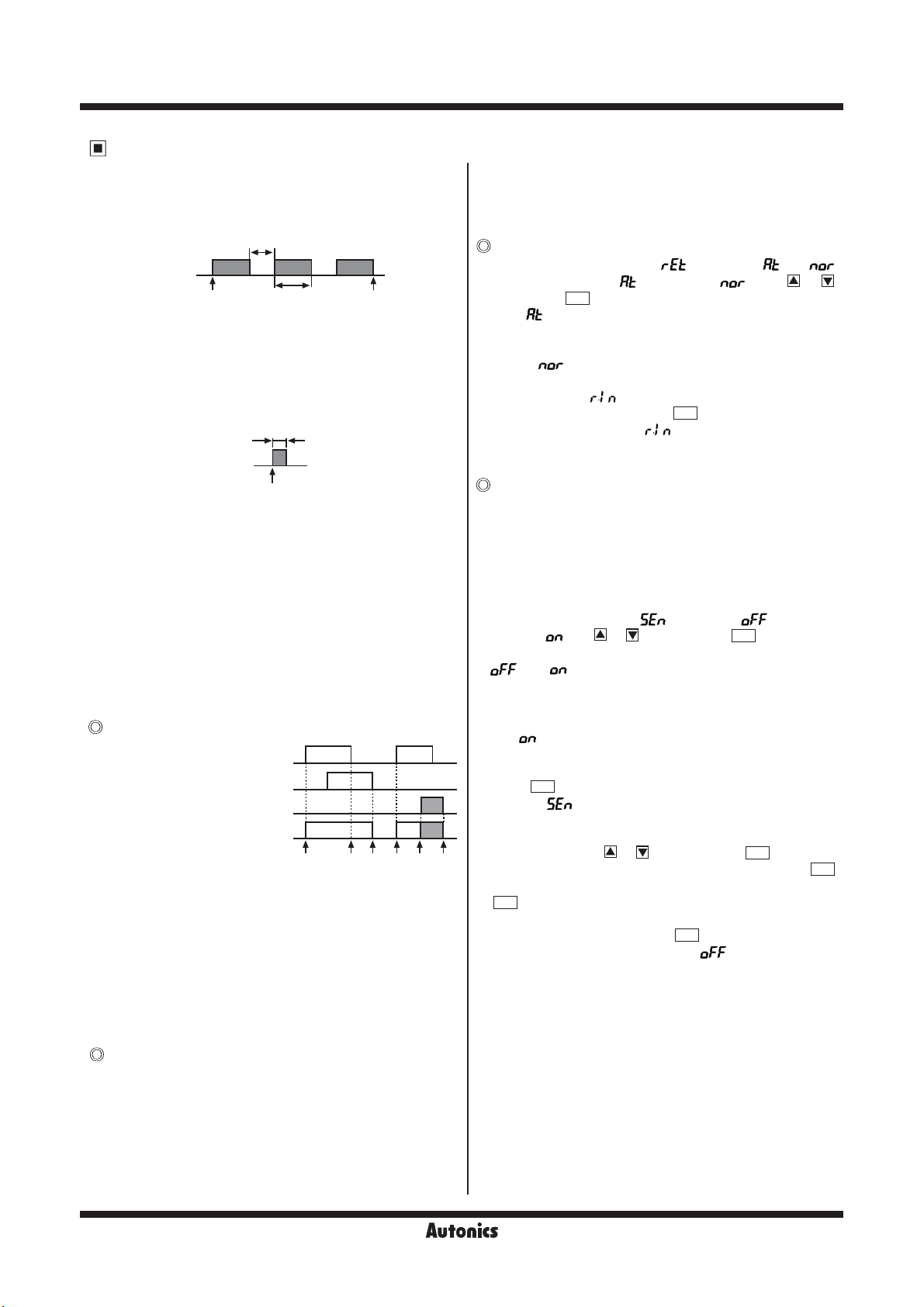

Functions
ON time
Pulse width
(1 to 59sec., 1 to 60min.)
Weekly setting 1 of Program1
Weekly setting 2 of Program1
Yearly setting 1 of Program1
①②③④⑤⑥
Output operation
ON Time ON width OFF Time
OFF width
•Set range for ON/OFF time width : 1min. to 12 hour 59min.
•One record in 3 steps(ON day/ON time, OFF day/OFF time,
ON time width/OFF time width)
●Weekly pulse mode
Output turns ON at ON time for a specified pulse width.
(Pulse width : 1 to 59sec., 1 to 60min.)
• One record in two steps(ON day/ON time, pulse width)
●Yearly ON/OFF mode
Output turns ON at ON time on START date and turns OFF
at OFF time on STOP date.
• One Record in three Steps(START/STOP date, ON/OFF
time)
●Yearly pulse mode
Output turns ON at ON time on START date and turns OFF at
OFF time on STOP time for a specified pulse width repeatedly.
• One record in three steps(START/STOP date, ON time,
Pulse width)
Program operation
●①to ②: Operated by weekly setting 1 of Program 1.
●②to ③: Operated by weekly setting 2 of Program 1.
●④to ⑤: Operated by weekly setting 1 of Program 1.
●⑤to ⑥: Operated by yearly setting 1 of Program 1.
(During weekly program operation at 12:00 AM on START
date, the weekly program operation stops, and it changes
to yearly program operation mode. The yearly program
operation stops at 12:00 AM on the next day of STOP
date.)
Display and change of next mode
●The day of next mode in Program is displayed on the day
indicator, and the time of next mode is displayed on the
lower row of screen.
●In ON/OFF operation mode, set ON time and OFF time to
next mode. In Pulse operation mode, set Pulse ON time
to next mode.
Power restore mode
In setting group 2 - LEVEL2 (" " turns ON, "" or "
" flashes), select Auto(" ") or Normal(" ") by or
key and press SET key to set.
●Auto (" ") power restore mode
Output operates according to program when power turns
ON again after power failure.
●Normal(" ") power restore mode
When power turns ON again after power failure, output
is kept OFF and " " flashes on the lower row of screen
and power restore input (press SET key over 3 sec.
in RUN mode) is applied, " " turns OFF and output
operates according to program.
Season switching mode
This feature uses for setting seasonal weekly operation
mode. To operate this mode, save starting month and date,
ending month and date of each season which displays S1,
S2, S3, S4 then set day and time of each season in weekly
program setting. It is also able to operate only in summer
and winter season. (S1: set summer season, S2: set winter
season, S3/S4: do not set)
In setting group 2-Level 2(" " turns ON, " " flashes.),
select ON(" ") by or key and press SET key to save.
* Note:When the season switching mode changed from
"" to " "or vice versa, previous set programs are
deleted.
●ON(" ") mode
Weekly program is switched automatically by season switching.
• Period setting per season
① Press
SET
key in period setting per season mode of setting
group 2.(" "
flashes , season with preset period turns ON
and "START" and "STOP" turn ON.)
② Advance to the flashing position of season selectionamong
S1, S2, S3, S4 by or key and press SET key.
③ After set START month, date per season and press SET
key.
④
SET
key is pressed after set STOP month, date per season,
it is advanced to LEVEL1 of period setting per season. Ad d
or adjust the period setting by SET key.
●It is disable to use when it is OFF(" ").
●If season terms are overlapped, these are prioritized in
S4>S3>S2>S1 order.

K-91
(A)
electric
sensor
(B)
Fiber
optic
sensor
(C)
Door/Area
sensor
(D)
Proximity
sensor
(E)
Pressure
sensor
(F)
Rotary
encoder
(G)
Connector/
Socket
(H)
Temp.
controller
(I)
SSR/
Power
controller
(J)
Counter
(K)
Timer
(L)
Panel
meter
(M)
Tacho/
Speed/ Pulse
meter
(N)
Display
unit
(O)
Sensor
controller
(P)
Switching
power
supply
(Q)
Stepping
motor&
Driver&Controller
(R)
Graphic/
Logic
panel
(S)
Field
network
device
(T)
Software
(U)
Other
④Current time(Hour, Min.) setting
Press or key to set 5 PM
and move the flashing digit to
position min. by key.
Press or key to set 10min.
and press SET key and it is
returned to RUN mode when
press MODE key over 3sec.
③Current time(AM, PM) setting
Press or key to select
PM and move the flashing
digit to position hour by key.
②Year, Month, Date setting
Press or key to set 08
(year 2008) and move the
flashing digit to position month
by key.
Press SET key after press
or key to set date 10.
①Advance to the current time setting mode
MODE + SET keys are pressed
over 3sec. in RUN mode, it is
advanced to current time setting
of setting group 2 and clock
will be flashed and tAJ will
be lighted in second display
part, press SET key.
Functions
Daylight saving time
To utilize daylight during the summer season, daylight saving
time is adjusted forward one hour from standard time.
In setting group 2-LEVEL 2(" " turns ON, " " or "
" flashes.), select Auto (" ") or Normal (" ") by or
key and press SET key to set.
●Auto(" ") daylight saving time mode
Current time will be faster as an hour when it is started and
slower as an hour when it is finished.
• Automatic daylight saving time period setting
① Automatic daylight saving time period setting LEVEL 1 of
setting group 2.
(Press SET key when " " flashes and "START" and
"STOP" turn ON.)
② Set START date(Month, date) of automatic daylight
saving time mode and press SET key.
③ Set START time(AM/PM, Hour) of automatic daylight
saving time mode and press SET key. But, the minute will
be fixed as 00.
④ Set STOP date(Month, date) of automatic daylight saving
time mode and press SET key.
⑤ Set STOP time(AM/PM, Hour) of automatic daylight
saving time mode and press SET key. But, the minute will
be fixed as 00.
●Normal(" ") daylight saving time mode
Press +1h key over 3sec. in RUN mode, "+1h" turns ON
and current time is faster as an hour and "+1h" turns ON
out or vice versa, when press +1h key over 3sec. again.
Current time setting
(Ex) Set the current time as 10, Mar, 2008, 5:10 PM.
●It advances to to "①Current time setting mode" in ON
sta tus and set current time as shown above ②to ④by
SET
ke
y.
●Current time is set up to 31, Dec., 2099.
●Check current year/month/date in RUN mode When key
is pressed over 3sec. in RUN mode, it advances to current
year/month/date display. After display current year/month/
date for 3sec, it returns to RUN mode displaying current
display.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
Weekly/Yearly Timer

K-92
LE365S-41
RUN mode RUN mode
(Setting group 1)
(Note1)
(Note2)
(Setting group 2)
Weekly program setting mode
(" " flashes)
Weekly program
setting
Current time setting mode
(Clock icon flashes)
Power failure return selection mode
(" " flashes, " " or " " turns ON)
Season switching selection mode
(" " flashes, " " or " " turns ON)
Period setting for season mode
(" " flashes, period-set season turns ON
and "START" or "STOP" turns ON)
Daylight saving time selection mode
(" " flashes, " " or " " turns ON)
Automatic(" ") daylight saving
time period setting mode
(" " flashes, "START" or "STOP" turns ON)
Current time
setting
Power restore
selection
Season switching
selection
Period setting
per season
daylight saving
time selection
Automatic
daylight
saving time
period setting
Yearly program setting mode
(" ", "YEAR" flashes)
Weekly program delete mode
(" ", " " flashes)
Yearly program delete mode
(" ", " ", "YEAR" flashes)
Weekly day change mode
(" " flashes)
Yearly holiday operation mode
(" , YEAR" flashes)
Yearly program
setting
All weekly
program delete
All yearly
program delete
Standard day,
change day
setting
Yearly holiday
operation mode
setting
Program setting
LEVEL1 LEVEL1
LEVEL1
LEVEL1
LEVEL1
LEVEL1
LEVEL1
LEVEL2 LEVEL2
LEVEL2
LEVEL2
LEVEL2
LEVEL2
LEVEL2
LEVEL1 LEVEL2
LEVEL1 LEVEL2
LEVEL1 LEVEL2
LEVEL1 LEVEL2
LEVEL1 LEVEL2
SET SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
MODE MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
Setting group 1 Setting group 2
●When it is advanced to setting group 1 in RUN mode,
output will be OFF.
●It is returned to previous setting group 1 when power of
time switch is ON again in setting group 1.
●When MODE key is pressed in LEVEL2 of setting group 1,
current setting will be canceled and it is returned to
previous LEVEL1.
●When press SET key to program over max. number of
steps for weekly program in Weekly program setting mode
of setting group 1-LEVEL 1, number of remaining steps
and "STEP" flash and it returns to LEVEL 1 status.
●When press SET key to program over max. number of
steps for yearly program in Yearly program setting mode
of setting group 1-LEVEL 1, number of remaining steps
and "STEP" flash it returns to LEVEL 1 status.
●(Note1) Season switching selection is " ".
●(Note2) Automatic switching selection of Daylight Saving
Time is Normal(" ").
●When it advances to setting group 2 in RUN mode, output
(OUT1, OUT2) will be OFF.
●When power of time switch is ON again in setting group 2,
it is returned to previous setting group 1.
●Front MODE key is pressed in LEVEL2 of setting group 2,
it is returned to previous LEVEL1.
●When season switching selection is changed from " "
ot " " or " " to " ", previous set weekly program will
be deleted.
Press
MODE
key
for 3sec.
Press
MODE
key
for 3sec.
Press
MODE
+
SET
key for 3sec.
Press
MODE
key
for 3sec.

K-93
(A)
electric
sensor
(B)
Fiber
optic
sensor
(C)
Door/Area
sensor
(D)
Proximity
sensor
(E)
Pressure
sensor
(F)
Rotary
encoder
(G)
Connector/
Socket
(H)
Temp.
controller
(I)
SSR/
Power
controller
(J)
Counter
(K)
Timer
(L)
Panel
meter
(M)
Tacho/
Speed/ Pulse
meter
(N)
Display
unit
(O)
Sensor
controller
(P)
Switching
power
supply
(Q)
Stepping
motor&
Driver&Controller
(R)
Graphic/
Logic
panel
(S)
Field
network
device
(T)
Software
(U)
Other
①Advance to weekly program setting mode
MODE key is pressed for 3sec.
in RUN mode, " P" flashes
and press SET key.
②Mode type setting
Press or key when ON/
OFF flashes, pulse flashes
and press SET key.
③Season selection
Press or key to select
season S2 and press SET
key.
⑦OFF time setting(AM, PM)
Select PM by or key and
move the flashing to hour
position by key.
⑧ OFF time setting(Hour, Min.)
⑨Complete to set
Press
SET
key to set additional
program.
②Mode type setting
Press SET key in ON/OFF
mode.
①Advance to weekly program setting mode
MODE
key is pressed over 3sec
in RUN mode " P" flashes
and press SET key.
④ON time setting(AM, PM)
key is pressed, move the
flashing to hour position and
select PM by or key when
ON time is afternoon.
⑤ON time setting(Hour, Min.)
Set 8:00 by or key and
press SET key.
⑥OFF day setting
Press SET key to check ON/
OFF day.
③ON day setting
Press key to move the
indicator to Monday, it will be
lighted when or key are
pressed and move it to Tuesday
by key.
Press SET key after Tuesday,
Wednesday, Thursday,
Friday turn ON.
SUN MON TUE WED THU FRI SAT
8:00
AM
8:00
AM
8:00
AM
8:00
AM
8:00
AM
8:00
AM
ON for 10sec.
8:00 AM
Program setting
Weekly program setting
●Weekly ON/OFF mode
(Ex) Output1(OUT1) is ON from Monday to Friday at 8:00 AM
and OFF at 6:10 PM.
●Weekly Pulse mode
Output2(OUT2) is ON for 10sec at 8:00AM from Monday to
Friday during S2 season in case, period of S1, S2, S3, S4
is set.
8:00
AM
8:00
AM
8:00
AM
8:00
AM
8:00
AM
6:10
PM
6:10
PM
6:10
PM
6:10
PM
6:10
PM
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
Weekly/Yearly Timer
Move the flashing to minute
position by key after set
6:00 by
or key and set
the minute as 10
by or
key and press SET key.

K-94
LE365S-41
①Advance to weekly program setting mode
②Mode type setting
Press or key when ON/
OFF flashes, cycle flashes
and press SET key.
③ ~ ⑧
Refer to ③to ⑧of "lWeekly ON/OFF mode" to set ON day,
ON time, OFF day and OFF time.
⑨ON time width setting
Press key to move the
flashing to minute position
and set as 10min. by or
key and press SET key.
⑩OFF time width setting
Press key to move the
flashing to minute position
and set as 5min. by or
key and
press SET key.
⑪Complete to set
Press
SET
key to set additional
program.
④ON day setting
Press key to move the
indicator to Monday, it will be
lighted when or key is
pressed and move it to tuesday
by key. Press
SET
key after
light tuesday, wednesday,
thursday and friday.
⑤ON time setting(AM, PM)
Press key, move the flashing
to hour position and select
PM by or key when ON
time is afternoon.
⑥ON time setting(Hour, Min.)
Set 8:00 by or key and
press SET key.
⑦ Pulse width setting
Press or key to select
pulse
width as 10s(10sec.)
and press
SET key.
⑧Complete to set
Press
SET
key to set additional
program.
Program setting
6:00 AM
Start Cycle mode
5:30
PM
ON for 10min.
OFF for 5min.
Weekly day change
When the specified day mode is required to install in other
day, it is started from the set day and returned to previous
program setting automatically when it is finished.
●Weekly day change cancellation
① Change current year, month, date in current time setting
mode
② Change standard day
③ Delete all program in program
④ Season switching
●Setting example
Output is ON in saturday at 9:00AM and OFF at 12:00PM
and it is ON 8:30AM and OFF at 6:00PM from monday to
friday and the mode of monday and Tuesday is operated
temporarily as saturday(standard) program.
●Weekly Cycle mode
(Ex) Output1(OUT1) is ON for 10min and OFF for 5min
from Monday 6:00AM to Saturday 5:30PM.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
In RUN mode, press MODE
key for 3 sec. and " P"
flashes. Press SET key.

K-95
(A)
electric
sensor
(B)
Fiber
optic
sensor
(C)
Door/Area
sensor
(D)
Proximity
sensor
(E)
Pressure
sensor
(F)
Rotary
encoder
(G)
Connector/
Socket
(H)
Temp.
controller
(I)
SSR/
Power
controller
(J)
Counter
(K)
Timer
(L)
Panel
meter
(M)
Tacho/
Speed/ Pulse
meter
(N)
Display
unit
(O)
Sensor
controller
(P)
Switching
power
supply
(Q)
Stepping
motor&
Driver&Controller
(R)
Graphic/
Logic
panel
(S)
Field
network
device
(T)
Software
(U)
Other
⑤Complete to yearly holiday
Press MODE key to finish the
additional yearly holiday
setting and press SET key to
set .
※It is able to set yearly
holiday up to 12 times.
SUN MON TUE WED THU FRI SAT
①Advance to Program1(P1) yearly program setting mode
Press MODE key for 3 sec. in
RUN mode, "
P
" flashes and
press MODE key once, then,
"P"and YEAR flash and
press SET key to set.
②Mode type setting
Press
SET
key when ON/OFF
flashes.
③Start date setting
Press key until month
position flashes and set Apr
by or key and press
key until date position
flashes. Press SET key after
set 5th by or key.
①Advance to yearly holiday mode
Press MODE key over 3sec.
to move to the setting group1
in RUN mode and press it
repeatedly until " " flashes
in second display part and
press SET key.
②Yearly holiday No. display
Press SET key after check
yearly holiday No.
③Start date of yearly holiday setting
Press key until month( )
position flashes and set
May by or key and
press key until date
position flashes. Press SET
key after set 5th by or
key.
④End date of yearly holiday setting
The flashing is moved to
month( ) position directly
and press or key to set
May and press key until
date position
flashes.
Press SET key after set 5th
by or key.
①Advance to weekly day change mode
Press MODE key over 3sec.
to move to the setting group1
in RUN mode and press it
repeatedly until " " flashes
in second display part and
press SET key.
②Standard day selection
Press key to move the
indicator to saturday and
press SET key. after select
saturday as standard day(Sat
turns ON) by or key.
③Change day selection
Press key to move the
indicator to monday and
select monday to change
(Monday turns ON) by or
key and repeat the procedure
to select tuesday to change
(Tue turns ON) and press
SET key to complete.
Yearly program setting
●Yearly ON/OFF mode
(Ex) Output(OUT) is ON from every 5, Apr to 7, Apr at
9:00AM and OFF 5:10PM.
Program setting
Yearly holiday mode
It operates to off the output without program adjustment
during previously set yearly holiday period available from
present year to 31, Dec. of the next year.
Designate the start date of yearly holiday and year of end
date as every year("--") to repeat the holiday mode for specified
in every year.
●Setting example
Set every year 5, May to off the output.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
Weekly/Yearly Timer

K-96
LE365S-41
①Advance to yearly program setting mode
MODE key is pressed for 3sec
in RUN mode, " P" flashes
and press MODE key again,
"Pflashes and press SET
key.
④End date setting
The flashing is moved to month
position directly and press
or key to set April and
press
key until date position
flashes . Press SET key after
set 7th by or key.
⑤ON time setting(AM, PM)
key is pressed, move the
flashing to hour position and
select PM by or key when
ON time is afternoon.
⑥ON time setting(Hour, Min.)
Press or key to set 9 and
press
SET key after check
00min.
⑦OFF time setting(AM, PM)
Select PM by or key and
move the flashing to hour
position by key.
⑧OFF time setting(Hour, Min.)
⑨Complete to set
Press
SET
key to set additional
program.
②Mode type setting
or key is pressed when
ON/OFF flashes to set pulse
mode and press SET key.
③Start date setting
Press or key twice to
set 08
(year 2008) and move to
month
position by key.
Set Oct. by or key and
move to date position by
key and press SET key after
set 2nd by or key.
④End date setting
The flashing is moved to month
position directly by key
and set 4th by or key
after move it to date position
by key, then press SET
key.
⑤ON time setting(AM, PM)
key is pressed, move the
flashing to hour position and
select PM by or key when
ON time is afternoon.
⑥ON time setting(Hour, Min.)
Press or key twice to
set 10
and press
SET
key
after check
00min.
⑦Pulse width setting
Press or key 4 times to
select pulse width as 5s and
press SET key.
⑧Complete to set
Press
SET
key to set additional
program.
2, Oct 3, Oct 4, Oct
8:00
AM
8:00
AM
8:00
AM
ON for 5sec.
10:00AM
Program setting
●Yearly pulse mode
(Ex) Output(OUT) is ON from 2, Oct., 2008 to 4,Oct, 2008
at 10:00AM and OFF after 5sec. (Present is 2007.)
※It is able to set year of start/end date in yearly program
setting up to 2 years later from the present year.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
Move the flashing to minute
position after set 5:00 by
or
key and set the minute
as 10
and press SET key.

K-97
(A)
electric
sensor
(B)
Fiber
optic
sensor
(C)
Door/Area
sensor
(D)
Proximity
sensor
(E)
Pressure
sensor
(F)
Rotary
encoder
(G)
Connector/
Socket
(H)
Temp.
controller
(I)
SSR/
Power
controller
(J)
Counter
(K)
Timer
(L)
Panel
meter
(M)
Tacho/
Speed/ Pulse
meter
(N)
Display
unit
(O)
Sensor
controller
(P)
Switching
power
supply
(Q)
Stepping
motor&
Driver&Controller
(R)
Graphic/
Logic
panel
(S)
Field
network
device
(T)
Software
(U)
Other
RUN mode
RUN mode
Weekly program
record No.1( )
setting check
Yearly program
record No.1( )
setting check
Weekly program
record No.1( ) setting
modify and delete
Yearly program
record No.1( ) setting
modify and delete
Weekly program
record No.2( ) setting
modify and delete
Yearly program
record No.2( ) setting
modify and delete
Weekly program
record No.n( ) setting
modify and delete
Yearly program
record No.n( ) setting
modify and delete
Weekly program
record No.2( )
setting check
Yearly program
record No.2( )
setting check
Weekly program
record No.n( )
setting check
Yearly program
record No.n( )
setting check
Program check, modify and delete
CHECK
CHECK
CHECK
CHECK
CHECK
CHECK
Weekly program check, modify and delete
Yearly program check, modify and delete
※"YEAR" turns ON when check, modify or delete yearly
program.
●If any key is untouched for 60sec., it is returned to RUN
mode in weekly or yearly program check.
●In weekly or yearly program check, it controls output according
to program setting and output is OFF in modify or delete mode.
●When MODE key is pressed in weekly or yearly program
record modify, delete stand by or delete mode, current work
is cancelled and it is returned to check mode.
●Weekly or yearly program record modify and delete
Press CHECK
key for 1sec.
Press
MODE
key
for 3sec.
Press SET
key for 1sec.
Press SET
key for 3sec.
Press SET
key for 3sec.
Press SET
key for 3sec.
Press SET
key for 3sec.
Press SET
key for 3sec.
Press CHECK
key for 1sec.
Press
MODE
key
for 3sec.
Weekly/Yearly Timer
(1) Program record modify
①
When press
SET
key over 3sec. in program check, " "
flashes in second display part, press
SET
key.
② It returns to check mode when finish the modify same as
the above procedure.
(2) Program record delete
① When press
SET
key over 3sec. in program check, " "
flashes in second display part, press or key until
"" flashes in second display part and press
SET
key.
② Press " " key over 3sec. when
SET
turns ON in
second display part, it returns to program check.
