Avaya ArgentWAN3 Quick user guide

ArgentWAN3
Hardware Reference Manual (Revision 4)

ArgentWAN3 Hardware Reference Manual
2 Revision 4
Copyright
Copyright 2001 Avaya Inc. All rights reserved.
Published by Avaya Inc., who reserve the right to make improvements to the products described in
this manual and to revise this publication at any time without notice to any person of such changes.
All rights reserved. No part of this publication may be reproduced, transcribed, stored in an
electronic retrieval system, translated into any language or computer language, or be transmitted in
any form whatsoever without the prior written consent of Avaya Inc.
Notice
Avaya Inc. makes no endorsement of any particular product for any purpose, nor claims any
responsibility for its operation and accuracy.
Avaya ECS Ltd,
Sterling Court,
15-21 Mundells,
Welwyn Garden City,
Hertfordshire,
AL7 1LZ,
United Kingdom

Contents
Revision 4 3
CONTENTS
Section 1: Introduction to the ArgentWAN3
About the ArgentWAN3.........................................................................................................6
Safety and Homologation Statements.....................................................................................7
CE Statement...............................................................................................7
CE Marking.................................................................................................7
EMC ............................................................................................................7
Approvals.....................................................................................................7
Product Variants.....................................................................................................................8
ArgentWAN3...............................................................................................8
Current Country Variants.............................................................................8
Port Labelling.........................................................................................................................9
ArgentWAN3 - Front View..........................................................................9
ArgentWAN3 - Rear View...........................................................................9
Port Connections..................................................................................................................10
LAN Port ...................................................................................................10
DTE Port....................................................................................................10
DC Power Input Connector........................................................................10
Connection to an X.21, V.35 or V.24/V.28 Leased Line............................11
Further Information and Product Updates............................................................................12
Section 2: Technical Data
Port Pinouts..........................................................................................................................14
DTE Port (25 way D-Type Socket)............................................................14
LAN Port - 10 baseT (RJ45 Socket) ..........................................................14
WAN Port (37 way D-Type Socket)..........................................................15
Cables...................................................................................................................................16
LAN Interconnect Cable............................................................................16
LAN Cable.................................................................................................17
V.24/V.28 WAN Cable..............................................................................18
X.21 WAN Cable.......................................................................................19
V.35 WAN Cable.......................................................................................20
Port Safety Classification.....................................................................................................22
Rack Mount Assembly Instructions......................................................................................23
Technical Specifications.......................................................................................................24
Interfaces ...................................................................................................24
Index

ArgentWAN3 Hardware Reference Manual
4 Revision 4

Section 1:
Introduction to the
ArgentWAN3
This section contains …
yAbout the ArgentWAN3, page 6
ySafety and Homologation Statements, page 7
yProduct Variants, page 8
yPort Labelling, page 9
yPort Connections, page 10
yFurther Information and Product Updates, page 12

ArgentWAN3 Hardware Reference Manual
6 Revision 4
ABOUT THE ARGENTWAN3
Thank you for purchasing the ArgentWAN3, one of the new innovative units from the
Alchemy Series Alchemy series.
The Alchemy Series Argent product family is the first of a new generation of networking
systems. It is designed to integrate both computer and telephony requirements for the
small office. This is achieved by fully utilising:
ySpeed and comprehensive feature set offered by ISDN.
yFacilities offered by Microsoft Windows95, Windows98, Windows 2000and
Microsoft Windows NT4.
yFeatures provided by standard Caller Display telephones or Caller Display units.
All of these can be used with theArgent family to provide a fully integrated voice and
data system with features otherwise only available on expensive call centre systems.
The Alchemy Series Argent family will enhance your communications by bringing voice
and data integration to your desktop, provide you with a range of systems designed to
make you more effective and allow you to enjoy the fruits of your consequent success.
This Reference Manual provides technical information on the ArgentWAN3, including;
Safety Declarations, Port Labelling and Pin-Out Information, Cable Specifications and
Technical Specifications.
For configuration information and an overview of the advanced features available on the
Alchemy Series Argent family, please refer to the Help Text files on the Alchemy
Installation Wizard CD provided with the Argent system unit. This is designed to make
installation and configuration of your ArgentOffice, and all its derivatives, as simple as
possible.

Section 1: Introduction to ArgentWAN3
Revision 4 7
SAFETY AND HOMOLOGATION STATEMENTS
DECLARATION OF CONFORMITY
yPlease see the associated Declaration of Conformity document, within the
Approvals folder.

ArgentWAN3 Hardware Reference Manual
8 Revision 4
PRODUCT VARIANTS
As a standalone product the ArgentOffice can be used as an IP Router with integral
Firewall. The ArgentWAN3 enhances the Networking capabilities of the ArgentOffice
by supporting a further 3 Digital Leased Line (WAN) connections.
ARGENTWAN3
The ArgentWAN3 provides:
y3 x Serial Synchronous data (WAN) ports.
y1 x Serial Asynchronous data port. (This port is used for factory purposes.)
y1 x 10BaseT LAN port. (This port is used to Interconnect the ArgentWAN3 to the
ArgentOffice.)
The 10BaseT LAN port is located on the front of the unit, all the other ports are located
on the rear of the unit.
CURRENT COUNTRY VARIANTS
The unit is currently available for the UK and European markets. The product
identification details are as follows:
Basic Product: ArgentWAN3 - EU
Sales Feature: ARG-WAN3/EU
Unit Part Number: ASYFEAARGWAN3EU0

Section 1: Introduction to ArgentWAN3
Revision 4 9
PORT LABELLING
This section illustrates the ports on the ArgentWAN3.
ARGENTWAN3 - FRONT VIEW
The following diagram shows the port labelling on the front of the ArgentWAN3:
WAN Unit LAN LAN
Link Status Status Link OK Activity
LEDs LED LED LED
ARGENTWAN3- REAR VIEW
The following diagram shows the port labelling on the rear of the ArgentWAN3:

ArgentWAN3 Hardware Reference Manual
10 Revision 4
PORT CONNECTIONS
This section provides information on the use of the ArgentWAN3 ports. It covers:
yLAN Port.
yDTE Port.
yDC Power Input Connector.
yConnection to an X.21, V.35 or V.24/V.28 Leased Line.
LAN PORT
Connection to the LAN from the ArgentWAN3 is made via the 10BaseT port on the front
of the unit. This port is labelled as follows:
LAN
The ArgentWAN3 10BaseT LAN port is a MDI type port and can be connected to a hub
without the need for a crossover cable. If the ArgentWAN3 is located in the same cabinet
as the ArgentOffice it can be connected to one of the hub ports on the ArgentOffice via a
LAN Interconnect cable (Sales Feature ARG-HSIC, Part No.: CABETHNN01M0PP00).
DTE PORT
The DTE port is presented as a standard 25 way D-Type socket on the rear of the unit.
This port is used as a diagnostic aid. This port is labelled:
DTE
DC POWER INPUT CONNECTOR
The Argent range of products use a Plug Top PSU module to provide DC power.
The Plug Top PSU is plugged into a suitable mains power outlet and provides a 12V
unregulated DC output. This unregulated DC is fed into the unit via the DC Input port.
This port is labelled:

Section 1: Introduction to ArgentWAN3
Revision 4 11
CONNECTION TO AN X.21, V.35 OR V.24/V.28 LEASED LINE
The Leased Line ports on the rear of the ArgentWAN3 are labelled as follows:
WAN1WAN2WAN3
As viewed from the rear of the unit.
These ports support a single synchronous data connection, which can be X.21, V.35 or
V.24/V.28. The selection of the required interface is automatically determined from the
pin-out of the cable plugged into the ‘WAN’ port.
Connection to a Digital Leased Circuit is made by connecting the WAN port on the rear
of the ArgentWAN3 to the supplied Network Terminating Unit (NTU) via the
appropriate X.21, V.35 or V.24 cable. This cable can be purchased from any Alchemy
Series reseller/distributor by ordering the appropriate Sales Feature as detailed in the table
below, or the user can supply his own cable so long as the criteria set out in Cables, page
Error! Bookmark not defined. are adhered to.
Cable Type Cable Part Number Cable Sales Feature
V.24/V.28 Cable CABV28SN03M0PP00 ARG-WANV24C
V.35 Cable CABV35SN03M0PP00 ARG-WANV35C
X.21 Cable CABX21SN03M0PP00 ARG-WANX21C
These interfaces are identical to the WAN port on the ArgentOffice.

ArgentWAN3 Hardware Reference Manual
12 Revision 4
FURTHER INFORMATION AND PRODUCT UPDATES
Further information, including Product and Reference Manual updates, can be obtained
from Avaya Inc. Alchemy Dealers and Distributors, or from Avaya Inc. Alchemy web
site
http://www.avaya.co.uk/products/#alchemy

Section 2:
Technical Data
This section contains …
yPort Pinouts, page 14
yCables, page 16
yPort Safety Classification, page 22
yRack Mount Assembly Instructions, page 23
yTechnical Specifications, page 24

ArgentWAN3 Hardware Reference Manual
14 Revision 4
PORT PINOUTS
This section provides technical specifications for the ArgentWAN3 ports.

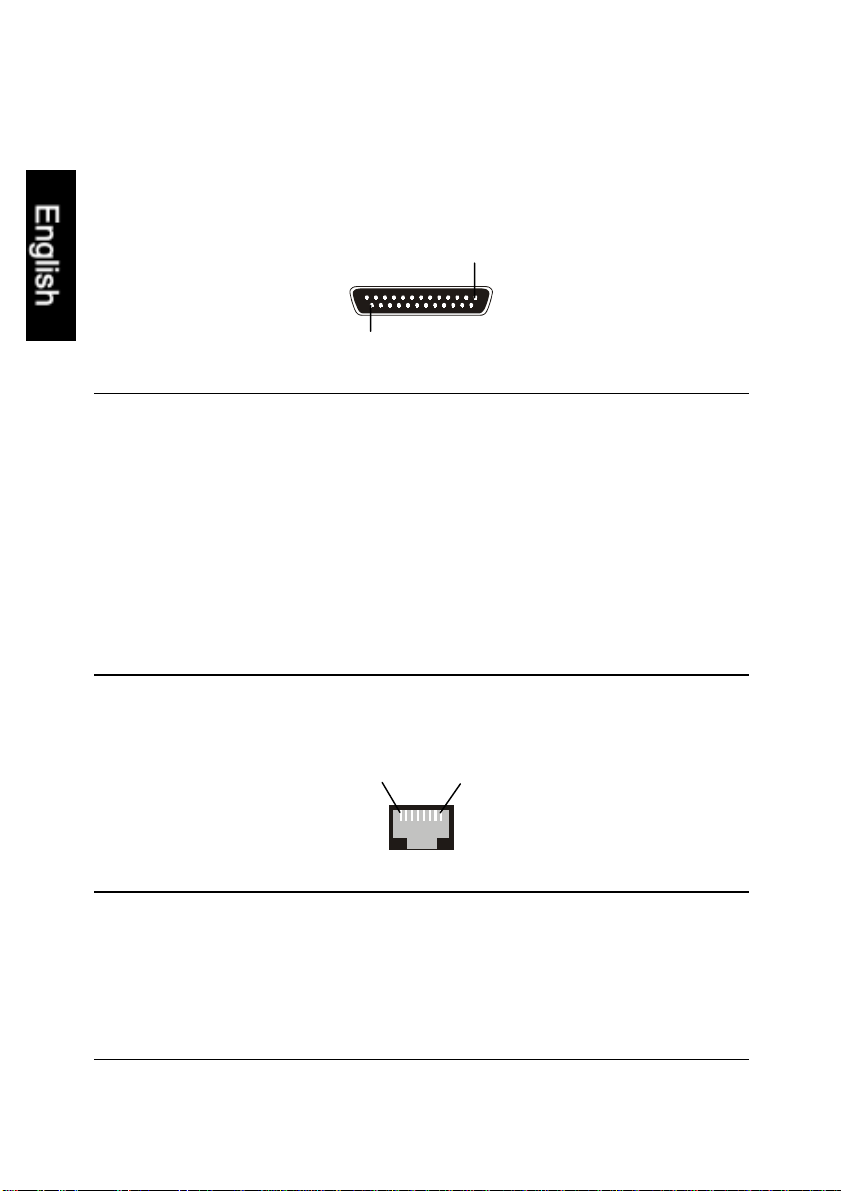

DTE PORT (25 WAY D-TYPE SOCKET)
Pin 1
Pin 25
Pin No. Description Signal Direction
2 Transmit Data (TxD) Í
3 Receive Data (RxD) Î
4 Request to Send (RTS) Í
5 Clear to Send (CTS) Î
6 Data Set Ready (DSR) Î
7 Signal Ground
8 Data Carrier Detect (DCD) Î
LAN PORT - 10 BASET (RJ45 SOCKET)
Pin 1 Pin 8
Pin No. Description Signal Direction
1 Receive Data (Tx-A) Î
2 Receive Data (Tx-B) Î
3 Transmit Data (Rx-A) Í
6 Transmit Data (Rx-B) Í

Section 2: Technical Data
Revision 4 15
WAN PORT (37 WAY D-TYPE SOCKET)
Pin 1
Pin 37
Pin No. Description Signal Dir. Pin No. Description Signal Dir.
1V11Rx-BÍ20 V11 Rx-A Í
2 V11 Ind-A Í21 V11 Ind-B Í
3 V11 Clk-A Í22 V11 Clk-B Í
4V11Tx-AÎ23 V11 Tx-B Î
5 V11 Ctl-B Î24 V11 Ctl-A Î
6 V11 Gnd 25 WAN ID 0 Í
7WANID1Í26 V24 Tx Î
8V24DTRÎ27 V24 RTS Î
9V24RxÍ28 V24 RxClk Í
10 V24 TxClk Í29 V24 RI Í
11 V24 DCD Í30 V24 DSR Í
12 V24 CTS Í31 N/C
13 N/C 32 V35 Tx-A Î
14 V35 Tx-B Î33 V35 SCTE-A Î
15 V35 SCTE-B Î34 V35 Gnd
16 V35 Rx-B Í35 V35 Rx-A Í
17 V35 TxClk-B Í36 V35 TxClk-A Í
18 V35 RxClk-B Í37 V35 RxClk-A Í
19 CHASSIS

ArgentWAN3 Hardware Reference Manual
16 Revision 4
CABLES
This section provides information about the cables that are used with ArgentWAN3.

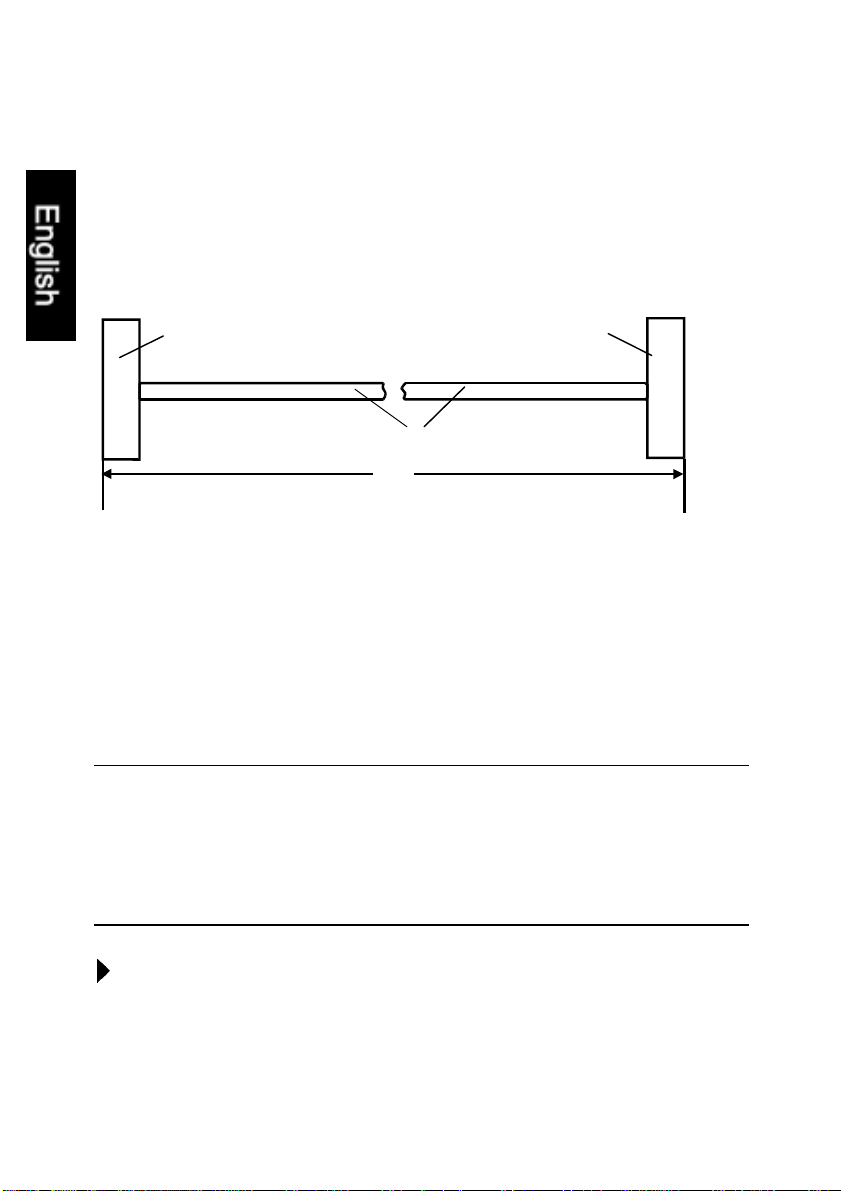

LAN INTERCONNECT CABLE
Part No: CABETHNN01M0PP00
Sales Feature: ARG-HSIC
A RJ45 Plug.
B RJ45 Plug.
C Cat 5 UTP cable - GREEN.
D1metre.
Pin Connections
End A Colour Cable Notes End B
1 White/Orange 1
2 Orange/White 2
3 White/Green 3
6 Green/White 6
This cable is supplied with the ArgentWAN3.
It is used to connect the ArgentWAN3 to one of the ArgentOffice LAN hub
ports when the two units are co-located in the same cabinet.
D
AB
C
Twisted pair
Twisted pair

Section 2: Technical Data
Revision 4 17
LAN CABLE
Part No: CABETHNN03M0PP00
Sales Feature: ARG-LAN3C
A RJ45 Plug.
B RJ45 Plug.
C Cat 5 UTP cable - GREY.
D3metre.
Pin Connections
End A Colour Cable Notes End B
1 White/Orange 1
2 Orange/White 2
3 White/Green 3
6 Green/White 6
4 Blue/White 4
5 White/Blue 5
7 White/Brown 7
8 Brown/White 8
This cable is used when connecting the ArgentWAN3 to a LAN hub port
which is not co-located in the same cabinet.
D
AB
C
Twisted pair
Twisted pair
Twisted pair
Twisted pair

ArgentWAN3 Hardware Reference Manual
18 Revision 4
V.24/V.28 WAN CABLE
Part No: CABV28SN03M0PP00
Sales Feature: ARG-WANV24C
A 37 Way D-Type Plug with UNC 4-40 locking screws.
B 25 Way D-Type Plug with UNC 4-40 locking screws.
C 12 core screened cable - each core is 7/0.203mm (24 a.w.g.) tinned copper stranded
wire, nominal capacitance of 95pF/m, resistance of 92 Ω/km, screened with tinned
copper braid, maximum working voltage of 440V r.m.s. and a Maximum current
per core of 1A r.m.s.
D3metres.
Pin Connections
End A Name End B
6 Ground 7
8 DTR (Data Terminal Ready) 20
9 Receive Data 3
10 Transmit Clock 15
11 DCD (Data Carrier Detect) 8
12 CTS (Clear To Send) 5
26 Transmit Data 2
27 RTS (Request To Send) 4
28 Receive Clock 17
29 RI (Ring Indicator) 22
30 DSR (Data Set Ready) 6
Connect pin 25 to pin 6 at End A only.
Pin 19 at end A is connected to the Screened Cable Drain Wire.
The maximum core to core capacitance must not exceed 800pF.
D
AB
C

Section 2: Technical Data
Revision 4 19
X.21 WAN CABLE
Part No: CABX21SN03M0PP00
Sales Feature: ARG-WANX21C
A 37 Way D-Type Plug with UNC 4-40 locking screws.
B 15 Way D-Type Plug with M3 locking screws.
C 6 twisted pair screened cable - each core is 7/0.203mm (24a.w.g.) tinned copper
stranded wire, nominal capacitance of 98pF/m, impedance of 77 Ωat 1MHz,
screened with aluminised tape and a tinned copper wire drain.
D3metres.
Pin Connections
End A Name Cable Notes End B
1 Receive (Rx-B) 11
20 Receive (Rx-A) 4
4 Transmit (Tx-A) 2
23 Transmit (Tx-B) 9
24 Control (Ctl-A) 3
5 Control (Ctl-B) 10
2 Indicate (Ind-A) 5
21 Indicate (Ind-B) 12
3 SE-Timing (S-A) 6
22 SE-Timing (S-B) 13
6 Ground ----- 8
Connect pin 7 to pin 6 at End A only.
Pin 19 at end A is connected to the Screened Cable Drain Wire.
Twisted pair
Twisted pair
Twisted pair
Twisted pair
Twisted pair
D
AB
C

ArgentWAN3 Hardware Reference Manual
20 Revision 4
V.35 WAN CABLE
Part No: CABV35SN03M0PP00
Sales Feature: ARG-WANV35C
A 37 Way D-Type Plug with UNC 4-40 locking screws.
B 34 Way MRAC Plug.
C 10 twisted pair screened cable - each core is 7/0.203mm (24a.w.g.) tinned copper
stranded wire, nominal capacitance of 98pF/m, impedance of 80 Ω±10% at 1MHz,
screened with aluminised tape and a tinned copper wire drain.
D3metres.
Pin Connections
End A Name Cable Notes End B
8 DTR (Data Terminal Ready) ----- H
11 DCD (Data Carrier Detect) ----- F
12 CTS (Clear To Send) ----- D
27 RTS (Request To Send) ----- C
29 RI (Ring Indicator) ----- J
30 DSR (Data Set Ready) ----- E
32 Transmit Data - A P
14 Transmit Data - B S
35 Receive Data - A R
16 Receive Data - B T
Twisted pair
Twisted pair
D
AB
C
