AXIOMTEK DSB320-842 Series User manual

DSB320-842 Series
Digital Signage Media Player
User’s Manual

ii
Disclaimers
This manual has been carefully checked and believed to contain accurate
information. Axiomtek Co., Ltd. assumes no responsibility for any infringements of
patents or any third party’s rights, and any liability arising from such use.
Axiomtek does not warrant or assume any legal liability or responsibility for the
accuracy, completeness or usefulness of any information in this document. Axiomtek
does not make any commitment to update the information in this manual.
Axiomtek reserves the right to change or revise this document and/or product at any
time without notice.
No part of this document may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.
Copyright 2014 Axiomtek Co., Ltd.
All Rights Reserved
October 2014, Version A1
Printed in Taiwan

iii
Safety Approvals
CE Marking
FCC Class A
FCC Compliance
This equipment has been tested in compliance with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are meant to provide reasonable
protection against harmful interference in a residential installation. If not installed and used in
accordance with proper instructions, this equipment might generate or radiate radio frequency
energy and cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following methods:
1. Increase the separation between the equipment and receiver.
2.. Connect the equipment to another outlet of a circuit that doesn’t connect with the receiver.
3. Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with the emission limits.

iv
Safety Precautions
Before getting started, please read the following important safety precautions.
1. The DSB320-842 series does not come equipped with an operating system. An
operating system must be loaded first before installing any software into the
computer.
2. Be sure to ground yourself to prevent static charge when installing the internal
components. Use a grounding wrist strap and place all electronic components
in any static-shielded devices. Most electronic components are sensitive to
static electrical charge.
3. Disconnect the power cord from the DSB320-842 series before any installation.
Be sure both the system and external devices are turned OFF. A sudden surge
of power could ruin sensitive components that the DSB320-842 series must be
properly grounded.
4. Make sure it is the correct voltage of the power source before connecting the
equipment to the power outlet.
5. The brightness of the flat panel display will be getting weaker as a result of
frequent usage. However, the operating period varies depending on the
application environment.
6. The digital signage player is not susceptible to shock or vibration. When
assembling the DSB320-842 series, make sure it is securely installed.
7. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below 0℃or above 40℃. It may damage the equipment.
8. External equipment intended for connection to signal input/out or other
connectors shall comply with relevant UL/IEC standard.
9. Do not open the back cover of the system. If opening the cover for
maintenance is a must, only a trained technician is allowed to do so. Integrated
circuits on computer boards are sensitive to static electricity. To avoid
damaging chips from electrostatic discharge, observe the following precautions:
Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This will help to discharge any
static electricity on your body.
When handling boards and components, wear a wrist-grounding strap,
available from most electronic component stores.

v
Scrap Computer Recycling
If the computer equipments need the maintenance or are beyond repair, we strongly
recommended that you should inform your Axiomtek distributor as soon as possible
for the suitable solution. For the computers that are no longer useful or no longer
working well, please contact your Axiomtek distributor for recycling and we will
make the proper arrangement.
Trademarks Acknowledgments
Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are
trademarks of International Business Machines Corporation.
Intel®and Atom™are registered trademarks of Intel Corporation.
MS-DOS, Microsoft C and Quick BASIC are trademarks of Microsoft Corporation.
VIA is a trademark of VIA Technologies, Inc.
SST is a trademark of Silicon Storage Technology, Inc.
UMC is a trademark of United Microelectronics Corporation. Other brand names and
trademarks are the properties and registered brands of their respective owners.

vi
Table of Contents
Safety Approvals...................................................................................................... iii
Safety Precautions................................................................................................... iv
Scrap Computer Recycling...................................................................................... v
CHAPTER 1 INTRODUCTION.................................................................................1
1.1 General Description ............................................................................. 1
1.2 System Specifications ......................................................................... 2
1.2.1 Main CPU Board................................................................................................ 2
1.2.2 I/O System ......................................................................................................... 2
1.2.3 System Specification........................................................................................ 3
1.3 Mechanical Assembly.......................................................................... 4
1.3.1 System Dimension............................................................................................ 4

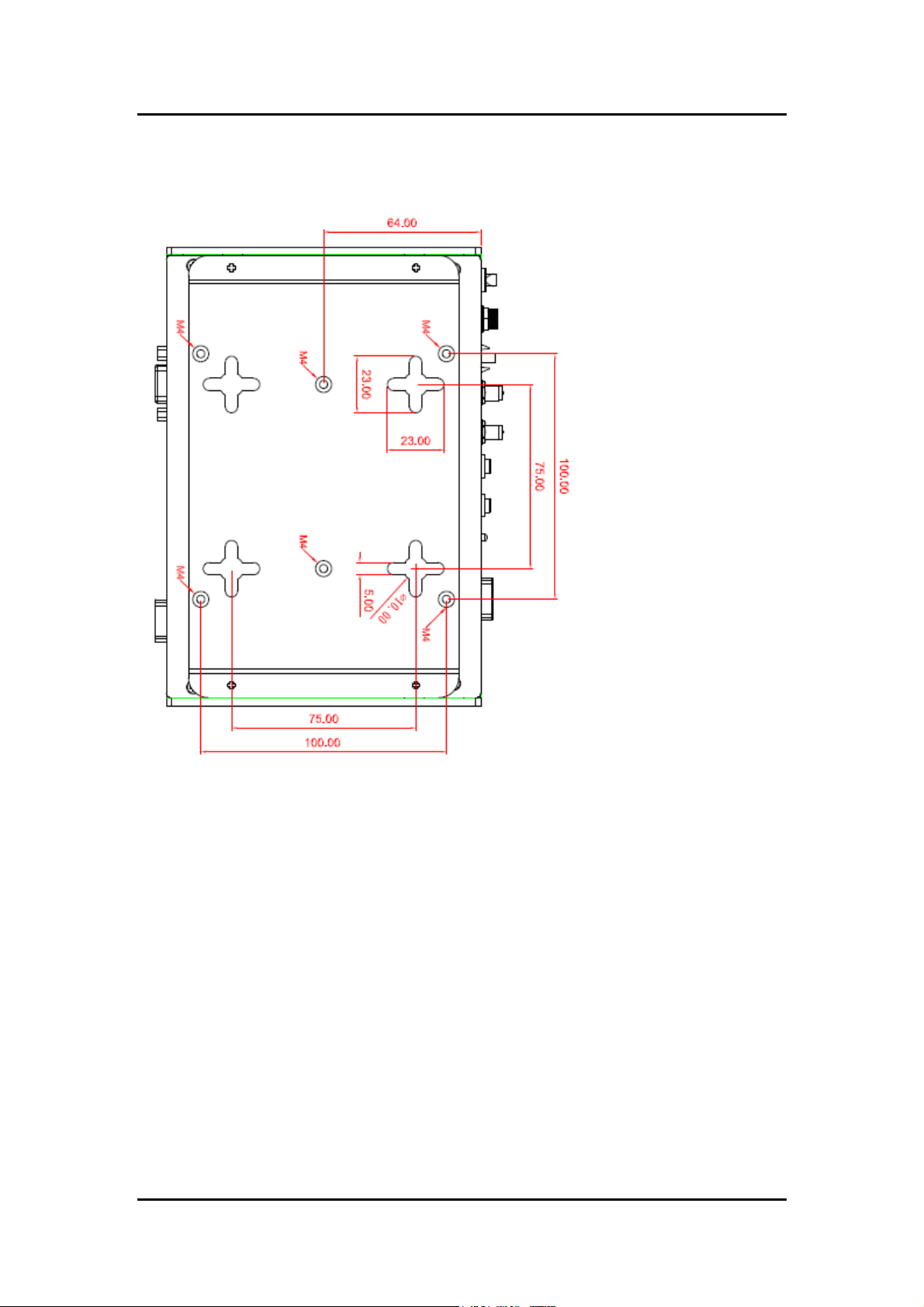

1.3.2 Wall mount , VESA Bracket and TV Rack Bracket Dimension..................... 5
1.3.3 I/O outlet ............................................................................................................ 7
1.4 Package List.......................................................................................... 8
CHAPTER 2 HARDWARE INSTALLATION..........................................................9
2.1 Installing the DRAM............................................................................ 10
2.2 Installing mSATA................................................................................ 12
2.3 Installing the Wireless Modules........................................................ 14
2.4 Installing the 3G Modules.................................................................. 17
2.5 Installing the Wall Mount (Optional)................................................. 20
2.6 Installing the VESA Mount (optional) ............................................... 22
2.7 Installing the TV Rack (optional)....................................................... 24

vii
CHAPTER 3 JUMPER SETTINGS & CONNECTOR.........................................27
3.1 Connectors.......................................................................................... 27
3.2 Jumper Settings ................................................................................. 29
3.2.1 Audio Output Selection (JP2)........................................................................ 30
3.2.2 Restore BIOS Optimal Defaults (JP4)........................................................... 30
3.2.3 Auto Power On (JP10).................................................................................... 30
3.2.4 COM1 Data/Power Selection (JP12).............................................................. 31
3.3 Connectors.......................................................................................... 32
3.3.1 DC Power Jack Connector............................................................................. 33
3.3.2 Audio Connector............................................................................................. 33
3.3.3 Digital I/O Port Connector.............................................................................. 33
3.3.4 SMBus Connector (CN8)................................................................................ 34
3.3.5 USB Port (USB2 & 3) ...................................................................................... 34
3.3.6 HDMI Connector.............................................................................................. 35
3.3.7 VGA Connector............................................................................................... 35
3.3.8 USB Port (USB0 & 1) ...................................................................................... 36
3.3.9 Ethernet Connector (LAN1) ........................................................................... 36
3.3.10 COM Port Connector (COM1) ........................................................................ 37
3.3.11 ATX Power ON/OFF Button........................................................................... 37
3.3.12 Half-size PCI-Express Mini Card Slot (SCN1) .............................................. 38
3.3.13 Full-size PCI-Express Mini Card Slot (SCN2)............................................... 39
3.3.14 SIM Card Socket (SCN3) ................................................................................ 40
CHAPTER 4 AMI BIOS SETUP UTILITY.............................................................41
4.1 Starting................................................................................................ 41
4.2 Navigation Keys.................................................................................. 42

viii
4.3 Main Menu........................................................................................... 43
4.4 Advanced Menu.................................................................................. 44
4.5 Chipset Menu...................................................................................... 55
4.6 Security Menu..................................................................................... 58
4.7 Boot Menu........................................................................................... 59
4.8 Save & Exit Menu................................................................................ 60
APPENDIX A WATCHDOG TIMER ......................................................................63
About Watchdog Timer...................................................................................... 63
How to Use Watchdog Timer............................................................................. 63
APPENDIX B DIGITAL I/O......................................................................................65
About Digital I/O ................................................................................................. 65
Digital I/O Programming .................................................................................... 66

DSB320-842User’s Manual
Introduction 1
CHAPTER 1
INTRODUCTION
This chapter contains general information and detailed specifications of the DSB320-842
series. Chapter 1 includes the following sections:
General Description
Specification
Dimensions
Package List
1.1 General Description
The fanless DSB320-842 is an embedded system that supports Intel Celeron® 4-Cores
J1900 processor on board processor to provide Windows® 7, Windows® 8.1 and Windows®
7 Embedded, , suitable for the most endurable operation.
It features high performance design with full feature I/O, one 204-pin DDR3L SODIMM, and
enhanced system dependability by built-in Watchdog Timer

DSB320-842 User’s Manual
Introduction
2
1.2 System Specifications
1.2.1 Main CPU Board
CPU
Intel®4-Cores J1900 processor on board
System Chipset
Intel®Bay trail-D
BIOS
AMI ® BIOS
System Memory
One socket 204-pin DDR3L SODIMM 1333 system memory max up to 8GB
Caution: please note the system memory supports DDR3L type (1.35V)
Wireless Module (Optional)
Optional IEEE802.11 b/g/n, Bluetooth 2.0
1.2.2 I/O System
Standard I/O
One HDMI port
One VGA port
Four USB ports 2.0 (front side)
One RS-232/422/485 (COM1)
One DIO (digital I/O)
One Power on /Off button
One Remote button switch
Two Antenna hole
Two Audio phone jack (MIC-IN, Line-OUT)
One RJ-45 connector for 10/100/1000Base-T Ethernet
One 12V DC Jack for power input connector
Expansion
One half-size PCI Express Mini Card slot (SCN1) is equipped for optional add on such
as wireless LAN card (802.11 b/g/n connections, GPS, Bluetooth)
One SIM slot (SCN3)
Storage
One full size PCI Express Mini Card slot (SCN2) is equipped for mSATA storage

DSB320-842User’s Manual
Introduction 3
1.2.3 System Specification
Watchdog Timer
Reset supported; 255 levels, 1~255 sec.
Power Supply
External 12V@5A, 60W AC/DC power adapter
Operation Temperature
0℃~ 40℃(32 ºF ~ 104ºF)
Storage Temperature
-20℃~ 80℃(-4 ºF ~ 176ºF)
Humidity
10% ~ 90% (non-condensation)
Weight
1.5 kg without package
2.5 kg with package
Dimensions
180.7 mm (7.11”)(W) x 128 mm(5.04”) x 34.7 mm (1.37”)
Note
All specifications and images are subject to change without notice.

DSB320-842 User’s Manual
Introduction
4
1.3 Mechanical Assembly

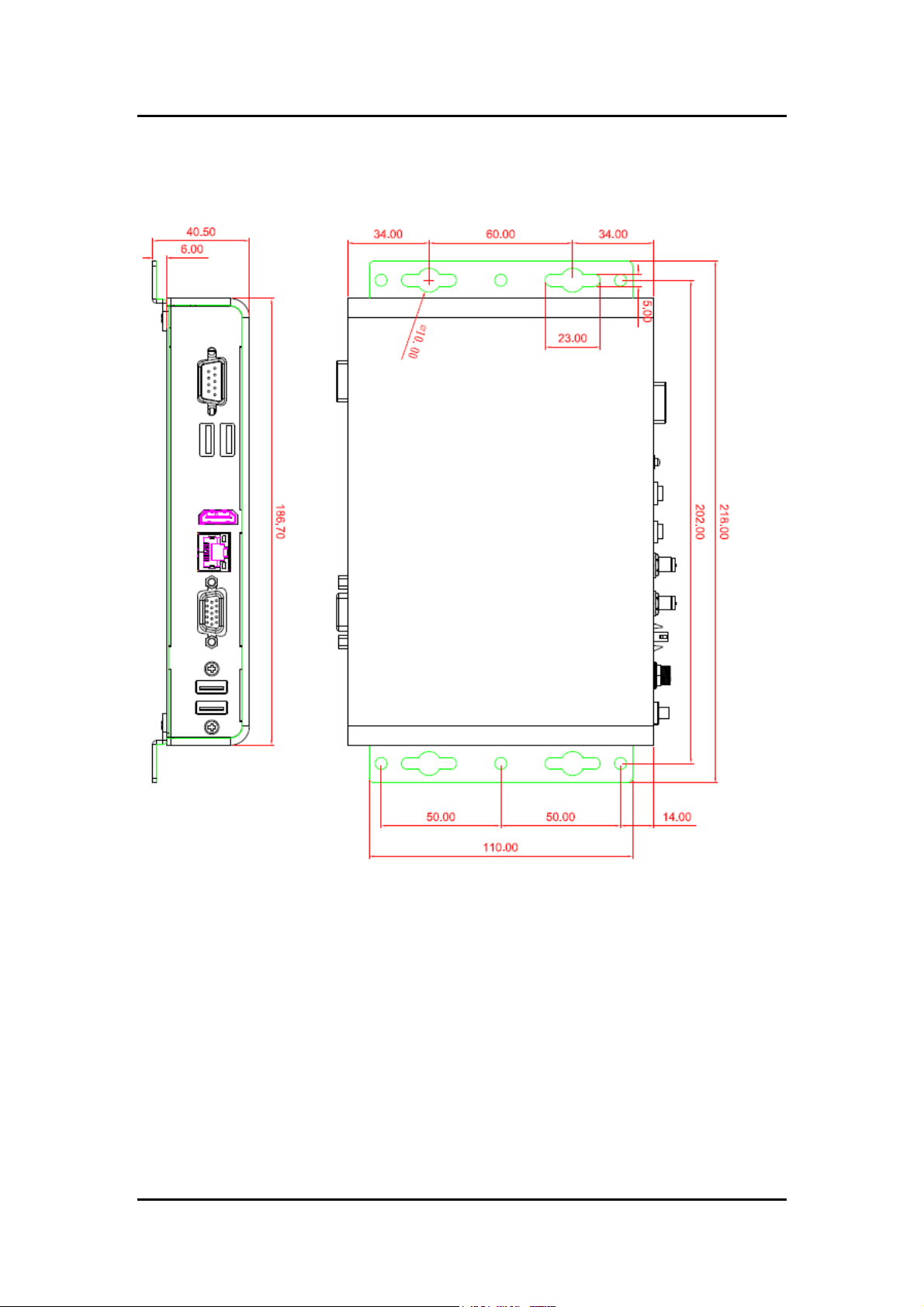

1.3.1 System Dimension
This diagram shows you dimensions and outlines of the DSB320-842.

DSB320-842User’s Manual
Introduction 5
1.3.2 Wall mount , VESA Bracket and TV Rack Bracket Dimension
Wall mount Dimension

DSB320-842 User’s Manual
Introduction
6
VESA Mount Dimension

DSB320-842User’s Manual
Introduction 7
1.3.3 I/O outlet
The following figures show you the locations of the DSB320-842 I/O outlets.
Front View drawing
Rear View drawing
No. Connector No. Connector
1 Power on/off button 9 Digital I/O (DIO)
2 12Vdc in 10 RS-232/422/485 (COM 1)
3 Remote button switch 11 USB 2.0 x2
4 Antenna(optional) 12 HDMI output
5 Audio (Mic –in) 13 RJ45
6 Audio (Line-out) 14 VGA output
7 Storage indicator 15 USB 2.0 x2
8 Power indicator
10 13 14 15 11 12
1 23 6 9
4 5 7
8

DSB320-842 User’s Manual
Introduction
8
1.4 Package List
When you receive the DSB320-842, the bundled package should contain the
following items:
DSB320-842 System Unit x 1
CD x 1 (For Driver and User’s Manual)
2 pin remote button switch (1 meter) x 1
Power Adapter x 1 ;Power Cord x 1
Plastic Stand for stack up x 4
Wall-mount Brackets (optional)
TV –rack Bracket x 1 pair (2 pcs) (optional)
If you cannot find the package or any items are missing, please contact Axiomtek distributors
immediately.

DSB320-842User’s Manual
Hardware Installation 9
CHAPTER 2
HARDWARE INSTALLATION
The DSB320-842 is convenient for your various hardware configurations, such as
storage, memory module,
The chapter 2 will show you how to install the hardware. It includes:
Memory Module
Storage (mSATA)
Wireless Modules
3G Modules
Wall Mount (Optional)
VESA Mount (Optional)
TV Rack (Optional)

DSB320-842 User’s Manual
10 Hardware Installation
2.1 Installing the DRAM
Step 1 Installing the DRAM: Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the Bottom, loosen
screws and remove the bottom cover

DSB320-842User’s Manual
Hardware Installation 11
Step 3 Place the memory module into the socket and press it firmly. The socket
latches are levered upwards and clipped on to the edges of the DIMM.
Step 4 Push the module down, until it is firmly seated by locking two latches on the sides.

DSB320-842 User’s Manual
12 Hardware Installation
2.2 Installing mSATA
Step1 Installing the mSATA : Place the mSATA module into the socket and press
it firmly down until it is fully located.
Step 2 Push the module down, until it is firmly seated by locking two latches
on the sides, and then fix the mSATA with screws with image
illustrated
