Balluff BTL7-A Series User manual

BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
User’s Guide
english

www.balluff.com

www.balluff.com 3english
1 Notes to the user 5
1.1 Validity 5
1.2 Symbols and conventions 5
1.3 Scope of delivery 5
1.4 Approvals and markings 5
2 Safety 6
2.1 Intended use 6
2.2 Reasonably foreseeable misuse 6
2.3 General safety notes 6
2.4 Explanationof the warnings 6
2.5 Disposal 6
3 Construction and function 7
3.1 Construction 7
3.2 Function 8
3.3 LED display 8
4 Installation and connection 9
4.1 Installing the BTL 9
4.2 Captive magnets 9
4.3 Floating magnets 10
4.4 Electrical connection 11
4.4.1 Connector S32/cable connection KA_ _ 11
4.4.2 Connector S115 11
4.5 Shielding and cable routing 12
5 Startup 13
5.1 Starting up the system 13
5.2 Operating notes 13
6 Configuration with the BTL7 Configuration Tool 14
6.1 Value table for factory setting 14
6.2 BTL7 Configuration Tool 14
6.3 Connecting the USB communication box 14
6.4 Configuration options 15
7 Technical data 16
7.1 Accuracy 16
7.2 Ambient conditions 16
7.3 Supply voltage (external) 16
7.4 Output 16
7.5 Communication lines La, Lb 17
7.6 Dimensions, weights 17

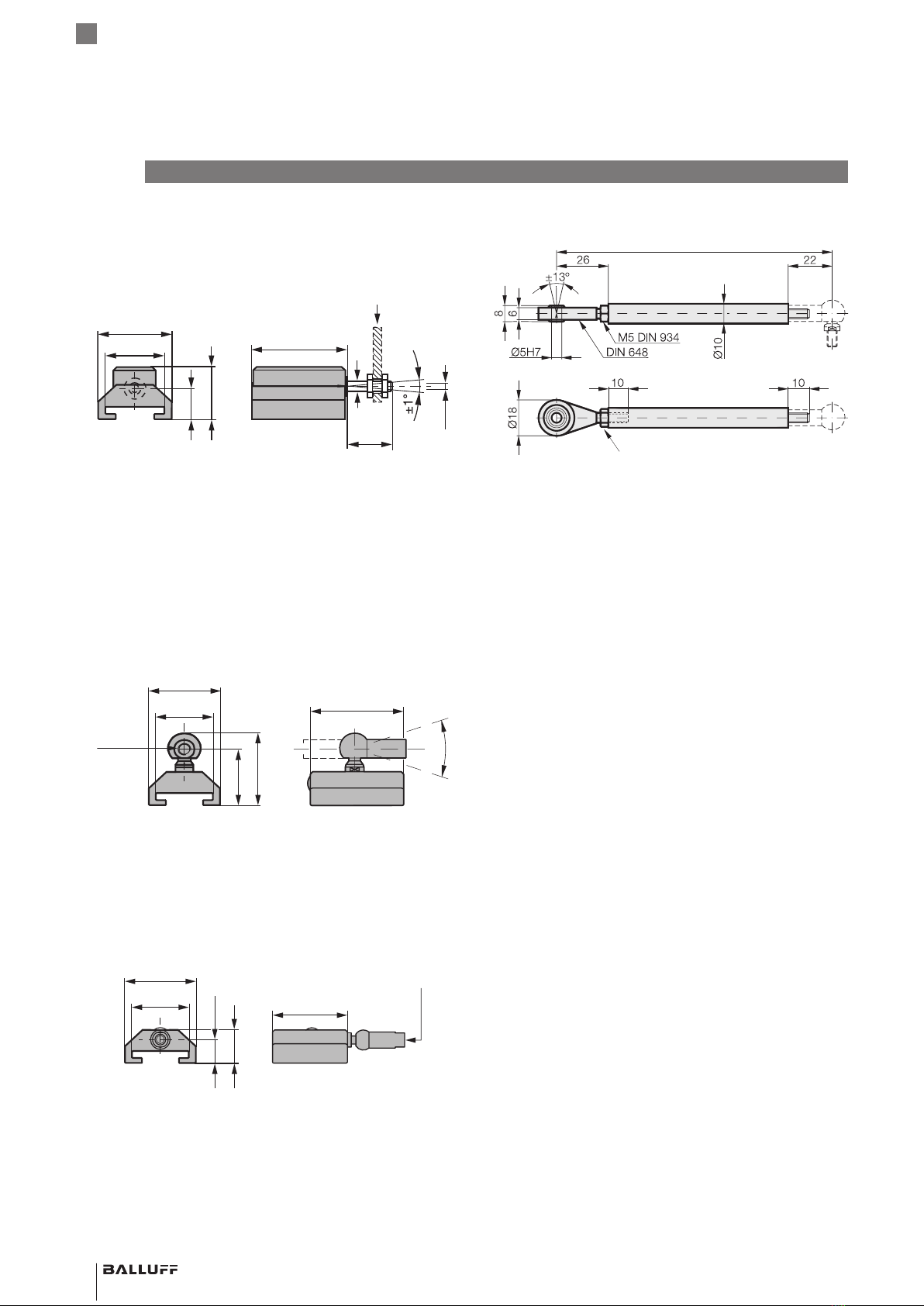

8 Accessories 18
8.1 Captive magnets 18
8.2 BTL2-GS10-_ _ _ _-A joint rod 18

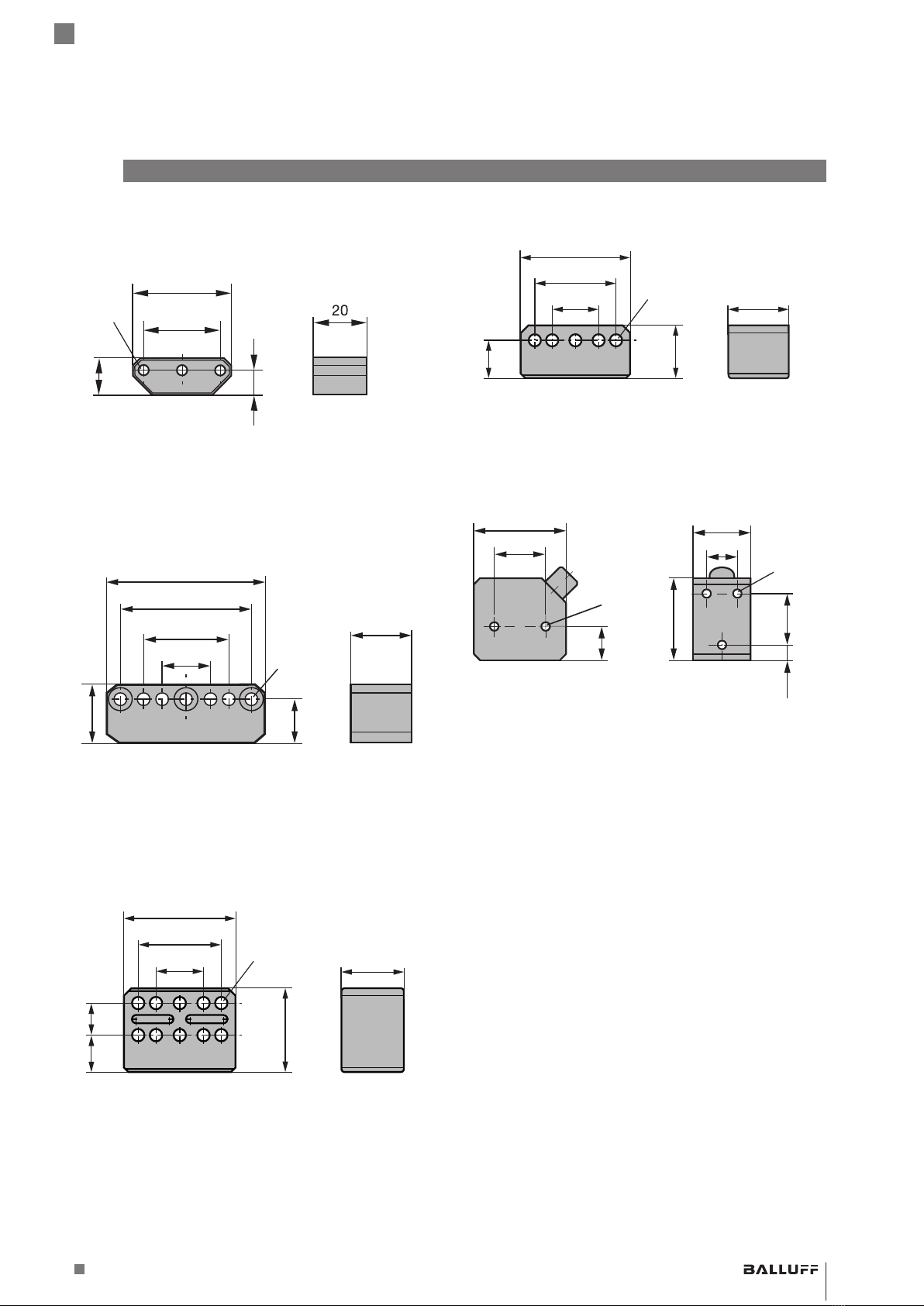

8.3 Floating magnets 19
8.4 Connector type S32 20
8.4.1 Freely configurable 20
8.4.2 Preassembled 20
8.5 Connector type S115, preassembled 21
8.6 USB communication box 21
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

4english
9 Type code 22
10 Appendix 23
10.1 Converting units of length 23
10.2 Part label 23
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 5english
1.1 Validity
This guide describes the construction, function and setup
options for the BTL magnetostrictive linear position sensor
with analog interface. It applies to types
BTL7-A/C/E/G501-M____-P-S32/S115/KA__ (see
Type code on page22).
The guide is intended for qualified technical personnel.
Read this guide before installing and operating the BTL.
1.2 Symbols and conventions
Individual handling instructions are indicated by a
preceding triangle.
►Handling instruction 1
Handling sequences are numbered consecutively:
1. Handling instruction 1
2. Handling instruction 2
Note, tip
This symbol indicates general notes.
Symbols of this type indicate the LED displays.
1.3 Scope of delivery
– BTL
– Mounting clamps with insulating sleeves and screws
– Condensed guide
The magnets are available in various models
and must be ordered separately.
1.4 Approvals and markings
US Patent 5923164
The US patent was awarded in connection with this
product.
The CE Mark verifies that our products
meet the requirements of the current
EMC Directive.
The BTL meets the requirements of the following product
standard:
– EN61326-2-3 (noise immunity and emission)
Emission tests:
– RF emission
EN55011
Noise immunity tests:
– Static electricity (ESD)
EN 61000-4-2 Severity level 3
– Electromagnetic fields (RFI)
EN 61000-4-3 Severity level 3
– Electrical fast transients (burst)
EN 61000-4-4 Severity level 3
– Surge
EN 61000-4-5 Severity level 2
– Conducted interference induced by
high-frequency fields
EN 61000-4-6 Severity level 3
– Magnetic fields
EN 61000-4-8 Severity level 4
More detailed information on the guidelines,
approvals, and standards is included in the
declaration of conformity.
1 Notes to the user
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

6english
2.1 Intended use
The BTL magnetostrictive linear position sensor, together
with a machine controller (e.g. PLC), comprises a position
measuring system. It is intended to be installed into a
machine or system and used in the industrial sector.
Flawless function in accordance with the specifications in
the technical data is ensured only when using original
Balluff accessories. Use of any other components will void
the warranty.
Opening the BTL or non-approved use are not permitted
and will result in the loss of warranty and liability claims
against the manufacturer.
2.2 Reasonably foreseeable misuse
The products are not intended for the following
applications and areas and may not be used there:
– in safety related applications where personal safety
depends on functioning of the device
– in explosion hazard areas
– in the food sector
2.3 General safety notes
Installation and startup may only be performed by
qualified personnel with basic electrical knowledge.
Qualified personnel are persons whose technical
training, knowledge and experience as well as knowledge
of the relevant regulations allows them to assess the work
assigned to them, recognize possible hazards and take
appropriate safety measures.
The operator is responsible for ensuring that local safety
regulations are observed.
In particular, the operator must take steps to ensure that a
defect in the BTL will not result in hazards to persons or
equipment.
If defects and unresolvable faults occur in the BTL, take it
out of service and secure against unauthorized use.
2.4 Explanationof the warnings
Always observe the warnings in these instructions and the
measures described to avoid hazards.
The warnings used here contain various signal words and
are structured as follows:
SIGNAL WORD
Hazard type and source
Consequences if not complied with
►Measures to avoid hazards
The individual signal words mean:
NOTICE!
Identifies a hazard that could damage or destroy the
product.
DANGER
The general warning symbol in conjunction with the
signal word DANGER identifies a hazard which, if not
avoided, will certainly result in death or serious injury.
2.5 Disposal
►Observe the national regulations for disposal.
2 Safety
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 7english
3.1 Construction
Electrical connection: The electrical connection is made
via a cable or a connector (see Type code on page22).
Housing: Aluminum housing containing the waveguide
and processing electronics.
Magnet: Defines the position to be measured on the
waveguide. Magnets are available in various models and
must be ordered separately (see Accessories on
page18).
Nominal length: To optimally adapt the BTL to the
application, nominal lengths from 50mm to 7620mm are
available.
3 Construction and function
BTL7-…-S115
Fig. 3-1: BTL7-…, construction
12 72 73
~80 ~80~250 ~250
15
50
35
68
41
36.8
~23
13.8
max. 7
1) Unusable area
2) Not included in scope
of delivery
1) Nominal length =
Measuring range
Null point End point
Output signal rising:
Error signal
100 %
0 %
BTL5-P-3800-2 magnet
1)
Mounting clamps with insulating bushes
and ISO4762M5x22 cylinder-head screws,
max. tightening torque 2Nm
2)
2)
BTL7-…-KA_ _
BTL7-…-S32
Groove
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

8english
3Construction and function (continued)
3.2 Function
The BTL contains the waveguide which is protected by an
aluminum housing. A magnet is moved along the
waveguide. This magnet is connected to the system part
whose position is to be determined.
The magnet defines the position to be measured on the
waveguide.
An internally generated INIT pulse interacts with the
magnetic field of the magnet to generate a torsional wave
in the waveguide which propagates at ultrasonic velocity.
The component of the torsional wave which arrives at the
end of the waveguide is absorbed in the damping zone to
prevent reflection. The component of the torsional wave
which arrives at the beginning of the waveguide is
converted by a coil into an electrical signal. The travel time
of the wave is used to calculate the position. Depending
on the version, this information is made available as a
voltage or current with rising or falling gradient.
The following functions can be selected for the output
values:
– Position
– Speed (with or without leading sign)
– Differential position
Two outputs that can be independently assigned are
available. Two magnets can be used.
The entire range of functionality can only be
configured with the PC software BTL7
Configuration Tool. To do this, the USB
communication box must be connected (see
Accessories on page18).

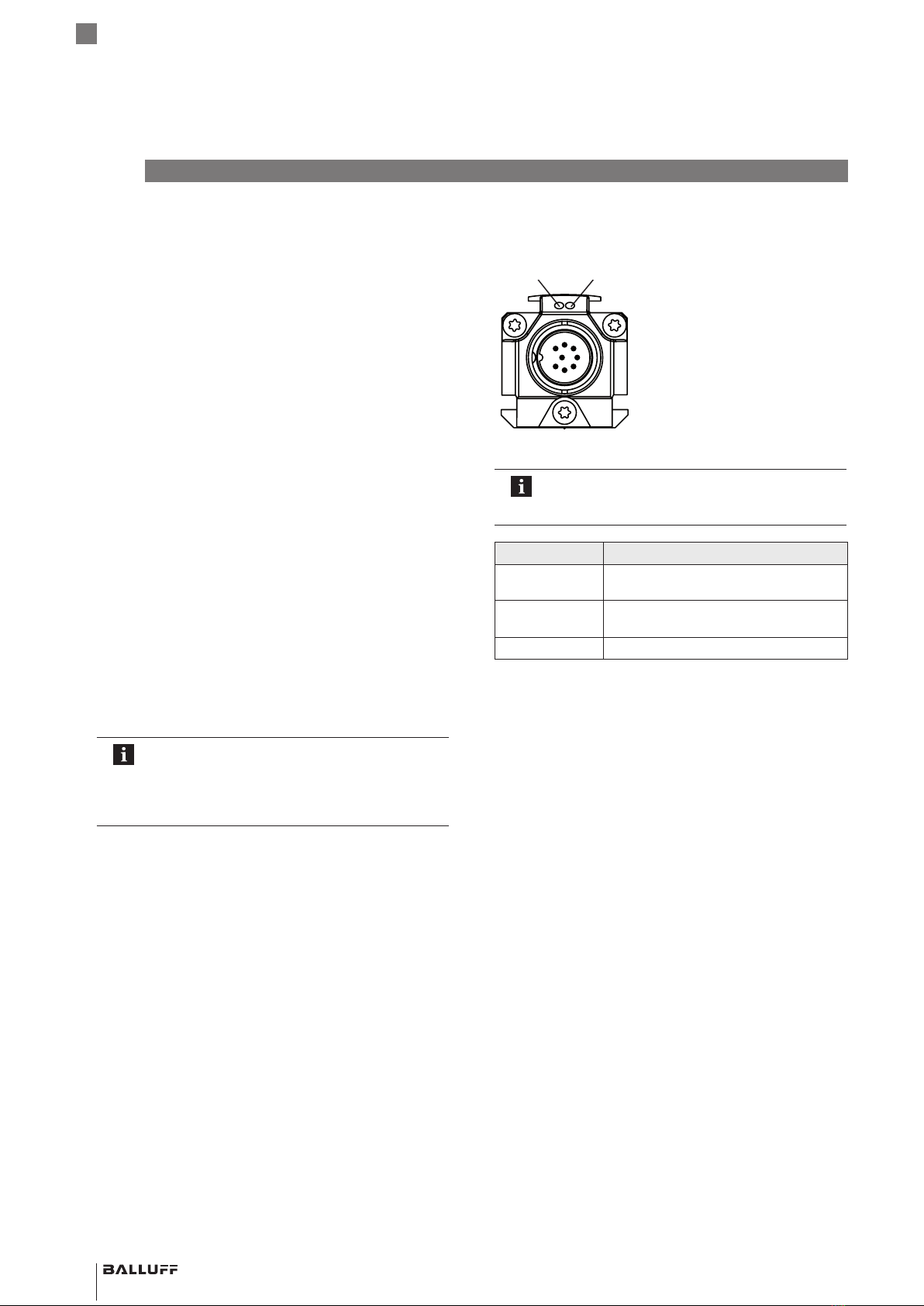

3.3 LED display
LED 2
LED 1
Fig. 3-2: BTL7 LED displays
In normal operation, the LEDs indicate the
operating states of the BTL. LED1 is assigned
to output1 and LED2 is assigned to output2.
LED1/LED2 Operating state
Green Normal function
Magnet is within the limits.
Red Error
No magnet or magnet outside the limits.
Flashing green Programming mode
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 9english
4.1 Installing the BTL
NOTICE!
Improper installation
Improper installation can compromise the function of the
BTL and result in damage.
►For this reason, ensure that no strong electrical or
magnetic fields are present in the immediate vicinity
of the BTL.
►The recommended spacing for the installation must
be strictly observed.
Any orientation is permitted. Mount the BTL on a level
surface of the machine using the provided mounting
clamps and cylinder-head screws. A sufficient number of
mounting clamps is supplied.
In order to avoid the development of resonant
frequences from vibration loads, we
recommend arranging the mounting clamps at
irregular intervals.
The BTL is electrically isolated from the machine with the
supplied insulating bushes (see Fig. 3-1).
1. Guide the BTL into the mounting clamps.
2. Attach BTL to the base using mounting screws (tighten
screws in the clamps with a max.2Nm).
3. Insert magnet (accessories).
The BTL in profile housing is suitable both for
floating, i.e.non-contacting magnets (see
Fig. 4-4 toFig. 4-8) and for captive magnets
(see Fig. 4-1 to Fig. 4-3).
4.2 Captive magnets
The following must be observed when installing the
magnet:
– Avoid lateral forces.
– Connect the magnet to the machine member with a
joint rod (see Accessories on page18).
Fig. 4-1:
66.4
60
1
Dimensions and distances with BTL5-F-2814-1S magnet
Fig. 4-2:
52.5
47.5
1
Dimensions and distances with BTL5-T-2814-1S magnet
Fig. 4-3:
Y
X
1
Dimensions and distances with BTL5-M/N-2814-1S magnet
BTL5-M-2814-1S BTL5-N-2814-1S
Distance X 48.5mm 57mm
Distance Y 51mm 59.5mm
Tab. 4-1: Distances with BTL5-M/N-2814-1S magnet
4 Installation and connection
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

10 english
4Installation and connection (continued)

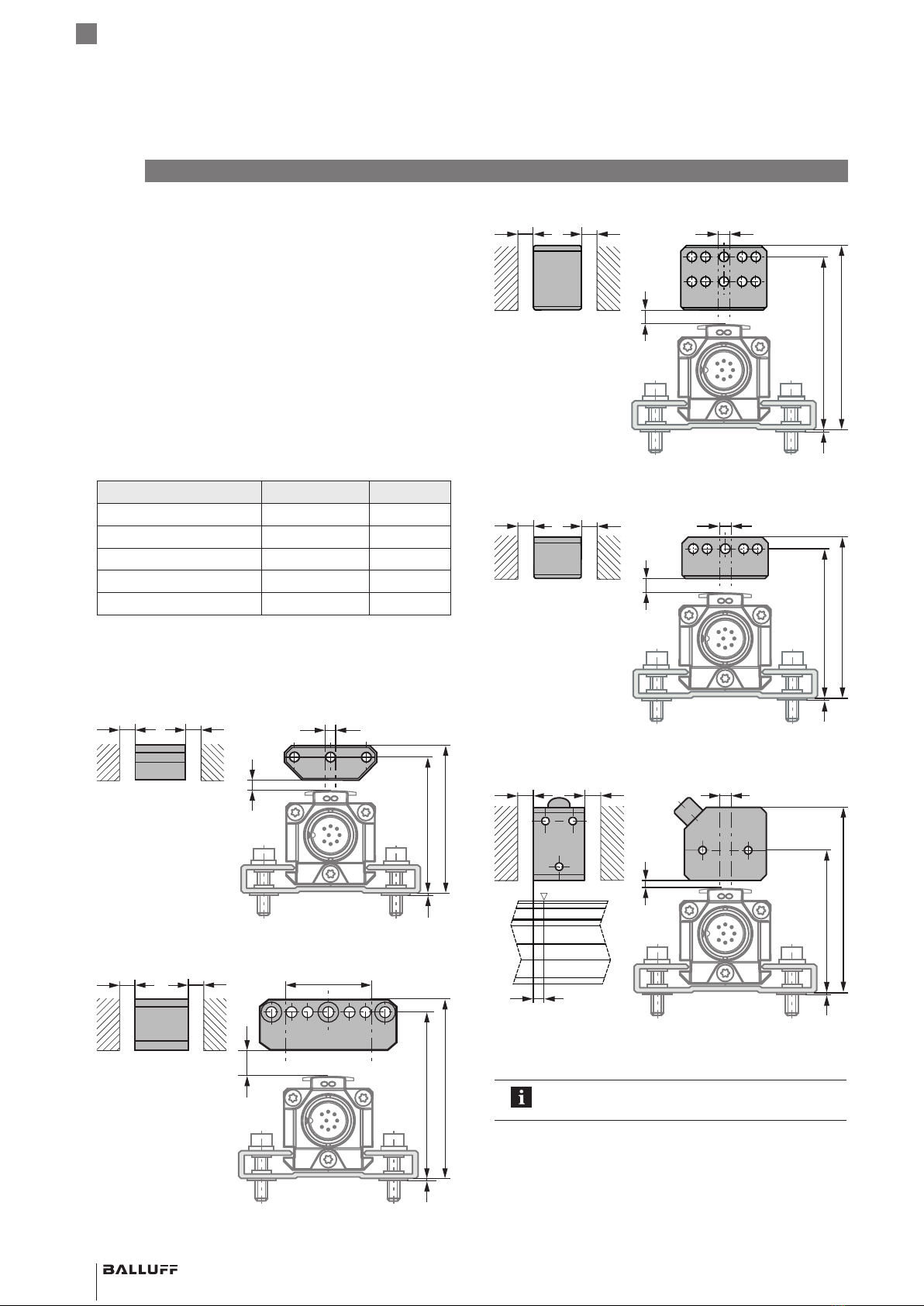

4.3 Floating magnets
The following must be observed when installing the
magnet:
– To ensure the accuracy of the position measuring
system, the magnet is attached to the moving member
of the machine using non-magnetizable screws
(stainless steel, brass, aluminum).
– The moving member must guide the magnet on a track
parallel to the BTL.
– Ensure that the distance A between parts made of
magnetizable material and the magnet is at least
10mm (see Fig. 4-4 toFig. 4-8).
– Maintain the following values for distance B between
the magnet and BTL and for center offsetC (see
Fig. 4-4 toFig. 4-8):
Type of magnet DistanceB1) OffsetC
BTL5-P-3800-2 0.1…4mm ±2mm
BTL5-P-5500-2 5…15mm ±15mm
BTL5-P-4500-1 0.1…2mm ±2mm
BTL6-A-3800-2 4…8mm2) ±5mm
BTL6-A-3801-2 4…8mm2) ±5mm
2) The selected distance must stay constant over the entire measuring length.
1) For optimum measurement results, a distanceB of 6 to 8mm is
recommended.
Tab. 4-2: Distance and offset for floating magnets
Fig. 4-4:
B
C
50+4
A A
55+4
1
Dimensions and distances with BTL5-P-3800-2 magnet
Fig. 4-5:
C
B
A
A
1
61+10
66+10
Dimensions and distances with BTL5-P-5500-2 magnet
Fig. 4-6:
C
B
A A
1
74+4
69+4
Dimensions and distances with BTL6-A-3800-2 magnet
Fig. 4-7:
C
B
A A
1
63+4
58+4
Dimensions and distances with BTL6-A-3801-2 magnet
Fig. 4-8:
B
A
A
C
4
1
81+2
57.5+2
Dimensions and distances with BTL5 -P-4500-1
electromagnet (24V/100mA)
The measuring range is offset by 4mm towards
the BTL plug (see Fig. 4-8).
Plug with
LED
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 11english
4.4 Electrical connection
Depending on the model, the electrical connection is made
using a cable or a connector.
The connection or pin assignments for the respective
version can be found in Tables 4-3 and 4-4.
Note the information on shielding and cable
routing on page12.
4.4.1 Connector S32/cable connection KA_ _
S32
Pin
KA
Wire color
BTL7-… interface
Fig. 4-9: Pin assignment of S32 connector
(view of connector pins of BTL)
-A501 -G501 -C501 -E501
1 YE yellow Not used1) output1
0…20mA2) 4…20mA2)
2GY gray 0V
3 PK pink output2
10…0V2) 10…–10V2) 20…0mA2) 20…4mA2)
4 RD red La (communication line)
5 GN green output1 Not used1)
0…10V2) –10…10V2)
6 BU blue GND3)
7 BN brown 10…30V
8 WH white Lb (communication line)
Tab. 4-3: Connection assignment BTL7-…-S32/KA_ _
4.4.2 Connector S115
S115
Pin
BTL7-… interface
Fig. 4-10: Pin assignment of S115
connector (view of connector
pins of BTL)
-A501 -G501 -C501 -E501
1 0V (pin 3)
20V (pin 5)
3output2
10…0V2) 10…–10V2) 20…0mA2) 20…4mA2)
4La (communication line)
5output1
0…10V2) –10…10V2) 0…20mA2) 4…20mA2)
6 GND3)
7 10…30V
8 Lb (communication line)
Tab. 4-4: Connection assignment BTL7-…-S115
4Installation and connection (continued)
1) Unassigned leads can be connected to the GND on the controller side but not to the shield.
2) Factory setting, can be freely configured with the PC software.
3) Reference potential for supply voltage and EMC-GND.
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

12 english
4.5 Shielding and cable routing
Defined ground!
The BTL and the control cabinet must be at the
same ground potential.
Shielding
To ensure electromagnetic compatibility (EMC), observe
the following:
– Connect the BTL and controller using a shielded cable.
Shield: Braided copper shield with minimum 85%
coverage.
– Connector version: Shield is internally connected to
connector housing.
– Cable version: On the BTL side the cable shielding is
connected to the housing.
Magnetic fields
The position measuring system is a magnetostrictive
system. Ensure that there is sufficient distance between
the BTL and strong, external magnetic fields.
Cable routing
Kabel zwischen BTL, Steuerung und Stromversorgung
nicht in der Nähe von Starkstromleitungen verlegen
(induktive Einstreuungen möglich).
The cable must be routed tension-free.
Bending radius for fixed cable
The bending radius for a fixed cable must be at least five
times the cable diameter.
Cable length
BTL7-A/G Max. 30 m1)
BTL7-C/E Max. 100 m1)
1) Prerequisite: Construction, shielding and routing preclude the effect of any
external noise fields.
Tab. 4-5: Cable lengths BTL7
Noise elimination
To avoid equipotential bonding - a current flow - through
the cable shield, please note the following:
– Use insulating bushes
– Put the control cabinet and the system in which the
BTL is located to the same ground potential.
4Installation and connection (continued)
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 13english
5 Startup
5.1 Starting up the system
DANGER
Uncontrolled system movement
When starting up, if the position measuring system is part
of a closed loop system whose parameters have not yet
been set, the system may perform uncontrolled
movements. This could result in personal injury and
equipment damage.
►Persons must keep away from the system’s
hazardous zones.
►Startup must be performed only by trained technical
personnel.
►Observe the safety instructions of the equipment or
system manufacturer.
1. Check connections for tightness and correct polarity.
Replace damaged connections.
2. Turn on the system.
3. Check measured values and adjustable parameters
and readjust the BTL if necessary.
Check for the correct values at the null point
and end point, especially after replacing the
BTL or after repair by the manufacturer.
5.2 Operating notes
– Regularly check function of the BTL and all associated
components.
– Take the BTL out of operation whenever there is a
malfunction.
– Secure the system against unauthorized use.
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

14 english
6.1 Value table for factory setting
Output gradient BTL Unit Min. value Nullvalue End value Max. value Error value
Rising
(output1)
BTL7-A… V −0,5 0 +10,0 +10,5 +10,5
BTL7-G… V −10,5 −10,0 +10,0 +10,5 +10,5
BTL7-C… mA 0 0 20,0 20,4 20,4
BTL7-E… mA 3,6 4,0 20,0 20,4 3,6
Falling
(output2)
BTL7-A… V +10,5 +10,0 0 −0,5 −0,5
BTL7-G… V +10,5 +10,0 −10,0 −10,5 −10,5
BTL7-C… mA 20,4 20,0 0 0 20,4
BTL7-E… mA 20,4 20,0 4,0 3,6 3,6
Tab. 6-1: Value table for factory settings
NOTICE!
Interference in function
Configuration with the BTL7 Configuration Tool while the
system is running may result in malfunctions.
►Stop the system before configuration.
6.2 BTL7 Configuration Tool
The BTL can be quickly and easily configured on the PC
using the PC software BTL7 Configuration Tool.
The most important features include:
– Online display of the current position of the magnet
– Graphical support for setting the functions and curves
– Display of information on the connected BTL
– Selectable number formats and units for display
– Resetting to factory settings is possible
– Demo mode without a connected BTL
The PC software and associated
manual can be found in the Internet under
www.balluff.com.
6 Configuration with the BTL7 Configuration Tool
6.3 Connecting the USB communication box
For a BTL with connector the communication box must be
inserted between the BTL and the controller. The
communication box is connected to the PC via a USB
cable.
Fig. 6-1:
USB cable
6-pin8-pin
Connection cable approx. 0.3m with
S32 or S115 (female) connector
Connection cable
approx. 0.3m with
S32 or S115 (male)
connector
Controller
Connecting the communication box with a connector
For a BTL with cable connection the communication lines
La, Lb and GND are connected to the USB communication
box.
Fig. 6-2:
Controller
USB cable
8-pin
Connection cable
approx. 0.6m with
luster terminal
Connecting the communication box with a cable connection
When reading or writing data via the
Configuration Tool, both LEDs flash green.
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 15english
6.4 Configuration options
Prerequisites
– USB communication box connected to the BTL and
PC.
– Software correctly installed.
– BTL connected to the power supply.
– Magnet on BTL.
Magnets and outputs
– Number of magnets can be selected:
• 1 magnet (factory setting)
• 2 magnets
• Flexible Magnet Mode (FMM)
– Two outputs can be assigned independently
The number of magnets can be fixed or flexible:
– Fixed setting
If one magnet is set, a second magnet will be ignored.
If two magnets are set, there must be two magnets on
the BTL. If there is only one, the error value is issued on
all outputs. A third magnet will be ignored.
– Flexible Magnet Mode (FMM)
In Flexible Magnet Mode, the number of magnets is
flexible, allowing them to be changed during operation.
If there are two magnets on the BTL, the respective
output function is issued via the outputs.
If there is only one magnet on the BTL, its output
function is always issued via output 1. Since there is no
second magnet, output 2 issues the error value.
Changing the number of magnets during operation can
cause the assignment of outputs and their values to be
swapped.
Output functions
– Position: position in the measuring range.
– Speed: speed of the magnet. The sign indicates the
direction of movement. Movement from the null point
to the end point is output with a positive sign.
Movement from the end point to the null point is output
with a negative sign. Max. detectable speed range of
−10to+10m/s.
– Speed (no sign): speed of the magnet. The direction
of movement cannot be read. Max. detectable speed
range of 0to10m/s.
– Differential position: Distance between two magnets.
Selection is only possible if two magnets have been
selected.
Freely configurable characteristic curve
– Null and end points can be read (teach-in) or specified
with the mouse.
– The distance between the null point and end point
must be at least 4mm.
– The characteristic curve can be inverted or copied from
the other output.
– The limits can be adjusted to the measuring range.
– The error value can be set in accordance with the
limits.
Boundary conditions for two magnets
– Two magnets can only be selected from a nominal
length ≥90 mm.
– The distance between two magnets must be ≥65 mm.
DANGER
Uncontrolled system movement
When starting up, if the position measuring system is
part of a closed loop system whose parameters have not
yet been set, the system may perform uncontrolled
movements. This could result in personal injury and
equipment damage.
►The system must be taken out of operation before
configuration.
►The BTLs may only be connected to the
communication box for configuration.
►The communication box must be removed after
configuration.
6Configuration with the BTL7 Configuration Tool (continued)
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

16 english
7.1 Accuracy
The specifications are typical values for BTL7-A/C/E/G…
at 24VDC and room temperature, with a nominal length
of 500mm in conjunction with the BTL5-P-3800-2,
BTL5-P-4500-1, BTL5-P-5500-21), BTL6-A-3800-21),
BTL6-A-3801-21), BTL5-F-2814-1S, BTL5-T-2814-1S,
BTL5-M-2814-1S or BTL5-N-2814-1S magnet.
The BTL is fully operational immediately, with full accuracy
after warm-up.
For special versions, other technical data may
apply.
Special versions are indicated by the suffix -SA
on the part label.
Repeat accuracy
Voltage, typical ±10µm
Current, typical ±5µm
Sampling rate
With one magnet:
Dependent on the nominal length
At nominal length=500mm
250µs2)…5.7ms
500µs
With two magnets:
Dependent on the nominal length
At nominal length=500mm
375µs2)…8.55ms
750µs
Non-linearity with a constant
distance between the magnet and
profile:
Nominal length ≤500mm
Nominal length
>500 to ≤5500mm
Nominal length >5500mm
±50µm
±0.01%FS
±0.02%FS
Temperature coefficient3) ≤30ppm/K
Min. detectable speed 3mm/s
Max. detectable speed 10m/s
7.2 Ambient conditions
Ambient temperature −40…+85°C
Ambient temperature for UL
(only BTL7…-KA…)
≤ +80°C
Storage temperature −40…+100°C
Relative humidity ≤90%, non-condensing
Shock rating
Continuous shock
per EN60068-2-275), 6)
150g/6ms
150g/2ms
Vibration
per EN 60068-2-65), 6)
20g, 10…2000Hz
Degree of protection per
IEC60529
Connector S32/S115 (when
attached)
IP67
Cable IP685)
4)
7.3 Supply voltage (external)
Voltage, stabilized7) 10…30VDC
Ripple ≤0.5VSS
Current draw (at24VDC)
BTL7-A/G501-…
BTL7-C/E501-…
≤150mA
≤180mA
Inrush current ≤500mA
Reverse polarity protection8) Up to 36V
(supply to GND)
Overvoltage protection Up to 36V
Dielectric strength
(GND to housing)
500VAC
7.4 Output
BTL7-A501
Output voltage
Max. configuration9)
Factory setting
Load current
−10…10V / 10…−10V
0…10V / 10…0V
≤5mA
BTL7-G501
Output voltage
Max. configuration9)
Factory setting
Load current
−10…10V / 10…−10V
−10…10V / 10…−10V
≤5mA
BTL7-C501
Output current
Max. configuration9)
Factory setting
Load resistance
0…20mA / 20…0mA
0…20mA / 20…0mA
≤500Ω
BTL7-E501
Output current
Max. configuration9)
Factory setting
Load resistance
0…20mA / 20…0mA
4…20mA / 20…4mA
≤500Ω
Short circuit resistance Signal cable to 36V
Signal cable to GND
1) In the position range from 0 to 20 mm, the specified linearity limit may be
exceeded by ±100 µm.
2) Only position output. For speed output, next-higher measured value rate
(500µs or 750µs).
3) Nominal length 500mm, magnet in the middle of the measuring range
4) For UL: Use in enclosed spaces and up to a height of 2000m above sea
level.
5) Individual specifications as per Balluff factory standard
6) Resonant frequencies excluded
7) For UL: The BTL must be externally connected via a limited-energy circuit
as defined in UL61010-1, a low-power source as defined in UL60950-1,
or a class2 power supply as defined in UL1310 or UL1585.
8) A prerequisite is that no current can flow between GND and 0 V in the
event of polarity reversal.
9) Only with PC software (BTL7 Configuration Tool)
7 Technical data
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 17english
7.5 Communication lines La, Lb
Short circuit resistance Signal cable to GND
7.6 Dimensions, weights
Housing height 36.8mm
Nominal length 50…7620mm
Weight (depends on length) Approx.1.4kg/m
Housing material Aluminum
BTL7-…-KA__
Cable material PUR
cULus20549
80°C, 300V,
internal wiring
Cable temperature –40°C…+90°C
Cable diameter Max. 7mm
Permissible bending radius
Fixed routing ≥35mm
Moved ≥105mm
7Technical data (continued)
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

18 english
8.1 Captive magnets
BTL5-M/N-2814-1S
Y
28
22 41
Ø 2
20
X
M5
Fig. 8-1: Installation dimensions of BTL5-M/N-2814-1S magnet
BTL5-M-2814-1S BTL5-N-2814-1S
Distance X 12.5 mm 15 mm
Distance Y 21 mm 23.5 mm
Weight: Approx. 32 g Approx. 35 g
Housing: Aluminum Aluminum
Slide surface: Plastic Plastic
BTL5-F-2814-1S
30.4
28
22
M5x10
±18°
24
40
Fig. 8-2: Installation dimensions of BTL5-F-2814-1S magnet
Weight: Approx. 28 g
Housing: Aluminum
Slide surface: Plastic
BTL5-T-2814-1S
16.5
11.5
28
22 40
M5x10
Fig. 8-3: Installation dimensions of BTL5-T-2814-1S magnet
Weight: Approx. 28 g
Housing: Aluminum
Slide surface: Plastic
8.2 BTL2-GS10-_ _ _ _-A joint rod
Fig. 8-4: BTL2-GS10-_ _ _ _-A joint rod
Weight: Approx. 150g/m
Material: Aluminum
1) State the nominal length when ordering
Example: BTL2-GS10-0100-A (nominal length = 100mm)
8 Accessories
Nominal length1)
Mechanically joined to M5
stud using 2 nuts
Adjustment range −5mm
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

www.balluff.com 19english
8.3 Floating magnets
BTL5-P-3800-2
38
28
9
14
Ø 4.2
Fig. 8-5: Installation dimensions of BTL5-P-3800-2 magnet
Weight: Approx. 12g
Housing: Plastic
BTL5-P-5500-2
55
28
16
45
21
Ø 4.2
20
15
Fig. 8-6: Installation dimensions of BTL5-P-5500-2 magnet
Weight: Approx. 40g
Housing: Plastic
BTL6-A-3800-2
21
10.813
28.8
28
16
37.6
Ø 4.2
Fig. 8-7: Installation dimensions of BTL6-A-3800-2 magnet
Weight: Approx. 30 g
Housing: Plastic
BTL6-A-3801-2
28
16 21
37.6
Ø 4.2
18
13
Fig. 8-8: Installation dimensions of BTL6-A-3801-2 magnet
Weight: Approx. 25 g
Housing: Plastic
BTL5-P-4500-1
16.5
45
25
28
15
Ø 4.5
25
7.
5
M5x8
40
Fig. 8-9: Installation dimensions of BTL5-P-4500-1 magnet
Weight: Approx. 90 g
Housing: Plastic
Operating
temperature:
−40…+60°C
Special advantage of the BTL5-P-4500-1 magnet:
Several magnets on the same BTL can be separately
switched on and off electrically (actuation
with a PLC signal).
8Accessories (continued)
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style

20 english
8Accessories (continued)
8.4 Connector type S32
8.4.1 Freely configurable
BKS-S32M-00
Order code: BCC00TT
Straight connector, M16 per IEC130-9, 8-pin
Fig. 8-10:
~ 62
Connector BKS-S32M-00
BKS-S33M-00
Order code: BCC00UP
Angled connector, M16 per IEC130-9, 8-pin
Fig. 8-11:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector BKS S33M-00
8.4.2 Preassembled
Straight connector, molded, M16, 8-pin
Various cable lengths can be ordered, e.g.
BCCS518-0000-1Y-133-PS0825-050
(Order code: BCC0L21): Cable length 5m
Fig. 8-12:
Ø 20
66
Connector type S32 (preassembled)
Angled connector, molded, M16, 8-pin
Various cable lengths can be ordered, e.g.
BCCS528-0000-1Y-133-PS0825-050
(Ordering code: BCC0L2A): Cable length 5m
Fig. 8-13:
Ø 20
46
48.5
Connector type S32 (preassembled)
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 8-1: S32 (preassembled) pin assignment
BTL7-A/C/E/G501-M _ _ _ _ -P-S32/S115/KA _ _
Magnetostrictive Linear Position Sensor – Profile Style
