Banner Q4X Series User manual

Quick Start Guide
Class 1 laser CMOS sensor with a discrete (PNP or NPN) output. Patent pending.
This guide is designed to help you set up and install the Q4X Sensor. For complete information on programming, performance,
troubleshooting, dimensions, and accessories, please refer to the Instruction Manual at www.bannerengineering.com. Search for p/n
181483 to view the Instruction Manual. Use of this document assumes familiarity with pertinent industry standards and practices.
For illustration purposes, the threaded barrel model Q4X images are used throughout this document.
WARNING:
•Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A device failure or malfunction can cause either an energized (on) or de-
energized (off) output condition.
Features
Figure 1. Sensor Features—Threaded Barrel Models
1
2
3
1. Output Indicator (Amber)
2. Display
3. Buttons
Figure 2. Sensor Features—Flush Mount Models
1
2
3
Display and Indicators
The display is a 4-digit, 7-segment LED. The main screen is the Run mode screen.
For 2-pt, BGS, FGS, and DYN TEACH modes, the display shows the current distance to the target in millimeters. For dual TEACH
mode, the display shows the percentage matched to the taught reference surface. A display value of indicates the sensor
has not been taught.
Figure 3. Display in Run Mode
12
1. Stability Indicator (STB—Green)
2. Active TEACH Indicators
• DYN—Dynamic (Amber)
• FGS—Foreground Suppression (Amber)
• BGS—Background Suppression (Amber)
Output Indicator
•On—Outputs conducting (closed)
• Off—Outputs not conducting (open)
Stability Indicator (STB)
• On—Stable signal within the specified sensing range
• Flashing—Marginal signal, the target is outside the limits
of the specified sensing range, or a multiple peak
condition exists
• Off—No target detected within the specified sensing
range
Active TEACH Indicators (DYN, FGS, and BGS)
•DYN, FGS, and BGS all off—Two-point TEACH mode
selected (default)
• DYN on—Dynamic TEACH mode selected
• FGS on—Foreground suppression TEACH mode
selected
• BGS on—Background suppression TEACH mode
selected
• DYN, FGS, and BGS all on—Dual TEACH mode
selected
Q4X Stainless Steel Laser Sensor
Original Document
181484 Rev. N
11 January 2023
181484

Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(DISP), and (-)(MODE) to program the sensor.
Figure 4. Buttons
(SELECT)(TEACH)
•Press to select menu items in Setup mode
• Press and hold for longer than 2 seconds to start the
currently selected TEACH mode (the default is two-point
TEACH)
(+)(DISP)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
increase numeric values
• Press and hold for longer than 2 seconds to switch
between light operate (LO) and dark operate (DO)
(-)(MODE)
•Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
decrease numeric values
• Press and hold for longer than 2 seconds to enter Setup
mode
Note: When navigating the menu, the menu
items loop.
Laser Description and Safety Information
CAUTION:
•Return defective units to the manufacturer.
•Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
• Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the
manufacturer.
≤ 510 mm Models - IEC 60825-1:2007 Class 1 Laser
Class 1 lasers are lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical
instruments for intrabeam viewing.
Laser wavelength: 655 nm Output: < 0.20 mW Pulse Duration: 7 µs to 2 ms
> 510 mm Models - IEC 60825-1:2014 Class 1 Laser
Class 1 lasers are lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical
instruments for intrabeam viewing.
COMPLIES WITH IEC 60825-1:2014
CLASS 1
LASER PRODUCT
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
LASER NOTICE No. 56, DATED MAY 8, 2019.
IEC 60825-1:2014, AS DESCRIBED IN
BANNER ENGINEERING CORP.
9714 10TH AVENUE NORTH
MINNEAPOLIS, MN 55441
Laser wavelength: 655 nm Output: < 0.39 mW Pulse Duration: 7 µs to 2 ms
Q4X Stainless Steel Laser Sensor
2 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 181484 Rev. N

Installation
Install the Safety Label
The safety label must be installed on Q4X sensors that are used in the United
States.
Note: Position the label on the cable in a location that has
minimal chemical exposure.
1. Remove the protective cover from the adhesive on the label.
2. Wrap the label around the Q4X cable, as shown.
3. Press the two halves of the label together.
Figure 5. Safety Label Installation
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR DEVIATIONS PURSUANT TO
LASER NOTICE No. 50, DATED JUNE 24, 2007.
BANNER ENGINEERING CORP.
9714 10TH AVENUE NORTH
MINNEAPOLIS, MN 55441
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
Sensor Orientation
Optimize detection reliability and minimum object separation performance with correct sensor-to-target orientation. To ensure
reliable detection, orient the sensor as shown in relation to the target to be detected.
Figure 6. Optimal Orientation of Target to Sensor
See the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose
problems for sensing some targets. The Q4X can be used in the less preferred orientation and provide reliable detection
performance; refer to the Performance Curves for the minimum object separation distance required for each case.
Figure 7. Orientation by a wall
Incorrect
Correct
Figure 8. Orientation for a turning object
Incorrect
Correct
Figure 9. Orientation for a height difference
Incorrect
Correct
Figure 10. Orientation for a color or luster difference
Horizontal
Orientation
Vertical
Orientation
(Optimal)
Figure 11. Orientation for highly reflective target 1
Reflective
Surface
(optional)
Mount the Device
1. If a bracket is needed, mount the device onto the bracket.
2. Mount the device (or the device and the bracket) to the machine or equipment at the desired location. Do not tighten the
mounting screws at this time.
3. Check the device alignment.
4. Tighten the mounting screws to secure the device (or the device and the bracket) in the aligned position.
1Applying tilt to sensor may improve performance on reflective targets. The direction and magnitude of the tilt depends on the application, but a 15° tilt is often sufficient.
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N www.bannerengineering.com - Tel: + 1 888 373 6767 3

Wiring Diagram—Threaded Barrel Models
3
1
2
4
5
10-30V dc
Remote
Teach
Load
Load
+
–
Note: Open lead wires must be connected to a terminal block.
1
4
5
3
2
Key
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
Note: The input wire function is user-selectable; see the Instruction Manual for details. The default for the input
wire function is off (disabled).
Wiring Diagram—Flush Mount Models
NPN Models
Input Wire
10-30V dc
Load
PNP Models
Load
10–30 V dc
Input Wire
1
4
3
2
Key
1 = Brown
2 = White
3 = Blue
4 = Black
Note: Open lead wires must be connected to a terminal block.
Note: The input wire function is user-selectable; see the Instruction Manual for details. The default for the input
wire function is off (disabled).
Cleaning and Maintenance
Clean the sensor when soiled and use with care.
Handle the sensor with care during installation and operation. Sensor windows soiled by fingerprints, dust, water, oil, etc. may create
stray light that may degrade the peak performance of the sensor. Blow the window clear using filtered, compressed air, then clean
as necessary using only water and a lint-free cloth.
Sensor Programming
Program the sensor using the buttons on the sensor or the remote input (limited programming options).
In addition to programming the sensor, use the remote input to disable the buttons for security, preventing unauthorized or
accidental programming changes. See the Instruction Manual, p/n 181483 for more information.
Setup Mode
Access Setup mode and the sensor menu from Run mode by pressing and holding MODE for longer than 2 seconds. Use and
to navigate through the menu. Press SELECT to select a menu option and access the submenus. Use and to navigate
through the submenus. Press SELECT to select a submenu option and return to the top menu, or press and hold SELECT for longer
than 2 seconds to select a submenu option and return immediately to Run mode.
To exit Setup mode and return to Run mode, navigate to and press SELECT.
Q4X Stainless Steel Laser Sensor
4 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 181484 Rev. N

Figure 12. Sensor Menu Map—Channel 1
Two-point static BGS
Dynamic BGS
One-point BGS
Dual, intensity + distance
One-point Window (FGS)
Top Menu
Set Response Speed to 1.5 ms
Set Response Speed to 3 ms
Set Response Speed to 10 ms
Set Response Speed to 50 ms
(1. Default response speed for 500 mm bipolar model)
Set Response Speed to 25 ms
Off: no delays enabled
Enable on and/or off delay (set value in Delay Timer menu)
1 Shot, fixed output pulse duration
LO = On pulse when a target is detected inside of the switch point(s)
DO = On pulse when a target is detected outside of the switch point(s)
Near: set zero displayed value to end of 18 mm barrel
Far: set zero displayed value to maximum detection range
sec range, set Delay Timer value (seconds have decimal)
Gain menu is available when Response Speed is set to 10, 25 or 50 ms
† Select Zero Reference menu is not available when in Dual Mode
‡ Shift Zero Reference menu is not available when in Dual Mode
Adaptive Tracking menu is available when Teach Process is set to Dual Mode
Laser off when pulled low
Laser on when pulled low
Set: Remote Teach input
Off: remote teach input is not active
Master
Slave
Display on
Display on, inverted
Display off (enters sleep mode after 60 seconds)
Display off, inverted (enters sleep mode after 60 seconds)
End: select to exit setup
No: do not reset to factory defaults
Yes: reset to factory defaults
On: move the zero point after each teach
Off: zero point is either at end of barrel or
maximum detection range
to
Teach Process Selection
Response Speed
Output Timing Delays
Select Zero Reference Location †
Delay Timer
Shift Zero Reference after Teach ‡
Input Wire Function
Display Read
Exit Setup
Reset to Factory Defaults
Available when
selected
Available when
selected
Sub Menus
ms
( default setting)
High excess gain mode
Standard excess gain with increased noise immunity
Gain and Sensitivity**
when is selected,1 to 9 ms is range available when Response Speed is
set to 1.5 or 3 ms
Adaptive Tracking ON
Adaptive Tracking OFF
High-Speed Adaptive Tracking ON
Adaptive Tracking Algorithm*
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N www.bannerengineering.com - Tel: + 1 888 373 6767 5

Basic TEACH Instructions
Use the following instructions to teach the Q4X sensor. The instructions provided on the sensor display vary depending on the type
of TEACH mode selected. Two-point TEACH is the default TEACH mode.
1. Press and hold TEACH for longer than 2 seconds to start the selected TEACH mode.
2. Present the target.
3. Press TEACH to teach the target. The target is taught and the sensor waits for the second target, if required by the selected
TEACH mode, or returns to Run mode.
Complete steps 4 and 5 only if required for the selected TEACH mode:
4. Present the second target.
5. Press TEACH to teach the target. The target is taught and the sensor returns to Run mode.
See the Instruction Manual for detailed instructions and other available TEACH modes. The TEACH modes include:
• Two-point static background suppression —Two-point TEACH sets a single switch point. The sensor sets the switch
point between two taught target distances, relative to the shifted origin location.
•Dynamic background suppression —Dynamic TEACH sets a single switch point during machine run conditions. The
sensor takes multiple samples and the switch point is set between the minimum and the maximum sampled distances.
•One-point window (foreground suppression) —One-point window sets a window (two switch points) centered around
the taught target distance.
•One-point background suppression —One-point background suppression sets a single switch point in front of the
taught target distance. Objects beyond the taught switch point are ignored.
•Dual intensity + distance —Dual mode records the distance and amount of light received from the reference surface.
See for more information about selecting a reference surface. The output switches when an object passing between the
sensor and the reference surface changes the perceived distance or amount of returned light.
Manual Adjustments
Manually adjust the sensor switch point using the and buttons.
1. From Run mode, press either or one time. The current switch point value flashes slowly.
2. Press to move the switch point up or to move the switch point down. After 1 second of inactivity, the new switch
point value flashes rapidly, the new setting is accepted, and the sensor returns to Run mode.
Note: When FGS mode is selected (FGS indicator is on), manual adjustment moves both sides of the
symmetrical threshold window simultaneously, expanding and collapsing the window size. Manual adjustment
does not move the center point of the window.
Note: When dual mode is selected (DYN, FGS, and BGS indicators are on), after the TEACH process is
completed, use the manual adjustment to adjust the sensitivity of the thresholds around the taught reference
point. The taught reference point is a combination of the measured distance and returned signal intensity from
the reference target. Manual adjustment does not move the taught reference point, but pressing increases
the sensitivity, and pressing decreases the sensitivity. When re-positioning the sensor or changing the
reference target, re-teach the sensor.
Light Operate/Dark Operate
The default output configuration is light operate. To switch between light operate and dark operate, use the following instructions:
1. Press and hold LO/DO for longer than 2 seconds. The current selection displays.
2. Press LO/DO again. The new selection flashes slowly.
3. Press SELECT to change the output configuration and return to Run mode.
Note: If neither SELECT nor LO/DO are pressed after step 2, the new selection flashes slowly for a few
seconds, then flashes quickly and the sensor automatically changes the output configuration and returns
to Run mode.

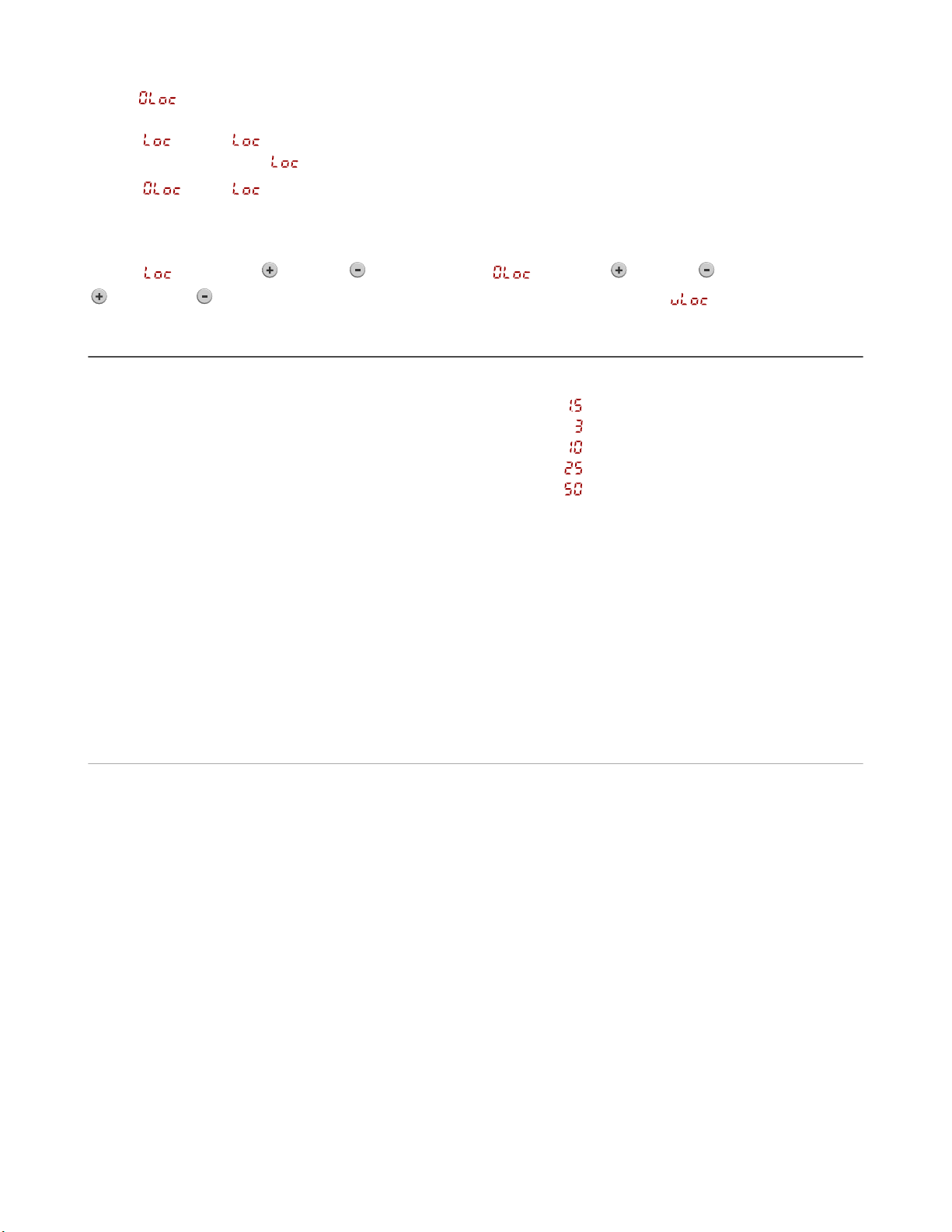

Locking and Unlocking the Sensor Buttons
Use the lock and unlock feature to prevent unauthorized or accidental programming changes.
Three settings are available:
• —The sensor is unlocked and all settings can be modified (default).
• — The sensor is locked and no changes can be made.
Q4X Stainless Steel Laser Sensor
6 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 181484 Rev. N

• —The switch point value can be changed by teaching or manual adjustment, but no sensor settings can be changed
through the menu.
When in mode, displays when the (SELECT)(TEACH) button is pressed. The switch point displays when (+)(DISP)
or (-)(MODE) are pressed, but displays if the buttons are pressed and held.
When in mode, displays when (+)(DISP) or (-)(MODE) are pressed and held. To access the manual adjust options,
briefly press and release (+)(DISP) or (-)(MODE). To enter TEACH mode, press the (SELECT)(TEACH) button and hold for longer
than 2 seconds.
To enter mode, hold and press four times. To enter mode, hold and press seven times. Holding
and pressing four times unlocks the sensor from either lock mode and the sensor displays .
Specifications
Sensing Beam
Visible red Class 1 laser, 655 nm
Supply Voltage (Vcc)
10 V DC to 30 V DC
Power and Current Consumption, exclusive of load
< 675 mW
Sensing Range—Threaded Barrel Models
500 mm models: 25 mm to 500 mm (0.98 in to 19.69 in)
300 mm models: 25 mm to 300 mm (0.98 in to 11.81 in)
100 mm models: 25 mm to 100 mm (0.98 in to 3.94 in)
Sensing Range—Flush Mount Models
310 mm models: 35 mm to 310 mm (1.38 in to 12.20 in)
110 mm models: 35 mm to 110 mm (1.38 in to 4.33 in)
Output Configuration
Threaded Barrel Models: Bipolar (1 PNP and 1 NPN) output
Flush Mount Models: PNP or NPN output, depending on model
Output Rating
100 mA total maximum (protected against continuous overload and short
circuit)
Off-state leakage current: < 5 µA at 30 V DC
PNP On-state saturation voltage: < 1.5 V DC at 100 mA load
NPN On-state saturation voltage: < 1.0 V DC at 100 mA load
Remote Input
Allowable Input Voltage Range: 0 to Vcc
Active Low (internal weak pullup—sinking current): Low State < 2.0 V at
1 mA max.
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Response Speed
User selectable:
•—1.5 milliseconds
•—3 milliseconds
• —10 milliseconds
• —25 milliseconds
•—50 milliseconds
Typical Temperature Effect
0.05 mm/°C at <125 mm (threaded barrel models)/< 135 mm (flush mount
models)
0.35 mm/°C at 300 mm (threaded barrel models)/< 310 mm (flush mount
models)
1 mm/°C at 500 mm (threaded barrel models)
Calculated as an average temperature effect across the sensor's full
operating temperature.
Chemical Compatibility
Compatible with commonly used acidic or caustic cleaning and disinfecting
chemicals used in equipment cleaning and sanitation. ECOLAB® certified.
Compatible with typical cutting fluids and lubricating fluids used in machining
centers
Application Note
For optimum performance, allow 10 minutes for the sensor to warm up
Delay at Power Up
< 750 ms
Maximum Torque
Side mounting: 1 N·m (9 in·lbs)
Nose mounting: 20 N·m (177 in·lbs)
Ambient Light Immunity
> 5,000 lux at 300 mm
> 2,000 lux at 500 mm
Connector
Threaded Barrel Models: Integral 5-pin M12 male quick-disconnect
connector
Flush Mount Models: Integral 4-pin M12 male quick-disconnect connector
Construction
Housing: 316 L stainless steel
Lens cover: PMMA acrylic
Lightpipe and display window: polysulfone
Environmental Rating
IP67 per IEC60529
IP68 per IEC60529
IP69K per DIN 40050-9
IP rating is dependent on proper cordset installation.
Vibration
MIL-STD-202G, Method 201A (Vibration: 10 Hz to 60 Hz, 0.06 inch (1.52
mm) double amplitude, 2 hours each along X, Y and Z axes), with device
operating
Shock
MIL-STD-202G, Method 213B, Condition I (100G 6x along X, Y, and Z axes,
18 shocks), with device operating
Operating Conditions
–10 °C to +50 °C (+14 °F to +122 °F)
35% to 95% relative humidity
Storage Temperature
–25 °C to +75 °C (–13 °F to +167 °F)
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N www.bannerengineering.com - Tel: + 1 888 373 6767 7

Excess Gain—Threaded Barrel Models
Table 1: Excess Gain ( Excess Gain 2)
Response Speed (ms) Excess Gain—90% White Card
at 25 mm at 100 mm at 300 mm at 500 mm
1.5 200 100 20 7
3 200 100 20 7
10 1000
(500)
500
(250)
100
(50)
36 (18)
25 2500
(1000)
1250
(500)
250
(100)
90 (36)
50 5000
(2500)
2500
(1250)
500
(250)
180 (90)
Excess Gain—Flush Mount Models
Table 2: Excess Gain ( Excess Gain 3)
Response Speed (ms) Excess Gain—90% White Card
at 35 mm at 110 mm at 310 mm
1.5 200 100 20
3 200 100 20
10 1000
(500)
500
(250)
100
(50)
25 2500
(1000)
1250
(500)
250
(100)
50 5000
(2500)
2500
(1250)
500
(250)
Discrete Output Distance Repeatability
Table 3: Discrete Output Repeatability—300/310 mm and 500 mm Models
Distance (mm)
Repeatability
Threaded Barrel Models Flush Mount Models
25 to 50 mm 35 to 60 mm ± 0.5 mm
50 to 300 mm 60 to 310 mm ± 1% of range
50 to 500 mm 60 to 510 mm ± 1.2% of range
Table 4: Discrete Output Repeatability—100/110 mm Models
Distance (mm)
Repeatability
Threaded Barrel Models Flush Mount Models
25 to 100 mm 35 to 110 mm +/-0.2 mm
Beam Spot Size—100/110 mm Models
Table 5: Beam Spot Size—100/110 mm Models
Distance (mm)
Size (Horizontal × Vertical)
Threaded Barrel Models Flush Mount Models
25 35 2.4 mm × 1.0 mm
50 60 2.2 mm × 0.9 mm
100 110 1.8 mm × 0.7 mm
Beam Spot Size—300/310 mm and 500 mm Models
Table 6: Beam Spot Size—300/310 mm and 500 mm Models
Distance (mm)
Size (Horizontal × Vertical)
Threaded Barrel Models Flush Mount Models
25 35 2.6 mm × 1.0 mm
150 160 2.3 mm × 0.9 mm
300 310 2.0 mm × 0.8 mm
500 - 1.9 mm × 1.0 mm
2
• excess gain available in 10 ms, 25 ms, and 50 ms response speeds only
• excess gain provides increased noise immunity
3
• excess gain available in 10 ms, 25 ms, and 50 ms response speeds only
• excess gain provides increased noise immunity
Q4X Stainless Steel Laser Sensor
8 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 181484 Rev. N

Required Overcurrent Protection
WARNING: Electrical connections must be made by qualified personnel in accordance with local and national electrical codes and
regulations.
Overcurrent protection is required to be provided by end product application per the supplied table.
Overcurrent protection may be provided with external fusing or via Current Limiting, Class 2 Power Supply.
Supply wiring leads < 24 AWG shall not be spliced.
For additional product support, go to www.bannerengineering.com.
Supply Wiring (AWG) Required Overcurrent Protection (Amps)
20 5.0
22 3.0
24 2.0
26 1.0
28 0.8
30 0.5
Certifications
Banner Engineering BV Park Lane, Culliganlaan
2F bus 3, 1831 Diegem, BELGIUM
Turck Banner LTD Blenheim House, Blenheim
Court, Wickford, Essex SS11 8YT, Great Britain
Industrial
Control
Equipment
3TJJ
Class 2 power
UL Environmental Rating: Type 1
chemical compatibility certified
ECOLAB is a registered trademark of Ecolab USA Inc. All rights reserved.
FCC Part 15 Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Industry Canada
This device complies with CAN ICES-3 (A)/NMB-3(A). Operation is subject to the following two conditions: 1) This device may not
cause harmful interference; and 2) This device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil est conforme à la norme NMB-3(A). Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif ne
peut pas occasionner d'interférences, et (2) il doit tolérer toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité du dispositif.
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N www.bannerengineering.com - Tel: + 1 888 373 6767 9

Performance Curves—Threaded Barrel Models
Figure 13. Minimum Object Separation Distance (90% to 6% reflectance)
Minimum Separation Distance Between Target and Background for: Uniform and Non-Uniform Targets
100 mm Models
300 mm Models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
Target
Switch Point
Distance
Background
X
Y
0
2
4
6
8
10
12
14
16
18
20
22
0 25 50 75 100 125 150 175 200 225 250 275 300 325
Matte targets with uniform
reflectivity: 6% to 90%
Matte targets with a non-uniform
reflectivity: 6% to 90%
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 25 50 75 100 125
Matte targets with a non-uniform
reflectivity: 6% to 90%
Matte targets with uniform
reflectivity: 6% to 90%
Threaded Barrel Models
500 mm Models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
10
20
30
40
50
0 100
25 200 300 400 500
Matte targets with uniform
reflectivity: 6% to 90%
Matte targets with a non-uniform
reflectivity: 6% to 90%
Q4X Stainless Steel Laser Sensor
10 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 181484 Rev. N

Performance Curves—Flush Mount Models
Figure 14. Minimum Object Separation Distance (90% to 6% reflectance)
Minimum Separation Distance Between Target and Background for: Uniform and Non-Uniform Targets
110 mm Models
310 mm Models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
2
4
6
8
10
12
14
16
18
20
22
0 25 50 75 100 125 150 175 200 225 250 275 300 325
Matte targets with uniform
reflectivity: 6% to 90%
Target
Switch Point
Distance
Background
X
Y
Matte targets with a non-uniform
reflectivity: 6% to 90%
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 25 35 50 75 100 125
Matte targets with a non-uniform
reflectivity: 6% to 90%
Matte targets with uniform
reflectivity: 6% to 90%
Flush Mount Models
110
35 310
Dual Mode Reference Surface Considerations
Optimize reliable detection by applying these principals when selecting your reference surface, positioning your sensor relative to the
reference surface, and presenting your target.
The robust detection capabilities of the Q4X allows successful detection even under non-ideal conditions in many cases. Typical
reference surfaces are metal machine frames, conveyor side rails, or mounted plastic targets. Contact Banner Engineering if you
require assistance setting up a stable reference surface in your application.
For detailed instructions for detecting clear or transparent objects, refer to the Instruction Manual, p/n 181483.
1. Select a reference surface with these characteristics where possible:
• Matte or diffuse surface finish
• Fixed surface with no vibration
• Dry surface with no build-up of oil, water, or dust
2. Position the reference surface between 50 mm and the maximum sensing range for threaded barrel models or between 60
mm and the maximum sensing range for flush mount models.
3. Position the target to be detected as close to the sensor as possible, and as far away from the reference surface as
possible.
4. Angle the sensing beam relative to the target and relative to the reference surface 10 degrees or more.
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N www.bannerengineering.com - Tel: + 1 888 373 6767 11

Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or
replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not
cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR
TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO
BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY,
STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously
manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the
product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void
the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time.
Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to:
www.bannerengineering.com.
For patent information, see www.bannerengineering.com/patents.
Q4X Stainless Steel Laser Sensor
© Banner Engineering Corp. All rights reserved
