Barco Coronis Fusion User manual

Getting Started Guide
Coronis Fusion

(This page intentionally left blank.)
2

3
Copyright notice
This document is copyrighted. All rights are reserved. Neither this
document, nor any part of it, may be reproduced or copied in any
form or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems -
without written permission of Barco
© 2007 Barco N.V. All rights reserved.

Table of Contents
4
Table of Contents
Preface.............................................................................................. 5
Environmental information ...................................................... 6
Safety Instructions .................................................................. 10
Explanation of symbols .......................................................... 13
Getting to know the system.......................................................... 15

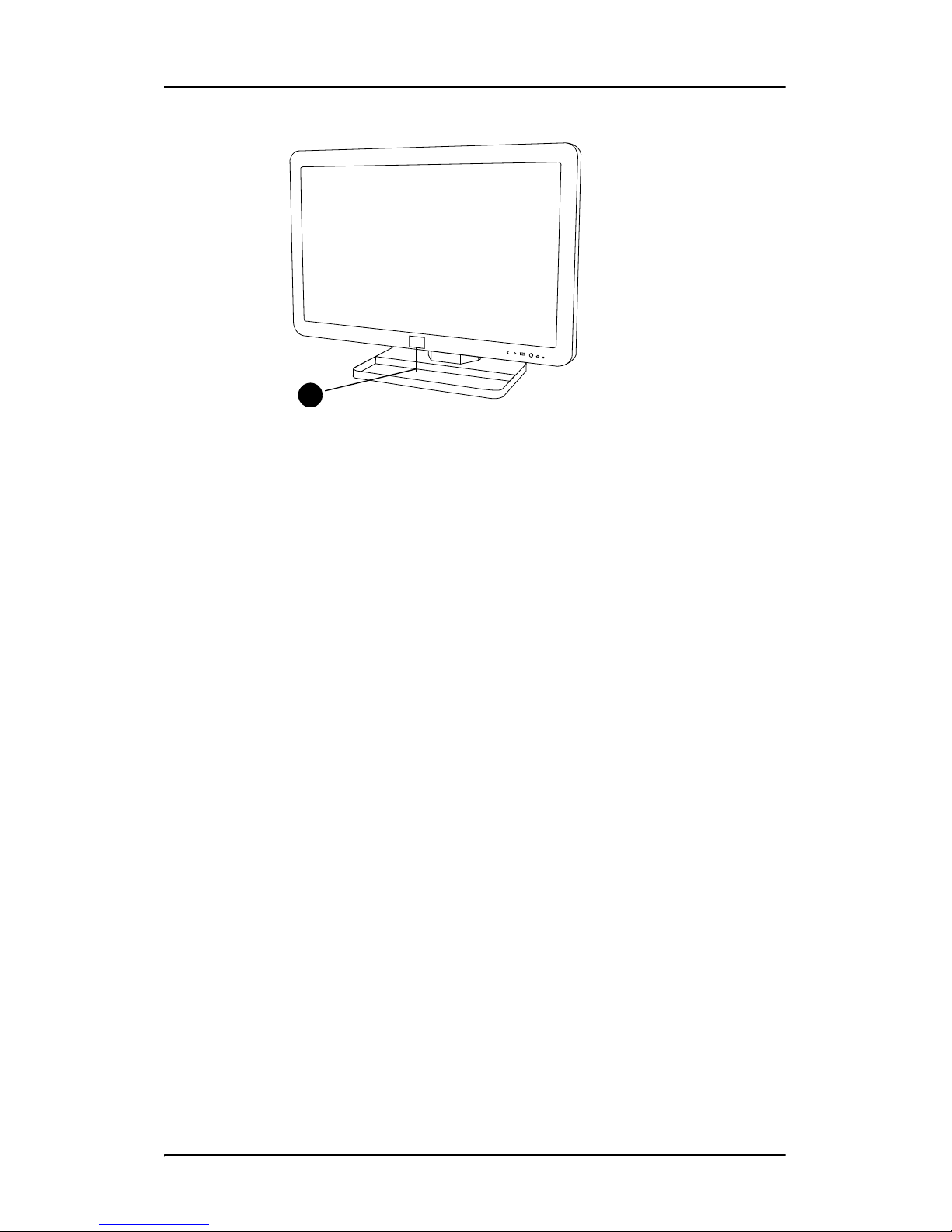

LED indicator ........................................................................... 15

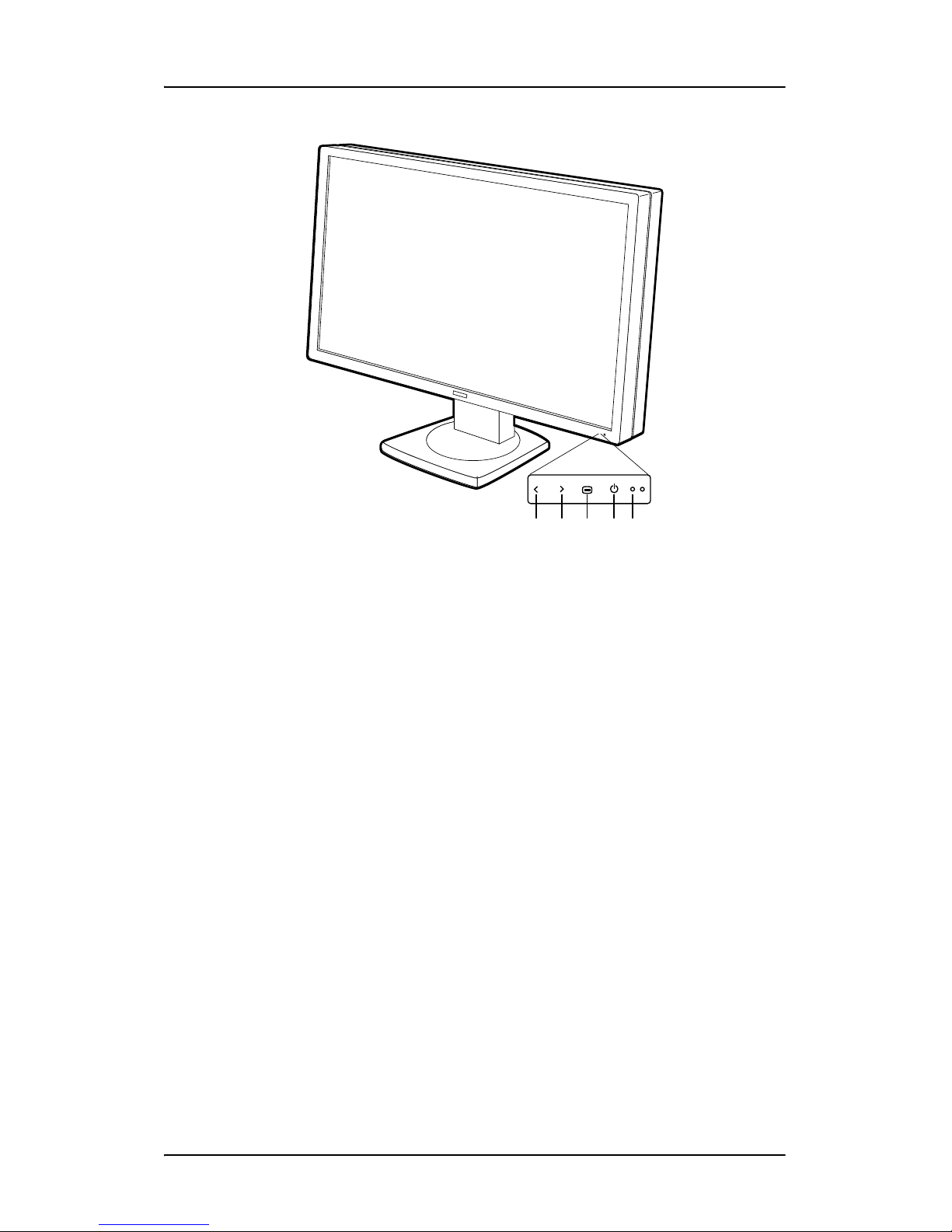

Display controls....................................................................... 15

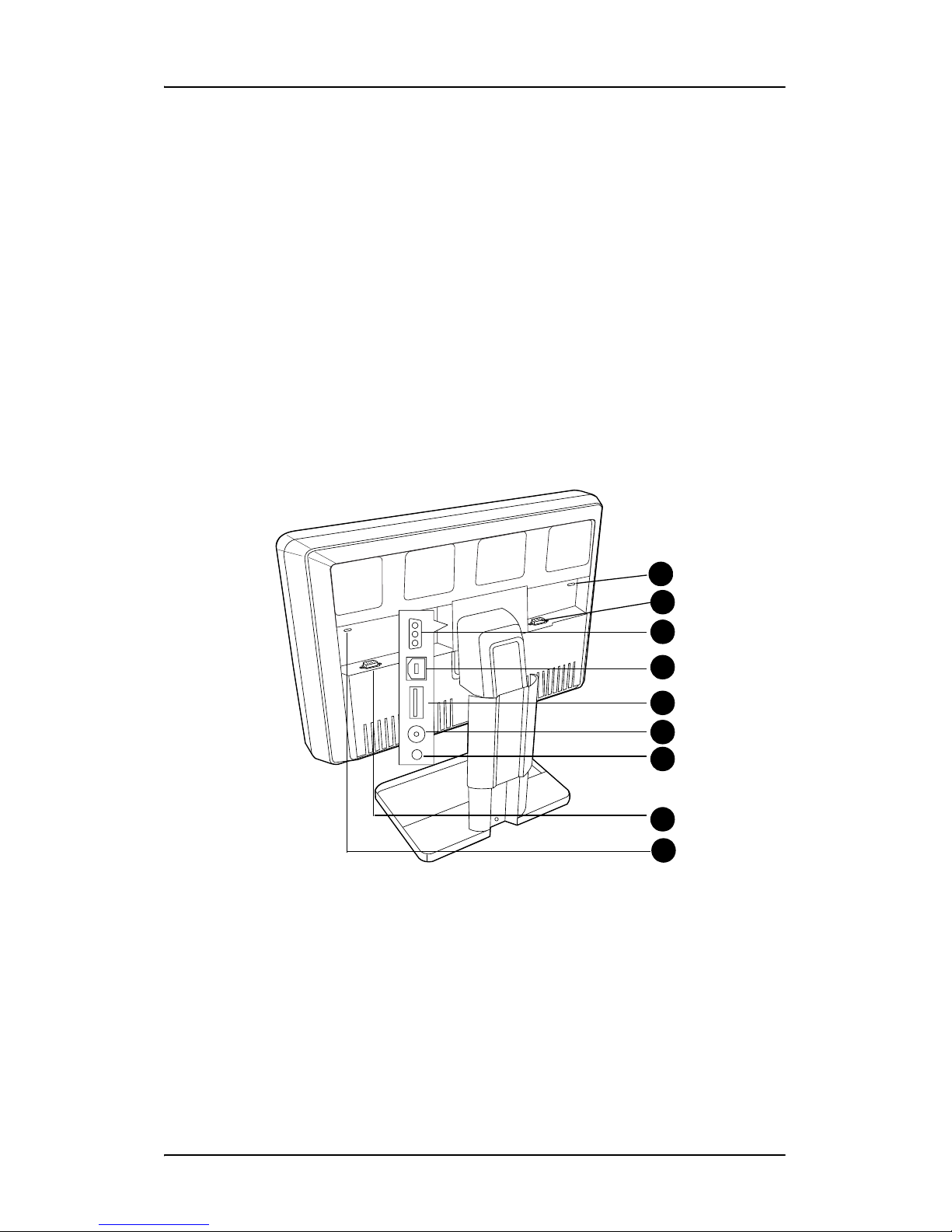

Rear view ................................................................................ 18
Connectors............................................................................... 19
Installing the system ..................................................................... 22
Installation precautions.......................................................... 22
Display controller installation ................................................ 22
Quick installation .................................................................... 25
Detailed installation ............................................................... 26
Connecting the signal cables ................................................. 29
Vesa-mount installation ......................................................... 33
Software installation............................................................... 34
Where to get more information.................................................... 40
Troubleshooting ............................................................................. 42
General tips............................................................................. 42
Technical specifications ................................................................. 46
Warranty Statement....................................................................... 48

Preface
5
Preface
Notice
Although every attempt has been made to achieve technical accuracy
in this document, we assume no responsibility for errors that may be
found. Our goal is to provide you with the most accurate and usable
documentation possible; if you discover errors, please let us know.
Barco software products are the property of Barco. They are
distributed under copyright by Barco N.V. or BarcoView, LLC., for use
only under the specific terms of a software license agreement
between Barco N.V. or BarcoView LLC. and the licensee. No other use,
duplication, or disclosure of a Barco software product, in any form, is
authorized.
The specifications of Barco products are subject to change without
notice.
Trademarks
All trademarks and registered trademarks are property of their
respective owners.
FCC Compliance Information (display)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or

Preface
6
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Canadian notice
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
Environmental information
Disposal Information
This product consists of devices that may contain mercury, which must
be recycled or disposed of in accordance with local, state, or country

Preface
7
laws. (Within this system, the backlight lamps in the monitor display
contain mercury.)
This equipment has required the extraction and use of natural
resources for its production. It may contain hazardous substances for
health and environment.
In order to avoid the dissemination of those substances in the
environment and to diminish the pressure on natural resources, we
encourage you to use the appropriate take-back systems.
Those systems will reuse or recycle most of the materials of your end-
of-life equipment in a sound way.
The crossed-out wheeled bin symbol invites you to use those
systems.
If you need more information on the collection, reuse and
recycling systems, please contact your local or regional waste
administrator.
You can also contact us for more information on the environmental
performances of our products.

Preface
8
Information for China ROHS compliance
Table of toxic and hazardous substances/elements and their content,
as required by China’s management methods for controlling pollution
by electronic information products
Toxic or hazardous Substances and Elements
Part Name Pb Hg Cd Cr6+ PBB PBDE
Metal parts X O O O O O
Plastic parts X O O O O O
PCB or PCBA X O O O O O
LCD panel X X O O O O
Power supply/adapter X O O O O O
Power cable X O O O O O
Connectors and cables X O O O O O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the
homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006

Preface
9

Preface
10
Safety Instructions
General Recommendations
Read the safety and operating instructions before operating the
display.
Retain safety and operating instructions for future reference.
Adhere to all warnings on the display and in the operating
instructions manual.
Follow all instructions for operation and use.
Electrical shock
Type of protection (electrical):
Display with external power supply: Class I equipment
Degree of safety (flammable anesthetic mixture):
Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
Non-patient care equipment
Equipment primarily for use in a health care facility that is intended
for use where contact with a patient is unlikely.
Power connection - display with external power supply
• Power requirements: The display must be powered using the
delivered medical approved 24 VDC SELV power supply.

Preface
11
• The medical approved DC power supply must be powered by
the AC mains voltage.
Power cords:
• Utilize a UL-listed detachable power cord, 3-wire, type SJ or
equivalent, 18 AWG min., rated 300 V min., provided with a
hospital-grade type plug 5-15P configuration for 120V
application, or 6-15P for 240V application.
• Do not overload wall outlets and extension cords as this may
result in fire or electric shock.
• Mains lead protection (U.S.: Power cord): Power cords should
be routed so that they are not likely to be walked upon or
pinched by items placed upon or against them, paying
particular attention to cords at plugs and receptacles.
Water and moisture
Never expose the display to rain or moisture.
Never use the display near water - e.g. near a bathtub, washbasin,
swimming pool, kitchen sink, laundry tub or in a wet basement.
Ventilation
Do not cover or block the ventilation openings in the cover of the set.
When installing the display in a cupboard or another closed location,
heed the necessary space between the set and the sides of the
cupboard.
Installation
Place the display on a flat, solid and stable surface that can support
the weight of at least 3 displays. If you use an unstable cart or stand,
the display may fall, causing serious injury to a child or adult, and
serious damage to the equipment.
More warnings in the Installation chapter.

Preface
12
Operating precautions: How to avoid image retention
Continuous operation of the display with the same image or static
image elements may result in some image sticking on the LCD panel.
To decrease the risk of image sticking (image retention):
1. Switch on DPMS on display and PC:
• The display DPMS setting can be switched on in the display’s
Settings menu or in QAWeb Agent’s Configuration window
(Display > Extended).
• The PC DPMS setting can be switched on in the Windows XP
Display control panel (Screen Saver tab > Monitor power. In
the ‘Turn off monitor’ drop-down box, select After 20 mins.).
2. Activate a good screen saver
• The screen saver can be selected in the Windows XP Display
control panel (Screen Saver tab). Select a screen saver without
static elements and select a Wait Time of 10 minutes.
3. In case you are working with the same image or an application
with static image elements for several hours continuously,
change the image content regularly to avoid image sticking of
the static elements.
This apparatus conforms to:
CE0120 (MDD 93/42/EEC class IIb product), IEC 60601-1, UL 60601-1,
CAN/CSA C22.2 No. 601.01-M90 (c-UL),
CCC GB4943-1995 (IEC 60950-1).
National Scandinavian Deviations for Cl. 1.7.2 :
Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun
pistorasiaan"
Norway: "Apparatet må tilkoples jordet stikkontakt"
Sweden: "Apparaten skall anslutas till jordat uttag"

Preface
13

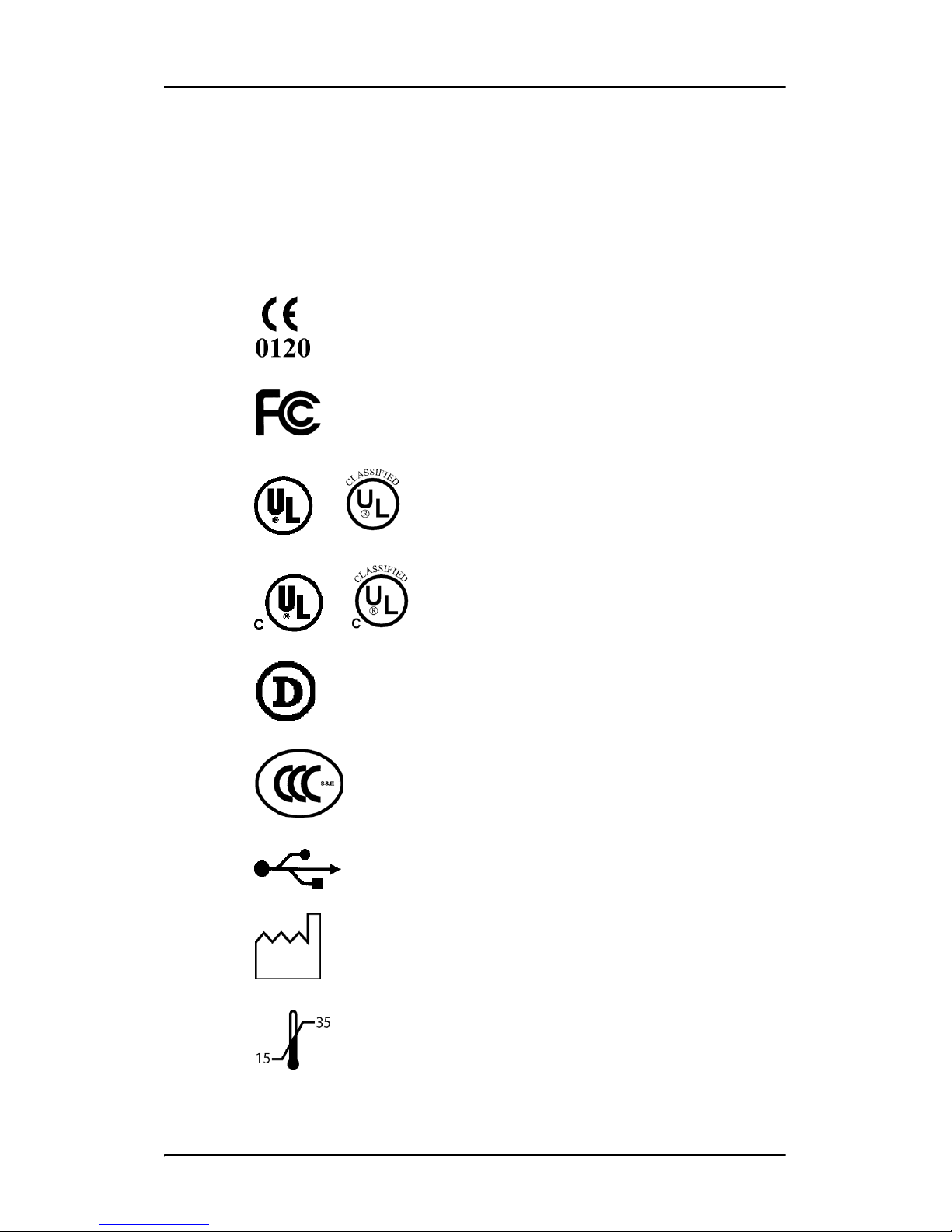

Explanation of symbols
Symbols on the display and / or power supply
On the display or power supply, you may find the following symbols
(nonrestrictive list):
Indicates compliance to the essential require-
ments of the Directive 93/42/EEC
Indicates compliance with Part 15 of the FCC
rules (Class A or Class B)
or
Indicates the display is approved according to
the UL regulations
or
Indicates the display is approved according to
the c-UL regulations
Indicates the display is approved according to
the DEMKO regulations
Indicates the display is approved according to
the CCC regulations
Indicates the USB connectors on the display
Indicates the manufacturing date
Indicates the temperature limitations for the
display to operate within specs

Preface
14

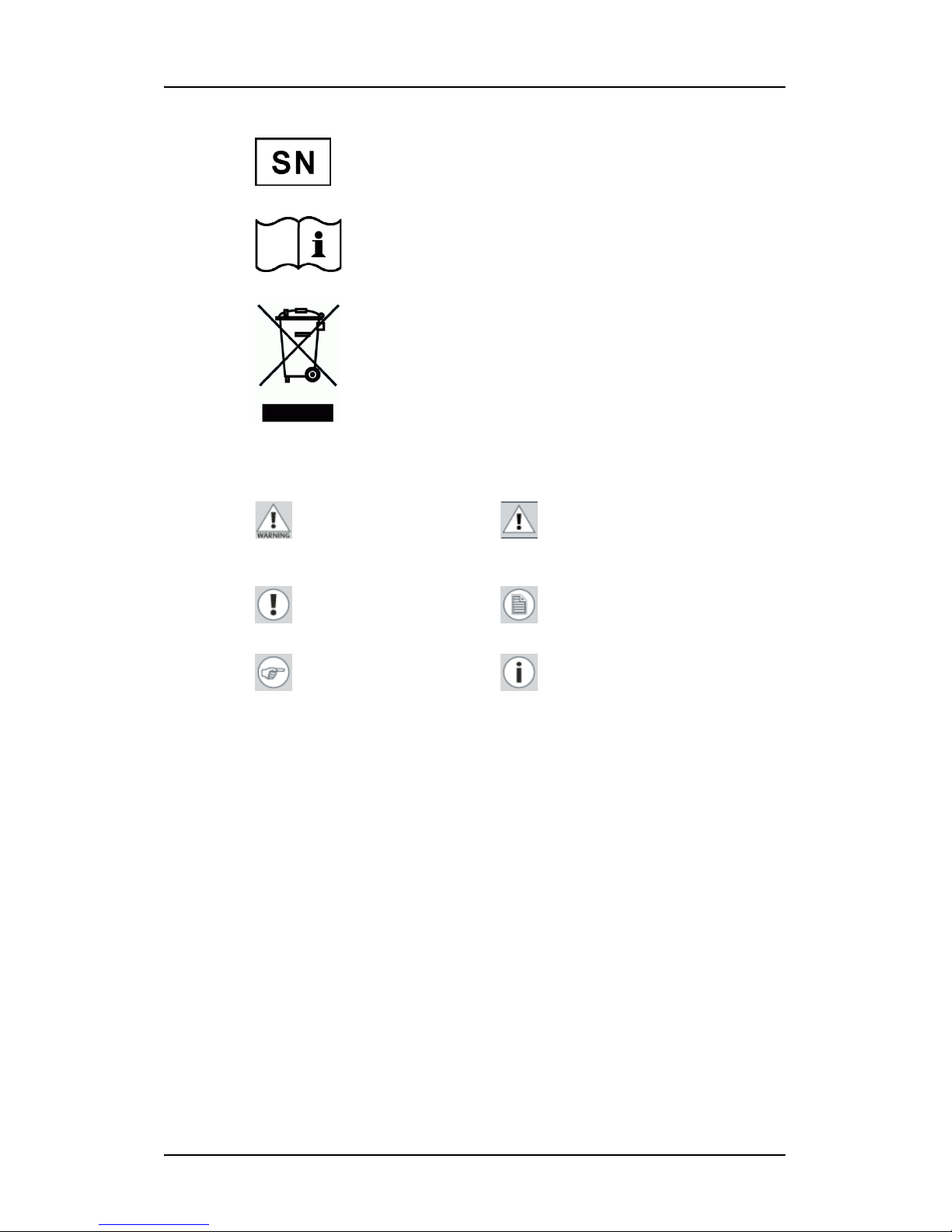

Symbols used throughout the manual:
Indicates the display serial no.
Consult the operating instructions
Indicates this apparatus must not be thrown
in the trash but must be recycled, according
to the European WEEE (Waste Electrical and
Electronic Equipment) directive
Warning: Risk of
injury to human
beings
Caution: Risk of
damage to the
product
Important notice or
remark
Note
Hint, tip Additional
information

Getting to know the system
15
Getting to know the system
LED indicator
The LED color indicates the display’s power status:
Note: When the LED is disabled in the OSD, it will still be
activated (green) when the display is on but does not receive
any video signal.
Display controls
The display can be controlled by the control wheel under the bezel
and the touch keys at the front. Both controls can be used
simultaneously. They can be (both) disabled in the Settings menu.
Touch key controls
When you touch any of the keys while no on-screen display (OSD) is
on the screen, the front illumination is switched on for a few seconds.
When you touch a key again while the illumination is on, the function
of the key is executed.
Green Display is on (when enabled in the OSD).
Orange Display is in Standby power-saving mode.
Off Display is disconnected from the power or the LED’s
on state is disabled in the OSD.

Getting to know the system
16
Figure 1: Touch keys
1. Left/Down touch key
To move down or decrease values in the OSD.
2. Right/Up touch key
To move up or increase values in the OSD.
3. Enter touch key
To display the OSD (on-screen display). In the OSD, this button
acts as Enter button to make selections.
4. Standby touch key
To put the display in standby mode.
5. Power LED
13452

Getting to know the system
17
Control wheel
The control wheel can be pressed like a push button and rotated like a
knob.
It allows to put the display in stand-by, navigate through the on-
screen display (OSD) menus and change values in the OSD.
The control wheel is located at the bottom of the LCD panel.

Getting to know the system
18
Rear view
Figure 2: Rear view
1. Connector compartment cover.
Detach to get access to the signal connectors.
2. (Not visible on drawing) Push-button to release the panel unit
from the display stand. This button is located on the rear of the
panel. You must release the panel unit from the display stand in
case you wish to attach the panel unit to a VESA mount stand.
1
23
4

Getting to know the system
19
3. Display stand cover. Slide it upward and detach it before
connecting the signal cables to route the cables neatly. After
connecting the cables, re-attach the cover to hide the cables.
4. Push-button to unlock the display height adjust mechanism.
When the display is shipped, the display height mechanism is
locked to prevent damage during shipping. To unlock the
mechanism and adjust the display height, press the push-button
while pushing down the display panel. Then slowly release the
display panel.
Connectors
Figure 3: Connectors rear
RL
2
3
4
5
6
1
7
8
8

Getting to know the system
20
Figure 4: Connectors front
1. “Left” DVI (digital) video input. See note below.
2. 24 VDC power input.
3. USB upstream connector (to PC).
4. USB downstream connector.
If the display’s USB upstream connector is connected to the PC
USB bus, you can use the USB downstream connector to connect
peripheral USB devices.
USB 2.0 devices are supported.
5. +5 Vdc, 0.25 A power output for accessories.
6. +3.3 Vdc, 0.25 A auxiliary power output.
7. “Right” DVI (digital) video input. See note below.
8. Slots for security cable (e.g., Kensington lock).
9. USB downstream connectors
If the display’s USB upstream connector at the rear is connected
to the PC USB bus, you can use these USB downstream
connectors to connect peripheral USB devices.
USB 2.0 devices are supported.
9
