Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
A162828 3 / 26
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 26 A162828
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Safety during deep fat frying
•Never leave the operating appliance without supervision. Possible malfunctions
may lead to overheating and ignition of frying oil / fat in cubes (blocks).
•If due to overheating, the frying oil / fat in cubes (blocks) catches fire, put the lid
on and disconnect the appliance from the power supply.
•Spatters or outbursts of hot oil/fat may cause scalding of hands, arms and face.
Use protective kitchen mitts.
•Do not use wet nor humid products. Dry them before use. Remove excess of ice
from deep frozen products prior to frying them.
•Do not hang frozen food in the basket over the tank filled with hot frying oil / fat
in cubes (blocks). When deep frying in fat, even the smallest drop of water may
cause spatters of hot oil or even small outbursts.

Safety
A162828 5 / 26
EN
Hot Surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Health hazard due to burnt food products
•Acrylamides that are present in burnt food products are hazardous to health and
may cause cancer. In order to avoid or reduce acrylamide content, products
should always be fried to the point, when their colour is golden–yellowish, and
not dim and dark nor brown.
•Burnt left-overs and scrubs should be regularly removed from frying oil.
•Products containing starch —cereals and potato products in particular —
should be fried in a maximum temperature of 180 °C.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.

Safety
6 / 26 A162828
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Deep fat frying of adequate food products.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Deep fat frying of inadequate food products.
–Deep fat frying of wet or humid food products.
–Do not hang frozen food in the fryer’s basket over the hot frying oil/fat.

General information
A162828 7 / 26
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 26 A162828
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
A162828 9 / 26
EN
4 Technical Data
4.1 Technical Specifications
Version / Characteristics A162828 / A162829
•Type: table-top appliance
•Type of power supply: electric
•Appliance connection: ready to plug in
•Heating element:
–stainless steel
–can be piovoted out
•Temperature control:
–electronic
–in 1°C increments
•Oil temperature check:
–current temperature can be displayed at all times
–indicator lamp for the set oil temperature reached
•Fat drain tap
•Digital display
•Cold zone
•Safety thermostat
•Control: knob
•ON/OFF switch
•Indicator lights: heating, ON/OFF, ready/set temperature reached
•Important indication:
–intended for use with frying oil and fat in cubes (blocks)
–for A162829 deep-fat dryer there are 2 separate mains sockets required

Technical Data
10 / 26 A162828
EN
Name:
Deep fat fryer MDI SNACK III Plus
Article number:
A162828
Material:
Stainless steel
Number of basins:
1
Basin volume, in litres:
9
Basin dimensions (W x D x H), in mm:
240 x 300 x 200
Number of baskets:
1
Basket volume, in l:
5,5
Basket dimensions (W x D x H), in mm:
210 x 220 x 120
Temperature range, min.–max., in °C:
50 - 190
Connected load:
3,3 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
300 x 530 x 385
Weight, in kg:
6,4
The set includes:
–1 basket
–1 lid
Name:
Deep fat fryer MDI SNACK IV Plus
Article number:
A162829
Material:
Stainless steel
Number of basins:
2
Basin volume, in litres:
2 x 9
Basin dimensions (W x D x H), in mm:
240 x 300 x 200
Number of baskets:
2
Basket volume, in l:
5,5
Basket dimensions (W x D x H), in mm:
210 x 220 x 120
Temperature range, min.–max., in °C:
50 - 190
Connected load:
2 x 3,3 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
575 x 530 x 385
Weight, in kg:
11,9
We reserve the right to implement technical modifications.

Technical Data
A162828 11 / 26
EN
The set includes:
–2 baskets
–2 lids
4.2 List of Components of the Appliance
A162828
Fig. 1
1. Main appliance
2. Basket with handle
3. Control box
4. Control panel
5. Feet (4 pcs)
6. Fat drain tap
7. Heating element with cover
8. Basin
9. Oil drain opening
10.Lid with handle

Technical Data
12 / 26 A162828
EN

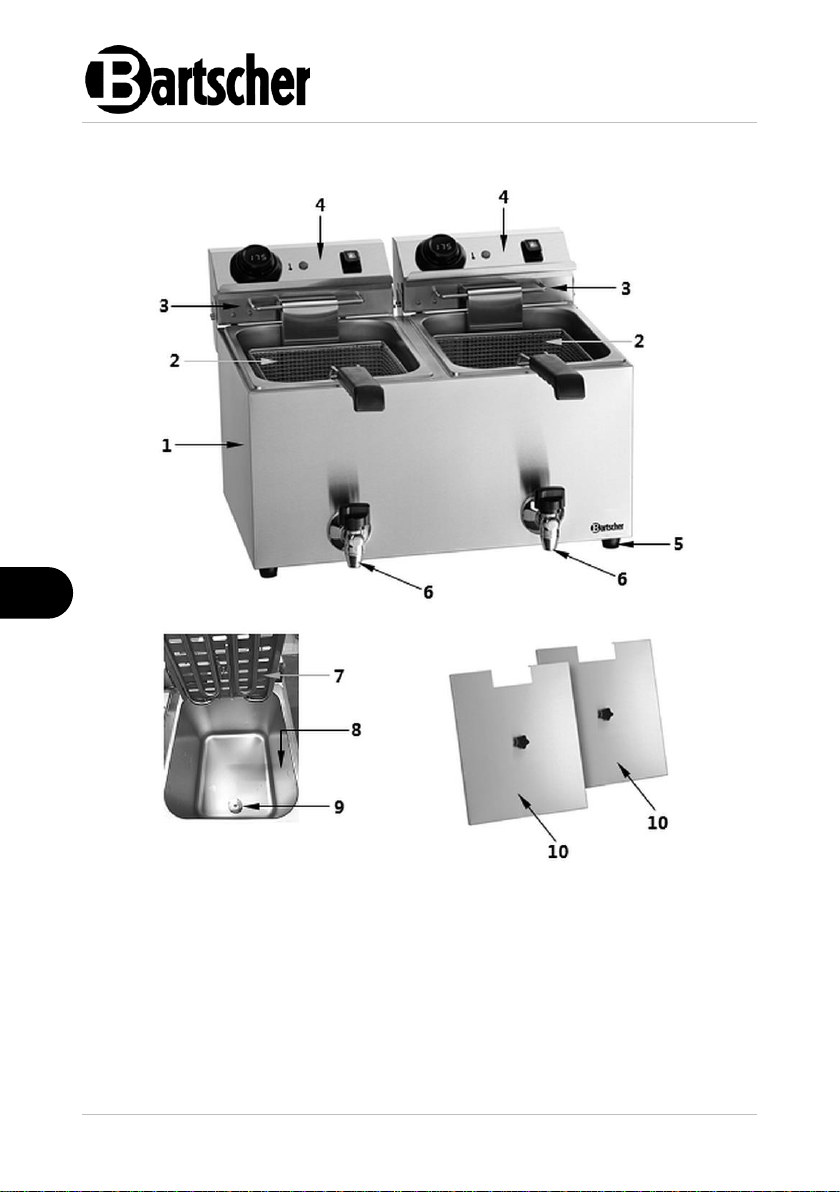

A162829
Fig. 2
1. Main appliance
2. Basket with handle (2x)
3. Control box (2x)
4. Control panel (2x)
5. Feet (4 pcs)
6. Fat drain tap (2x)
7. Heating element with cover (2x)
8. Basin (2x)
9. Oil drain opening (2x)
10.Lid with handle (2x)

Installation and operation
A162828 13 / 26
EN
4.3 Functions of the Appliance
Correct frying in a simple way: Thanks to digital control knob, MDI Bartscher, you
may set the temperature with accuracy down to one degree. Plus, current oil
temperature check is possible at all times.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Leave at least 20 cm clearance from flammable walls and items.

Installation and operation
14 / 26 A162828
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•In order to connect the twin fryer, 2 separate sockets are necessary.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
Warning Indications
•Insertt he bottom co verin th e appliance. The cover acts as a sp acer between the he ating element and left- overf ood tray.
Carefully put the conn ection box with the heating ele ment on the back edge of the appli ance. The pin in the connectio n box lower part must enter the hole in the main ap pliance. This way the conn ection boxi s properl ymou nted.
WARNING!
Fire hazard!
Operation of the appliance with the oil level below MIN mark may lead to
overheating of frying oil and cause oil to catch fire.
The oil level should be between MIN and MAX marks on the side wall of
the basin.
If overheated during operation, the frying oil or fat in cubes (blocks)
may catch fire.
The appliance should not remain in use for extended periods of time. If
there is a break between subsequent frying processes, set lower
temperature.
Never place the lid on during or immediately after the frying process.
The lid serves only the purpose of covering against dust and to maintain
the oil temperature.

Installation and operation
A162828 15 / 26
EN
CAUTION!
Risk of burns!
Due to lower flashpoint, old oil that had already been used for frying,
exhibits a tendency for self-ignition and favours frothing.
Do not use old oil for frying.
Regularly change frying oil.
When the oil level is above the MAX mark during operation of the
appliance, hot oil may spill out.
The oil level should be between MIN and MAX marks on the side wall of
the basin.
If the basket is overfilled with products for frying, the frying oil or fat in
cubes (blocks) may boil over.
Observe the maximum allowable level of filling the basket (3 kg) with
products for frying.
If water enters hot frying oil, it may cause spatters of oil and scalding.
Use only dry products for frying.
When draining hot frying oil / fat in cubes (blocks) be aware of the
risk of burns due to spatters of oil.
The frying oil / fat in cubes (blocks) should be cooled down a bit and drain
very carefully.
Preparation of the Appliance
1. Take out the equipment (lid, basket(s)) from the appliance.
2. Place the basket handle in the right position, spreading it upwards and pulling by
the fastening grip and snapping in place.
3. Remove the control box with heating
element and permanently fixed cover from
the appliance by pulling it out of fastening
element and upwards.
Fig. 2
4. Prior to first use, thoroughly clean the appliance and equipment according to
instructions in section 6 'Cleaning'.

Installation and operation
16 / 26 A162828
EN
NOTE!
For safety reasons, the appliance operates only when the control box is
properly mounted on the housing, so that the micro-switch below the
control box sets the appliance ready for operation.
5. After cleaning, mount the control box with heating element on the fastening
element of the appliance.
Fat drain tap is equipped with a safeguard, preventing its
accidental opening. First, the tap must be pressed in —
only then may it be rotated.
6. Prior to filling the basin with frying oil / fat in cubes
(blocks) close the fat drain tap.
Fig. 3
Instructions for Using Frying Oil or Fat in Cubes (Blocks)
•Always use oil suitable for frying (e.g. vegetable oil, sunflower oil, peanut oil,
etc.) or fat in cubes/blocks only.
ATTENTION!
Fat in cubes (blocks) should never be melted in high temperatures; this
may cause the temperature sensor to get damaged.
Fat in cubes/blocks should be melted in the deep-fat fryer, with melting point
position selected.
Observe indications in section 'Indications for Melting Fat in Cubes (Blocks)'.
•Use only oils and fats that are suitable for frying in high temperatures.
•Never mix different types of oil or fat as their boiling points may vary.

Installation and operation
A162828 17 / 26
EN
Indications for Melting Fat in Cubes (Blocks)
in the Deep-Fat Fryer
1. Remove the basket from the basin.
2. Place the fat in cube (block) directly on the cover of the heating element, so that
it is covered.
3. Connect the appliance to a single grounded socket.
The green power indicator light in the ON/OFF switch lights up.
The digital display in the push rotary control knob shows 'OIL', to check the
condition of oil in the basin.
4. Rotate the push rotary control knob, until 'ooo' is shown in the digital display.
This is the melting point position.
5. To start the melting process, briefly press the push rotary control knob.
6. Wait for the fat in cube (block) to melt.
7. When the heating element is covered with liquid fat, the push rotary control knob
may be rotated and set to maximum temperature setting.
8. Place subsequent blocks of fat for melting in the basin, until the right filling level
is reached.
9. Then rotate the controller to set the temperature.
ATTENTION!
Fat in cubes (blocks) that has coagulated in the deep-fat fryer may be
heated up and melted only with the melting point function of the
appliance.
In the Separate Basin
1. To get the fat in cubes (blocks) faster in liquid form, there is a possibility of
melting it in a separate container (e.g., a pot) on a hob.
2. Then, pour the melted fat into the deep-fryer's basin.

Installation and operation
18 / 26 A162828
EN
Filling the Basin with Frying Oil or Fat in Cubes (Blocks)
CAUTION!
Prior to filling with the frying oil or fat in cubes (blocks), the basin must be
clean and dry.
1. Make sure the fat drain tap is closed and locked.
2. Prior to switching on, the basin must be filled with the required amount of liquid
frying oil or fat in cubes (blocks).
3. During operation observe the level of oil in the basin and, if needed, top up with
frying oil or fat in cubes (blocks).
CAUTION!
Never use the appliance if there is no oil for frying or fat in cubes (blocks)
in the basin.

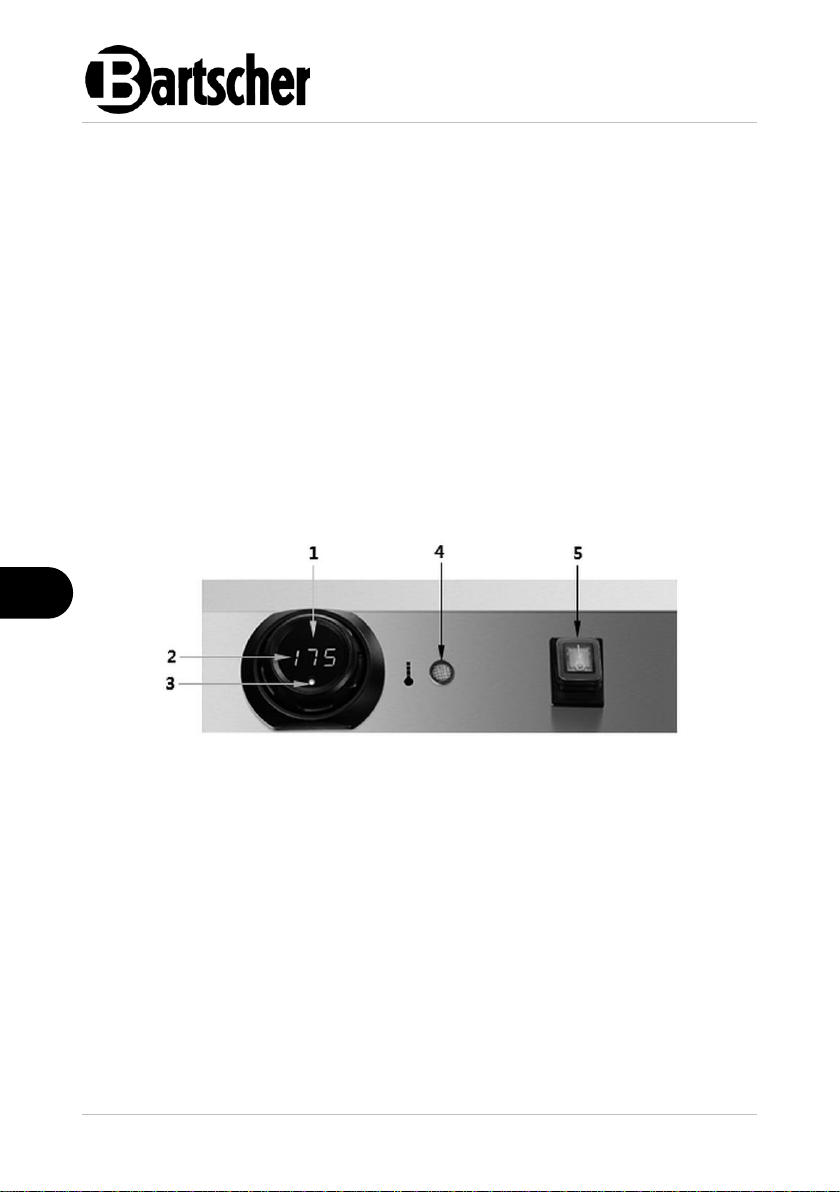

Control Elements / Displayed Messages
Fig. 4
1. Push rotary control knob
2. Digital display
3. Indicator light
4. Ready/set temperature reached indicator
light (green)
5. ON/OFF switch with integrated power
indicator light (green)
