Bartscher Snack XL User manual

„Snack XL“, 8L
165510
Original
-
Gebrauchsanl
eitung
V2-1/0616

- 19 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 20
1.1 Safety instructions................................................................................................ 20
1.2 Key to symbols..................................................................................................... 23
1.3 Proper use............................................................................................................ 24
2. General information................................................................................................ 25
2.1 Liability and Warrantees....................................................................................... 25
2.2 Copyright protection ............................................................................................. 25
2.3 Declaration of conformity...................................................................................... 25
3. Transport, packaging and storage......................................................................... 26
3.1 Delivery check...................................................................................................... 26
3.2 Packaging............................................................................................................. 26
3.3 Storage................................................................................................................. 26
4. Technical data......................................................................................................... 27
4.1 Overview of parts ................................................................................................. 27
4.2 Technical specification ......................................................................................... 28
5. Installation and operation....................................................................................... 29
5.1 Installation............................................................................................................ 29
5.2 Operation.............................................................................................................. 30
6. Cleaning................................................................................................................... 34
7. Possible Malfunctions ............................................................................................ 35
8. Waste disposal........................................................................................................ 36
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 20 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Safety instructions
• The device is not intended for use by individuals (including children)
with physical or mental disabilities, insufficient experience, and/or
insufficient knowledge unless such persons are under the care of a
person responsible for their safety or have received instructions
regarding appropriate use of the device.
• Children should be observed to ensure that they are not playing with
the device.
• Do not leave the device unattended during operation since there
might occur malfunctions which could result in overheating of the oil.
In case of high temperatures oil might ignite.
• Never leave the device unattended when in use.
• Only use the device indoors.
• The device is not adapted for use with an external timer or remote
control.

- 21 -
•
This device may only be operated in technically proper and safe
condition.
• Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
• Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the device.
Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous for the
user or lead to damages of the device or personal injury, and further,
the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications
or alterations to the device that are not explicitly approved by the
manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions below.
• Never allow the power cable to come into contact with heat sources or
sharp edges. The power cable should not hang over the side of the
working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always
remain fully unrolled. Never place the device or other objects on the
power cable.
• Do not lay the cable over carpets or heat insulations. Do not cover
the cable. Keep away the cable from operating range and do not
dunk it into water.
• Inspect the power cable regularly for damage. Never use the device
if the cable is damaged. If the power cable is damaged, have an
authorised service center or qualified electrician replace it.

- 22 -
•
The supply cable must be disconnected from the socket only by
pulling the plug.
• Never carry or lift the device by the supply cable. Always use the
device handles.
• In any case do not open the device housing. In case of electrical or
mechanical modifications the electric shock hazard will occur.
• Never immerse the appliance, the power cord and the power plug
in water or other liquids.
• Do not use any acid agents and make sure no water ingresses the
device.
• Never operate the device with moist hands or standing on wet floor.
• Disconnect the device from the power supply:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
HOT SURFACE! Burn hazard!
To avoid the effects of this risk, follow the safety instructions presented
below.
• During the operation the surface of the device is very hot!
To avoid burns to the hands and fingers, do not touch the hot
surface of the device! Operate the device only using the designated
handles and switches.
• Also after switching off, the frying oil/fat remaining in the basin
remains hot for some time. Before cleaning or moving it to another
place oil must cool down first. Hot oil/fat splashes or explosions may
cause burns at hands, arms and face!
• Do not use moisten frying goods. Always remove the extra ice
from deep frozen products first. Do not leave any frozen products
in the basket hanging over the chamber filled in with the hot oil/fat.
Even the smallest water drops may cause oil splashes or lead to
explosions during frying.

- 23 -
WARNING! Fire or explosion hazard!
Follow the safety instructions listed in order to avoid the hazard:
• Never operate the device near combustible, easily flammable
materials (e.g. petrol, spirit, alcohol etc.). They evaporate through
heating and in case of contact with ignition sources deflagrations
can occur which can lead to serious personal injuries and property
damages.
• Do not use the device near the inflammable objects or under them
(e.g. curtains, wall mounted cabinets etc.)
• When a fire arises unplug the power cord from the socket before you
initiate appropriate measures for fire-fighting. Provide sufficient supply
of fresh air. Caution: Never extinguish the fire with water when the
power plug is connected to the socket. Electric shock hazard!
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.

- 24 -
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.

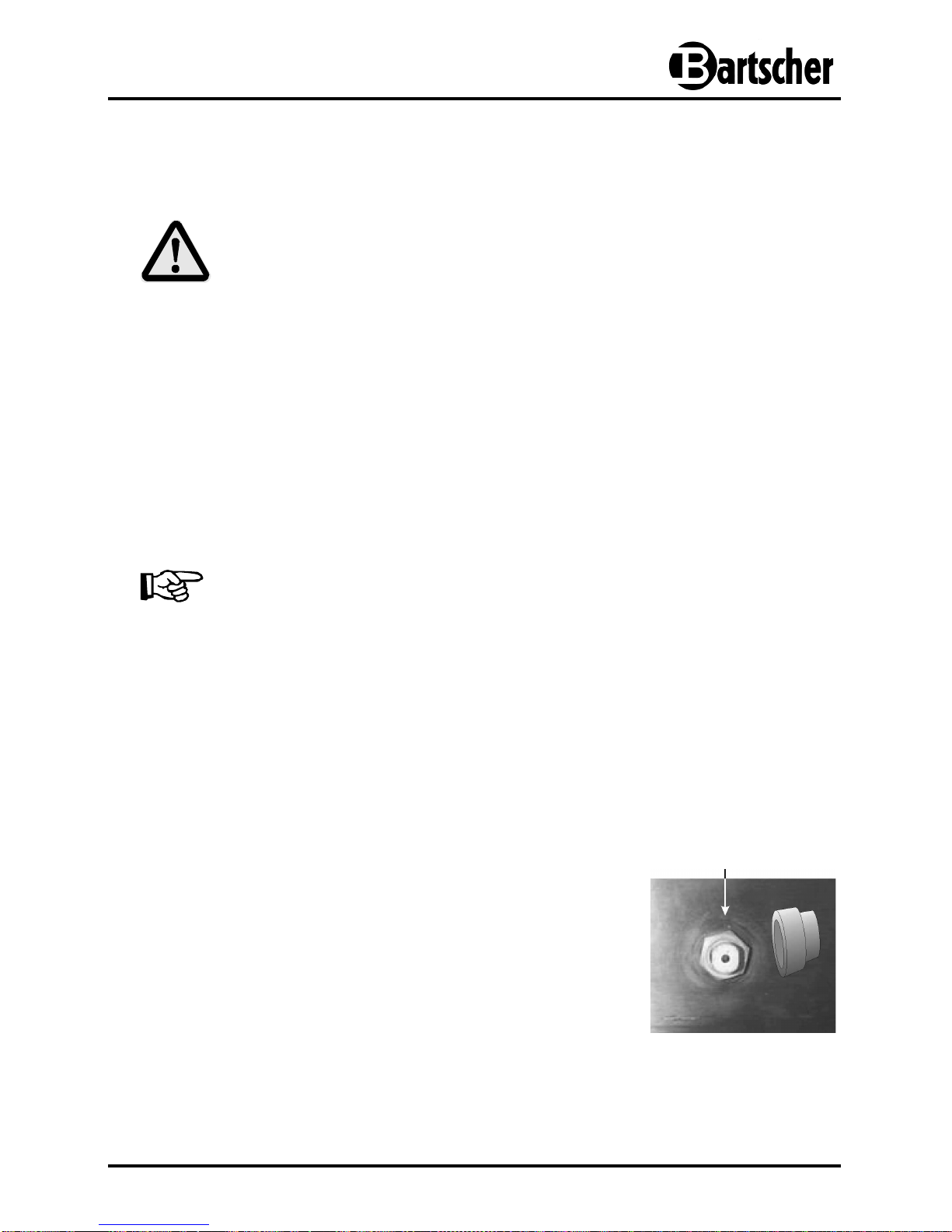

NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.3 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The device is not designed for the industrial applications.
The deep fat fryer is designed for the frying of appropriate foods only.
You may not use the deep fat fryer for the following:
-Heating of foods and liquids (fluids).
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 25 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 26 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.

- 27 -
4. Technical data
4.1 Overview of parts
1
Fuse box with heating element
2
Frying basket with handle
3
Handle (2)
4
Feet (4)
5
Main device
6
Frying oil chamber
7
Control panel
8
Lid with handle
1
3
7
4
6
2
5
8

- 28 -
4.2 Technical specification
Name Electric fryer “Snack XL”, 8L*
1
Code-no.:
165510
Material: Housing, lid and cover: chrome - nickel steel;
heating elements: stainless steel
Realization:
cold zone
protective thermostat (overheating protection)
unique length allows for frying of long products,
e.g. fish
Number of frying oil
chambers: 1, dimensions: W 300 x D 240 x H120 mm
Maximum filling of frying oil
chamber: 8 litres
Number of baskets: 1, dimensions: W 150 x D 320 x H 120 mm
Temperature control range: 50°C - 190°C
Power supply: 3.4 kW / 230 V 50 Hz
Dimensions: W 240 x D 590 x H 320 mm
Weight: 7.3 kg
We reserve the right to make technical changes!
*
1
The device is not designed for the industrial applications!
Auxiliary equipment (not included in the delivery!)
Spare frying basket
Dimensions: W 150 x D 320 x H 120 mm
Weight: 0.82 kg
Code-no.: 165527

- 29 -
5. Installation and operation
5.1 Installation
CAUTION!
Any installation, connection and maintenance work related to the device
may be performed by the qualified and authorised technician only,
according to the valid international, national and local regulations.
Positioning
•Unpack the device and remove all packing material.
•Place the device on top of an even, stable, dry and water-resistant surface which
supports the weight of the device and is not heat sensitive.
•Never place the device on the flammable surfaces.
•You must not position the device near open fireplaces, electric ovens/arc furnaces,
furnaces/electric heaters or other heat sources.
•Never place the device at the edge of a table to avoid accidents.
•Never place the device in humid or wet environment.
•When locating the device make sure there is a 10 cm gap from any walls or other
objects.
•Place the device so that the plug is easily accessible for quick disconnection of the
device from power supply, if necessary.
•Before the first use, remove the protective foil from the device. Remove the foil slowly
not to leave glue residues. Remove possible glue residues with appropriate solvent.
CAUTION!
Never remove the type plate and warning signs from the device.

- 30 -
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device (see
rating plate). Connect the device only in case of compliance!
•The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
5.2 Operation
CAUTION!
The deep fat fryer can be serviced only be people who are familiar with
operation of the device and the risks occurring during frying.
Preparation of the device
•Remove the lid and take out the fryer basket out of the device.
•Detach the control box from the device by lifting it carefully (until you hear
„click“ sound).
•Before the first use, clean the device according to the instructions in section
6 „Cleaning“. Make sure that no water gets into the electrical installation or
control box. Dry the device and accessories thoroughly!
•Carefully place the control box on the rear edge of the oil basin until it „click“.
Pivot at the bottom of the control box must be placed in the opening of the oil
basin for the device to be set correctly.
Notice: For safety reasons, the device operates only when the control box is
properly secured to the body, thanks to which the micro switch indicates that the
device is ready to operation.

- 31 -
Control elements
Starting the device
WARNING!
Before operation of the device make sure the device is switched off
(Temperature controller is in „0“ position).
•There may be no water at the bottom of the basin before filling it with the frying oil.
The basin must be clean and dry.
Tips regarding the use of oil or fat in blocks
Use appropriate oil for frying (e.g. vegetable, sunflower, groundnut oil etc.)
or fat in blocks.
Note: Melt the fat in blocks in a separate pan before pouring it to
the oil basin!
Use only oil or fats suitable for high temperature cooking.
Do not mix different types of oil or fat, because they may have different boiling
points.
CAUTION! Risk of burns!
Do not reuse oil, as its lower combustion point means that it may catch fire,
it also is more susceptible to foaming. Moreover there is a risk of increased
smoke release and odour.
Power indicator (green)
ON/OFF
switch Heating indicator
Temperature
control

- 32 -
•Carefully pour oil to the oil basin until the appropriate level is reached (between
“MIN“ and “MAX“ marks in the oil basin). Marks are located on the side wall of the
oil basin.
CAUTION!
Never start the device without frying oil in the basin.
Always make sure that the oil or fat level is between “MIN“- and “MAX” marks
in the basin.
WARNING!
RISK OF FIRE!
Reducing the oil level below the MIN mark creates an oil ignition hazard.
RISK OF BURNS!
If the oil or fat level is above the MAX mark, it may lead to boiling out of
the hot oil.
Frying of food
•Start the device with use of ON/OFF switch. The green power indicator will come on.
•Set the temperature controller to required value (50 °C - 190 °C) turning it clockwise.
•While heating up the red control light comes on, going off when the set temperature
has been reached. When the oil temperature drops the red light comes on again and
the device heats again.
WARNING! Burn hazard!
When in use, the device and oil in the chamber are very hot and the oil is at
risk of catching fire.
Do not allow the device to function for long periods of time!
Immediately after frying set the temperature controller to position “0”.
•For best results, wait until the device has reached the desired temperature and
then place the food product in the oil chamber.
CAUTION!
Do not exceed the following amount of food during frying:
Model – 8-litre single fryer 0.8 kg

- 33 -
•It is equipped with rigid handle and hook.
•To fry food immerse the basket slowly in the frying oil. After frying carefully remove the
basket from the chamber and using the hook hang it in the element next to the fuse
box for oil to drip.
WARNING! Injury hazard!
Do not use the fryer with its lid on!
The lid is used only to protect the device from dust.
Prior to placing the lid on, ensure that it is dry. If water gets into the oil
chamber, this may cause oil to splatter.
Replacement and removal of frying oil
•The frying oil should be replaced when it does not fulfil the recipes
requirements.
•After cooling down remove the chamber with frying oil and carefully pour oil/fat
to the container. Make sure that the container is placed in a stable way.
NOTE!
Remove used frying oil/fat with care for environment and according to the
valid regulations.
Overheating protection mechanism
•In case of accidental engaging of the deep fat fryer without frying oil in the basin or
without sufficient amount of frying oil in the basin, the device automatically shuts down
after reaching the temperature of ca. 230 °C. Whene ver this occurs, switch the device
off using ON/OFF button and leave it to cool off.
•After the device has been automatically switched off by
the overheating protection mechanism, it can only be
restarted by pressing the RESET button in the control
box of the device.
•For this purpose, cool the device to less than 170 °C,
then unscrew the plastic plug of the RESET button
counter-clockwise, press the peg and again screw the
plug turning it clockwise.
The device may be switched on now.
RESET button

- 34 -
6. Cleaning
WARNING!
Before cleaning set the temperature controller to “0”, turn the device off with use
of ON/OFF switch and disconnect it from the power supply (pull the plug!).
Let the device cool down.
The device is not suited for direct washing with water.
Therefore, do not use any kind of pressure water jet for cleaning the device!
Make sure that no water gets into the device.
CAUTION!
Never use abrasive cleaning agents or scouring materials which may damage
the surface of the deep fat fryer.
oClean the device regularly.
oRemove the frying basket from the oil chamber.
oAfter cooling down disconnect the fuse box with the heating element from the device
by lifting it above the oil chamber. Then the heater and the fuse box may be easily
cleaned.
oClean the fuse box and the heating element with soft, moistened cloth and gentle
cleaning agent.
CAUTION!
Do not wash the fuse box (control panel) with excess amounts of water
and do not submerge. Moisture must not penetrate inside.
oAfter cooling down remove the chamber with frying oil and pour oil to the container.
Follow instructions in section “Replacement and removal of frying oil”
on page 33.
oWash the frying basket, oil chamber and lid in warm water with gentle washing agent.
Stubborn dirt may be spot soaked in order to remove.
oWipe the control panel, external surfaces of the device and the power cord with a
moist cloth and gentle cleaning agent. Moisture must not penetrate the fuse box.
It may cause occurrence of dangerous stray currents and operation anomalies.
oThoroughly dry all elements of the device before remounting them! Reassemble
the device.

- 35 -
Storage
oIf the device is not used for any lengthy period, clean it according to the
aforementioned description and store it in dry, clean place protected against cold,
sun and children. To protect the device against dirt, cover or pack it. Do not place
any heavy objects on the device.
7. Possible Malfunctions
In case of malfunction, disconnect the device from its power source. Before contacting
the service or sales agent, verify - based on the table below - whether it is possible to
eliminate disruption in operation.
Problem Cause Solution
The device is connected
to the power supply but
the green indicator is off
and the device does not
heat.
•Plug not connected
properly
•Blown electrical fuse.
•Control box is improperly
mounted
•Overheating protection
has been activated
•No contact in the
micorswitch
•Pull the plug and insert it
to the socket again in the
proper way
•Check the fues, check the
device after connecting it
to a different socket.
•Check mounting of the
control box
•Press RESET button on
the control box
•Contact the sales agent.
The heating indicator
is on but temperature
does not rise.
•Interrupted contact with
the heating element
•Damaged heateing
element
•Contact the sales agent.
•Contact the sales agent.
The green power supply
indicator is on but
despite setting the
temperature the heating
indicator is off.
•Set temperature has
been reached
•Damaged temperature
controller
•Damaged indicator.
•Check functioning at
different temperature
•Contact the sales agent.
•Contact the sales agent.
The heating element
does not heat after a
short time.
•Overheating protection
mechanism has been
activated.
•Press RESET button in
the control box. If the
overheating protection
activates again within a
short time, contact the
sales agent.

- 36 -
If you cannot remove the malfunctions:
-do not open the body,
-notify the customer service point or contact the sales
agent, while providing the following information:
type of malfunction;
article and serial number (rating plate at the
rear of the device).
8. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit
for use before disposal. For that purpose disconnect device from mains
supply and remove mains connection cable from the device.
CAUTION!
For the disposal of the device please consider and
act according to the national and local rules and
regulations.
Utilization of the stale frying oil
Please, remove the used frying oil / fat with due care for the environment and
in accordance with all applicable local regulations.
