Bartscher SNACK I User manual

„SNACK I“
A162410E
„SNACK II“
A162412E
„SNACK III“
A162810E
„SNACK IV“
A162812E
Original
-
Gebrauchsanleitung
V1/1215

- 21 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 22
1.1 Safety instructions................................................................................................ 22
1.2 Key to symbols..................................................................................................... 25
1.3 Proper use............................................................................................................ 26
2. General information................................................................................................ 27
2.1 Liability and Warrantees....................................................................................... 27
2.2 Copyright protection ............................................................................................. 27
2.3 Declaration of conformity...................................................................................... 27
3. Transport, packaging and storage......................................................................... 28
3.1 Delivery check...................................................................................................... 28
3.2 Packaging............................................................................................................. 28
3.3 Storage................................................................................................................. 28
3.4 Scope of delivery.................................................................................................. 29
4. Technical data......................................................................................................... 29
4.1 Technical specification ......................................................................................... 29
4.2 Overview of parts ................................................................................................. 30
5. Installation and operation....................................................................................... 32
5.1 Installation............................................................................................................ 32
5.2 Operation.............................................................................................................. 33
6. Cleaning................................................................................................................... 38
7. Possible Malfunctions ............................................................................................ 39
8. Waste disposal........................................................................................................ 40
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 22 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Safety instructions
• The device is not intended for use by individuals (including children)
with physical or mental disabilities, insufficient experience, and/or
insufficient knowledge unless such persons are under the care of a
person responsible for their safety or have received instructions
regarding appropriate use of the device.
• Children should be observed to ensure that they are not playing with
the device.
• Do not leave the device unattended during operation since there
might occur malfunctions which could result in overheating of the oil.
In case of high temperatures oil might ignite.
• Never leave the device unattended when in use.
• Only use the device indoors.
• The device is not adapted for use with an external timer or remote
control.

- 23 -
•
This device may only be operated in technically proper and safe
condition.
• Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
• Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the device.
Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous for the
user or lead to damages of the device or personal injury, and further,
the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications
or alterations to the device that are not explicitly approved by the
manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions below.
• Never allow the power cable to come into contact with heat sources or
sharp edges. The power cable should not hang over the side of the
working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always
remain fully unrolled. Never place the device or other objects on the
power cable.
• Do not lay the cable over carpets or heat insulations. Do not cover
the cable. Keep away the cable from operating range and do not
dunk it into water.
• Inspect the power cable regularly for damage. Never use the device
if the cable is damaged. If the power cable is damaged, have an
authorised service center or qualified electrician replace it.

- 24 -
•
The supply cable must be disconnected from the socket only by
pulling the plug.
• Never carry or lift the device by the supply cable.
• In any case do not open the device housing. In case of electrical or
mechanical modifications the electric shock hazard will occur.
• Never immerse the appliance, the power cord and the power plug in
water or other liquids; do not put it under running water and clean any
parts of the appliance in the in the dishwasher.
• Do not use any acid agents and make sure no water ingresses the
device.
• Never operate the device with moist hands or standing on wet floor.
• Remove the plug from its socket:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
HOT SURFACE! Burn hazard!
To avoid the effects of this risk, follow the safety instructions presented
below.
• During the operation the surface of the device is very hot!
To avoid burns to the hands and fingers, do not touch the hot
surface of the device! Operate the device only using the designated
handles and switches.
• Also after switching off, the frying oil/fat remaining in the basin
remains hot for some time. Before cleaning or moving it to another
place oil must cool down first. Hot oil/fat splashes or explosions may
cause burns at hands, arms and face!

- 25 -
•
Do not use moisten frying goods. Always remove the extra ice
from deep frozen products first. Do not leave any frozen products
in the basket hanging over the chamber filled in with the hot oil/fat.
Even the smallest water drops may cause oil splashes or lead to
explosions during frying.
WARNING! Fire or explosion hazard!
Follow the safety instructions listed in order to avoid the hazard:
• Never operate the device near combustible, easily flammable
materials (e.g. petrol, spirit, alcohol etc.). They evaporate through
heating and in case of contact with ignition sources deflagrations
can occur which can lead to serious personal injuries and property
damages.
• Do not use the device near the inflammable objects or under them
(e.g. curtains, wall mounted cabinets etc.)
• When a fire arises unplug the power cord from the socket before you
initiate appropriate measures for fire-fighting. Provide sufficient supply
of fresh air. Caution: Never extinguish the fire with water when the
power plug is connected to the socket. Electric shock hazard!
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.

- 26 -
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.3 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The deep fat fryer is designed for the frying of appropriate foods only.
You may not use the deep fat fryer for the following:
-Heating of foods and liquids (fluids).
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 27 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 28 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.

- 29 -
3.4 Scope of delivery
The scope of delivery includes the following parts and components (see also figures on
pages 30-31):
A162410E / A162810E A162412E / A162812E
1 Basic unit
1
Basic unit
1 Oil basin
2
Oil basins
1 Cover
2
Covers
1 Basket
2
Baskets
1 Control box unit with heating element
2
Control boxes with heating elements
1 Heating element shield
2
Heating element shields
2 handles
2
handles
4 mounting screws (in handles)
4
mounting screws (in handles)
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
4. Technical data
4.1 Technical specification
Name Deep fat fryer Double deep fat fryer
Model: „SNACK I“ „SNACK III“ „SNACK II“ „SNACK IV“
Code-No.:
A162410E A162810E
1
A162412E
1
A162812E
1
Material: Body, lid and control box made of stainless steel
Design: designed for frying oil and fat in blocks
Connection: 230 V~ 50 Hz
Power: 2,0 kW 3,25 kW 2 x 2,0 kW 2 x 3,25 kW
Number of
basins:
1 1 2 2
Capacity: 4 litres 8 litres 2 x 4 litres 2 x 8 litres
Number of
baskets:
1 1 2 2
Oil temperature
control range:
50 °C - 190 °C
Dimensions
W x D x H (mm):
220 x 400 x 315 265 x 430 x 340 435 x 400 x 315 550 x 430 x 340
Weight: 7,0 kg 7,1 kg 10,5 kg 12,5 kg
We reserve the right to make technical changes!
1 these devices are not designed for industrial use!

- 30 -
4.2 Overview of parts
A162410E / A162810E
1
Control box with the heating element
2
Basket
3
Body
4
Feet (4)
5
Handles (2)
6
Basin
7
Control panel
8
Lid
9
Heating element shield
8
1
6
9
2
4
7
5
3
5

- 31 -
A162412E / A162812E
1
Control box with the heating
element
2
Basket
3
Basin
4
Body
5
Feet (4)
6
Handles (2)
7
Control panel
8
Lid
9
Heating element shield
3
5
4
3
1
1
7
7
2
9
9
8
8
6
5
6
2

- 32 -
Control panel
5. Installation and operation
5.1 Installation
Positioning
•Unpack the device and remove all packing material.
CAUTION!
Never remove the rating plate and any warning signs from the device.
•Place the device on top of an even, stable, dry and water-resistant surface which
supports the weight of the device and is not heat sensitive.
•Never place the device on the flammable surfaces.
•You must not position the device near open fireplaces, electric ovens/arc furnaces,
furnaces/electric heaters or other heat sources.
•Never place the device at the edge of a table to avoid accidents.
•Never place the device in humid or wet environment.
•Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
Temperature controller
Power indicator
(green)
Heating indicator
(orange)
Melting point position

- 33 -
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid specification should
be compared with that of the device (see rating plate). Connect the device only
in case of compliance!
Connect the device only to properly installed single socket with
protective terminal.
•The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
•Two separate sockets are required to connect the double deep fat fryer.
5.2 Operation
CAUTION!
The deep fat fryer can be serviced only be people who are familiar with
operation of the device and the risks occurring during frying.
Preparation of the device
•Remove the lid and take out the basket and the heating element shield from the
device.
•Detach the control box from the device by lifting it carefully (until you hear „click“
sound). Take out the basin.
•Screw the handles with openings facing down into both sides of the casing. To do
so, insert the mounting screws into the handles from the inside of the casing.
•Before the first use, clean the device according to the instructions in section
6 „Cleaning“. Make sure that no water gets into the electrical installation or control
box. Dry the device thoroughly!
•Place the basin in the device. Carefully place the control box on the rear side of
the body (you should hear a „click“). Both pivots at the bottom of the control box
must be placed in the openings for the device to be set correctly.
Notice: For safety reasons, the device operates only when the control box is properly
secured to the body, thanks to which the micro switch indicates that the device is
ready to operation.

- 34 -
•Mount the shield on the heating element.
•Make sure the device is switched off (Temperature controller is in „0“ position).
•There may be no water at the bottom of the basin before filling it with the frying oil or
fat in blocks. The basin must be clean and dry.
Tips regarding the use of oil or fat in blocks
Use appropriate oil for frying (e.g. vegetable, sunflower, groundnut oil etc.)
or fat in blocks.
Use only oil or fats suitable for high temperature cooking.
Do not mix different types of oil or fat, because they may have different boiling
points.
CAUTION! Risk of burns!
Do not use stale oil/fat, as a lowered flash point increases a risk of self-ignition
and the oil tends to foam more and it also emits more smoke and unpleasant
odour.
Tips regarding melting of fat in blocks
In the deep fat fryer
Remove the basket and heating element shield.
Place blocks of fat directly on the heating element so that it is completely
covered.
In order to switch the device on follow the instructions in section „Switching
the device on“.
Set the temperature dial in the melting point position and wait until the fat
melts off.
When the heating element is covered with liquid fat, you can set the temperature
controller to the maximum temperature. Place more blocks of fat in the basin for
melting in order to reach the appropriate level of fat in the basin.
Next, carefully place the shield on the heating element.
WARNING! Risk of burns!
Oil/fat splashes may cause burns of hands, arms and face!

- 35 -
In a separate container
In order to quickly melt the fat in blocks, use a separate container (e.g. cooking
pan) placing it on the cooker. Then pour the melted fat to the basin of the deep
fat fryer.
Filling in the basin with oil or fat in blocks
•Fill in the basin with frying oil or fat in blocks.
•Carefully pour oil to the basin until the appropriate level is reached (between
„MIN“ and „MAX“ marks). Marks are located on the side wall of the basin.
WARNING!
Never start the device without frying oil or fat in blocks in the basin.
Always make sure that the oil or fat level is between „MIN“- and „MAX“ marks
in the basin.
RISK OF FIRE!
Reducing the oil or fat level below the „MIN“ mark creates a fire hazard.
RISK OF BURNS!
If the oil or fat level is above the „MAX“ mark, it may lead to boiling of
hot oil or fat.
Switching the device on
CAUTION!
Before the operation make sure that the device is not connected to the power
supply.
•Connect the device to the grounded socket.
•The green power indicator will come on.
•Turn the temperature controller clockwise to the desired temperature within the range
from 50 °C to 190 °C.
•The orange heating indicator is on during the heating process and goes off after the set
temperature has been reached. The deep fat fryer is equipped with a thermostat for
temperature regulation. Once the temperature in the oil basin decreases, the orange
heating indicator comes on and the device initiates the heating process again.
•Prepare the food in the meantime.

- 36 -
•For best results you should wait until the desired temperature has been reached
before placing the frying goods in the oil/fat in the fryer’s basin.
•Do not use the frying oil/fat too long with excessively high temperature, as it loses
its suitability for use.
•In case of possible longer interruptions between frying processers, set the
temperature controller to a lower value.
•Never overfill the basket. This leads to the decrease of temperature of oil/fat and
the fried products will absorb too much fat.
Do not exceed the following quantities of food products during frying:
4-litre, single deep fat fryer / 2 x 4-litre, double deep fat fryer - 0.6 kg per basin.
8-litre, single deep fat fryer / 2 x 8-litre, double deep fat fryer - 0.9 kg per basin.
WARNING! Risk of burns!
During the operation the deep fat fryer and frying oil/fat in the basin are very
hot and there is a risk of setting the frying oil/fat on fire.
The device should not work for too long!
After the use, set the temperature controller in the „0“ position and disconnect
the device from the power supply (pull the plug!).
•
The basket is designed for frying
appropriate food products.
It is equipped with a collapsing
handle and two hooks.
•Slowly dip the basket in the oil/fat.
When the frying is finished, carefully
raise the basket then hang the basket
hooks on the bar of the switching unit.
Allow any excess oil to drain.
WARNING! Risk of injury!
The fryer may not be operated with the lid! The lid serves as a dust protection
and is used for keeping the temperature of oil/fat only. In order to avoid
dangerous oil splashes caused by water dripping from the lid you ought to
make sure it is dry before setting it on top.
Basket hooks
Bar on the
switching unit

- 37 -

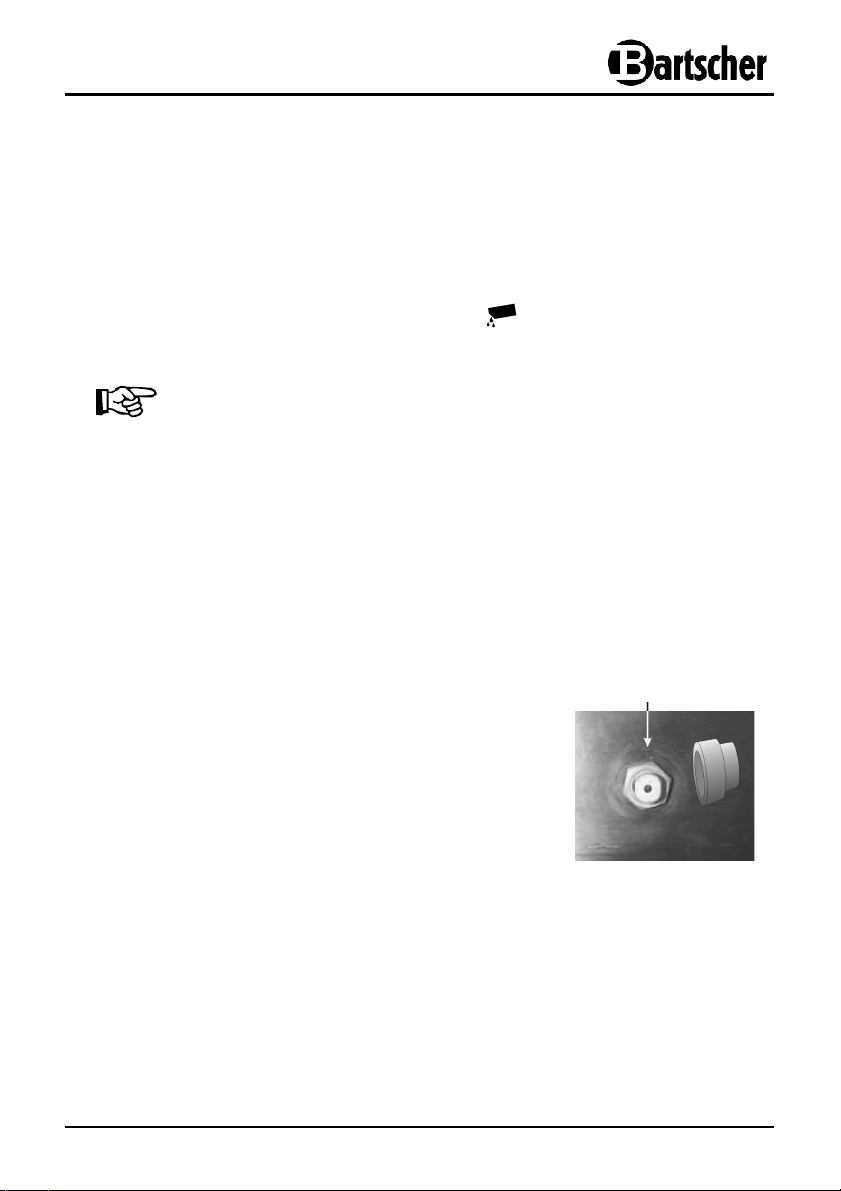

Pouring out and removing frying oil/ liquid fat
•Regularly change the frying oil/fat.
•Frying oil/fat should be removed as soon as it starts turning brown.
•After the device has cooled off, carefully take out the basin with stale frying
oil/fat. Pour the oil/fat to the container and dispose of it in environmentally
friendly manner.
•If the fat in blocks hardens in the fryer, you can melt it only when setting the
temperature controller in the position marked for the melting point, and then
it can be poured out to the appropriate container. Make sure the container for
drained oil is positioned securely.
NOTE!
Stale frying oil / fat should be disposed of in an environmentally friendly
manner and according to the valid local regulations.
Overheating protection
•In case of accidental engaging of the fryer without frying oil/fat in the basin or without
sufficient amount of frying oil/fat in the basin, the device automatically shuts down
after reaching the temperature of ca. 230 °C. Whene ver this occurs, pull the plug.
Leave the device to cool off.
After the device has been switched off by the overheating protection mechanism, it
can only be restarted by pressing the RESET button at the rear of the device.
For this purpose, cool the device to less than 170 °C,
then unscrew the plastic plug of the RESET button
counter-clockwise, press the peg and again screw the
plug turning it clockwise.
Next, reconnect the power plug to the socket and start
operating the device normally,
RESET button

- 38 -
6. Cleaning
CAUTION!
Before cleaning disconnect it from the power supply (pull the plug!) and wait
until the device has cooled off.
The device is not suited for direct washing with water.
Therefore, do not use any kind of pressure water jet for cleaning the device!
Make sure that no water gets into the device.
CAUTION!
Never use abrasive cleaning agents or scouring materials which may damage
the surface of the device.
oClean the device regularly.
oRemove the basket from the basin. The heating element and its shield can be easily
removed from the basin by removing the control box from the basin.
CAUTION!
The control box (control panel) must not be wet cleaned or immersed in
water. Moisture must not get inside the device.
oClean the heating element with a soft, moist cloth and a mild cleaning agent.
oFrying oil or liquid fat should be carefully poured out to an appropriate container
after they have cooled off. Observe the instructions included in section „Pouring
out and removing frying oil/ liquid fat“.
oThe lid, basin and basket should be cleaned in a warm water with a mild cleaning
agent. Heavily soiled elements may be soaked for a short time.
oControl panel, surface of the device and power cord should be cleaned with a moist
cloth and a mild cleaning agent. Make sure that no moisture gets inside the control
box. This may lead to dangerous creeping current and interruptions in the operation
of the device.
oBefore mounting, dry all the elements thoroughly! Reassemble the device.
oIf the device is not used for any lengthy period, clean it according to the
aforementioned description and store it in dry, clean place protected against cold, sun
and children. To protect the device against dirt, cover or pack it. Do not place any
heavy objects on the device.

- 39 -
7. Possible Malfunctions
In case of malfunction, disconnect the device from its power source. Before contacting
the service or sales agent, verify - based on the table below - whether it is possible to
eliminate disruption in operation.
Problem Cause Removal
Device is connected to
a power source, green
control light does not
come on, device does
not heat up.
•Plug improperly inserted
into socket
•Blown fuse
•Control box is improperly
installed
•Overheating protection
mechanism has been
activated.
•No contact with
microswitch
•Remove plug and insert
properly
•Check fuses, connect
device to another socket
•Check the location of the
control box
•Press RESET on the
control box
•Contact sales agent
The orange heating
control light comes on,
the temperature does
not increase.
•Interrupted contact with
the heating element
•Damaged heating element
•Contact sales agent
•Contact sales agent
Green control light
comes on but the
orange heating control
light does not come on
in spite of desired
temperature being
reached.
•Set temperature has been
reached
•Damaged temperature
control
•Damaged control light
•Check functioning at
different temperature
•Contact sales agent
•Contact sales agent
Heating element ceases
functioning after some
time.
•Overheating protection
mechanism has been
activated.
•Press RESET button in
the control box.
If the overheating
protection activates
again within a short time,
contact the sales agent.
