Batca B-1 User manual

Batca Fitness Systems B-1 Owner’s Manual
Owner’s Manual
April 2005
Revision 3
April 2005
Revision 3
Record Serial Number Here
Batca Fitness Systems
Tel. [phone]
www.batcafitness.com
Date of Purchase
(Flat, Incline, Decline Bench)
April 2005
B-1

www.batcafitness.com 2 B-1 Owner’s Manual
Table of contents
Page
Instructions 2
PartsListing 3
Hardware Comparison 4-6
MainFrameAssembly 7-8
Upholstery 9
Decline Holddown Attachment 10
Preacher Curl Attachment 11
Maintenance, Warnings 12
Warranty 13
Floor Plan Layout 14
Instructions
Congratulations on the purchase of your new Batca B-1 F.I.D. Bench. This bench will provide you with a
lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best
quality benches and to package them in such a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is
recommended that you read through each step thoroughly before you begin. Begin by opening your box
and separating all of your parts. Verify that all parts are accounted for and have no damage. When all
parts are accounted for, you may begin your assembly. Some items may have been pre-assembled for
your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your bench on a solid level surface. This will
ensure the best possible performance, function, and safety for the bench and your workout.
Assemble your bench according to the step by step instructions found in this manual. Failure to do so will
void your warranty and may result in personal injury. After assembly you should check your bench for
correct operation. If a problem arises, recheck your assembly with these instructions to verify correct
assembly. If you are unable to correct a problem or have questions with your assembly please contact
your authorized Batca dealer.

Batca Fitness Systems 3 B-1 Owner’s Manual
Frame Components
Hardware Upholstery
Tools Required
• 9/16” Wrench
• 3/4” Wrench
• 9/16” Ratchet
• 3/4” Ratchet
• Allen Wrench
ITEM # PART # DESCRIPTION QTY.
1 BFM-10200 Frame 1
2 BFM-50328 Bent Tube 1
3 BFM-10203 Telspar Assembly 1
4 BFL-50131 Plate 1
5 BFL-50132 Plate 1
6 BFM-10201 Upper Seat Support 1
7 BFM-10202 Lower Seat Support 1
8 BFM-10204 Seat Bottom Adjustment 1
9 BFM-10205 Chrome Adjustment 1
29 BFM-50342 Axle 1
30 BFL-50134 Plate 1
ITEM # PART # DESCRIPTION QTY.
10 BFH-50110 Molded Grip 1
11 BFH-50121 HCS 3/8"-16 X 2" P5 2
12 BFH-50123 HCS 3/8"-16 X 2 1/2" P5 5
13 BFH-50125 HCS 3/8"-16 X 3" P5 2
14 BFH-50270 HCS 3/8"-16 X 5 1/4" P5 1
15 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 1
16 BFH-50140 HCS 1/2-13 X 4 1/2” P5 1
17 BFH-50141 HCS 1/2-13 X 5 1/2” P5 2
18 BFH-50146 3/8" Flat Washer (Black) 17
19 BFH-50147 3/8" Lock Washer (Black) 5
20 BFH-50155 1/2"-13 Nylock (Black) 4
21 BFH-50157 3/8"-16 Nylock (Black) 7
22 BFH-50223 Wheel 2
23 BFH-50251 1/2" Flat Washer (Black) 8
24 BFH-50265 FHSCS 3/8"-16 X 4 1/4" 2
27 BFH-50257 Warning Label 1
28 BFH-50211 2" Square Plastic Cap 2
31 BFH-50212 2" x 3" Plastic Cap 4
32 BFH-50213 1 1/2" x 2" Plastic Cap 3
33 BFH-50215 1 1/2" Square Plastic Cap 2
34 BFH-50197 Small Logo 1
35 BFH-50175 Sleeve Insert 2
36 BFH-50277 1 1/2" x 3" Plastic Cap 2
37 BFM-50263 Pull Pin T-Handle N/A
38 BFM-50157 1/2" Short Pull Pin Assembly 2
39 BFH-50272 1/2" Short Twist Lock Pull Pin 1
40 BFH-50278 Silver Metallic Touch-Up Paint 1
41 BFH-50259 Black Wrinkle Touch-Up Paint 1
ITEM # PART # DESCRIPTION QTY.
25 BFU-10115 Back Pad 1
26 BFU-10116 Bottom Pad 1

www.batcafitness.com 4 B-1 Owner’s Manual
Bolt Length
Note: Bolt length is measured from
the underside of the head of the bolt.

Batca Fitness Systems 5 B-1 Owner’s Manual

www.batcafitness.com 6 B-1 Owner’s Manual

Batca Fitness Systems 7 B-1 Owner’s Manual
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR
PROPER INSTALLATION.
Step 1:
Note: It is very important that the HCS 1/2”-13 x 4 1/2” bolt is not over tightened. This may affect the
operation of the bench seat’s hinge and could cause the movement to bind.
Note: For a more consistent appearance, position all bolts in the direction shown in each figure.
• Record your serial number on the front of this assembly instructions and keep for your records. The serial
number can be found on the inside face of the back left leg of the bench Frame (1) as seen in Figure 1A.
Figure 1
Figure 1A
Item # Part # Description Qty
1 BFM-10200 Frame 1
2 BFM-50328 Bent Tube 1
3 BFM-10203 Telspar Assembly 1
4 BFL-50131 Plate 1
5 BFL-50132 Plate 1
11 BFH-50121 HCS 3/8"-16 X 2" P5 2
13 BFH-50125 HCS 3/8"-16 X 3" P5 2
16 BFH-50140 HCS 1/2-13 X 4 1/2" P5 1
18 BFH-50146 3/8" Flat Washer (Black) 10
20 BFH-50155 1/2"-13 Nylock (Black) 1
21 BFH-50157 3/8"-16 Nylock (Black) 6
22 BFH-50223 Wheel 2
23 BFH-50251 1/2" Flat Washer (Black) 2
24 BFH-50265 FHSCS 3/8"-16 X 4 1/4" 2
27 BFH-50257 Warning Label 1
• All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

www.batcafitness.com 8 B-1 Owner’s Manual

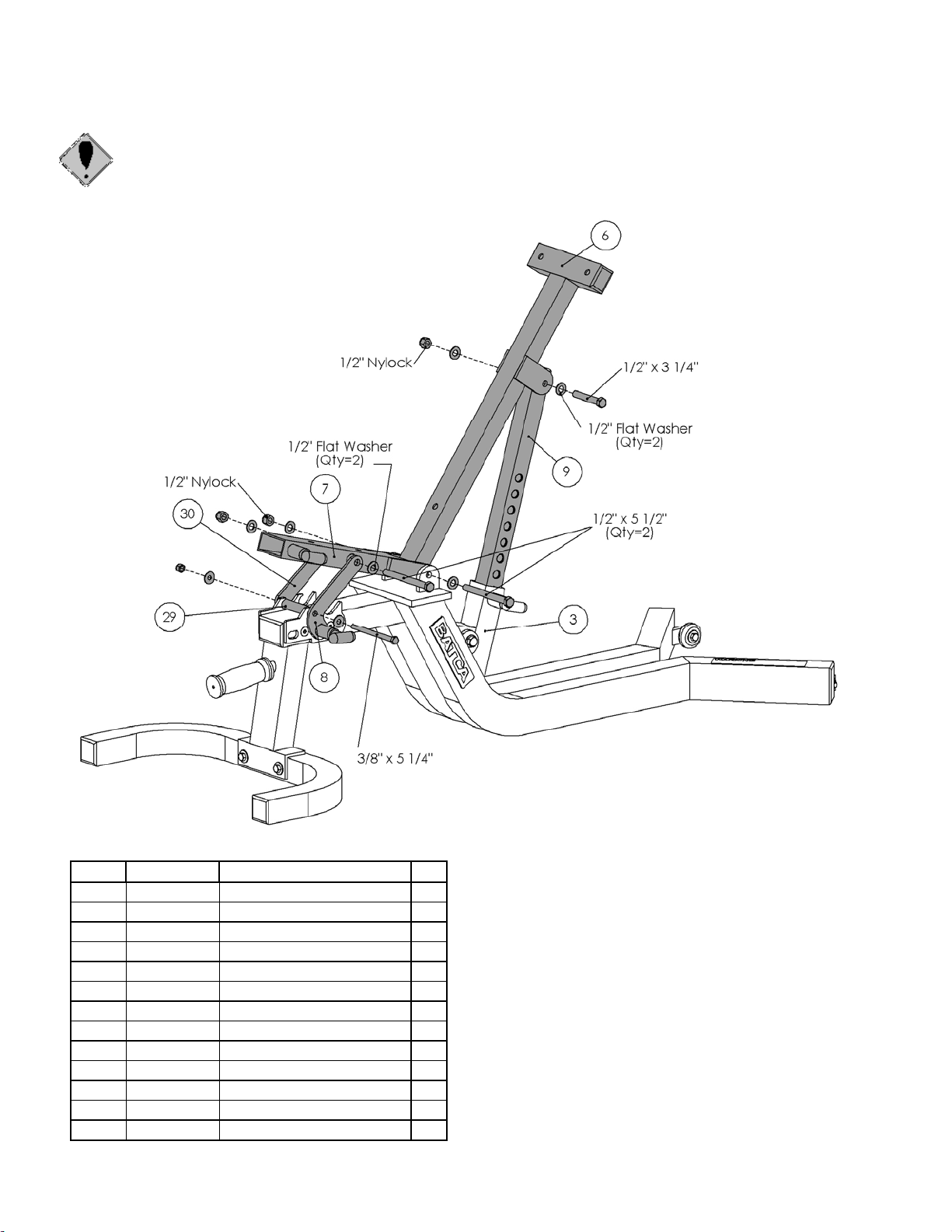

Step 2:
Note: It is very important that the HCS 1/2”-13 x 5 1/2” and HCS 1/2”-13 x 3 1/4” bolts are not over
tightened. This may affect the operation of the bench seat’s hinge and could cause the movement to
bind.
Figure 2
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
6 BFM-10201 Upper Seat Support 1
7 BFM-10202 Lower Seat Support 1
8 BFM-10204 Seat Bottom Adjustment 1
9 BFM-10205 Chrome Adjustment 1
29 BFM-50342 Axle 1
30 BFL-50134 Plate 1
14 BFH-50270 HCS 3/8"-16 X 5 1/4" P5 1
15 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 1
17 BFH-50141 HCS 1/2-13 X 5 1/2 P5 2
18 BFH-50146 3/8" Flat Washer (Black) 2
20 BFH-50155 1/2"-13 Nylock (Black) 3
21 BFH-50157 3/8"-16 Nylock (Black) 1
23 BFH-50251 1/2" Flat Washer 6

Batca Fitness Systems 9 B-1 Owner’s Manual
Step 3:
Figure 3
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
12 BFH-50123 HCS 3/8"-16 X 2 1/2" P5 5
18 BFH-50146 3/8" Flat Washer (Black) 5
19 BFH-50147 3/8" Lock Washer (Black) 5
25 BFU-10115 Back Pad 1
26 BFU-10116 Bottom Pad 1
Note: All bolts in this step receive one 3/8” Flat
Washer and one 3/8” Lock Washer instead of
one 3/8” Nylock.

www.batcafitness.com 10 B-1 Owner’s Manual

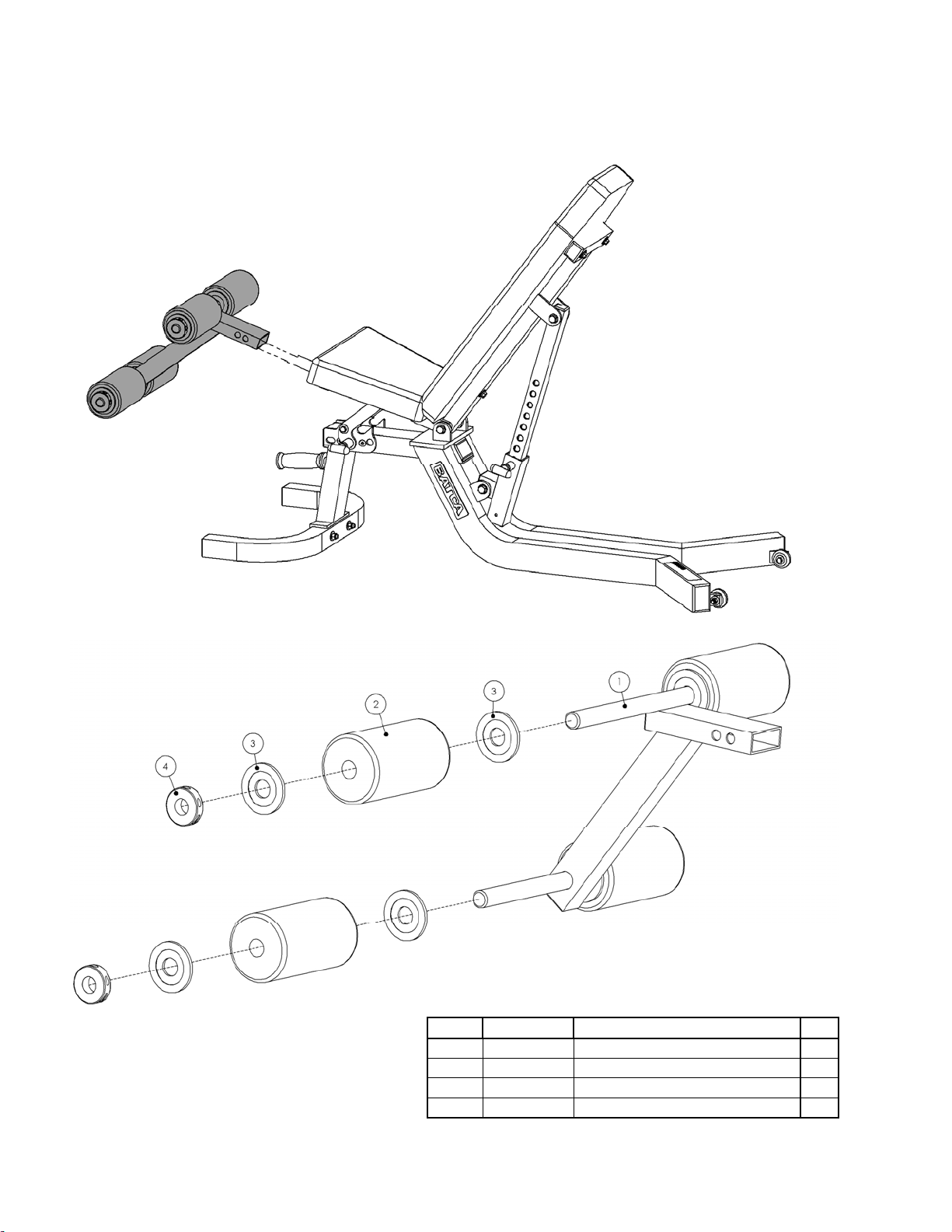

Decline Holddown Attachment:
Item # Part # Description Qty
1 BFM-10433 Decline Holddown Attachment 1
2 BFU-10121 7" Upholstery Roller 4
3 BFH-50221 3" Plastic Washer 8
4 BFH-50252 Plastic Collar 4

Batca Fitness Systems 11 B-1 Owner’s Manual
Item # Part # Description Qty
1 BFM-10434 Preacher Curl Adjustment 1
2 BFM-10435 Elbow Support 1
3 BFM-10436 Bar Holder 1
4 BFU-10139 Preacher Curl Pad 1
5 BFH-50146 3/8" Flat Washer (Black) 6
Preacher Curl Attachment:
Item # Part # Description Qty
6 BFH-50157 3/8"-16 Nylock (Black) 2
7 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 2
8 BFH-50147 3/8" Lock Washer (Black) 2
9 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 2

www.batcafitness.com 12 B-1 Owner’s Manual
Preventive Maintenance and Warnings
Batca Fitness Systems strives to give you the very best in quality, performance and safety through
carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the
preventative maintenance schedule below should be followed.
Clean upholstery and grips with mild soap and water generally after every use. The chrome slides and
frame should be cleaned with a cotton cloth.
A visual overall inspection should be done before each workout. If the warning and safety decals are worn
or have been removed they should be replaced immediately. Replace any part at first signs of wear. All
hardware, stops, and adjustments should be checked and tightened as required.
WARNING:There is a risk assumed by individuals who use this type of equipment. To minimize
risk always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts).
Replace parts at first signs of wear (use only genuine BATCA replacement parts). Use of equipment
that is damaged, worn, frayed or not completely assembled on a solid, level surface may result in
injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the machine. Be alert
to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this machine.
6) If you have any questions on proper use or maintenance of this machine, do not hesitate to call your
local BATCA FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at [phone].
www.batcafitness.com
Daily Weekly Monthly Quarterly
Commercial Home Commercial Home Commercial Home Commercial Home
Clean
Upholstery X X
Hand Grip X X
Frame X X
Inspect
Overall X X
Safety Decals X X
Hardware X X
Upholstery X X
Hand Grip X X
Frame X X
Bushings X X
Bearings X X

Batca Fitness Systems 13 B-1 Owner’s Manual
Limited Lifetime Warranty
What is covered
For Residential Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and
workmanship under normal use and service for one year from date of purchase including paint, chrome,
upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts, caps, plugs,
bumpers, washers, levelers, decals, gas springs and other hardware for three years after date of purchase;
all moving parts, including pulleys, bushings, bearings and pull pins for five years after date of purchase and
warrants the frame and all welded parts for the lifetime of the original purchaser.
For Commercial Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and
workmanship under normal use and service for six months from date of purchase including paint, chrome,
upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts, caps, plugs,
bumpers, washers, levelers, decals, gas springs and other hardware for one year after date of purchase; all
moving parts, including pulleys, bushings, bearings and pull pins for three years after date of purchase and
warrants the frame and all welded parts for ten years after date of purchase.
What is not covered
This warranty does not cover damage, which results from shipping, misuse, abuse, neglect, carelessness,
modification or alteration, accident, fire, flood, “acts of God” or other contingencies beyond the control of
Batca Fitness Systems. This warranty also does not cover deterioration from wear and tear or exposure or
any defect, which would not have happened if instructions in the owner’s manual had been followed.
Improper installation, improper assembly or follow-up maintenance along with installation of parts or
accessories not originally intended for products of Batca Fitness Systems are also not covered by this
warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this
warranty to apply.
Defective parts will be repaired or replaced at Batca Fitness Systems option, without parts charge to the
purchaser. All returns require a return authorization prior to acceptance of repair work. Batca Fitness
Systems reserves the right to make design changes without any prior notification and shall not be
responsible for incidental or consequential damages.
The purchaser is responsible for shipping the defective part back to the factory. Repair or replacement is the
exclusive and sole remedy of the purchaser. Labor charges associated with parts changeovers are not
covered by this warranty. Proof of purchase, serial number, model number and date of purchase will be
required along with all pertinent information of the alleged damage.
This warranty applies only to the original purchaser and is not transferable. Claims under this warranty must
be made directly to Batca Fitness Systems.
Batca Fitness Systems
1207 N. New Hope Road
Raleigh, NC 27610
[phone]
www.batcafitness.com
Please keep this for your records.

www.batcafitness.com 14 B-1 Owner’s Manual
The FID Bench has a layout dimension of 5”-0” (length) x 2’-0” (width) x 1’-6” (height) laying flat and 4’-
2” (height) sitting up straight. There should be a minimum of 18”, preferably 24”, of working space around
the entire unit.
Layout Diagram
