Batca X3 User manual

www.batcafitness.com X3 Owner’s Manual
X3
Owner’s Manual
Record Serial Number Here
Batca Fitness Systems
Tel. [phone]
www.batcafitness.com
Date of Purchase
September 2005
Revision 1

Batca Fitness Systems 2X3 Owner’s Manual
Page
Instructions 2
Parts Listing 3-5
Hardware Comparison 6-9
Cable Comparison 10
Main Frame Assembly 11-14
Mid Row Station 15
Shoulder Press and Low Row Station 16
Pec and Chest Station 17-23
Leg Extension and Leg Curl 24-27
Cable Routing 28-37
Page
Upholstery 38-40
Weight Stack Decals 40
Weight Stack Enclosures, Bars, Straps 41
Leg Press Option 42-44
Leg Press Cable Routing 45
Cable Tension and Adjustment 46-47
Final Assembly and Troubleshooting 48-49
Maintenance 50
Warranty 51
Layout 52
Table of Contents
Congratulations on the purchase of your new Batca X3. This gym will provide you with a lifetime of enjoyment to meet your
strength training needs. Batca Fitness Systems strives to build the best quality multi-station gyms and to package these gyms in such
a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is recommended that you
read through each step thoroughly before you begin. Begin by opening your boxes and separating all of your parts. Verify that all
parts are accounted for and have no damage. When all parts are accounted for, you may begin your assembly. Some items may
have been pre-assembled for your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perfor-
mance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so will void your warranty
and may result in personal injury. After assembly, you should check each station to ensure correct operation. If a problem arises,
recheck your assembly with these instructions to verify correct assembly. If you are unable to correct a problem or have questions
with your assembly please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable workout. However,
there is a risk assumed by individuals who use this type of equipment. It is very important that all warnings and
instructions are read and followed before beginning any exercise program.
It is also very important to read and follow the preventative maintenance schedule described in this
manual. If any of the warning labels or stickers are worn, faded, torn, scratched or missing they should be replaced
immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize risk
always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts). Replace
parts at first signs of wear (use only genuine BATCA replacement parts). Use of equipment that is damaged,
worn, frayed or not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be alert to the
possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to call your local BATCA
FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at [phone]. www.batcafitness.com
Instructions
Warning

www.batcafitness.com 3X3 Owner’s Manual
Main Frame Components
Accessories Upholstery
ITEM NO. PART NO. DESCRIPTION QTY BOX
197 BFC-10101 2 inch Chain 13
198 BFC-10102 12 inch Chain 13
199 BFC-50122 Ab Strap 14
200 BFC-50123 Ankle Strap 14
201 BFC-50125 Lat Bar 11
202 BFC-50126 Short Bar 14
203 BFC-50127 Magnetic Weight Stack Pin 34
ITEM NO. PART NO. DESCRIPTION QTY BOX
189 BFU-10117 Large Bottom Pad 31
190 BFU-10118 Bottom Pad 13
191 BFU-10119 Head Pad 13
192 BFU-10120 Back Pad With Lumbar 31
193 BFU-10121 7" Upholstery Roller 43
194 BFU-10122 Large Upholstery Roller 23
195 BFU-10124 Mid Row Chest Pad 13
196 BFU-10125 Lat Bar Pad 11
ITEM NO. PART NUMBER DESCRIPTION QTY. BOX
1BFM-10206 Chest Base 11
2BFM-10120 Low Row 13
3BFM-10117 Shoulder Base 11
4BFM-10349 Mid Row Base 11
5BFM-10119 Leg Ext/Curl Base 11
6BFM-50163 Anti-Deflection Plate 13
7BFM-50150 Anti-Deflection Plate 14

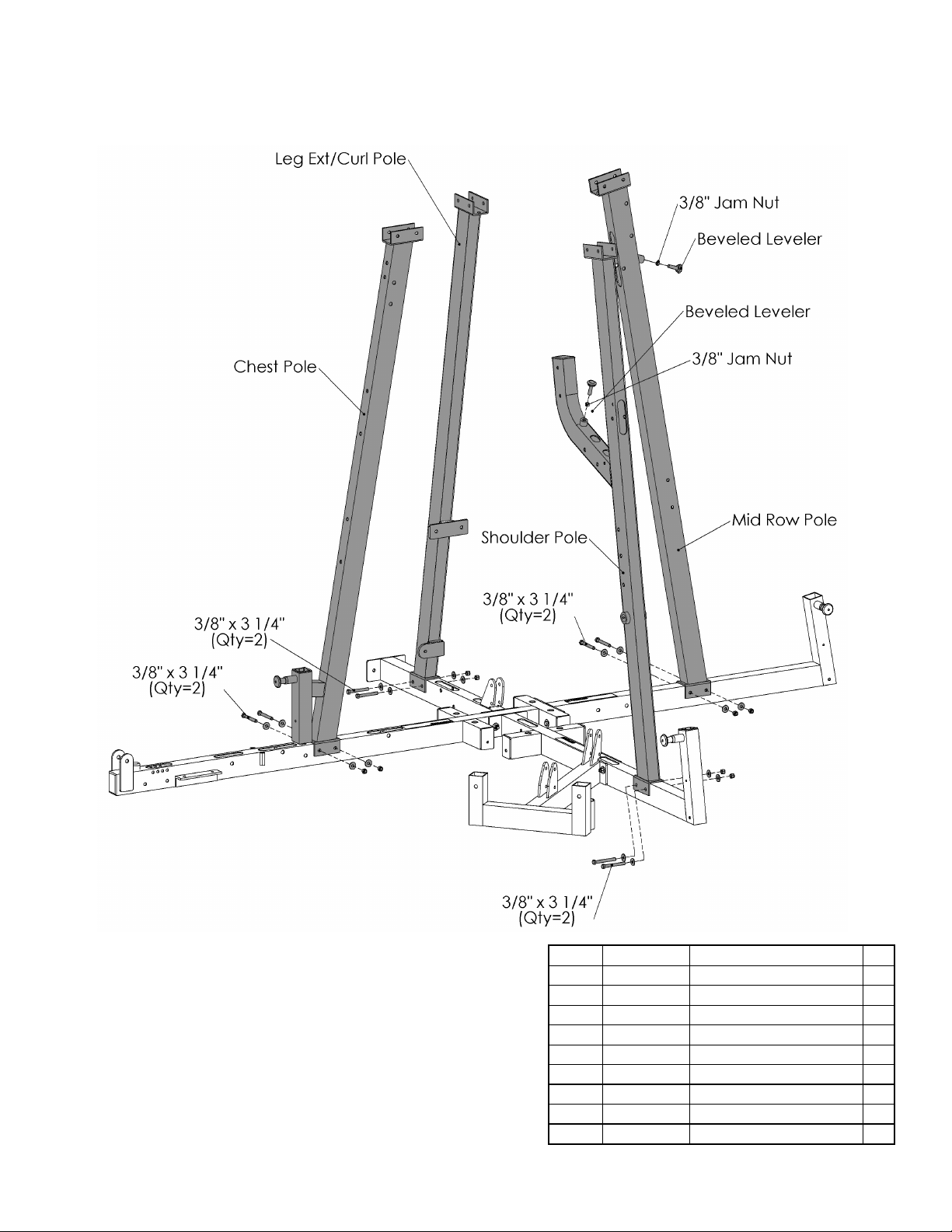

8BFM-10112 Chest Pole 11
9BFM-10108 Leg Ext/Curl Pole 11
10 BFM-10127 Shoulder Pole 11
11 BFM-10352 Mid Row Pole 11

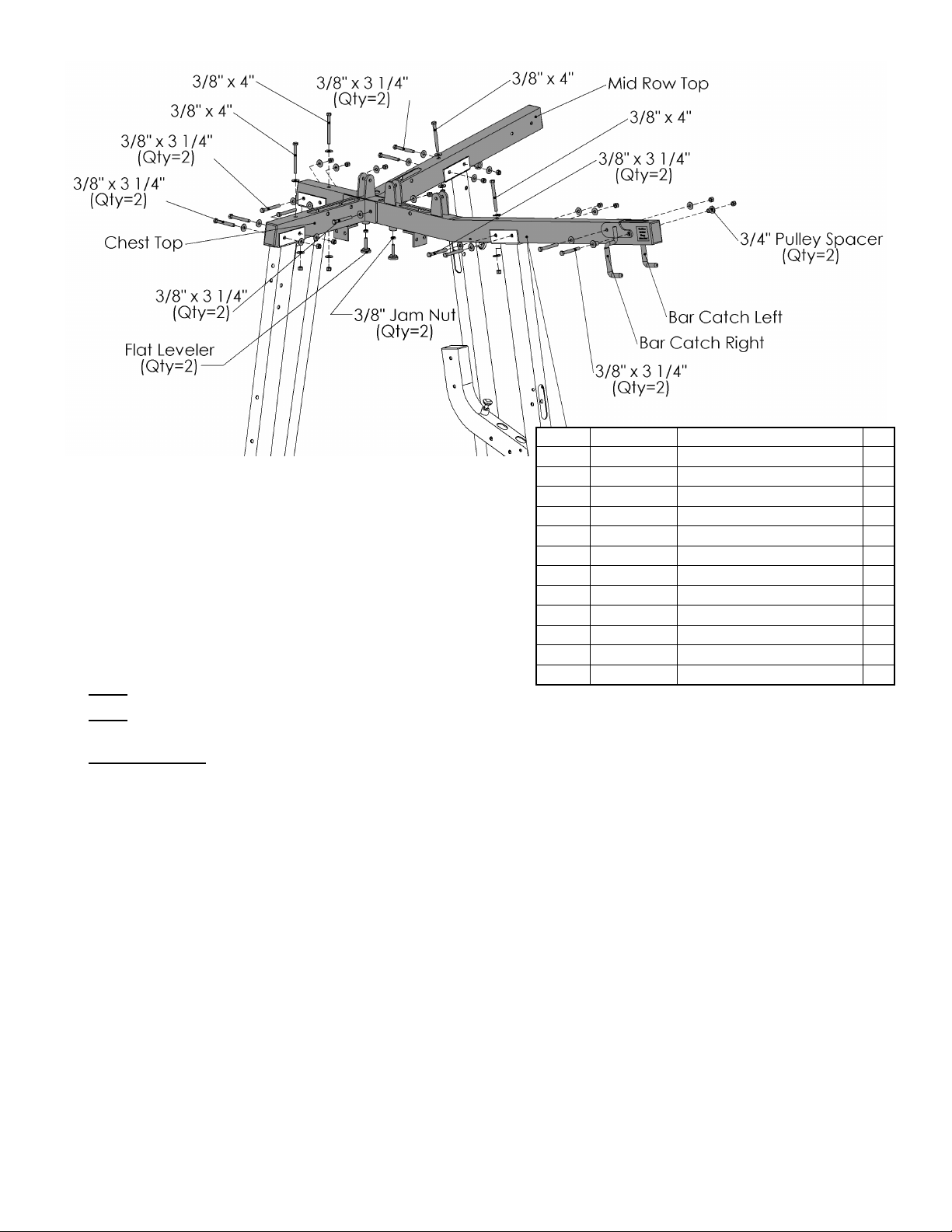

12 BFM-10350 Mid Row Top 11
13 BFM-10113 Bent Top 11
14 BFM-10114 Chest Top 11
15 BFM-10130 Bar Catch Left 14
16 BFM-10131 Bar Catch Right 14

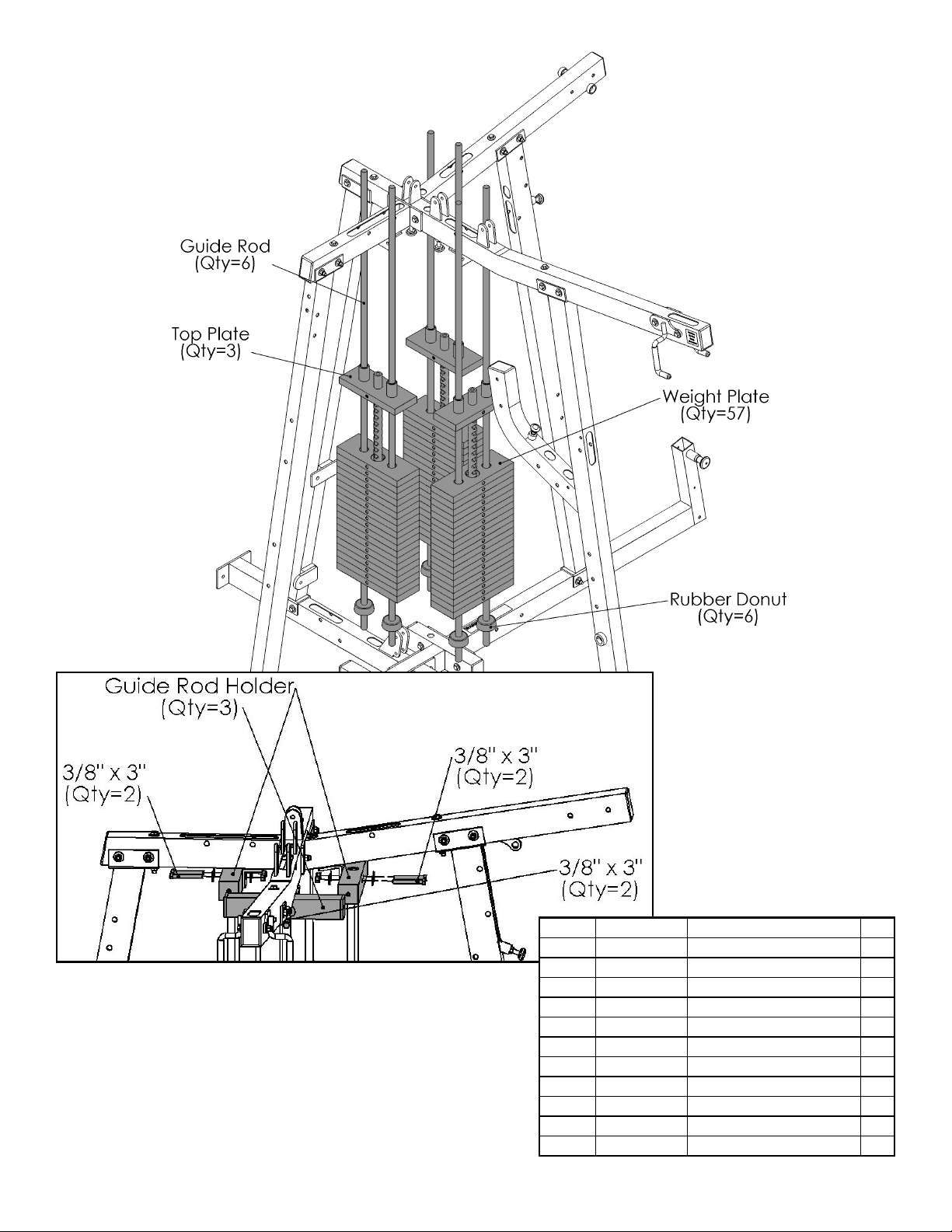

17 BFM-50256 10lb Weight Plate 57 N/A
18 BFM-50504 5lb Weight Plate 12* N/A
19 BFM-10299 10lb Top Plate 3N/A
20 BFM-10348 5lb Top Plate 3* N/A
21 BFM-50258 Weight Stack Shaft 3N/A
22 BFM-50260 Guide Rod 65
23 BFM-10107 Guide Rod Holder 34
24 BFM-10322 Back Adjustment 14

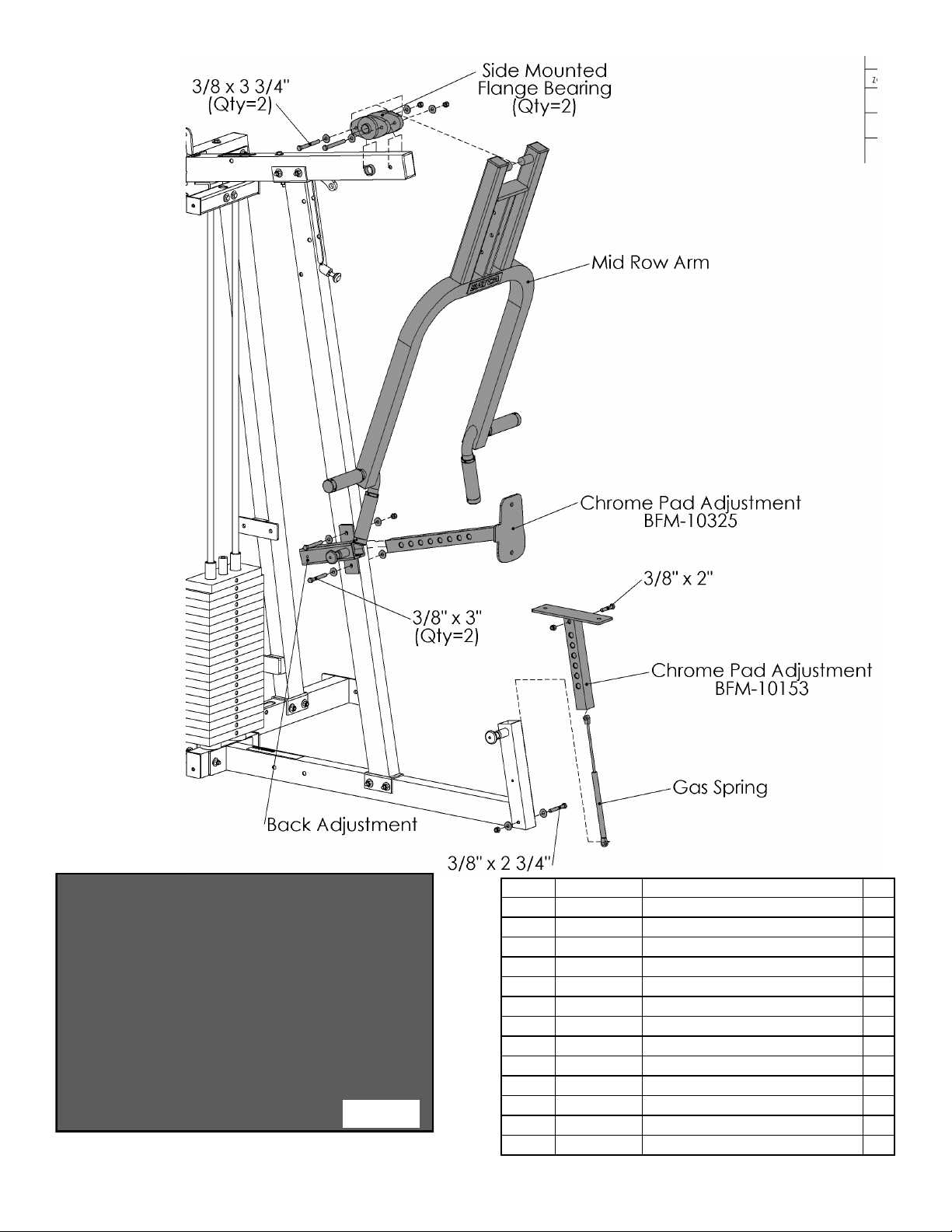

25 BFM-10323 Mid Row Arm 14
26 BFM-10325 Chrome Pad Adjustment 14
27 BFM-10105 Shoulder Arm 13
28 BFM-10118 Back Adjustment 13
29 BFM-10104 Chrome Pad Adjustment 13
30 BFM-10153 Chrome Pad Adjustment 21
31 BFM-50247 5/8” Spacer 23
32 BFM-10121 Low Row Diamond Plate 23

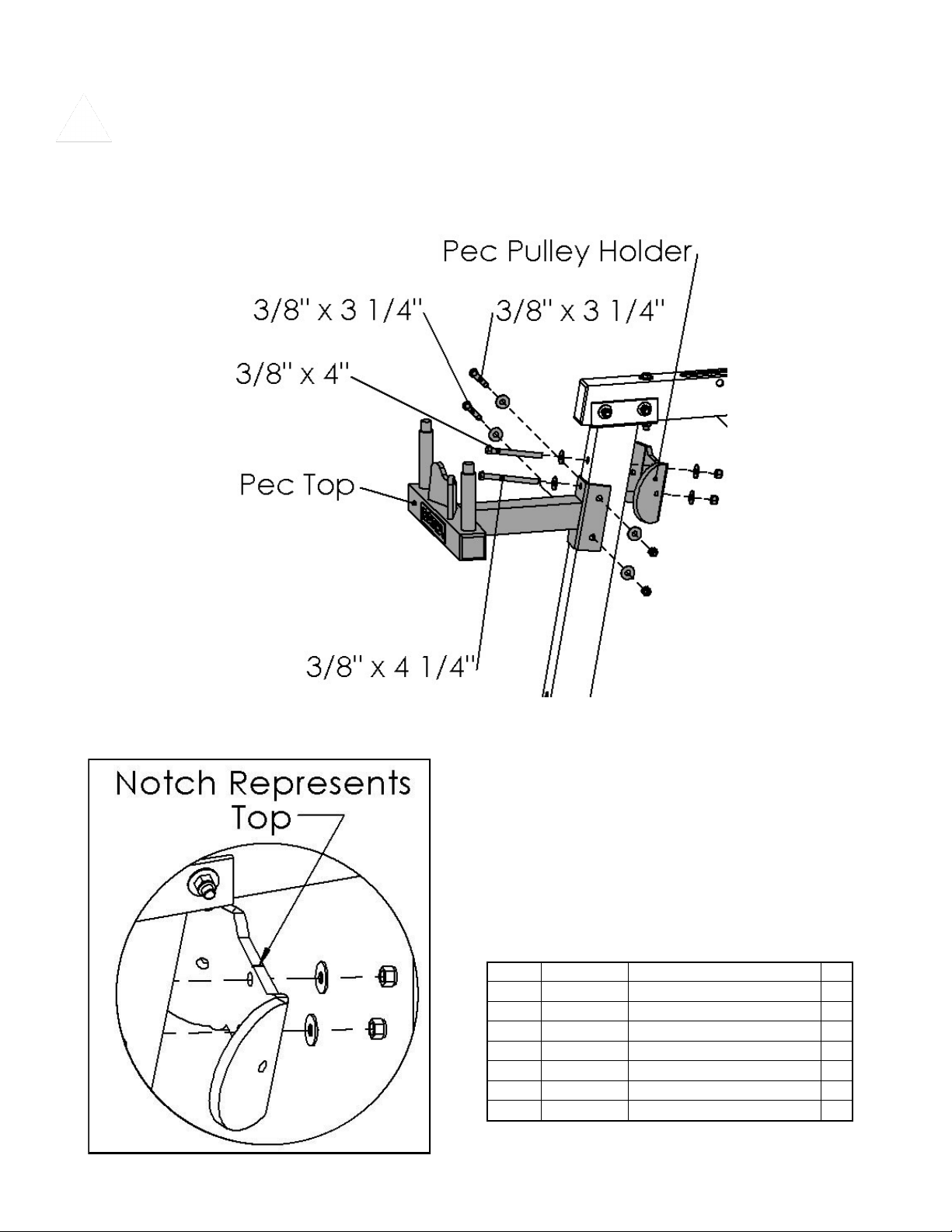

33 BFM-10126 Pec Top 14
34 BFM-50345 Pulley Cover 34
35 BFL-50127 Pec Pulley Holder 14
36 BFM-10125 Upper Pec Arm Right 14
37 BFM-10124 Upper Pec Arm Left 14
38 BFM-10148 Pec Cam Right 14
ITEM NO. PART NUMBER DESCRIPTION QTY. BOX
39 BFM-10147 Pec Cam Left 14
40 BFM-50261 Axle 43

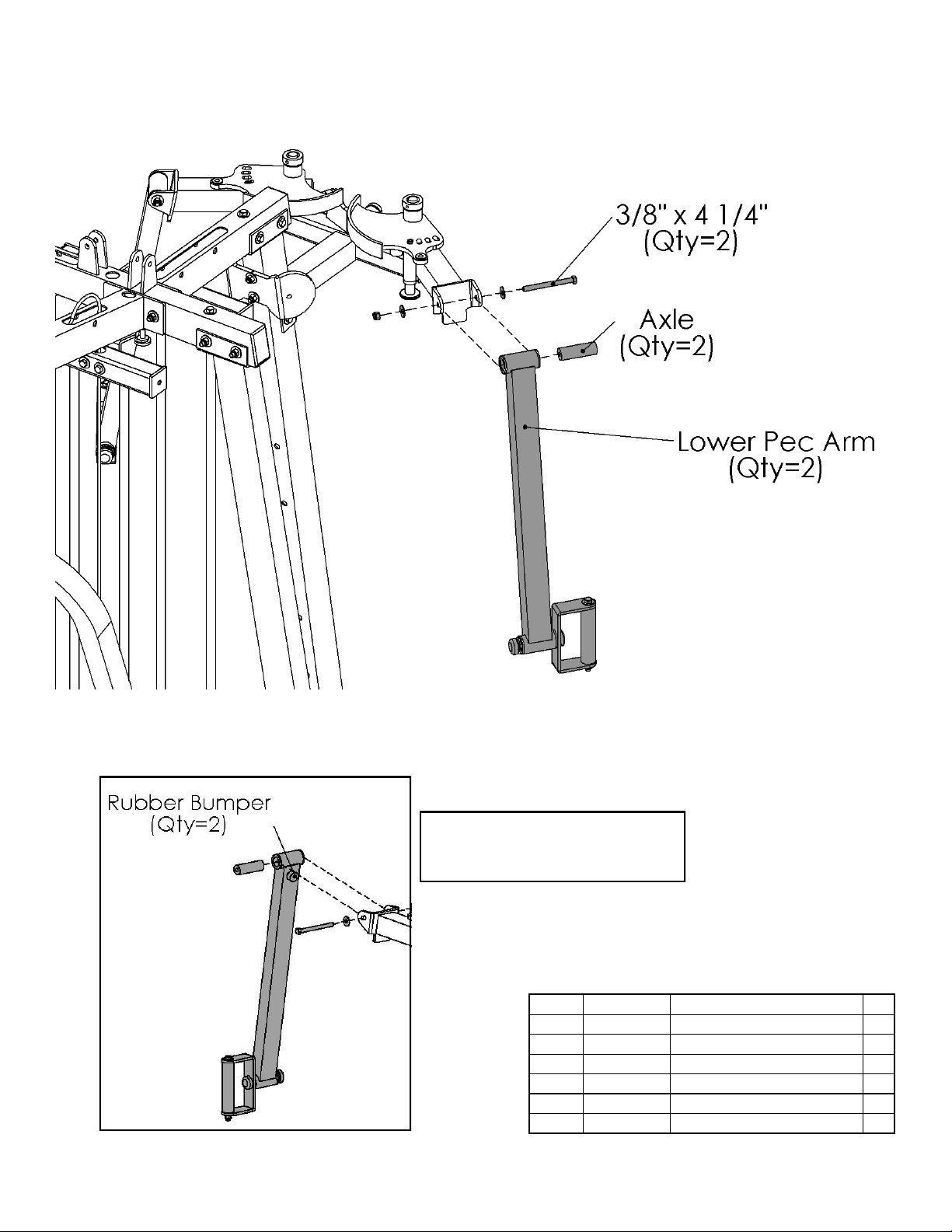

41 BFM-10103 Lower Pec Arm 24
42 BFL-50115 Bent Plate 24
43 BFM-50240 Cold Roll 24

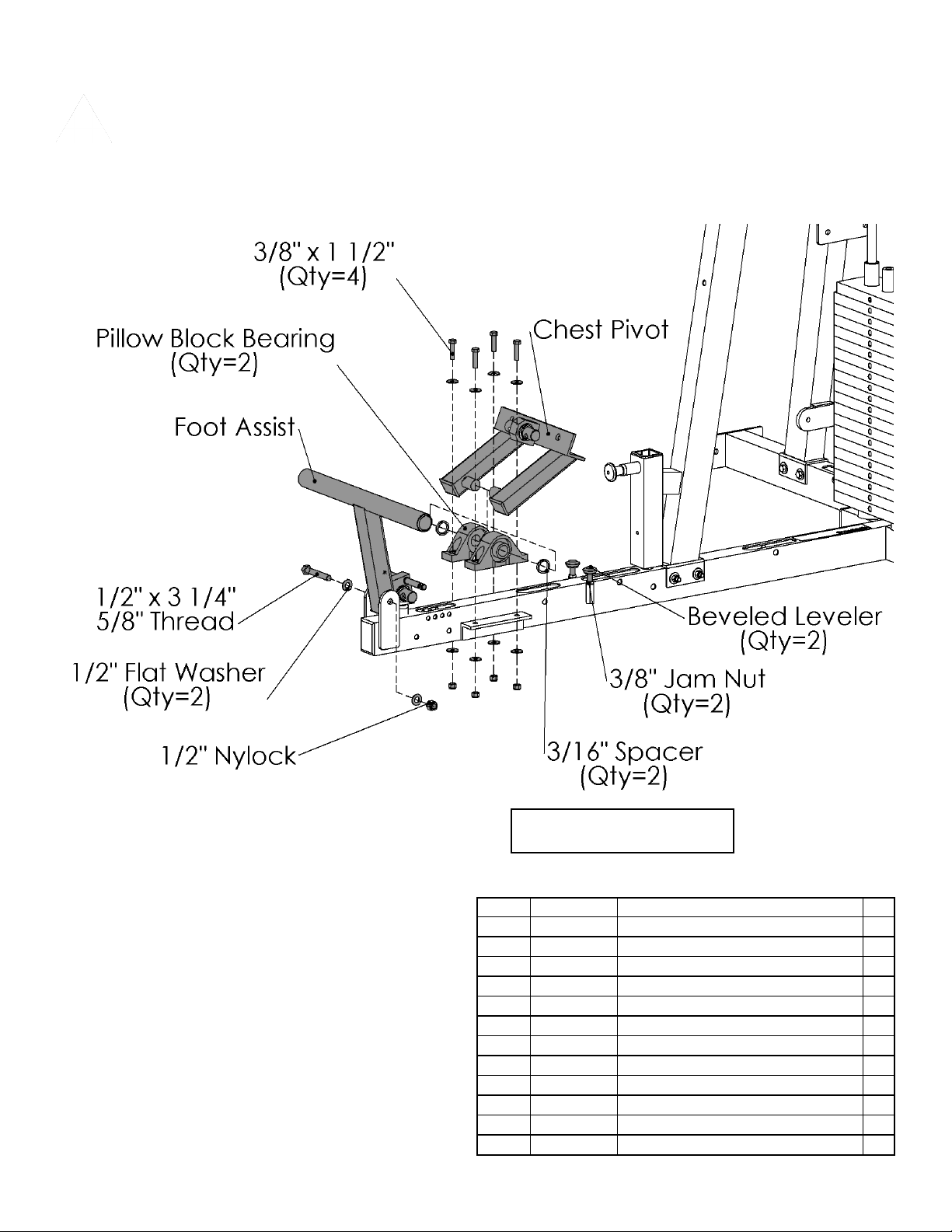

44 BFM-10101 Chest Pivot 14
45 BFM-50246 Spacer 3/16" 24
46 BFM-50262 Chrome Cable Pivot 24
47 BFM-50263 1/2 in. Cold Roll 14
48 BFM-10132 Foot Assist 14
49 BFM-10138 Chest Press Arm 14
50 BFM-10146 Chest Press Pulley Holder 14
51 BFM-10110 Chrome Pad Adjustment 11
52 BFM-10128 Elbow Support 12
53 BFM-10136 Knee Hold Down Elbow 12
54 BFM-50186 Anti-Deflection Plate 14
55 BFM-10129 Leg Ext/Curl Pillow Holder 12
56 BFM-10144 Leg Ext/Curl Cam 12
57 BFM-10139 Leg Ext/Curl Pivot Arm 12
58 BFM-10145 Two Pulley Feeder 14
59 BFM-50267 Counter Weight 12
60 BFM-10143 Leg Ext/Curl Frame 12
61 BFM-10135 High Pivot Roller 12
62 BFM-10151 Low Pivot Roller 12
63 BFM-10141 Knee Alignment Roller 12
64 BFM-50222 Axle 13
65 BFM-10115 Left Handle 12
66 BFM-10116 Right Handle 12
67 BFM-10109 Chrome Pad Adjustment 12
68 BFM-10137 Foot Shroud 14
69 BFM-50239 Tube 24
70 BFM-50244 Round Tube 14
71 BFM-50245 Cable Connector Plate 13
72 BFM-10154 Free Floater 44
73 BFM-10134 Free Floater With Lockout 24
74 BFM-50456 Weight Stack Shroud w/ Logo 35
75 BFM-50322 Weight Stack Shroud w/o Logo 35
205 BFM-50651 Cable Guard Spacer 13

Batca Fitness Systems 4X3 Owner’s Manual

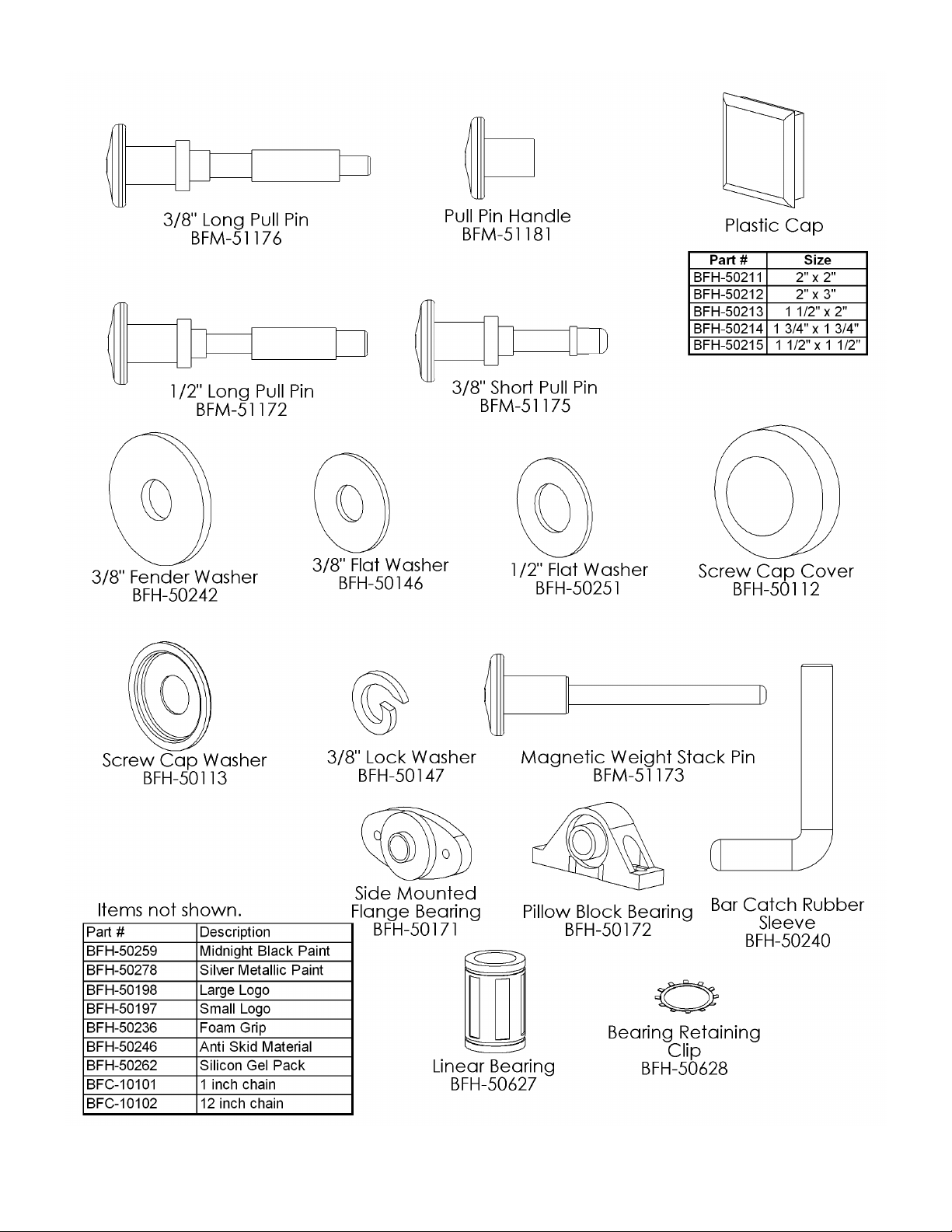

Hardware
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY.

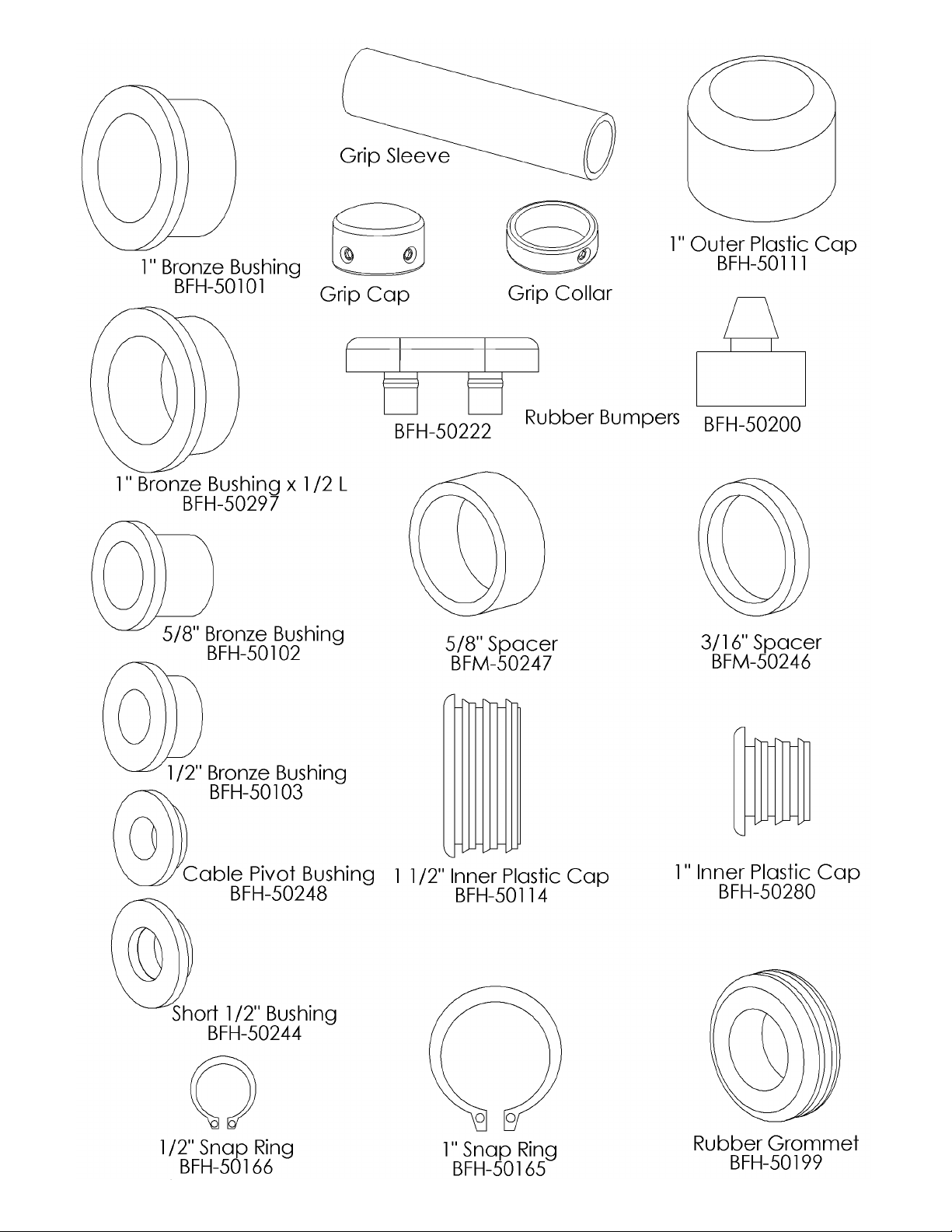

99 BFH-50101 1" Flanged Bushing 26
100 BFH-50102 5/8" Flanged Bushing 4
101 BFH-50110 Molded Grip 16
102 BFH-50111 1" Plastic Cap 3
103 BFH-50112 Screw Cap Cover 4
104 BFH-50113 Screw Cap Washer 4
105 BFH-50114 1 1/2" Round Inner Plastic Cap 2
106 BFH-50118 HCS 3/8"-16 X 1" P5 2
107 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 12
108 BFH-50120 HCS 3/8"-16 1 1/2" P5 8
109 BFH-50121 HCS 3/8"-16 X 2" P5 10
110 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 17
111 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 23
112 BFH-50125 HCS 3/8"-16 X 3" P5 18
113 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 32
114 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 4
115 BFH-50128 HCS 3/8"-16 X 3 3/4" P5 6
116 BFH-50129 HCS 3/8"-16 X 4" P5 9
117 BFH-50130 HCS 3/8"-16 X 4 1/4" P5 3
118 BFH-50133 HCS 3/8"-16 X 6 1/2" P5 2
120 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 4
120 BFH-50137 HCS 1/2"-13 X 3 1/4" (5/8" Thread) 1
123 BFH-50146 3/8" Flat Washer (Black) 239
124 BFH-50147 3/8" Lock Washer (Black) 32
125 BFH-50149 3/8"-16 Jam Nut (Zinc) 10
126 BFH-50288 3/8"-16 Nylock Nut (Zinc) 4
127 BFH-50155 1/2"-13 Nylock (Black) 5
128 BFH-50157 3/8"-16 Nylock (Black) 127
129 BFH-50165 1" Snap Ring 4
130 BFH-50166 1/2" Snap Ring 2
131 BFH-50171 Side Mounted Flange Bearing 4
132 BFH-50172 Pillow Block Bearing 2

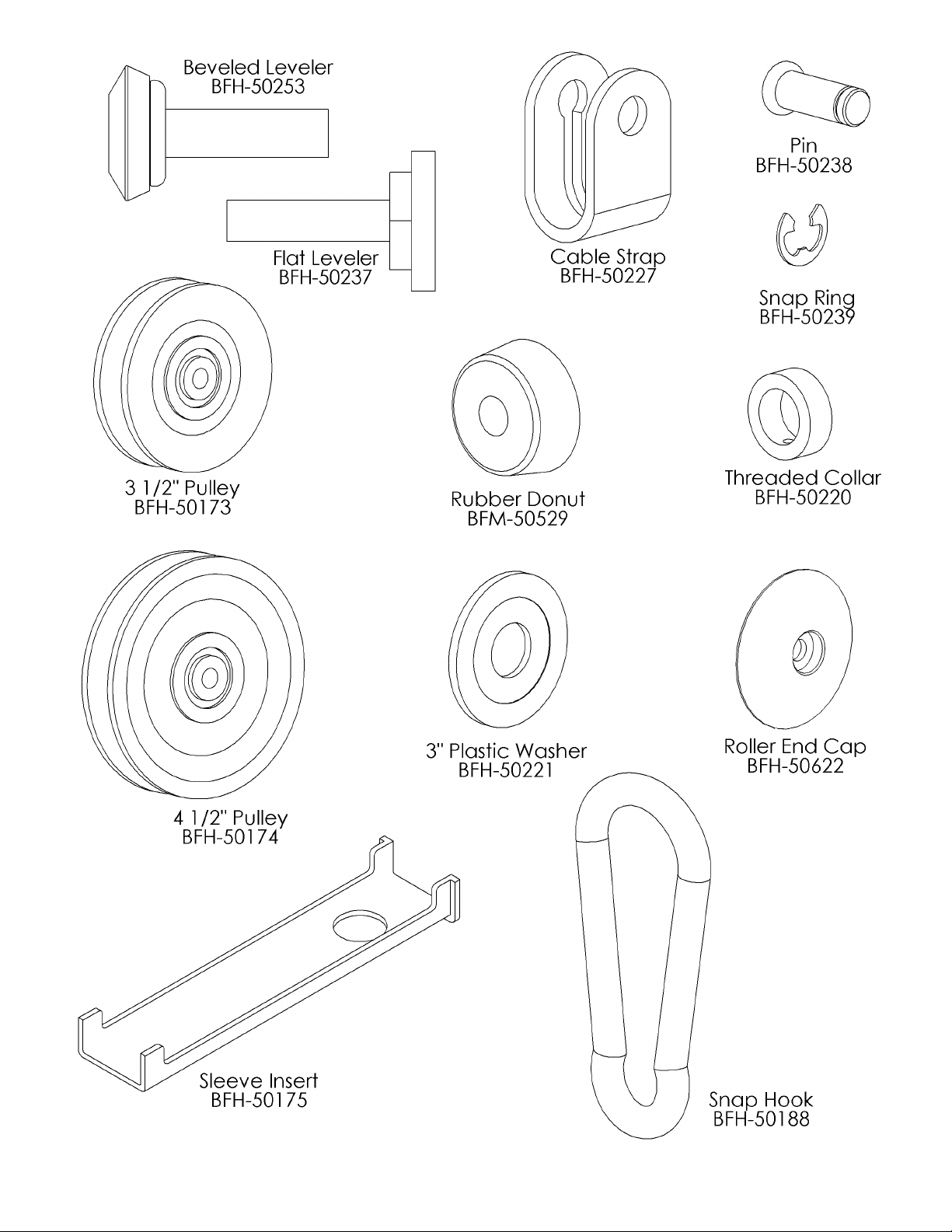

133 BFH-50173 3 1/2" Pulley 9
134 BFH-50174 4 1/2" Pulley 30
135 BFH-50175 Sleeve Insert 10
136 BFH-50188 Snap Hook 4
137 BFH-50190 Rubber Donut 6
138 BFH-50192 200lb Weight Stack Decals 3
139 BFH-50197 Small Logo 3
140 BFH-50198 Large Logo 2
141 BFH-50199 Rubber Grommit 6
142 BFH-50200 Rubber Bumper 2
143 BFH-50201 1/2" Pulley Spacer 31

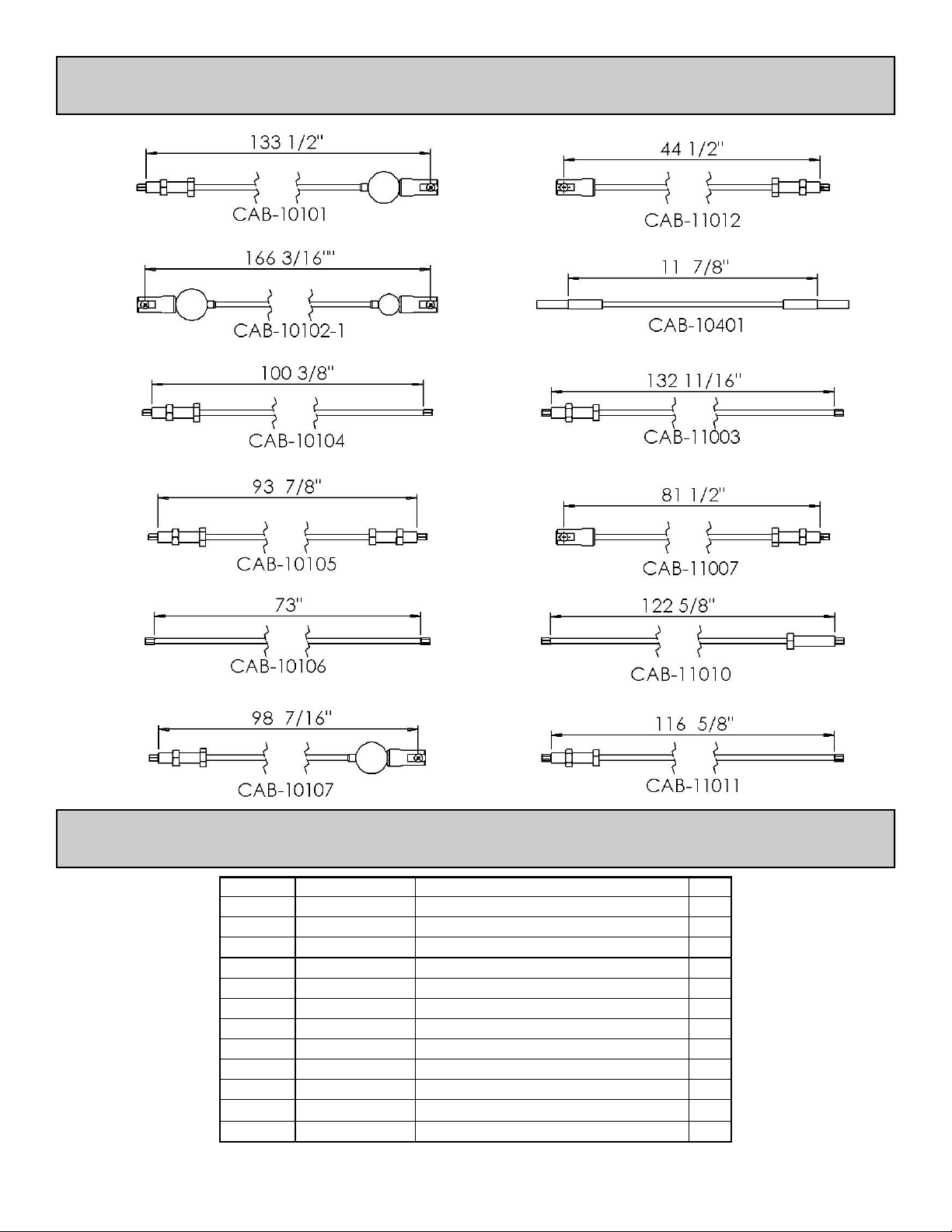

ITEM NO. PART NUMBER DESCRIPTION QTY
87 CAB-10101 Lat Pull to Weight Stack Cable 1
88 CAB-10107 Chest Top Lockout to Weight Stack Cable 1
89 CAB-11003 Mid Row Lockout to Weight Stack Cable 1
90 CAB-10104 Leg Ext/Curl Cam to Free Floater Cable 1
91 CAB-10106 Pec Cam to Pec Cam Cable 1
92 CAB-11012 Free Floater to Plate Cable 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
144 BFH-50202 3/4" Pulley Spacer 7
145 BFH-50210 Gas Spring 3
146 BFH-50211 2" Square Plastic Cap 18
147 BFH-50212 2" x 3" Plastic Cap 16
148 BFH-50213 1 1/2" x 2" Plastic Cap 2
149 BFH-50214 1 3/4" Square Plastic Cap 3
150 BFH-50215 1 1/2" Square Plastic Cap 13
151 BFH-50220 Threaded Collar 5
152 BFH-50298 HCS 3/8” - 16 x 8 3/4” P5 2
153 BFH-50222 Rubber Bumper 2
154 BFH-50227 Cable Strap 7
155 BFH-50234 6 1/2” Spring 2
156 BFH-50235 Foot Plate Grip 1
157 BFH-50236 Foam Grip 2
158 BFH-50237 Flat Leveler 2
159 BFH-50238 Pin 5
160 BFH-50239 Snap Ring 5
161 BFH-50240 Bar Catch Rubber Sleeve 2
162 BFH-50242 3/8 Fender Washer 2
164 BFH-50245 FHSCS 5/16"-18 X 1" 2
165 BFH-50246 Anti-Skid Material 5
166 BFH-50247 3/8"-16 Thin Nylock (Zinc) 2
167 BFH-50248 Cable Pivot Bushing 6
169 BFH-50250 1 1/4" Shoulder Bolt 4
170 BFH-50251 1/2" Flat Washer (Black) 10
171 BFH-50622 Roller End Cap 6
172 BFH-50253 Beveled Leveler 4
173 BFH-50254 HCS 3/8"-16 x 3/4" P5 12
174 BFH-50256 1/2"-13 Jam Nut (Zinc) 8
175 BFH-50257 Warning Label 3
176 BFH-50258 175lb Weight Stack Decals *3
177 BFH-50259 Black Wrinkle Touch Up Paint 1
178 BFH-50262 Silicon Gel Pack 6
179 BFH-50263 Pull Pin T-Handle N/A
180 BFH-50267 5/16"-18 Nylock (Black) 4
181 BFH-50269 Warning Decal (Do Not Hang) N/A
182 BFH-50273 X3 Exercise Chart 1
183 BFH-50278 Silver Wrinkle Touch Up Paint 1
184 BFH-50280 1" Round Inner Plastic Cap 10
185 BFH-50297 1" Bronze Bushing x 1/2" L 4
186 BFM-50157 1/2" Short Pull Pin Assembly N/A
187 BFM-50177 3/8" Long Pull Pin Assembly N/A
188 BFM-50207 1/2" Long Pull Pin Assembly N/A
204 BFH-50221 3” Plastic Washer 4
205 BFH-50620 BHSCS 3/8”-16 x 1” P5 6
ITEM NO. PART NUMBER DESCRIPTION QTY
93 CAB-11007 Chest Lockout to Free Floater Cable 1
94 CAB-10102 Ab to Low Pulley Cable 1
95 CAB-10105 Lockout Free Floater to Free Floater Cable 1
97 CAB-10401 Foot Assist Cable 2
98 CAB-11011 Mid Row Lockout to Weight Stack Cable 1

www.batcafitness.com 5X3 Owner’s Manual
Leg Press Components
Tools Required
 7/16” Wrench
 1/2” Wrench
 9/16” Wrench
 3/4” Wrench
 9/16” Ratchet
 3/4” Ratchet
 Allen Wrench Set
 Tape Measure
Leg Press Hardware
Upholstery
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY
96 CAB-11010 Leg Press Lockout to Free Floater Cable 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
7BFM-50150 Anti-Deflection Plate 1
65 BFM-10115 Left Handle 1
66 BFM-10116 Right Handle 1
76 BFM-10351 Leg Press Frame 1
77 BFM-10140 Leg Press Pivot 1
78 BFM-50248 5/8” Spacer 2
79 BFM-10152 Bushing Holder 2
80 BFM-50252 Four Bar 2
81 BFM-10102 Foot Plate Pivot 1
82 BFM-50139 Spacer Tube 2
83 BFL-50128 Foot Plate 1
84 BFM-50316 Plate 1
85 BFM-50270 Handle 1
86 BFM-10106 Chrome Pad Adjustment 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
107 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 2
109 BFH-50121 HCS 3/8”-16 x 2 P5 1
110 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 2
111 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 4
112 BFH-50125 HCS 3/8"-16 X 3" P5 6
113 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 6
121 BFH-50144 FHSCS 3/8"-16 X 1" 2
122 BFH-50145 FHSCS 3/8"-16 X 2 1/4" 3
123 BFH-50146 3/8" Flat Washer (Black) 37
124 BFH-50147 3/8" Lock Washer (Black) 4
125 BFH-50149 3/8"-16 Jam Nut (Zinc) 1
128 BFH-50157 3/8"-16 Nylock (Black) 24
132 BFH-50172 Pillow Block Bearing 2
134 BFH-50174 4 1/2" Pulley 6
143 BFH-50201 1/2" Pulley Spacer 8
168 BFH-50249 1/2" Shoulder Bolt (3/8"-16x50mm) 4
169 BFH-50250 1 1/4" Shoulder Bolt 1
170 BFH-50251 1/2" Flat Washer Black 4
172 BFH-50253 Beveled Leveler 1
174 BFH-50256 1/2"-13 Jam Nut (Zinc) 1
180 BFH-50267 5/16"-18 Nylock (Black) 1
ITEM NO. PART NUMBER DESCRIPTION QTY
189 BFU-10117 Large Bottom Pad 1
192 BFU-10120 Back Pad With Lumbar 1

Batca Fitness Systems 6X3 Owner’s Manual
Bolt Length
Note: Bolt length is measured from
the underside of the head of the bolt.

www.batcafitness.com 7X3 Owner’s Manual

Batca Fitness Systems 8X3 Owner’s Manual

www.batcafitness.com 9X3 Owner’s Manual

Batca Fitness Systems 10 X3 Owner’s Manual
Cables
Cable Comparison Chart
ITEM NO. PART NUMBER DESCRIPTION QTY
87 CAB-10101 Lat Pull to Weight Stack Cable 1
88 CAB-10107 Chest Top Lockout to Weight Stack Cable 1
89 CAB-11003 Mid Row Lockout to Weight Stack Cable 1
90 CAB-10104 Leg Ext/Curl Cam to Free Floater Cable 1
91 CAB-10106 Pec Cam to Pec Cam Cable 1
92 CAB-11012 Free Floater to Plate Cable 1
93 CAB-11007 Chest Lockout to Free Floater Cable 1
94 CAB-10102-1Ab to Low Pulley Cable 1
95 CAB-10105 Lockout Free Floater to Free Floater Cable 1
96 CAB-11010 Leg Press Lockout to Free Floater Cable 1
97 CAB-10401 Foot Assist Cable 2
98 CAB-11011 Mid Row Lockout to Weight Stack Cable 1

www.batcafitness.com 11 X3 Owner’s Manual
Step 1:
 Set the Chest Base in a location close to the gym’s final position. (See Layout Diagram on the back cover of this
manual). Keep in mind that you should allow at least 18”-24” as working room around the unit.
 Record your serial number on the front of this assembly instructions and keep for your records. The serial number
can be found on the back side of the Leg Ext/Curl Base, as seen below in Figure 1A.
Note: For a more consistent appearance, position all bolts in the direction shown in each figure.
 Hand Tighten all hardware for Steps 1-3.
Figure 1
Figure 1A
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
Item # Part # Description Qty
1BFM-10206 Chest Base 1
2BFM-10120 Low Row 1
3BFM-10117 Shoulder Base 1
4BFM-10349 Mid Row Base 1
5BFM-10119 Leg Ext/Curl Base 1
6BFM-50163 Anti-Deflection Plate 1
112 BFH-50125 HCS 3/8"-16 x 3" P5 2
113 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 4
123 BFH-50146 3/8" Flat Washer (Black) 10
128 BFH-50157 3/8"-16 Nylock (Black) 6
144 BFH-50202 3/4" Pulley Spacer 2

Batca Fitness Systems 12 X3 Owner’s Manual
Step 2:
Figure 2
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
8BFM-10112 Chest Pole 1
9BFM-10108 Leg Ext/Curl Pole 1
10 BFM-10127 Shoulder Pole 1
11 BFM-10352 Mid Row Pole 1
113 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 8
123 BFH-50146 3/8" Flat Washer (Black) 16
125 BFH-50149 3/8"-16 Jam Nut (Zinc) 2
128 BFH-50157 3/8"-16 Nylock (Black) 8
172 BFH-50253 Beveled Leveler 2

www.batcafitness.com 13 X3 Owner’s Manual
Figure 3
Step 3:
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Step 4:
 Snug Tighten all loose hardware.
 Align the Chest Pole, the Leg Ext/Curl Pole, the Mid-Row Pole, and the Shoulder Pole so that they each are plumb
and standing up vertically as shown in Figure 4.
 Wrench Tighten all hardware thus far as found in Steps 1-3, starting from the top of the gym and working to the
bottom.
Item # Part # Description Qty
12 BFM-10350 Mid Row Top 1
13 BFM-10113 Bent Top 1
14 BFM-10114 Chest Top 1
15 BFM-10130 Bar Catch Left 1
16 BFM-10131 Bar Catch Right 1
113 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 12
116 BFH-50129 HCS 3/8"-16 x 4" P5 4
123 BFH-50146 3/8" Flat Washer (Black) 30
125 BFH-50149 3/8"-16 Jam Nut (Zinc) 2
128 BFH-50157 3/8"-16 Nylock (Black) 16
144 BFH-50202 3/4" Pulley Spacer 2
158 BFH-50237 Flat Leveler 2
Figure 4

Batca Fitness Systems 14 X3 Owner’s Manual
Step 5:
Figure 5
Figure 5A
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
17 BFM-50256 10lb Weight Plate 57
18 BFM-50504 5lb Weight Plate 12*
19 BFM-10299 10lb Top Plate 3
20 BFM-10348 5lb Top Plate 3*
21 BFM-50258 Weight Stack Shaft 3
22 BFM-50260 Guide Rod 6
23 BFM-10107 Guide Rod Holder 3
112 BFH-50125 HCS 3/8"-16 x 3" P5 6
123 BFH-50146 3/8" Flat Washer (Black) 12
128 BFH-50157 3/8"-16 Nylock (Black) 6
137 BFH-50190 Rubber Donut 6
* Optional Medical Weight Stack

www.batcafitness.com 15 X3 Owner’s Manual
Step 6:
Figure 6
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
24 BFM-10322 Back Adjustment 1
25 BFM-10323 Mid Row Arm 1
26 BFM-10325 Chrome Pad Adjustment 1
30 BFM-10153 Chrome Pad Adjustment 1
31 BFM-50247 5/8" Spacer 2
109 BFH-50121 HCS 3/8"-16 x 2" P5 1
111 BFH-50124 HCS 3/8"-16 x 2 3/4" P5 1
112 BFH-50125 HCS 3/8"-16 x 3" P5 2
115 BFH-50128 HCS 3/8"-16 x 3 3/4" P5 2
123 BFH-50146 3/8" Flat Washer (Black) 10
128 BFH-50157 3/8"-16 Nylock (Black) 6
131 BFH-50171 Side Mounted Flange Bearing 2
145 BFH-50210 Gas Spring 1
Figure 6A

Batca Fitness Systems 16 X3 Owner’s Manual
Black plastic spacers
center arm inside
bearings.
Figure 7B
Figure 7A
Step 7:
Item # Part # Description Qty
27 BFM-10105 Shoulder Arm 1
28 BFM-10118 Back Adjustment 1
29 BFM-10104 Chrome Pad Adjustment 1
30 BFM-10153 Chrome Pad Adjustment 1
31 BFM-50247 5/8" Spacer 2
109 BFH-50121 HCS 3/8"-16 x 2" P5 1
111 BFH-50124 HCS 3/8"-16 x 2 3/4" P5 3
112 BFH-50125 HCS 3/8"-16 x 3" P5 2
115 BFH-50128 HCS 3/8"-16 x 3 3/4" P5 2
123 BFH-50146 3/8" Flat Washer (Black) 12
128 BFH-50157 3/8"-16 Nylock (Black) 8
131 BFH-50171 Side Mounted Flange Bearing 2
133 BFH-50173 3 1/2" Pulley 1
143 BFH-50201 1/2" Pulley Spacer 1
144 BFH-50202 3/4" Pulley Spacer 1
145 BFH-50210 Gas Spring 1All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Figure 7

www.batcafitness.com 17 X3 Owner’s Manual
Step 8:
Note: The Pec Pulley Holder can very easily be put on upside down. Note that the notch represents the
top, as shown in Figure 8A.
Figure 8A
Figure 8
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
33 BFM-10126 Pec Top 1
35 BFL-50127 Pec Pulley Holder 1
113 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 2
116 BFH-50129 HCS 3/8"-16 x 4" P5 1
117 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 1
123 BFH-50146 3/8" Flat Washer (Black) 8
128 BFH-50157 3/8"-16 Nylock (Black) 4

Batca Fitness Systems 18 X3 Owner’s Manual
Step 9:
Figure 9
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
36 BFM-10125 Upper Pec Arm Right 1
37 BFM-10124 Upper Pec Arm Left 1
38 BFM-10148 Pec Cam Right 1
39 BFM-10147 Pec Cam Left 1
151 BFH-50220 Threaded Collar 2

www.batcafitness.com 19 X3 Owner’s Manual
Figure 10
Note: Rubber Bumper should be on
inside and face towards the Upper
Pec Arms.
Step 10:
Figure 10A
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
40 BFM-50261 Axle 2
41 BFM-10103 Lower Pec Arm 2
117 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 2
123 BFH-50146 3/8" Flat Washer (Black) 4
128 BFH-50157 3/8"-16 Nylock (Black) 2
142 BFH-50200 Rubber Bumper 2

Batca Fitness Systems 20 X3 Owner’s Manual
Step 11:
Note: It is very important that the HCS 1/2”-13 x 3 1/4” is not over tightened. This may affect the
operation of the Foot Assist and could cause it to bind.
Figure 11
Black plastic spacers
center arm inside bearings.
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Item # Part # Description Qty
44 BFM-10101 Chest Pivot 1
45 BFM-50246 Spacer 3/16" 2
48 BFM-10132 Foot Assist 1
108 BFH-50120 HCS 3/8"-16 1 1/2" P5 4
120 BFH-50137 HCS 1/2"-13 X 3 1/4" (5/8" Thread) 1
123 BFH-50146 3/8" Flat Washer (Black) 8
125 BFH-50149 3/8"-16 Jam Nut (Zinc) 2
127 BFH-50155 1/2"-13 Nylock (Black) 1
128 BFH-50157 3/8"-16 Nylock (Black) 4
132 BFH-50172 Pillow Block Bearing 2
170 BFH-50251 1/2" Flat Washer Black 2
172 BFH-50253 Beveled Leveler 2
