Batca C-2 User manual

C-2
Owner’s Manual
June 2009
Revision 5
Record Serial Number Here
Batca Fitness Systems
Tel. [phone]
www.batcafitness.com
Date of Purchase
Mid Row/ Lat Pull

Mid Row/Lat Pull Combo 2 C-2 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3

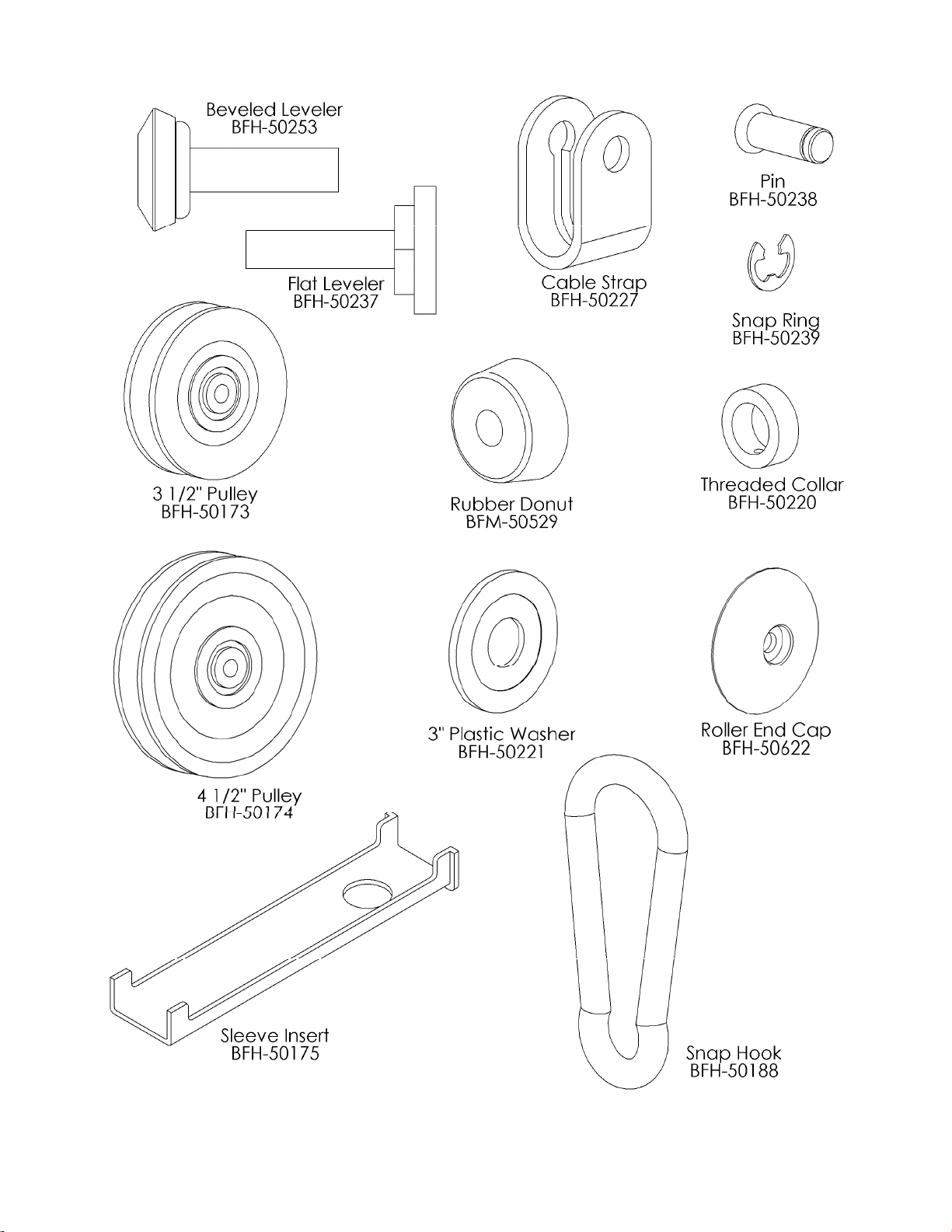

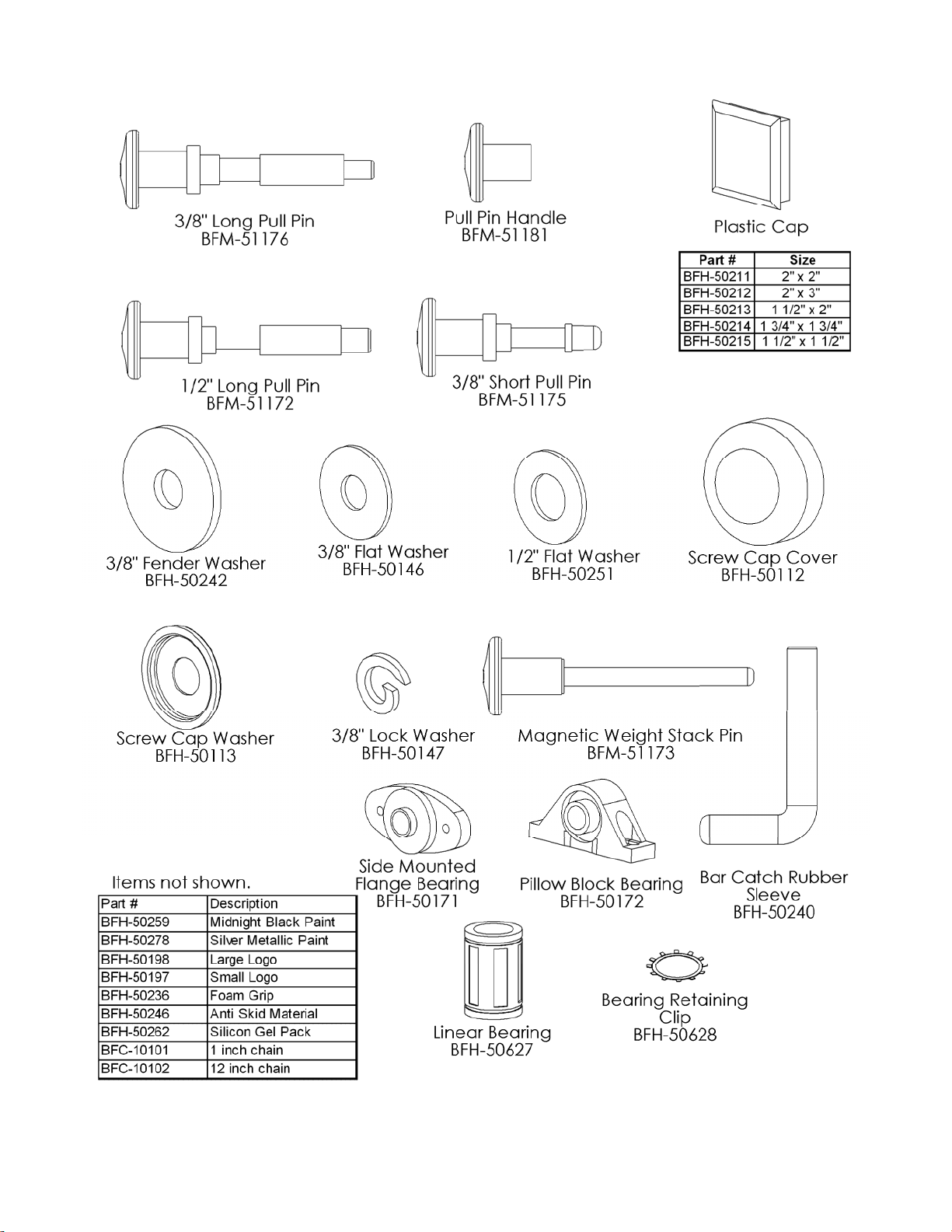

Hardware Comparison 4-7
Main Assembly 8-13
Upholstery 14
Cable Routing 15
Congratulations on the purchase of your new Batca C-2. This gym will provide you with a lifetime of enjoyment to meet your
strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to
avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is recommended that you
read through each step thoroughly before you begin. Begin by opening your boxes and separating all of your parts. Verify that all
parts are accounted for and have no damage. When all parts are accounted for, you may begin your assembly. Some items may
have been pre-assembled for your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perform-
ance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so will void your warranty
and may result in personal injury. After assembly, you should check each station to ensure correct operation. If a problem arises,
recheck your assembly with these instructions to verify correct assembly. If you are unable to correct a problem or have questions
with your assembly please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable workout. However,
there is a risk assumed by individuals who use this type of equipment. It is very important that all warnings and
instructions are read and followed before beginning any exercise program.
It is also very important to read and follow the preventative maintenance schedule described in this
manual. If any of the warning labels or stickers are worn, faded, torn, scratched or missing they should be replaced
immediately.
WARNING:There is a risk assumed by individuals who use this type of equipment. To minimize risk
always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts). Replace
parts at first signs of wear (use only genuine BATCA replacement parts). Use of equipment that is damaged,
worn, frayed or not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be alert to the
possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to call your local BATCA
FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at [phone]. www.batcafitness.com
__________ Page
Final Assembly and Troubleshooting 16
Cable Tension and Adjustments 17
Maintenance 18
Warranty 19
Floor Plan Layout 20
Table of Contents
Instructions
Warning

www.batcafitness.com 3 C-2 Owner’s Manual
Frame Components Upholstery
Tools Required
• 9/16” Wrench
• 3/4” Wrench
• 9/16” Ratchet
• Allen Wrench Set
• Tape Measure
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 BFM-10430 Weight Plate 19
3 BFM-10413 3/4" 10lb Top Plate 1
4 BFM-50531 Shroud 1
5 BFM-50633 Guide Rod 2
6 BFM-10445 Mid Row/Lat Top 1
7 BFM-10444 Pole 1
9 BFM-10323 Mid Row Arm 1
10 BFM-10377 Mid Row Base 1
11 BFM-10322 Mid Row Telspar 1
12 BFM-10325 Chrome Pad Adjustment 1
13 BFM-10153 Chrome Pad Adjustment 1
17 BFM-10383 Anti-Tip 1
18 BFM-10405 Cage 1
19 BFM-50466 Anti-Deflection Plate 1
20 BFM-50651 Cable Guard Spacer 1
39 BFM-50247 1/2" Spacer 2
40 BFM-10438 Guide Rod Pulley Holder 1
45 BFM-50244 Round Tube 1
49 BFM-10131 Bar Catch Right 1
50 BFM-10130 Bar Catch Left 1
Hardware
ITEM NO. PART NUMBER DESCRIPTION QTY.
2 BFM-50529 Rubber Donut 2
8 BFH-50171 Flange Bearing 2
16 BFH-50255 Rubber Foot 4
22 BFH-50174 4 1/2" Pulley 7
23 BFH-50210 Gas Spring 1
24 BFH-50146 3/8" Flat Washer (Black) 54
25 BFH-50201 1/2" Pulley Spacer 6
26 BFH-50147 3/8" Lock Washer (Black) 8
27 BFH-50157 3/8"-16 Nylock (Black) 28
28 BFH-50125 HCS 3/8"-16 X 3" P5 2
29 BFH-50130 HCS 3/8"-16 X 4 1/4" P5 4
30 BFH-50128 HCS 3/8"-16 X 3 3/4" P5 2
31 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 5
32 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 2
33 BFH-50121 HCS 3/8"-16 X 2" P5 1
34 BFH-50254 HCS 3/8-16 X 3/4 P5 4
35 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 5
36 BFH-50253 Beveled Leveler 1
37 BFH-50149 3/8"-16 Jam Nut (Zinc) 1
38 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 4
47 BFH-50221 3" Plastic Washer 2
48 BFH-50622 Roller End Cap 2
51 BFH-50202 3/4" Pulley Spacer 2
52 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 6
55 BFH-50238 Pin 1
56 BFH-50239 Snap Ring 1
58 BFH-50188 Snap Hook 1
63 BFH-50129 HCS 3/8"-16 x 4" P5 1
65 BFM-50433 Knee Hold Down Pipe 1
BFH-50262 Silicone Gel Pack 2
66 BFH-50620 BHSCS 3/8" X 1" P5 2
67 BFM-51279 1 1/4” Grip Sleeve 4
69 BFH-50632 1 1/4” Grip Collar 4
68 BFH-50633 1 1/4” Grip Cap 4
70 BFH-50207 1” Grip Cap 2
71 BFH-50208 1” Grip Collar 2
Accessories
ITEM NO. PART NUMBER DESCRIPTION QTY.
21 BFM-51173 Magnetic Weight Stack Pin 1
53 BFC-50125 Lat Bar 1
54 BFC-10101 1 inch Chain 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
14 BFU-10117 Large Bottom Pad 1
15 BFU-10124 Mid Row Chest Pad 1
46 BFU-10121 7" Upholstery Roller 2
57 BFU-10125 Lat Bar Pad 1
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY.
41 CAB-13002 Lat Pull to Wt. Stack Cable 1

Mid Row/Lat Pull Combo 4 C-2 Owner's Manual

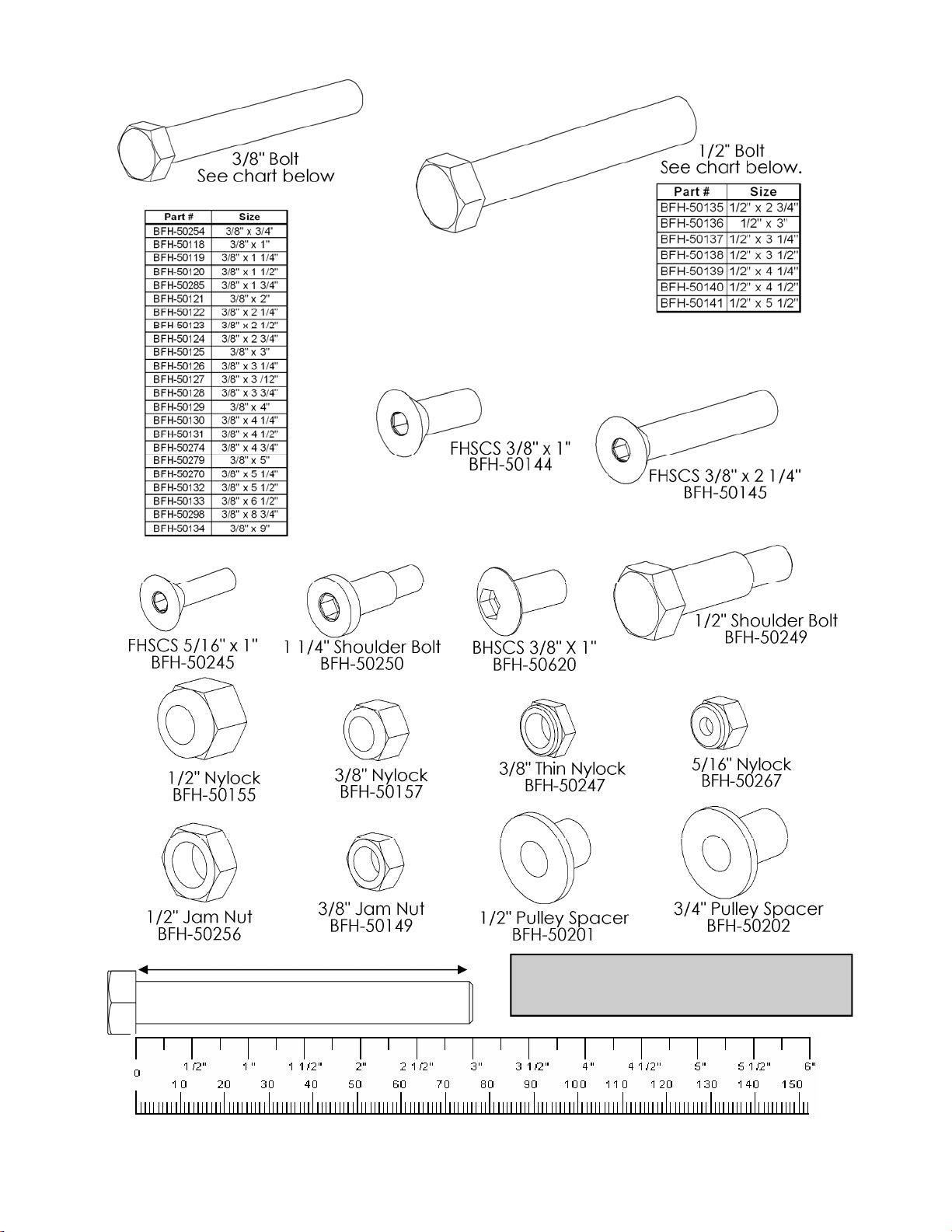

Bolt Length Note: Bolt length is measured from
the underside of the head of the bolt.

www.batcafitness.com 5 C-2 Owner’s Manual

Mid Row/Lat Pull Combo 6 C-2 Owner's Manual

www.batcafitness.com 7 C-2 Owner’s Manual

Mid Row/Lat Pull Combo 8 C-2 Owner's Manual
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
• All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Figure 1
Step 1:
Note: For a more consistent appearance, position all bolts in the direction shown in each figure.
Item # Part # Description Qty
10 BFM-10377 Mid Row Base 1
17 BFM-10383 Anti-Tip 1
18 BFM-10405 Cage 1
24 BFH-50146 3/8" Flat Washer (Black) 4
27 BFH-50157 3/8"-16 Nylock (Black) 2
29 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 2
16 BFH-50255 Rubber Foot 4

www.batcafitness.com 9 C-2 Owner’s Manual
Figure 2
Step 2:
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
1 BFM-10430 Weight Plate 19
2 BFM-50529 Rubber Donut 2
3 BFM-10413 3/4” 10lb Top Plate 1
5 BFM-50633 Guide Rod 2
21 BFM-51173 Magnetic Weight Stack Pin 1

Mid Row/Lat Pull Combo 10 C-2 Owner's Manual

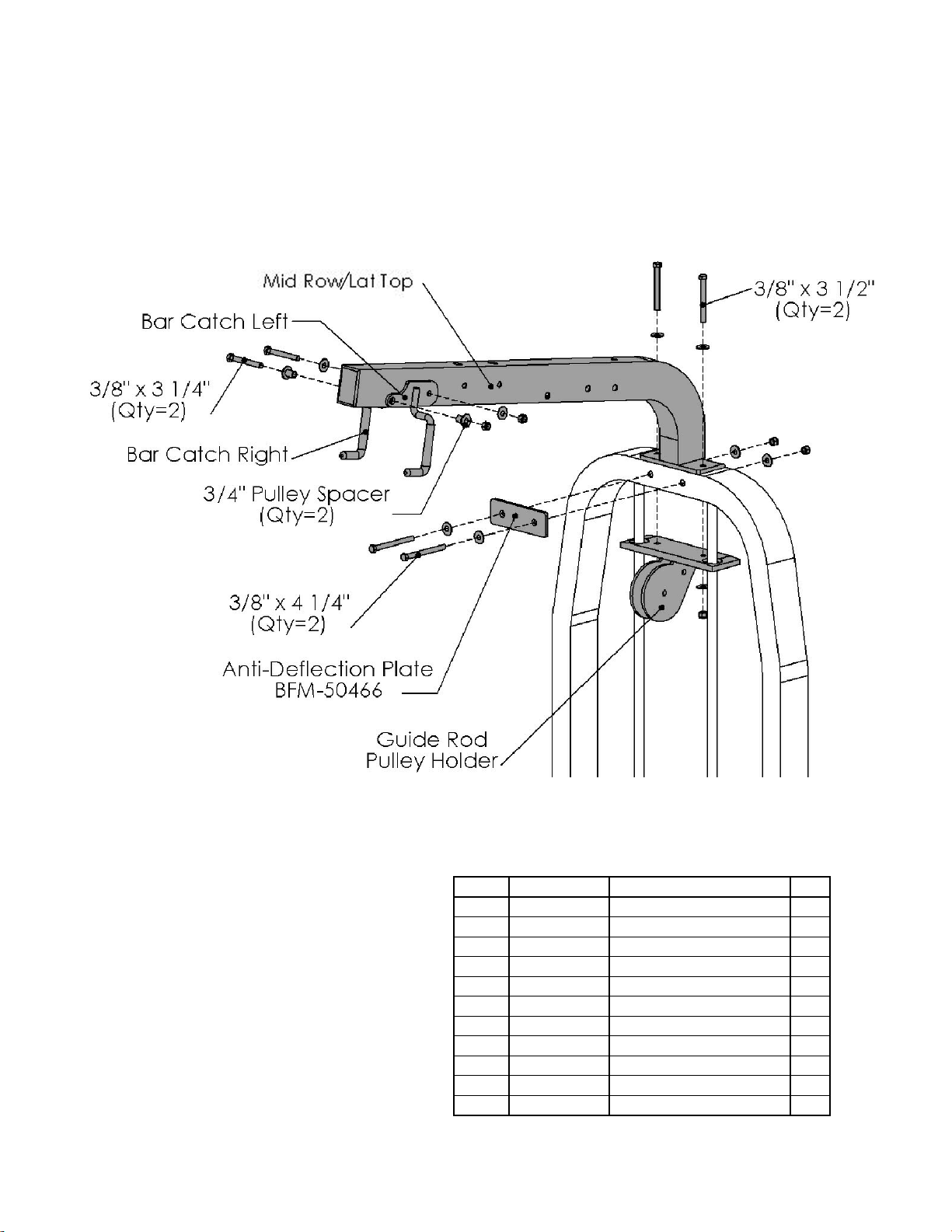

Step 3:
Figure 3
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
6 BFM-10445 Mid Row/Lat Top 1
19 BFM-50466 Anti-Deflection Plate 1
24 BFH-50146 3/8" Flat Washer (Black) 10
27 BFH-50157 3/8"-16 Nylock (Black) 6
29 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 2
32 BFH-50127 HCS 3/8"-16 x 3 1/2" P5 2
40 BFM-10438 Guide Rod Pulley Holder 1
49 BFM-10131 Bar Catch Right 1
50 BFM-10130 Bar Catch Left 1
51 BFH-50202 3/4" Pulley Spacer 2
52 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 2

www.batcafitness.com 11 C-2 Owner’s Manual
Figure 4
Step 4:
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
7 BFM-10444 Pole 1
24 BFH-50146 3/8" Flat Washer (Black) 10
27 BFH-50157 3/8"-16 Nylock (Black) 5
63 BFH-50129 HCS 3/8"-16 x 4" P5 1
36 BFH-50253 Beveled Leveler 1
37 BFH-50149 3/8"-16 Jam Nut (Zinc) 1
52 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 4

Mid Row/Lat Pull Combo 12 C-2 Owner's Manual
Step 5:
Figure 5
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
8 BFH-50171 Flange Bearing 2
9 BFM-10323 Mid Row Arm 1
24 BFH-50146 3/8" Flat Washer (Black) 4
27 BFH-50157 3/8"-16 Nylock (Black) 2
30 BFH-50128 HCS 3/8"-16 x 3 3/4" P5 2
39 BFM-50247 1/2" Spacer 2
67 BFM-51279 1 1/4” Grip Sleeve 4
68 BFH-50633 1 1/4” Grip Cap 4
69 BFH-50632 1 1/4” Grip Collar 4

www.batcafitness.com 13 C-2 Owner’s Manual
Figure 6
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 6:
Item # Part # Description Qty
11 BFM-10322 Mid Row Telspar 1
12 BFM-10325 Chrome Pad Adjustment 1
13 BFM-10153 Chrome Pad Adjustment 1
23 BFH-50210 Gas Spring 1
24 BFH-50146 3/8" Flat Washer (Black) 6
27 BFH-50157 3/8"-16 Nylock (Black) 4
28 BFH-50125 HCS 3/8"-16 x 3" P5 2
31 BFH-50124 HCS 3/8"-16 x 2 3/4" P5 1
33 BFH-50121 HCS 3/8"-16 x 2" P5 1

Mid Row/Lat Pull Combo 14 C-2 Owner's Manual

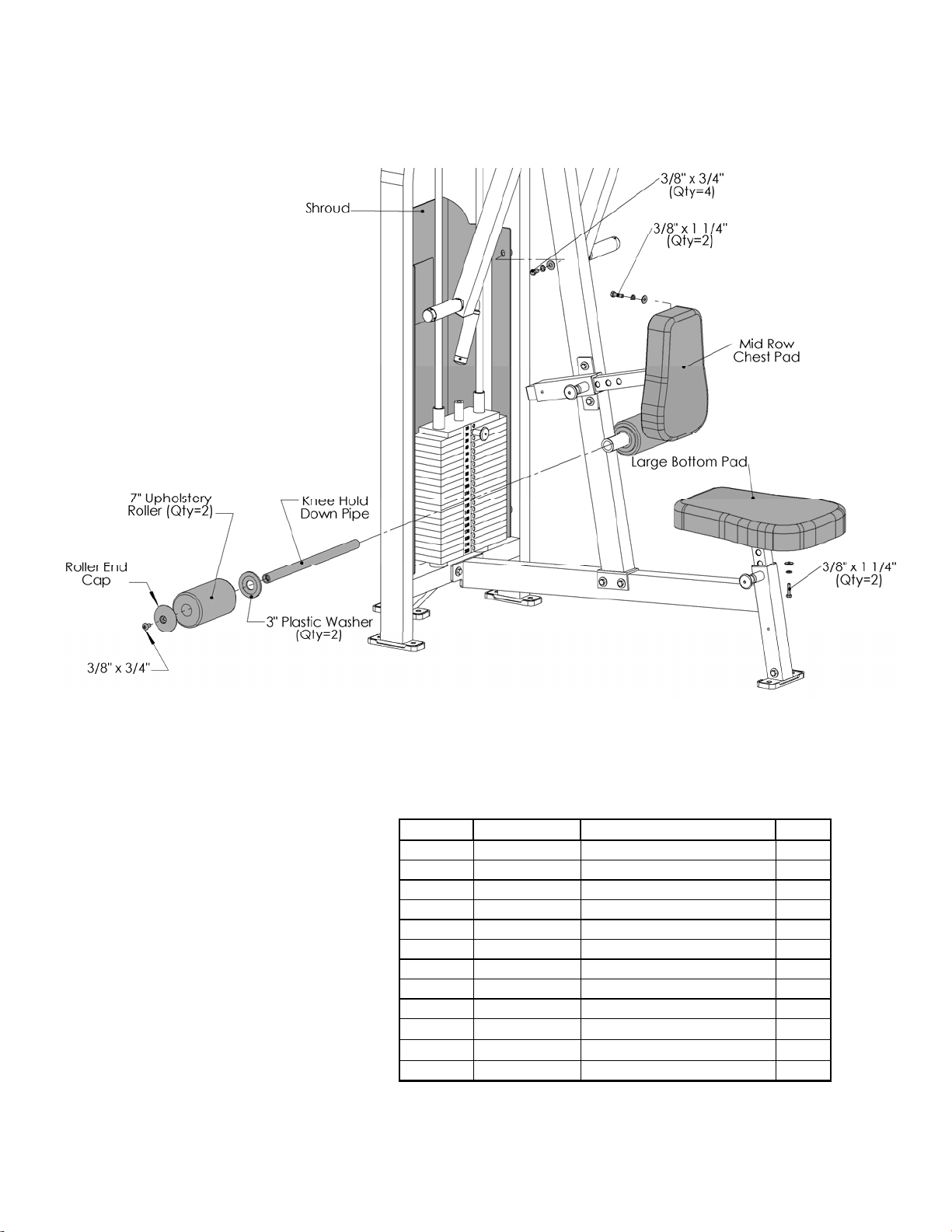

Step 7:
Figure 7
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Note: All bolts in this step receive one 3/8” Flat
Washer and one 3/8” Lock Washer instead of one
3/8” Nylock.
Item # Part # Description Qty
4 BFM-50531 Shroud 1
14 BFU-10117 Large Bottom Pad 1
15 BFU-10124 Mid Row Chest Pad 1
24 BFH-50146 3/8" Flat Washer (Black) 8
26 BFH-50147 3/8" Lock Washer (Black) 8
34 BFH-50254 HCS 3/8"-16 x 3/4" P5 4
38 BFH-50119 HCS 3/8"-16 x 1 1/4" P5 4
46 BFU-10121 7" Upholstery Roller 2
47 BFH-50221 3" Plastic Washer 2
48 BFH-50622 Roller End Cap 2
65 BFM-50433 Knee Hold Down Pipe 1
66 BFH-50620 BHSCS 3/8" X 1" P5 2

Mid Row/Lat Pull Combo 15 C-2 Owner's Manual

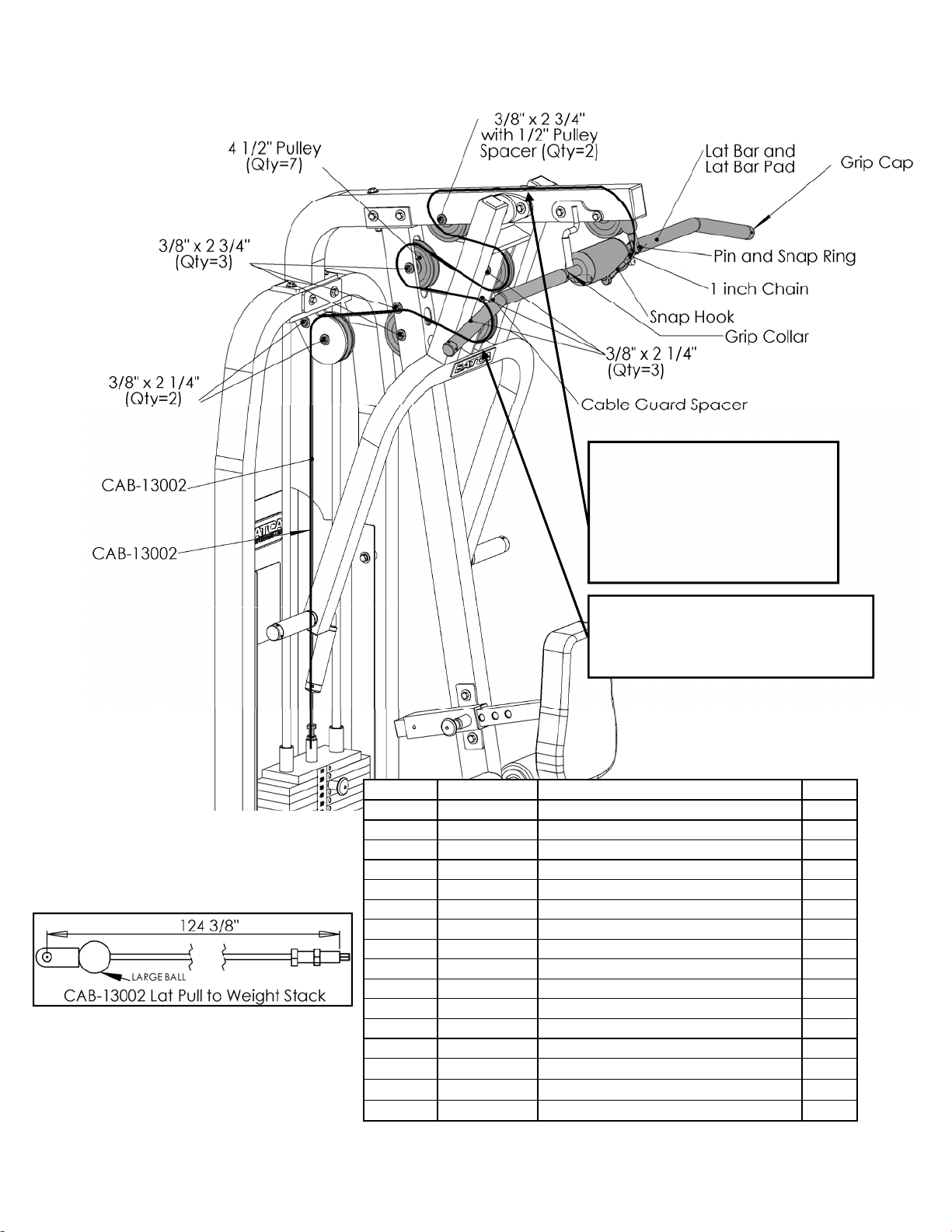

Figure 8
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Step 8:
Item # Part # Description Qty
20 BFM-50651 Cable Guard Spacer 1
22 BFH-50174 4 1/2" Pulley 7
24 BFH-50146 3/8" Flat Washer (Black) 12
25 BFH-50201 1/2" Pulley Spacer 6
27 BFH-50157 3/8"-16 Nylock (Black) 9
31 BFH-50124 HCS 3/8"-16 x 2 3/4" P5 4
35 BFH-50122 HCS 3/8"-16 x 2 1/4" P5 5
41 CAB-13002 Mid Row Lockout to Wt. Stack Cable 1
53 BFC-50125 Lat Bar 1
54 BFC-10101 1 inch Chain 1
55 BFH-50238 Pin 1
56 BFH-50239 Snap Ring 1
57 BFU-10125 Lat Bar Pad 1
58 BFH-50188 Snap Hook 1
70 BFH-50207 1” Grip Cap 2
71 BFH-50208 1” Grip Collar 2
Very Important: The cable MUST go
over the bolts holding the Pillow Block
Bearings to the top. Check this by
using the two holes above the bolts
shown here. Failure to route this
cable correctly will void your
warranty.
Fine Adjustments to the cable tension
can be made here. It is very important to
tighten the jam nut after adjustments.

Mid Row/Lat Pull Combo 16 C-2 Owner's Manual
Final Assembly and Troubleshooting
200lb Stack (Standard) 175lb Stack (Optional)
Weight Stack Decals:
IMPORTANT - Check These Components Before Using Gym:
• Record your serial number on the front of this manual
and keep for your records. The serial number can be
found on the backside of the cage as seen in the figure
to the left.
• Each Cable with a threaded bolt on either end must be threaded at least 1/2” into its
attachment, whether it be a Free Floater, Lockout Free Floater, or the Top Plate of the
weight stack. Each must also be secured with a 1/2” Jam Nut to ensure a safe and proper
connection.
Side Mounted Flange
Bearing BFH-50171
• Wrench Tighten the
two set screws on all
Flange Bearings with
an Allen Wrench.
Top Plate
Guide Rod Lubrication:
• Clean guide rods with a lint-free cloth and apply a thin layer of silicon lubricant (Part # BFH-50262) to each guide rod.
This will ensure a glass smooth performance from your weight stack.

www.batcafitness.com 17 C-2 Owner’s Manual
• Adjust cable to proper tension from the location shown below.
Note: All cables with threaded adjustable ends must have at least 1/2” of the threads threaded in to its
counterpart. It is very important that the 1/2” Jam Nut be wrench tightened to the counterpart to en-
sure that the threaded adjustable end of the cable does not back out of its counterpart.
• Note: If the top plate raises off of the second plate in the weight stack, then the cable tension is too tight. You will
need to take some of the tension out to lower the Top plate flush with the second plate.
Cable Adjustments
Very Important: The cable MUST go
over the bolts holding the Pillow Block
Bearings to the top. Check this by
using the two holes above the bolts
shown here. Failure to route this
cable correctly will void your
warranty.
Fine Adjustments to the cable
tension can be made here. It is very
important to tighten the jam nut after
adjustments.

Mid Row/Lat Pull Combo 18 C-2 Owner's Manual
Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and
excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be
followed.
Clean upholstery, grips, and roller pads with mild soap and water generally after every use. The guide rods, chrome slides and frame
should be cleaned with a cotton cloth. Upon cleaning the guide rods, a thin layer of Silicone or Teflon gel should be applied to each
rod to ensure a glass smooth performance.
An overall inspection should be done before each workout. If the warning and safety decals are worn or have been removed they
should be replaced immediately. The cables and cable systems should be inspected for signs of wear and proper tension. In order to
check cables properly you should carefully run the cable through your fingertips, checking for signs of wear, cracks, burs and thinning
spots. Replace any part at first signs of wear. Cables should be adjusted for proper tension. See assembly instructions for this
detail. All hardware, stops, and adjustments should be checked and tightened as required.
The guide rods on your machine should be cleaned and lubricated regularly. This will ensure a glass smooth performance from your
weight stack. A thin layer of either Silicone or Teflon gel should applied to each rod. Each pillow block bearing and flange bearing
has a grease fittings that must be lubricated regularly. Use general purpose bearing grease and follow the schedule below.
Although cables should be inspected daily, it is important that ALL cables be replaced as directed in the schedule below. Please note
that at any first sign of wear the cable should be replaced immediately.
If there are any questions concerning maintenance, please contact your local Batca dealer or contact Batca Fitness Systems directly
at:
Batca Fitness Systems
[phone]
www.batcafitness.com
Daily Weekly Monthly Quarterly Years
Commercial Home Commercial Home Commercial Home Commercial Home Commercial Home
Clean
Upholstery X X
Hand Grips X X
Roller Pads X X
Guide Rods X X
Chrome Slides X X
Frame X X
Inspect
Overall X X
Safety Decals X X
Cables X X
Cable Tension X X
Pulleys X X
Hardware X X
Stops X X
Upholstery X X
Hand Grips X X
Frame X X
Bushings X X
Bearings X X
Lubricate
Guide Rods X X
Bearings As Needed 1
Replace
Cables 1 3
Preventive Maintenance

www.batcafitness.com 19 C-2 Owner’s Manual
What is covered
For Residential Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and workmanship under nor-
mal use and service for one year from date of purchase including paint, chrome, upholstery and grips. Batca Fitness Sys-
tems also warrants all cables, belts, bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other
hardware for three years after date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for five
years after date of purchase and warrants the frame and all welded parts for the lifetime of the original purchaser.
For Commercial Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and workmanship under nor-
mal use and service for six months from date of purchase including paint, chrome, upholstery and grips. Batca Fitness Sys-
tems also warrants all cables, belts, bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other
hardware for one year after date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for three
years after date of purchase and warrants the frame and all welded parts for ten years after date of purchase.
What is not covered
This warranty does not cover damage, which results from shipping, misuse, abuse, neglect, carelessness, modification or
alteration, accident, fire, flood, “acts of God” or other contingencies beyond the control of Batca Fitness Systems. This war-
ranty also does not cover deterioration from wear and tear or exposure or any defect, which would not have happened if
instructions in the owner’s manual had been followed. Improper installation, improper assembly or follow-up maintenance
along with installation of parts or accessories not originally intended for products of Batca Fitness Systems are also not cov-
ered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty
to apply.
Defective parts will be repaired or replaced at Batca Fitness Systems option, without parts charge to the purchaser. All re-
turns require a return authorization prior to acceptance of repair work. Batca Fitness Systems reserves the right to make
design changes without any prior notification and shall not be responsible for incidental or consequential damages.
The purchaser is responsible for shipping the defective part back to the factory. Repair or replacement is the exclusive and
sole remedy of the purchaser. Labor charges associated with parts changeovers are not covered by this warranty. Proof of
purchase, serial number, model number and date of purchase will be required along with all pertinent information of the al-
leged damage.
This warranty applies only to the original purchaser and is not transferable. Claims under this warranty must be made di-
rectly to Batca Fitness Systems.
Batca Fitness Systems
1207 N. New Hope Road
Raleigh, NC 27610
[phone]
www.batcafitness.com
Please keep this for your records.
Limited Lifetime Warranty

Mid Row/Lat Pull Combo 20 C-2 Owner's Manual
The C-2 has a layout dimension of 3’-0” (width) x 5’-1” (length) x 7’-0” (height). There should be a minimum
of 18”, preferably 24”, of working space around the entire unit.
Layout Diagram
